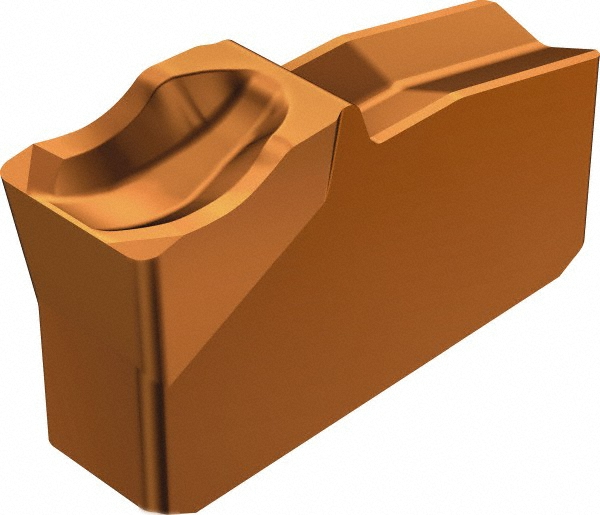

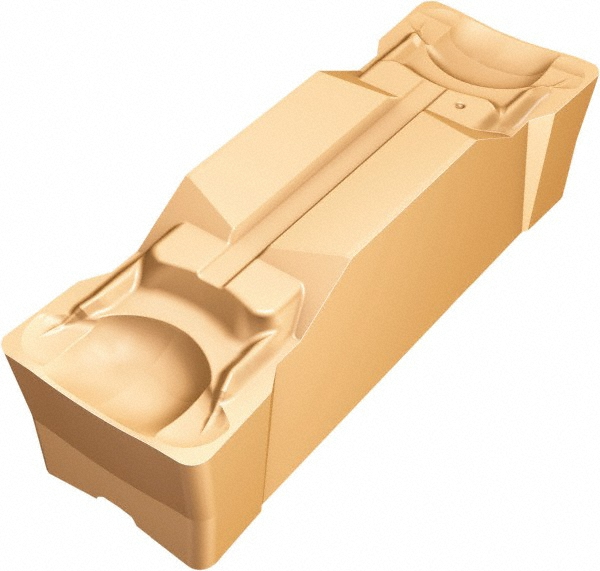

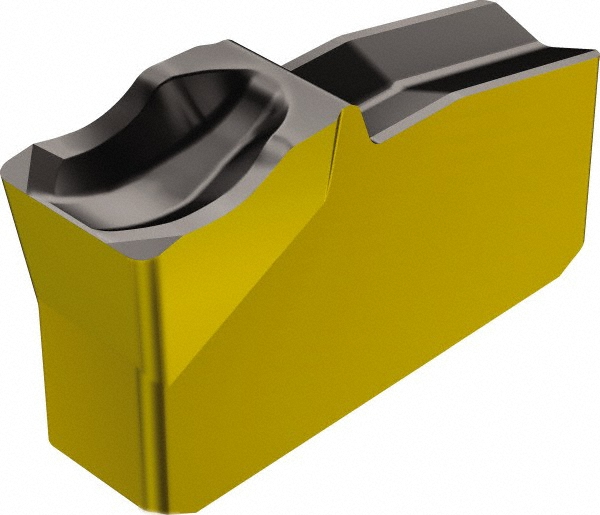

TiAlN Finish, Neutral, 4.00 mm Cutting Width, Series T-Max Q-Cut

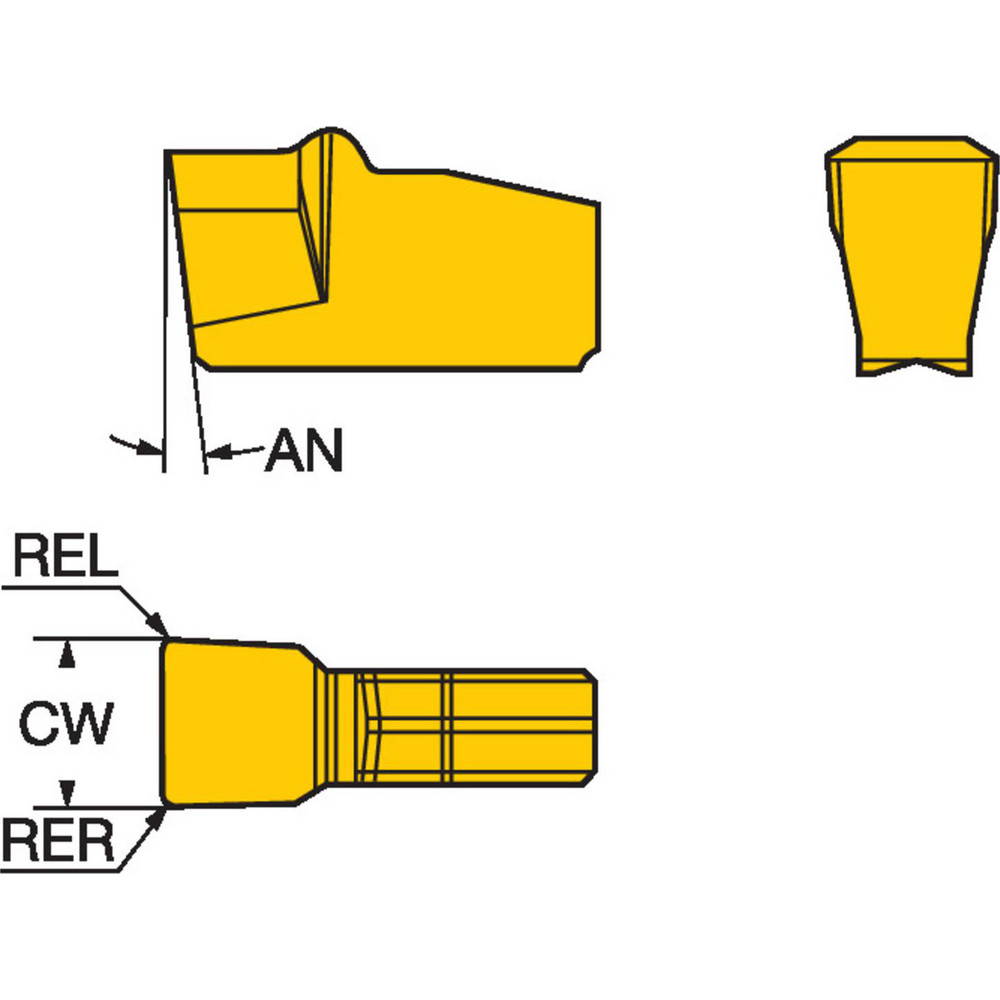

| Insert Style | N151.2 |
|---|---|
| Cutting Width (Decimal Inch) | 0.1575 |
| Cutting Width (mm) | 4.00 |
| Insert Hand | Neutral |
| Insert Material | Carbide |
| Manufacturer Grade | 1125 |
| Corner Radius (Decimal Inch) | 0.0118 |
| Corner Radius (mm) | 0.30 |
| Rake | Neutral |
| Measurement Type | Metric |
| Insert Size | 40 |
| Cutting Height (mm) | 8.11 |
| Cutting Height (Decimal Inch) | 0.3191 |
| Multi-use Tool | Yes |
| Series | T-Max Q-Cut |
| Coating Process | PVD |
| Rake Angle | 7 |
| Overall Length (Decimal Inch) | 0.2677 |
| Iso Code | N151.2-400-40-5G 1125 |
| Manufacturers Catalog Number | N151.2-400-40-5G 1125 |
| Insert Thickness (Decimal Inch) | 0.3191 |
| UNSPSC Code | 23242105 |
| Chip Breaker | 5G |
| Overall Width (mm) | 4.00 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1575 |
| Coating/Finish | TiAlN |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 79140356 |
