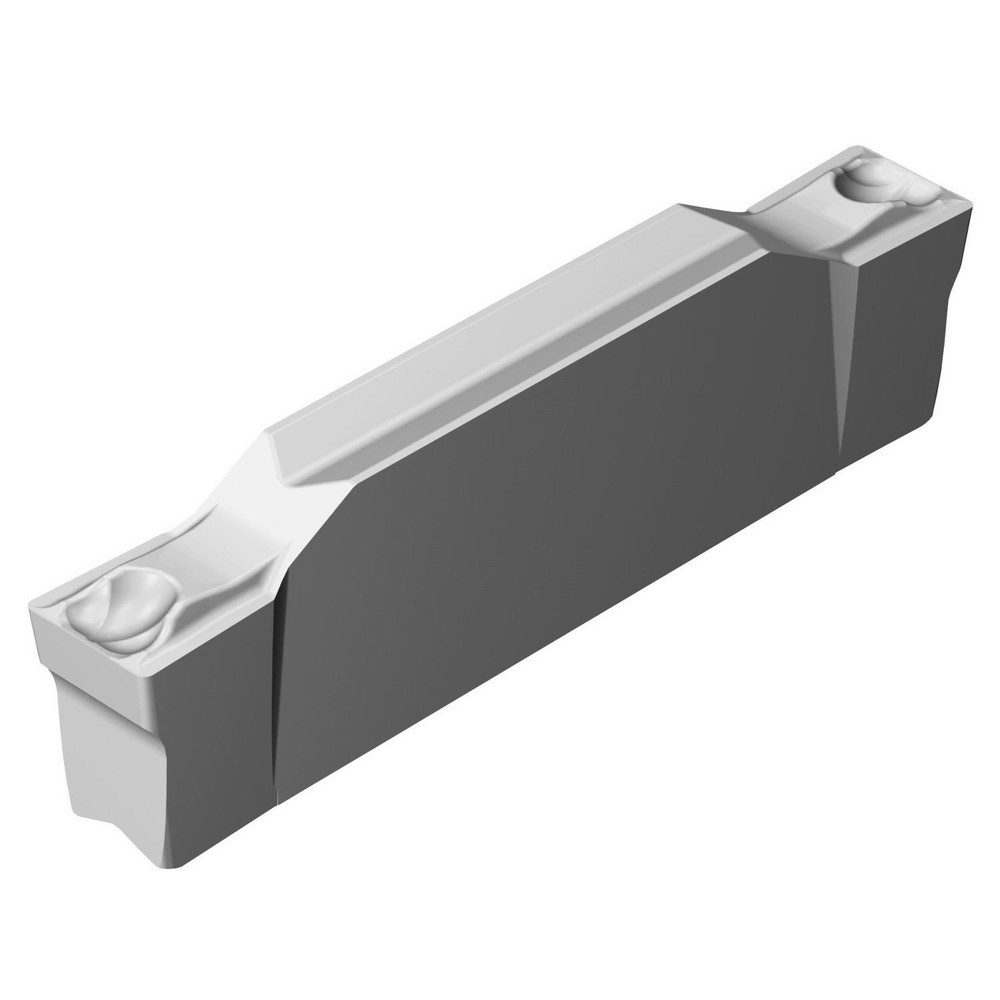

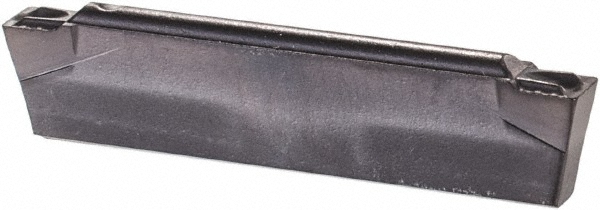

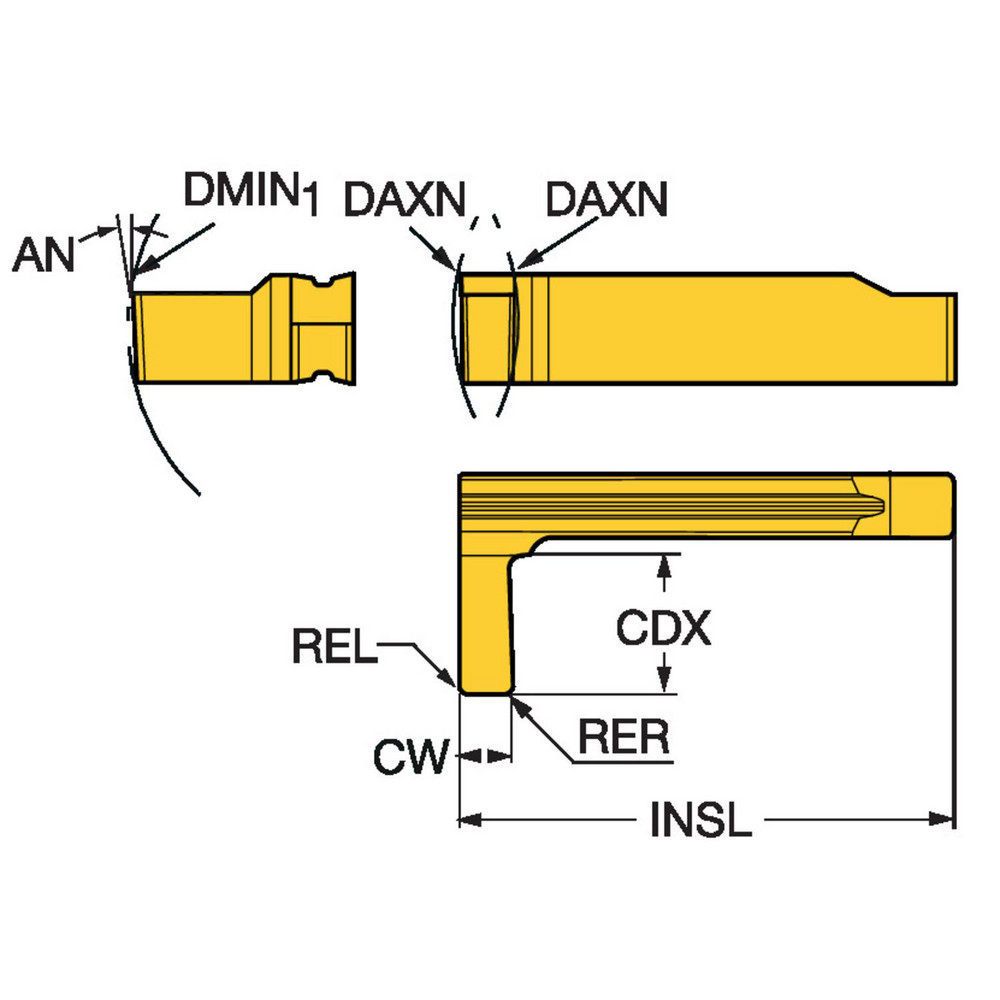

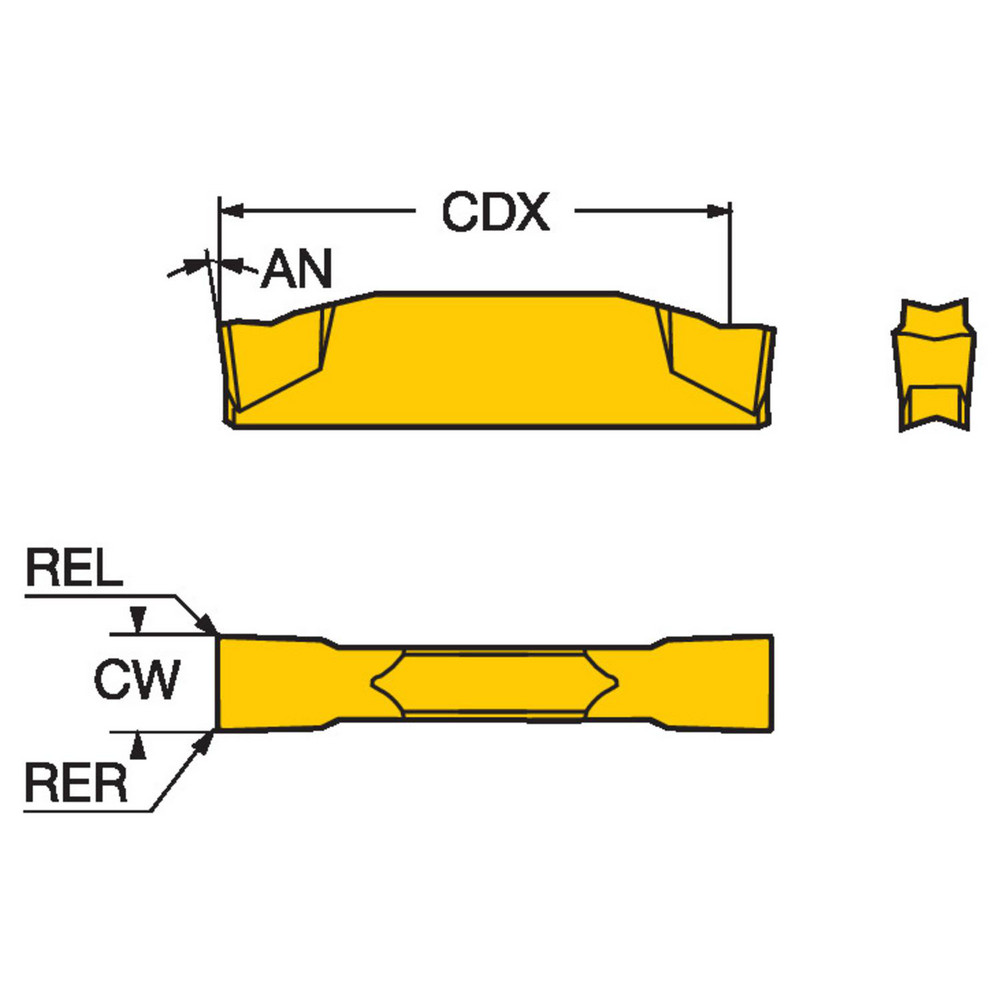

TiAlN & AlCr2O3 Finish, Right Hand, 2.00 mm Cutting Width, 4.00 mm Max Depth, Series CoroCut 1-2
| Insert Style | R/LG123.. |
|---|---|
| Cutting Width (Decimal Inch) | 0.0787 |
| Cutting Width (mm) | 2.00 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 4.00 |
| Insert Material | Carbide |
| Manufacturer Grade | 1115 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Rake | Neutral |
| Measurement Type | Metric |
| Insert Size | HX |
| Cutting Height (mm) | 4.35 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.1500 to 0.2000 |
| Cutting Height (Decimal Inch) | 0.1713 |
| Maximum Depth Of Cut Range (mm) | 4.00 to 5.00 |
| Lead Angle | 90 |
| Multi-use Tool | Yes |
| Series | CoroCut 1-2 |
| Coating Process | PVD |
| Rake Angle | 7 |
| Overall Length (Decimal Inch) | 1.0059 |
| Iso Code | RG123H1-0200-0002-GS1115 |
| Manufacturers Catalog Number | RG123H1-0200-0002-GS1115 |
| Insert Thickness (Decimal Inch) | 0.1713 |
| UNSPSC Code | 23242105 |
| Chip Breaker | GS |
| Insert Seat Size | HX |
| Overall Width (mm) | 2.00 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.0787 |
| Coating/Finish | AlCr2O3; TiAlN |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 52079456 |
