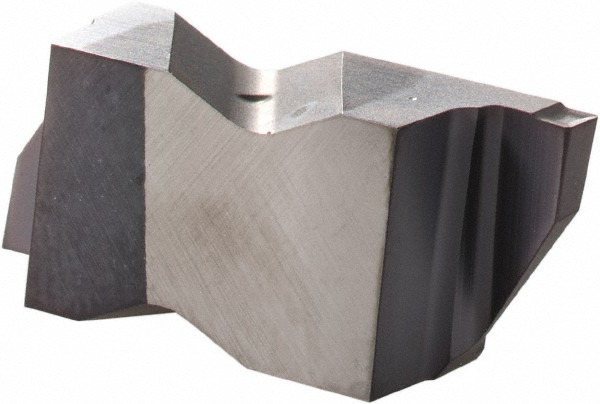

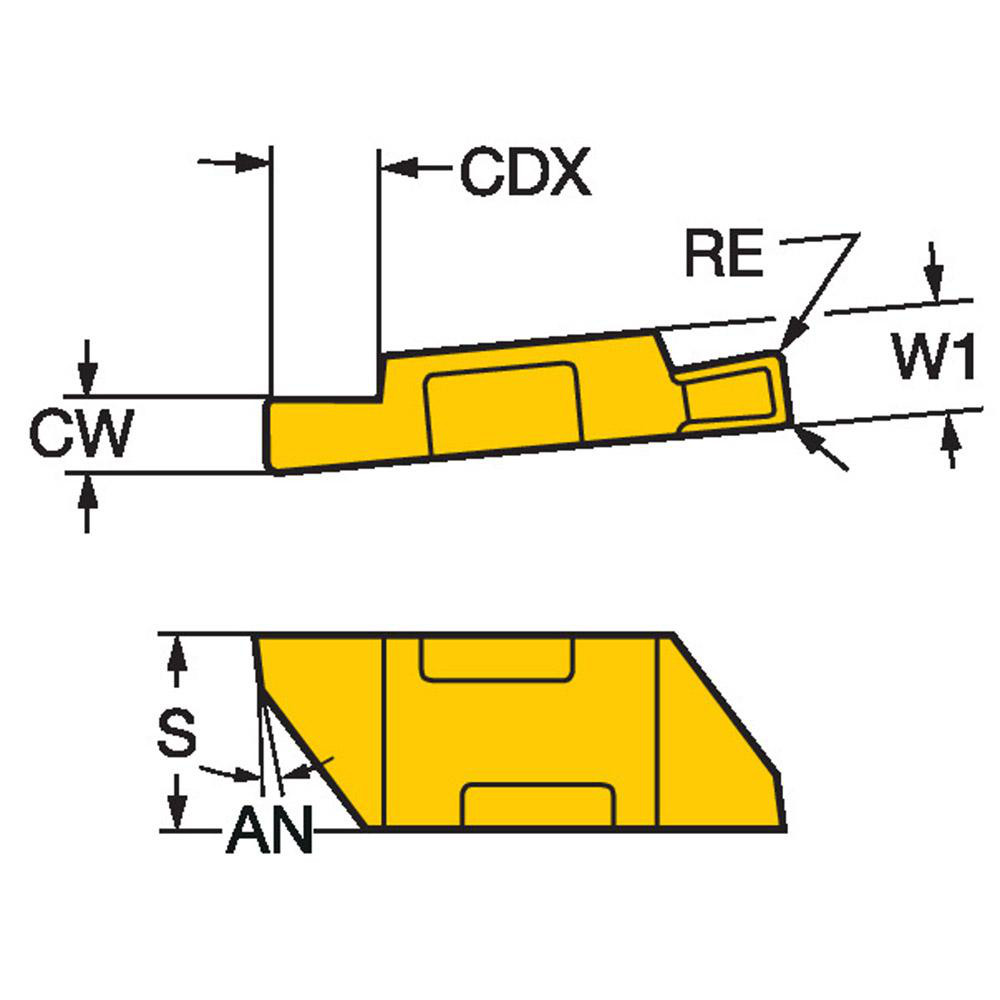

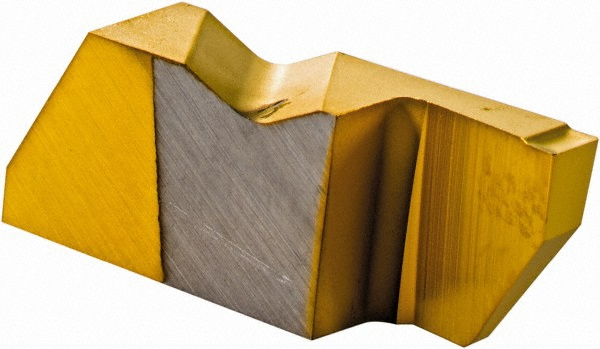

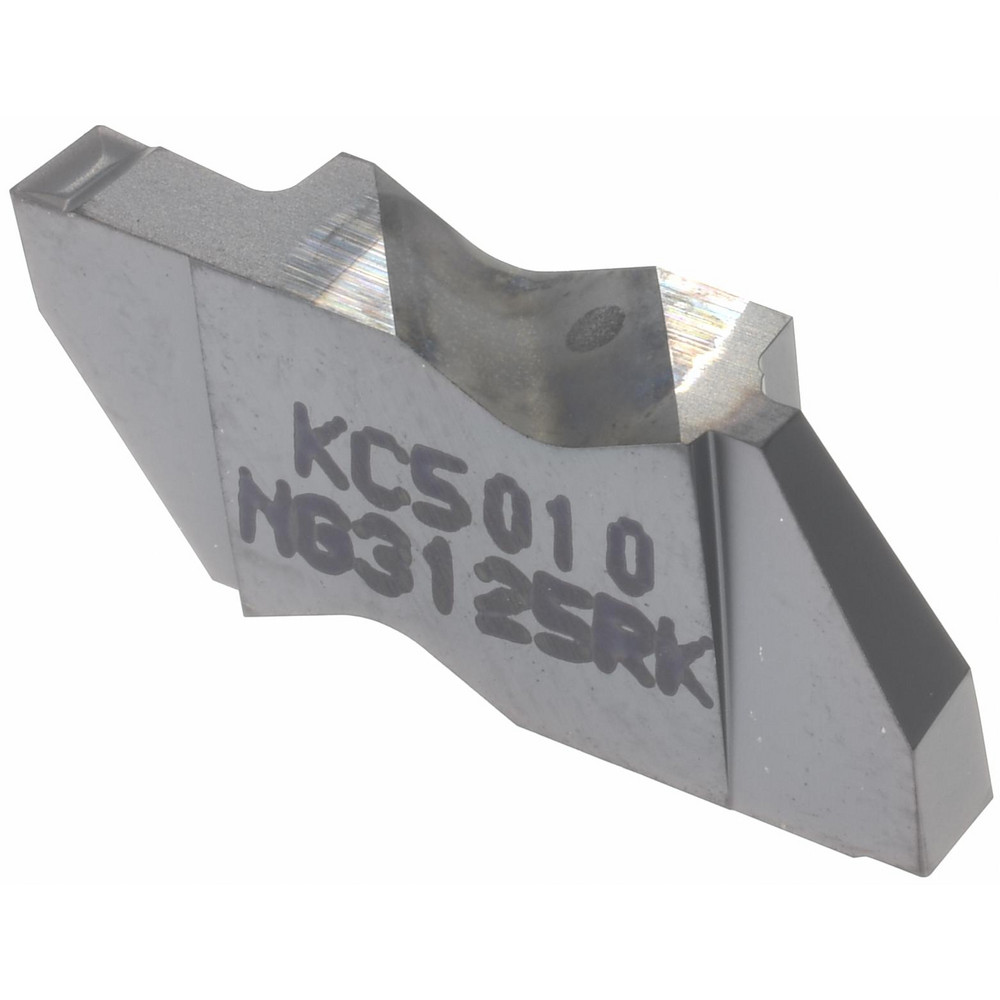

TiCrAlN & TiAlN Finish, Right Hand, 1.57 mm Cutting Width, 2.39 mm Max Depth, Series Top Lok
| Insert Style | TLG |
|---|---|
| Cutting Width (Decimal Inch) | 0.0620 |
| Cutting Width (mm) | 1.57 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0940 |
| Maximum Depth of Cut (mm) | 2.39 |
| Insert Material | Carbide |
| Manufacturer Grade | 1125 |
| Corner Radius (Decimal Inch) | 0.0075 |
| Corner Radius (mm) | 0.19 |
| Rake | Neutral |
| Measurement Type | Metric |
| Insert Size | 3 |
| Cutting Width (Inch) | 1/16 |
| Maximum Depth of Cut (Inch) | 3/32 |
| Cutting Height (mm) | 8.74 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.0750 to 0.1000 |
| Cutting Height (Decimal Inch) | 0.3440 |
| Maximum Depth Of Cut Range (mm) | 2.00 to 3.00 |
| Multi-use Tool | Yes |
| Series | Top Lok |
| Coating Process | PVD |
| Rake Angle | 10 |
| Overall Length (Decimal Inch) | 0.6339 |
| Iso Code | TLG-3062R 1125 |
| Manufacturers Catalog Number | TLG-3062R 1125 |
| Insert Thickness (Decimal Inch) | 0.3440 |
| UNSPSC Code | 23242105 |
| Overall Width (mm) | 1.57 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.062 |
| Coating/Finish | TiCrAlN; TiAlN |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 54976048 |
