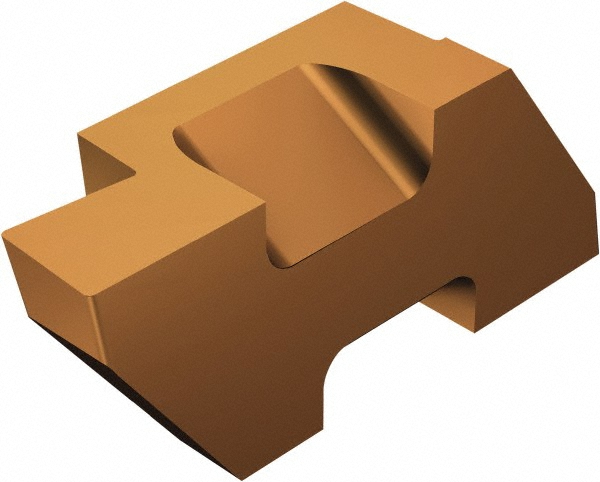

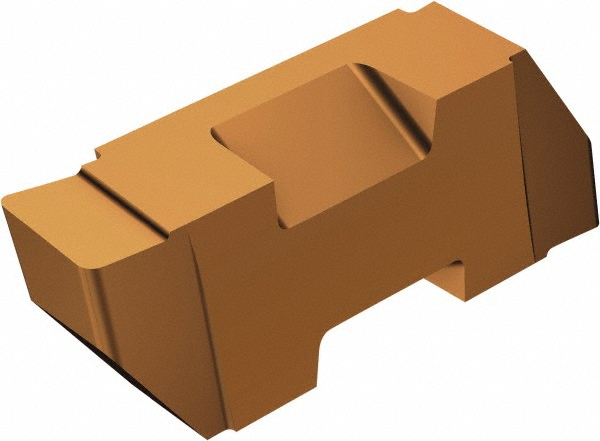

TiCrAlN & TiAlN Finish, Right Hand, 3.17 mm Cutting Width, 3.81 mm Max Depth, Series Top Lok
| Insert Style | TLG |
|---|---|
| Cutting Width (Decimal Inch) | 0.1250 |
| Cutting Width (mm) | 3.17 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1500 |
| Maximum Depth of Cut (mm) | 3.81 |
| Insert Material | Carbide |
| Manufacturer Grade | 1125 |
| Corner Radius (Decimal Inch) | 0.0075 |
| Corner Radius (mm) | 0.19 |
| Rake | Neutral |
| Measurement Type | Metric |
| Insert Size | 3 |
| Cutting Width (Inch) | 1/8 |
| Cutting Height (mm) | 8.74 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.1500 to 0.2000 |
| Cutting Height (Decimal Inch) | 0.3440 |
| Maximum Depth Of Cut Range (mm) | 3.00 to 4.00 |
| Multi-use Tool | Yes |
| Series | Top Lok |
| Coating Process | PVD |
| Rake Angle | 10 |
| Overall Length (Decimal Inch) | 0.6339 |
| Iso Code | TLG-3125R 1125 |
| Manufacturers Catalog Number | TLG-3125R 1125 |
| Overall Width (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.3440 |
| UNSPSC Code | 23242105 |
| Overall Width (mm) | 3.17 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.125 |
| Coating/Finish | TiCrAlN; TiAlN |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 45337706 |
