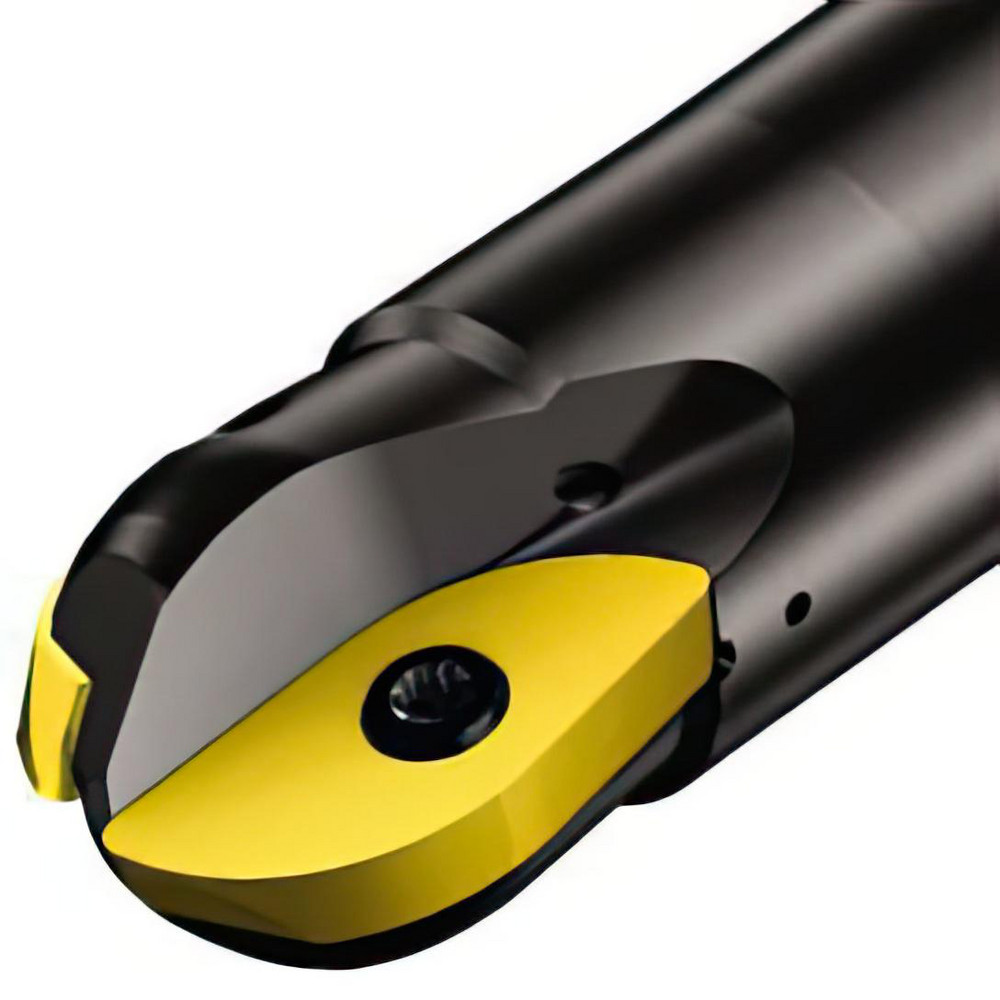

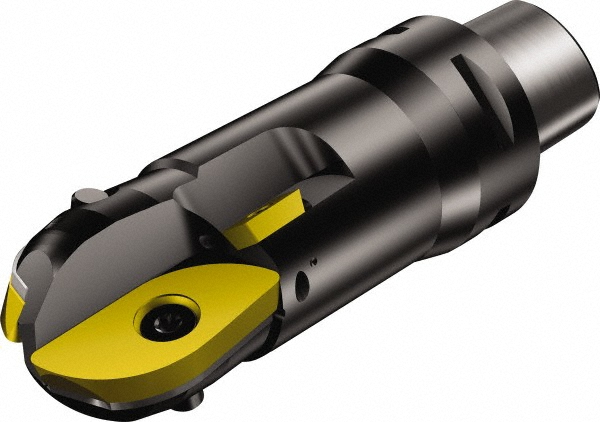

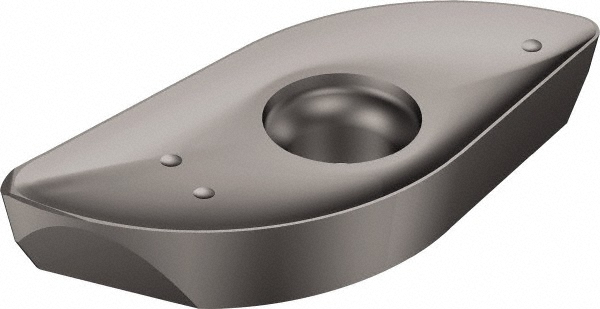

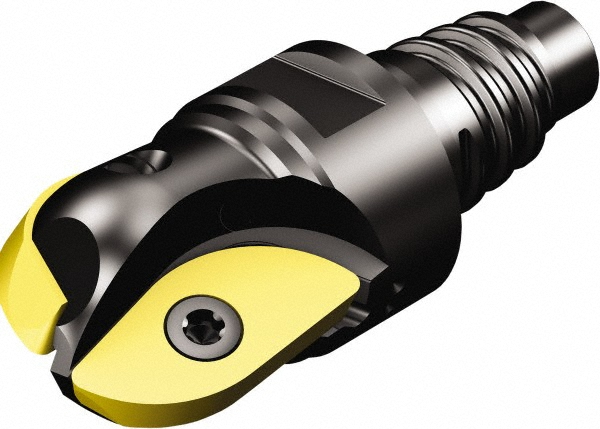

Uses APMT 160408-M & RA216-32 06 Inserts, Weldon Flat Shank, Through Coolant
| Cutting Diameter (Decimal Inch) | 1.2500 |
|---|---|
| Tool Material | Steel |
| Maximum Depth of Cut (Decimal Inch) | 1.1140 |
| Shank Type | Weldon Flat |
| Insert Holding Method | Screw |
| Compatible Insert Style | APMT 160408-M; RA216-32 06 |
| Toolholder Style | RA216.. M |
| Overall Length (Decimal Inch) | 6.2811 |
| Series | CoroMill 216 |
| Head Length (Decimal Inch) | 6.2811 |
| Maximum RPM | 18500 |
| Weldon Flat | Yes |
| Number of Side Inserts Used on Toolholder | 2 |
| Neck Diameter (Decimal Inch) | 1.2500 |
| Projection (Decimal Inch) | 4.0000 |
| Projection (Inch) | 4 |
| Cutting Diameter (Inch) | 1-1/4 |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
| Number of Ball Nose Inserts | 2 |
| UNSPSC Code | 27112803 |
| Country of Origin | France |
| MSC Number | MSC# 54952510 |
