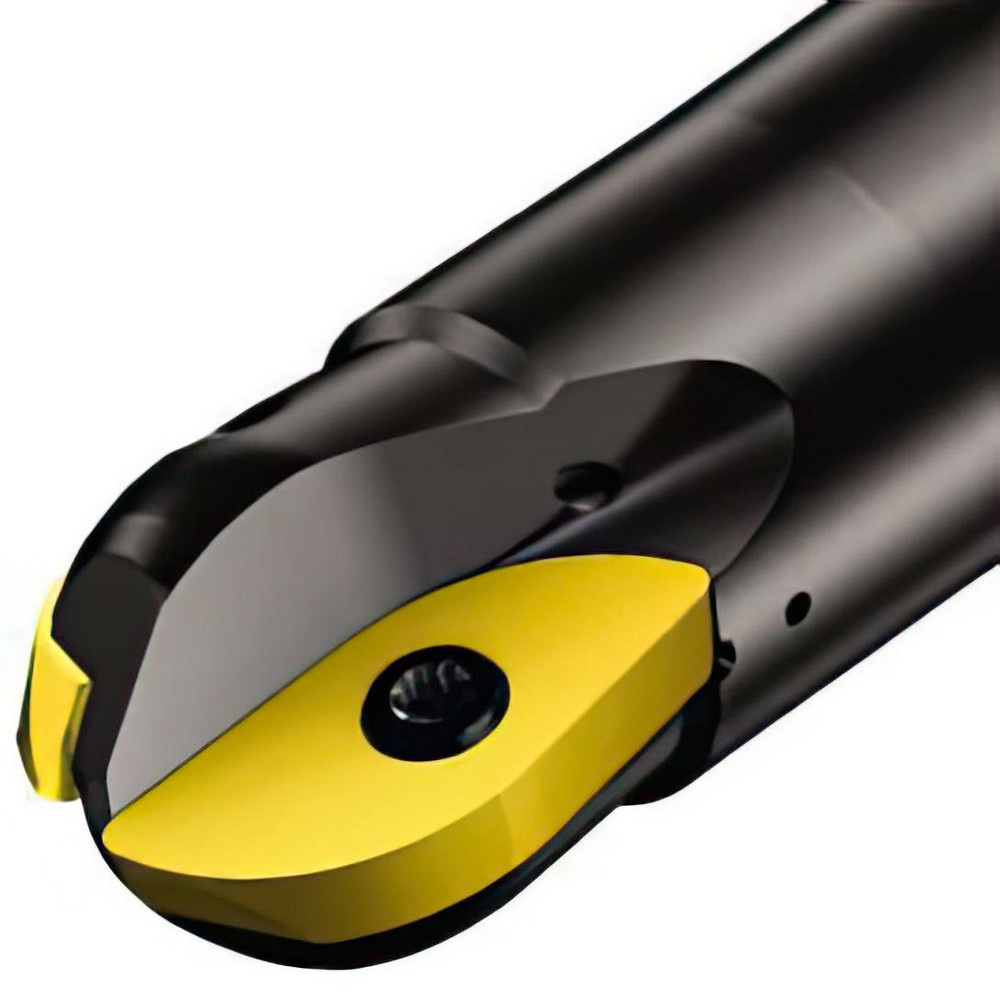

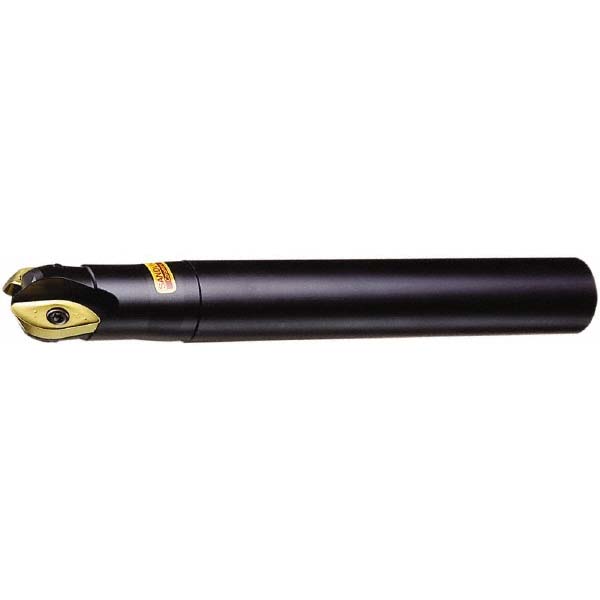

Uses R216-32 06 Inserts, 1.2598" Weldon Flat Shank, Through Coolant
| Cutting Diameter (Decimal Inch) | 1.2598 |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Tool Material | Steel |
| Maximum Depth of Cut (Decimal Inch) | 1.1260 |
| Maximum Depth of Cut (mm) | 28.60 |
| Shank Type | Weldon Flat |
| Shank Diameter (Inch - 0 Decimals) | 1.2598 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Shank Diameter (mm) | 32.00 |
| Insert Holding Method | Screw |

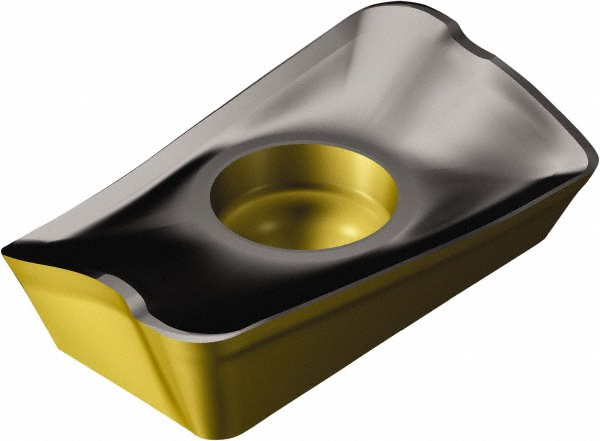

| Compatible Insert Style | R216-32 06 |
| Toolholder Style | R216.. B |
| Overall Length (Decimal Inch) | 5.1575 |
| Overall Length (mm) | 131.00 |
| Series | CoroMill 216 |
| Head Length (mm) | 50.00 |
| Head Length (Decimal Inch) | 1.9685 |
| Maximum RPM | 18500 |
| Weldon Flat | Yes |
| Number of Side Inserts Used on Toolholder | 2 |
| Neck Diameter (Decimal Inch) | 1.2598 |
| Projection (Decimal Inch) | 2.7953 |
| Projection (mm) | 71.00 |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
| Number of Ball Nose Inserts | 2 |
| UNSPSC Code | 27112803 |
| Country of Origin | Sweden |
| MSC Number | MSC# 54948302 |
