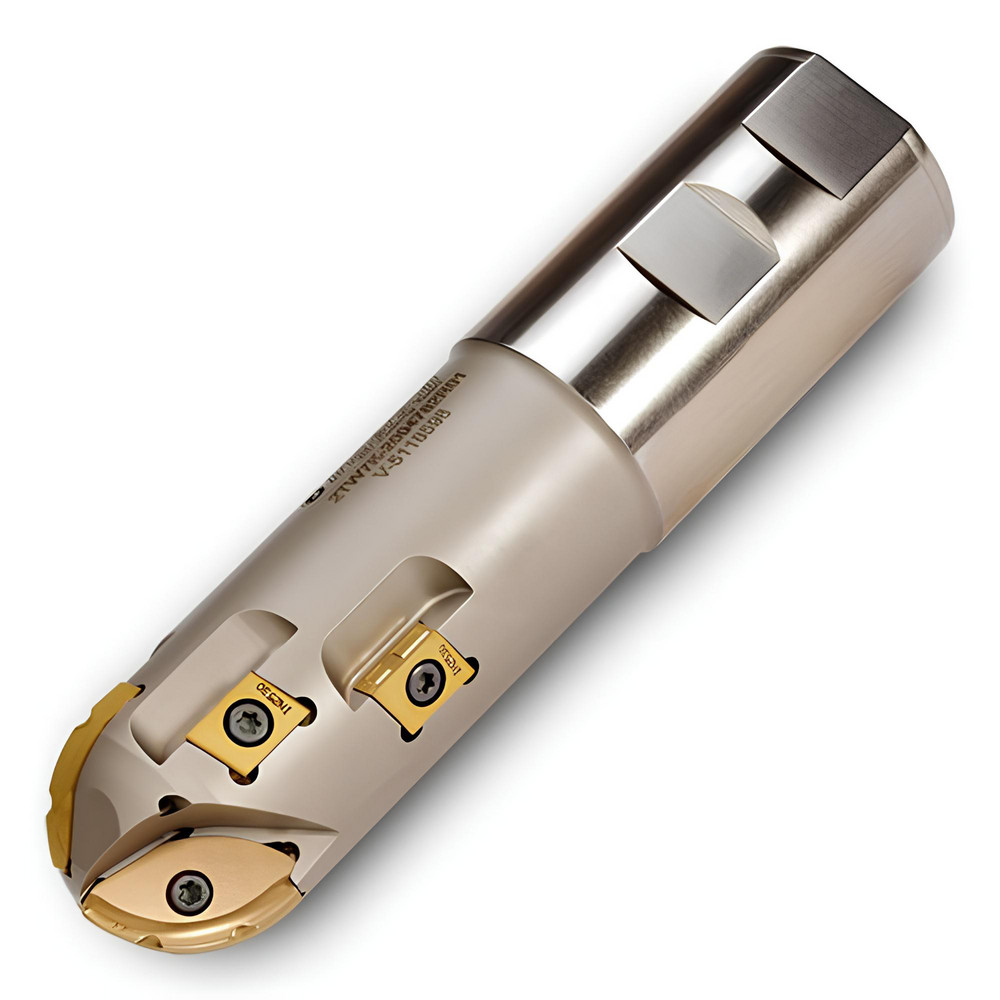

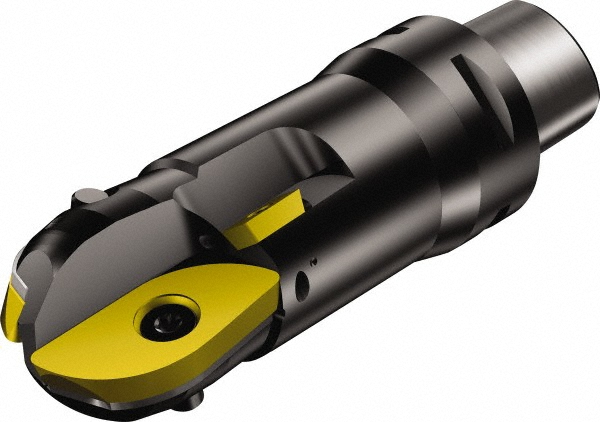

Uses RA216-51 07 Inserts, Weldon Flat Shank, Through Coolant

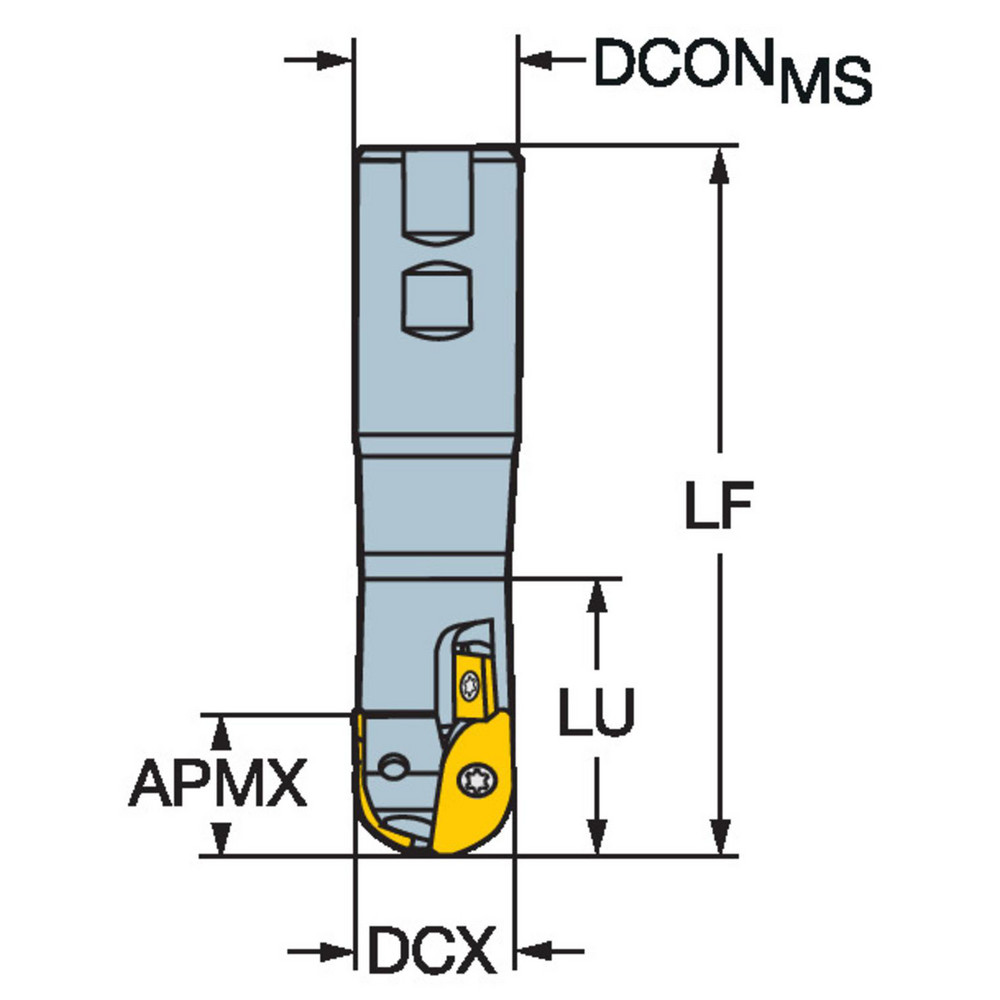

| Cutting Diameter (Decimal Inch) | 2.0000 |
|---|---|
| Tool Material | Steel |
| Maximum Depth of Cut (Decimal Inch) | 1.7910 |
| Shank Type | Weldon Flat |
| Insert Holding Method | Screw |
| Compatible Insert Style | RA216-51 07 |
| Toolholder Style | RA216.. M |
| Overall Length (Decimal Inch) | 6.6874 |
| Series | CoroMill 216 |
| Head Length (Decimal Inch) | 6.6874 |
| Maximum RPM | 7000 |
| Weldon Flat | Yes |
| Number of Side Inserts Used on Toolholder | 2 |
| Neck Diameter (Decimal Inch) | 1.5000 |
| Projection (Decimal Inch) | 4.0000 |
| Projection (Inch) | 4 |
| Cutting Diameter (Inch) | 2 |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
| Number of Ball Nose Inserts | 2 |
| UNSPSC Code | 27112803 |
| Country of Origin | Sweden |
| MSC Number | MSC# 49336548 |
