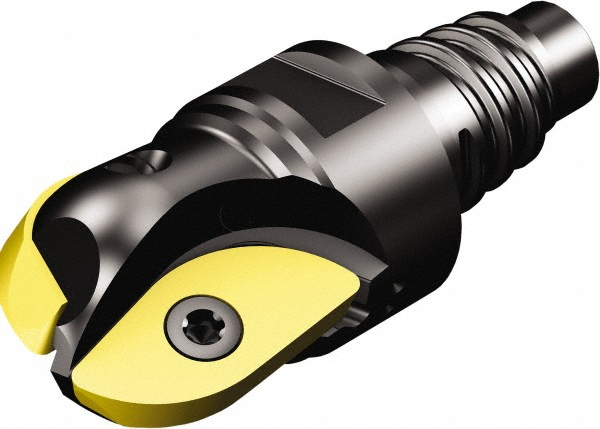

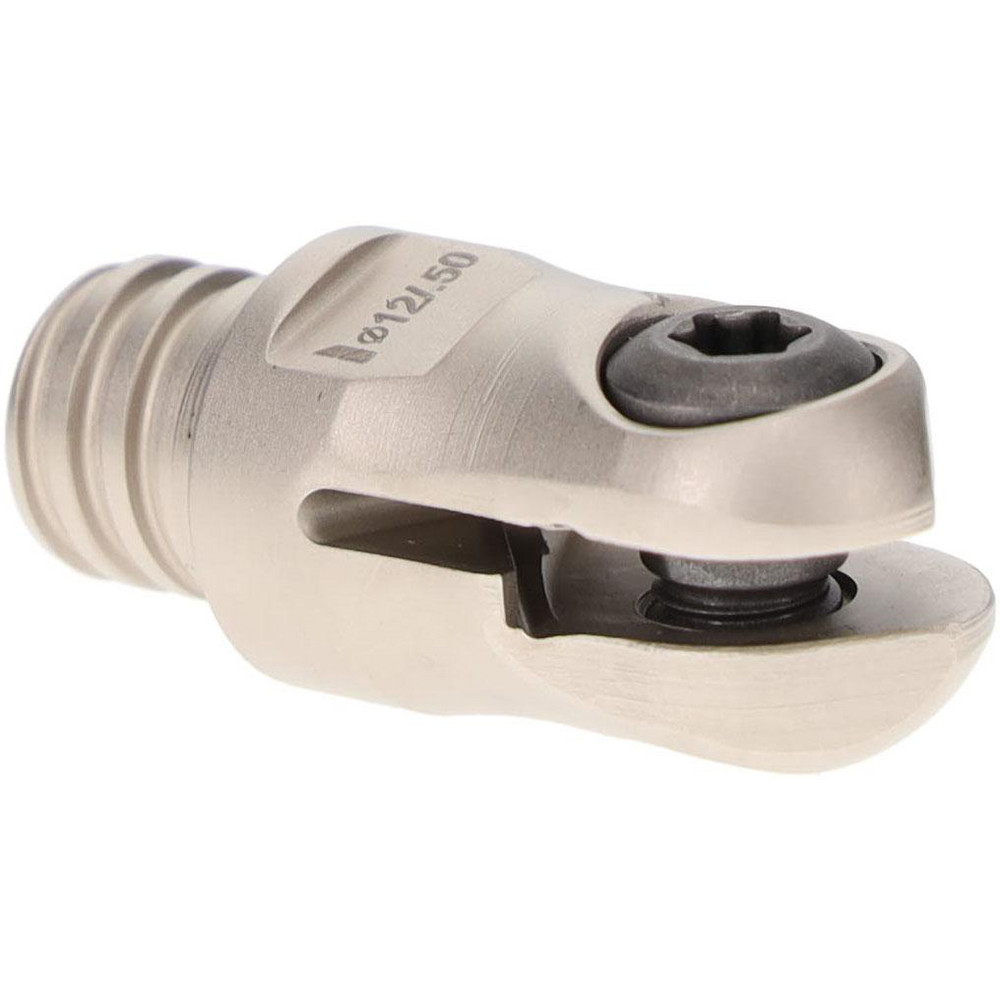

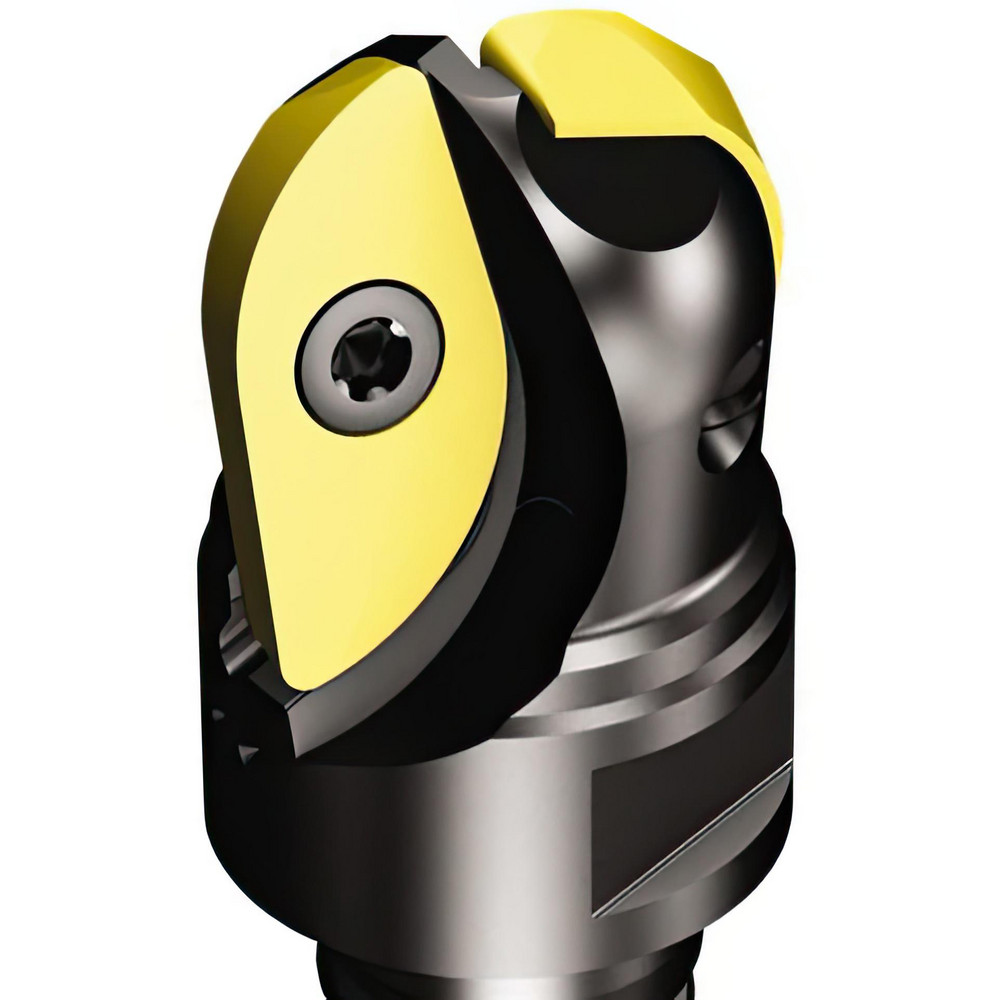

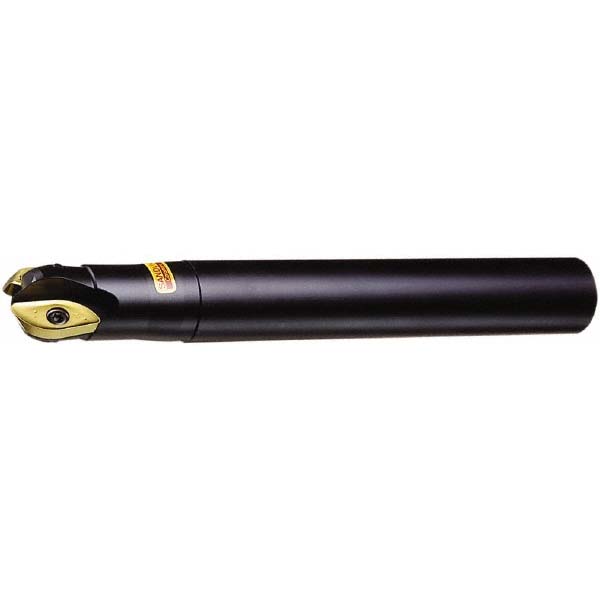

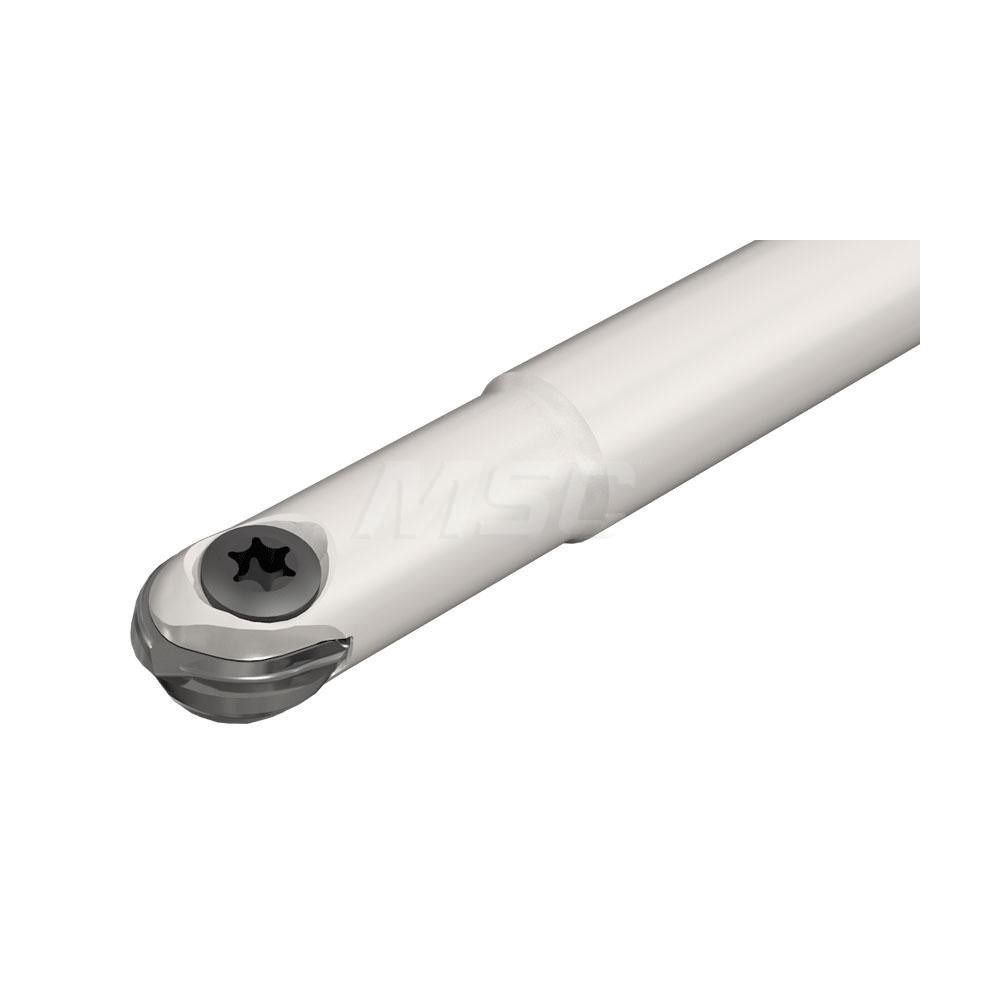

Uses RA216-10 02 Inserts, 9.25 mm Modular Shank
| Cutting Diameter (Decimal Inch) | 0.3750 |
|---|---|
| Tool Material | Steel |
| Maximum Depth of Cut (Decimal Inch) | 0.3100 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 9.25 |
| Insert Holding Method | Screw |
| Modular Connection Thread Size | E10 |
| Compatible Insert Style | RA216-10 02 |
| Toolholder Style | RA216.. EH |
| Overall Length (Decimal Inch) | 1.2284 |
| Series | CoroMill 216 |
| Head Length (mm) | 20.00 |
| Head Length (Decimal Inch) | 0.7874 |
| Maximum RPM | 12700 |
| Weldon Flat | Yes |
| Number of Side Inserts Used on Toolholder | 2 |
| Neck Diameter (Decimal Inch) | 0.3642 |
| Projection (Decimal Inch) | 0.7874 |
| Cutting Diameter (Inch) | 3/8 |
| Number Of Flutes | 2 |
| Coolant Through | No |
| Number of Ball Nose Inserts | 2 |
| UNSPSC Code | 27112803 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 54949334 |
