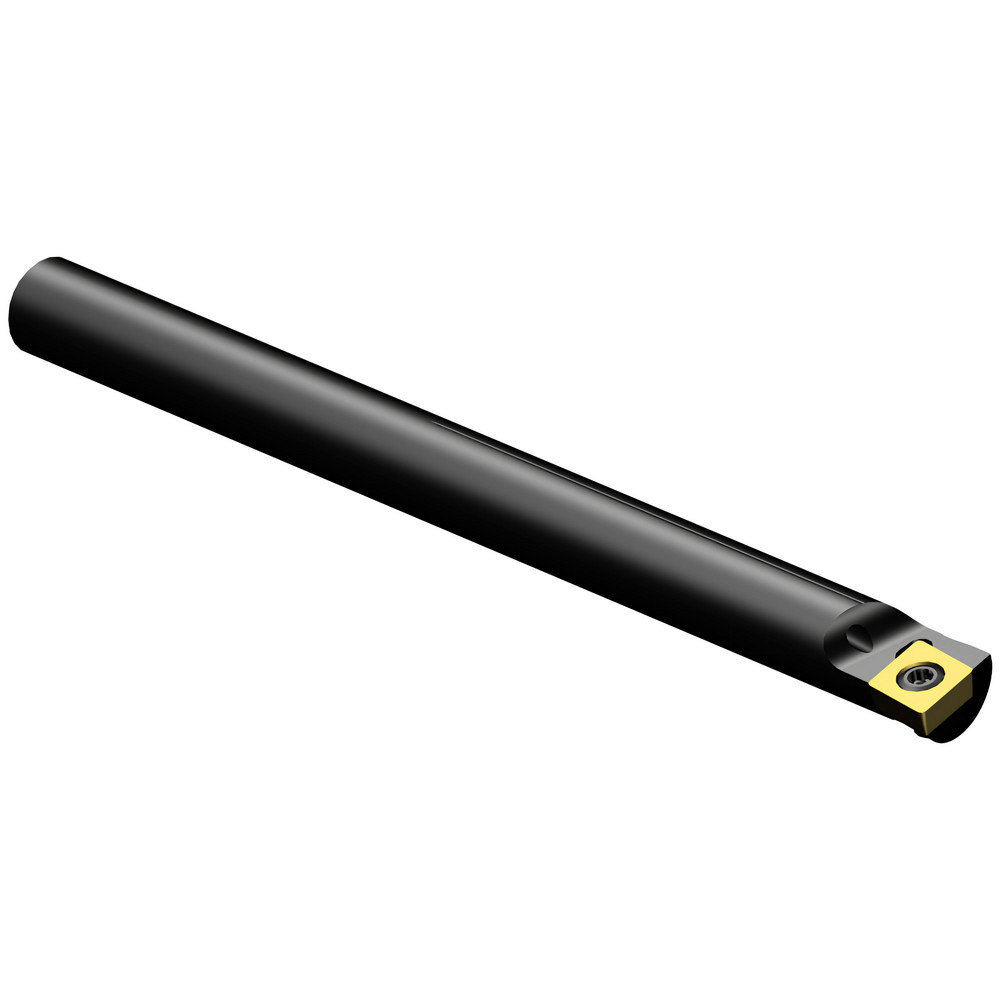

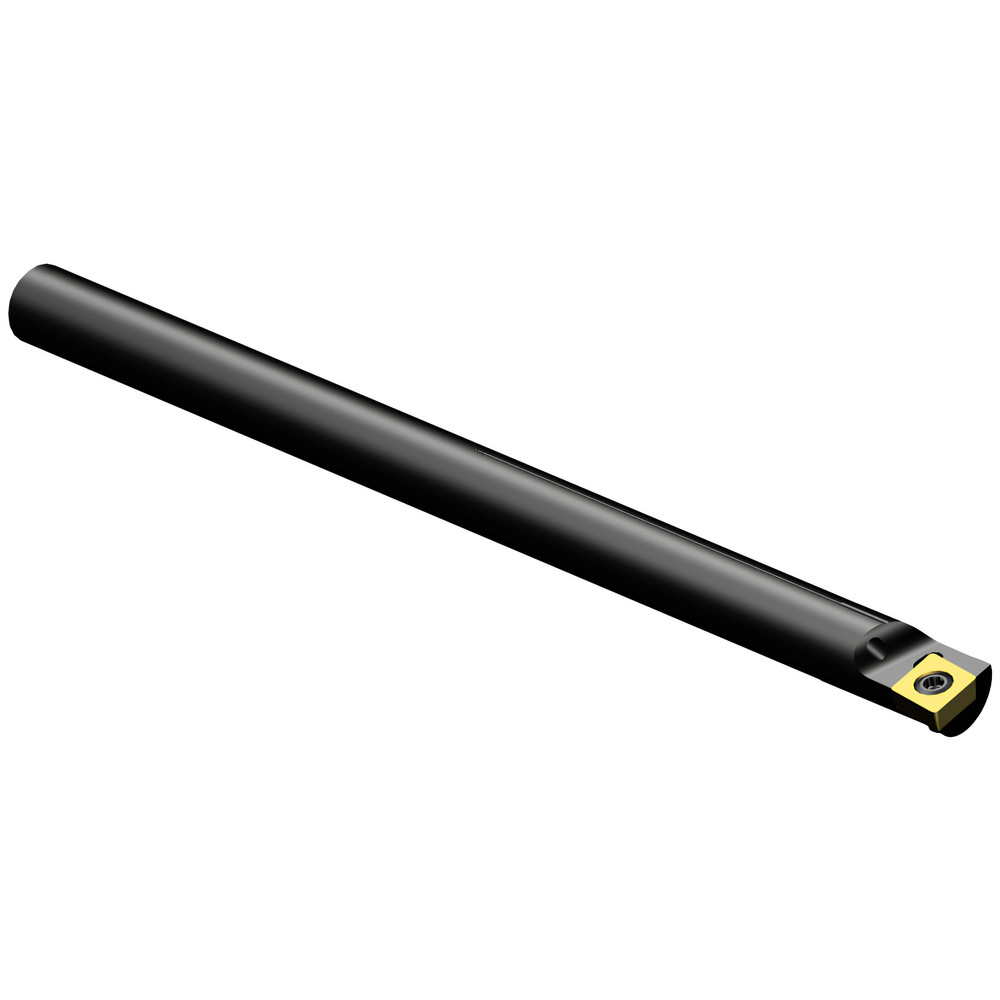

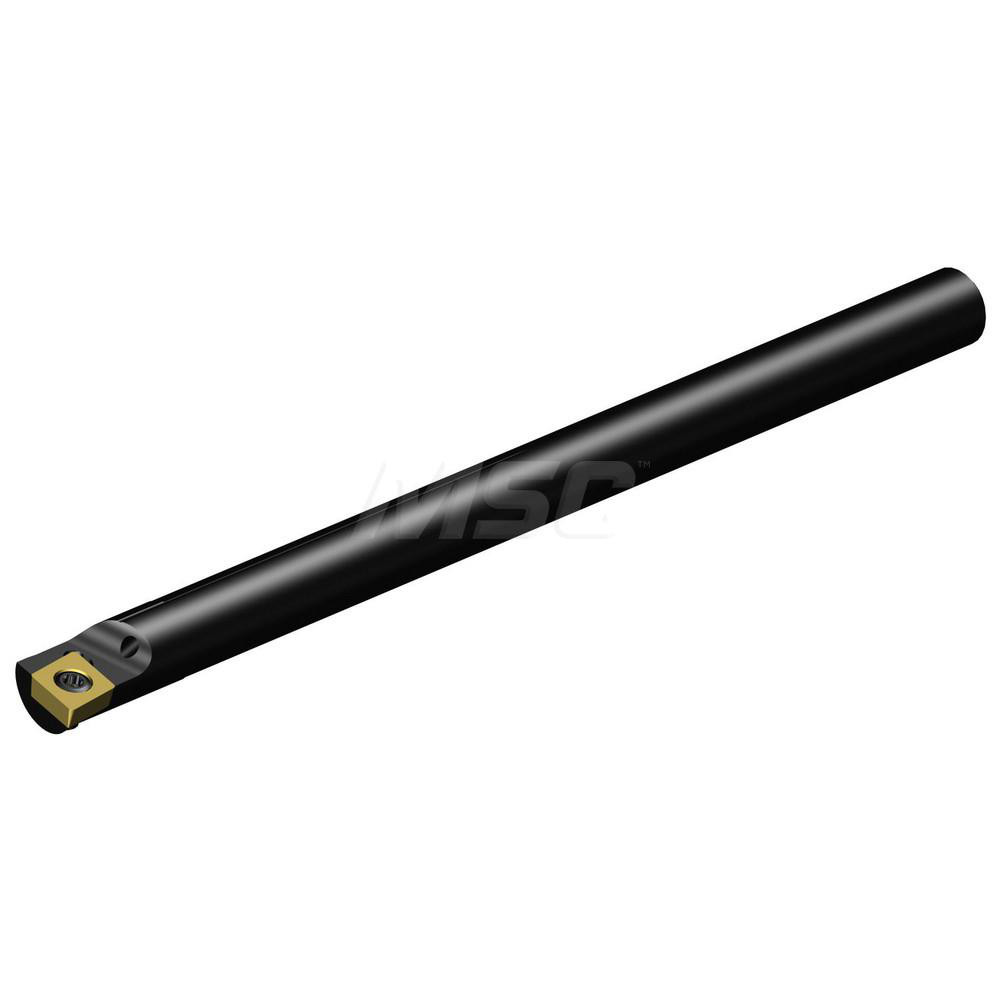

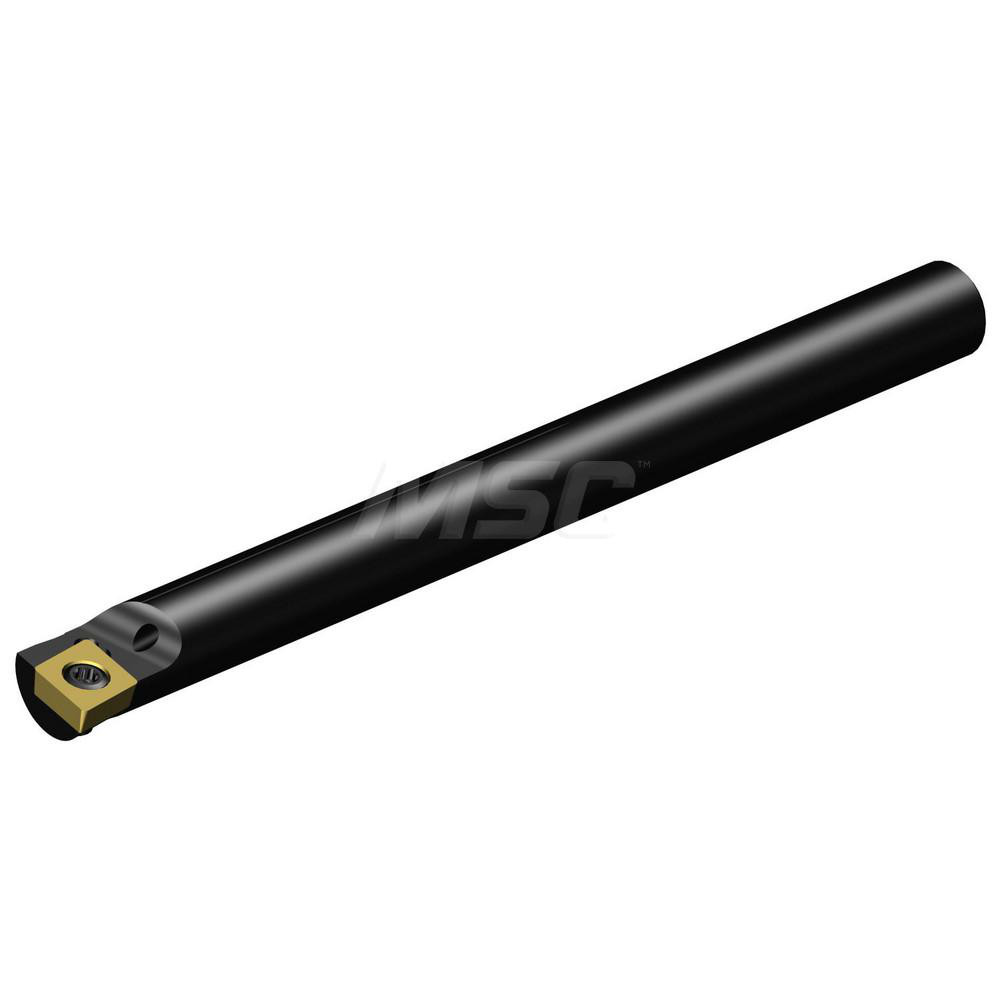

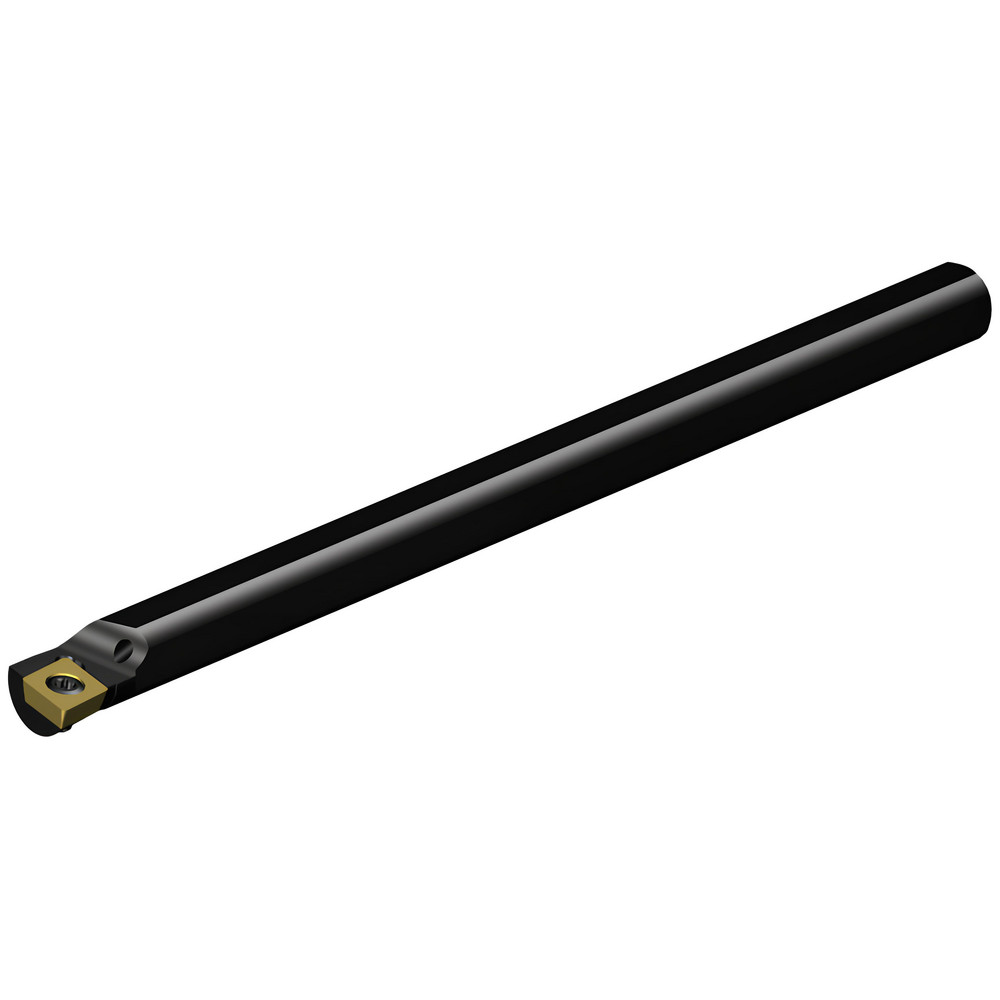

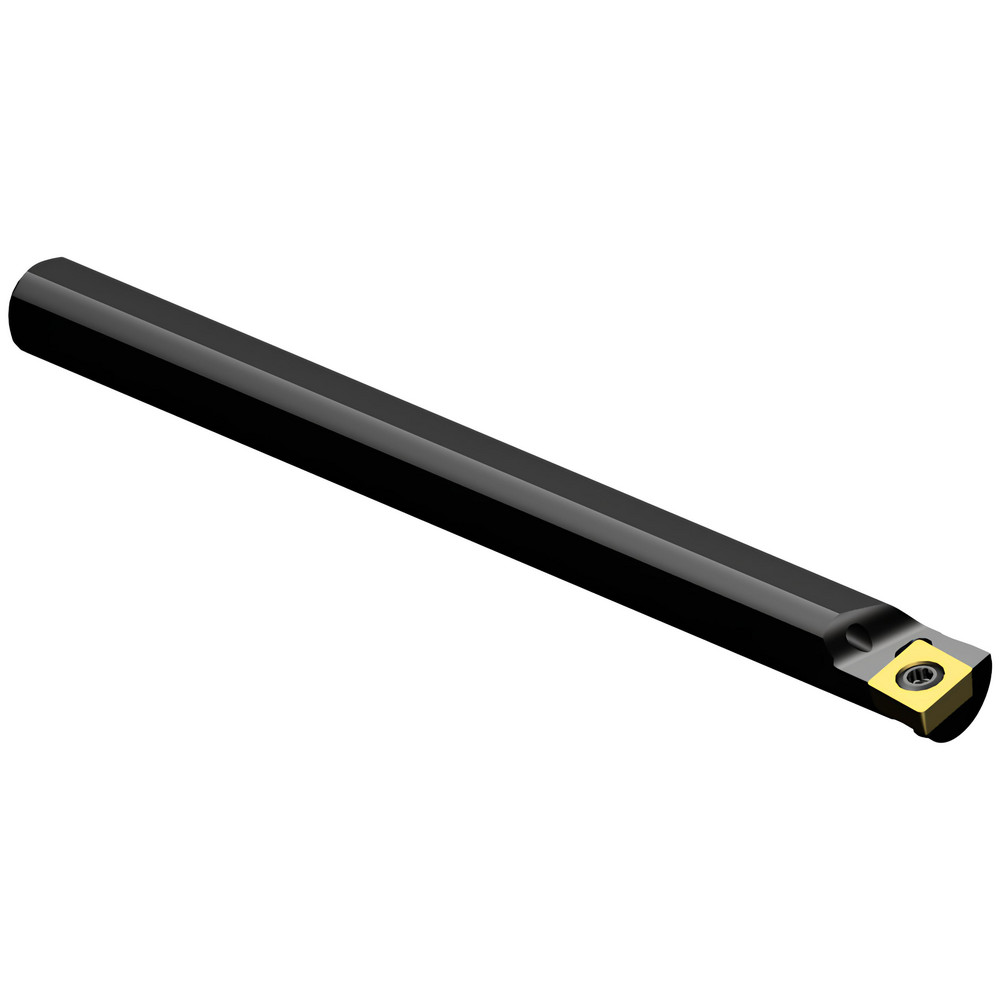

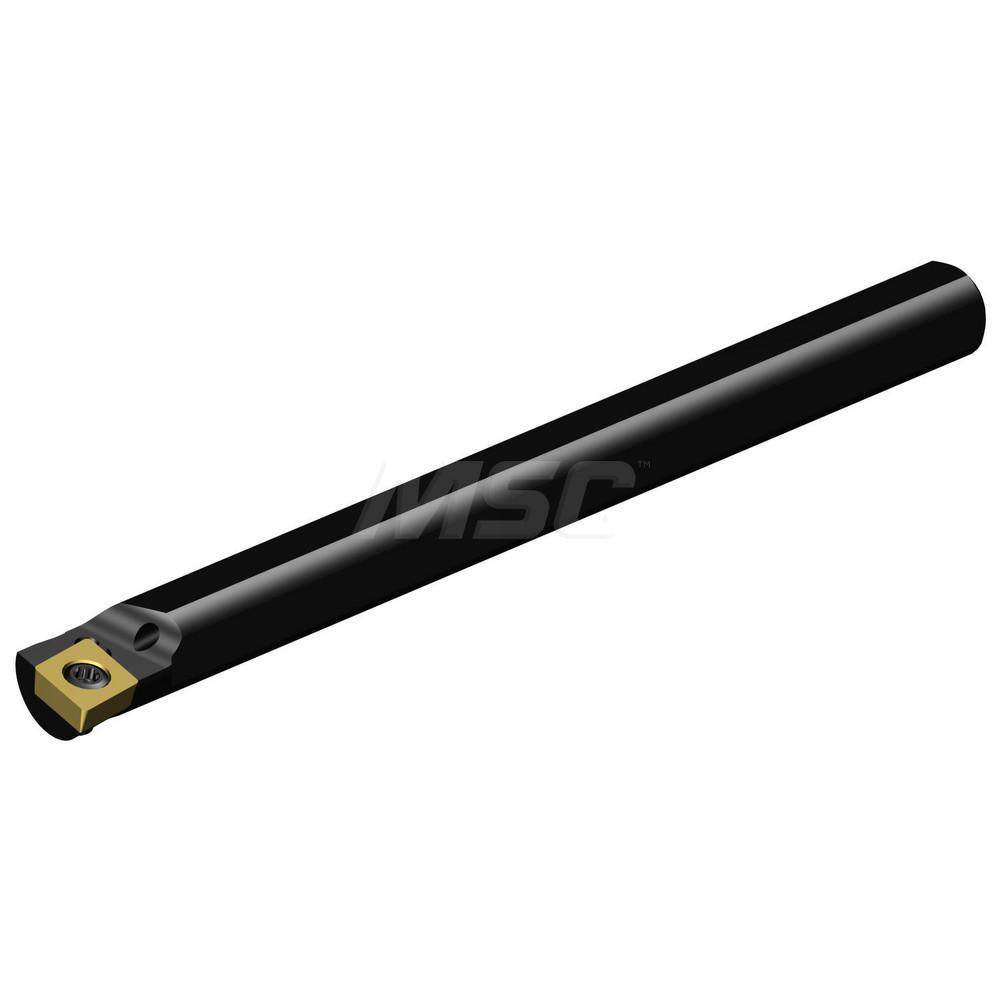

100.00 mm OAL, Screw & Clamp, Uses CCMT 06 02 04 & CCMT 2(1.5)1 Inserts

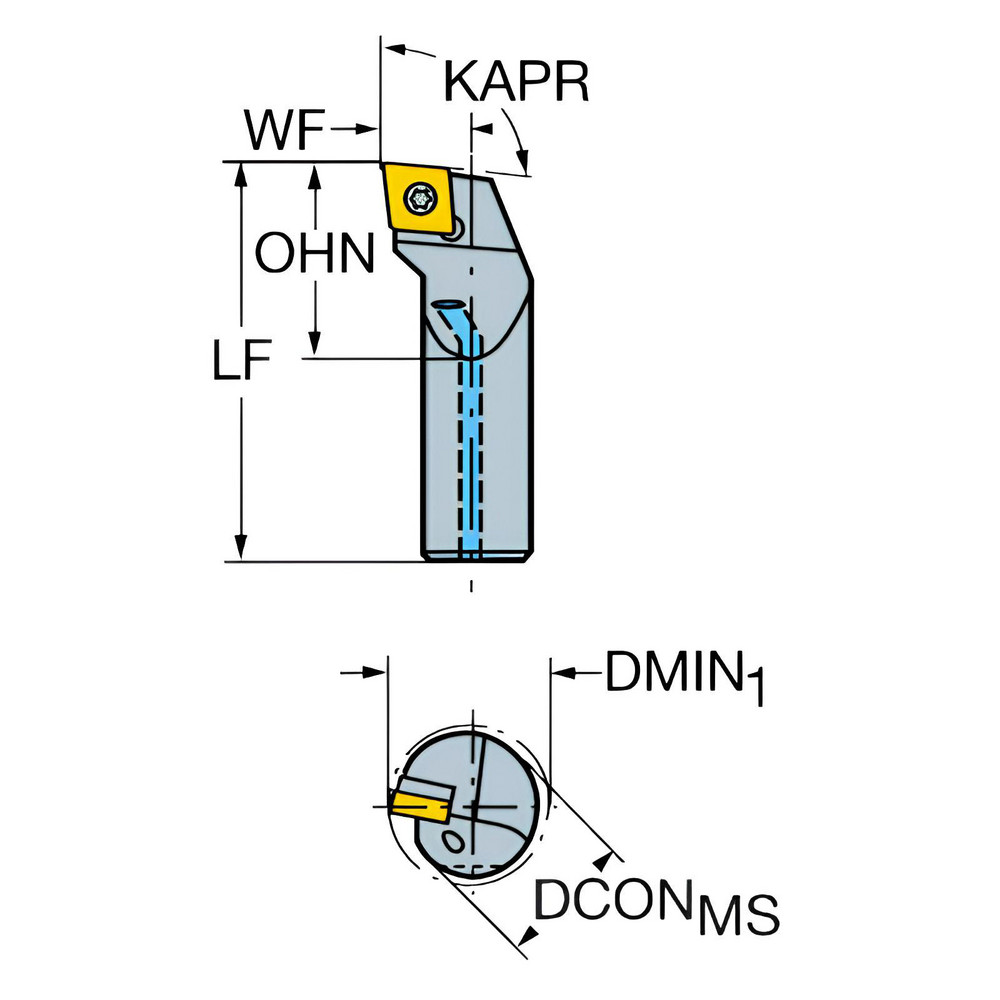

| Minimum Bore Diameter (mm) | 10.00 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.3937 |
| Toolholder Style | A..SCLCR/L -R |
| Tool Material | Steel |

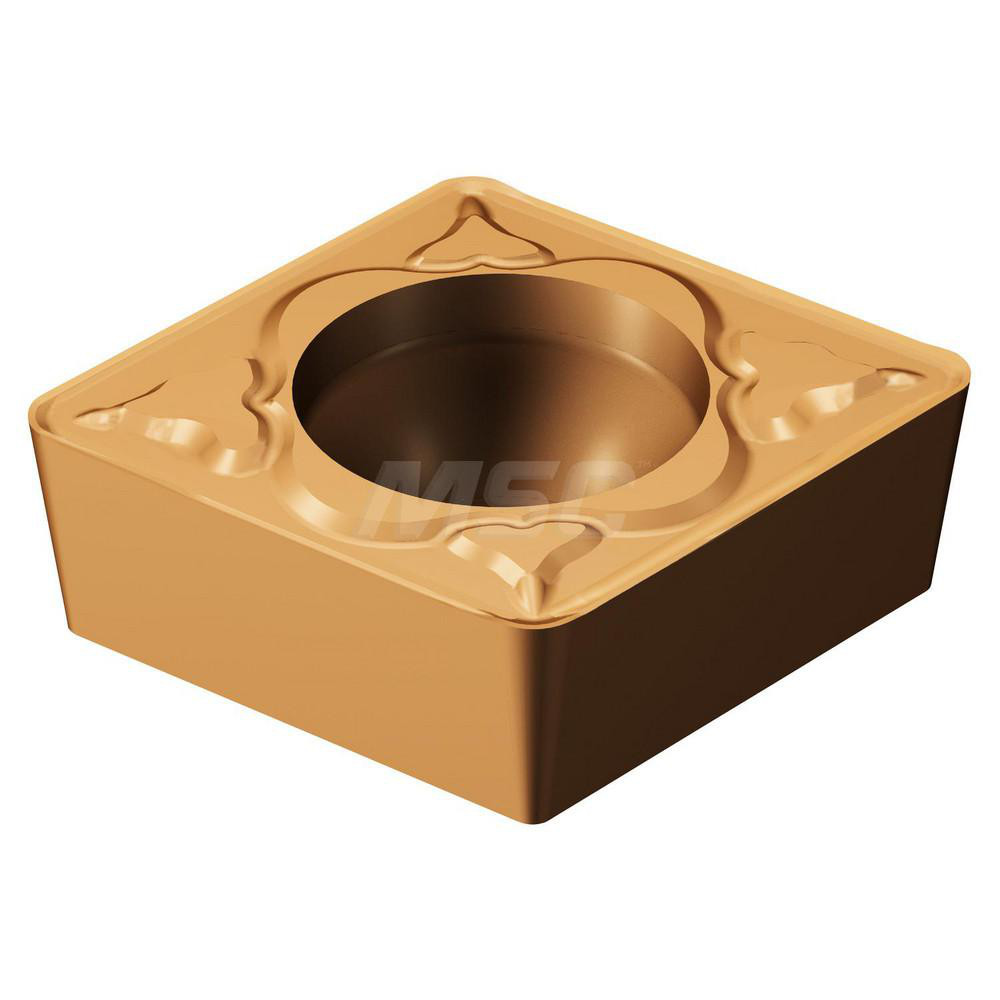

| Insert Compatibility | CCMT 06 02 04; CCMT 2(1.5)1 |
| Shank Diameter (mm) | 8.00 |
| Hand of Holder | Left Hand |
| Overall Length (Decimal Inch) | 3.9370 |
| Overall Length (mm) | 100.00 |
| Insert Holding Method | Screw; Clamp |
| Rake | Neutral |
| Rake Angle | 0.00 |
| Lead Angle | -5 |
| Series | CoroTurn 107 |
| Back of Bar to Cutting Edge (Decimal Inch) | 3.9370 |
| Back of Bar to Cutting Edge (mm) | 100.00 |
| Center to Cutting Edge (Decimal Inch) | 0.1969 |
| Center to Cutting Edge (mm) | 5.00 |
| Neck Diameter (Decimal Inch) | 0.3150 |
| UNSPSC Code | 23241601 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 49623119 |
