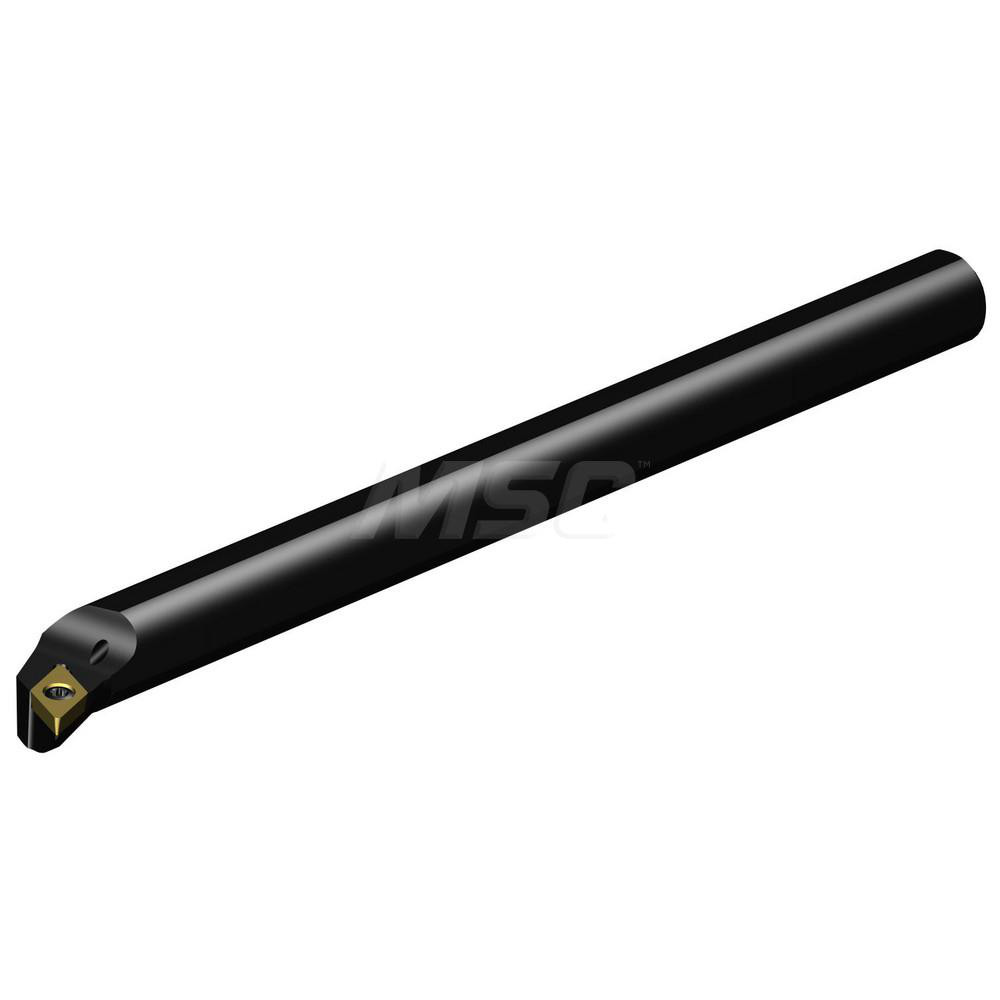

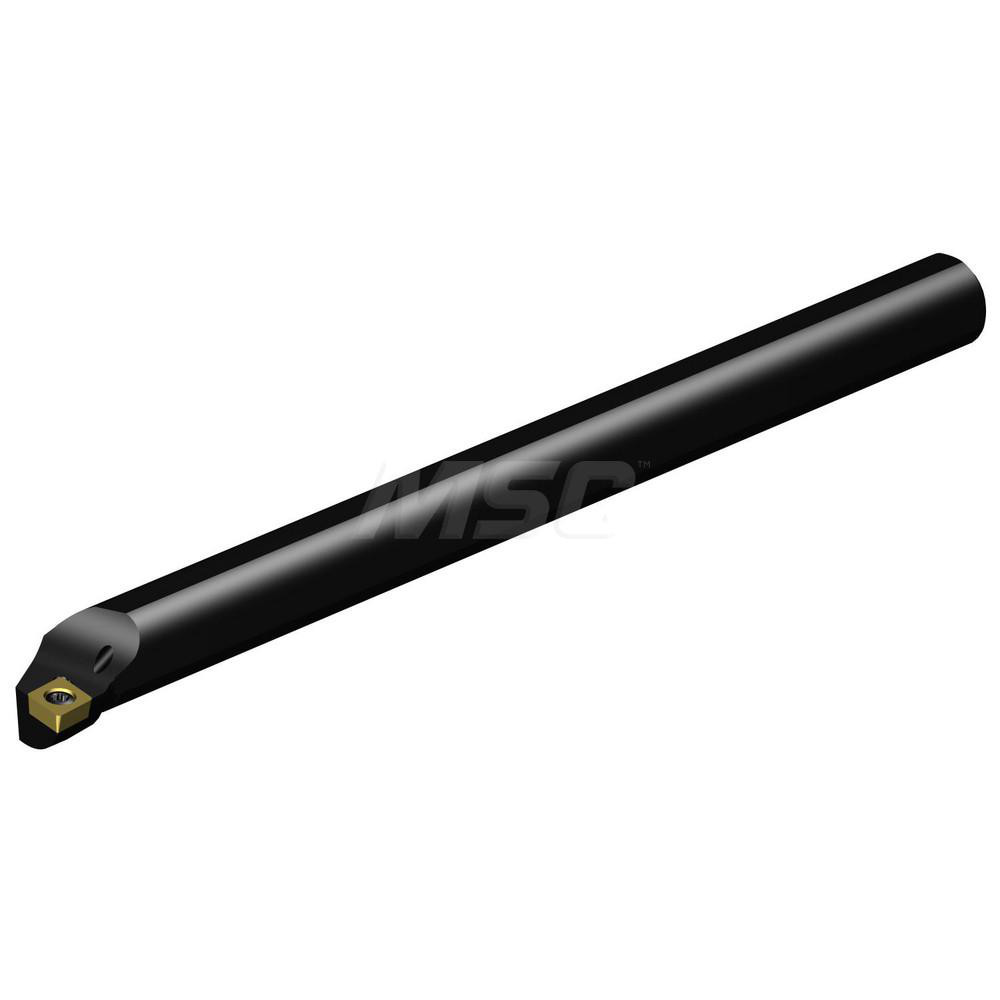

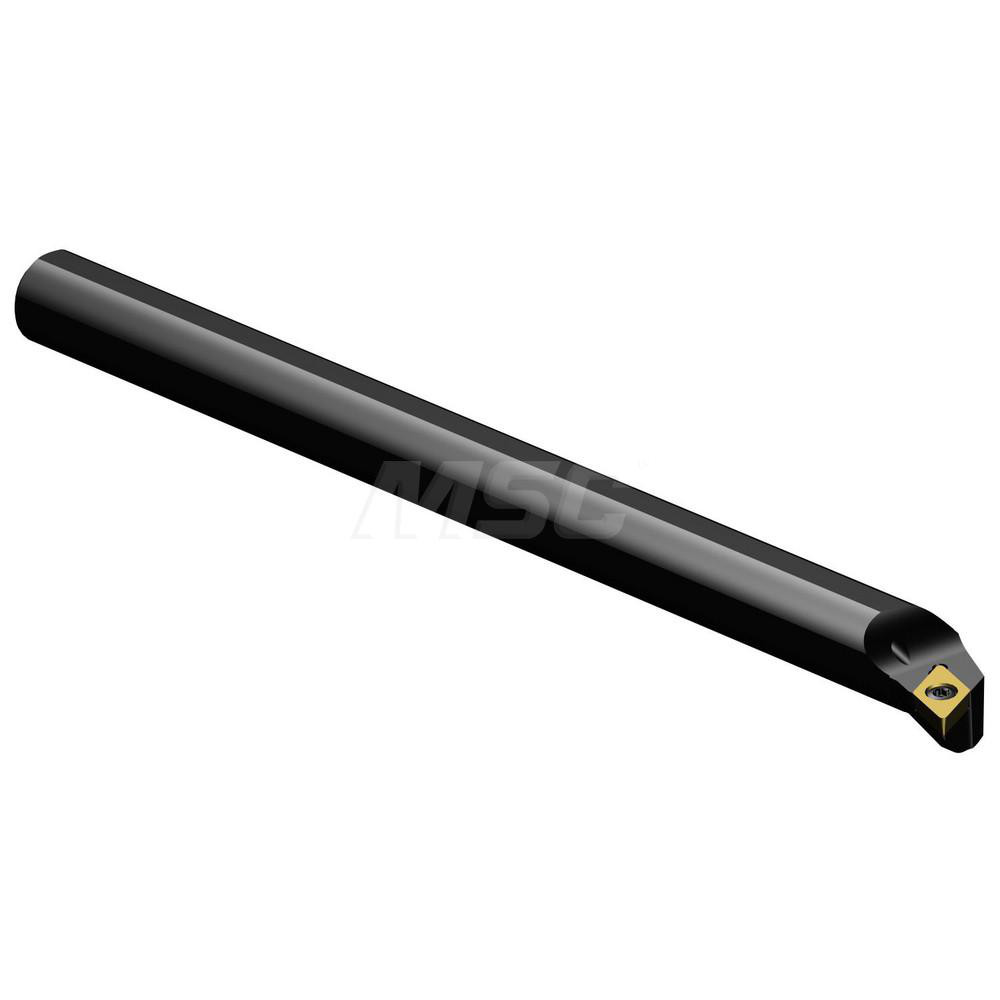

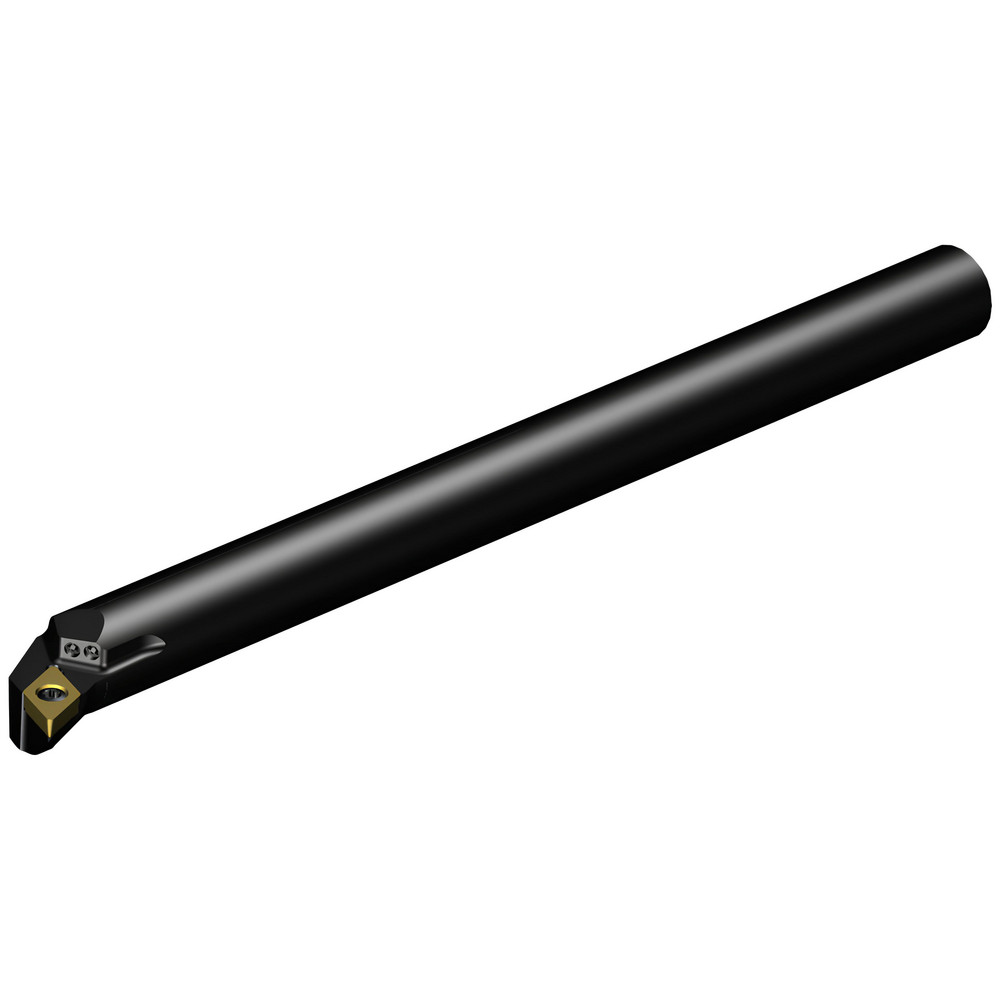

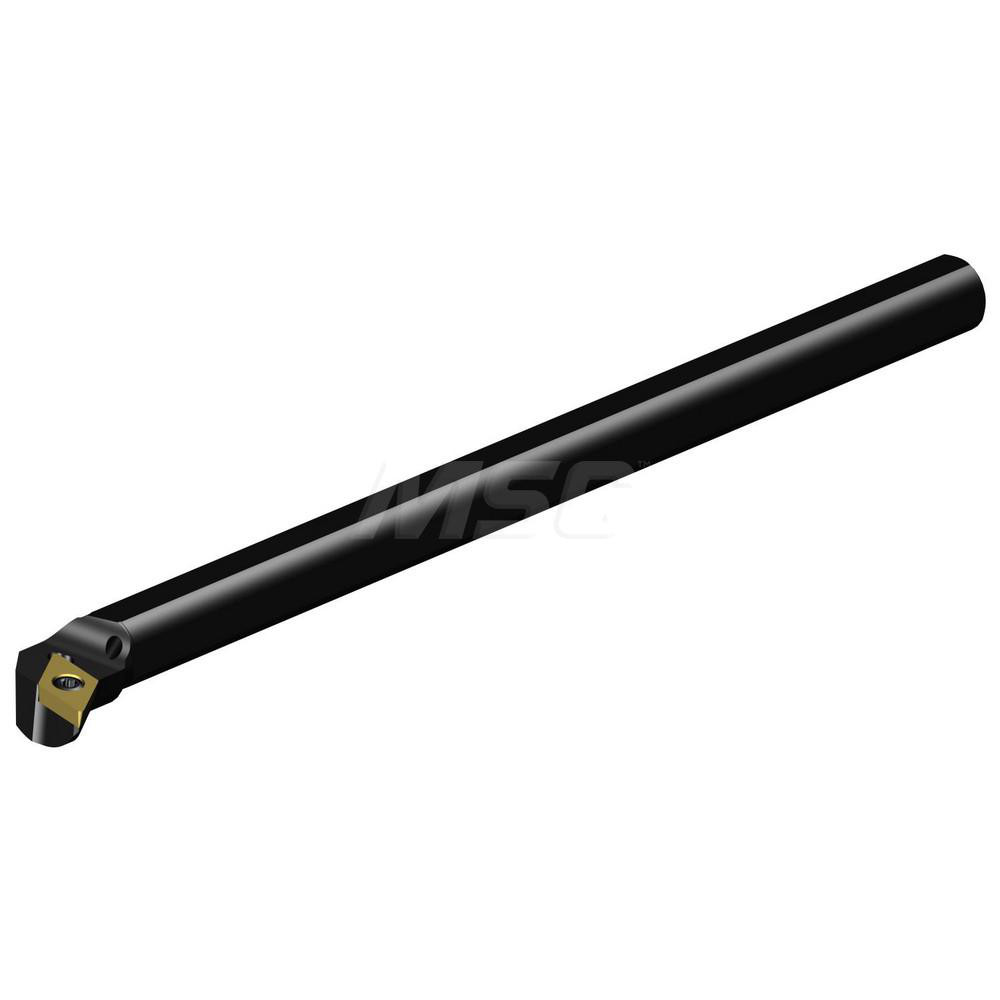

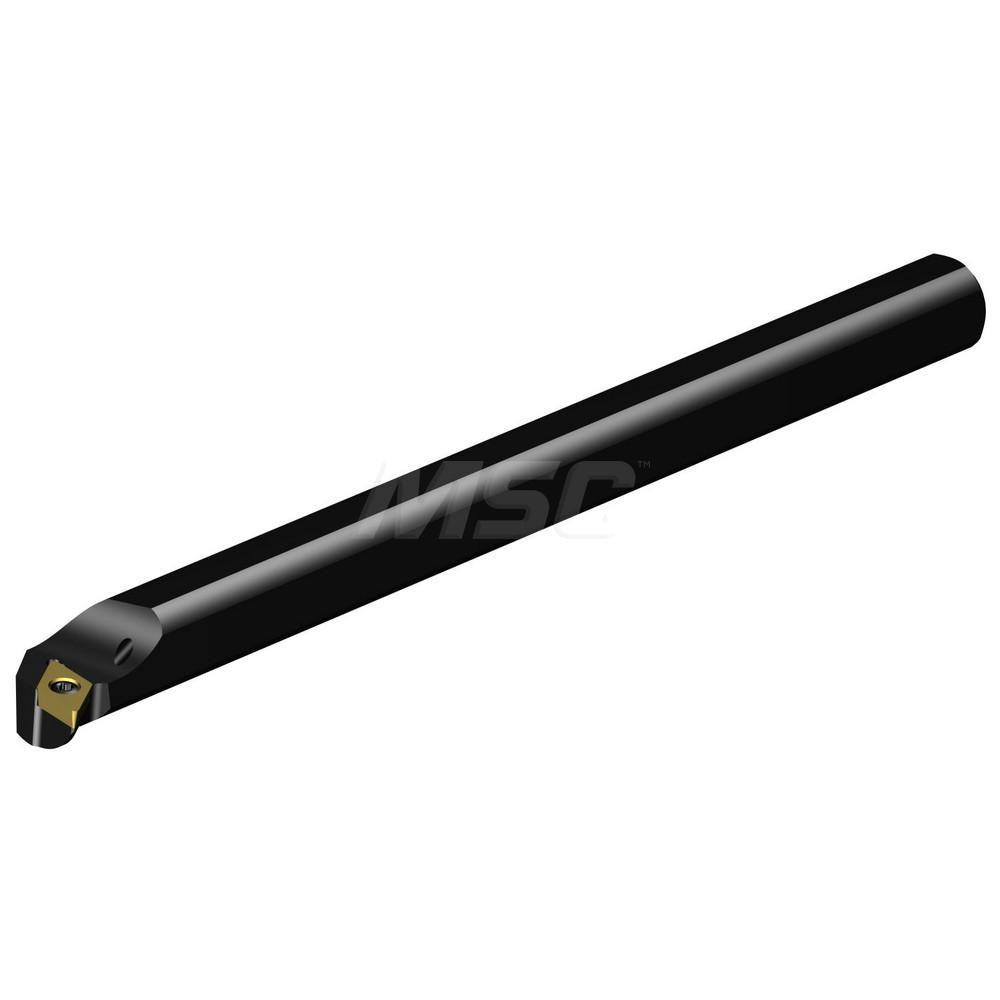

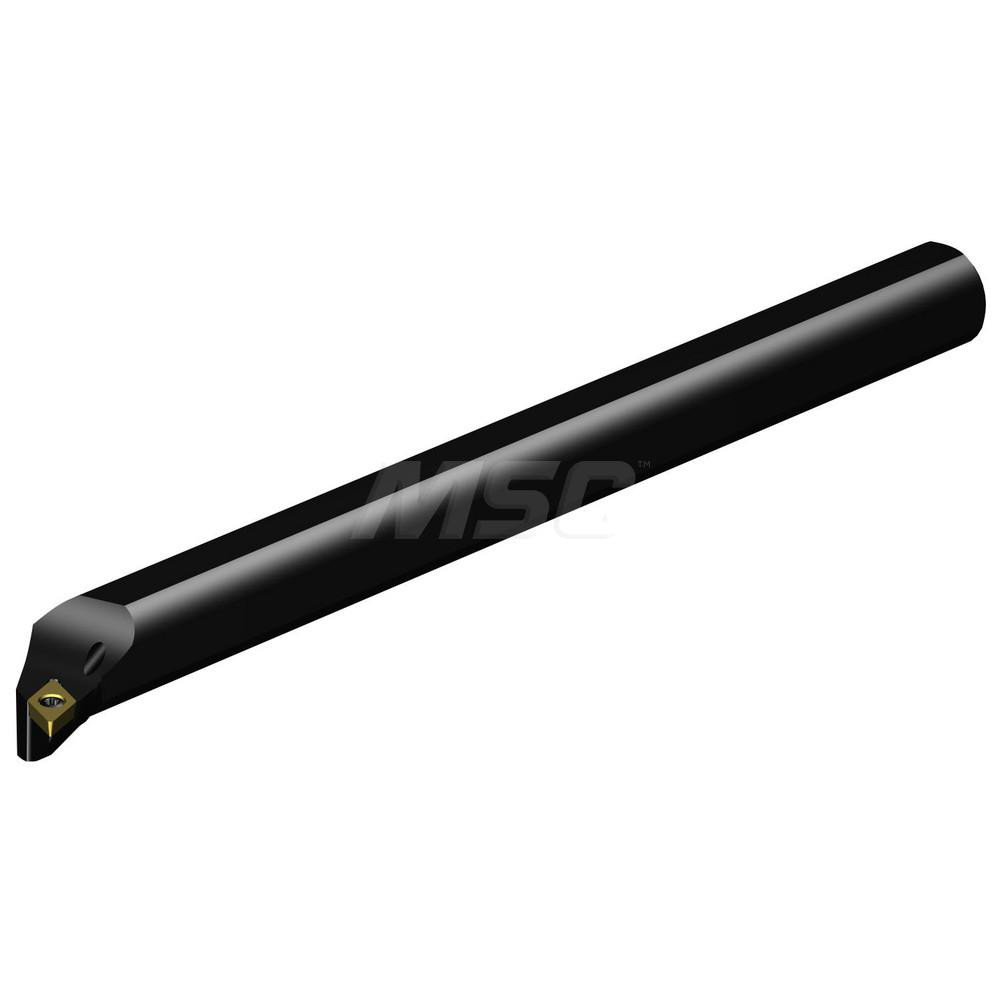

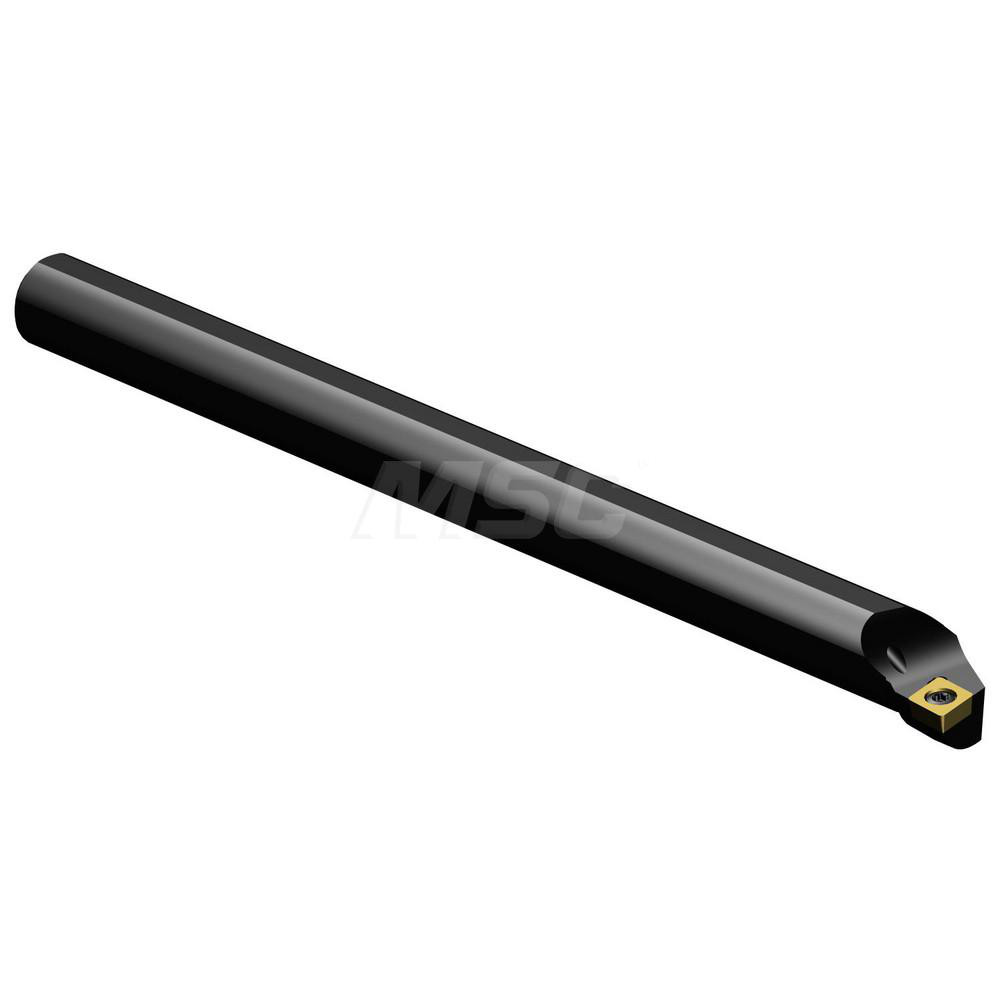

10.0000" OAL, Screw, Uses DCMT 11 T3 08 Inserts

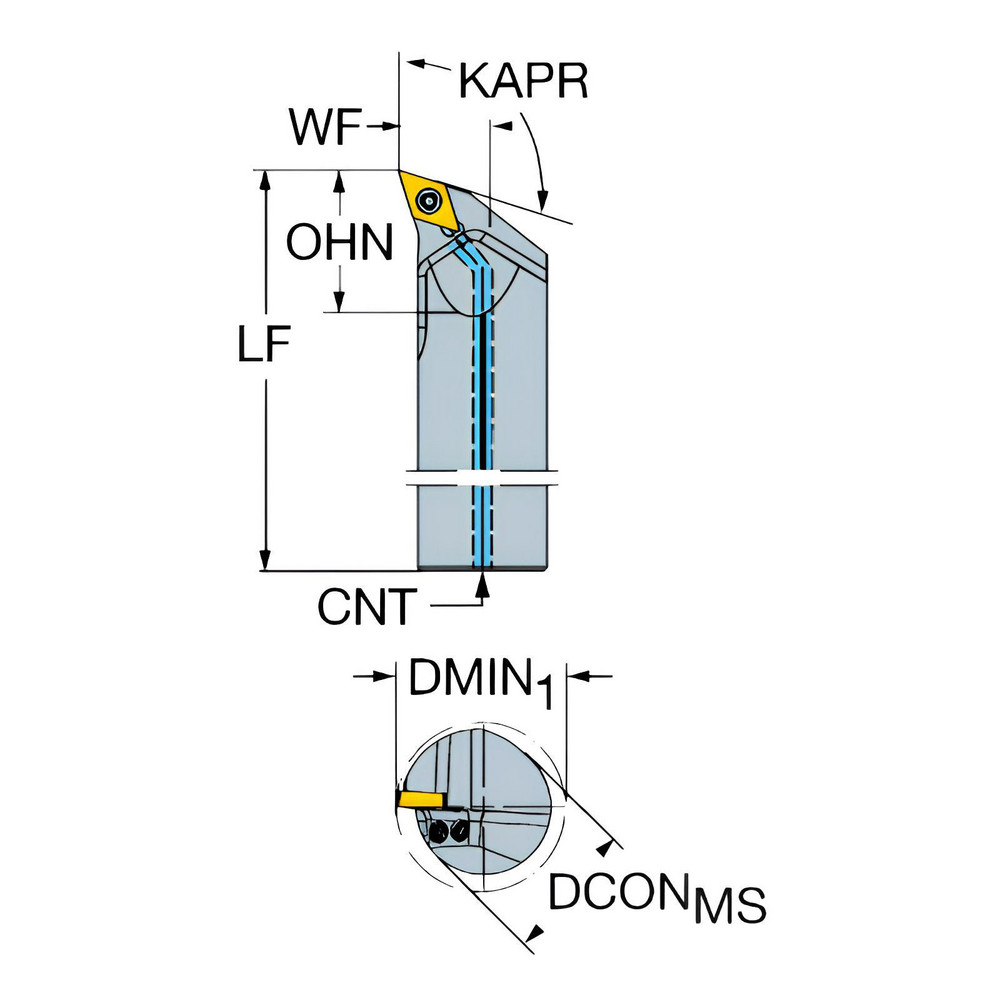

| Minimum Bore Diameter (Decimal Inch) | 0.9803 |
|---|---|
| Toolholder Style | A..SDQCR/L..HP-R |
| Tool Material | Steel |

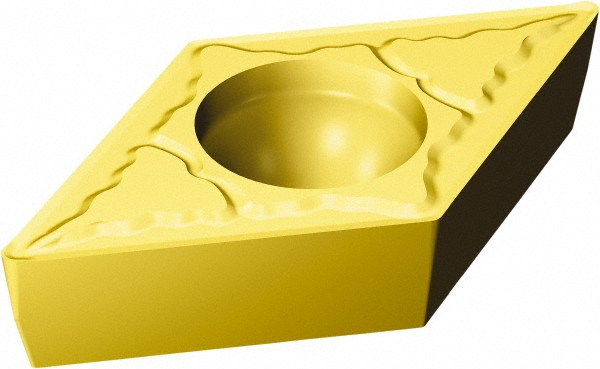

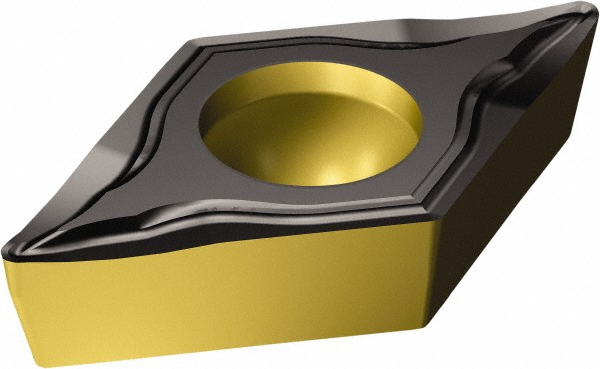

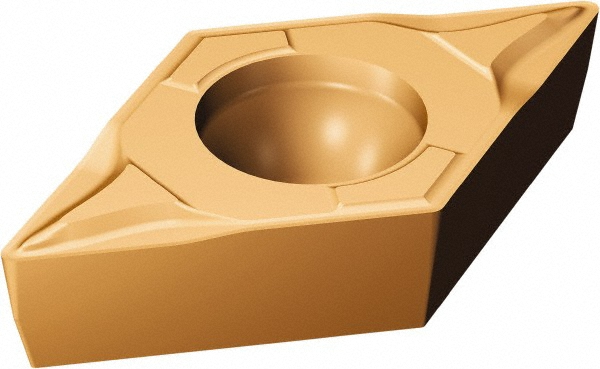

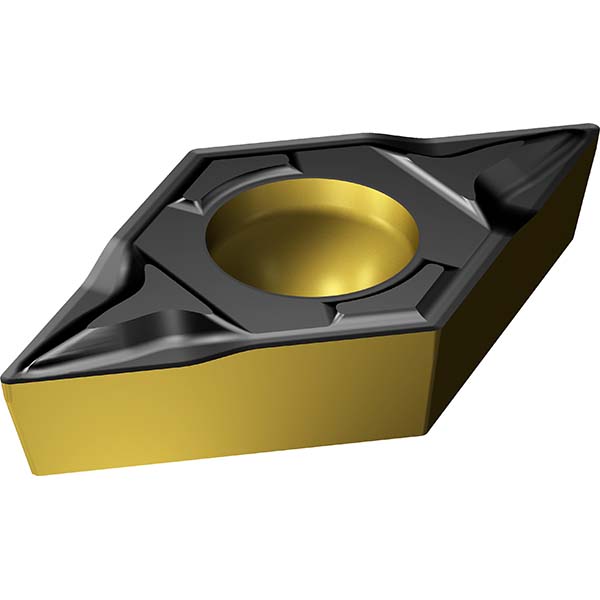

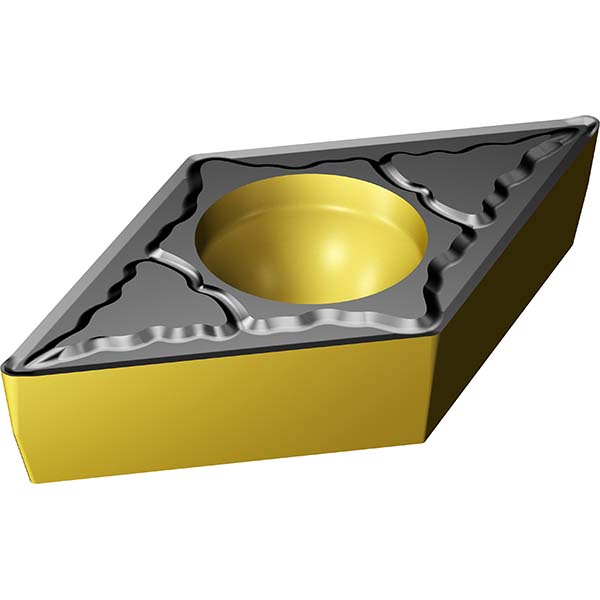

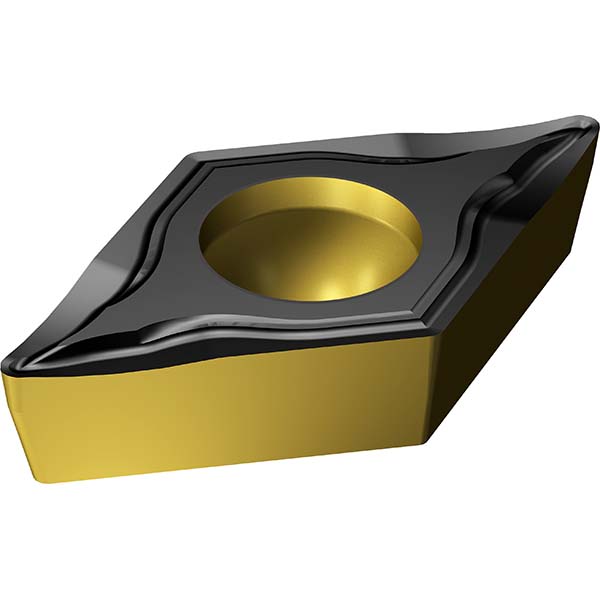

| Insert Compatibility | DCMT 11 T3 08 |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 10.0000 |
| Overall Length (Inch) | 10 |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Rake Angle | 0.00 |
| Lead Angle | -17.5 |
| Series | CoroTurn 107 |
| Multi-use Tool | Yes |
| Center to Cutting Edge (Decimal Inch) | 0.5620 |
| Coolant Hole Thread Size (Inch) | 1/8 G |
| UNSPSC Code | 23241601 |
| Coolant Through | Yes |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 49438740 |
