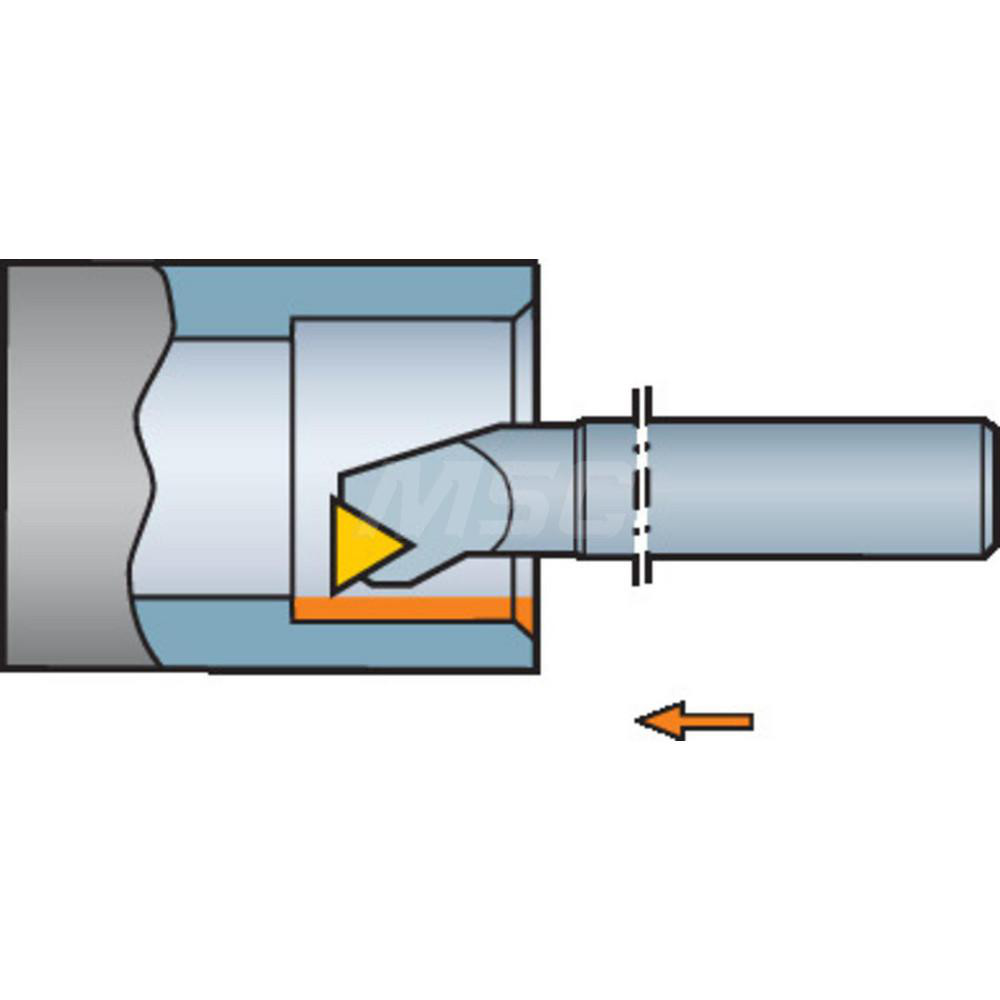

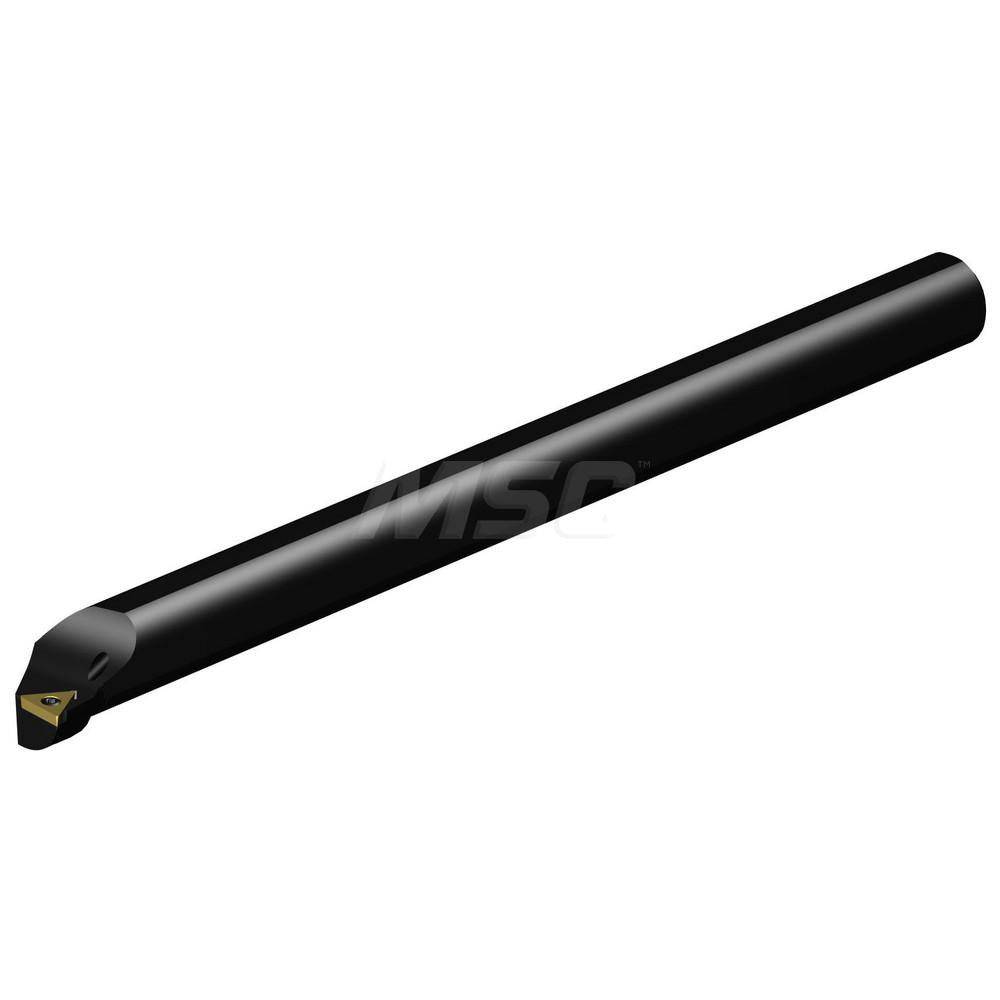

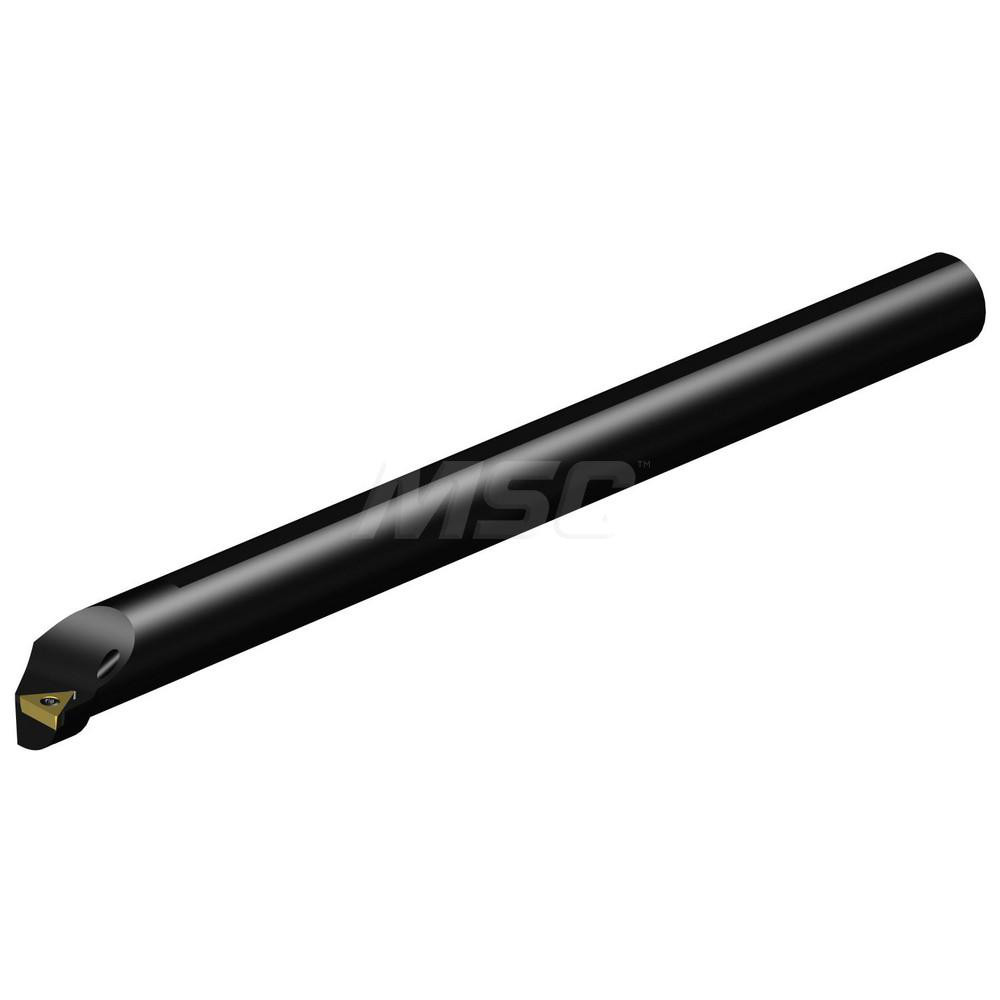

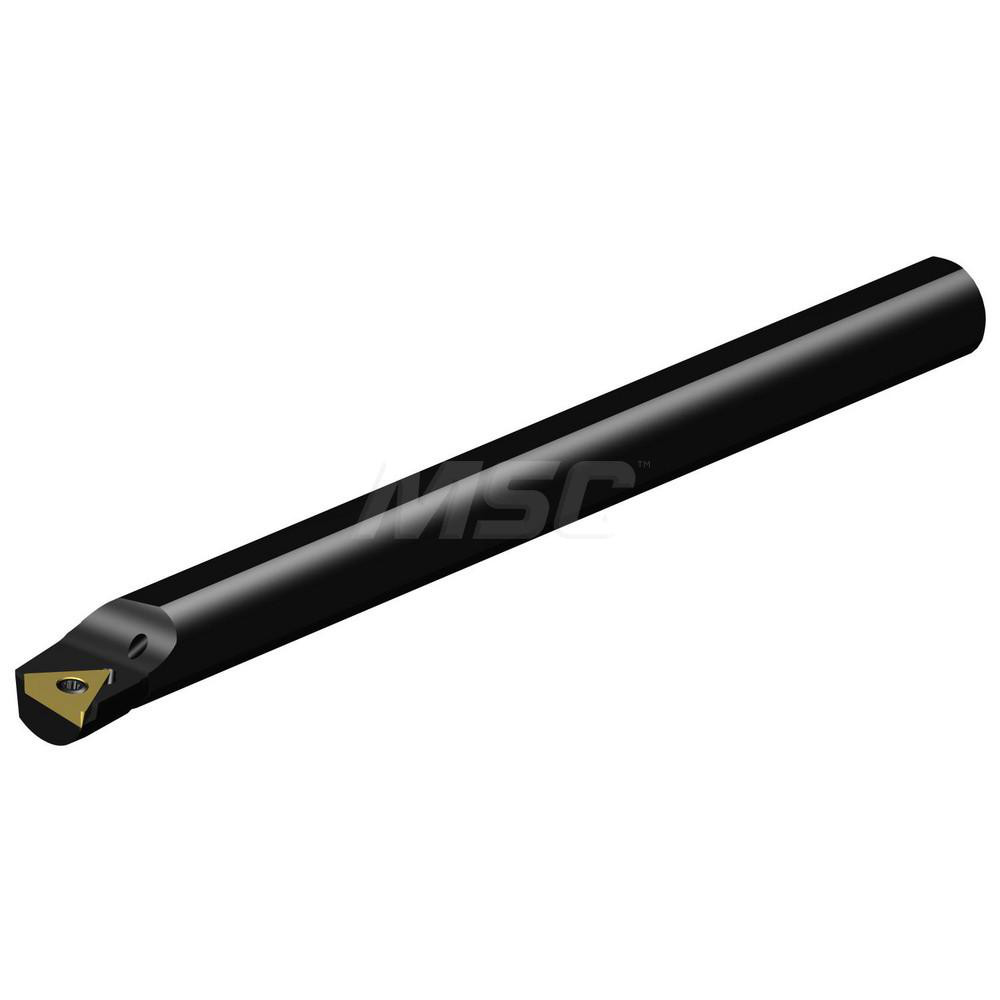

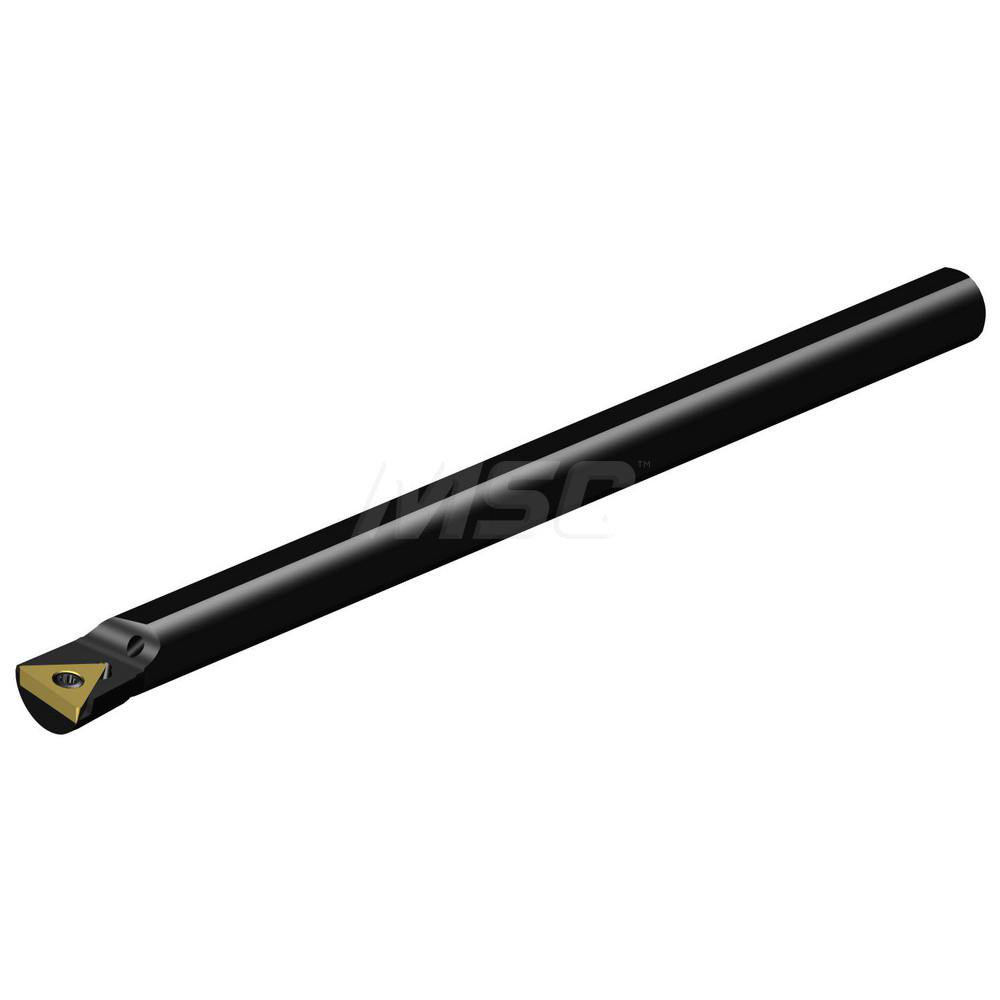

254.00 mm OAL, Screw Clamping, Uses TCMT 21.51 Inserts
| Minimum Bore Diameter (mm) | 23.60 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.9291 |
| Toolholder Style | A-STFC |
| Minimum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch) | 0.9291 |
| Minimum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch) | 0.9291 |
| Tool Material | Steel |
| Insert Compatibility | TCMT 21.51 |
| Shank Diameter (mm) | 19.05 |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 10.0000 |
| Overall Length (mm) | 254.00 |
| Overall Length (Inch) | 10 |

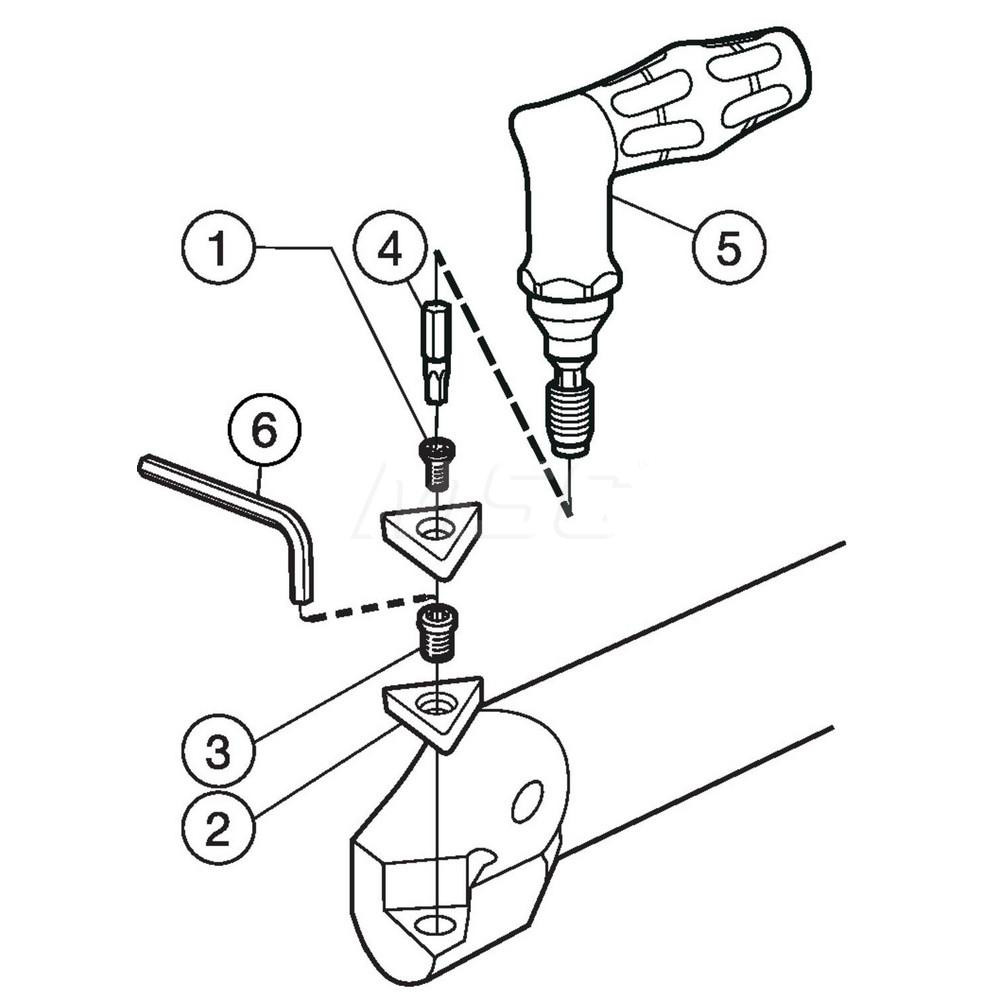

| Insert Holding Method | Screw Clamping |
| Rake | Neutral |
| Rake Angle | 0.00 |
| Lead Angle | 0 |
| Series | CoroTurn 107 |
| Insert Inscribed Circle (Decimal Inch) | 0.2250 |
| Insert Inscribed Circle (mm) | 5.71 |
| Multi-use Tool | Yes |
| Back of Bar to Cutting Edge (Decimal Inch) | 10.0000 |
| Back of Bar to Cutting Edge (mm) | 254.00 |
| Center to Cutting Edge (Decimal Inch) | 0.5000 |
| Center to Cutting Edge (Inch) | 1/2 |
| Center to Cutting Edge (mm) | 12.70 |
| Number of Inserts Used on Toolholder | 1 |
| Neck Diameter (Decimal Inch) | 0.7500 |
| UNSPSC Code | 23241601 |
| Neck Diameter (Inch) | 3/4 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Thickness (Inch) | 3/32 |
| Manufacturers Catalog Number | A12S-STFCR 2 |
| Coolant Through | Yes |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 40743023 |
