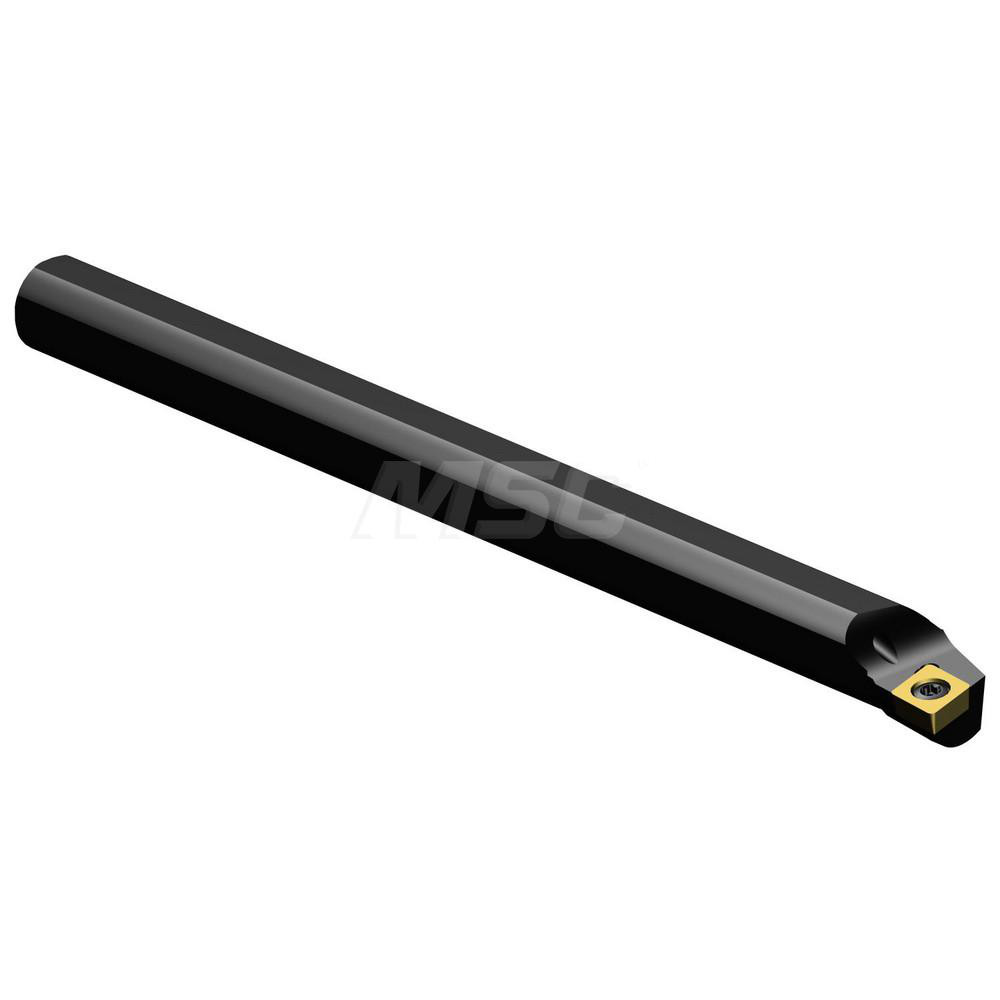

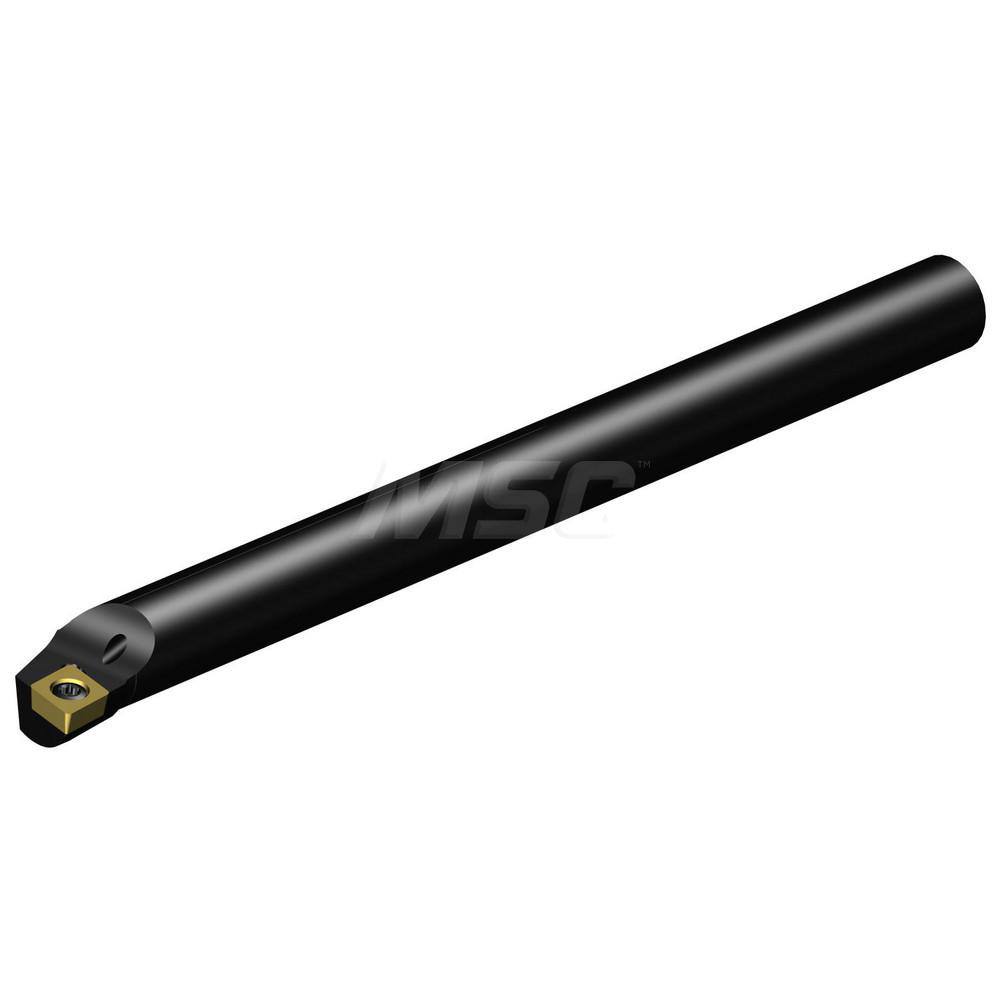

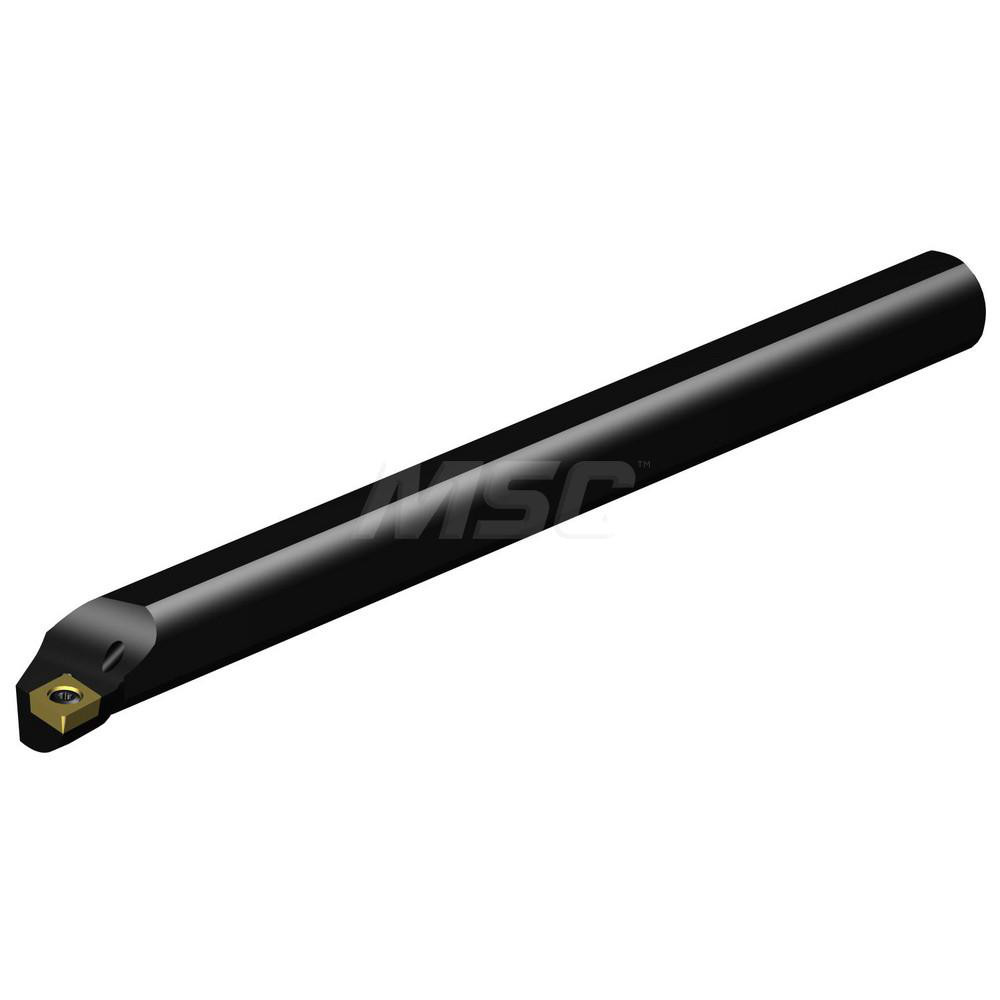

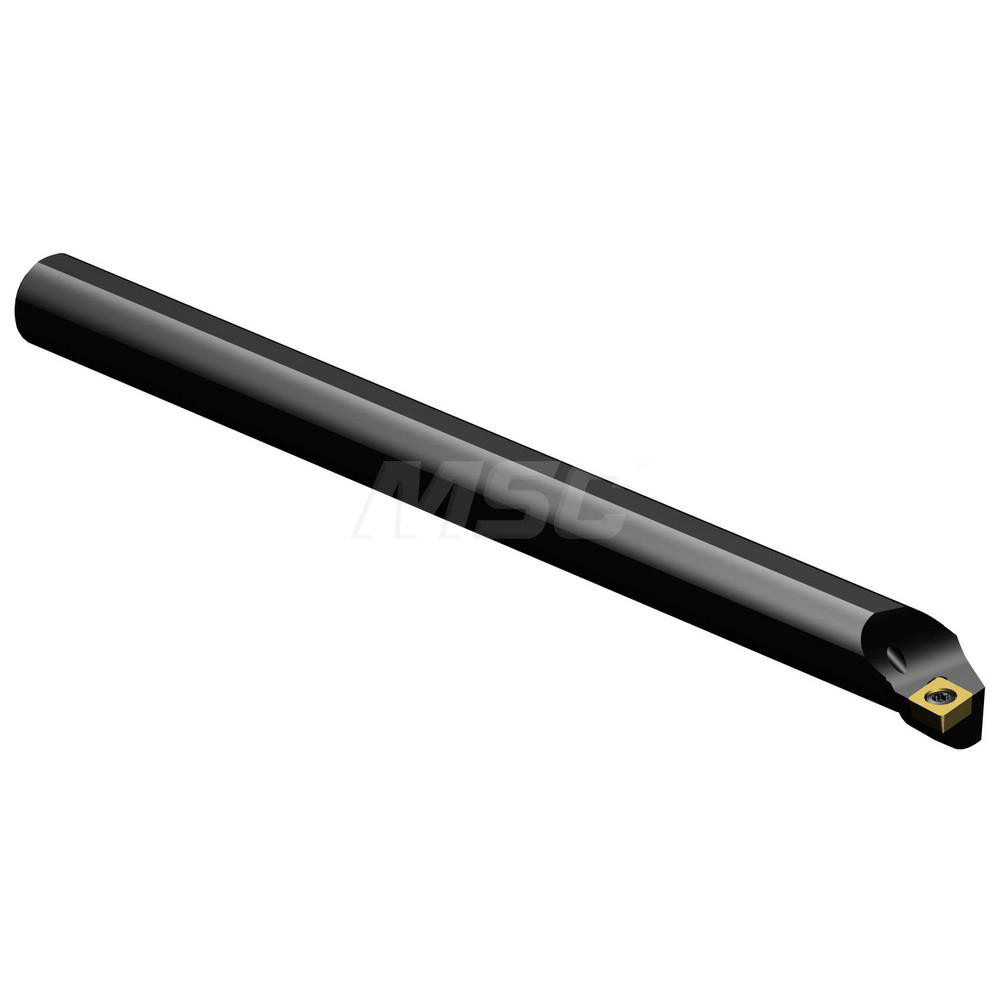

304.80 mm OAL, Screw Clamping, Uses CCMT 32.52 Inserts

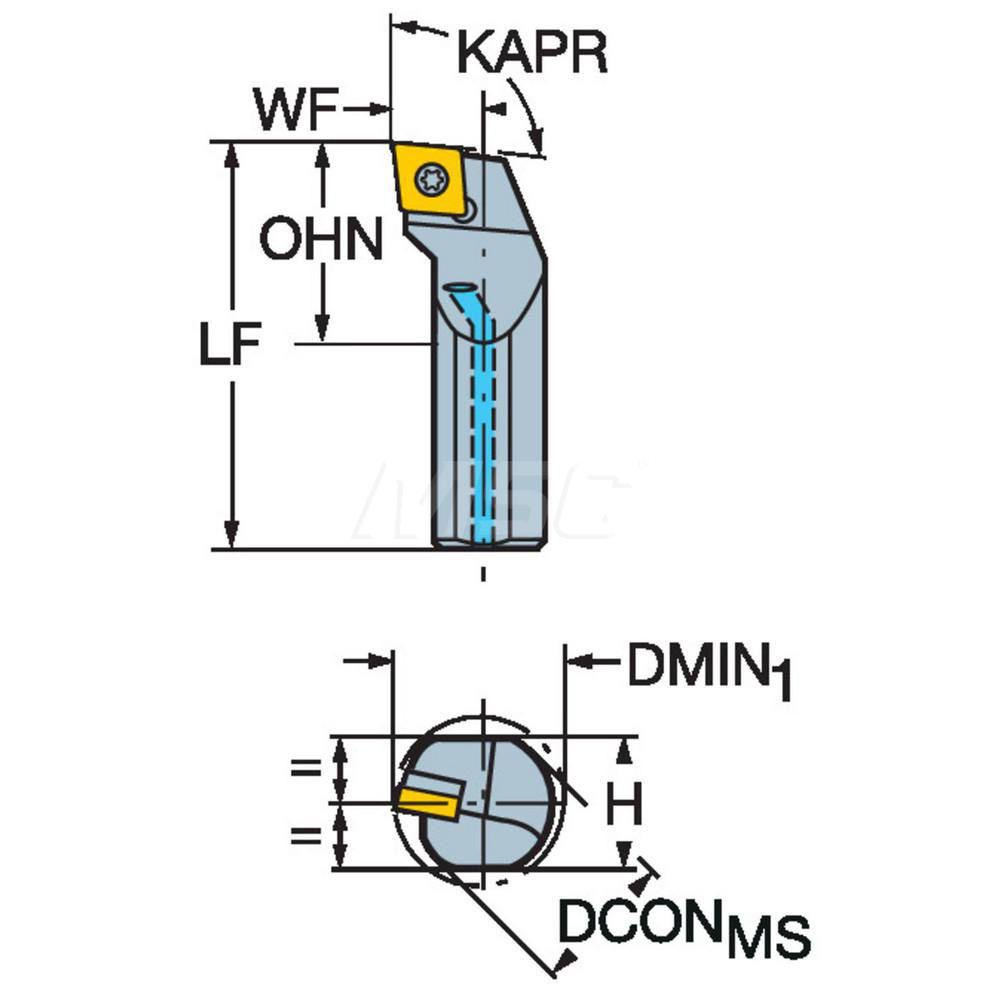

| Minimum Bore Diameter (mm) | 30.50 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 1.2008 |
| Toolholder Style | A-SCLC |
| Minimum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch) | 1.2008 |
| Minimum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch) | 1.2008 |
| Tool Material | Steel |
| Insert Compatibility | CCMT 32.52 |
| Shank Diameter (mm) | 25.40 |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 1 |
| Overall Length (Decimal Inch) | 12.0000 |
| Overall Length (mm) | 304.80 |
| Overall Length (Inch) | 12 |

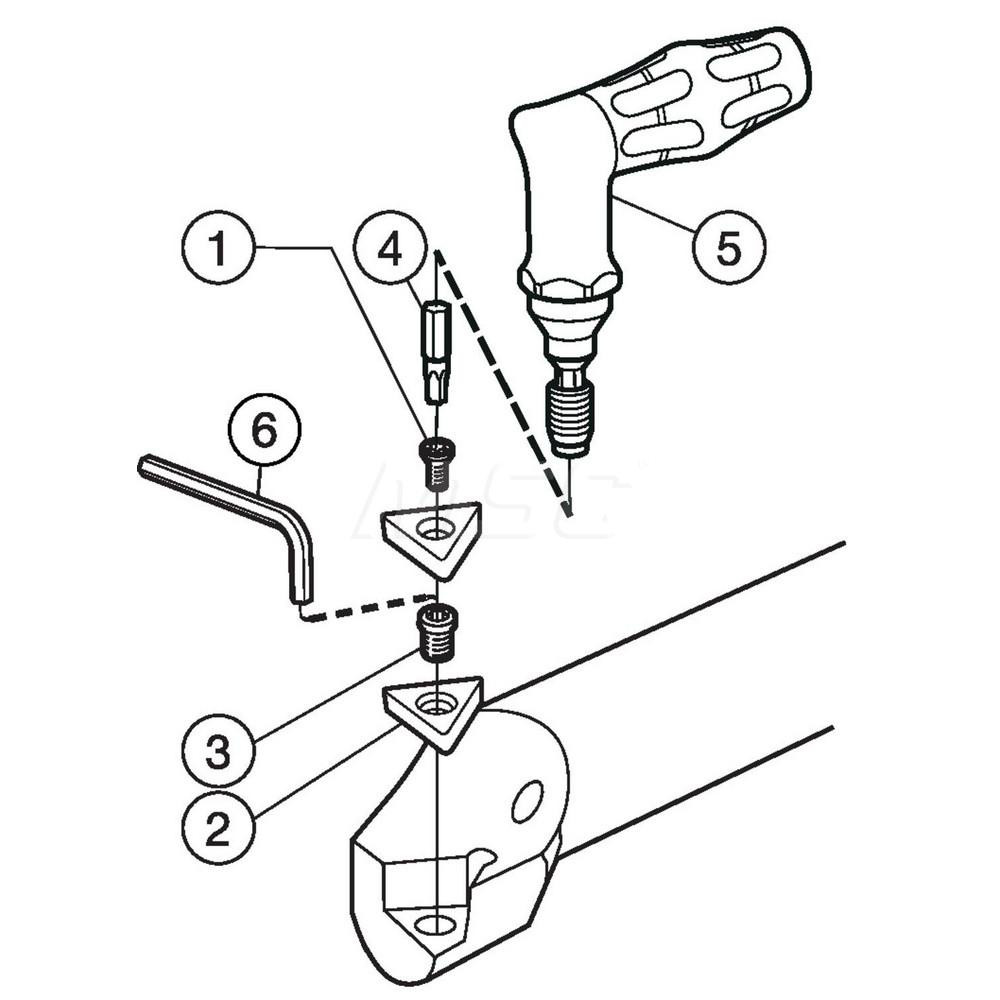

| Insert Holding Method | Screw Clamping |
| Rake | Neutral |
| Rake Angle | 0.00 |
| Lead Angle | -5 |
| Series | CoroTurn 107 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Inscribed Circle (mm) | 9.53 |
| Multi-use Tool | Yes |
| Back of Bar to Cutting Edge (Decimal Inch) | 12.0000 |
| Back of Bar to Cutting Edge (mm) | 304.80 |
| Center to Cutting Edge (Decimal Inch) | 0.6400 |
| Center to Cutting Edge (mm) | 16.26 |
| Number of Inserts Used on Toolholder | 1 |
| Neck Diameter (Decimal Inch) | 1.0000 |
| UNSPSC Code | 23241601 |
| Neck Diameter (Inch) | 1 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Insert Thickness (Inch) | 5/32 |
| Manufacturers Catalog Number | A16T-SCLCR 3 |
| Coolant Through | Yes |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 87467783 |
