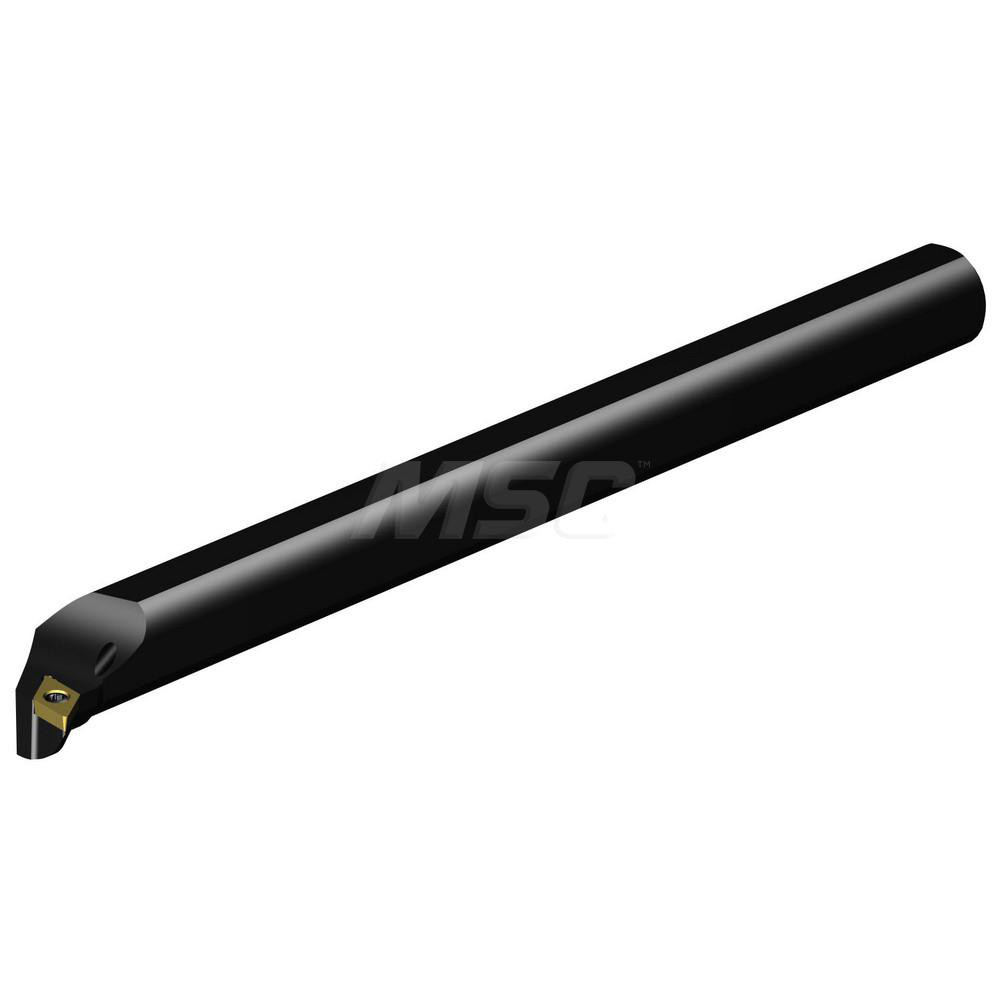

304.80 mm OAL, Screw & Clamp, Uses VBMT 16 04 08 & VBMT 332 Inserts

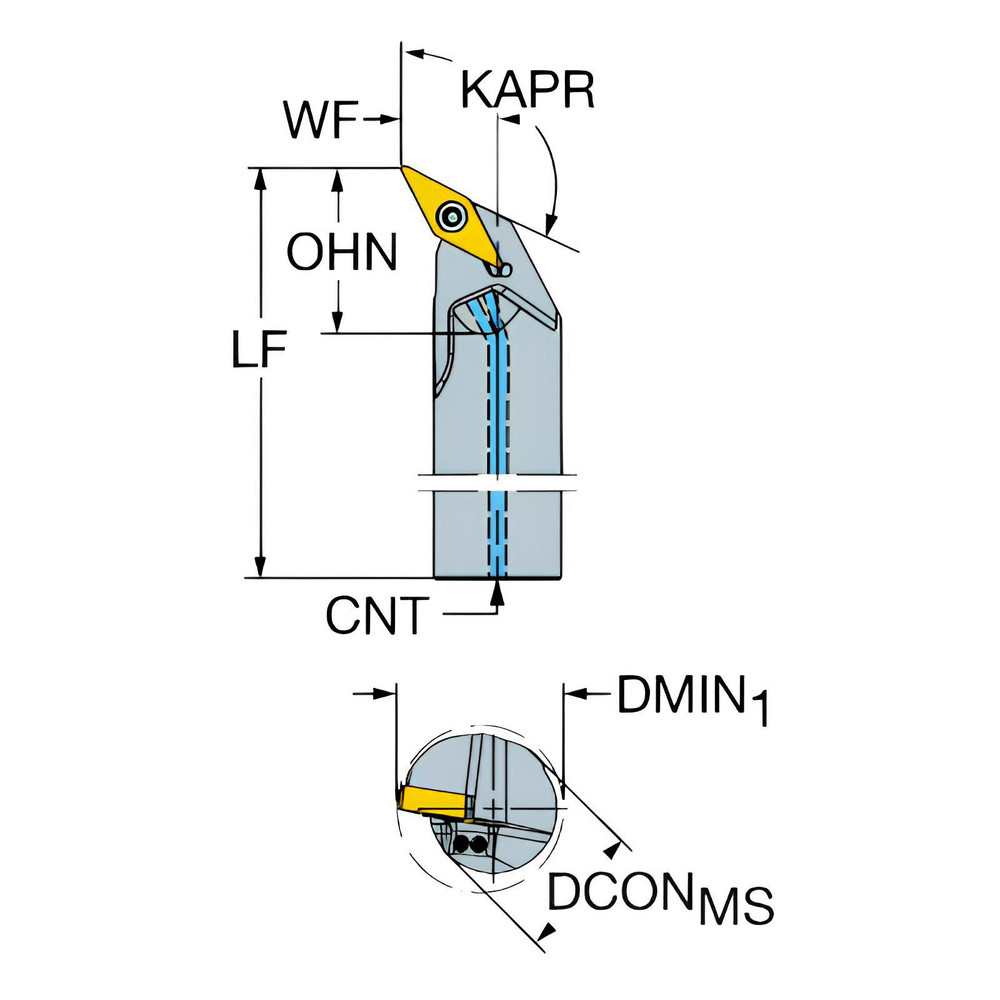

| Minimum Bore Diameter (mm) | 33.00 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 1.2992 |
| Toolholder Style | A..SVPBR/L..HP-R |
| Tool Material | Steel |
| Insert Compatibility | VBMT 332; VBMT 16 04 08 |
| Shank Diameter (mm) | 25.40 |
| Hand of Holder | Left Hand |
| Shank Diameter (Inch) | 1 |
| Overall Length (Decimal Inch) | 12.0000 |
| Overall Length (mm) | 304.80 |
| Insert Holding Method | Screw; Clamp |
| Rake | Neutral |
| Rake Angle | 0.00 |
| Lead Angle | -27.5 |
| Series | CoroTurn 107 |
| Back of Bar to Cutting Edge (Decimal Inch) | 12.0000 |
| Back of Bar to Cutting Edge (mm) | 304.80 |
| Center to Cutting Edge (Decimal Inch) | 0.7500 |
| Center to Cutting Edge (mm) | 19.05 |
| Coolant Hole Thread Size (Inch) | 1/8 G |
| Neck Diameter (Decimal Inch) | 1.0000 |
| UNSPSC Code | 23241601 |
| Coolant Through | Yes |
| Country of Origin | Sweden |
| MSC Number | MSC# 49651458 |
