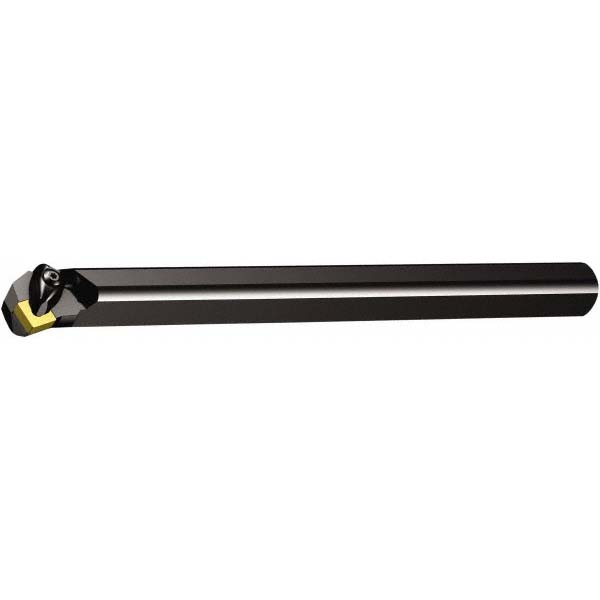

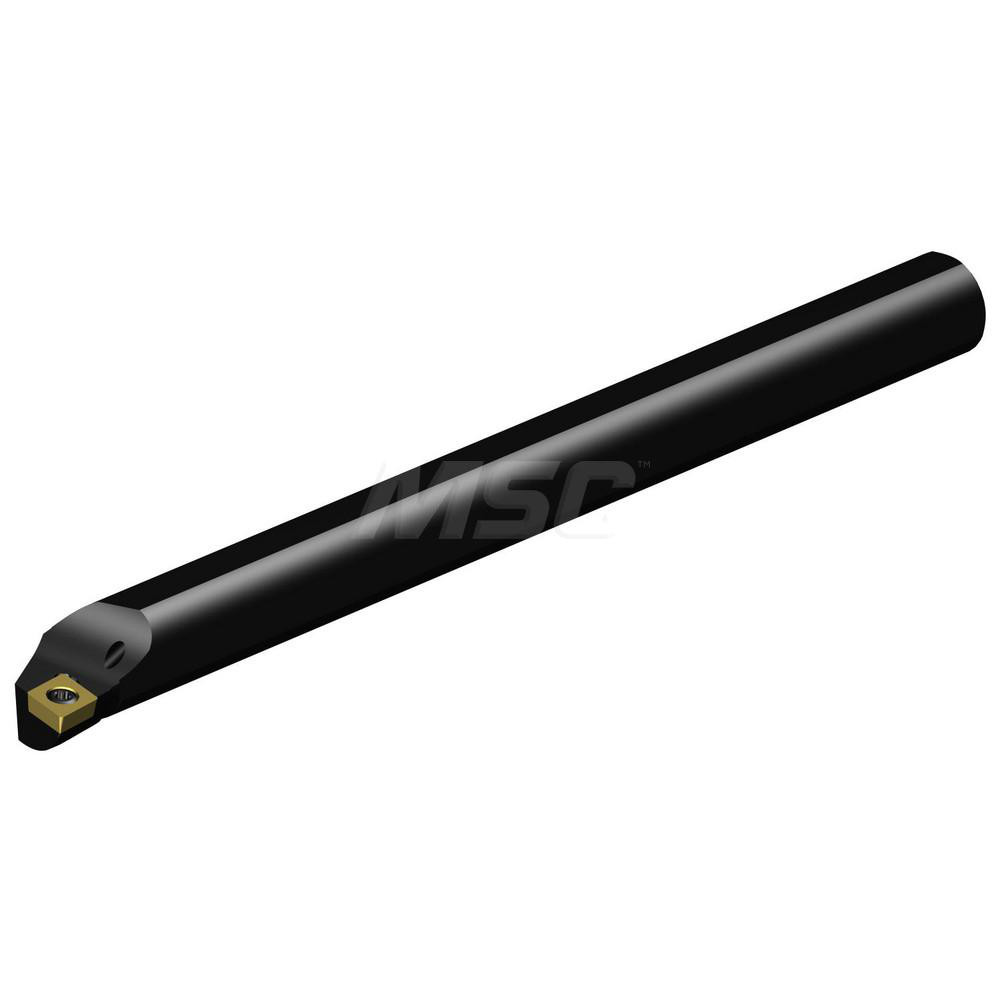

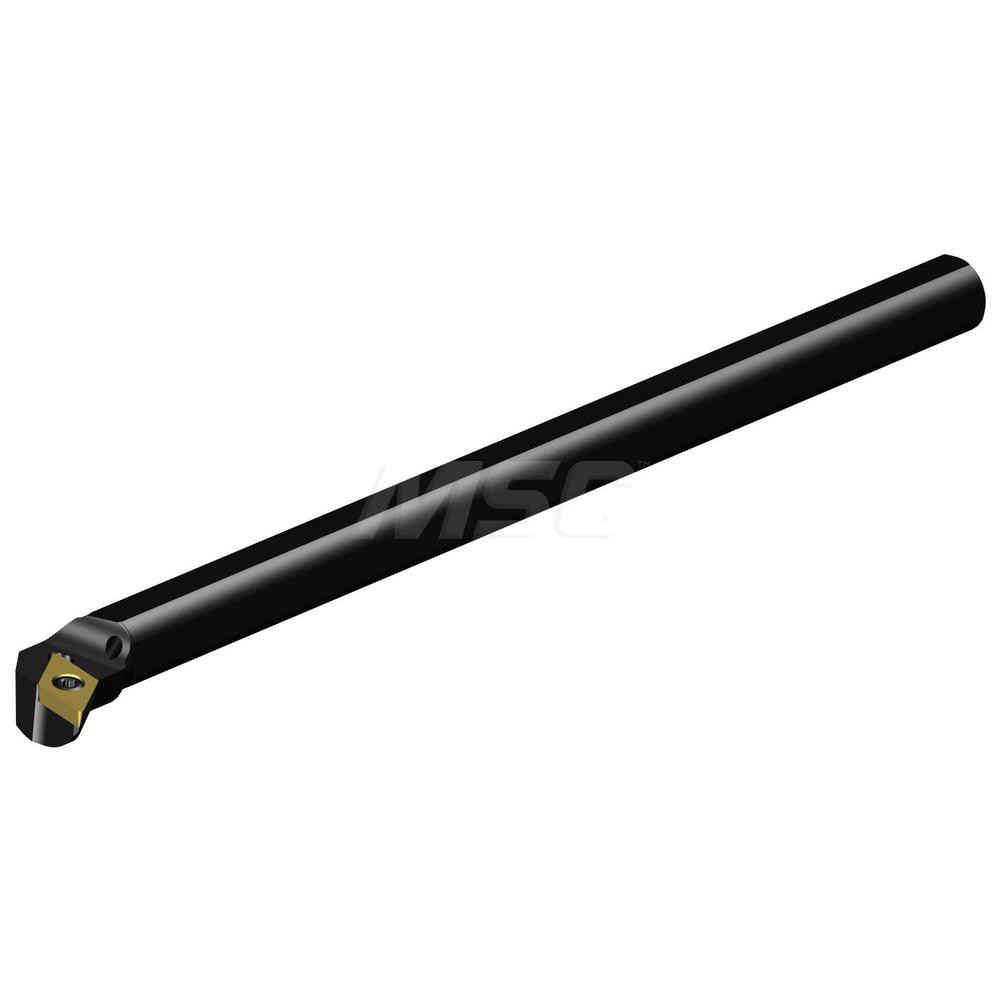

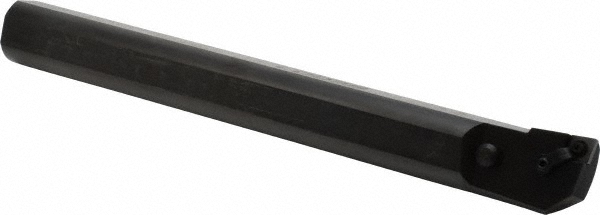

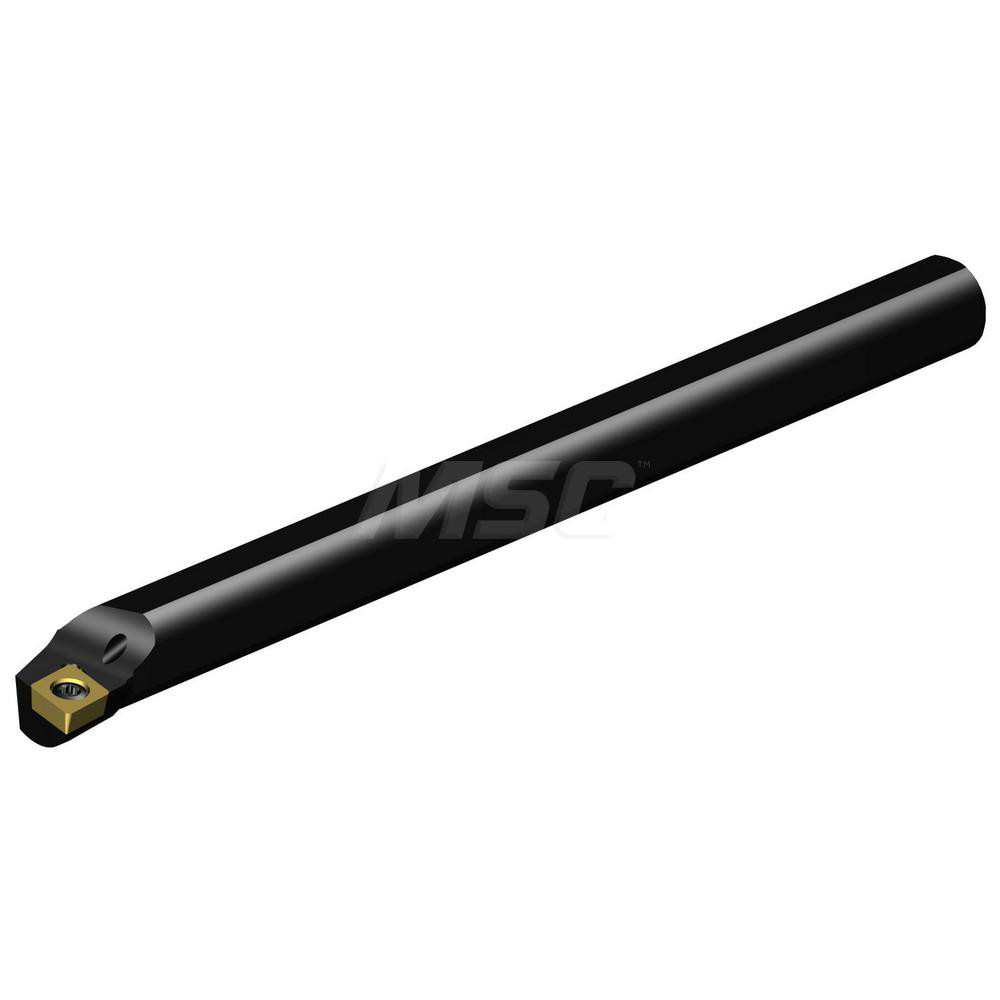

304.80 mm OAL, Wedge, Uses CNMG 432 Inserts

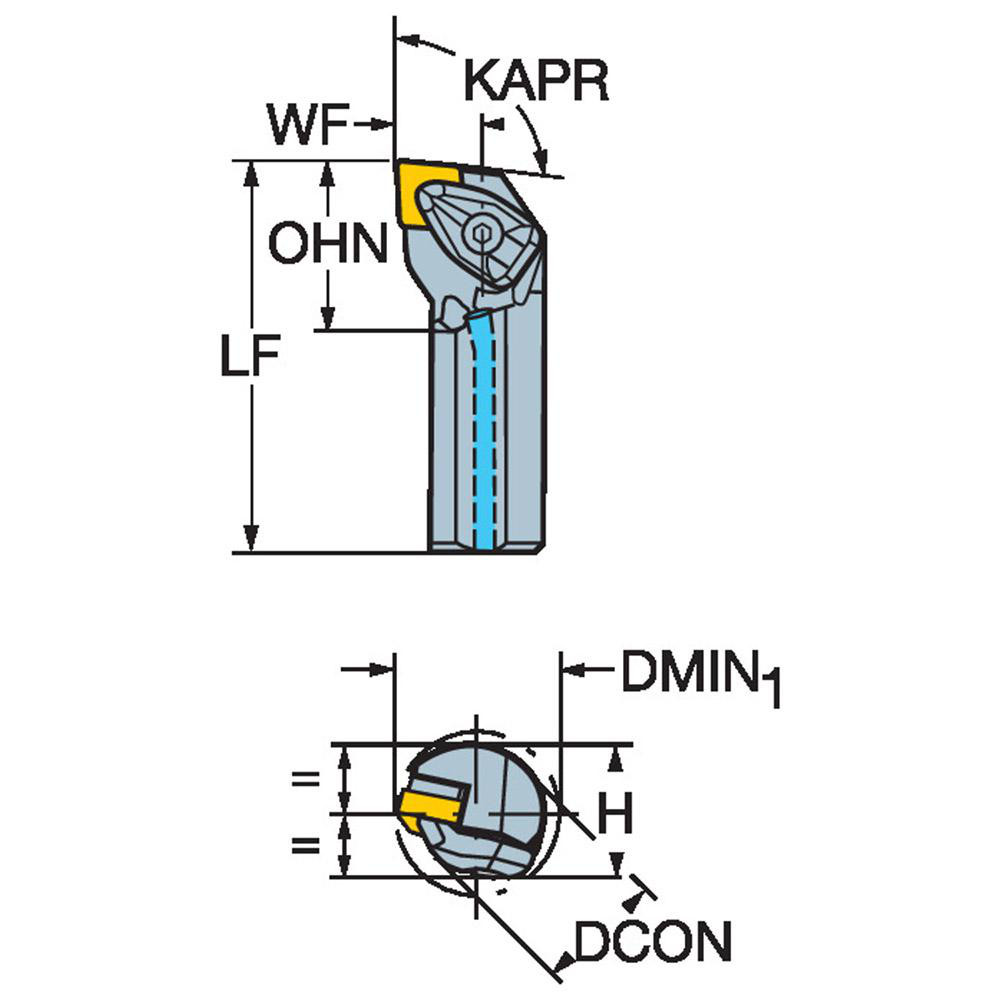

| Minimum Bore Diameter (mm) | 44.70 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 1.7598 |
| Toolholder Style | A-DCLN |
| Minimum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch) | 1.7598 |
| Minimum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch) | 1.7598 |
| Tool Material | Steel |
| Insert Compatibility | CNMG 432 |
| Shank Diameter (mm) | 38.10 |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 12.0000 |
| Overall Length (mm) | 304.80 |
| Overall Length (Inch) | 12 |

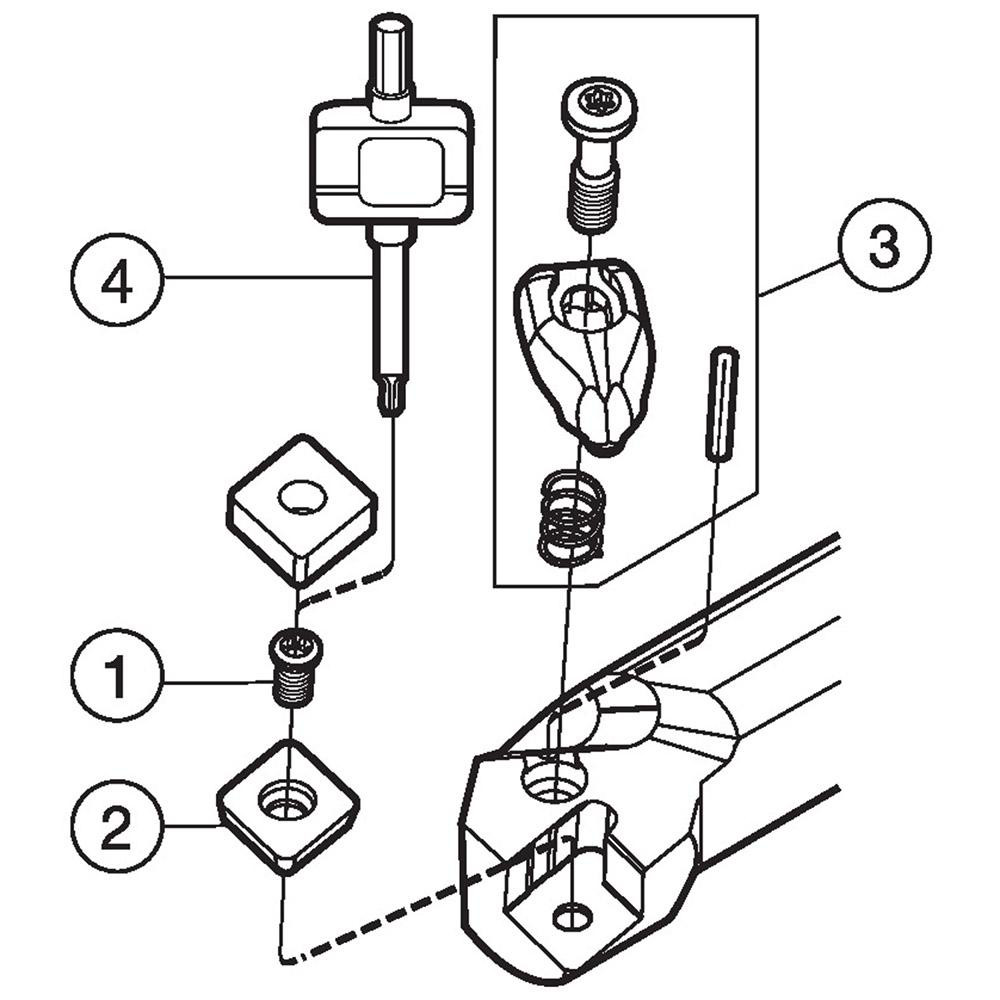

| Insert Holding Method | Wedge |
| Rake | Negative |
| Rake Angle | -6.00 |
| Lead Angle | -6 |
| Series | T-Max P |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Inscribed Circle (mm) | 12.70 |
| Multi-use Tool | Yes |
| Back of Bar to Cutting Edge (Decimal Inch) | 12.0000 |
| Back of Bar to Cutting Edge (mm) | 304.80 |
| Center to Cutting Edge (Decimal Inch) | 0.8900 |
| Center to Cutting Edge (mm) | 22.61 |
| Number of Inserts Used on Toolholder | 1 |
| Neck Diameter (Decimal Inch) | 1.5000 |
| UNSPSC Code | 23241601 |
| Neck Diameter (Inch) | 1-1/2 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Thickness (Inch) | 3/16 |
| Manufacturers Catalog Number | A24T-DCLNR 4 |
| Coolant Through | Yes |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 47032628 |
