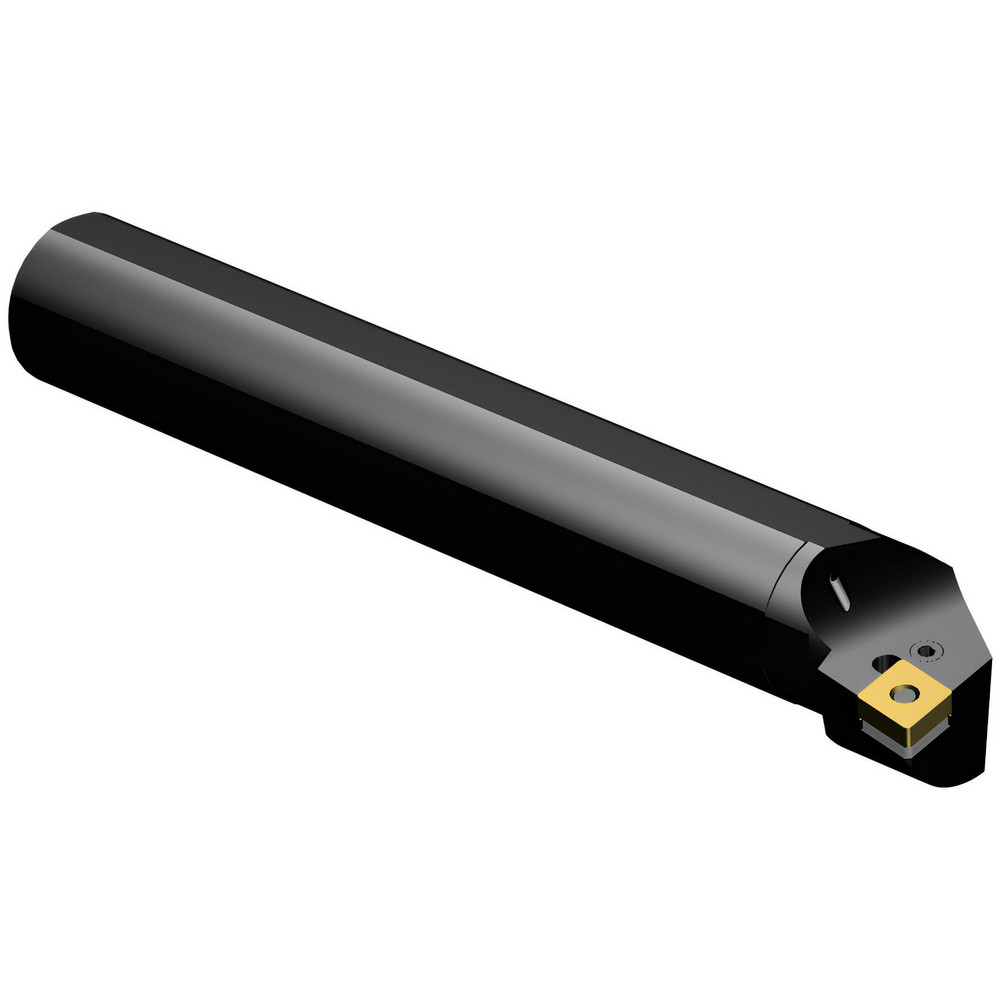

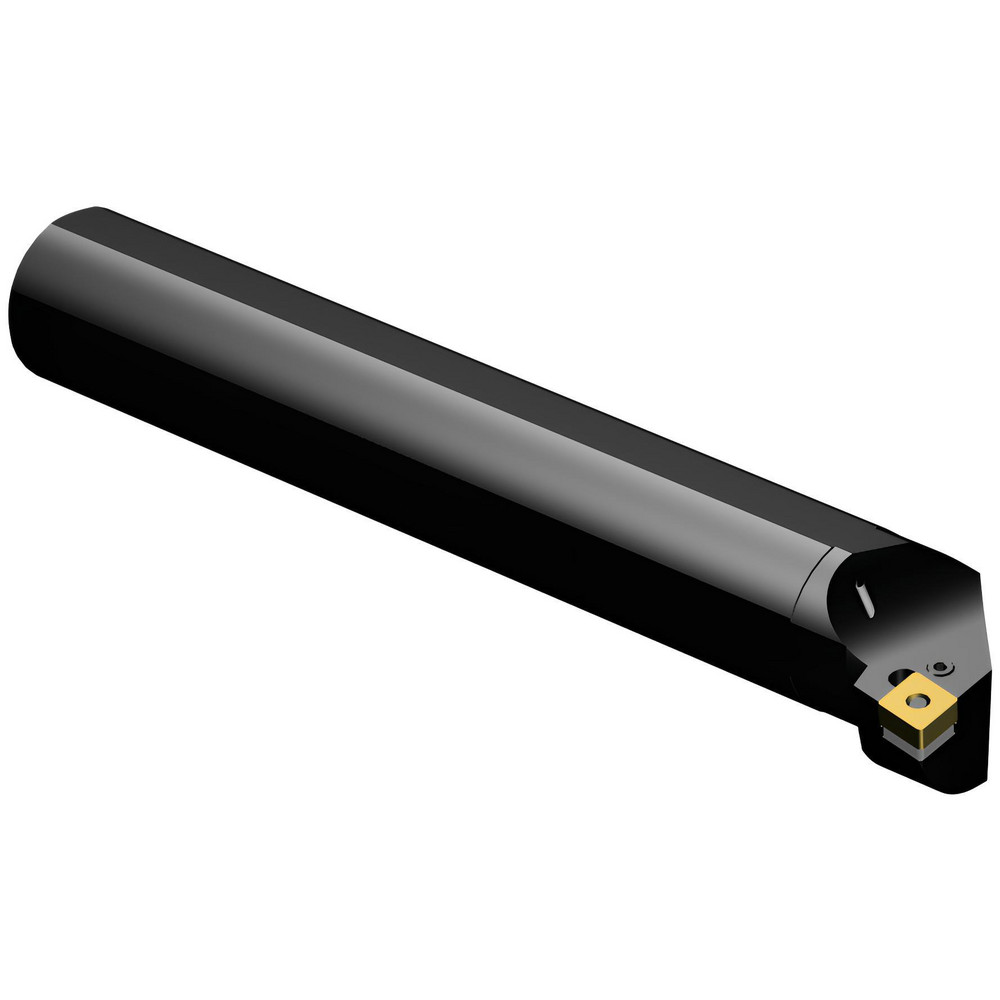

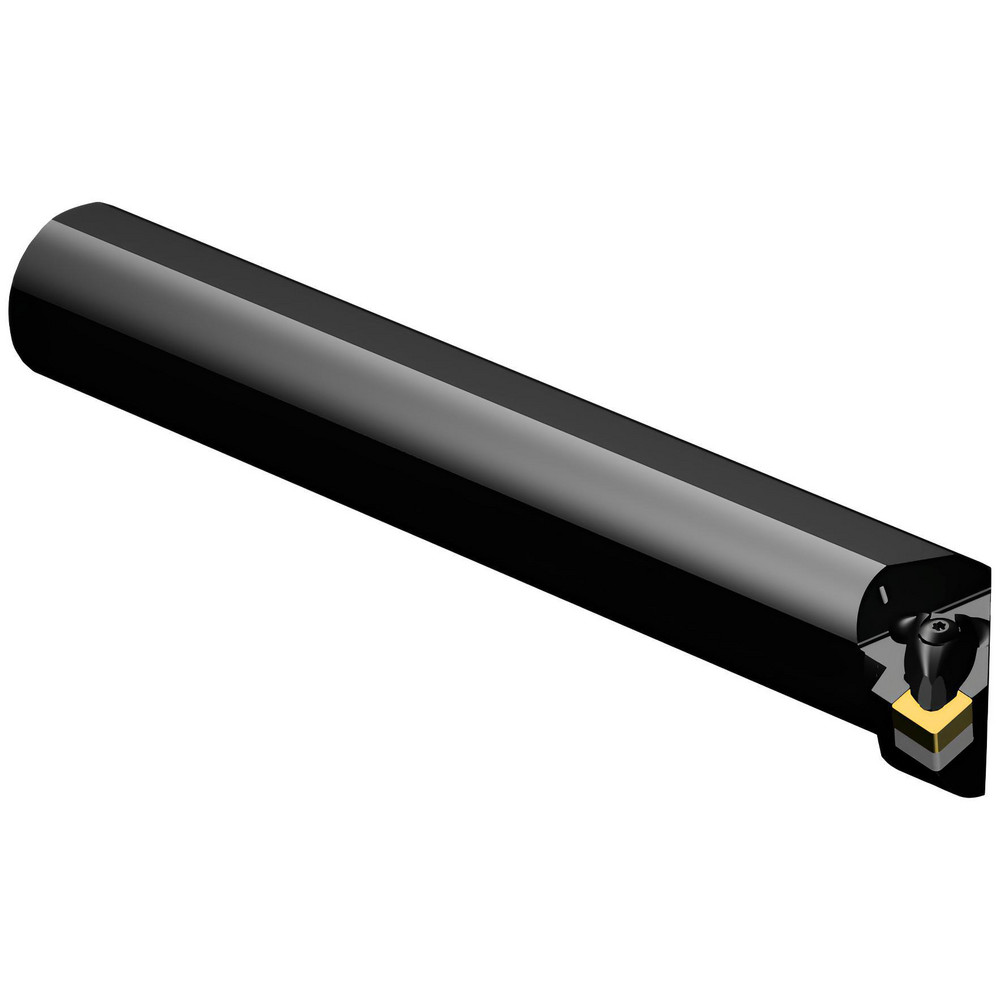

350.00 mm OAL, Lever, Uses CNMG 19 06 12 & CNMG 643 Inserts

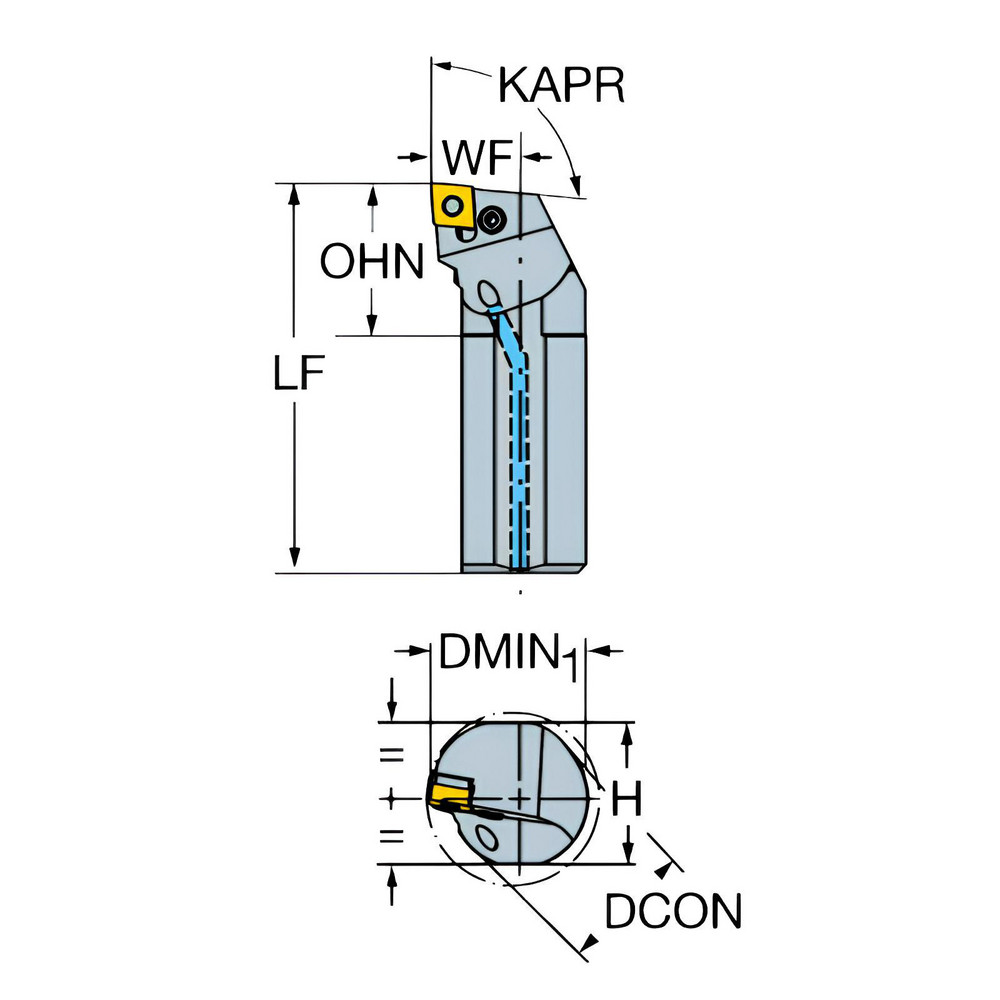

| Minimum Bore Diameter (mm) | 63.00 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 2.4803 |
| Toolholder Style | A..PCLNR/L |
| Tool Material | Steel |
| Insert Compatibility | CNMG 19 06 12; CNMG 643 |
| Shank Diameter (mm) | 50.00 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 13.7795 |
| Overall Length (mm) | 350.00 |
| Insert Holding Method | Lever |
| Rake | Negative |
| Rake Angle | -6.00 |
| Lead Angle | -5 |
| Series | T-Max P |
| Back of Bar to Cutting Edge (Decimal Inch) | 13.7795 |
| Back of Bar to Cutting Edge (mm) | 350.00 |
| Center to Cutting Edge (Decimal Inch) | 1.3780 |
| Center to Cutting Edge (mm) | 35.00 |
| Neck Diameter (Decimal Inch) | 1.9685 |
| UNSPSC Code | 23241601 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 49651870 |
