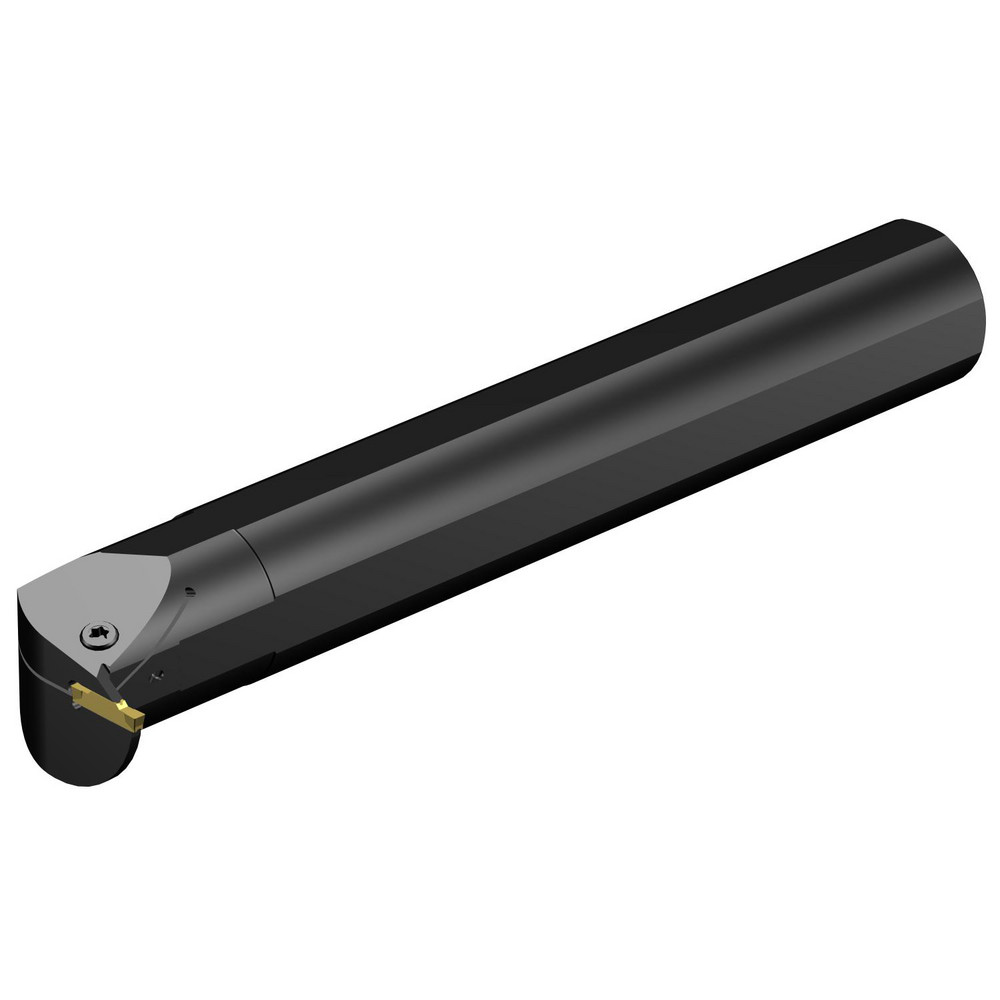

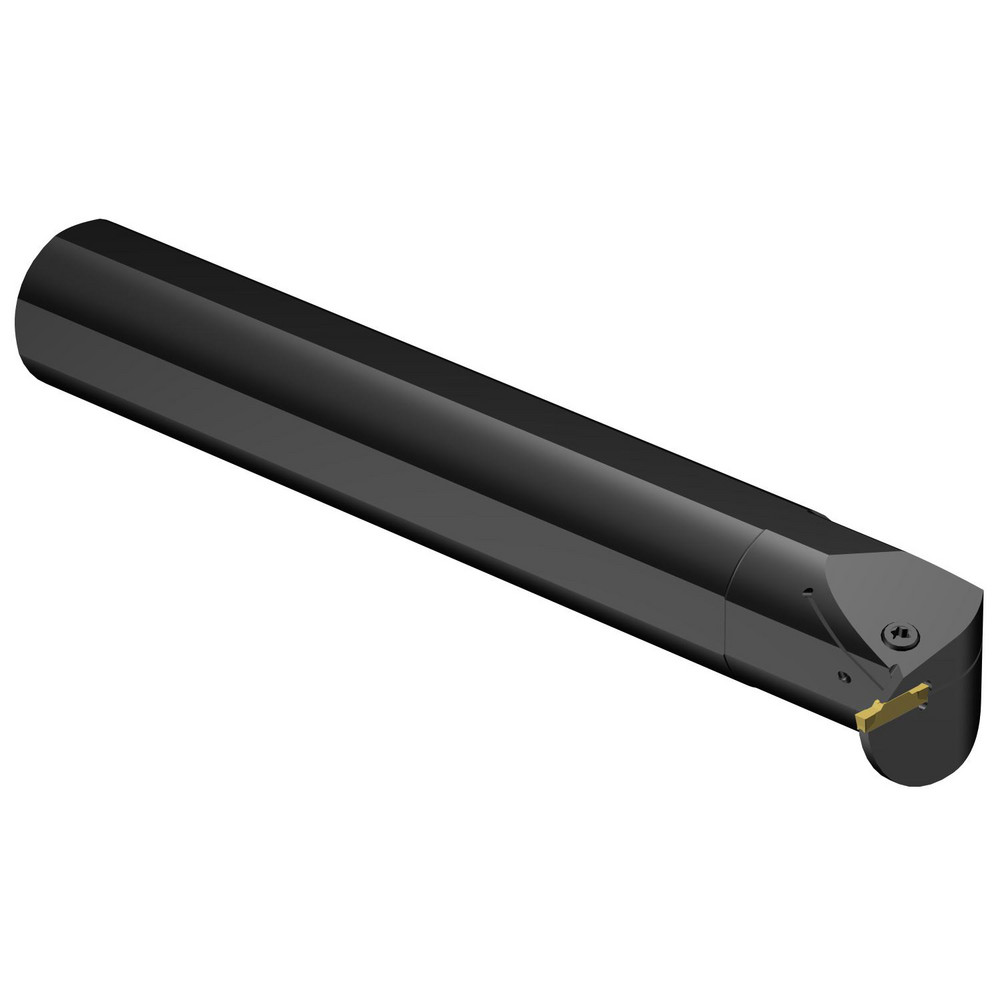

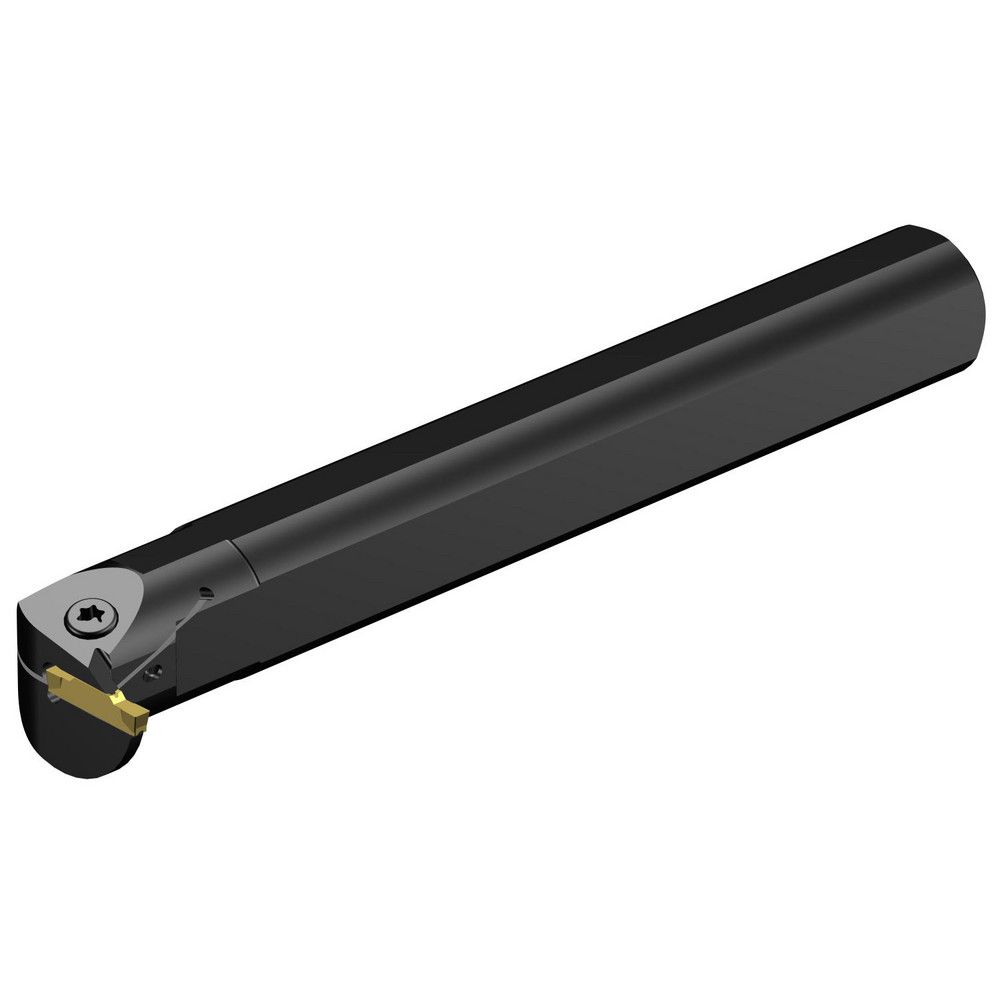

350.00 mm OAL, Clamp, Uses C2I-H2-0400 Inserts
| Minimum Bore Diameter (mm) | 60.00 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 2.3622 |
| Maximum Bore Depth (Decimal Inch) | 1.5059 |
| Maximum Bore Depth (mm) | 200.00 |
| Toolholder Style | C2R-CF..R/L..CB |
| Tool Material | Steel |
| Insert Compatibility | C2I-H2-0400 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Shank Diameter (mm) | 50.00 |
| Hand of Holder | Left Hand |
| Overall Length (Decimal Inch) | 13.7795 |
| Overall Length (mm) | 350.00 |
| Compatible Insert Size Code | H |
| Insert Holding Method | Clamp |
| Insert Included | No |
| Rake | Negative |
| Rake Angle | -2.700 |
| Lead Angle | 90 |
| Series | C2R |

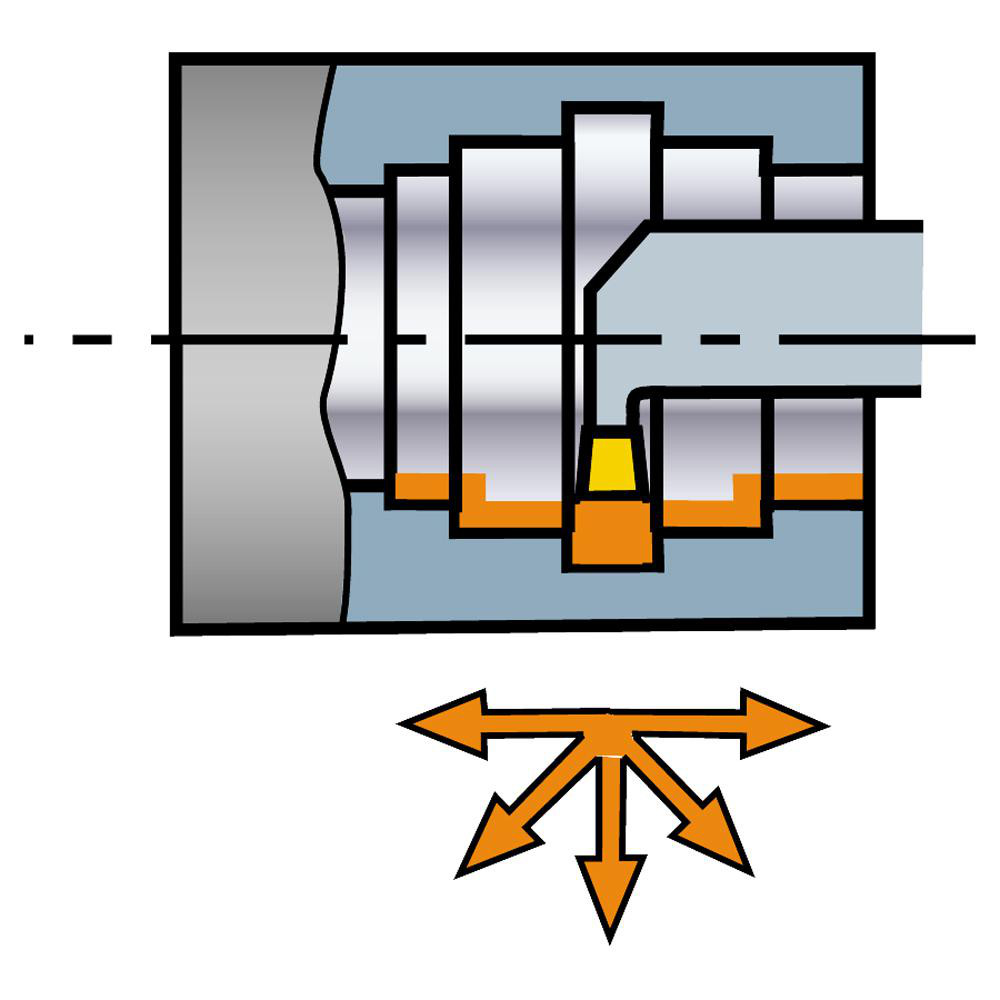

| Cutting Tool Application | Grooving |
| Back of Bar to Cutting Edge (Decimal Inch) | 13.7795 |
| Back of Bar to Cutting Edge (mm) | 350.00 |
| Center to Cutting Edge (Decimal Inch) | 1.5059 |
| Center to Cutting Edge (mm) | 38.25 |
| Number of Inserts Used on Toolholder | 1 |
| UNSPSC Code | 27112809 |
| Insert Thickness (Decimal Inch) | 0.1713 |
| Manufacturers Catalog Number | C2R-CF50-LH13GB |
| Coolant Through | Yes |
| Country of Origin | India |
| MSC Number | MSC# 02589836 |
