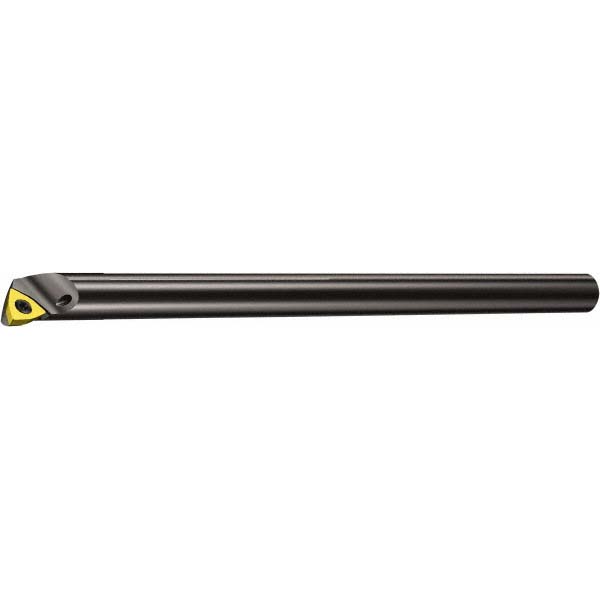

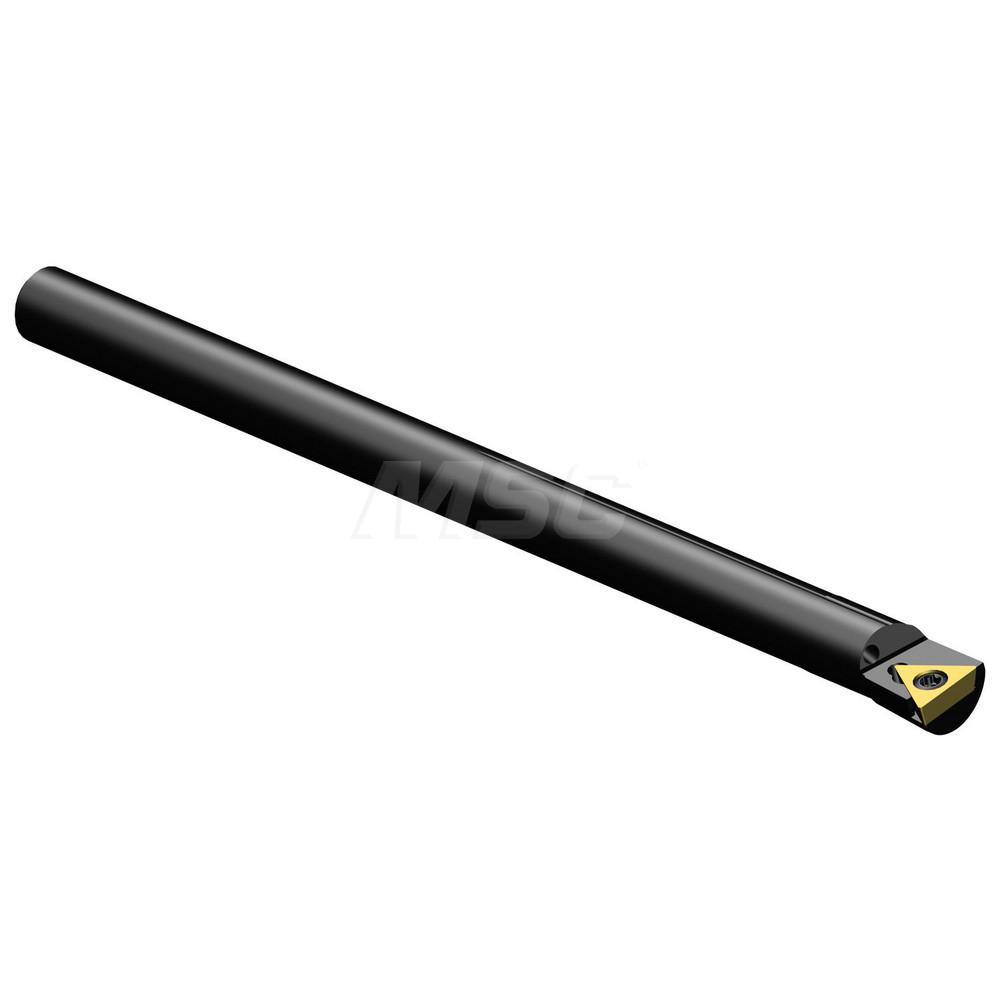

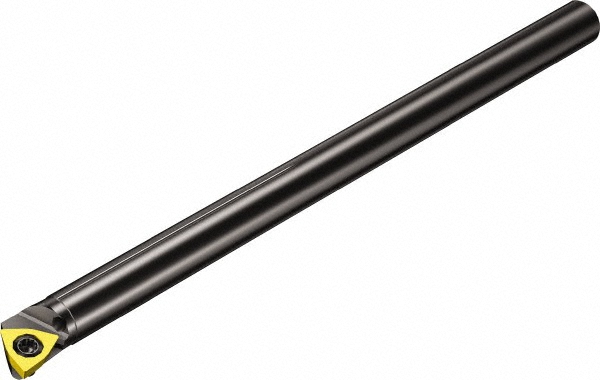

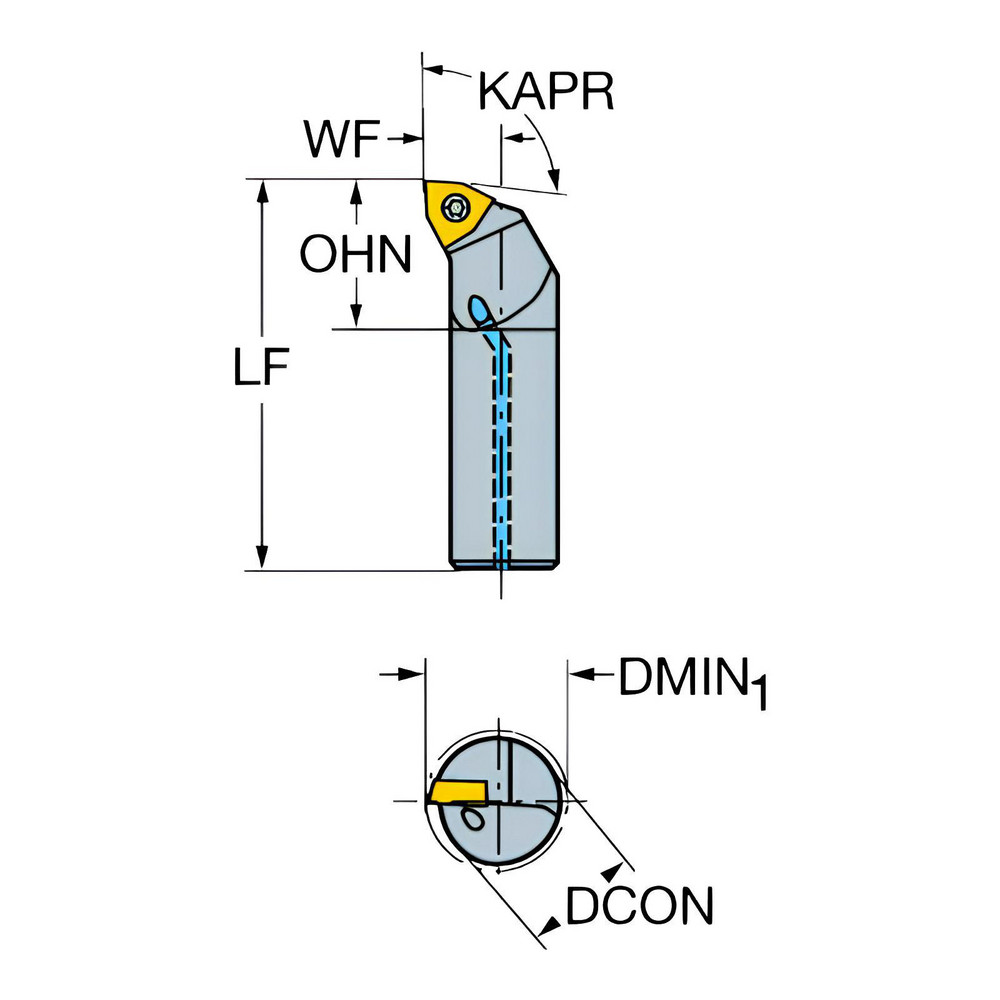

4.0000" OAL, Screw, Uses WPMT 02 01 02 Inserts
| Minimum Bore Diameter (Decimal Inch) | 0.3228 |
|---|---|
| Toolholder Style | E..SWLPR/L-R |
| Tool Material | Solid Carbide |

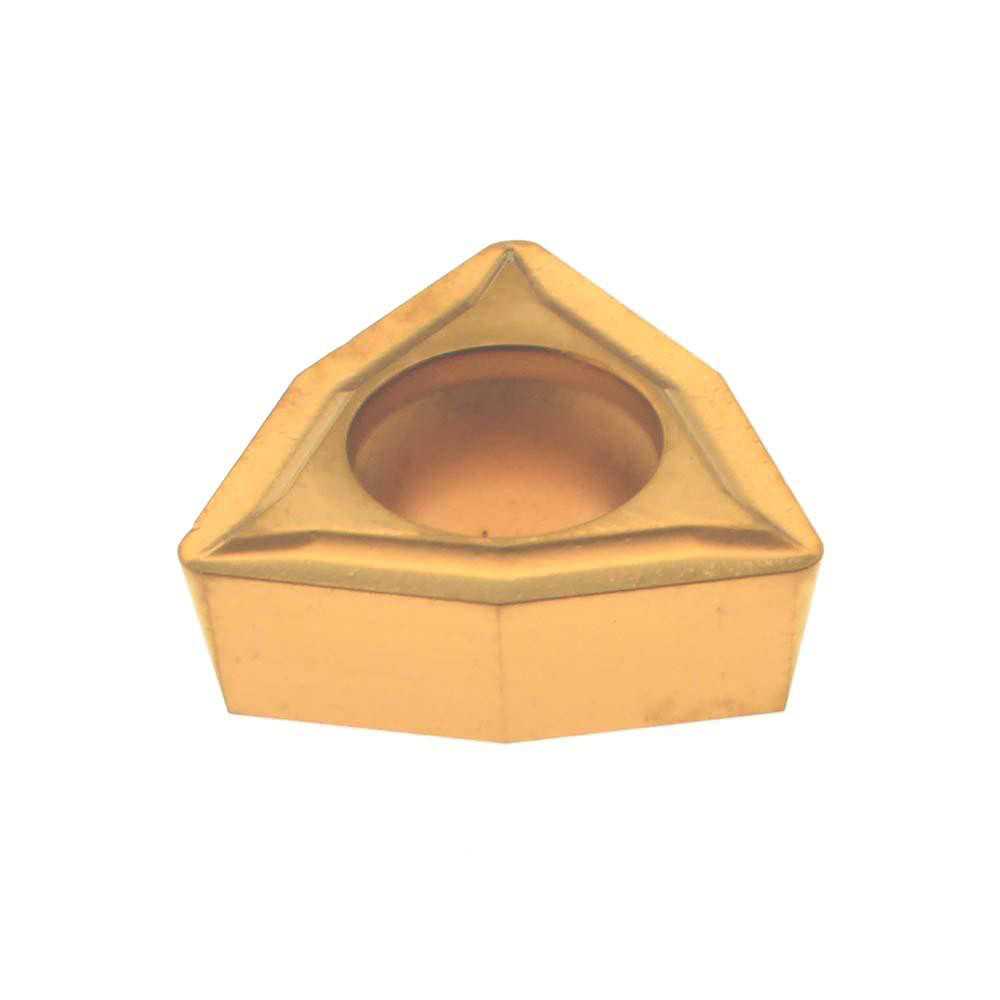

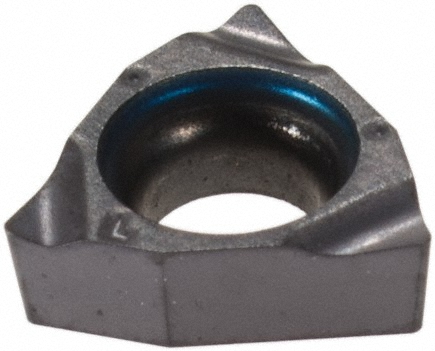

| Insert Compatibility | WPMT 02 01 02 |
| Hand of Holder | Left Hand |
| Shank Diameter (Inch) | 1/4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Overall Length (Inch) | 4 |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Rake Angle | 0.00 |
| Lead Angle | -5 |
| Series | CoroTurn 111 |
| Multi-use Tool | Yes |
| Center to Cutting Edge (Decimal Inch) | 0.1560 |
| UNSPSC Code | 23241601 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 49442346 |
