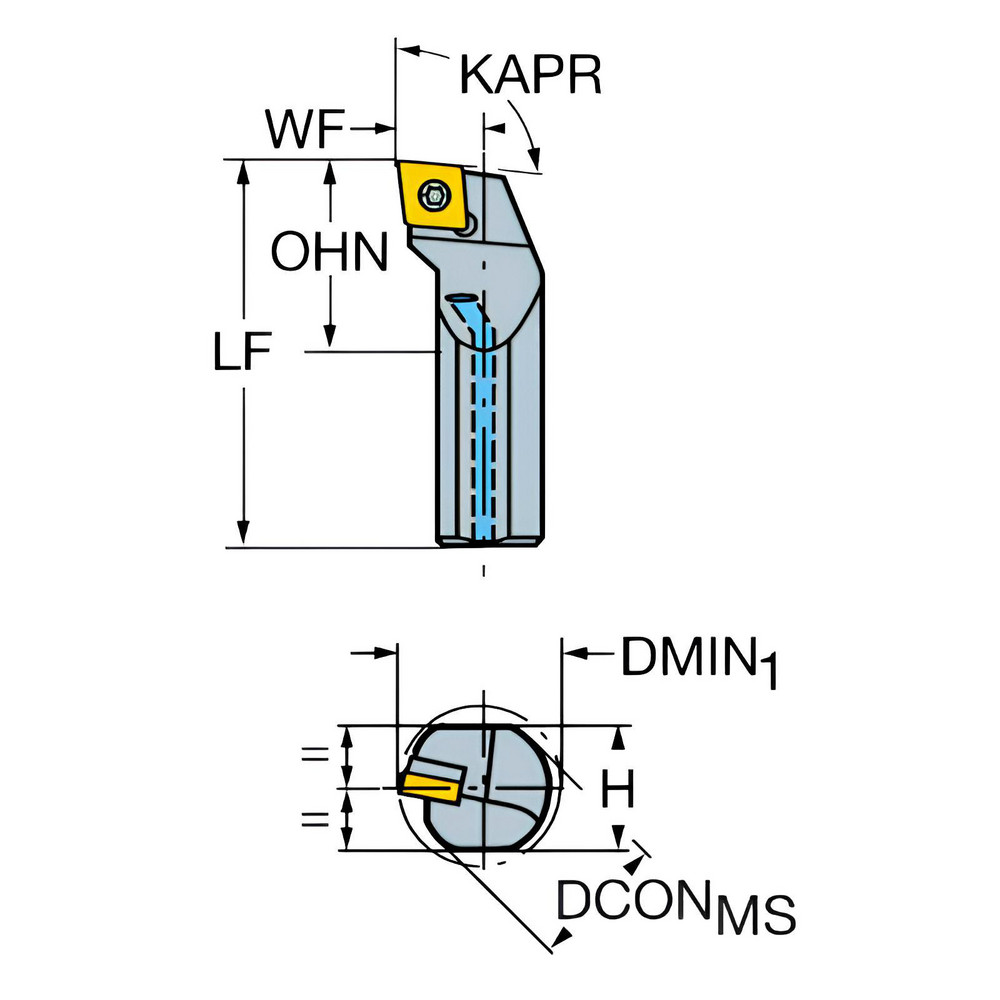

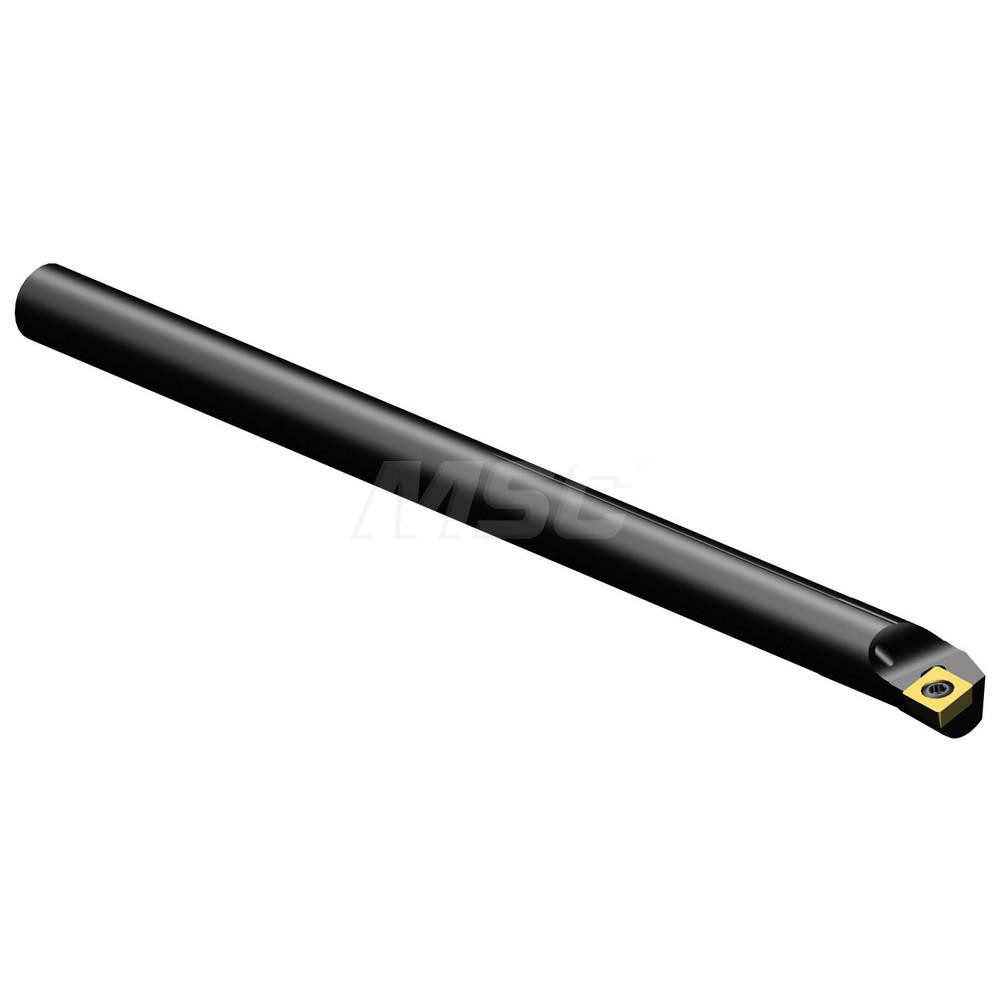

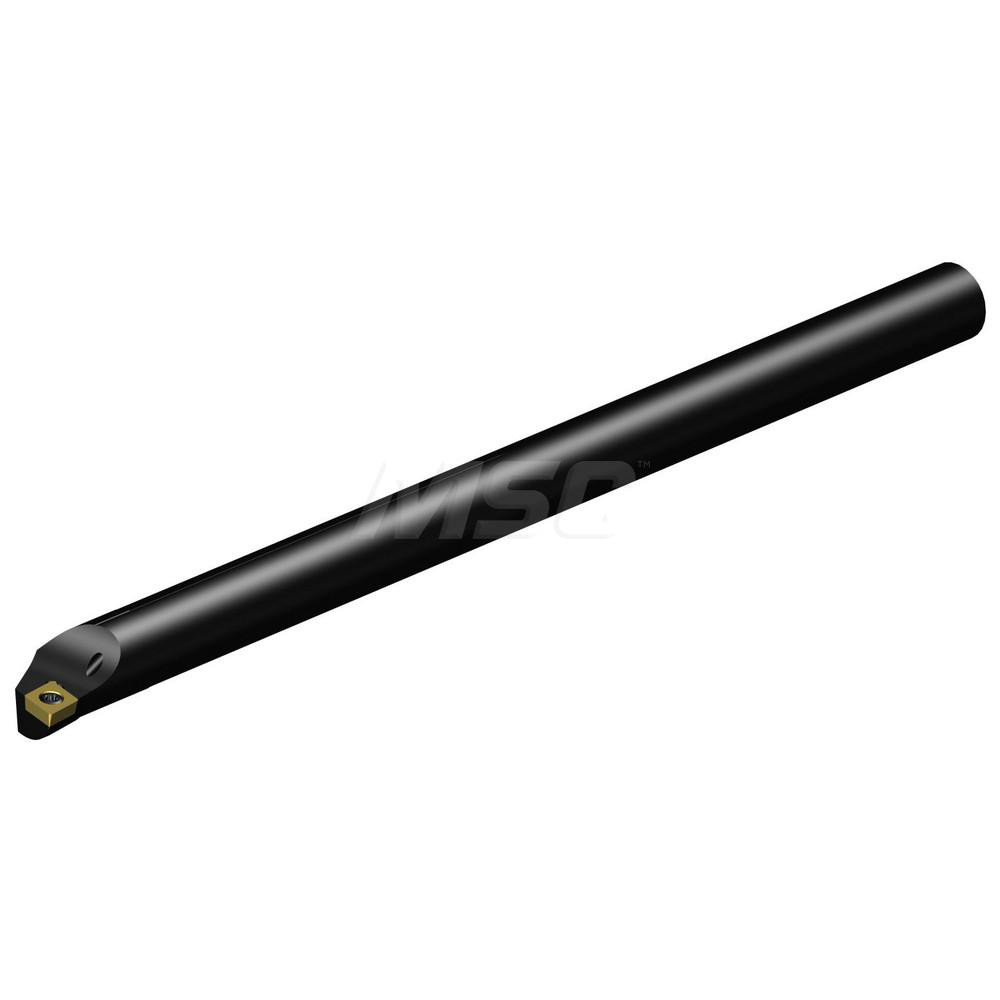

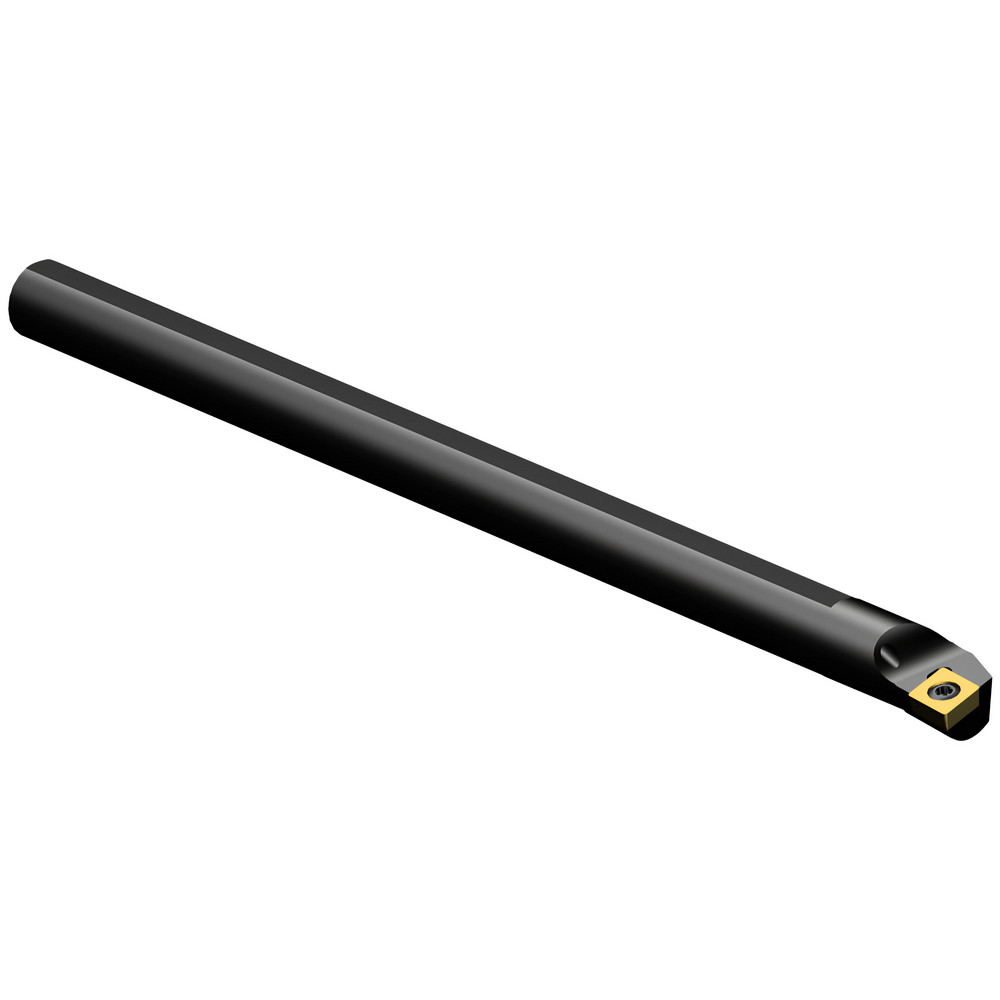

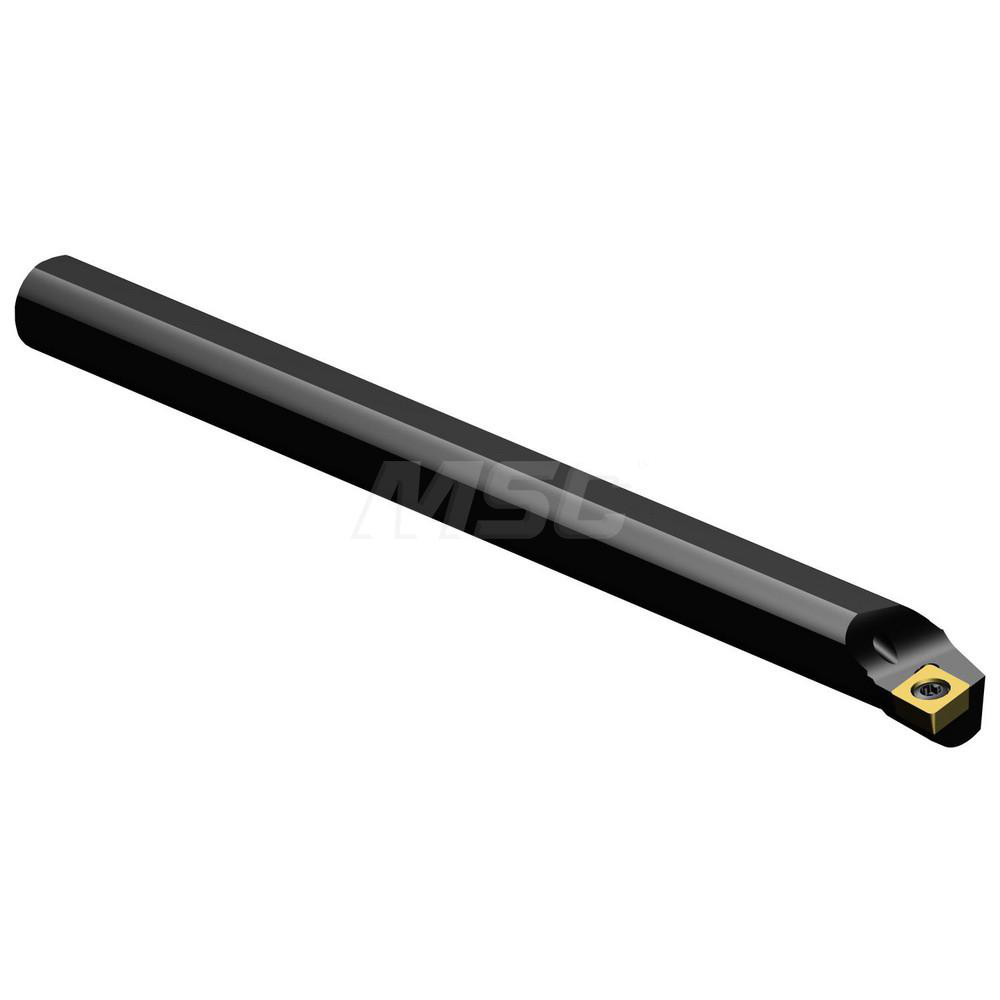

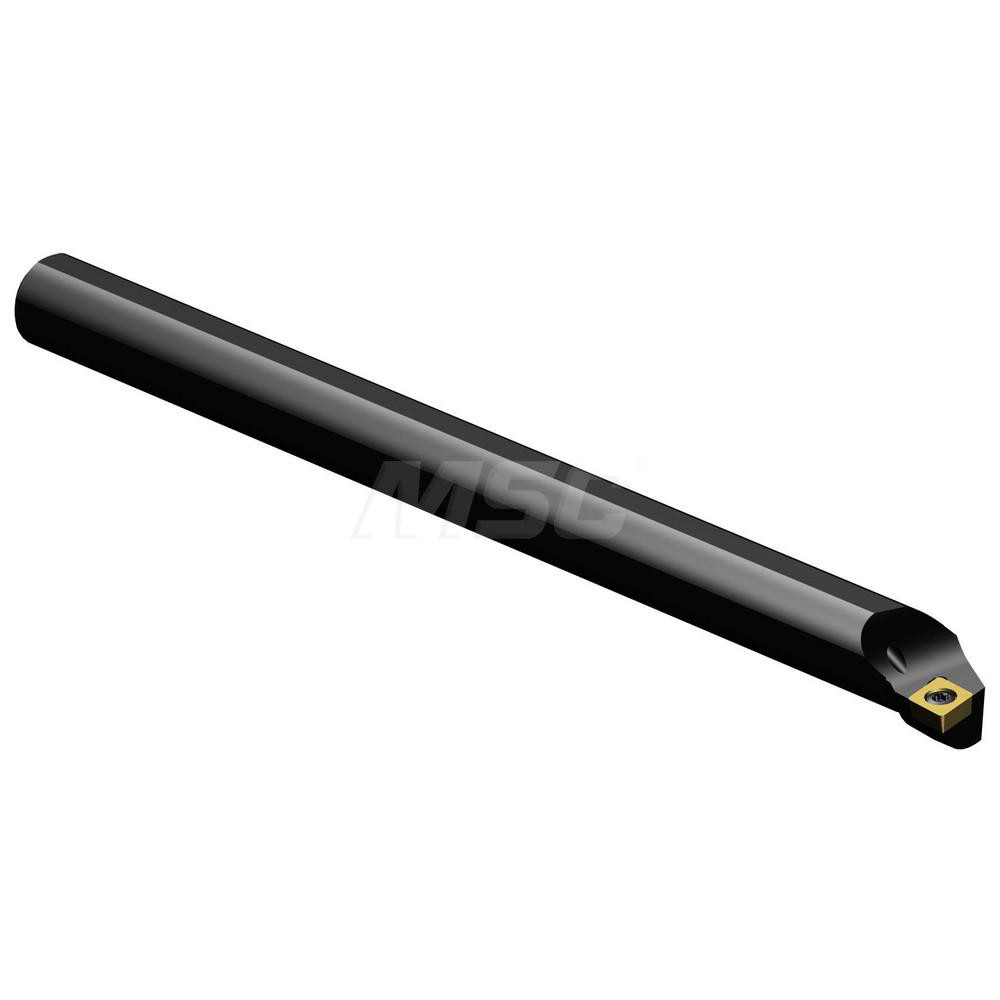

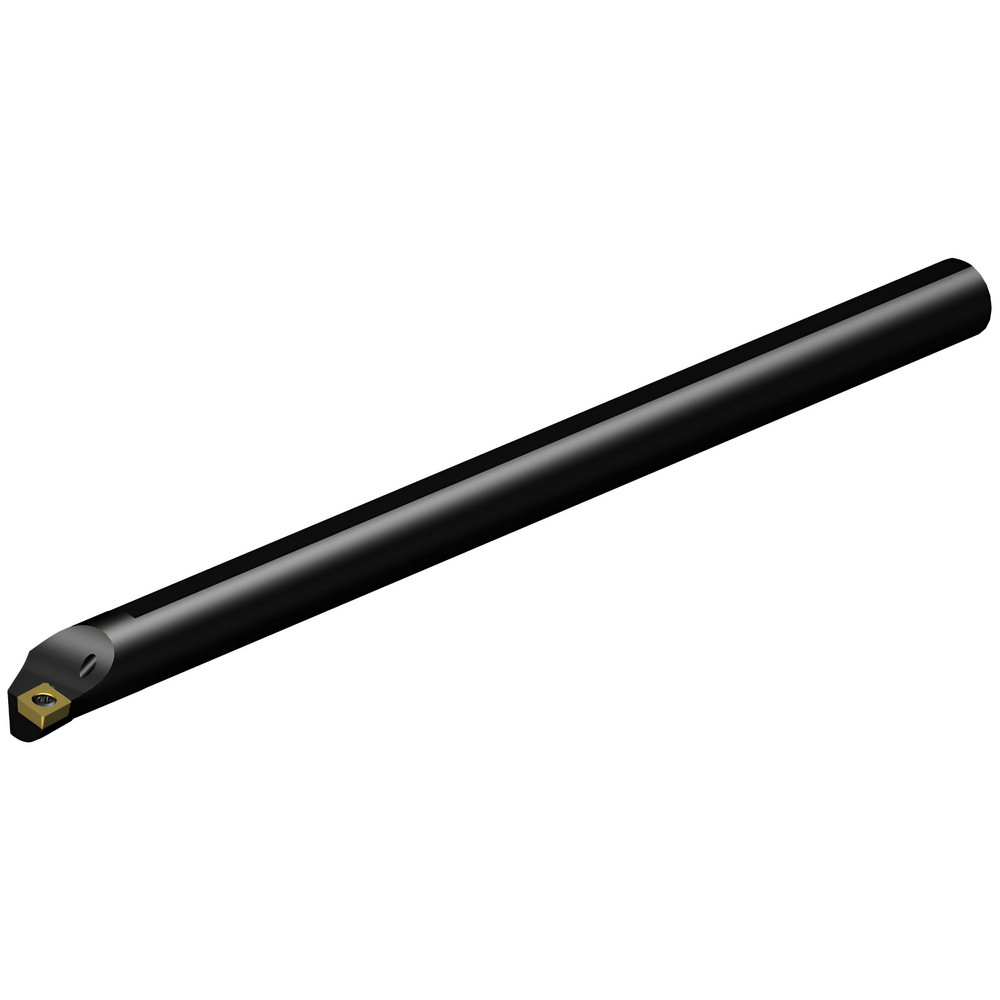

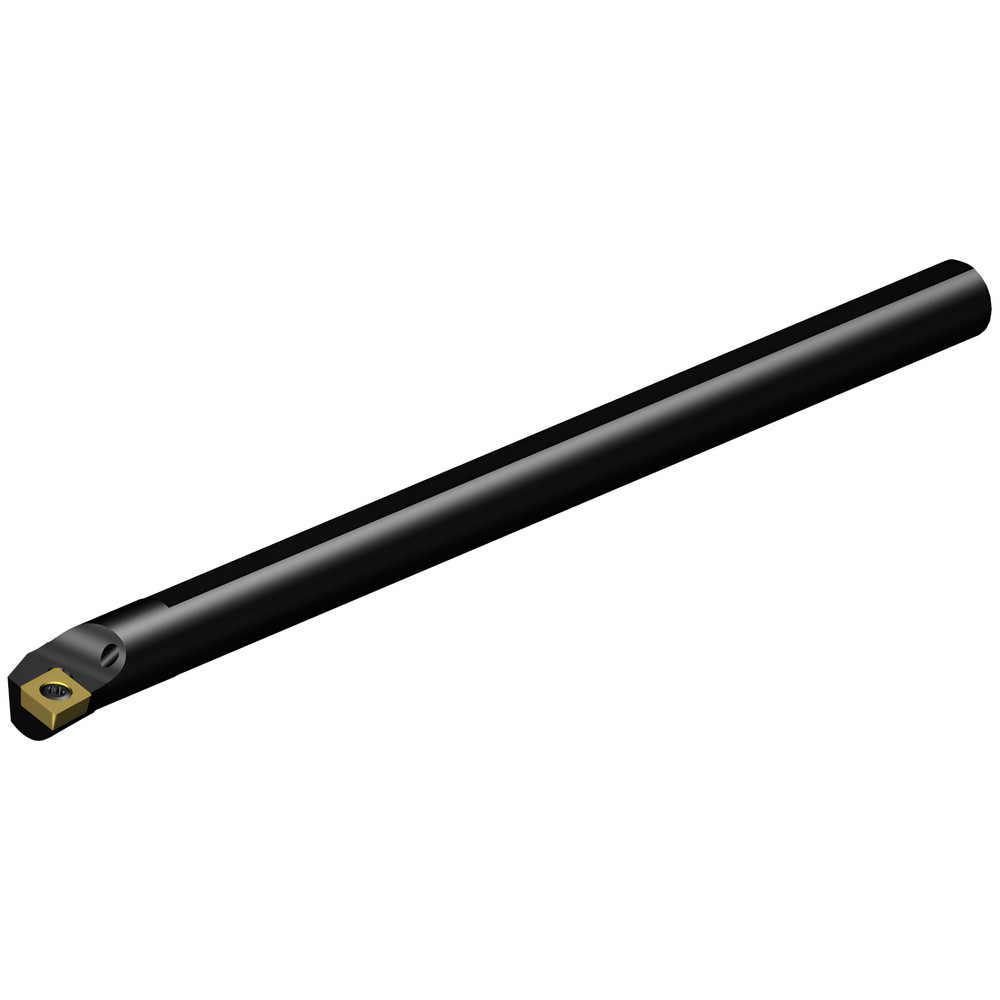

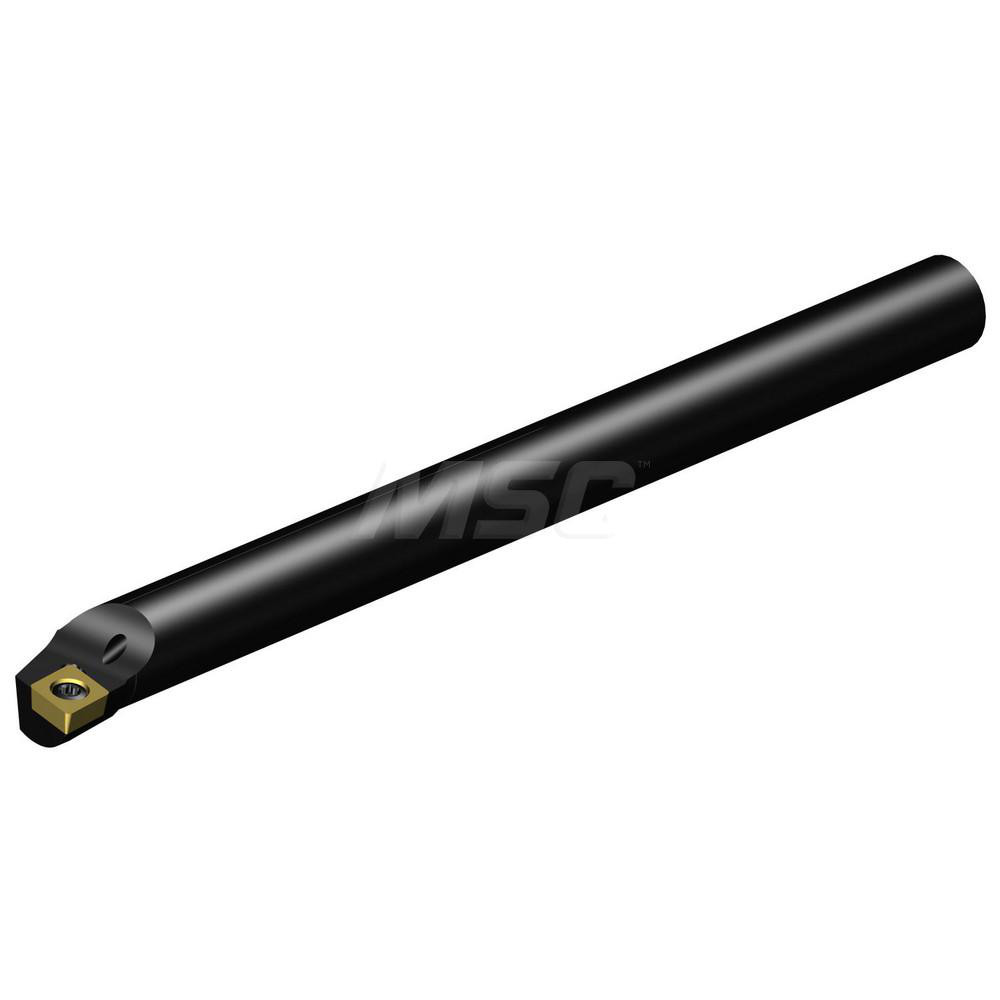

152.40 mm OAL, Screw Clamping, Uses CCMT 21.51 Inserts
| Minimum Bore Diameter (mm) | 12.20 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.4803 |
| Toolholder Style | E-SCLC |
| Minimum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch) | 0.4803 |
| Minimum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch) | 0.4803 |
| Tool Material | Solid Carbide |
| Insert Compatibility | CCMT 21.51 |
| Shank Diameter (mm) | 9.53 |
| Hand of Holder | Left Hand |
| Shank Diameter (Inch) | 3/8 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (mm) | 152.40 |
| Overall Length (Inch) | 6 |
| Insert Holding Method | Screw Clamping |
| Rake | Neutral |
| Rake Angle | 0.00 |
| Lead Angle | 0 |
| Series | CoroTurn 107 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Inscribed Circle (mm) | 6.35 |
| Multi-use Tool | Yes |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.0000 |
| Back of Bar to Cutting Edge (mm) | 152.40 |
| Center to Cutting Edge (Decimal Inch) | 0.2500 |
| Center to Cutting Edge (Inch) | 1/4 |
| Center to Cutting Edge (mm) | 6.35 |
| Number of Inserts Used on Toolholder | 1 |
| Neck Diameter (Decimal Inch) | 0.3750 |
| UNSPSC Code | 23241601 |
| Neck Diameter (Inch) | 3/8 |
| Insert Thickness (Decimal Inch) | 0.0750 |
| Manufacturers Catalog Number | E06M-SCLCL 2 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 54734553 |
