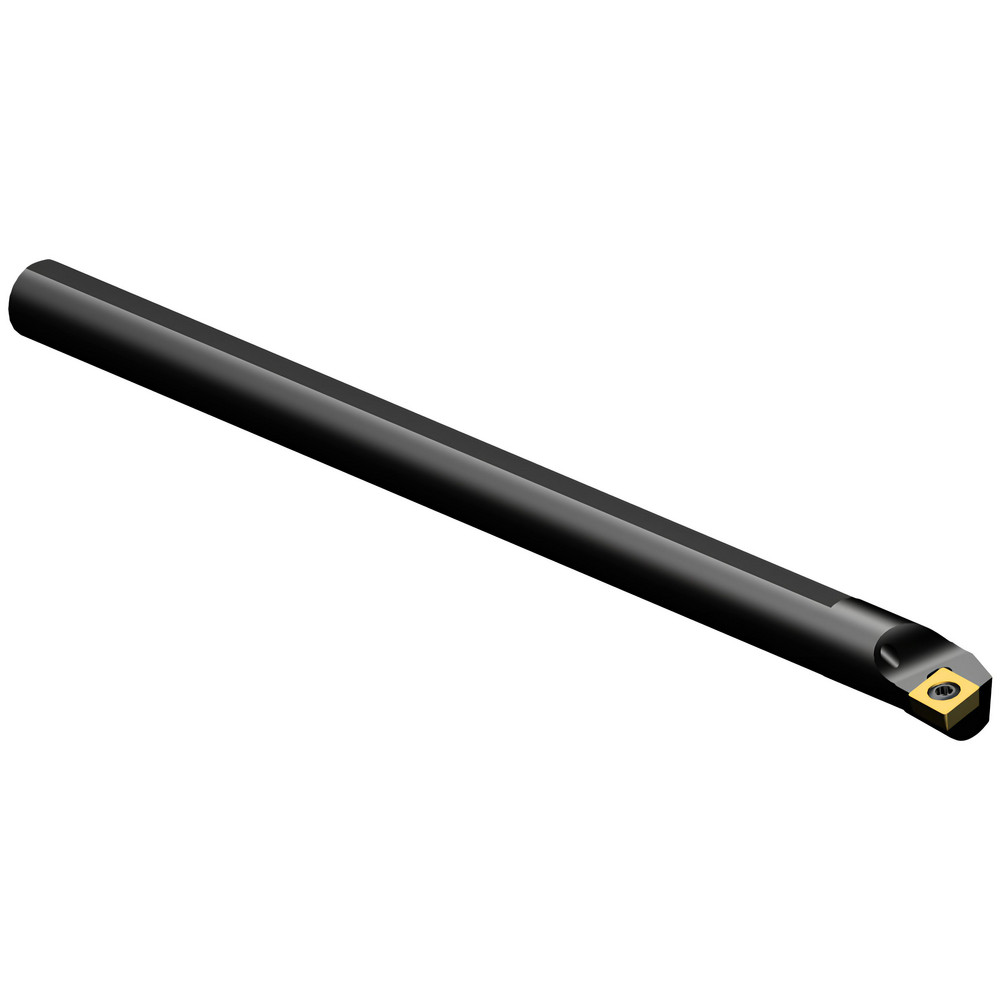

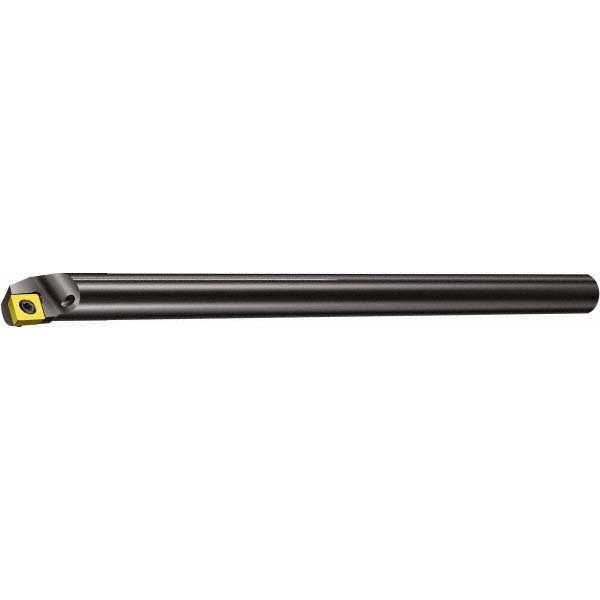

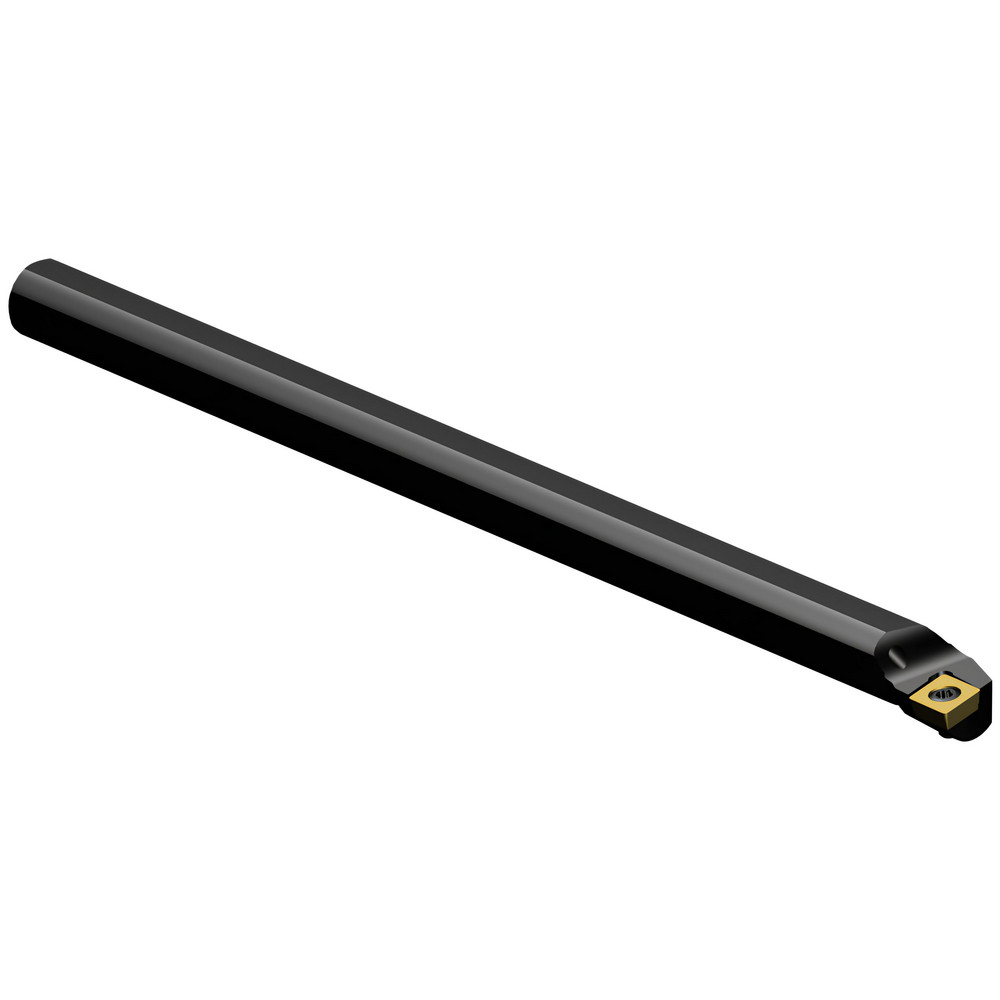

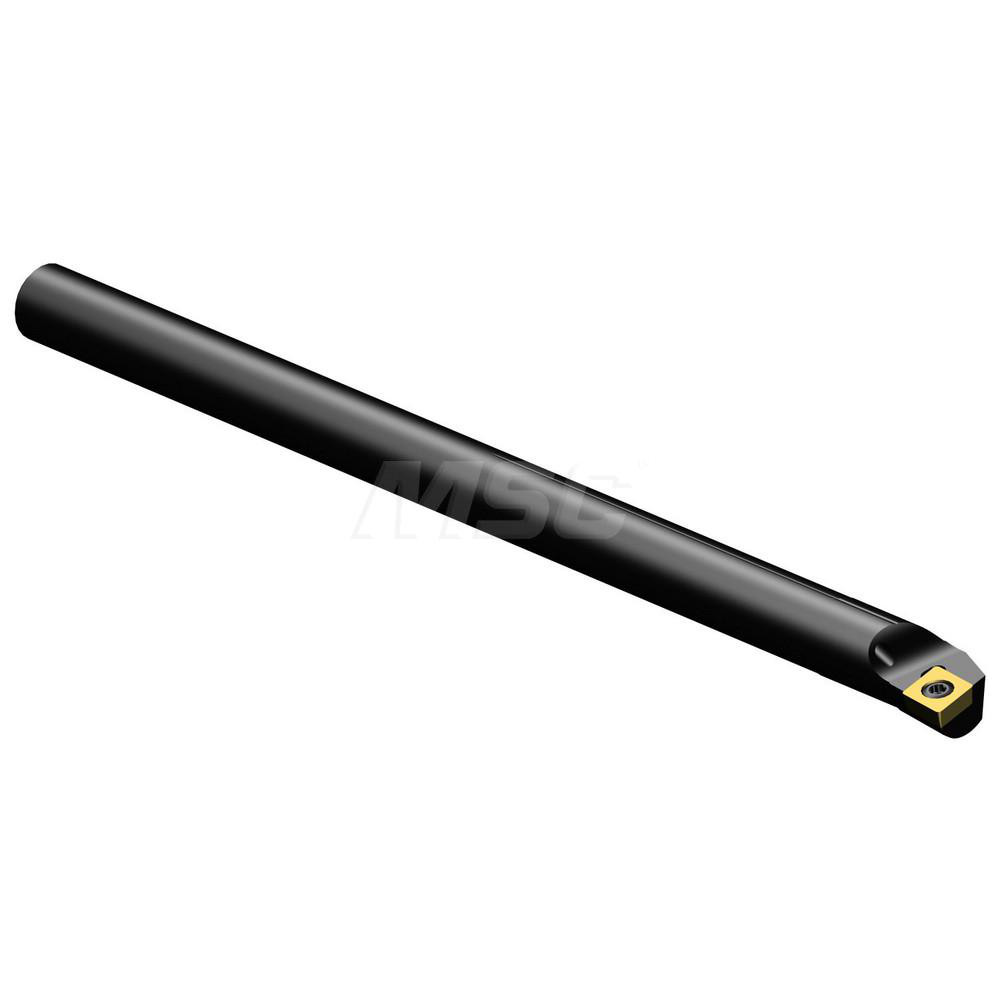

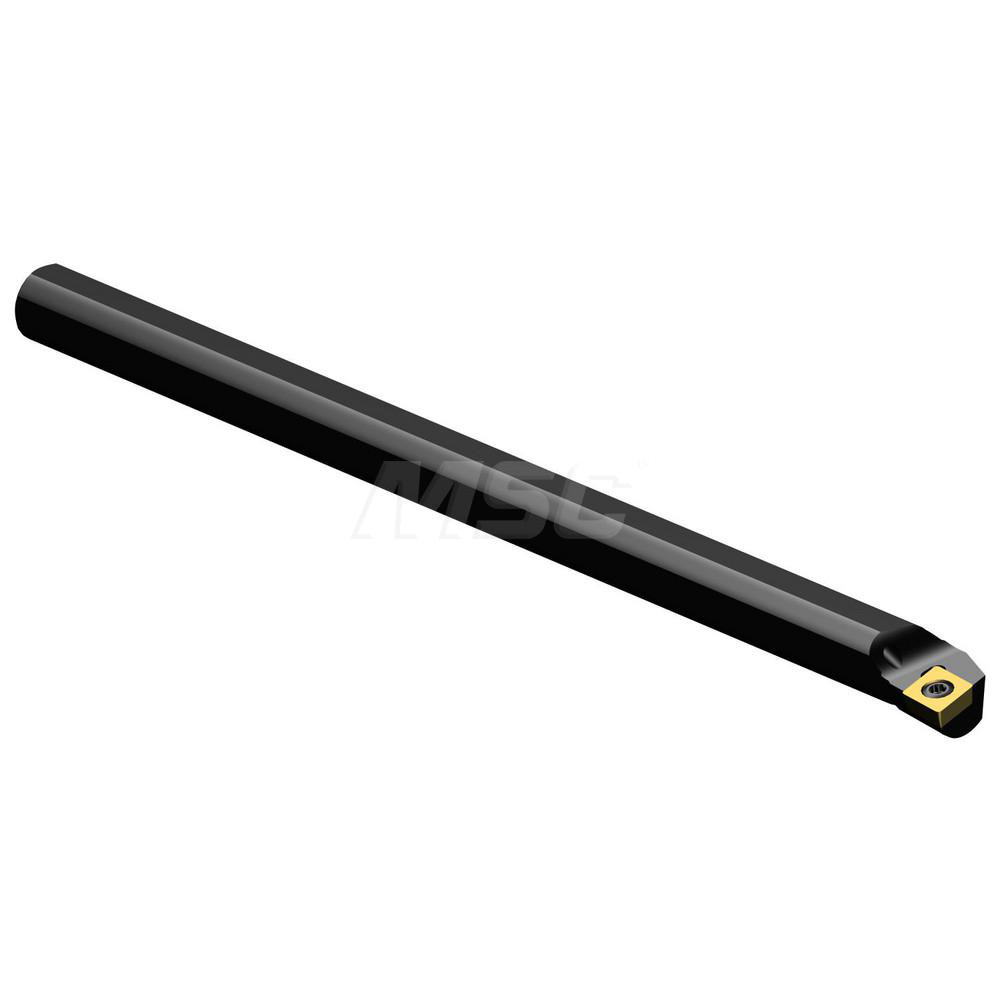

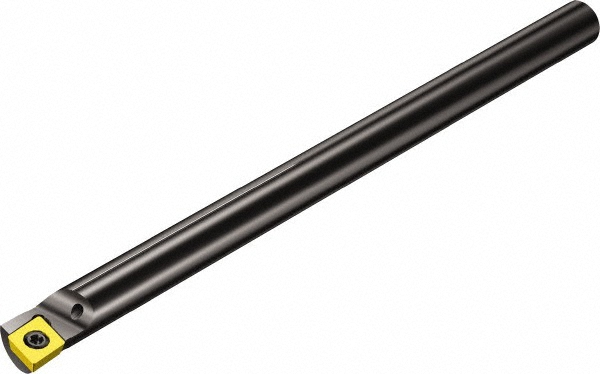

6.0000" OAL, Screw, Uses CPMT 06 02 04 Inserts

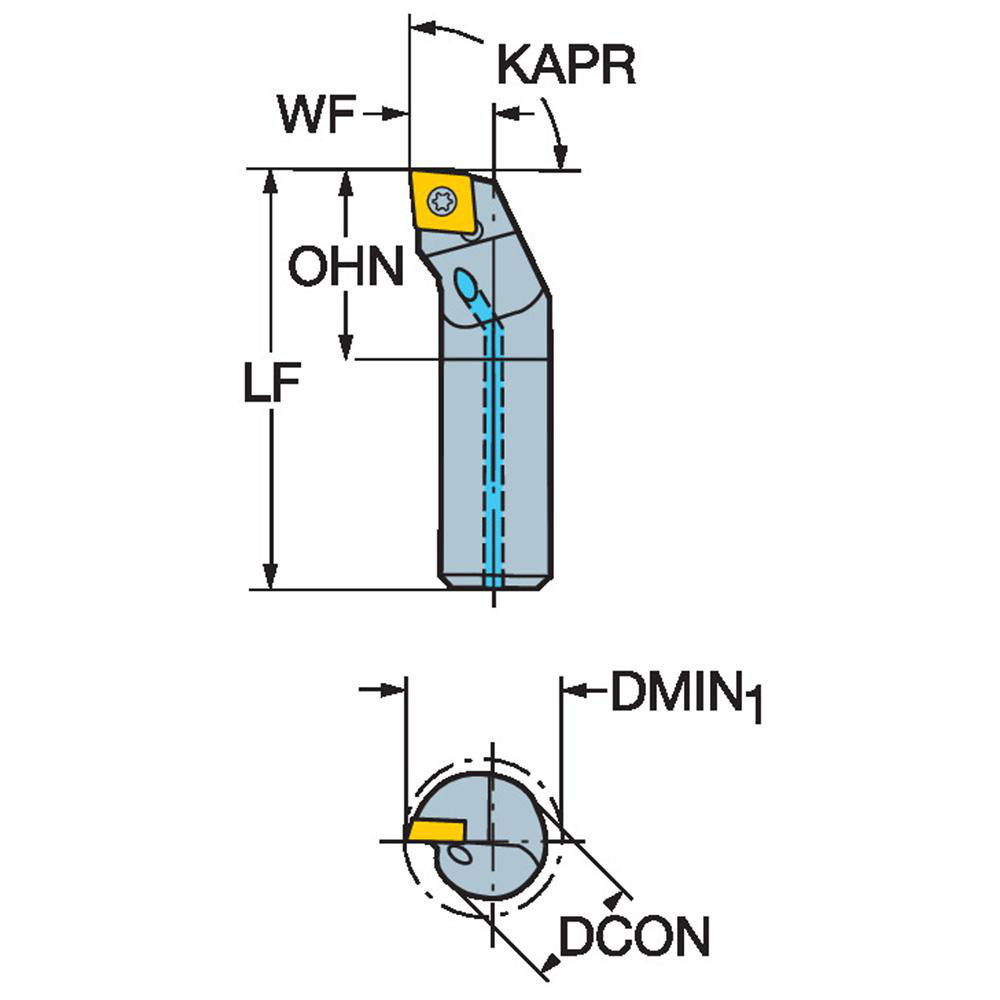

| Minimum Bore Diameter (Decimal Inch) | 0.4803 |
|---|---|
| Toolholder Style | E..SCLPR/L-R |
| Tool Material | Solid Carbide |
| Insert Compatibility | CPMT 06 02 04 |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 3/8 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (Inch) | 6 |

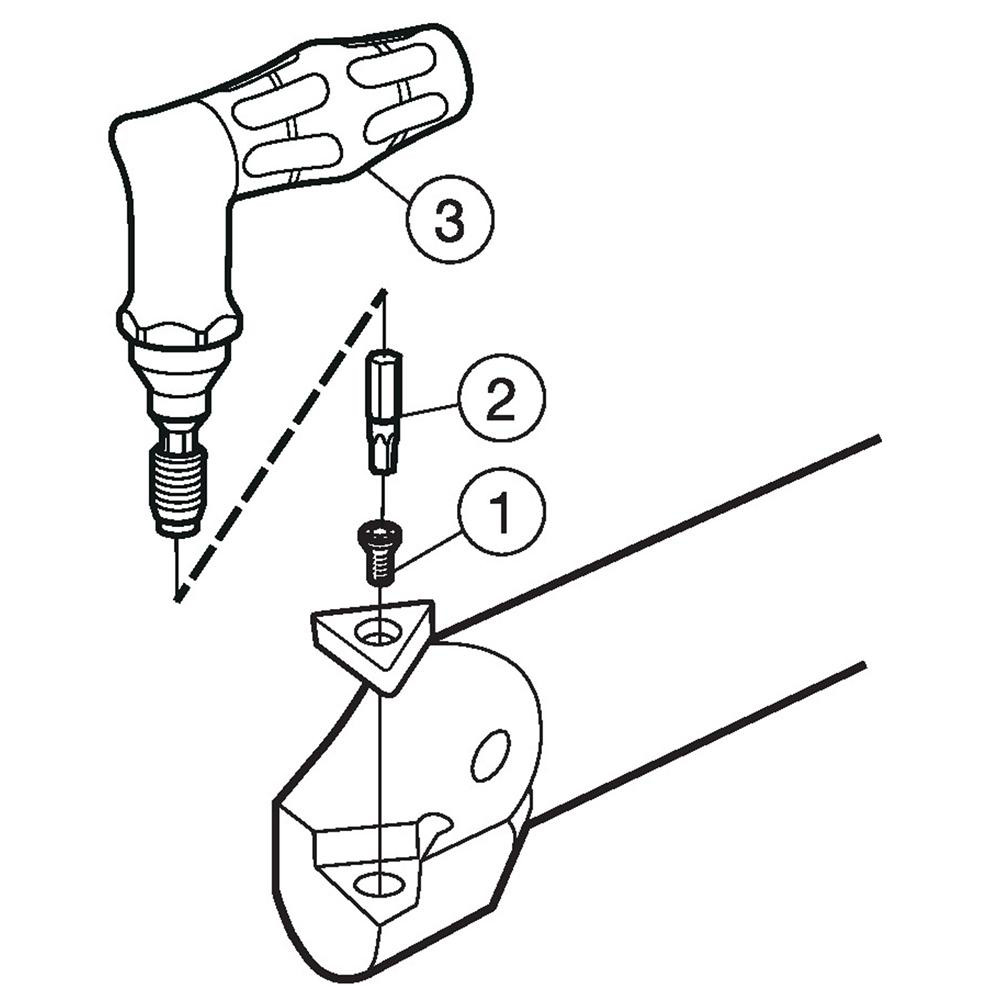

| Insert Holding Method | Screw |
| Rake | Positive |
| Rake Angle | 4.00 |
| Lead Angle | -5 |
| Series | CoroTurn 111 |
| Multi-use Tool | Yes |
| Center to Cutting Edge (Decimal Inch) | 0.2500 |
| UNSPSC Code | 23241601 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 49444094 |
