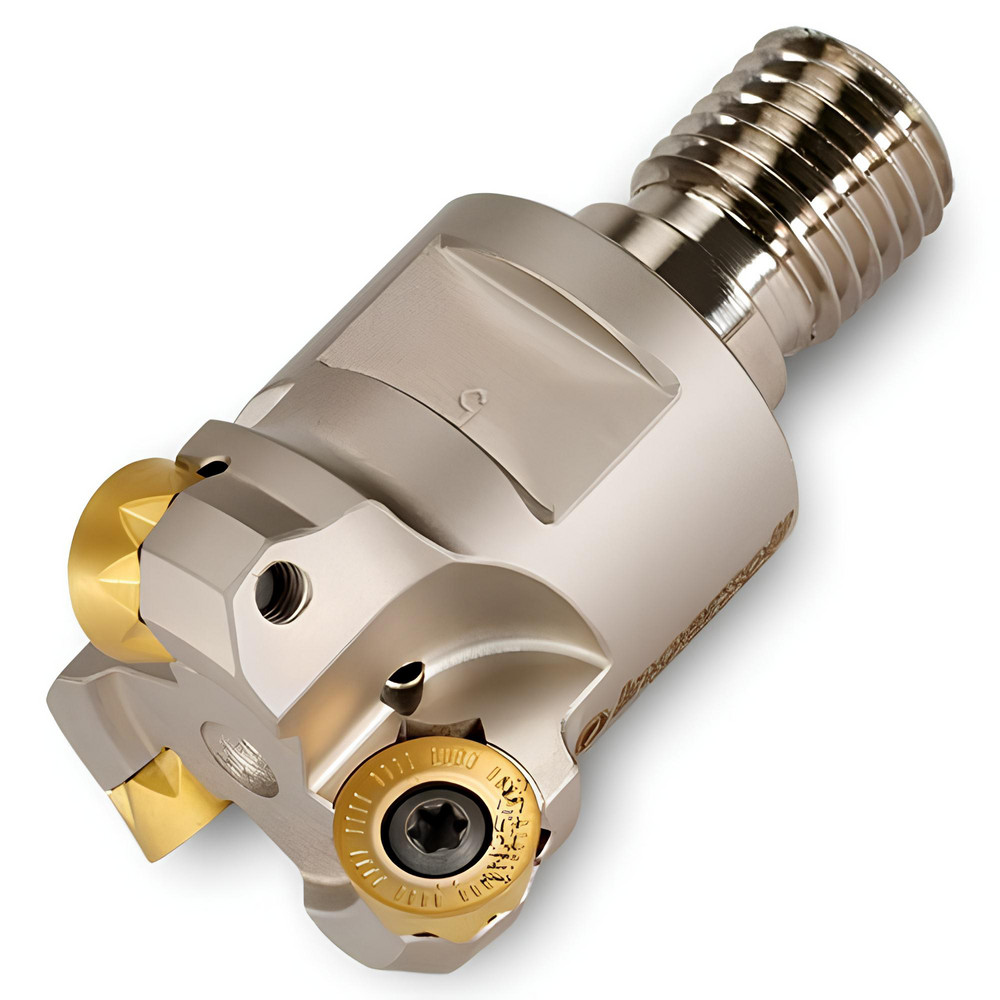

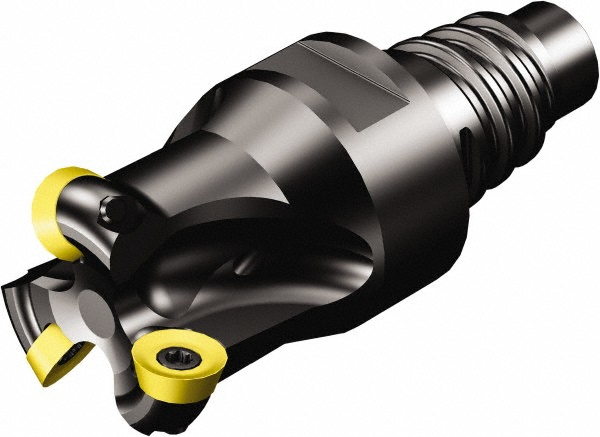

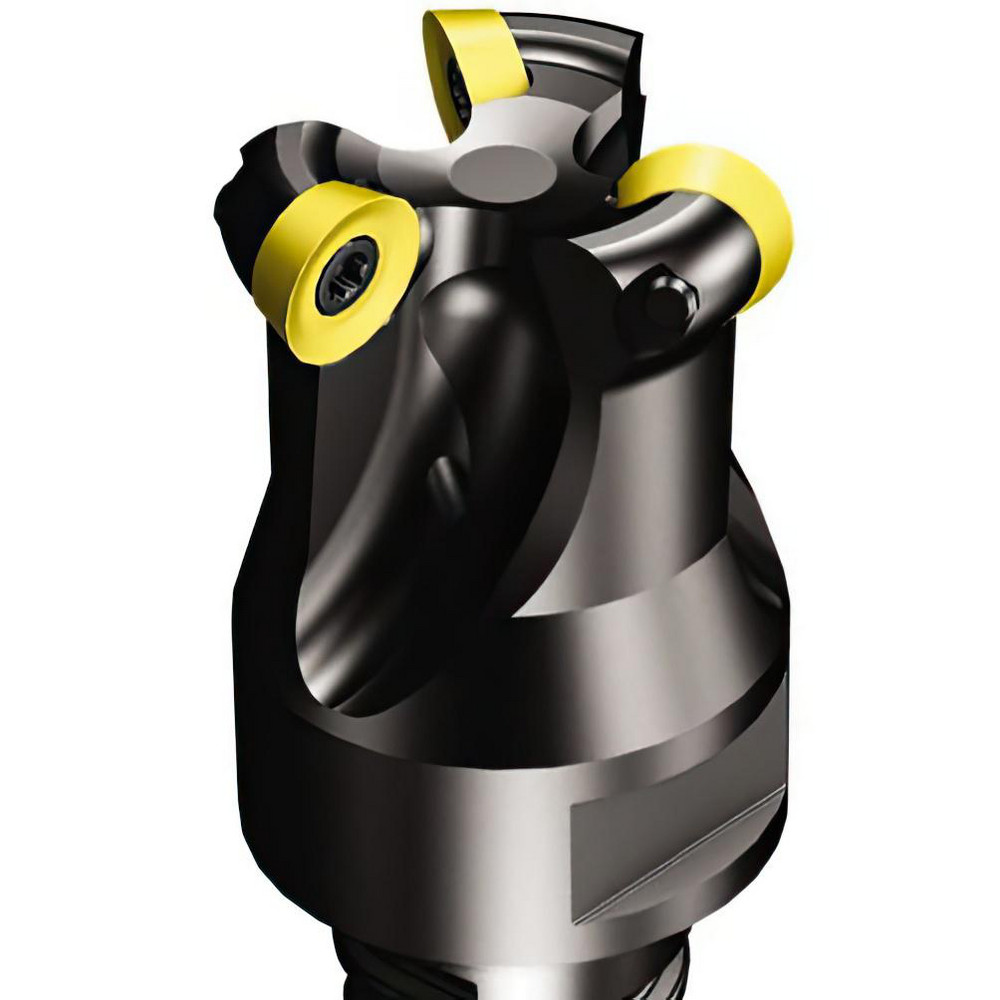

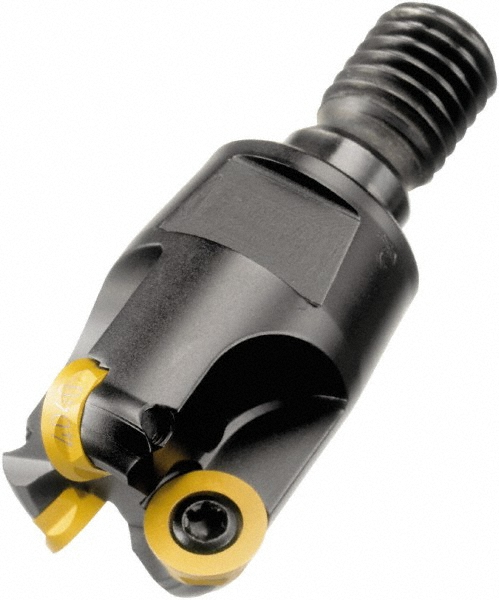

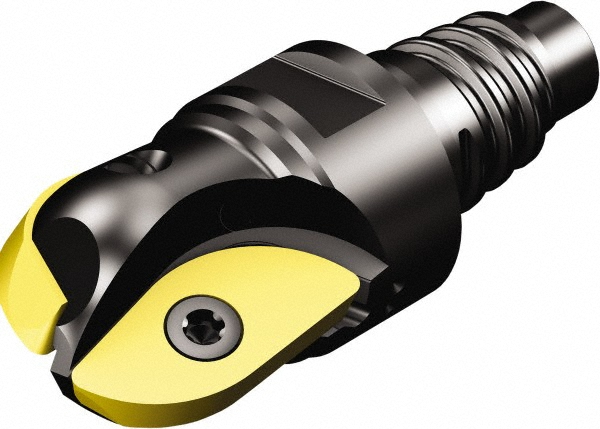

Uses 3 R300-0828.. Inserts, E20 Modular Connection Shank
| Cutting Diameter (mm) | 20.00 |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 0.4724 |
| Minimum Cutting Diameter (mm) | 12.00 |
| Maximum Cutting Diameter (Decimal Inch) | 0.7874 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 4.00 |
| Toolholder Style | R300..EH |
| Shank Type | Modular Connection |

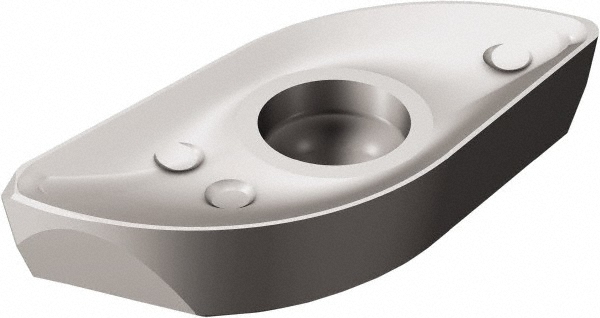

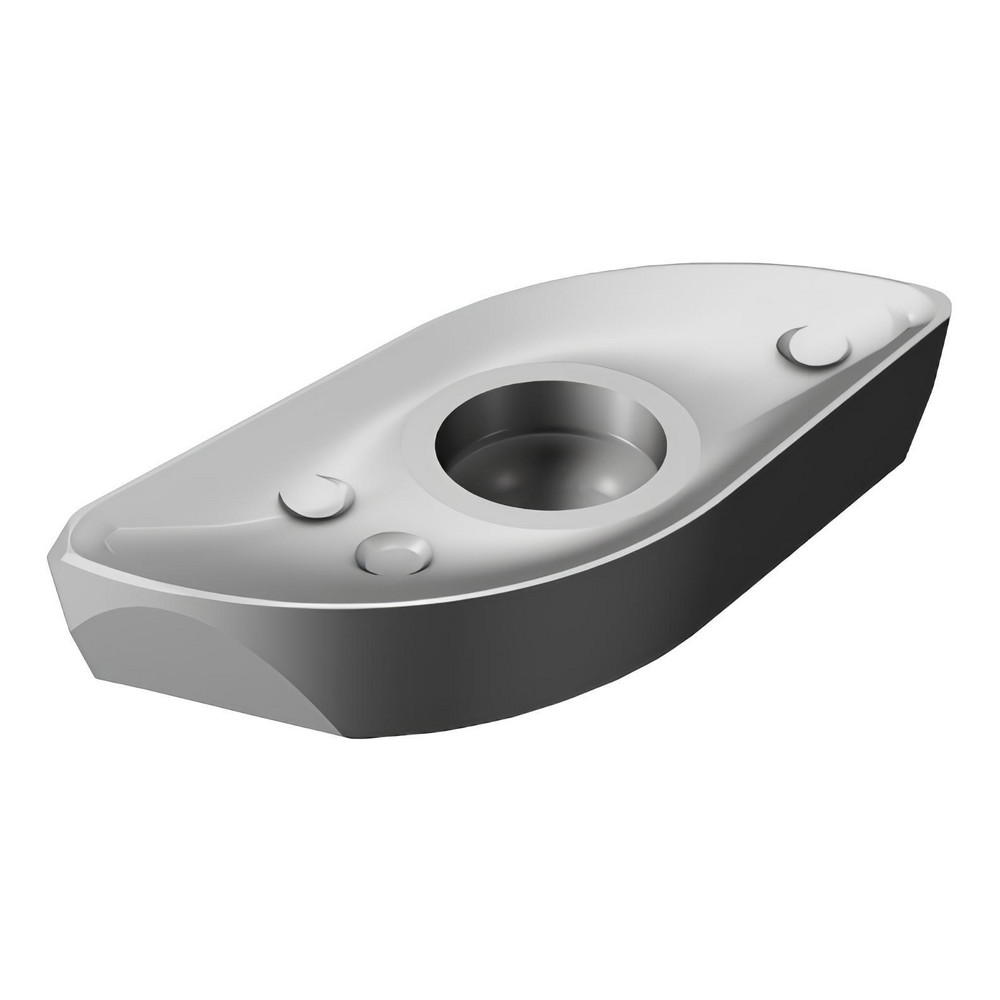

| Compatible Insert Style | R300-0828.. |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 3 |
| Overall Length (mm) | 49.50 |
| Overall Length (Decimal Inch) | 1.9488 |
| Maximum Rpm | 20000 |
| Modular Connection Size | E20 |
| Head Length (Decimal Inch) | 1.1811 |
| Projection (mm) | 30.00 |
| UNSPSC Code | 27112803 |
| Projection (Decimal Inch) | 1.1811 |
| Number Of Flutes | 3 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 49525579 |
