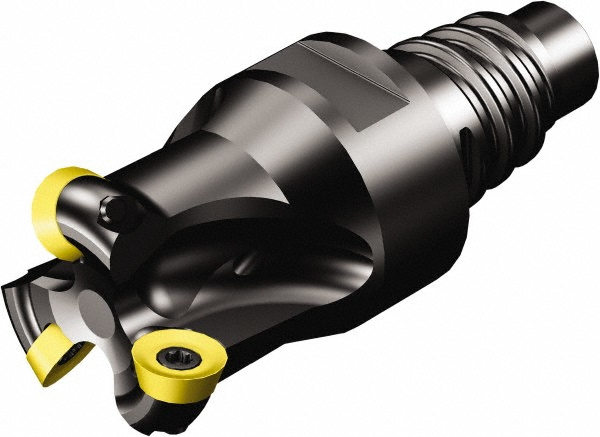

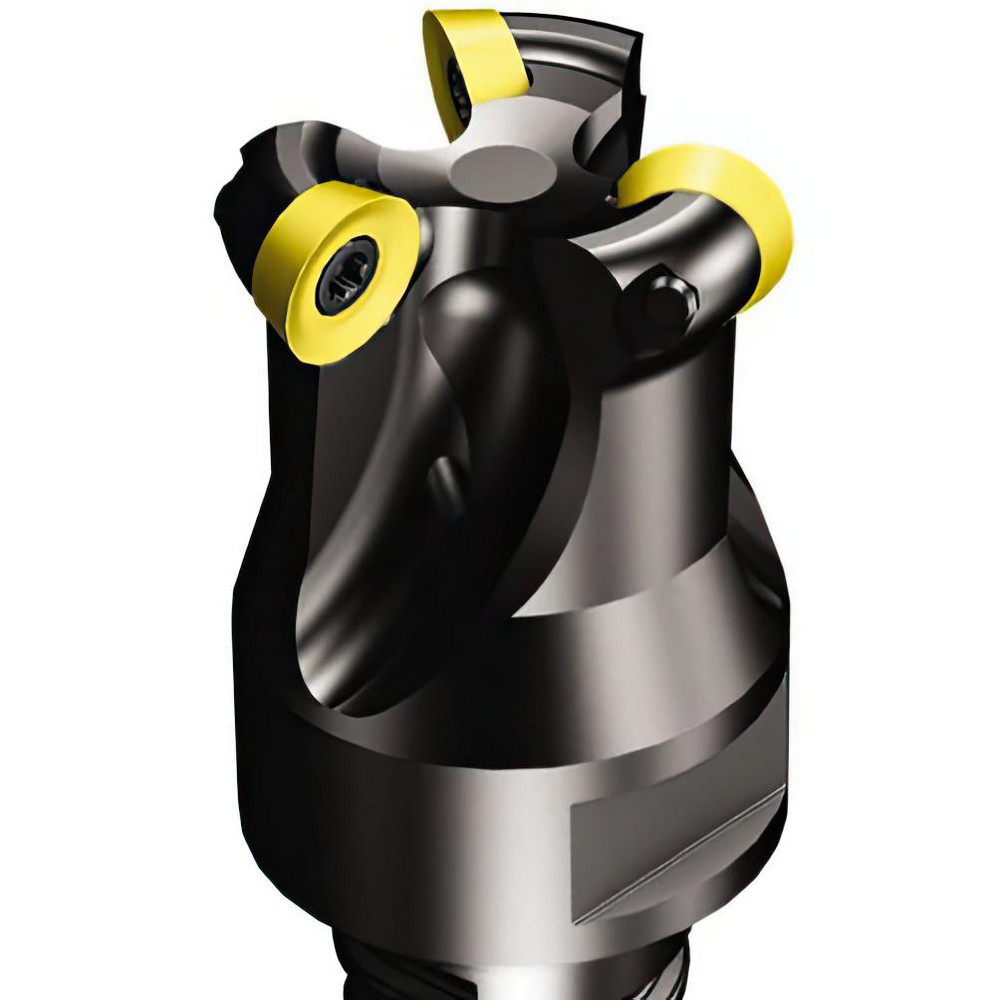

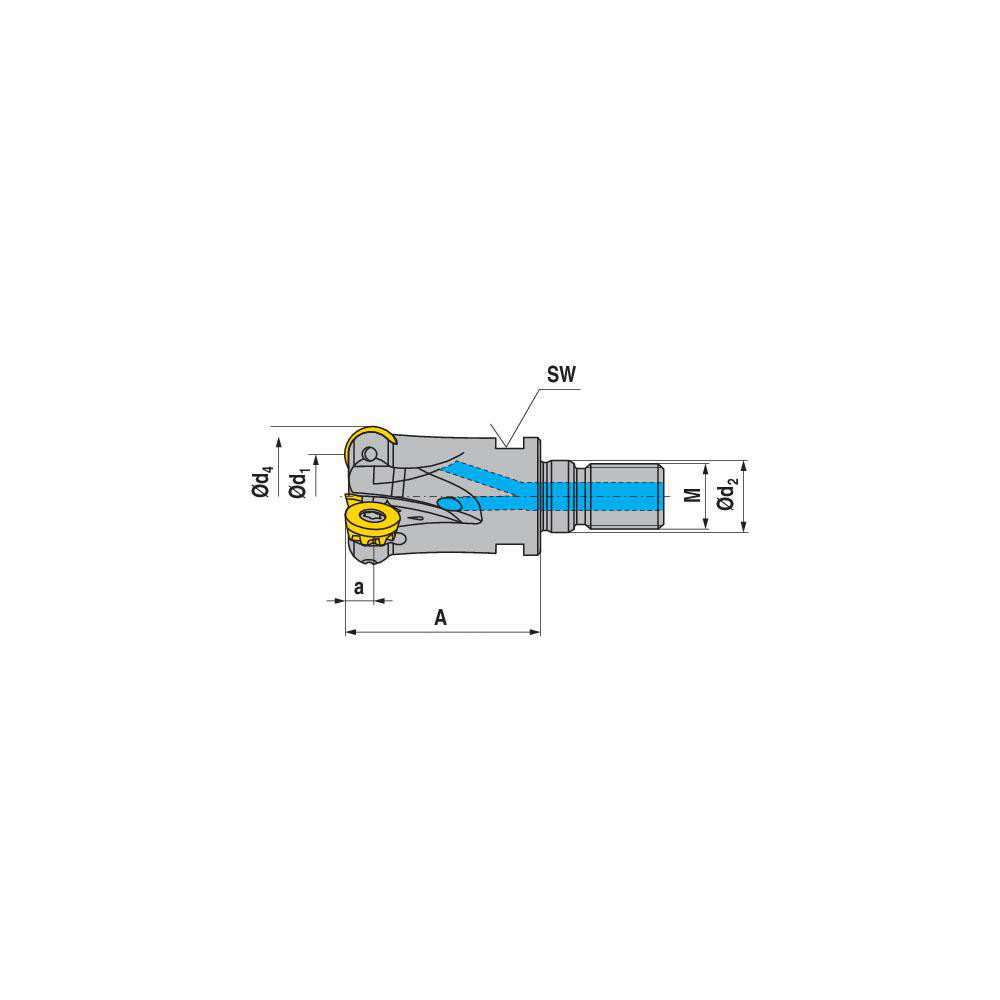

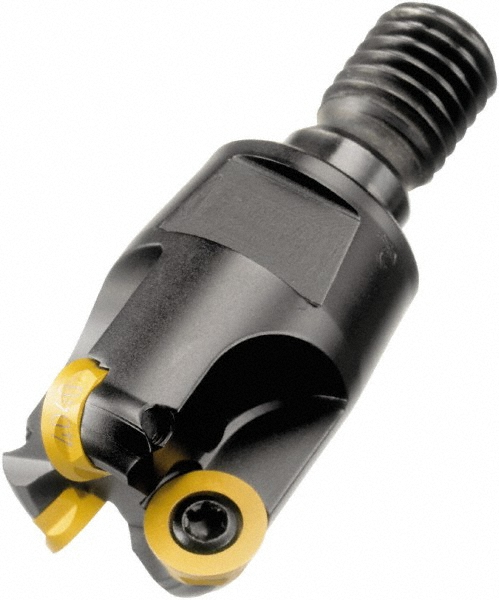

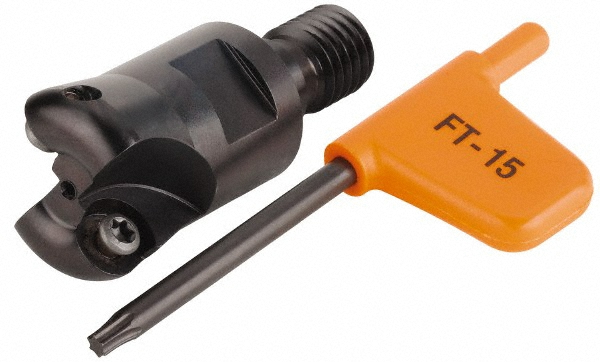

Uses 3 R300-1032.. Inserts, E25 Modular Connection Shank
| Cutting Diameter (mm) | 25.00 |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 0.5906 |
| Minimum Cutting Diameter (mm) | 15.00 |
| Maximum Cutting Diameter (Decimal Inch) | 0.9842 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Maximum Depth of Cut (mm) | 5.00 |
| Toolholder Style | R300..EH |
| Shank Type | Modular Connection |
| Compatible Insert Style | R300-1032.. |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 3 |
| Overall Length (mm) | 59.00 |
| Overall Length (Decimal Inch) | 2.3228 |
| Maximum Rpm | 15000 |
| Modular Connection Size | E25 |
| Head Length (Decimal Inch) | 1.3780 |
| Projection (mm) | 35.00 |
| UNSPSC Code | 27112803 |
| Projection (Decimal Inch) | 1.3780 |
| Number Of Flutes | 3 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 49539109 |
