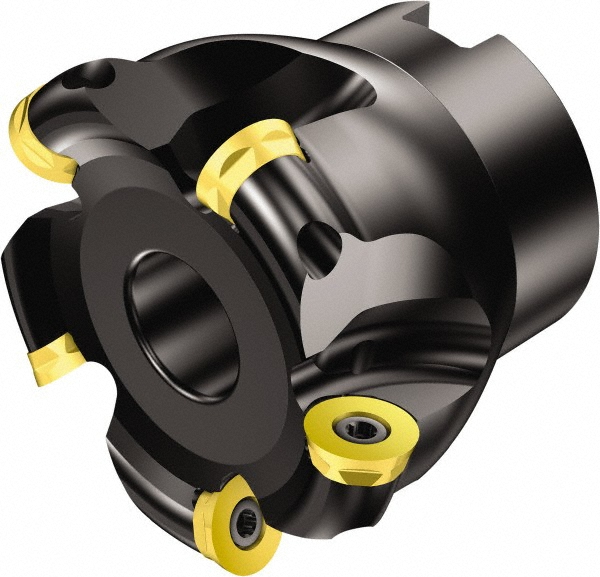

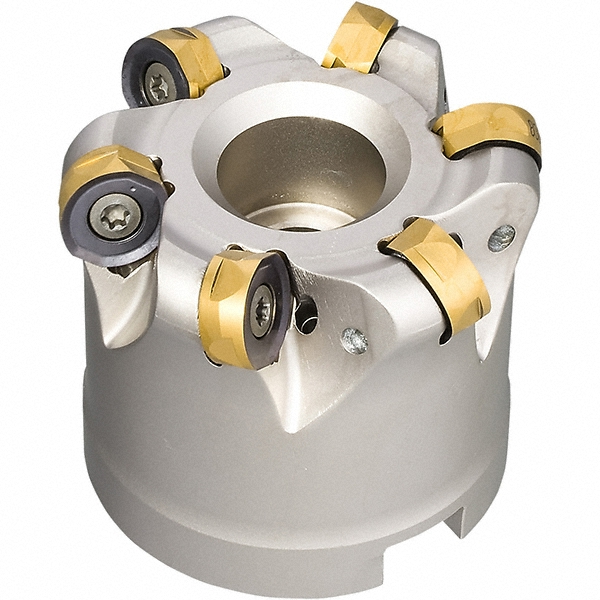

Takes (7) R300-1340 Inserts, 0.248" Max Depth, Through Coolant

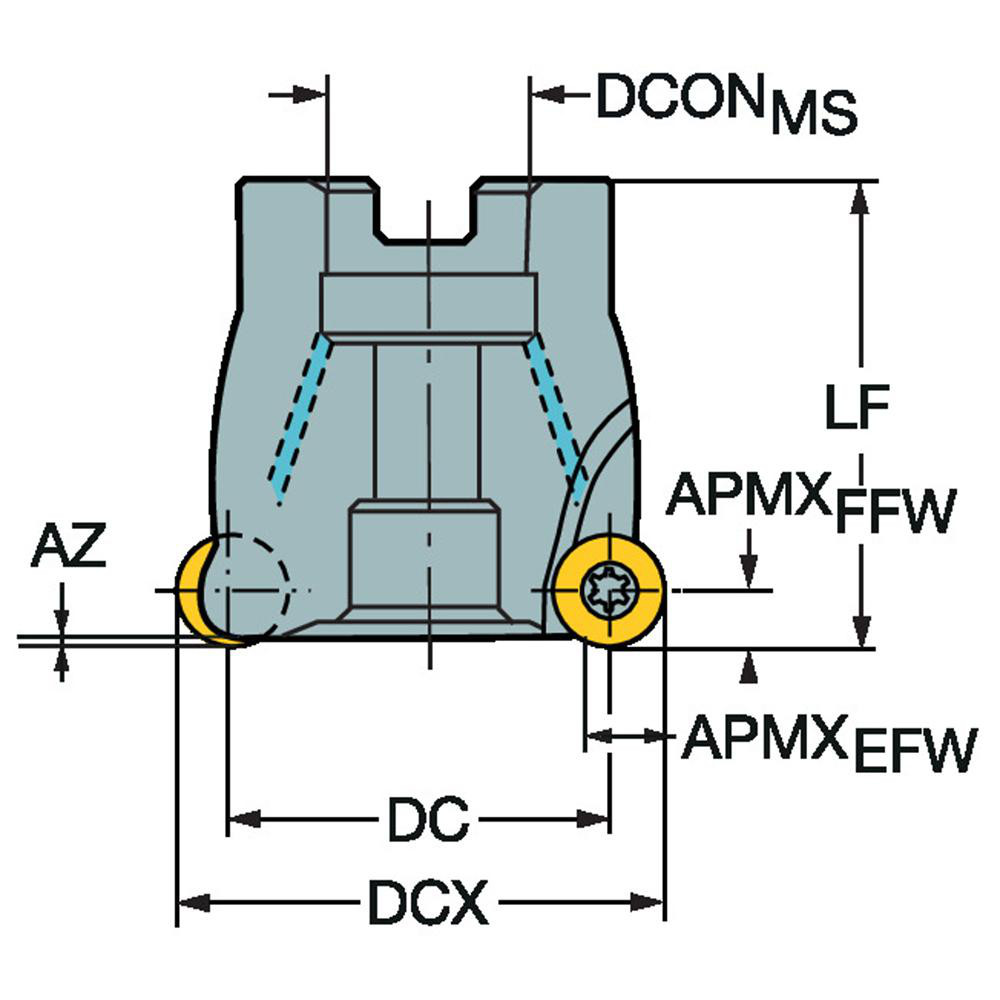

| Cutting Diameter (Decimal Inch) | 2.5000 |
|---|---|
| Cutting Diameter (Inch) | 2-1/2 |
| Maximum Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Depth of Cut (mm) | 6.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.2480 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Compatible Insert Size Code | R300-1340 |
| Cutter Style | RA300 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | CoroMill 300 |
| Counterbore Diameter (Decimal Inch) | 1.0000 |
| Keyway Width (Decimal Inch) | 0.3838 |
| Overall Height (Decimal Inch) | 50.00 |
| Insert Inscribed Circle (mm) | 13.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.5118 |
| Complete Insert Compatibility | R300-1340 |
| ISO Number | RA300-076R25-13H |
| Number Of Cutter Inserts | 7 |
| Coolant Through | Yes |
| Overall Diameter (Decimal Inch - 4 Decimals) | 3.0000 |
| UNSPSC Code | 27112803 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 31799752 |
