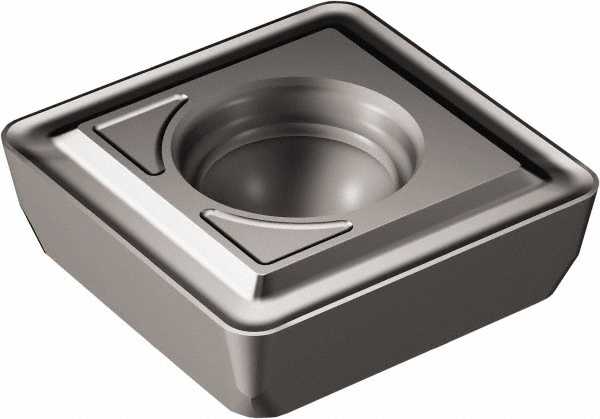

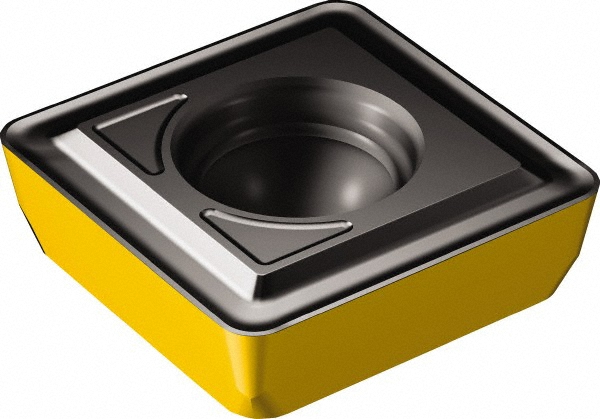

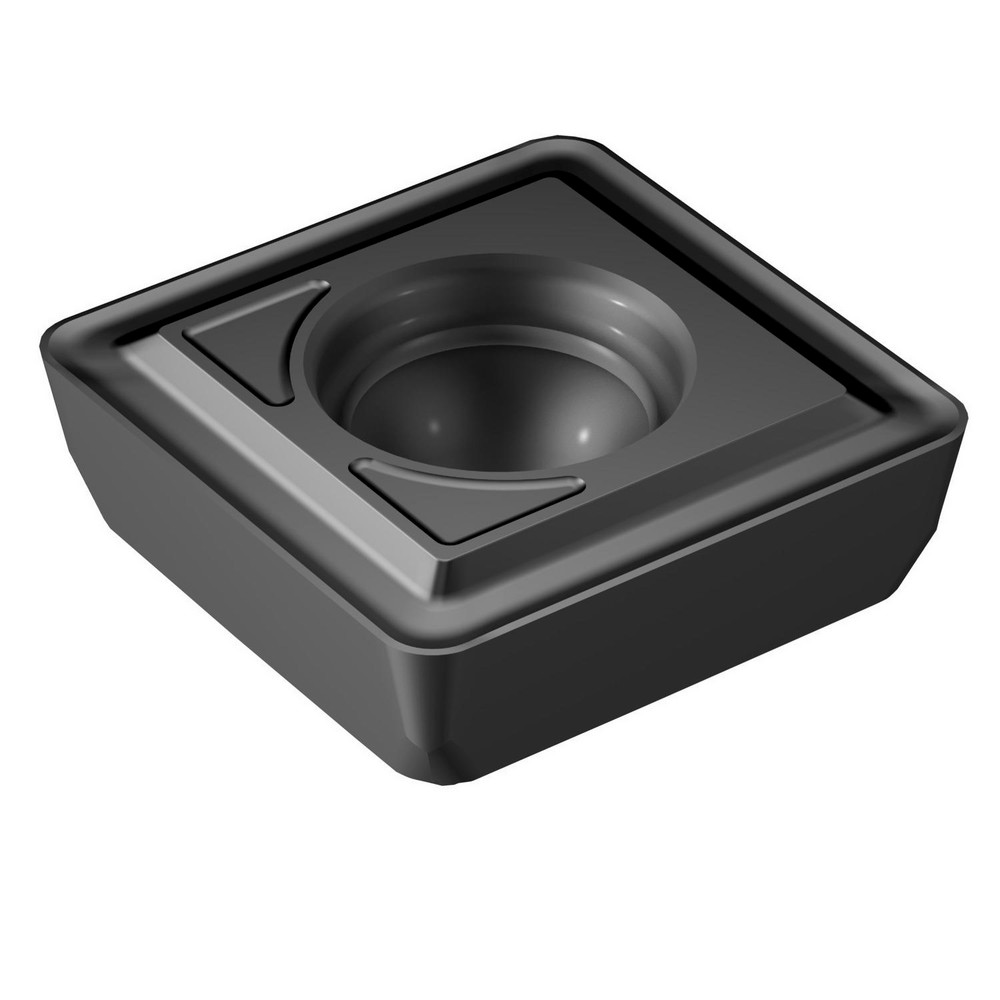

TiAlN & AlCr2O3 Finish, 12.65 mm Inscribed Circle, 1.00 mm Corner Radius, Square
| Insert Style | 880 |
|---|---|
| Insert Material | Carbide |
| Manufacturer Grade | 2044 |

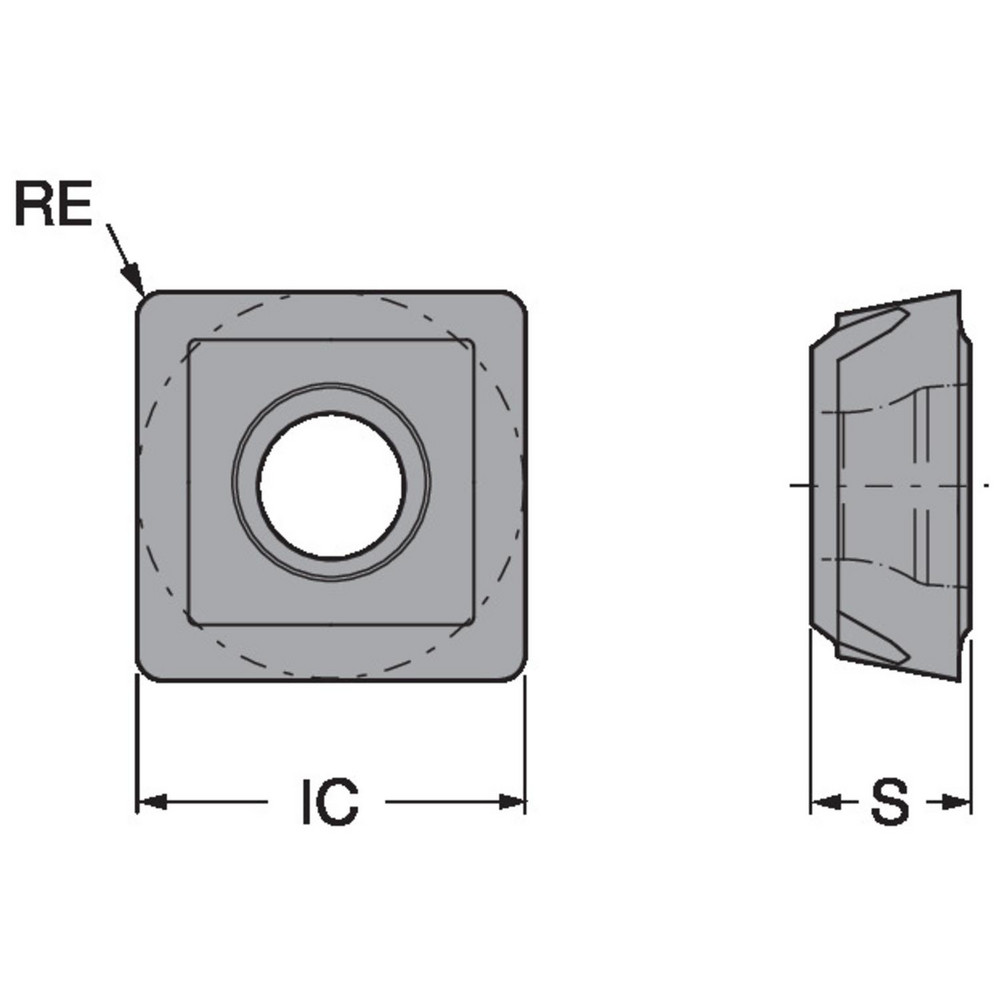

| Inscribed Circle (Decimal Inch) | 0.4980 |
| Inscribed Circle (mm) | 12.65 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Chipbreaker | MS |
| Coating Process | PVD |
| Shape | Square |
| Hole Diameter (Mm) ( - 0 Decimals) | 4 |
| Insert Size | 07P |
| Length (Mm) | 12.65 |
| Width (Decimal Inch - 4 Decimals) | 0.498 |
| Length (Decimal Inch - 4 Decimals) | 0.498 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1575 |
| Coating/Finish | AlCr2O3; TiAlN |
| Hole Diameter | 0.1575 in |
| Insert Hand | Right Hand |
| UNSPSC Code | 23242105 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 45264280 |
