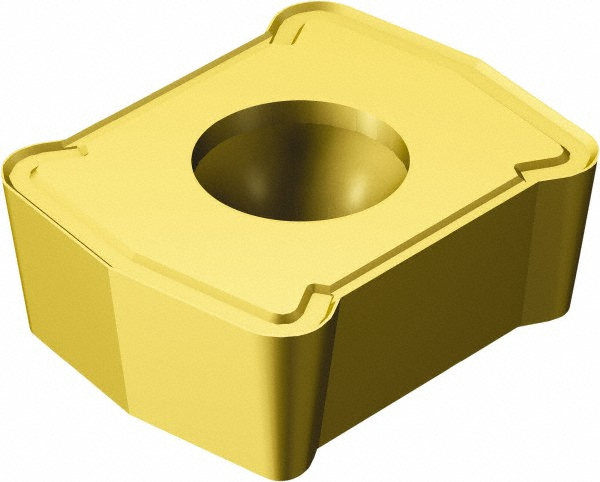

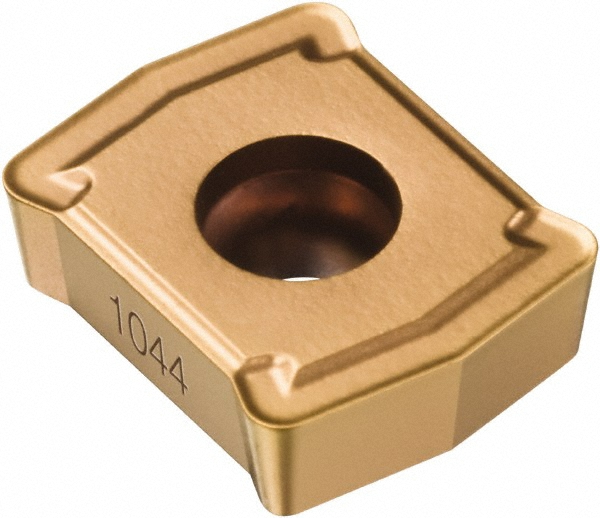

TiN Finish, 7/32" Inscribed Circle, 1/8" Thick, 7 deg Rectangle
| Insert Style | LCMX |
|---|---|
| Insert Material | Carbide |
| Manufacturer Grade | 1020 |
| Thickness (Inch) | 1/8 |
| Inscribed Circle (Inch) | 7/32 |
| Inscribed Circle (Decimal Inch) | 0.2188 |
| Inscribed Circle (mm) | 5.56 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Chipbreaker | 53 |
| Coating Process | PVD |
| Shape | Rectangle |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.5 |

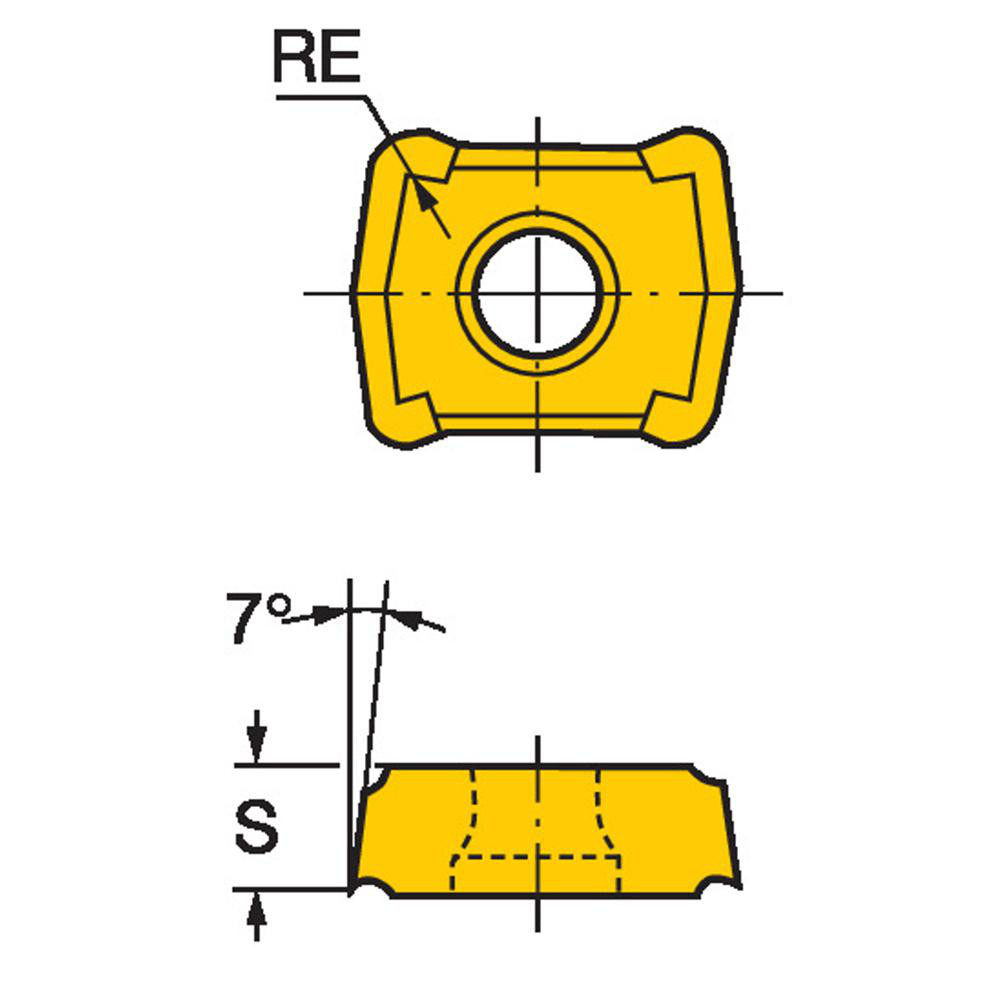

| Relief Angle | 7 |
| Insert Size | 3 |
| Included Angle Degree | 7 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1250 |
| Coating/Finish | TiN |
| Hole Diameter | 0.0984 in |
| UNSPSC Code | 23242105 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 39113360 |
