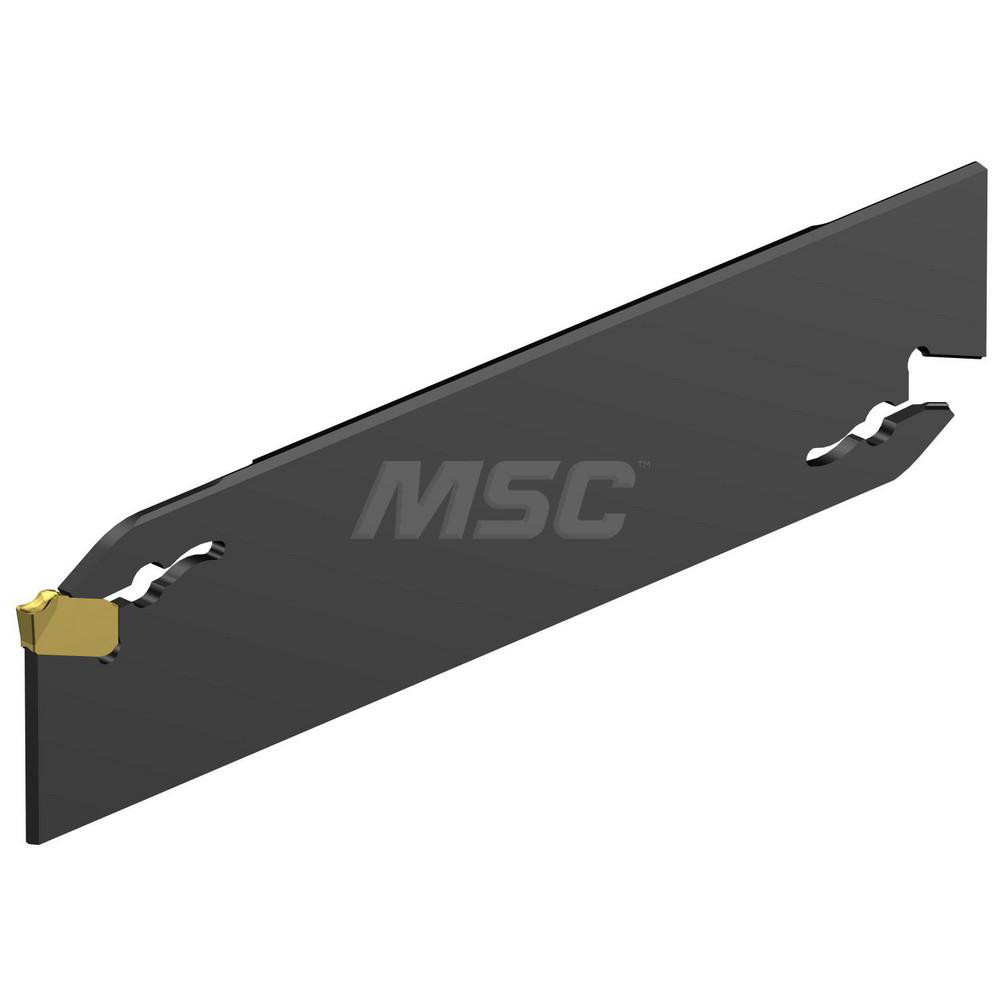

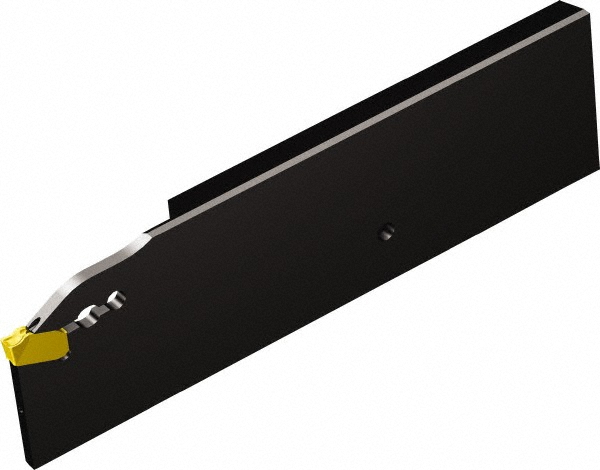

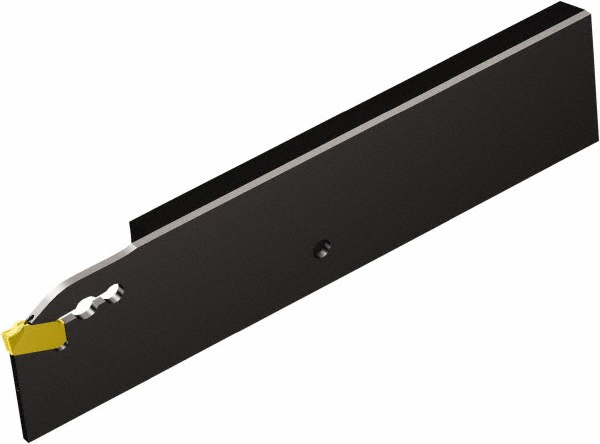

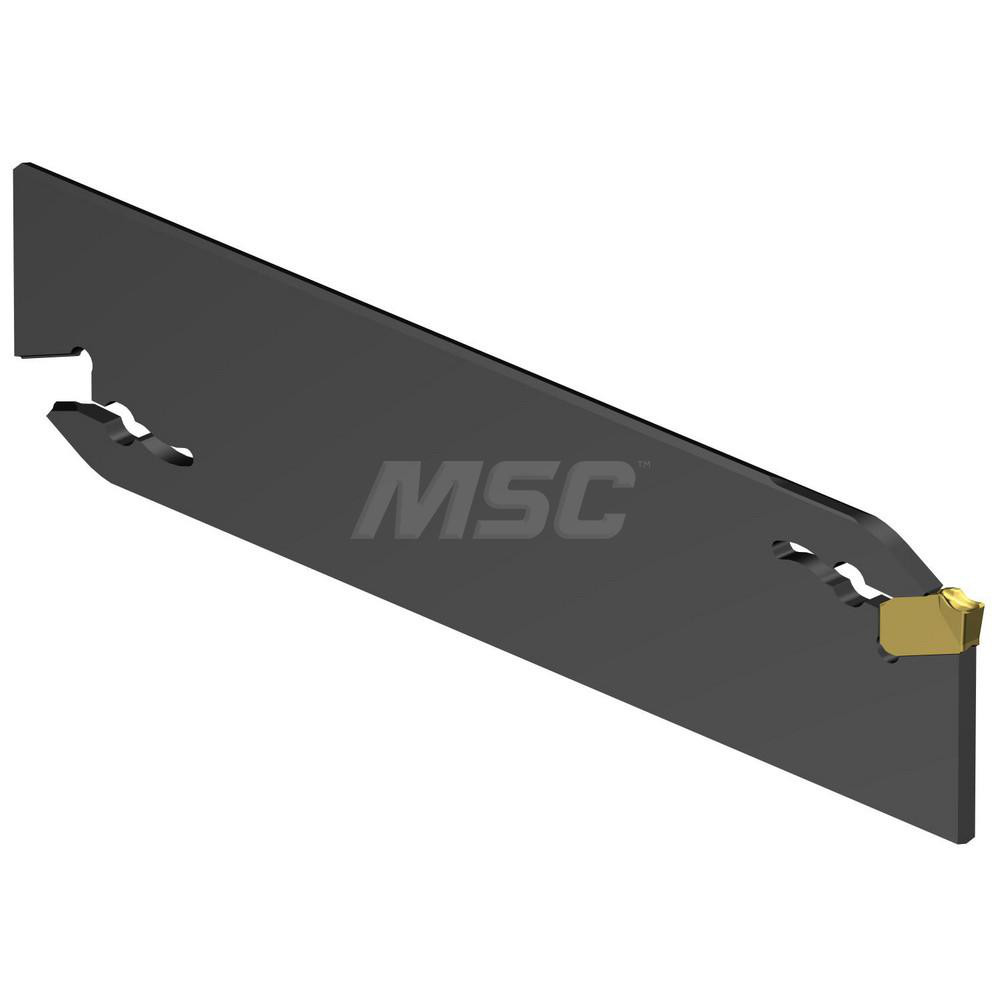

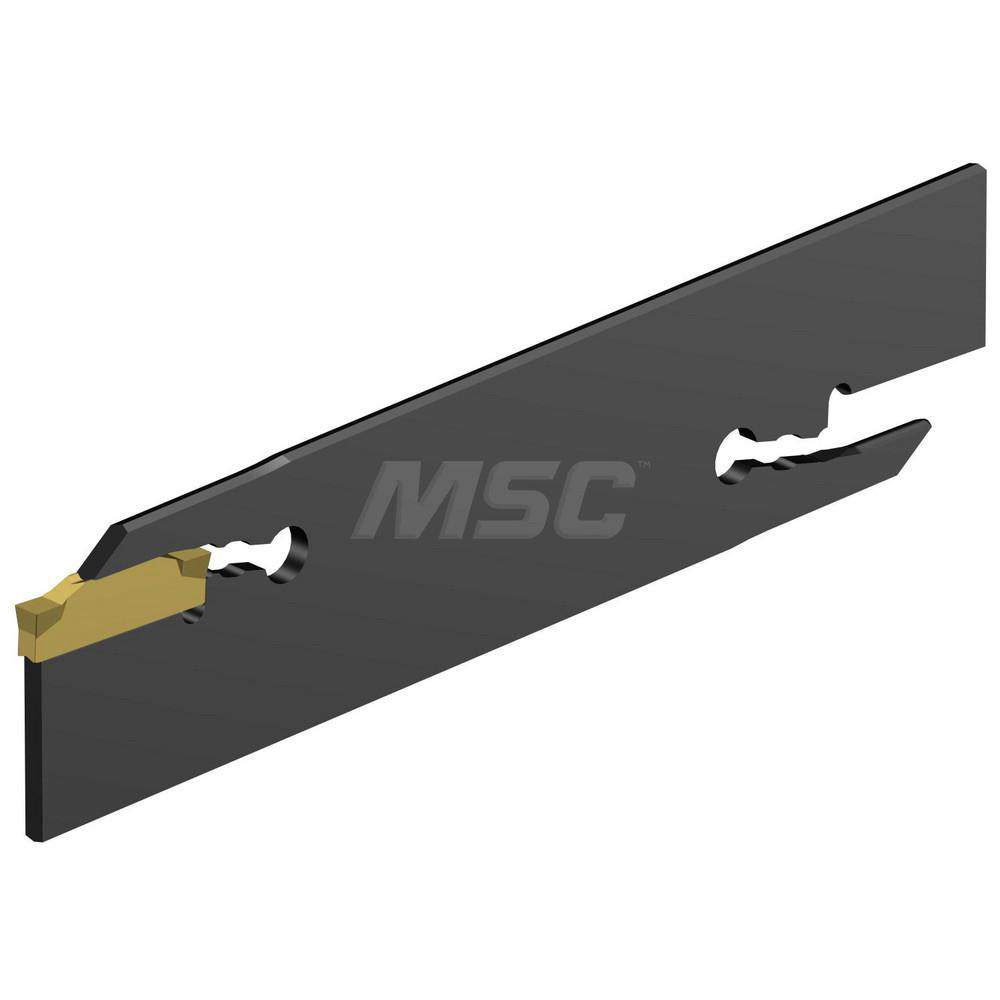

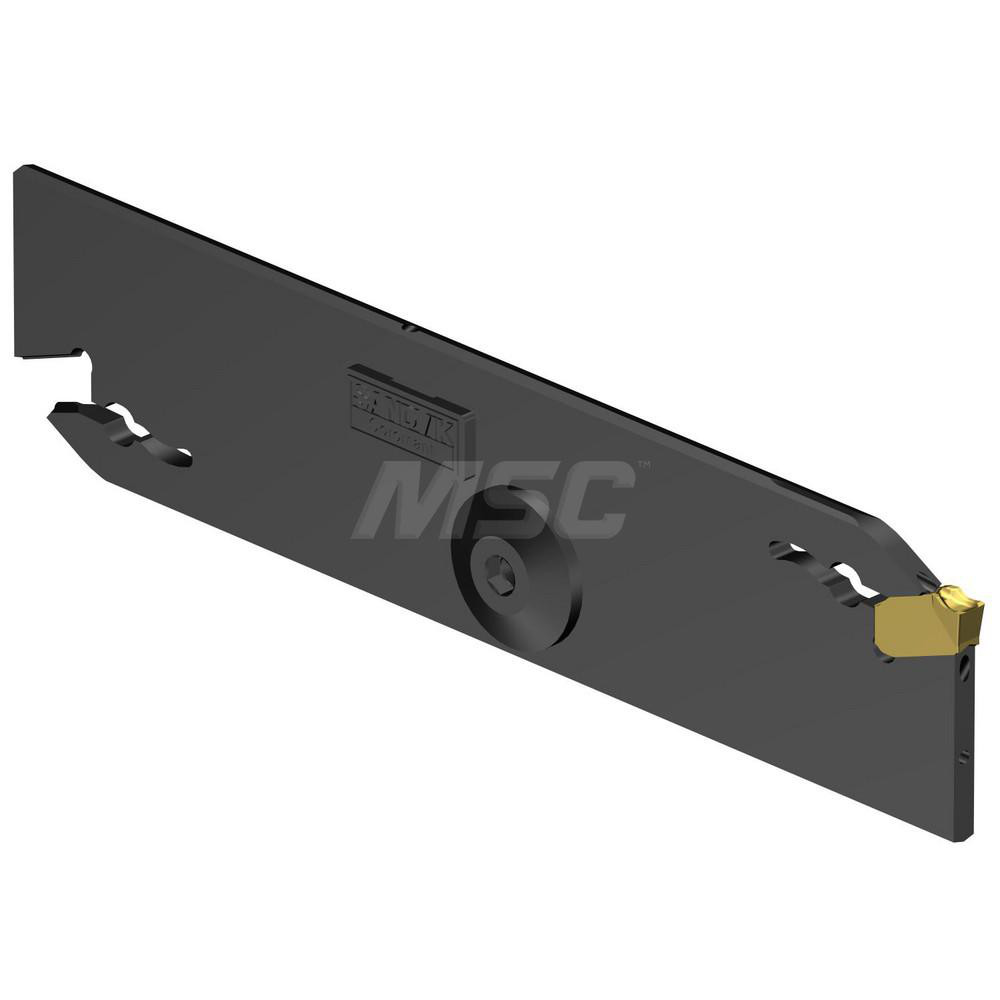

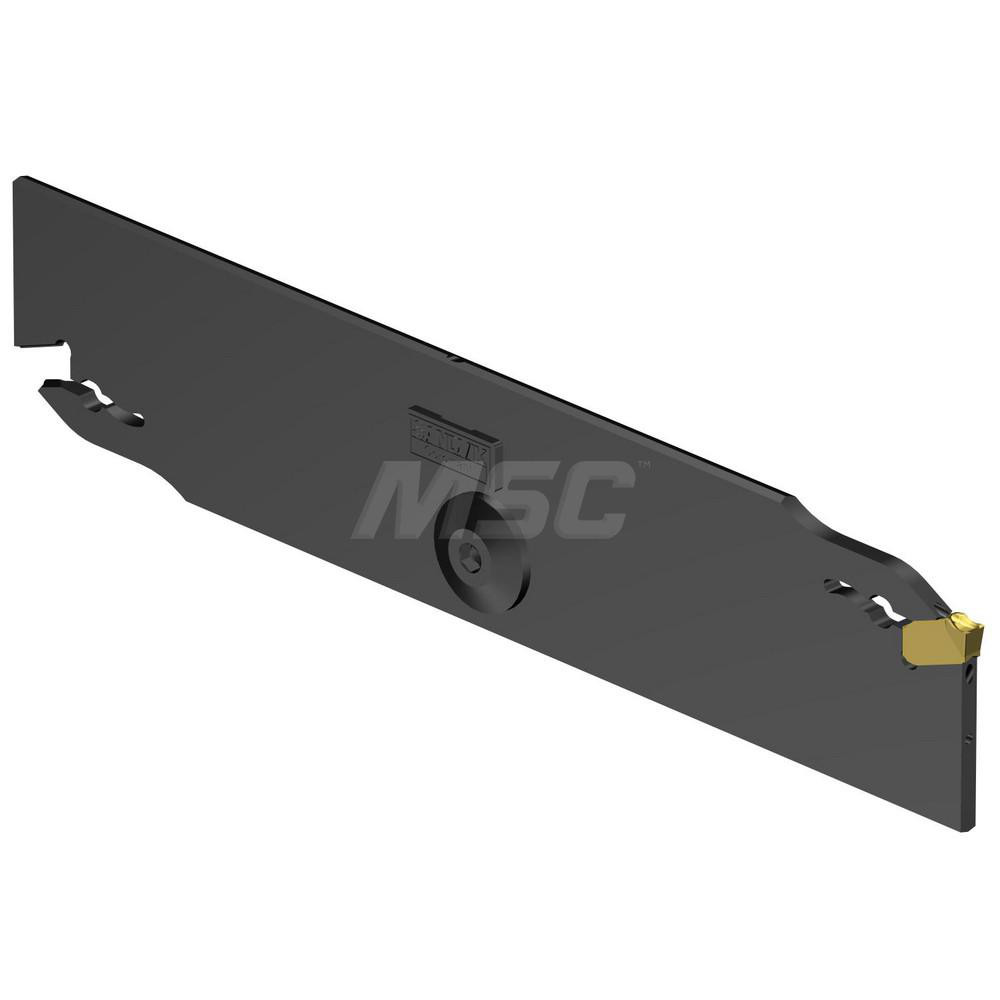

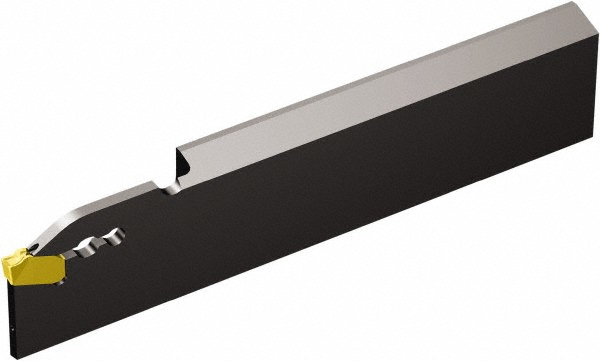

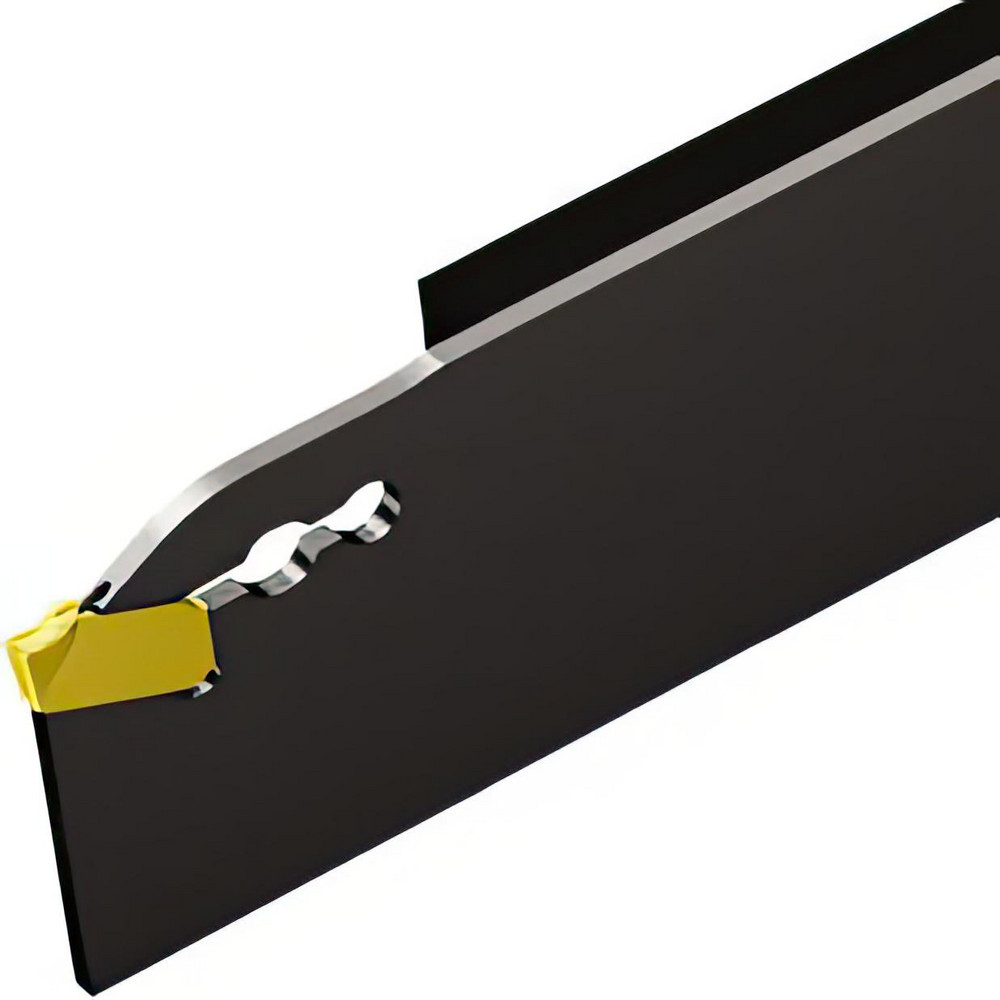

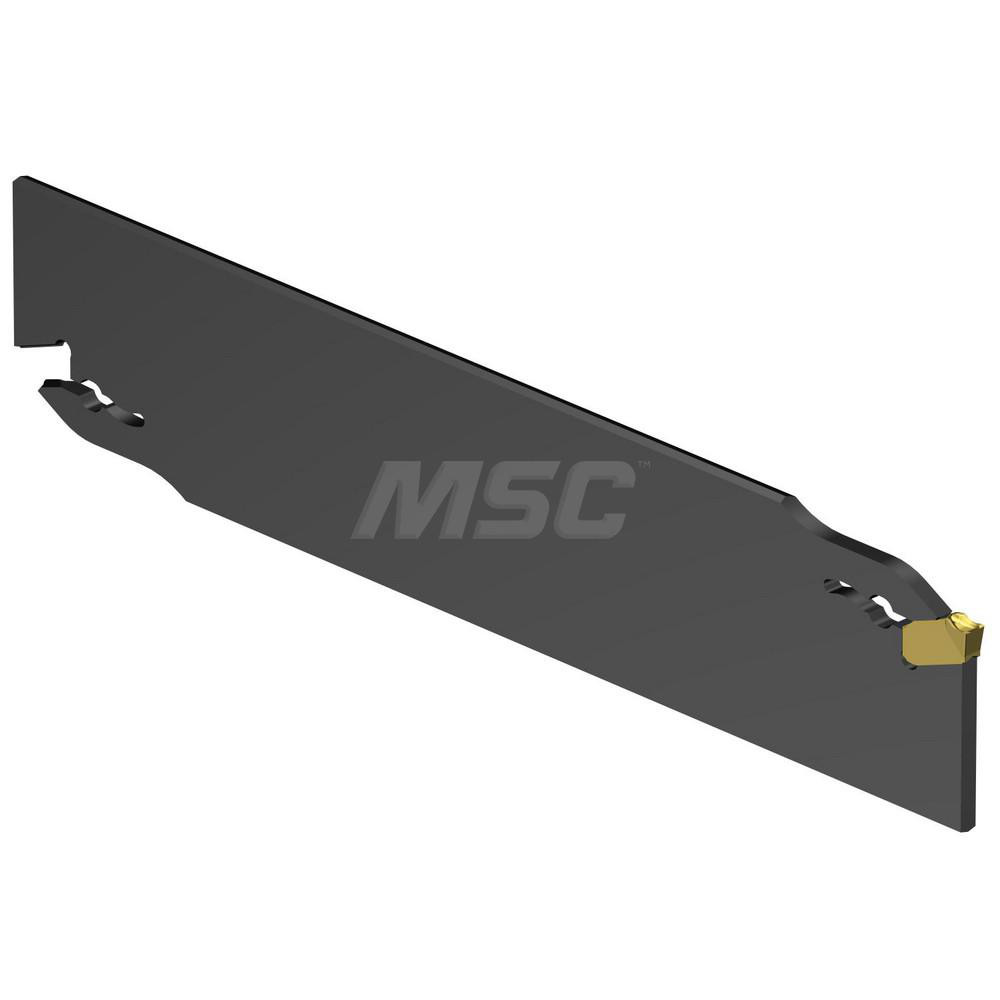

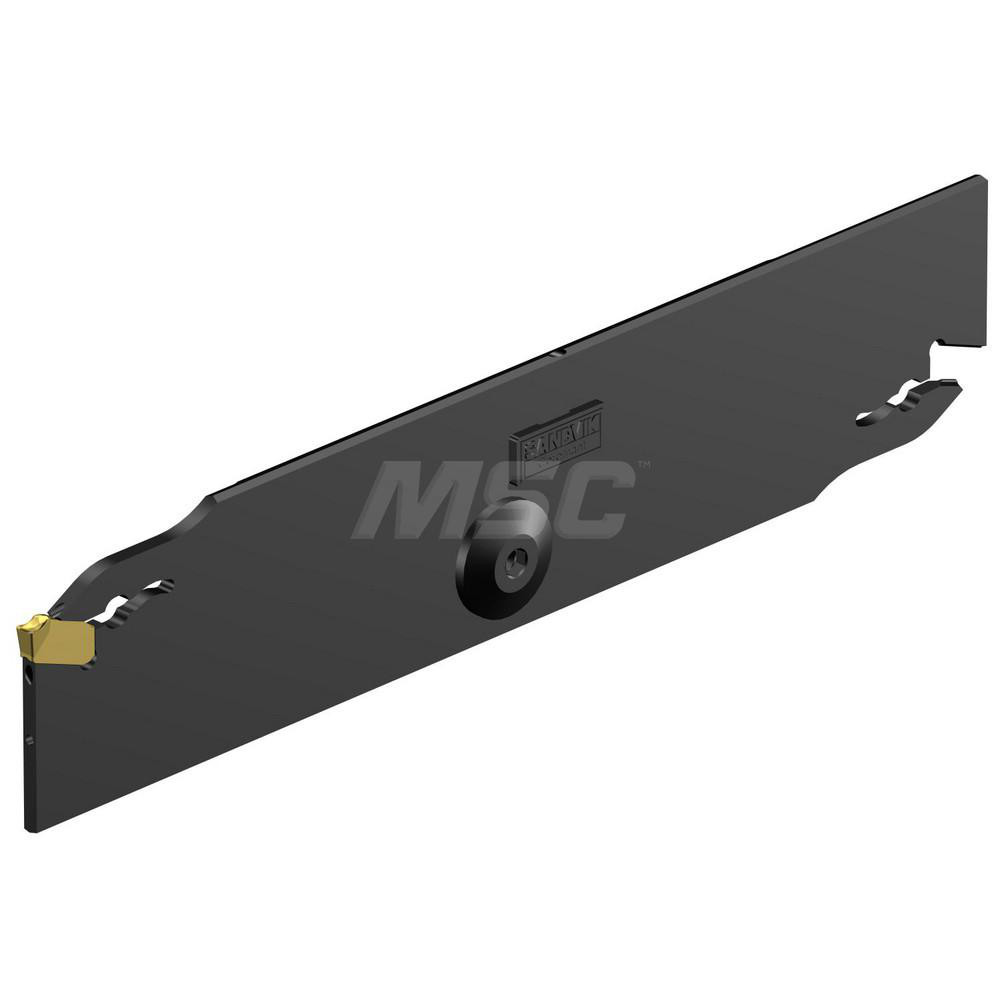

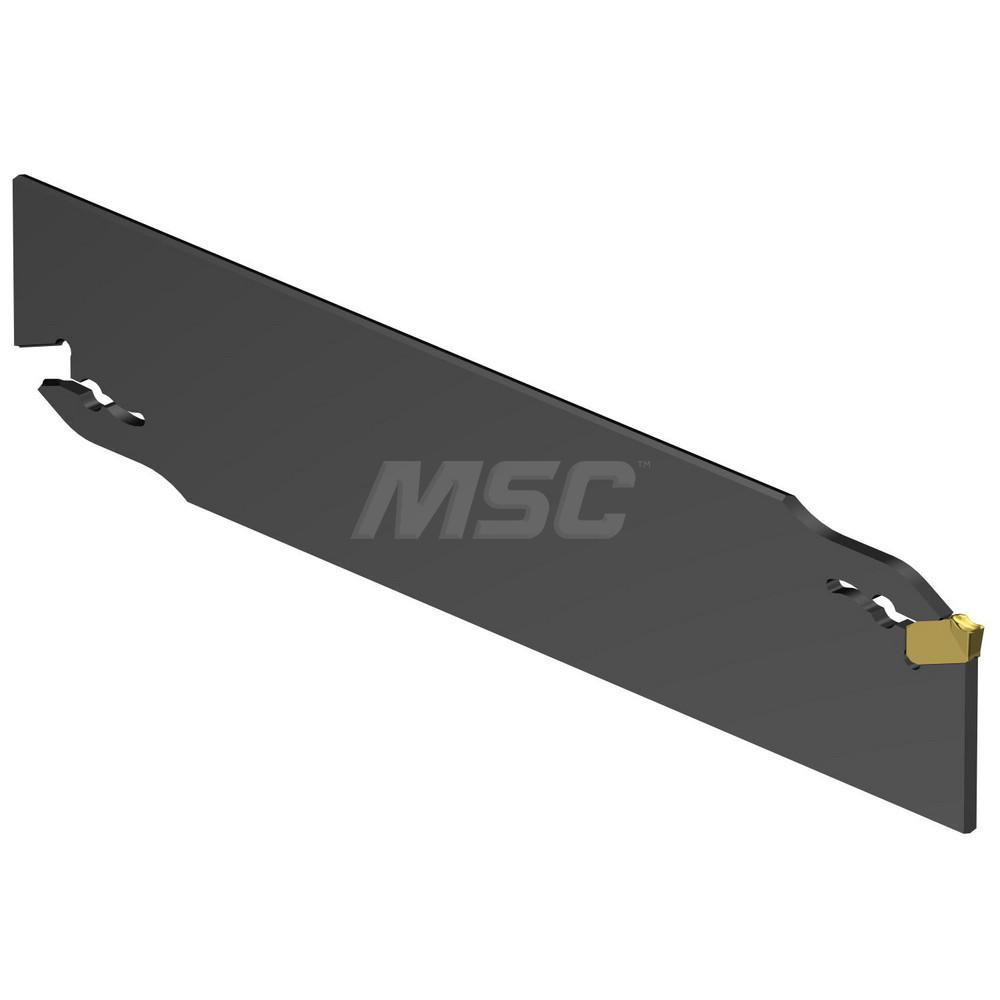

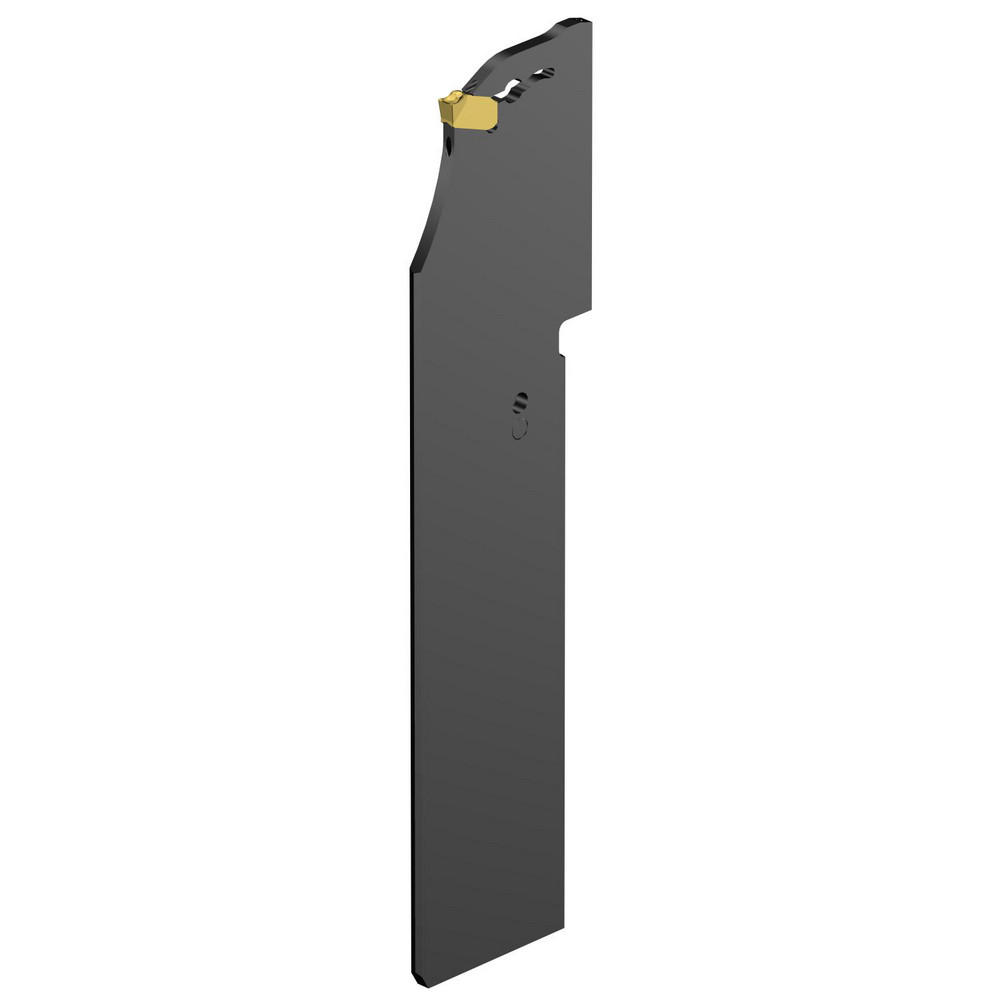

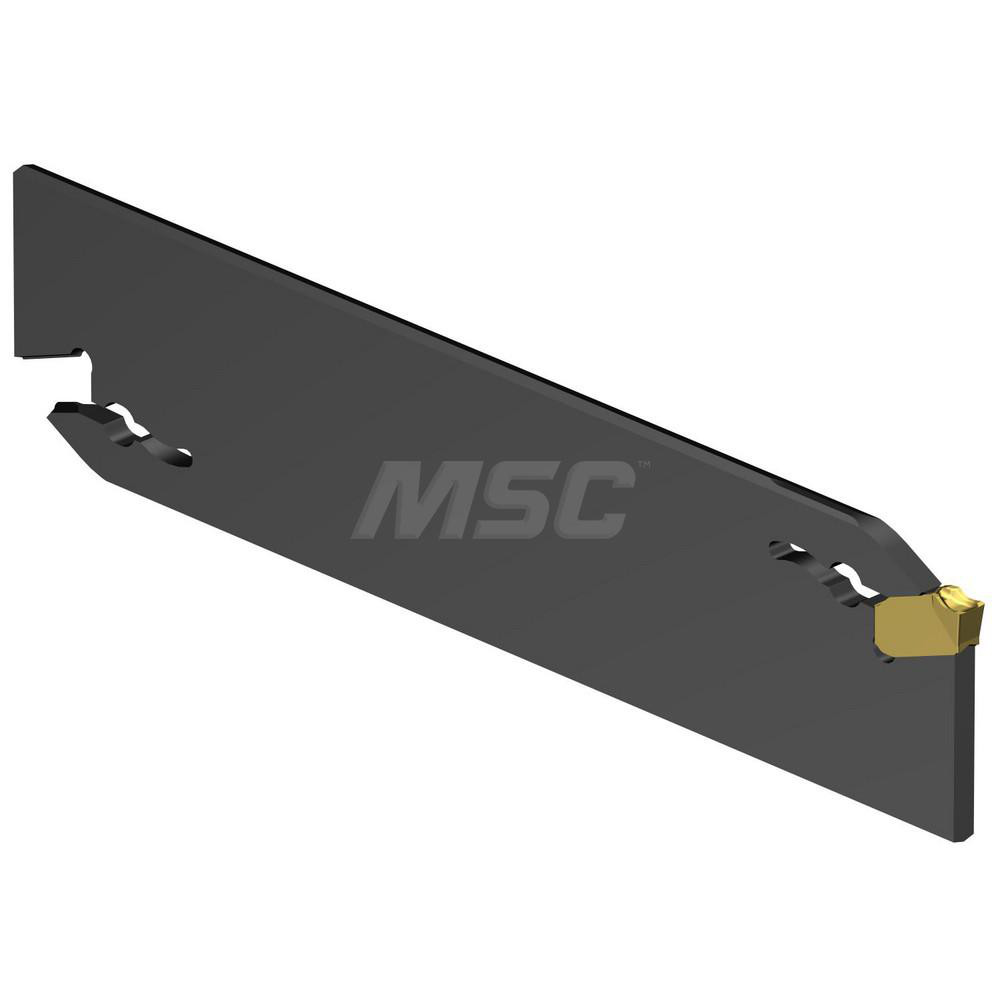

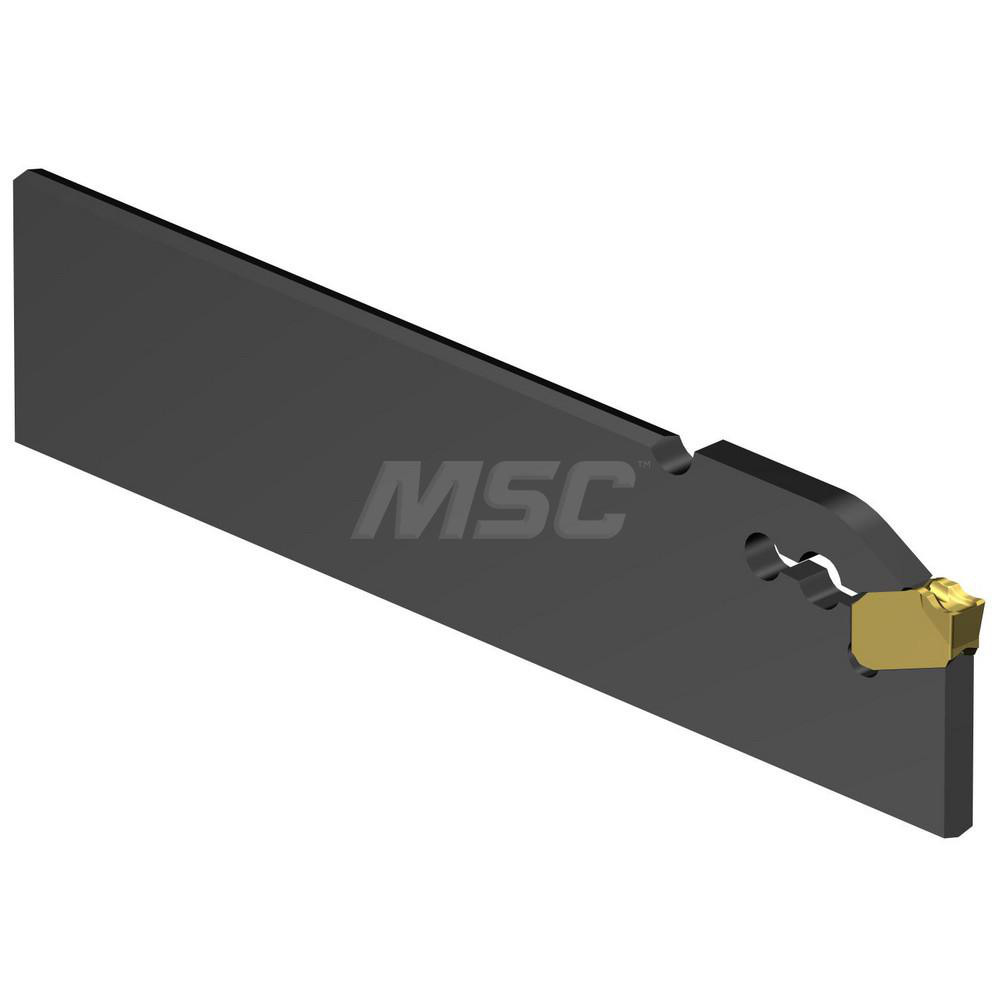

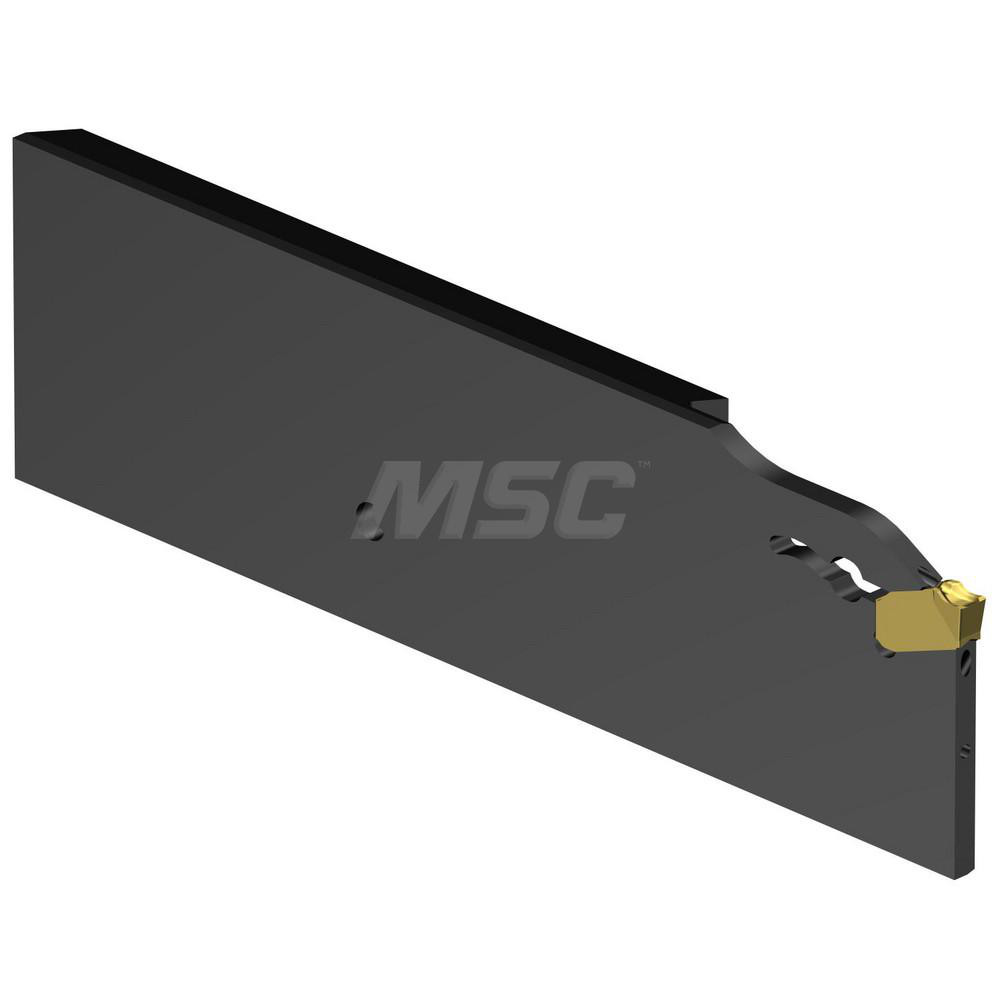

2.5984" Max Workpiece Dia, Uses QD-RL..C..D Inserts
| Cutting Direction | Left Hand |
|---|---|
| Blade Height (mm) | 25.90 |
| Blade Height (Decimal Inch) | 1.0197 |
| Maximum Depth of Cut (Decimal Inch) | 1.2992 |
| Maximum Depth of Cut (mm) | 33.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 2.5984 |
| Maximum Workpiece Diameter (mm) | 66.00 |
| Maximum Insert Width (mm) | 8.33 |
| Maximum Insert Width (Decimal Inch) | 0.3280 |

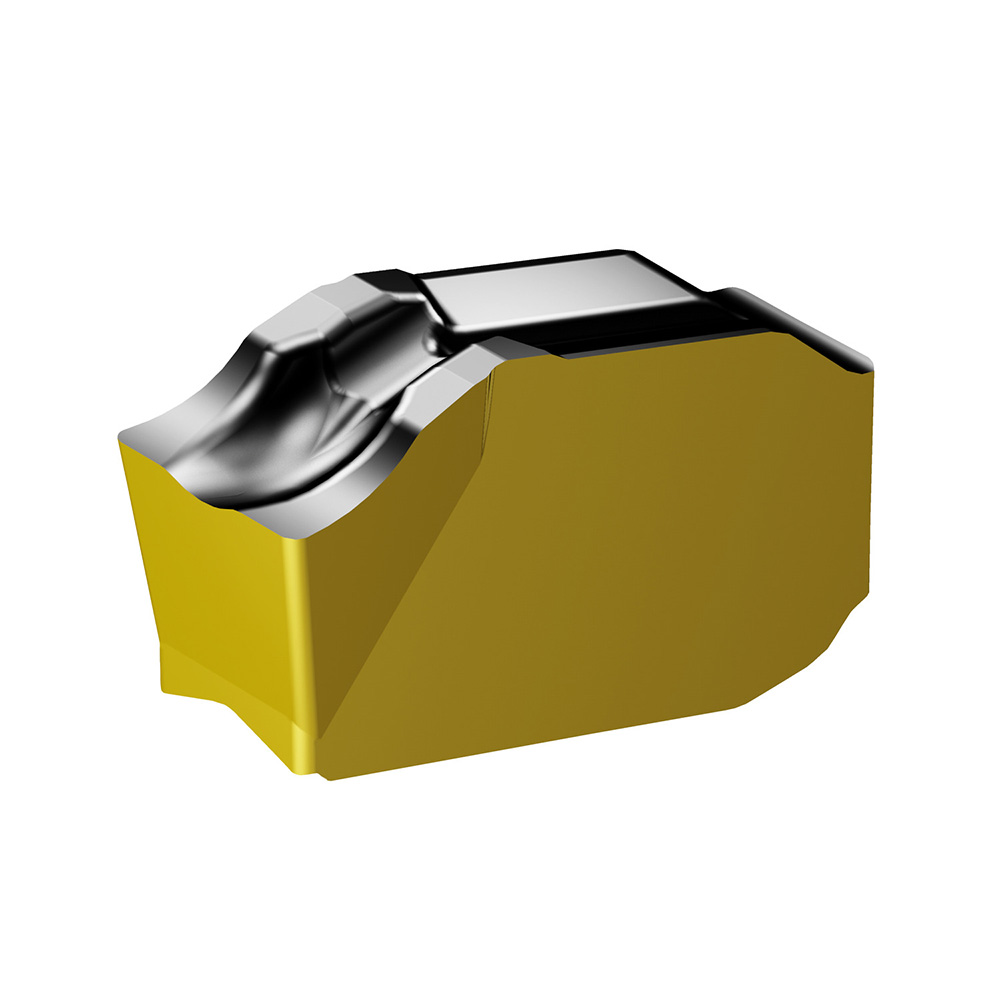

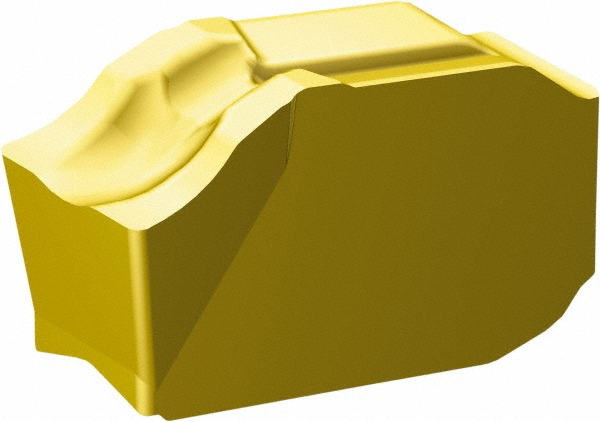

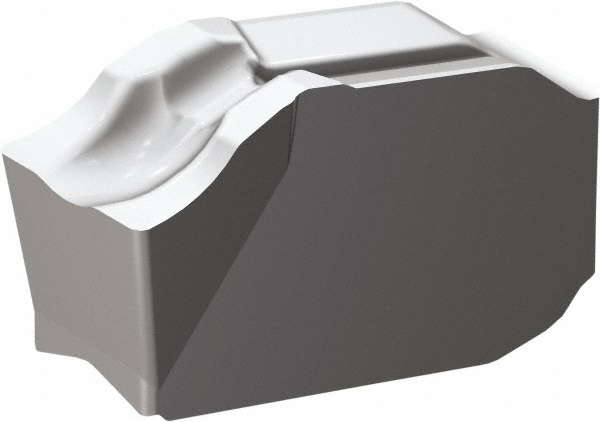

| Compatible Insert Style | QD-RL..C..D |
| Series | CoroCut QD |
| Compatible Cartridge Size | 21 |
| Blade Overall Length (mm) | 110.00 |
| Blade Overall Length (Decimal Inch) | 4.3307 |
| Manufacturers Catalog Number | 6397297 |
| Insert Seat Size | G |
| Cartridge Size | 21 |

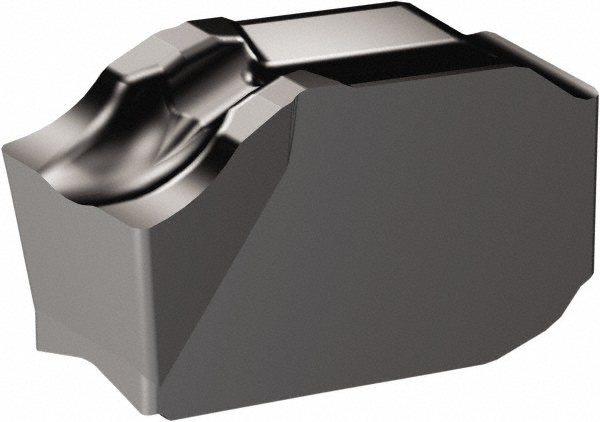

| Complete Insert Compatibility | QD-NG-0300-0002-CM |
| UNSPSC Code | 23241600 |
| Country of Origin | Sweden |
| MSC Number | MSC# 54932439 |
