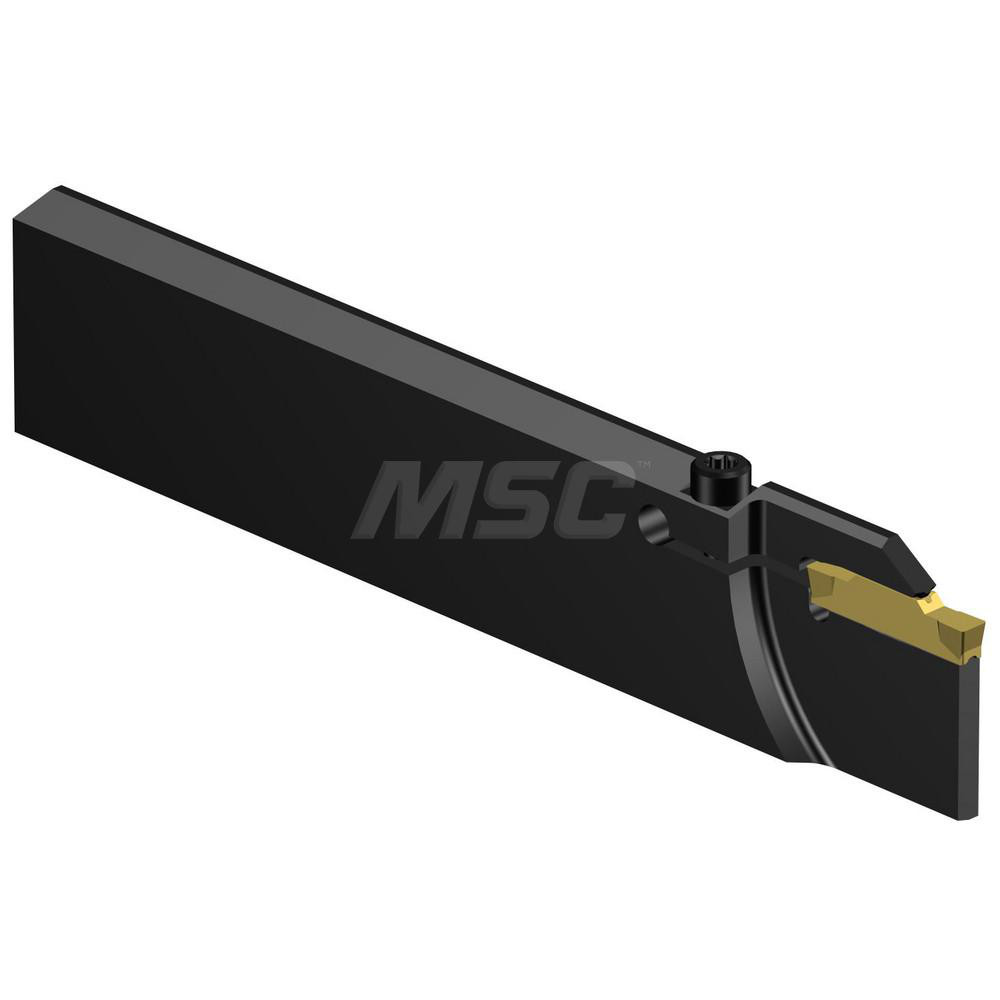

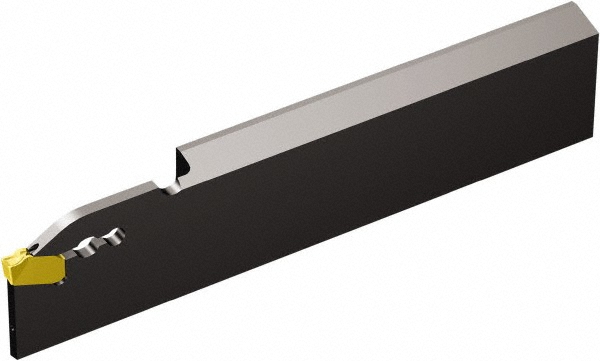

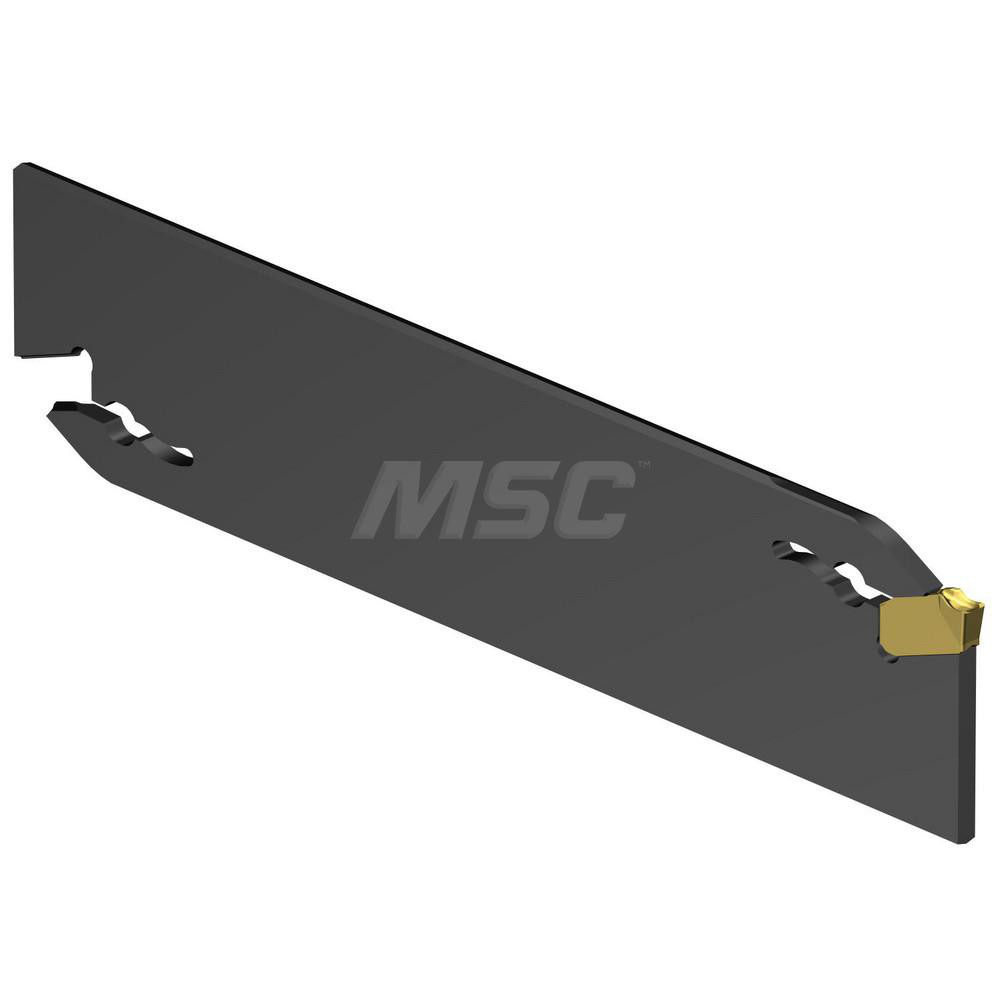

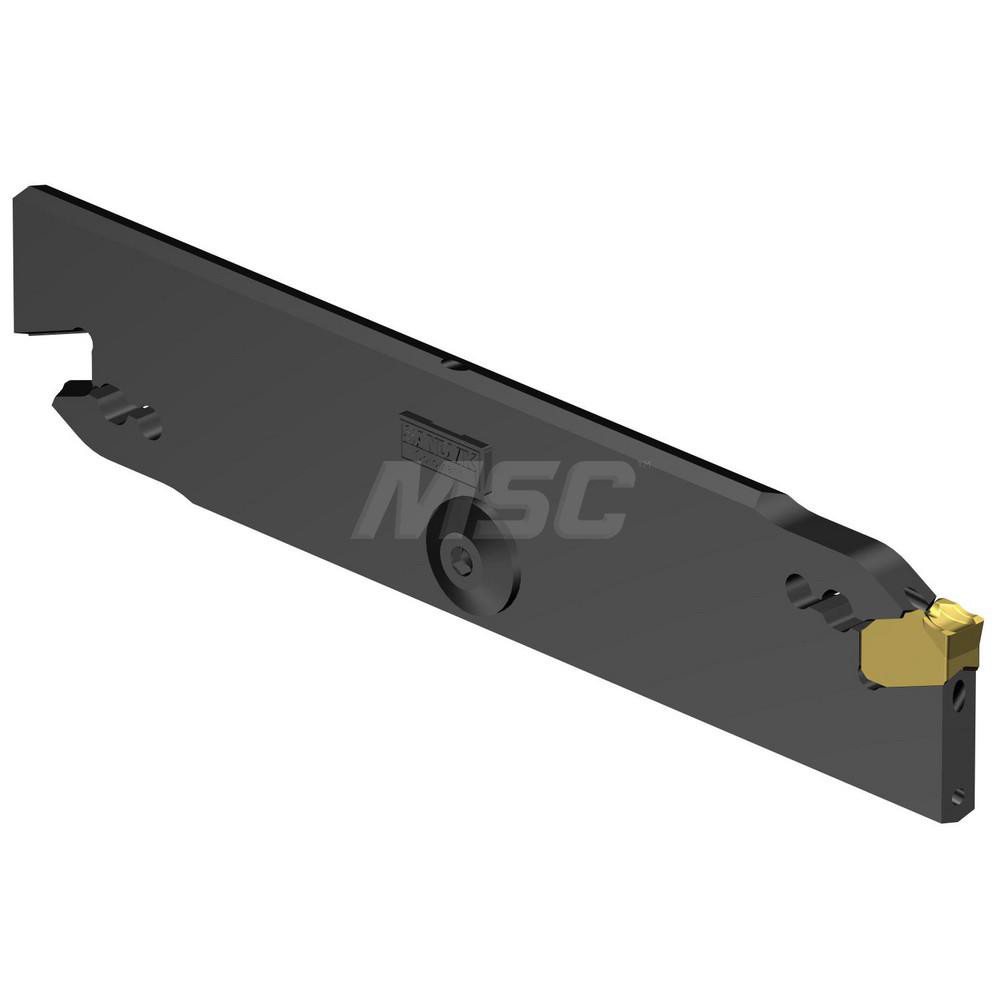

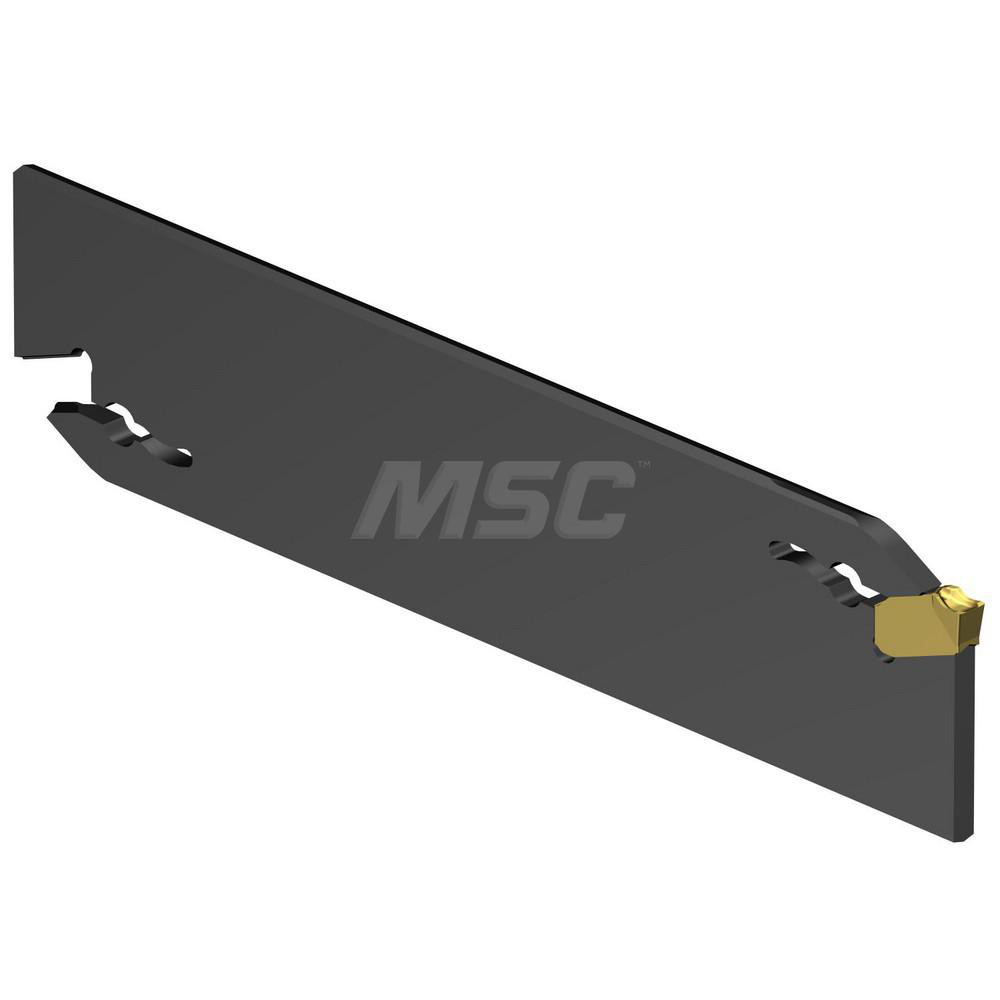

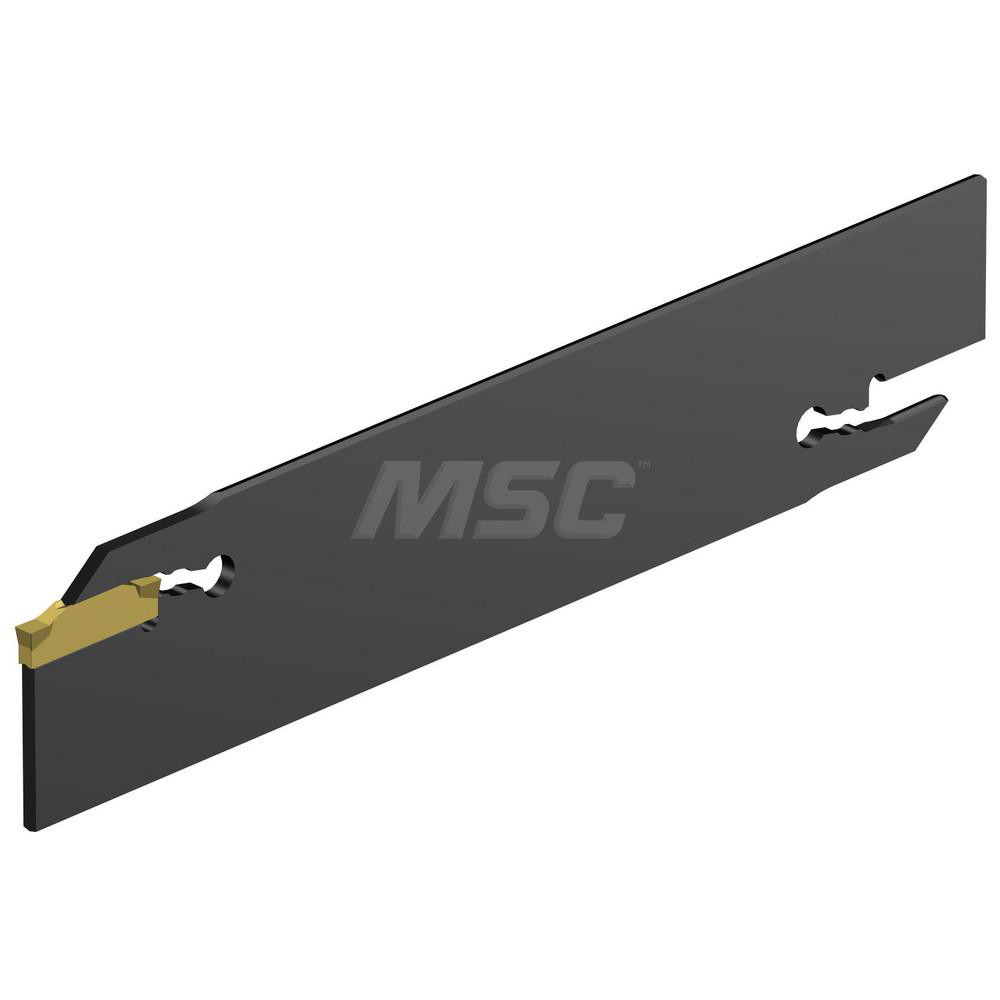

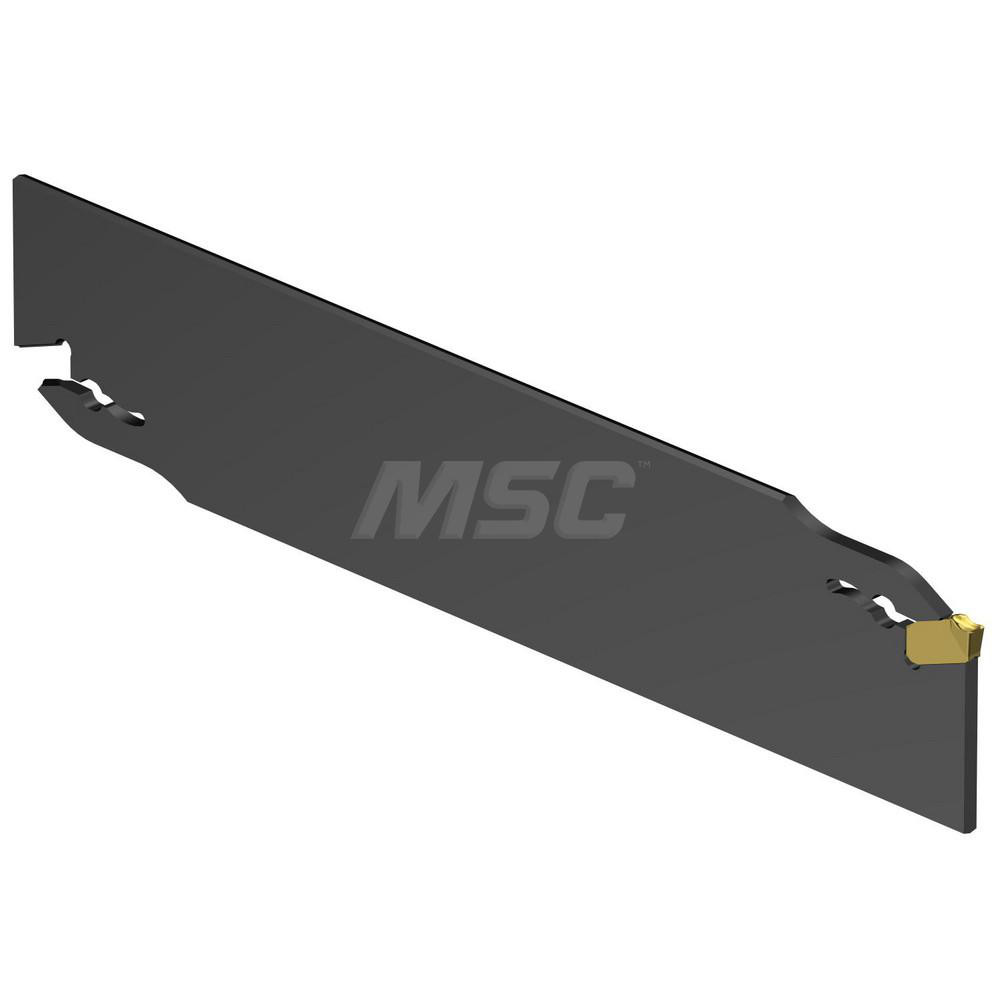

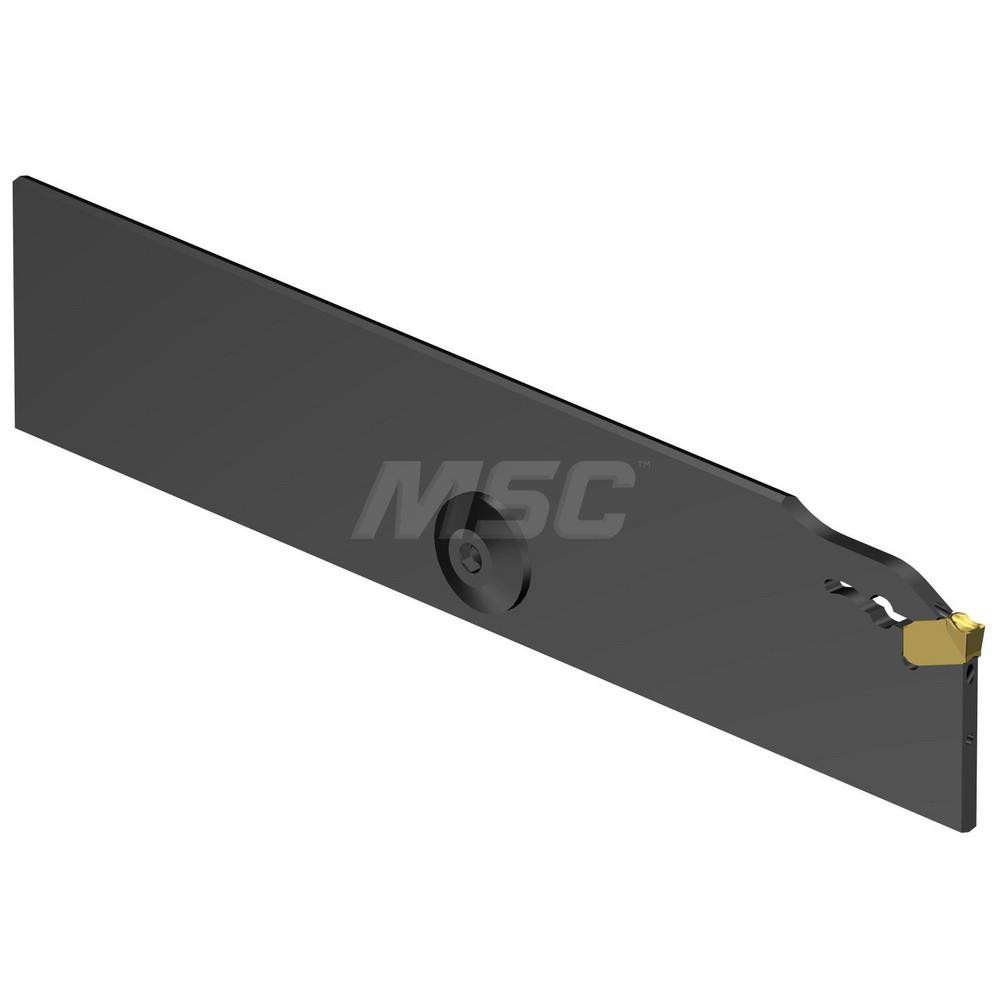

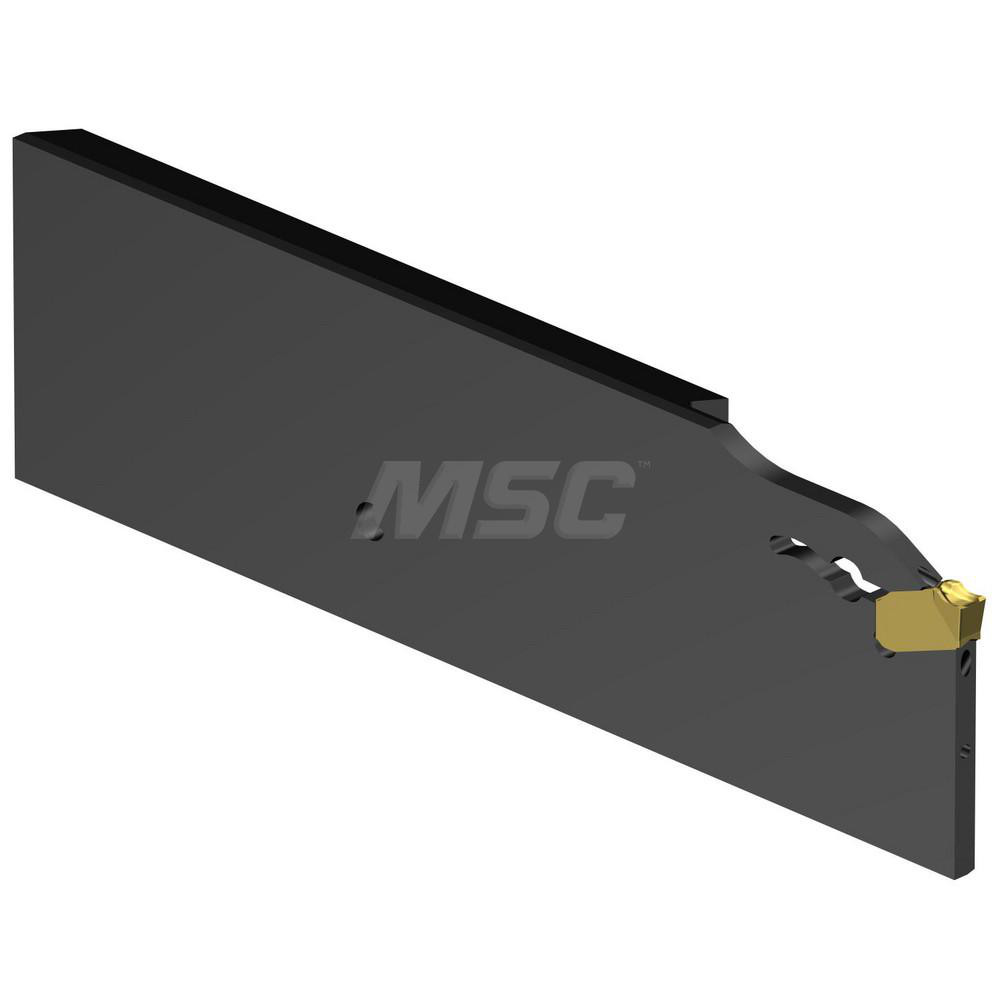

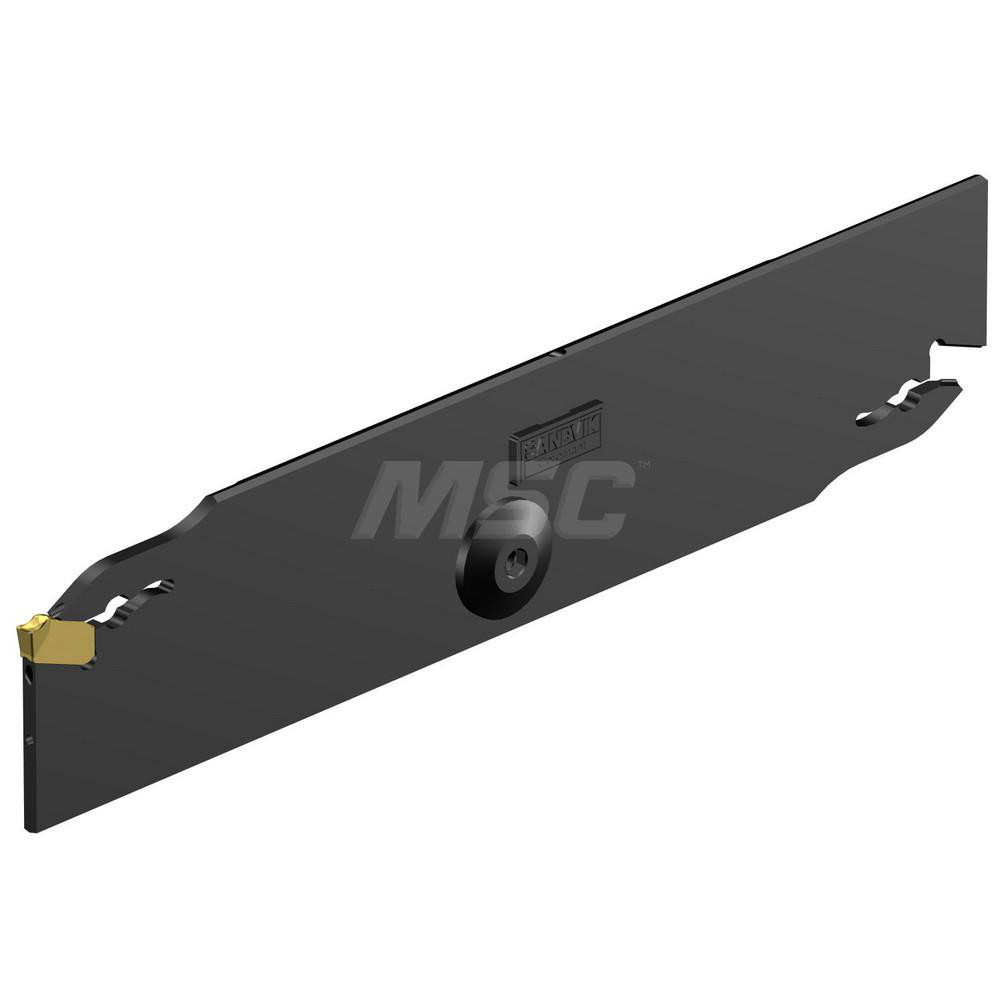

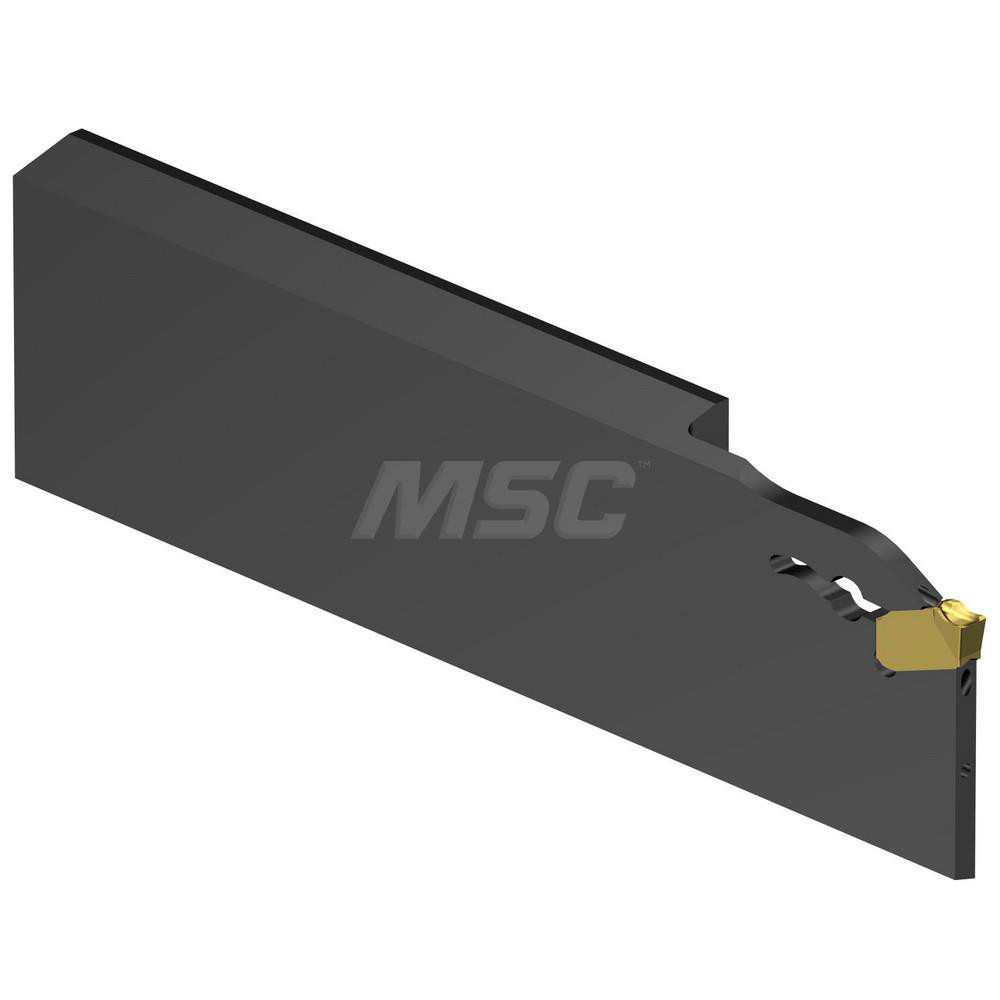

1.2992" Max Depth of Cut, Uses QD-LL..C..A Inserts, Single End
| Cutting Direction | Right Hand |
|---|---|
| Blade Style | QD-LL..C..A |

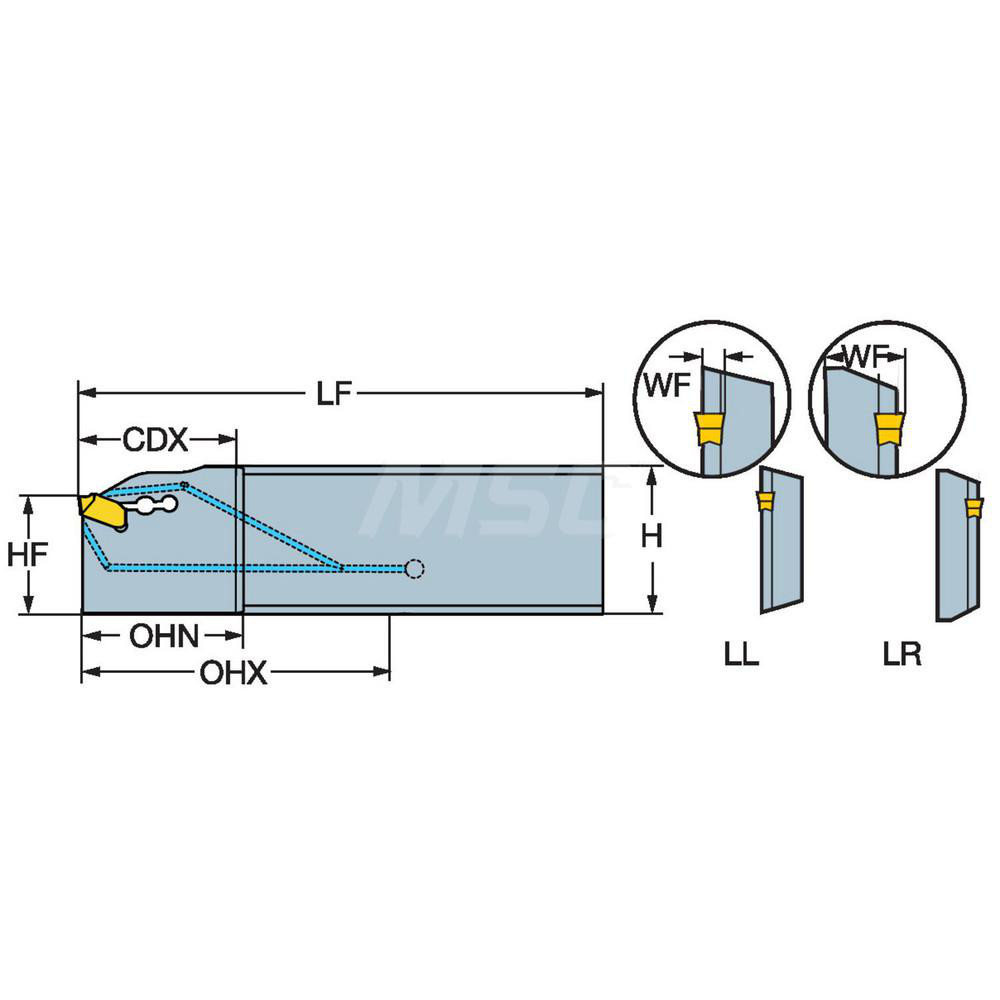

| Blade Height (mm) | 31.90 |
| Blade Height (Decimal Inch) | 1.2559 |
| Blade Width (Decimal Inch) | 0.1053 |
| Blade Width (mm) | 2.67 |
| Maximum Depth of Cut (Decimal Inch) | 1.2992 |
| Maximum Depth of Cut (mm) | 33.00 |

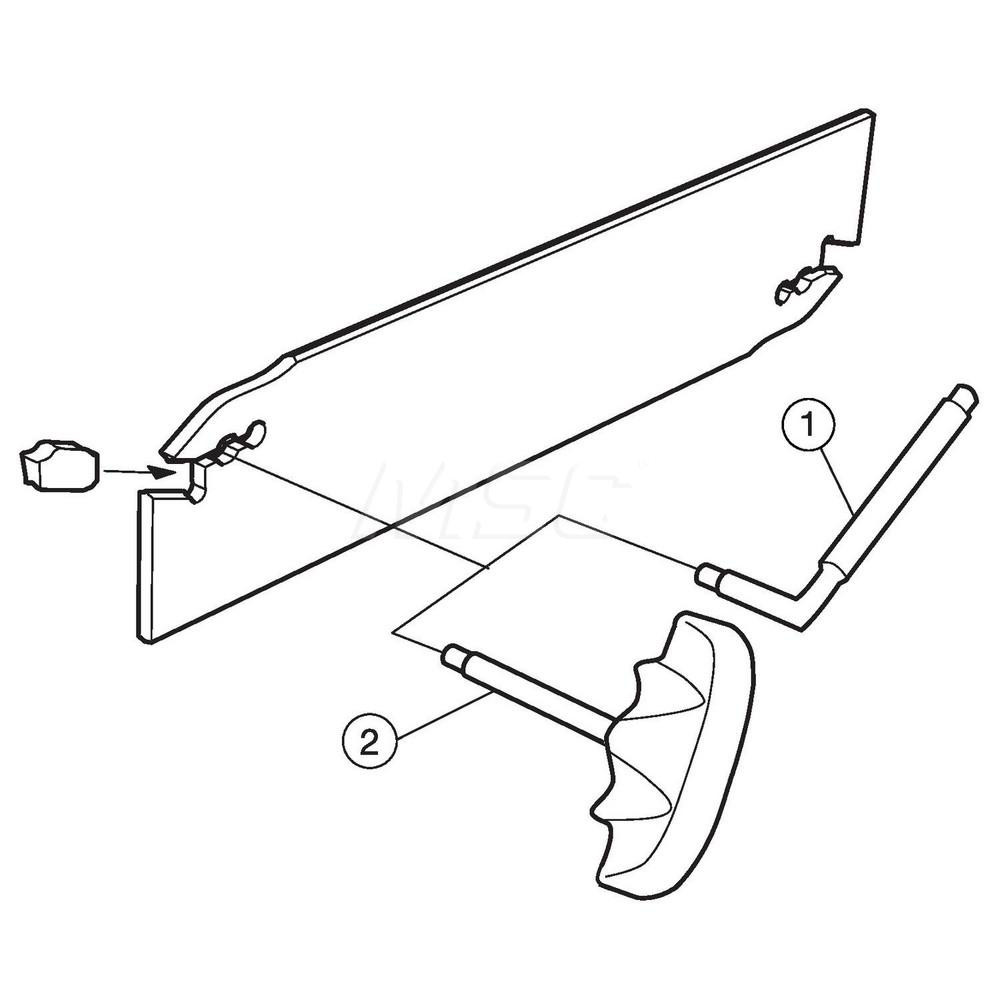

| Insert Holding Method | Clamp |
| Maximum Insert Width (mm) | 2.68 |
| Maximum Insert Width (Decimal Inch) | 0.1055 |

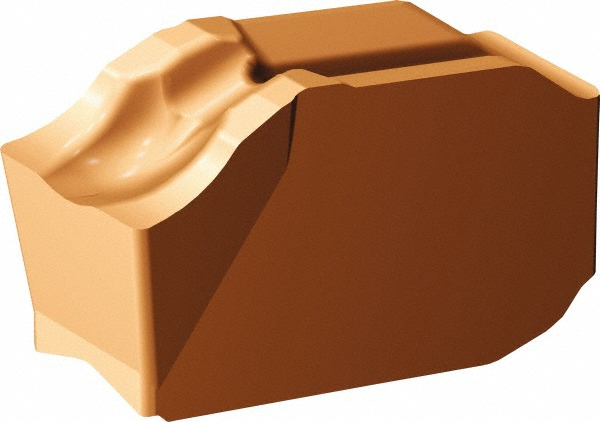

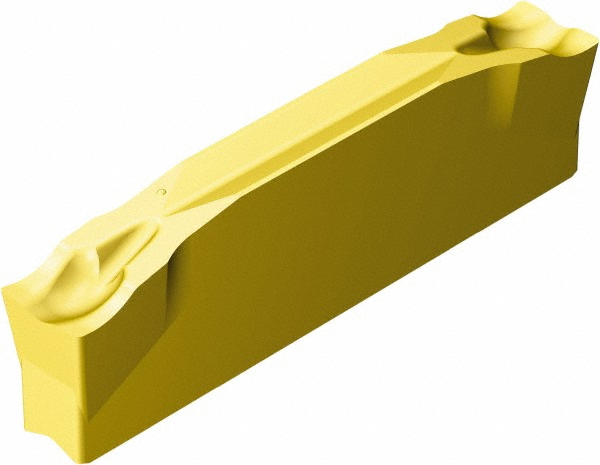

| Compatible Insert Style | QD-LL..C..A |
| Series | CoroCut QD |
| Compatible Cartridge Size | 25 |

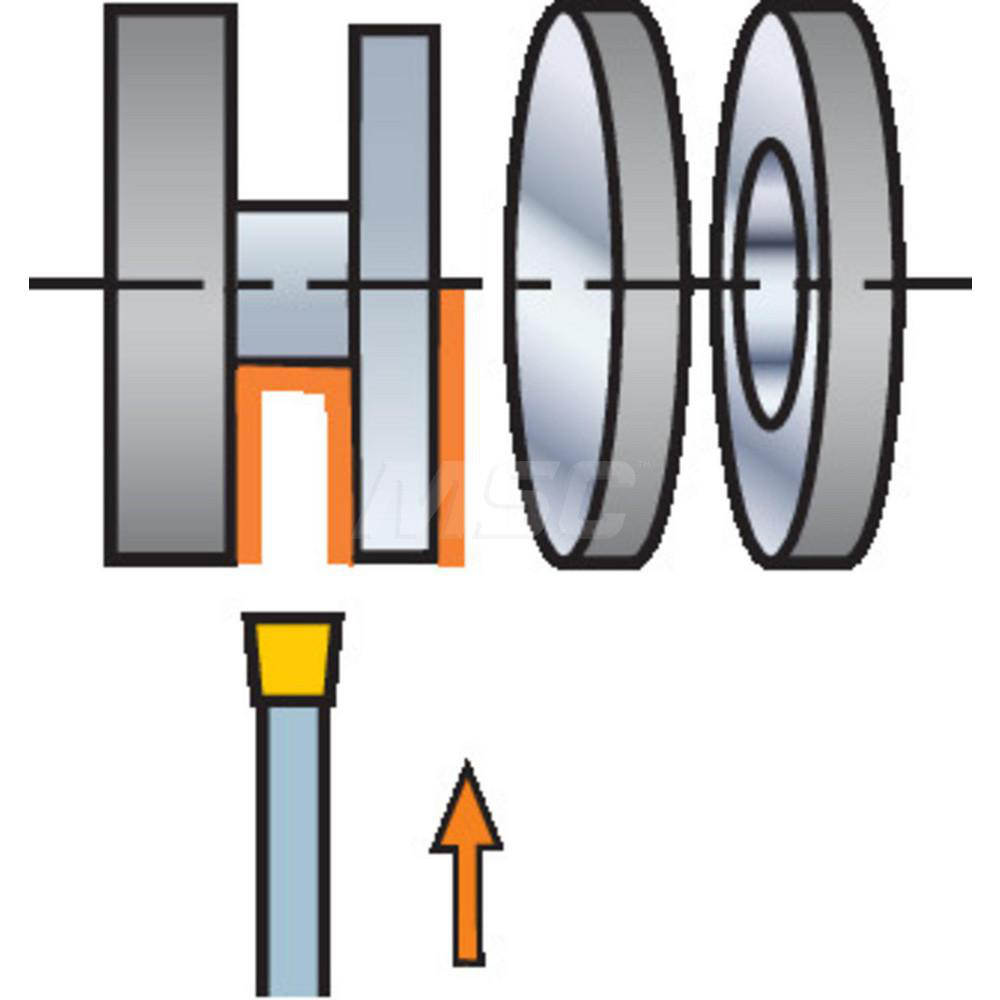

| Cutting Tool Application | Parting |
| Blade Overall Length (mm) | 110.00 |
| Blade Overall Length (Decimal Inch) | 4.3307 |
| Manufacturers Catalog Number | 6397268 |
| Insert Seat Size | G |
| Cartridge Size | 25 |
| Complete Insert Compatibility | QD-NG-0300-0002-CM |
| Single Or Double End | Single |
| UNSPSC Code | 27112809 |
| Country of Origin | Sweden |
| MSC Number | MSC# 49343262 |
