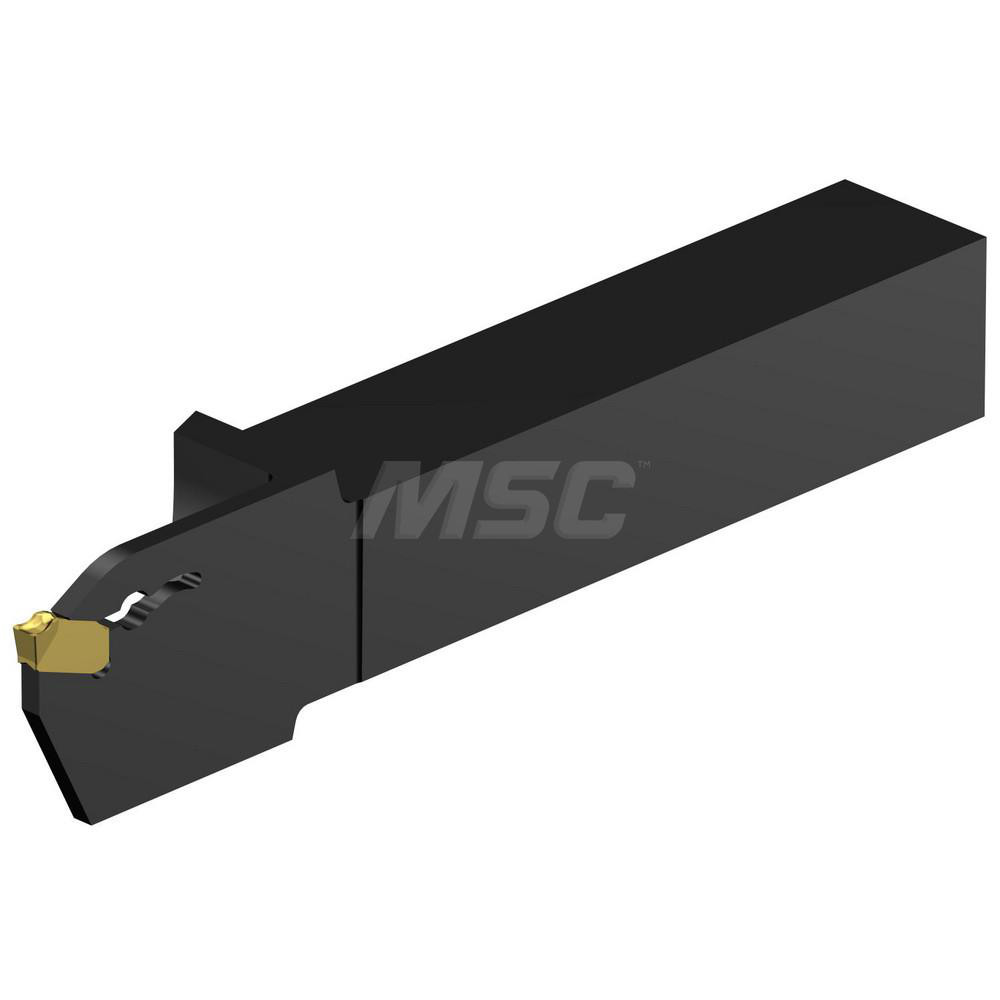

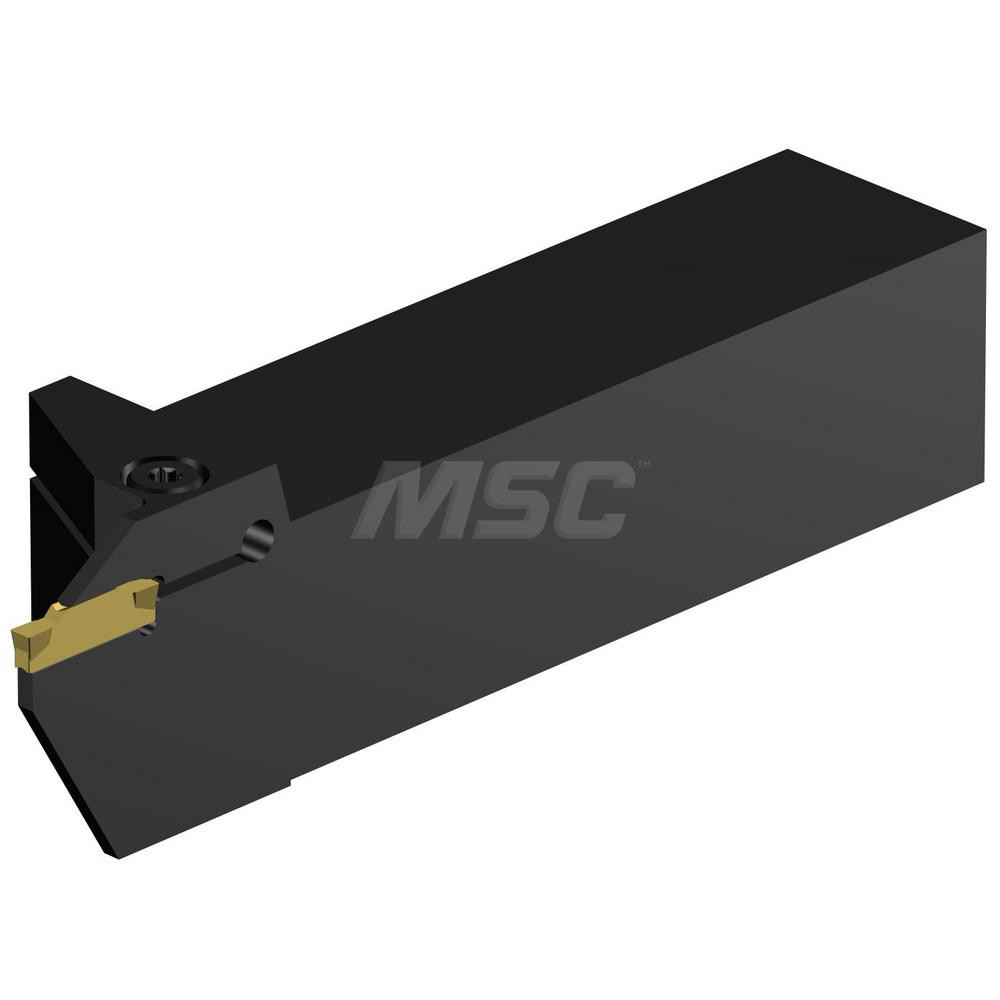

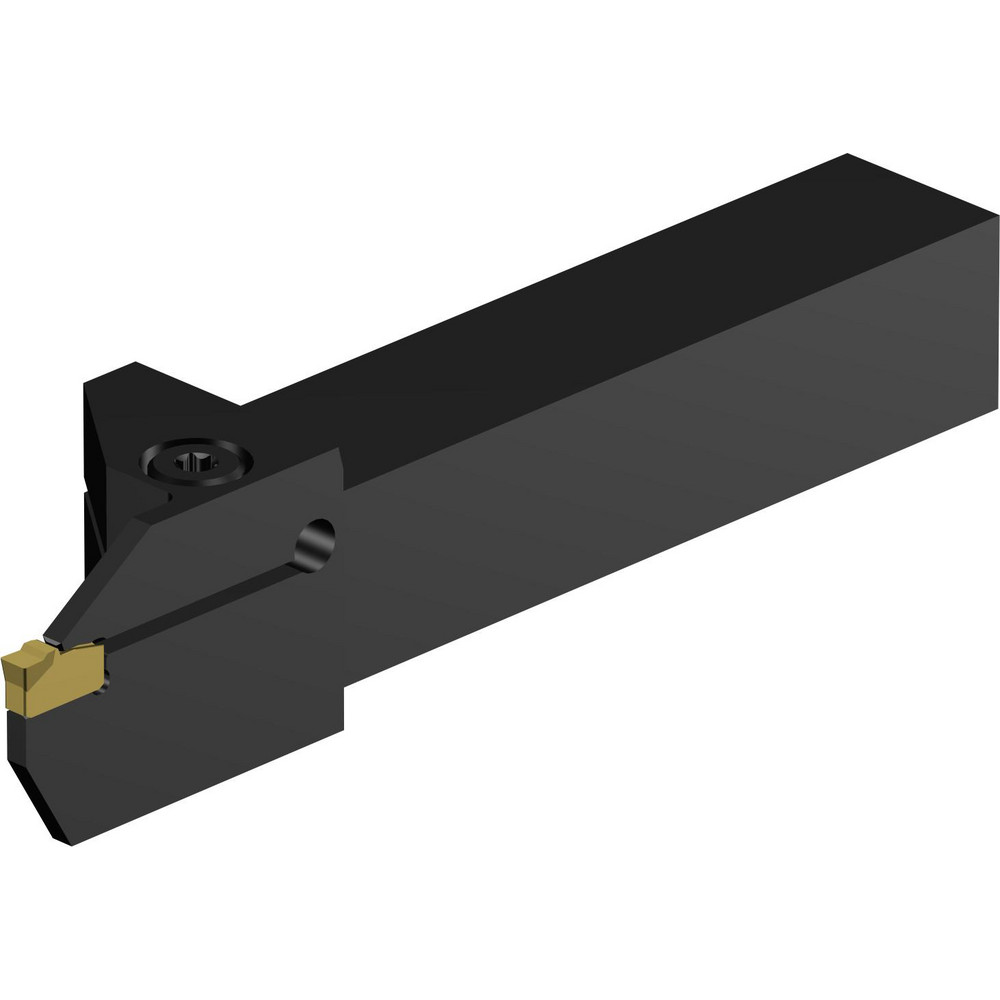

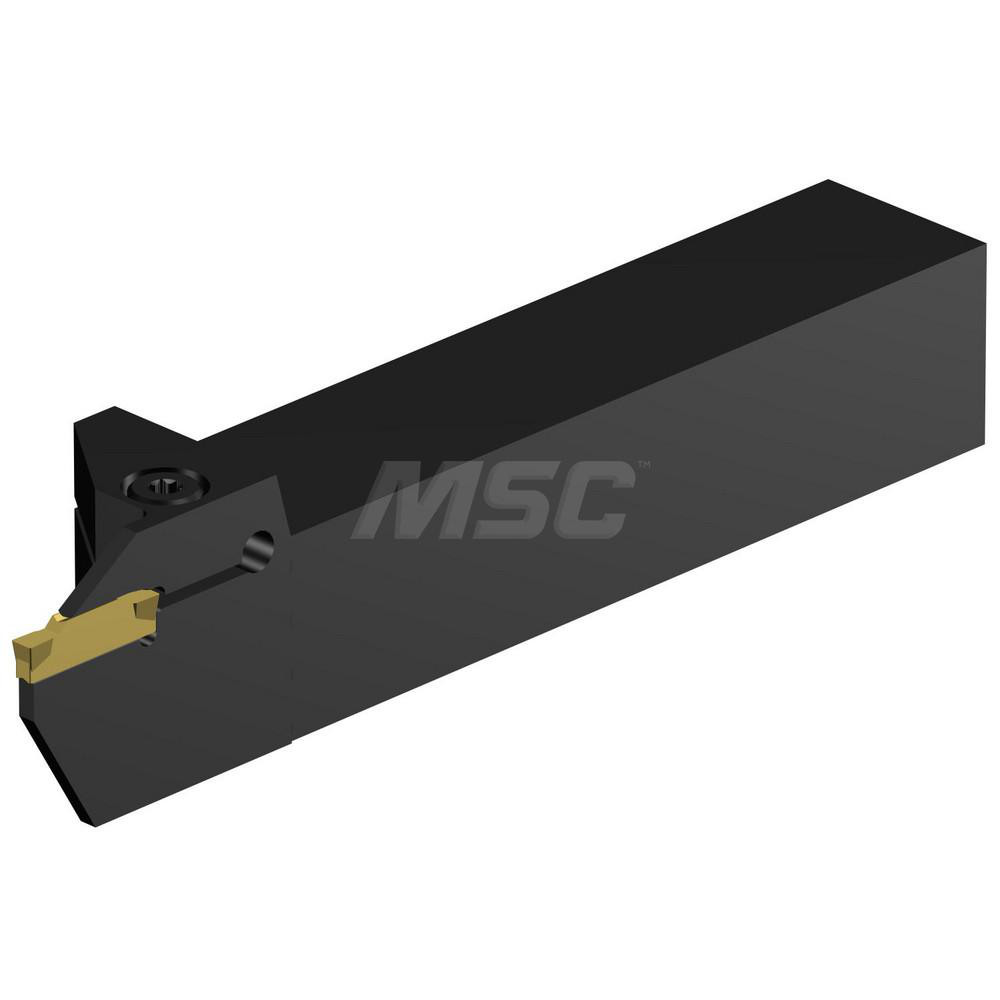

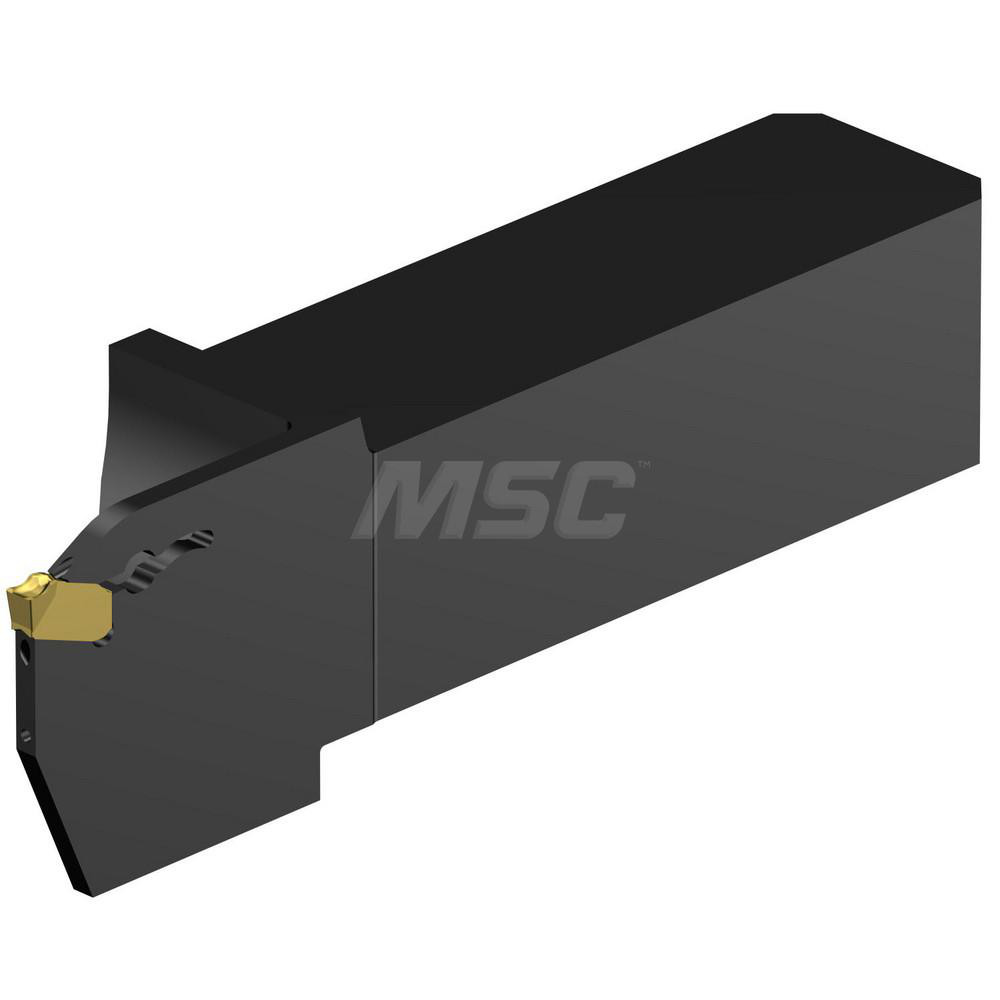

Uses QD-NG-0300-0002-CM Inserts, 3/4 x 3/4" Shank, Series CoroCut QD
| Internal or External | External |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.3000 |
| Maximum Depth of Cut (mm) | 33.02 |
| Maximum Groove Width (mm) | 4.00 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Minimum Groove Width (mm) | 3.00 |
| Toolholder Style | QD-RF..S |

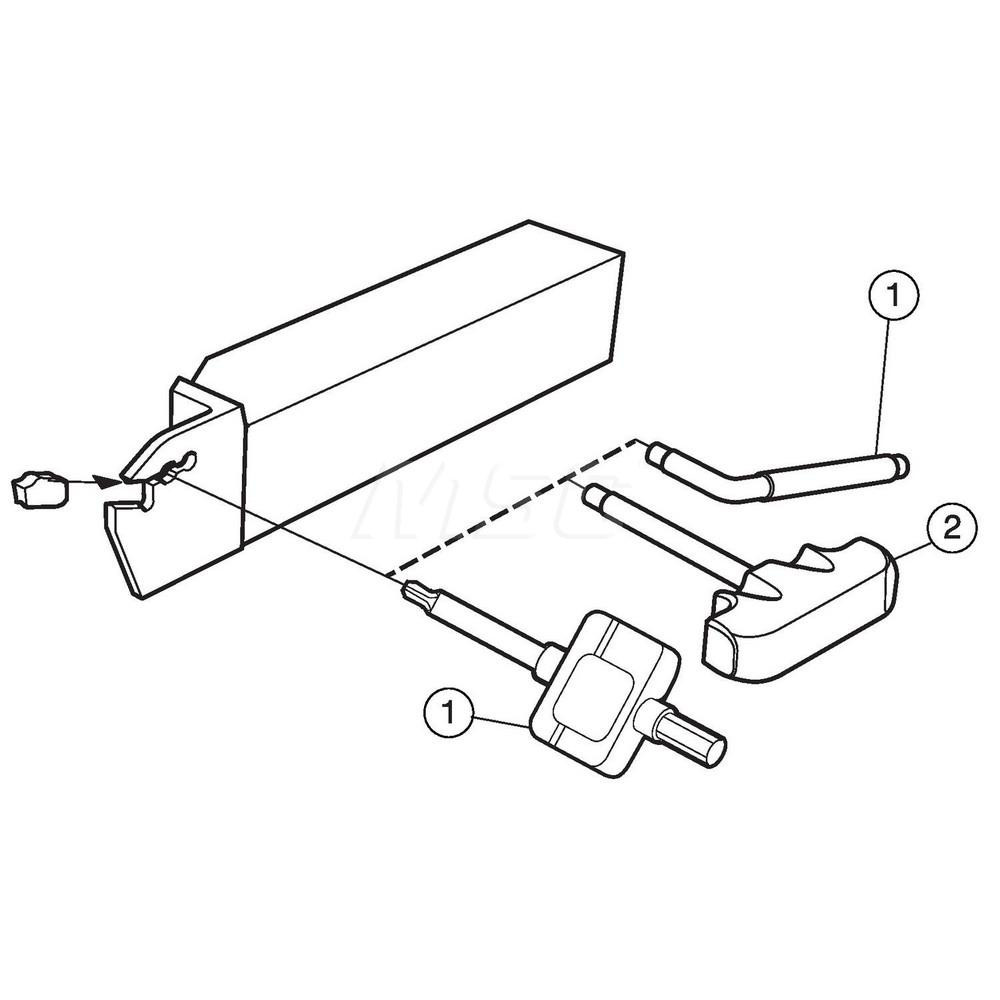

| Insert Holding Method | Clamp |
| Compatible Insert Size Code | QD-NG-0300 |

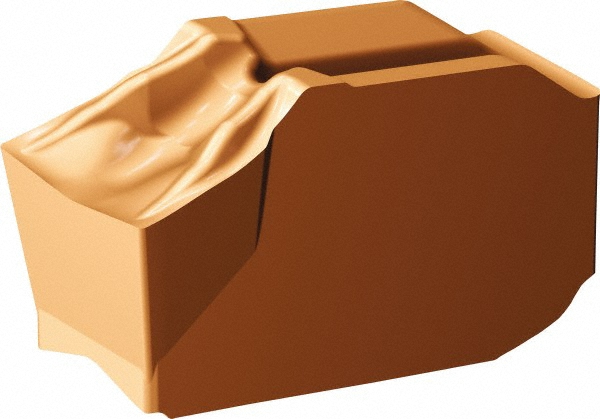

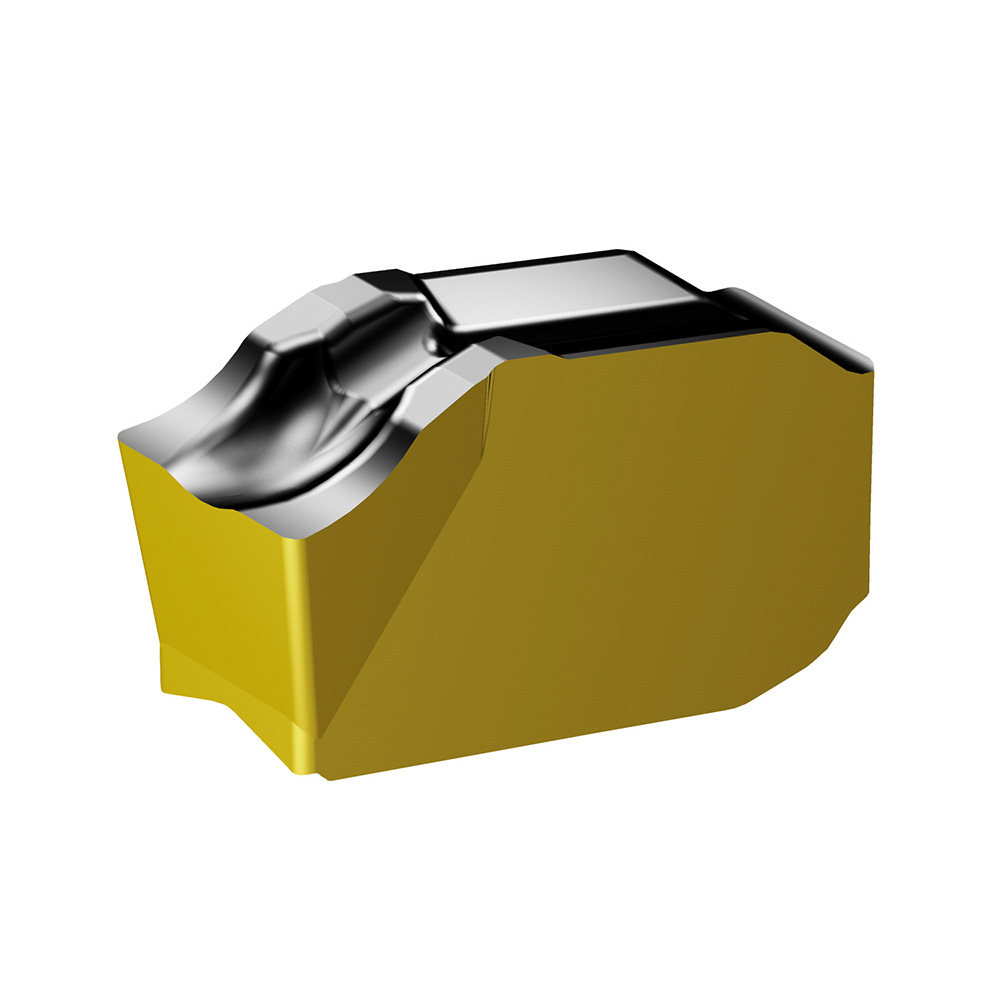

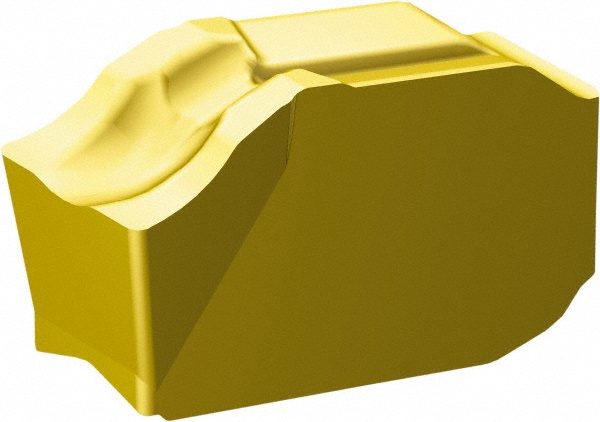

| Insert Compatibility | QD-NG-0300-0002-CM |

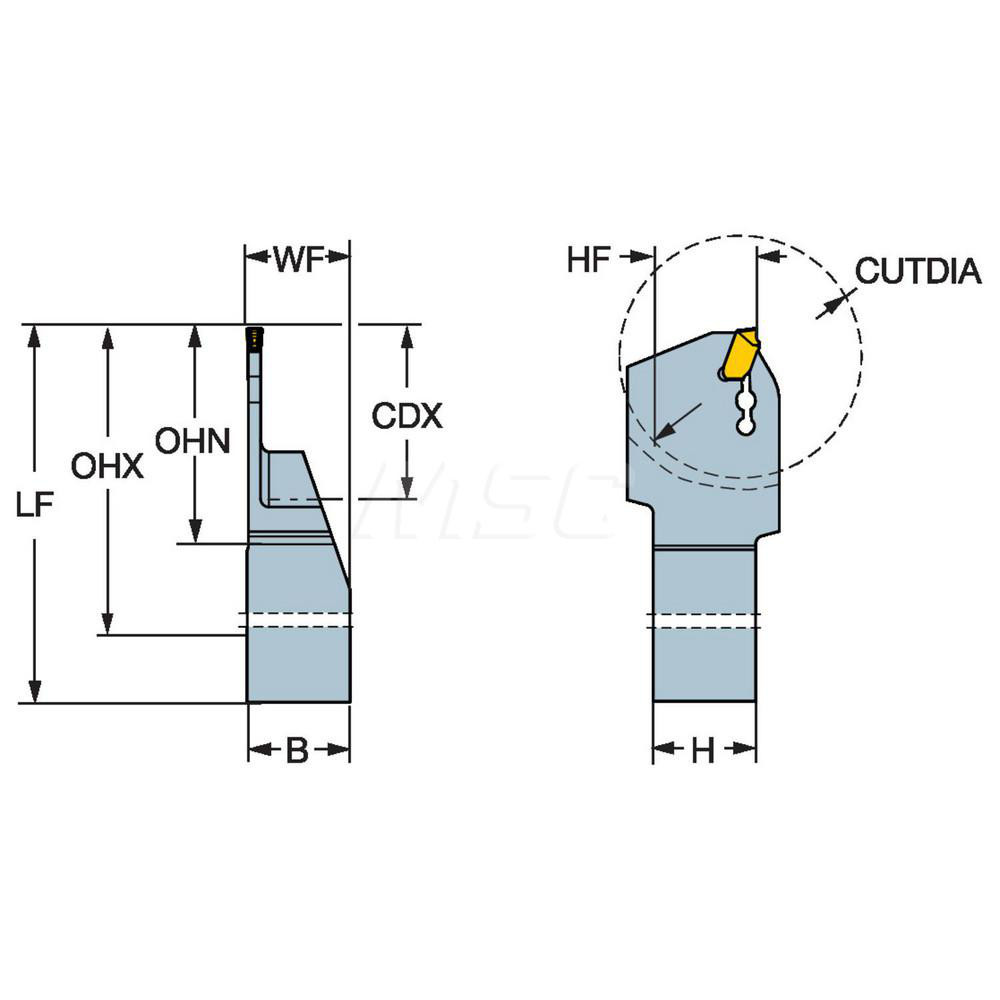

| Shank Height (mm) | 19.05 |
| Shank Height (Inch) | 3/4 |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Length (mm) | 85.00 |
| Shank Length (Decimal Inch) | 3.3465 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (mm) | 19.05 |
| Shank Width/Diameter (Inch) | 3/4 |
| Series | CoroCut QD |
| Overall Length (mm) | 127.00 |

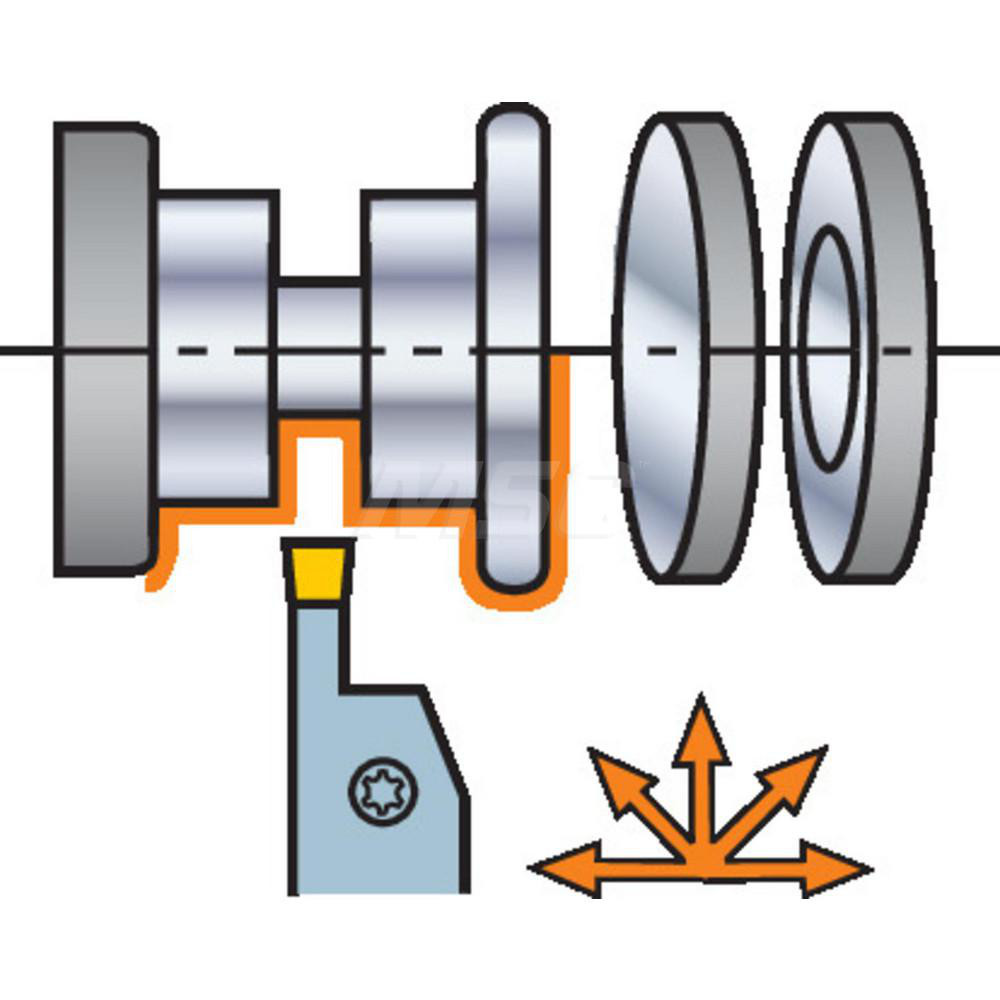

| Cutting Tool Application | Grooving; Cut-Off; Parting |
| Maximum Overhang (Inch) | 1.6535 |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.0000 |
| Head Height (Decimal Inch) | 0.7500 |
| Head Height (mm) | 19.05 |
| Head Length (Decimal Inch) | 0.7500 |
| Head Length (mm) | 19.05 |
| Manufacturers Catalog Number | QD-RFG1300-12S |
| Coolant Through | No |
| UNSPSC Code | 27112809 |
| Country of Origin | India |
| MSC Number | MSC# 52069267 |
