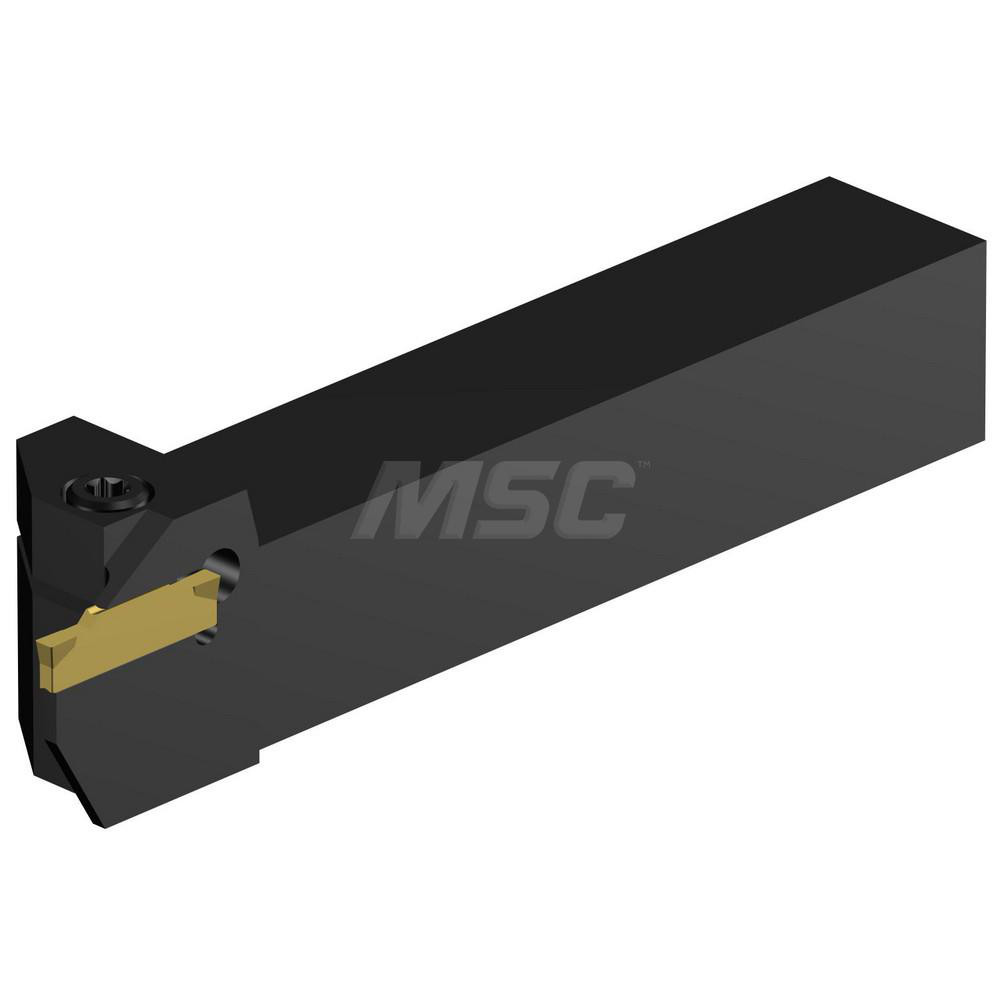

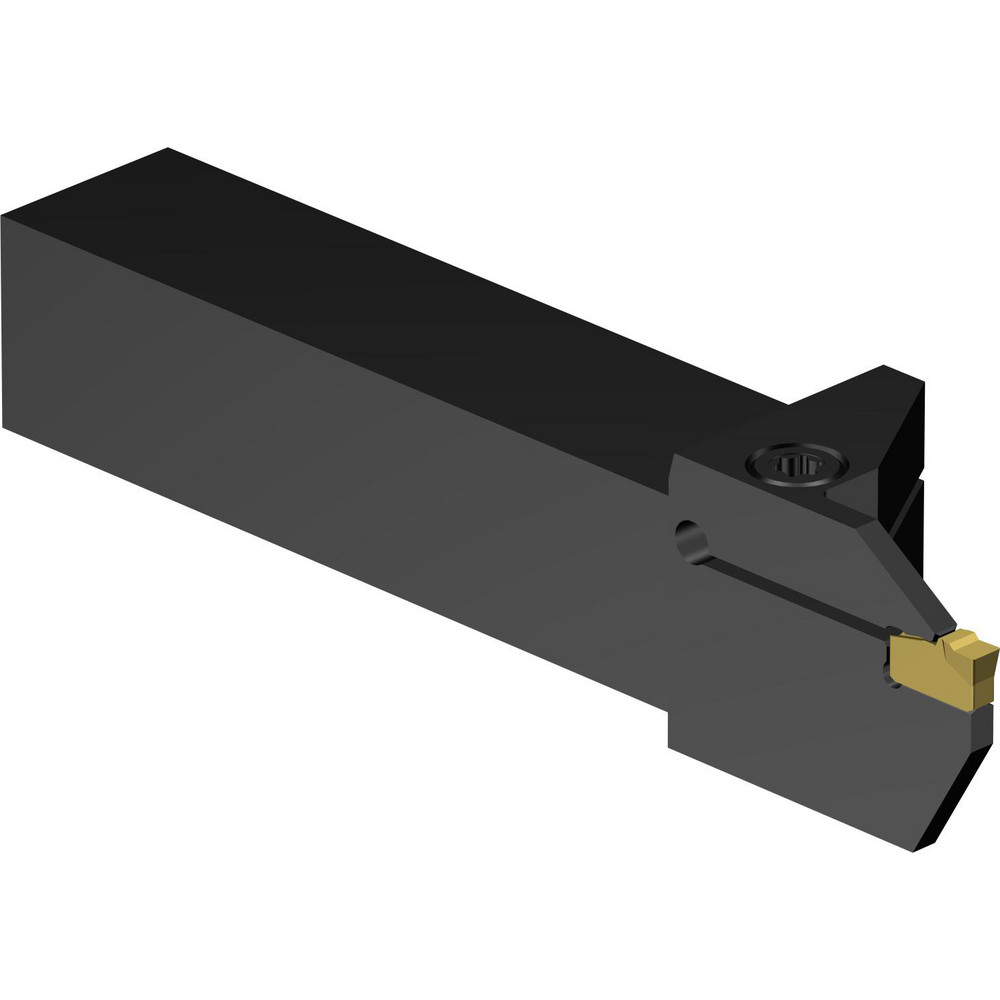

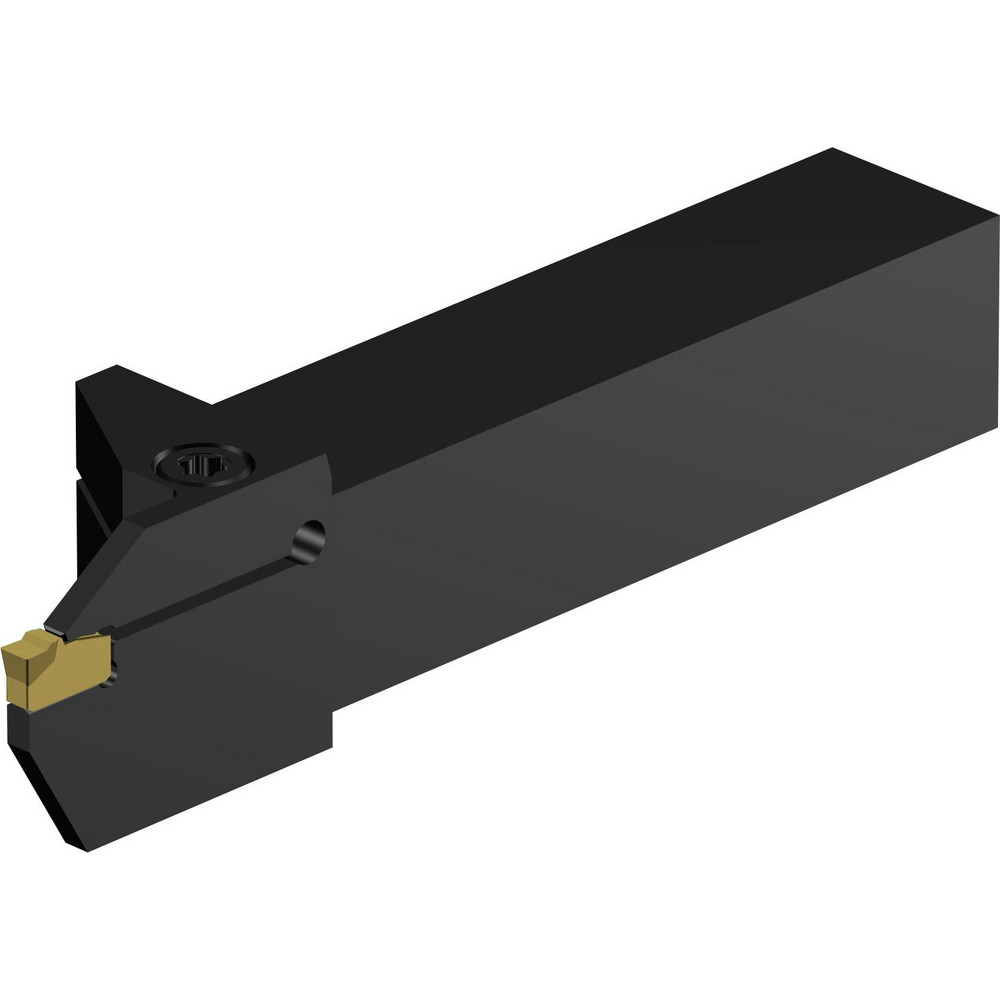

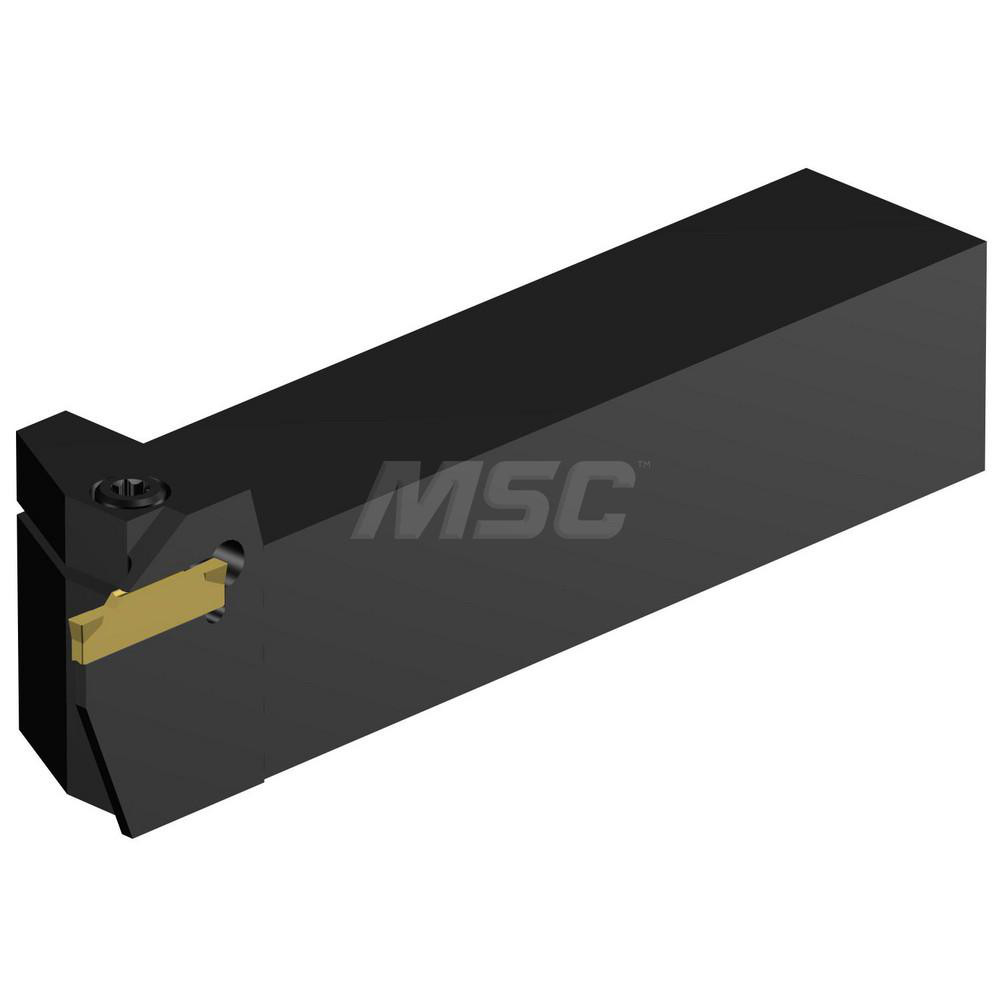

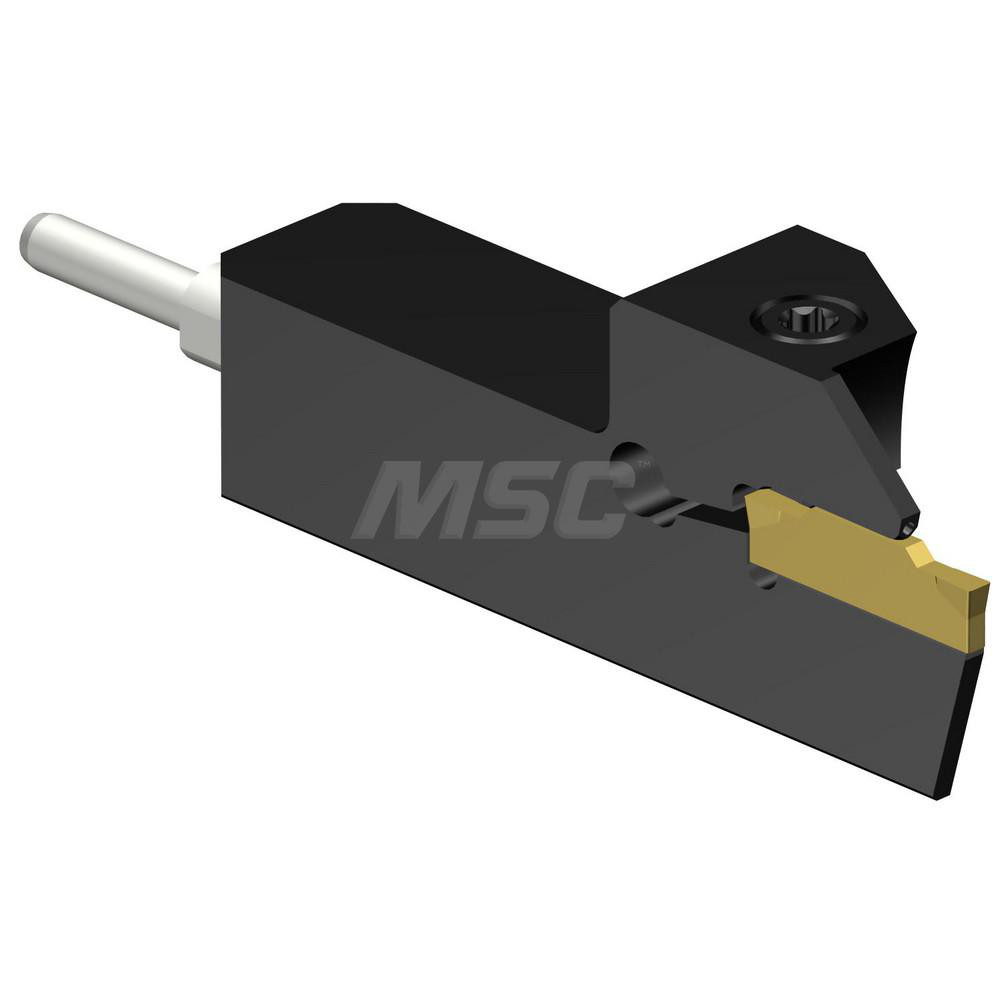

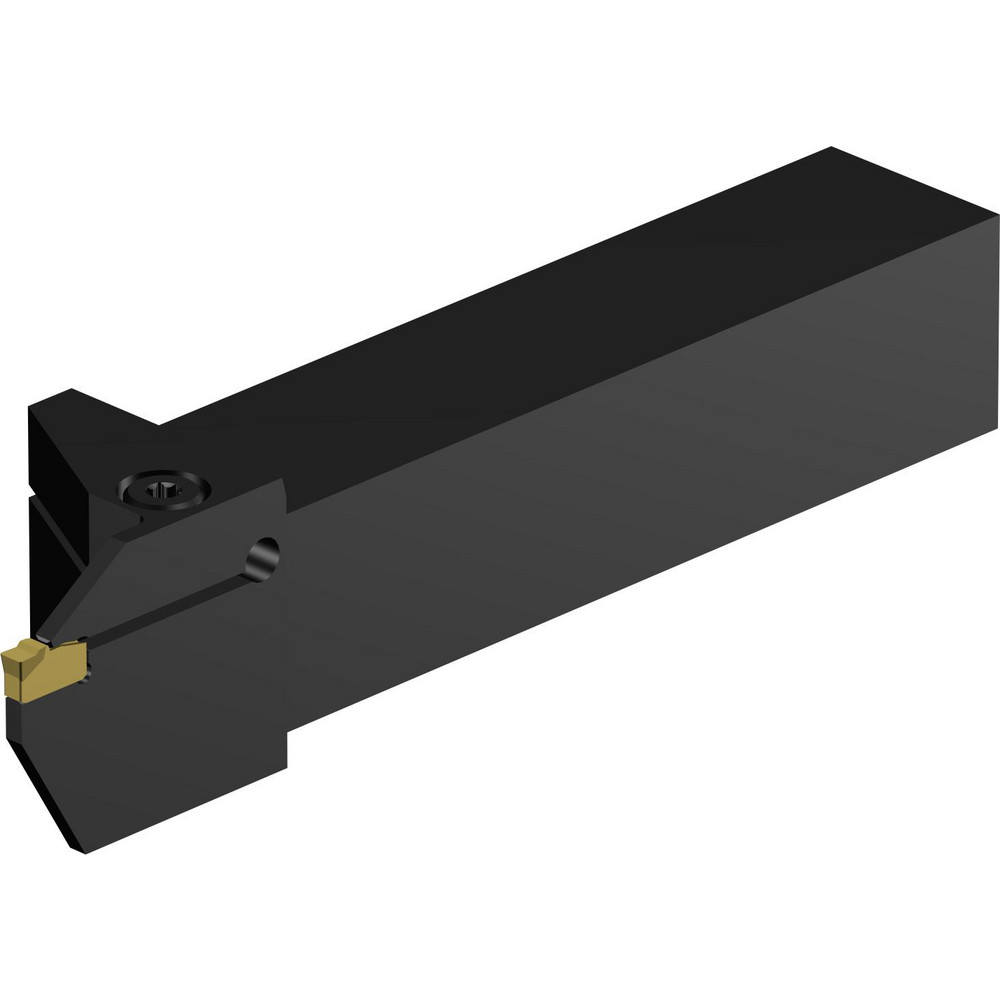

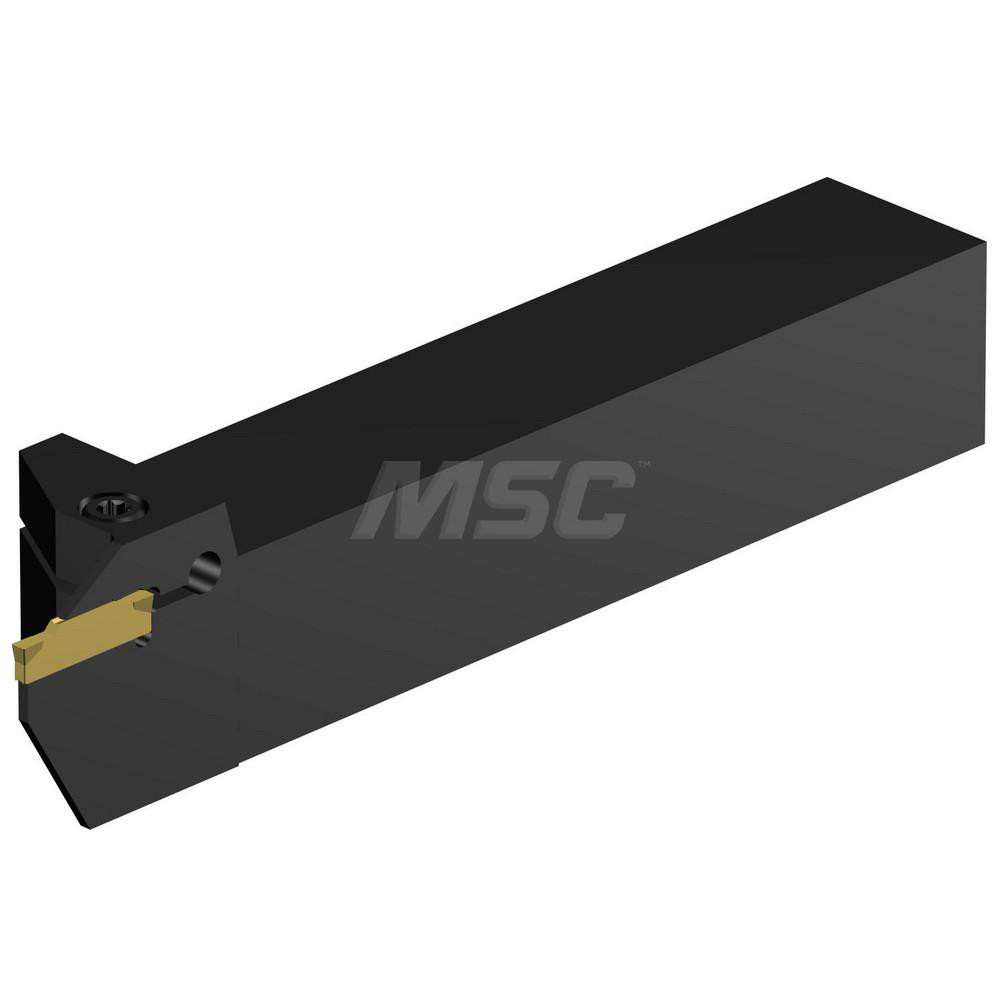

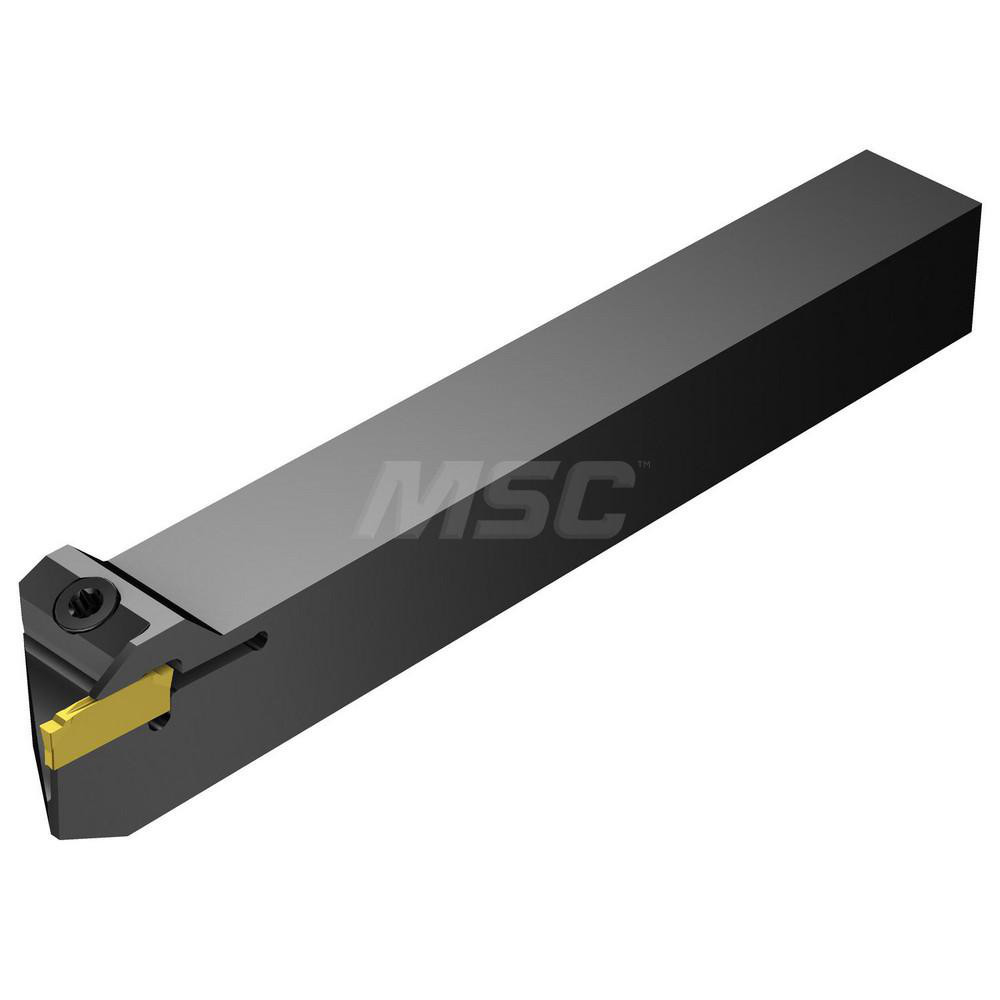

Uses N151.2-200-5E Inserts, 1/2 x 1/2" Shank, Series T-Max Q-Cut
| Internal or External | External |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.5910 |
| Maximum Depth of Cut (mm) | 15.01 |
| Maximum Groove Width (mm) | 2.39 |
| Minimum Groove Width (Decimal Inch) | 0.0728 |
| Minimum Groove Width (mm) | 1.85 |
| Toolholder Style | R/L151.20 |

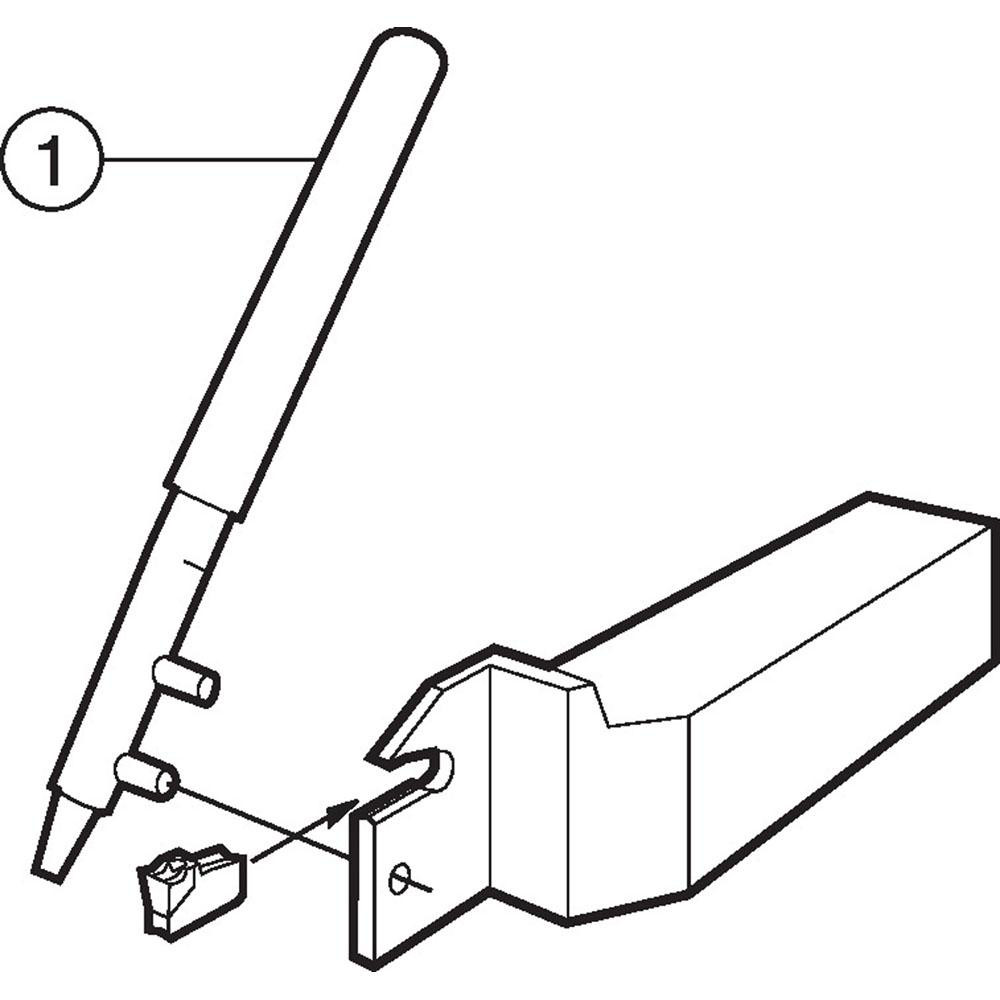

| Insert Holding Method | Clamp |
| Insert Compatibility | N151.2-200-5E |
| Shank Height (mm) | 12.70 |
| Shank Height (Inch) | 1/2 |
| Shank Height (Decimal Inch) | 0.5000 |
| Shank Length (mm) | 134.11 |
| Shank Length (Decimal Inch) | 5.2801 |
| Shank Width/Diameter (Decimal Inch) | 0.5000 |
| Shank Width/Diameter (mm) | 12.70 |
| Shank Width/Diameter (Inch) | 1/2 |
| Series | T-Max Q-Cut |
| Overall Length (mm) | 150.11 |
| Overall Length (Decimal Inch) | 5.9100 |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.9100 |
| Head Height (Decimal Inch) | 0.5000 |
| Head Height (mm) | 12.70 |
| Head Length (Decimal Inch) | 0.5000 |
| Head Length (mm) | 12.70 |
| Manufacturers Catalog Number | R151.20-08-20 |
| Insert Seat Size | 20.0 |
| Coolant Through | No |
| UNSPSC Code | 23153308 |
| Country of Origin | India |
| undefined | undefined |
| MSC Number | MSC# 52614278 |
