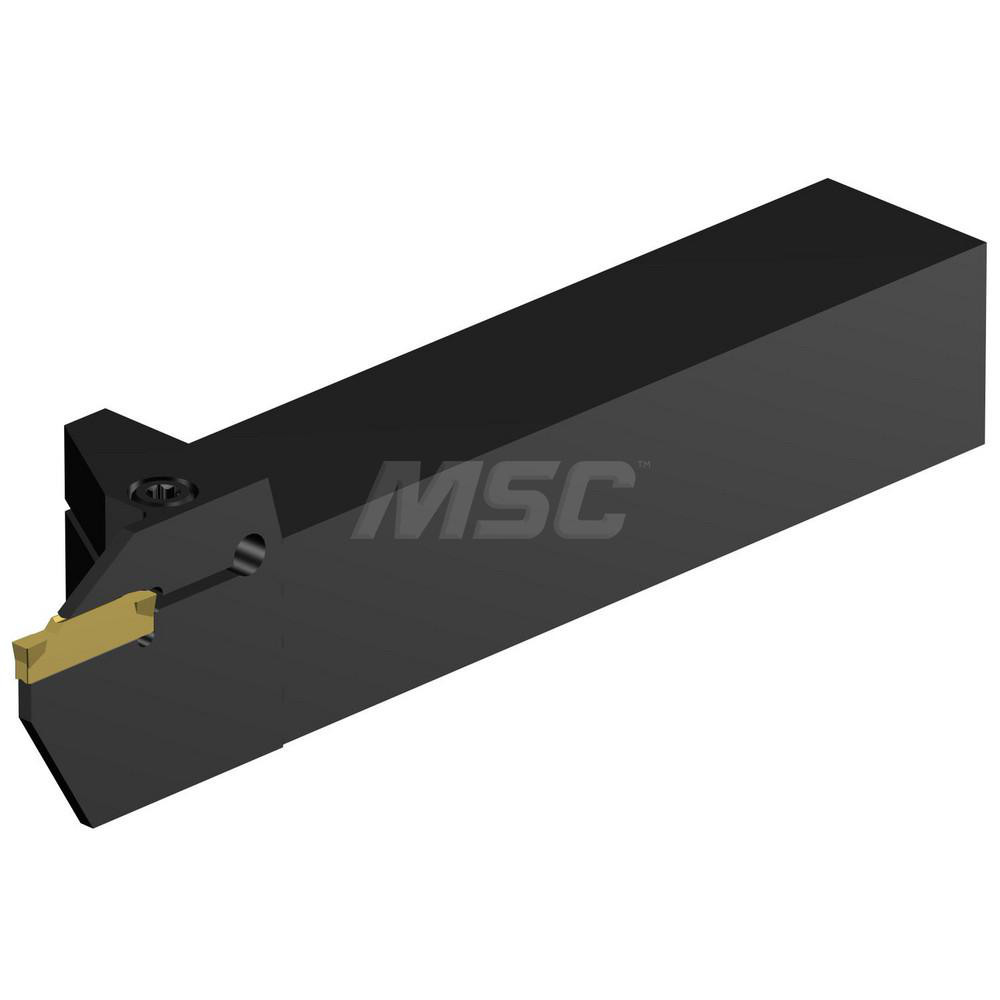

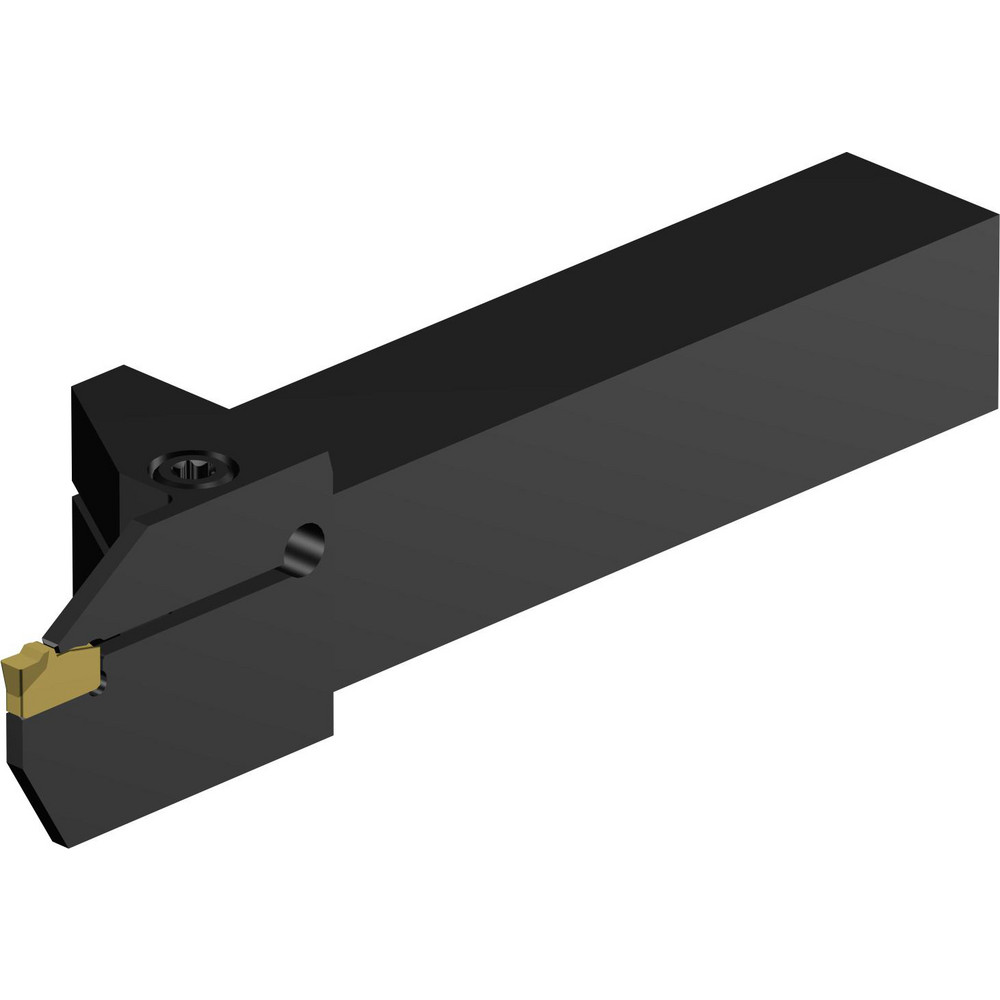

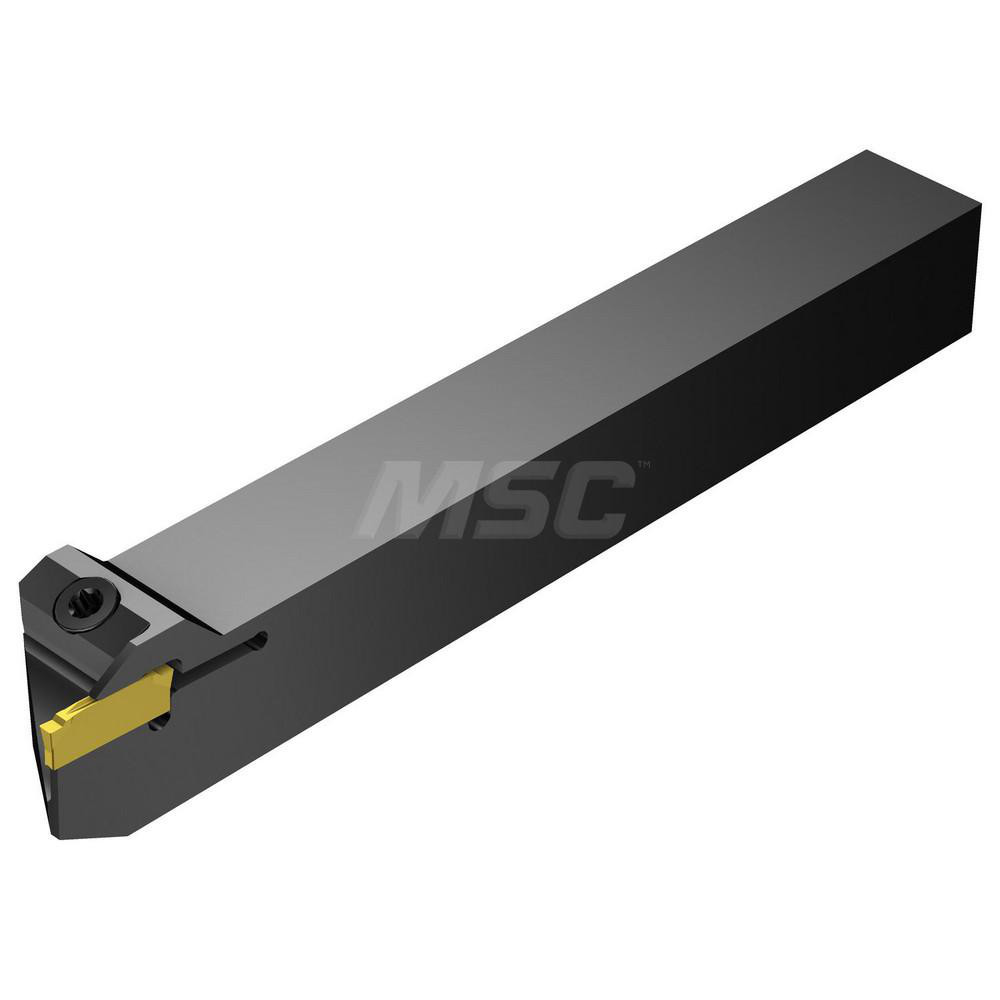

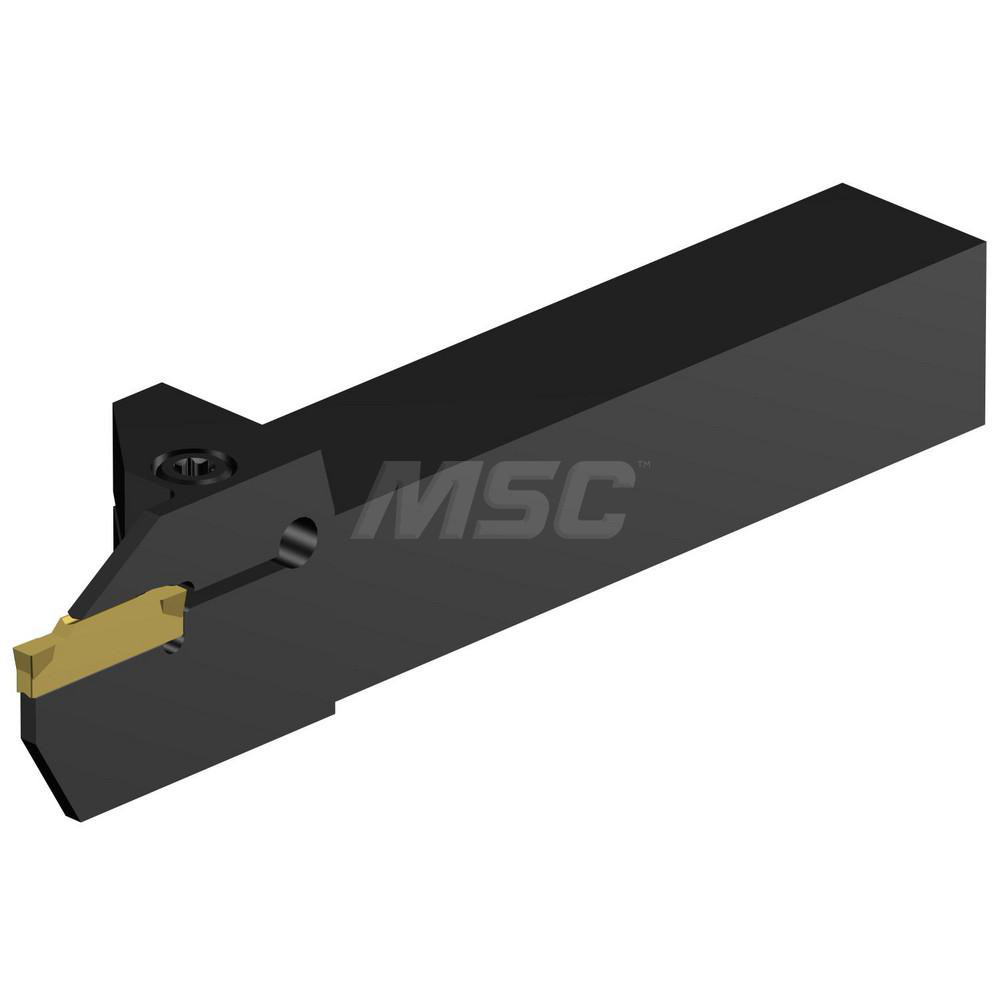

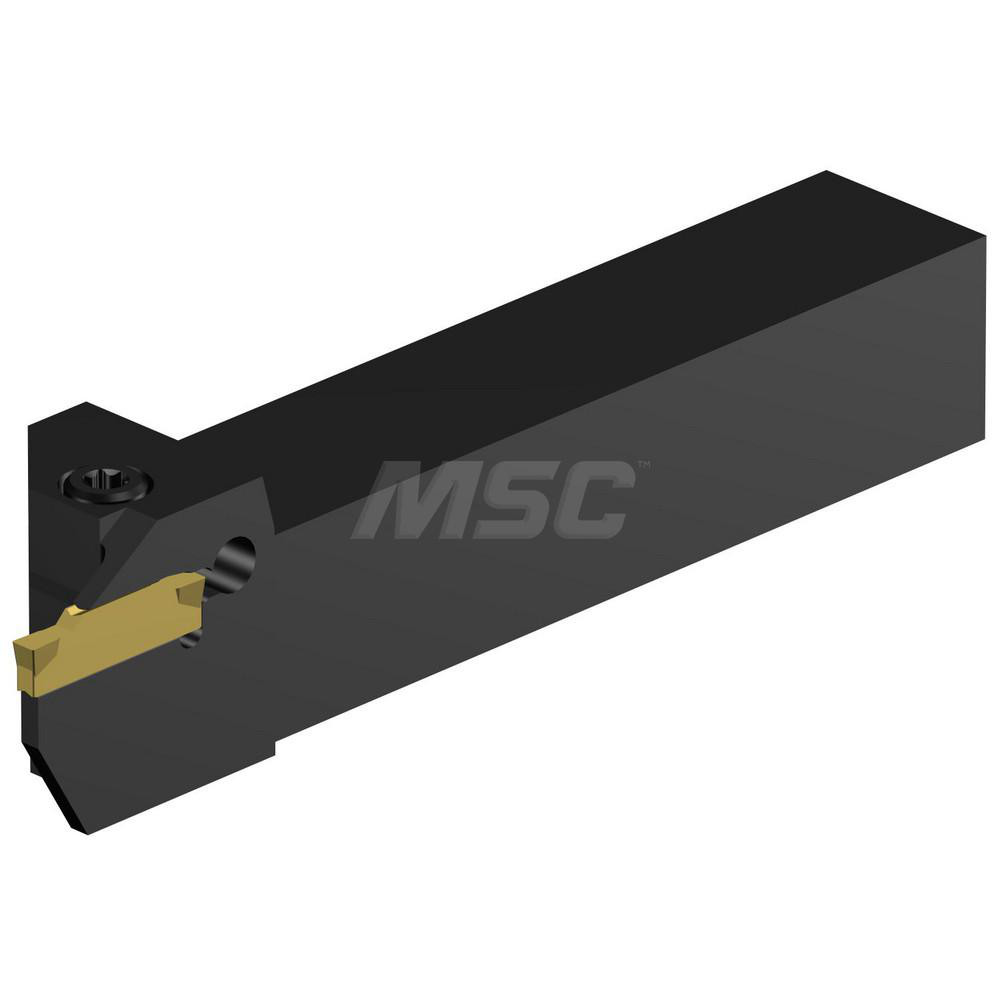

Uses N123F2-0250-CM Inserts, 16 x 16 mm Shank, Series CoroCut 1-2
| Internal or External | External |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6693 |
| Maximum Depth of Cut (mm) | 17.00 |
| Maximum Groove Width (Decimal Inch) | 0.1250 |
| Maximum Groove Width (mm) | 3.18 |
| Minimum Groove Width (Decimal Inch) | 0.0941 |
| Minimum Groove Width (mm) | 2.39 |
| Toolholder Style | RF123..B-S |

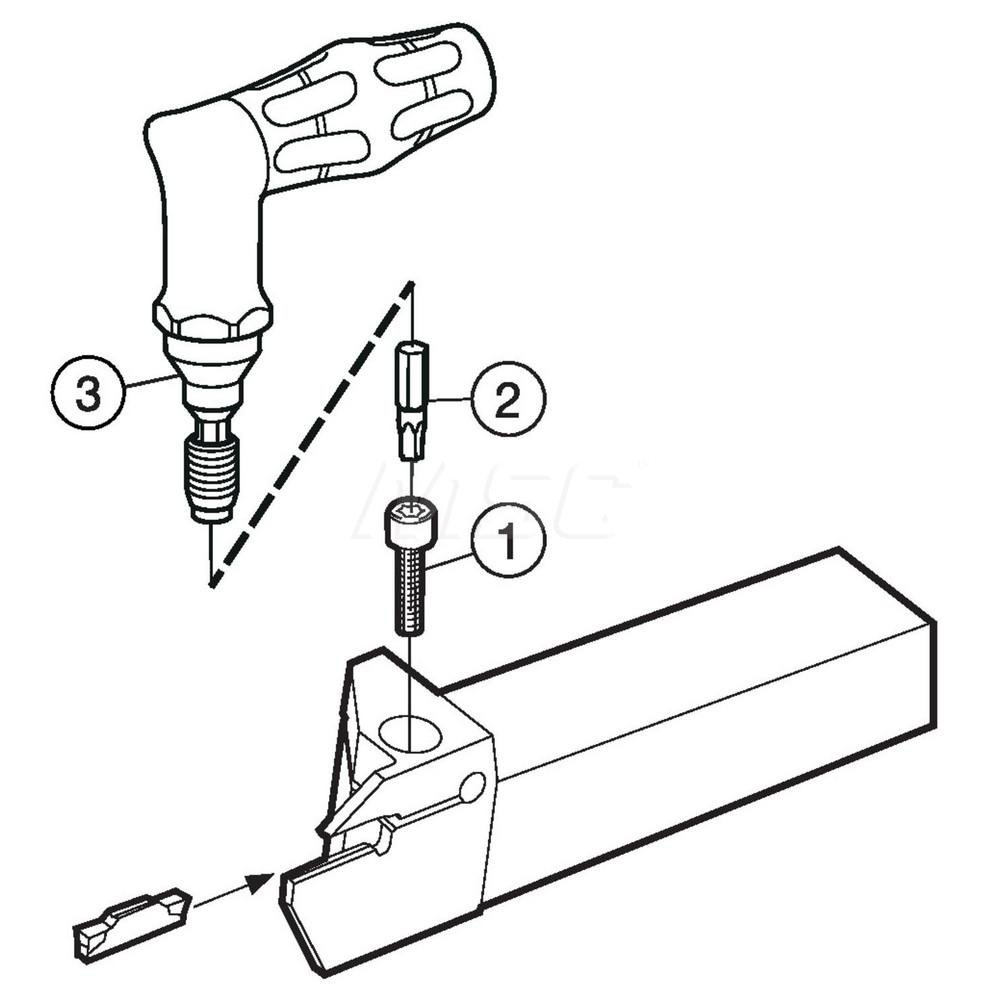

| Insert Holding Method | Clamp |
| Compatible Insert Size Code | N123F2 |
| Insert Compatibility | N123F2-0250-CM |

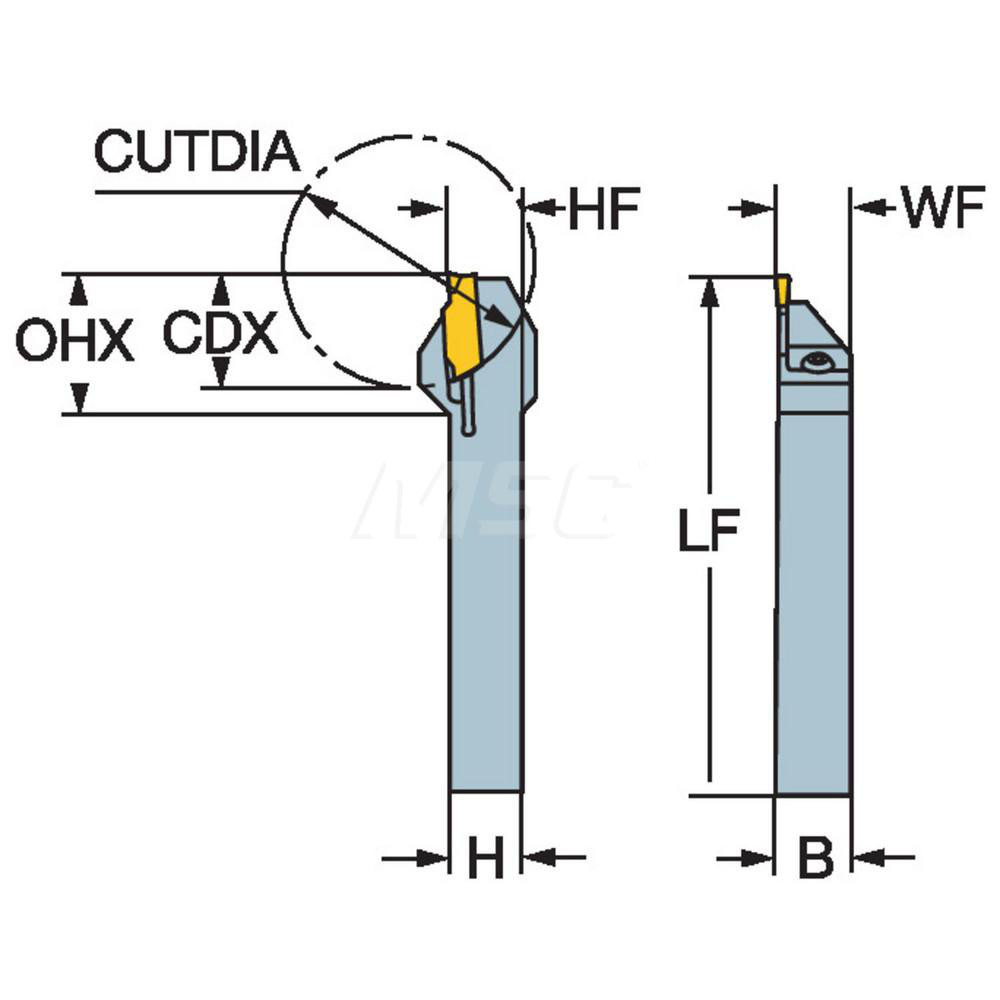

| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Shank Length (mm) | 96.40 |
| Shank Length (Decimal Inch) | 3.7953 |
| Shank Width/Diameter (Decimal Inch) | 0.6299 |
| Shank Width/Diameter (mm) | 16.00 |
| Series | CoroCut 1-2 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |

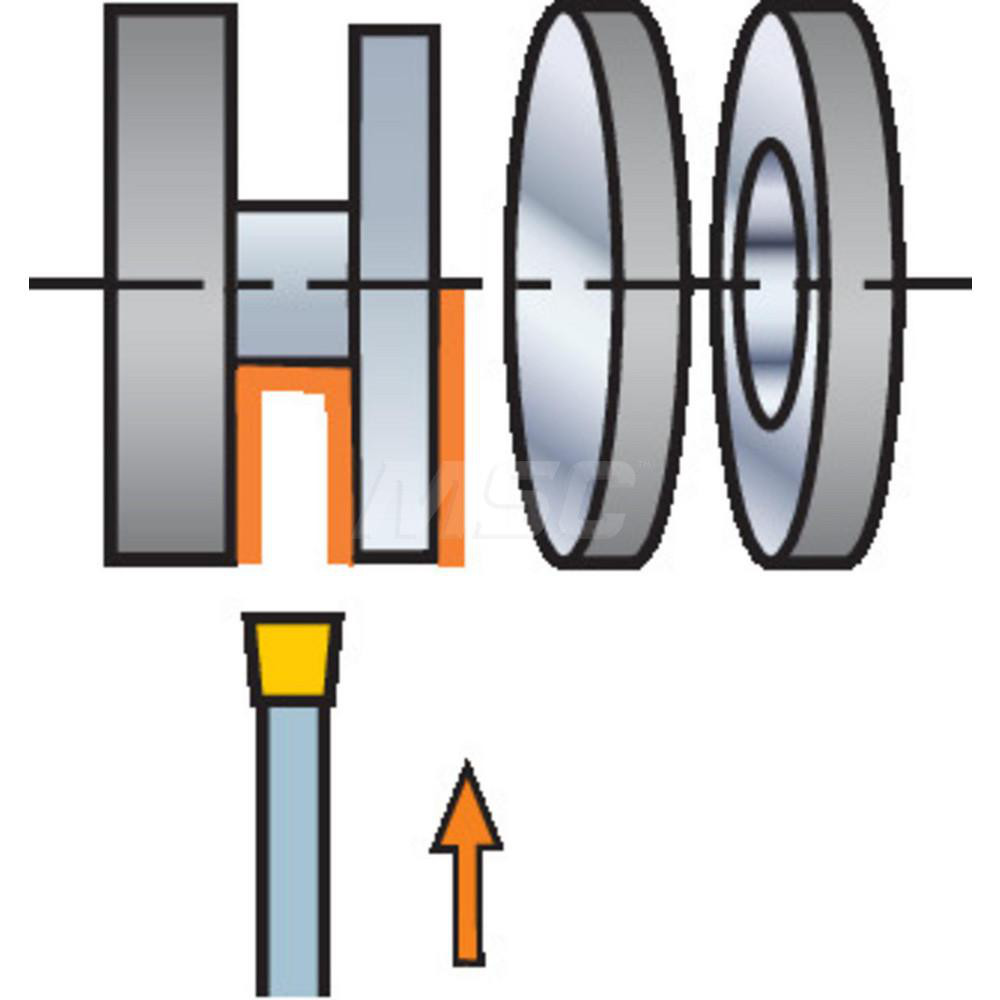

| Cutting Tool Application | Grooving; Cut-Off; Parting |
| Maximum Overhang (Inch) | 1.1259 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.9213 |
| Head Height (Decimal Inch) | 0.6299 |
| Head Height (mm) | 16.00 |
| Head Length (Decimal Inch) | 0.6299 |
| Head Length (mm) | 16.00 |
| Manufacturers Catalog Number | RF123F17-1616B-S |
| Coolant Through | No |
| UNSPSC Code | 27112809 |
| Country of Origin | India |
| MSC Number | MSC# 52069374 |
