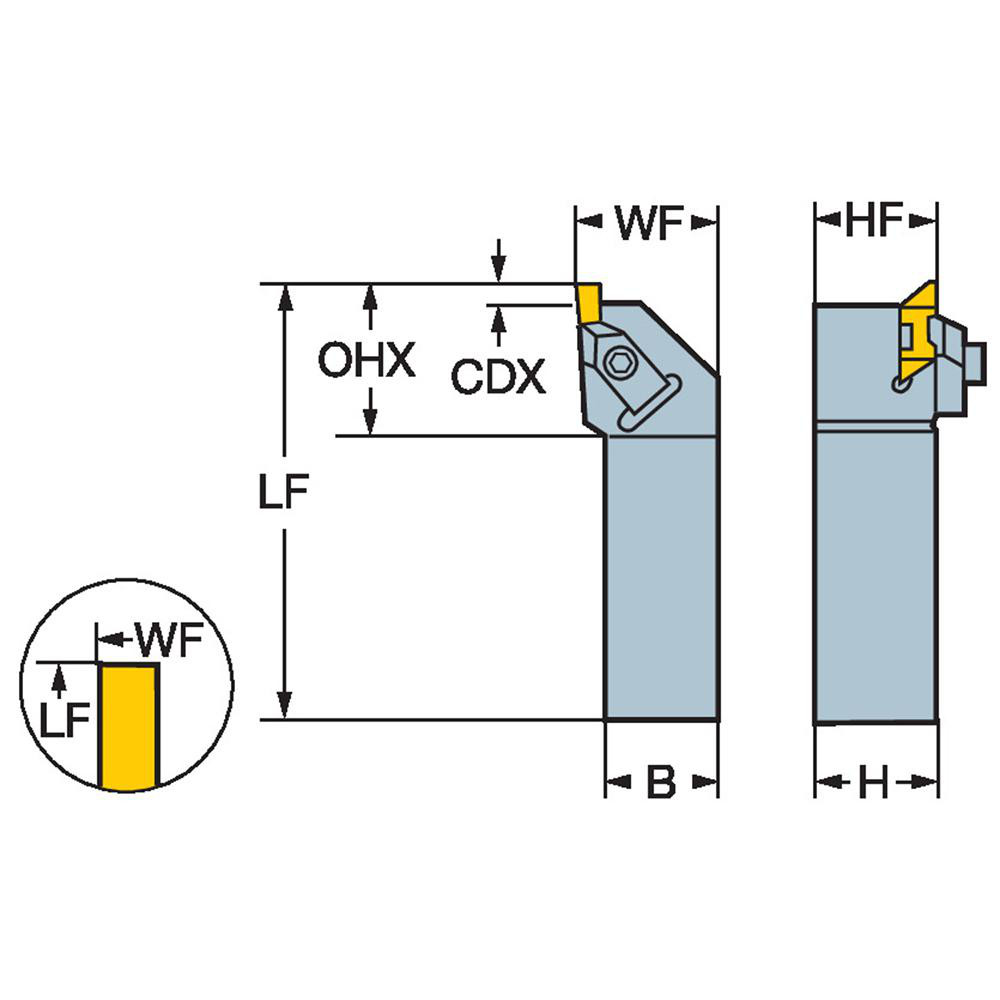

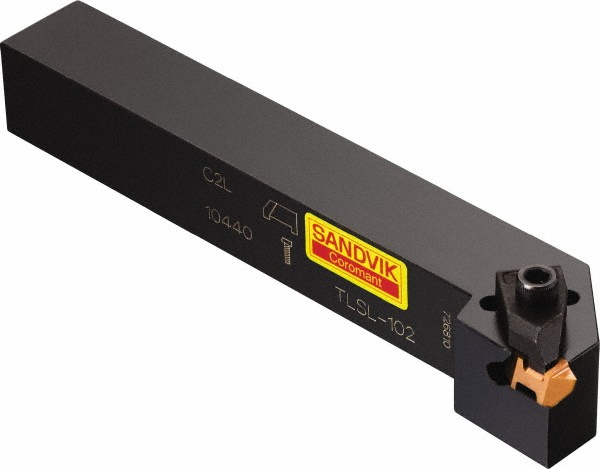

Uses TLG 2 Inserts, 3/4 x 3/4" Shank, Series Top Lok
| Internal or External | External |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1250 |
| Maximum Depth of Cut (mm) | 3.18 |
| Toolholder Style | TLSR/L |
| Insert Holding Method | Clamp |

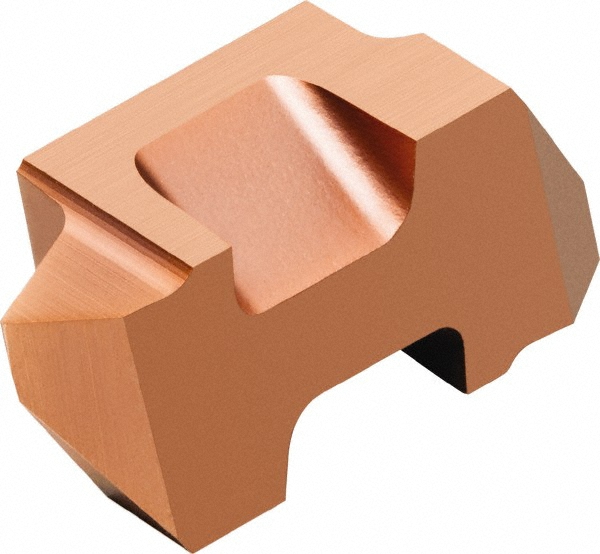

| Insert Compatibility | TLG 2 |
| Shank Height (mm) | 19.05 |
| Shank Height (Inch) | 3/4 |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Length (mm) | 91.95 |
| Shank Length (Decimal Inch) | 3.6200 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (mm) | 19.05 |
| Shank Width/Diameter (Inch) | 3/4 |
| Series | Top Lok |
| Overall Length (mm) | 114.30 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.5000 |
| Head Height (Decimal Inch) | 0.7500 |
| Head Height (mm) | 19.05 |
| Head Length (Decimal Inch) | 0.7500 |
| Head Length (mm) | 19.05 |
| Manufacturers Catalog Number | TLSR-122B |
| Insert Seat Size | 2.0 |
| Coolant Through | No |
| UNSPSC Code | 23153308 |
| Country of Origin | India |
| undefined | undefined |
| MSC Number | MSC# 59223420 |
