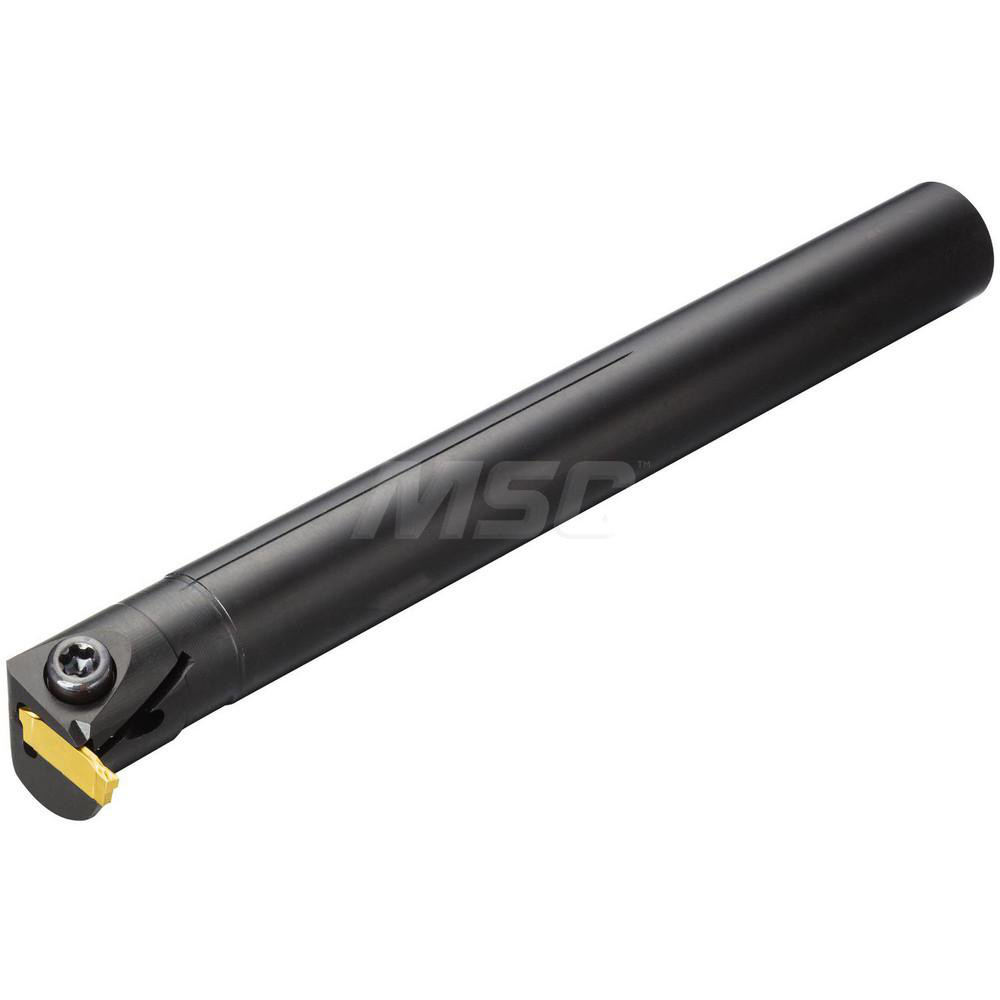

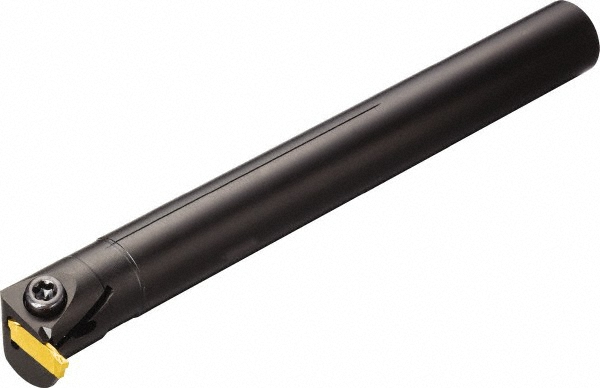

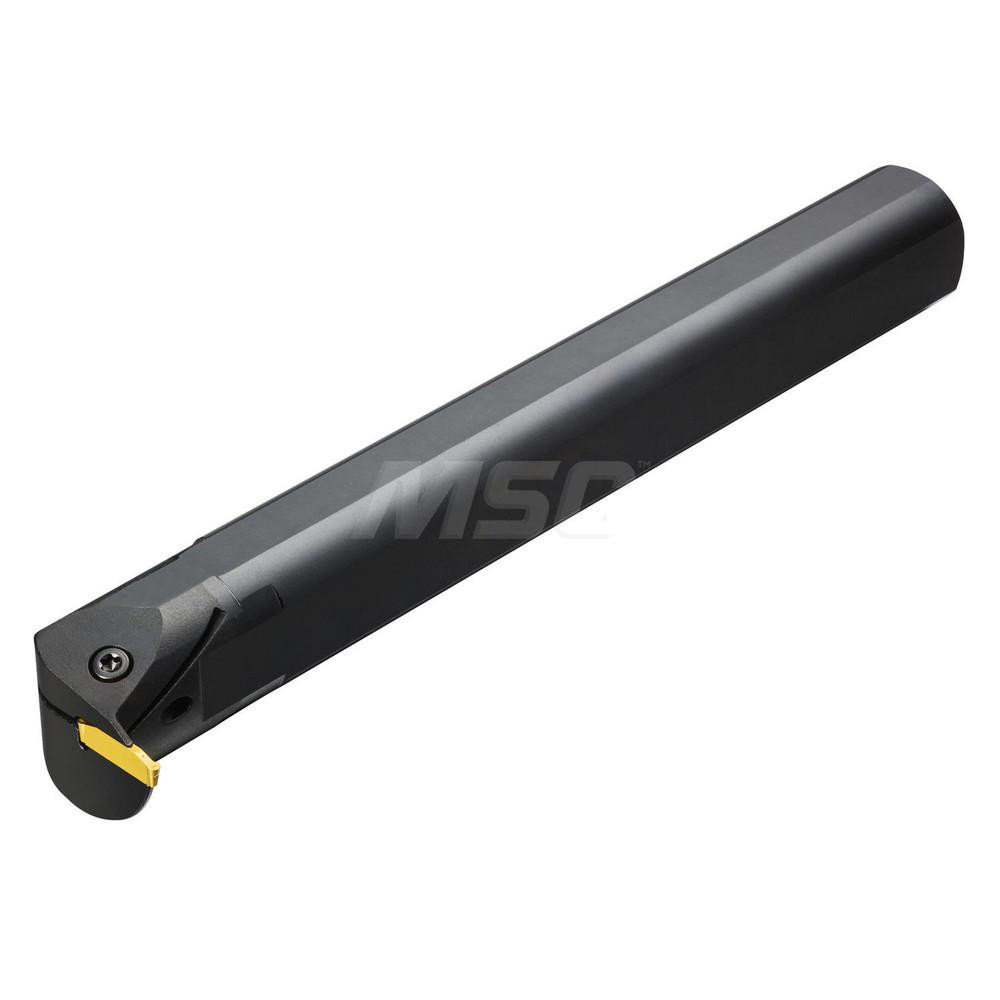

5 mm Max Depth of Cut, Through Coolant, Uses N123E2 Inserts

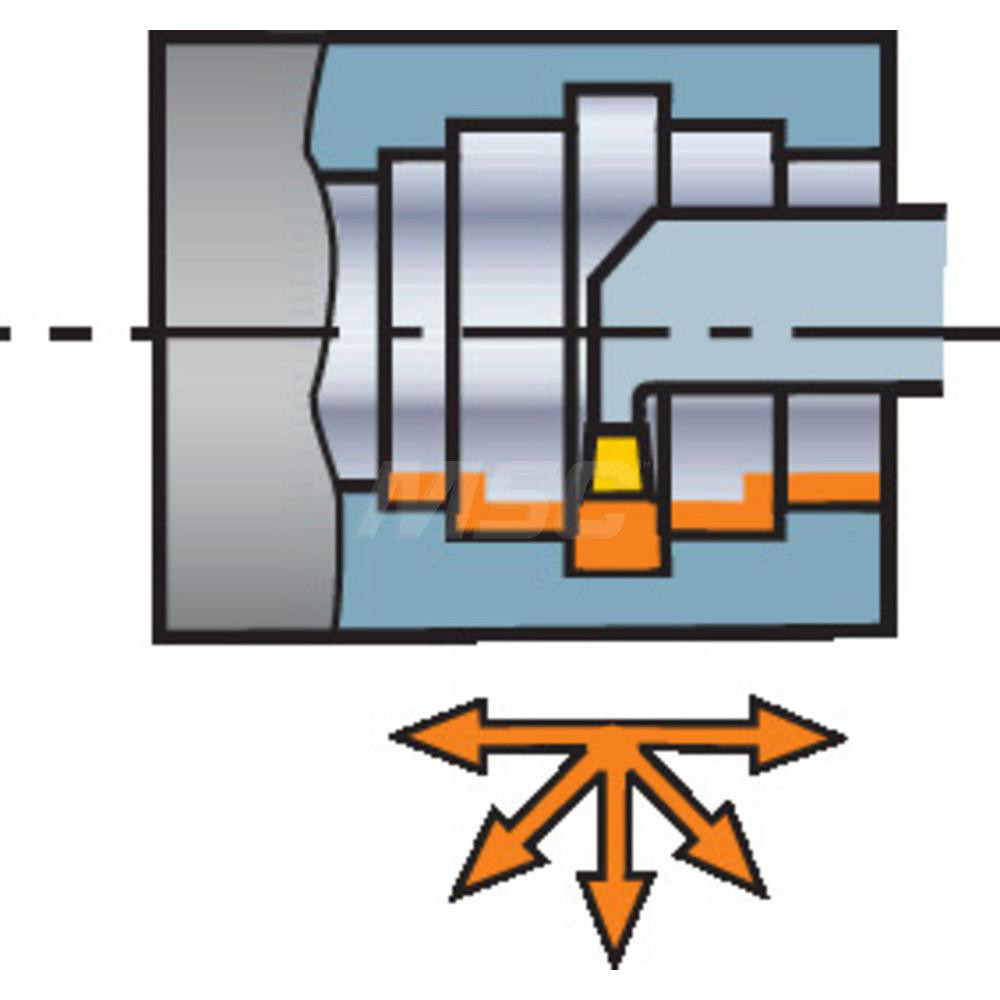

| Toolholder Type | Internal Grooving |
|---|---|
| Insert Seat Size | E |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Groove Width (mm) | 2.00 |
| Toolholder Style | AG123 |
| Maximum Groove Width (Decimal Inch) | 0.0787 |

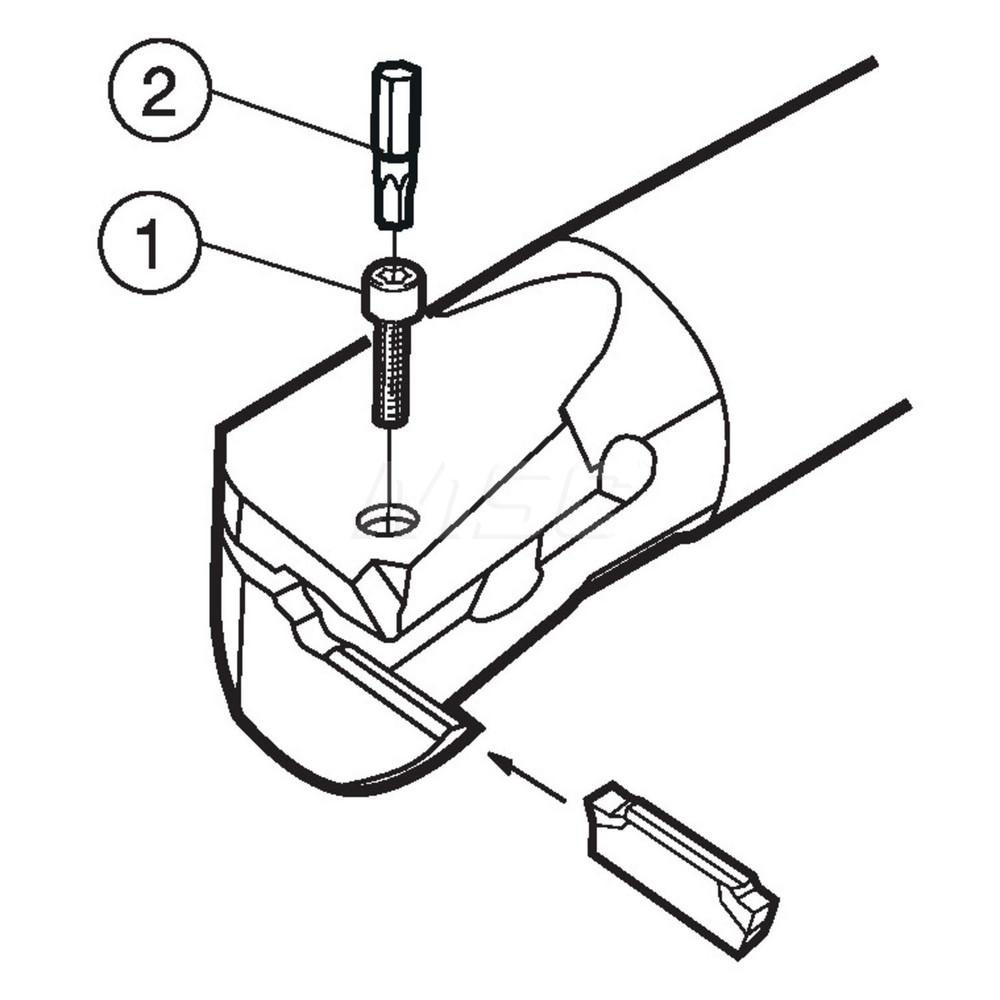

| Insert Holding Method | Clamp |
| Insert Compatibility | N123..GM; N123..CM |
| Compatible Insert Size Code | N123E2 |
| Series | Coro Cut 1-2 |
| Shank Length (Decimal Inch) | 5.9055 |
| Overall Length (Decimal Inch) | 7.0866 |
| Multi-use Tool | Yes |

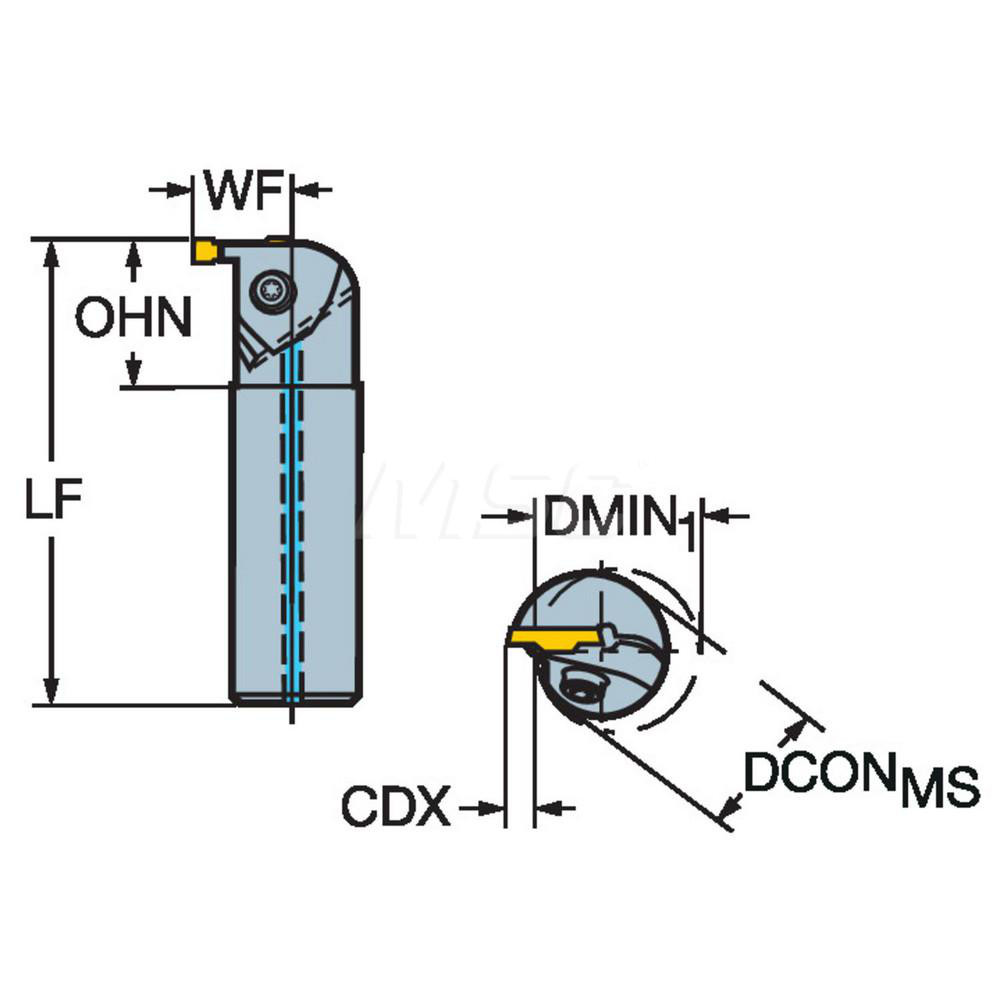

| Center to Cutting Edge (Decimal Inch) | 0.5915 |
| Center to Cutting Edge (mm) | 15.03 |
| Minimum Hole Diameter (Decimal Inch) | 1.2598 |
| Head Length (Decimal Inch) | 1.1811 |
| UNSPSC Code | 27112809 |
| Coolant Hole Diameter (Decimal Inch) | 0.2360 |

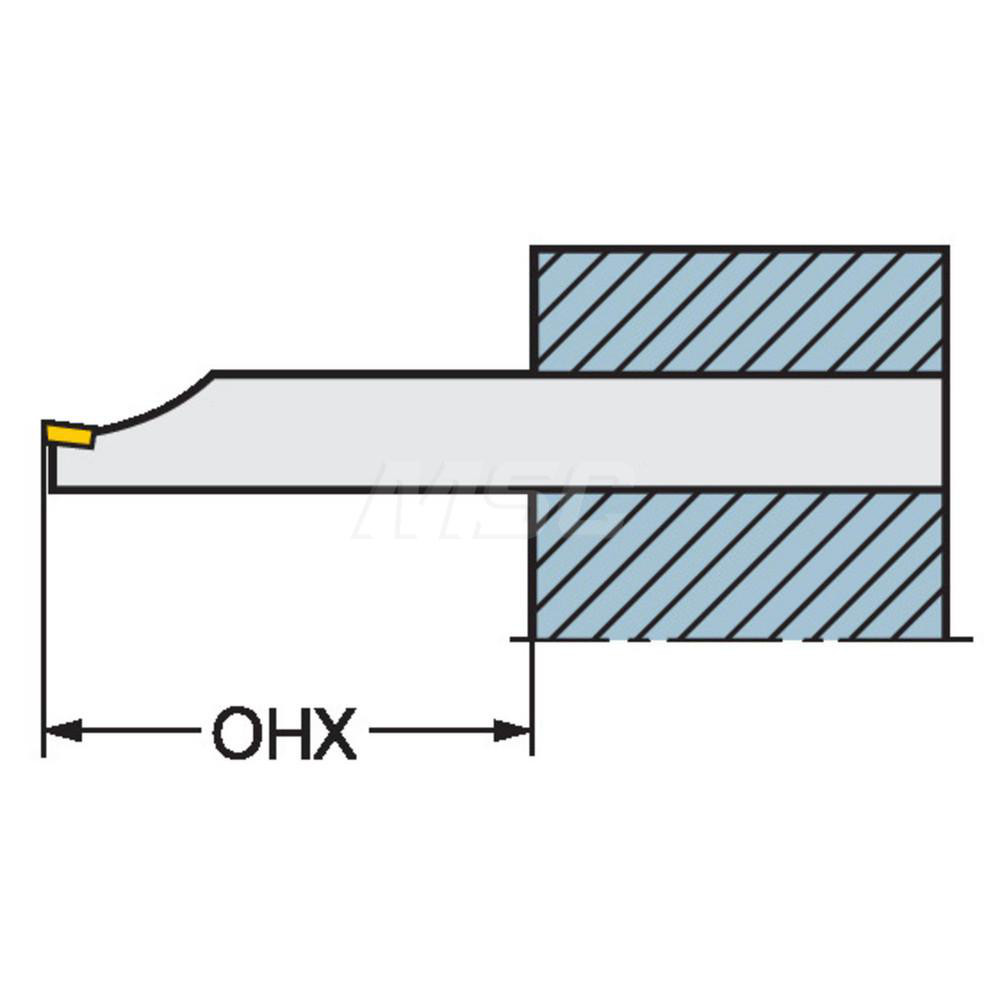

| Maximum Bore Depth (Decimal Inch) | 1.1810 |
| Manufacturers Catalog Number | LAG123E020-12B |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123E2-0198-0002-GF; N123E2-0200-0002-C; L123E2-0200-0502-CM; L123E2-0200-1501-CS; N123E2-0215-0001-GF; N123E2-0200-0002-GM; N123E1-0200-0002-CM; N123E2-0200-0002-CM; N123E2-0200-0002-G; N123E2-0200-0004-GF; N123E2-0200-0002-GF; N123E2-0200-RO; N123E2-0185-0001-GF |
| Coolant Through | Yes |
| Minimum Bore Diameter (mm) | 32.00 |
| Maximum Bore Depth (mm) | 30.00 |
| Country of Origin | UNITED STATES |
