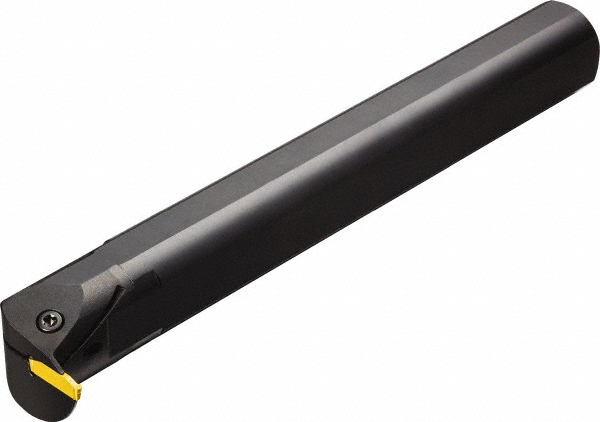

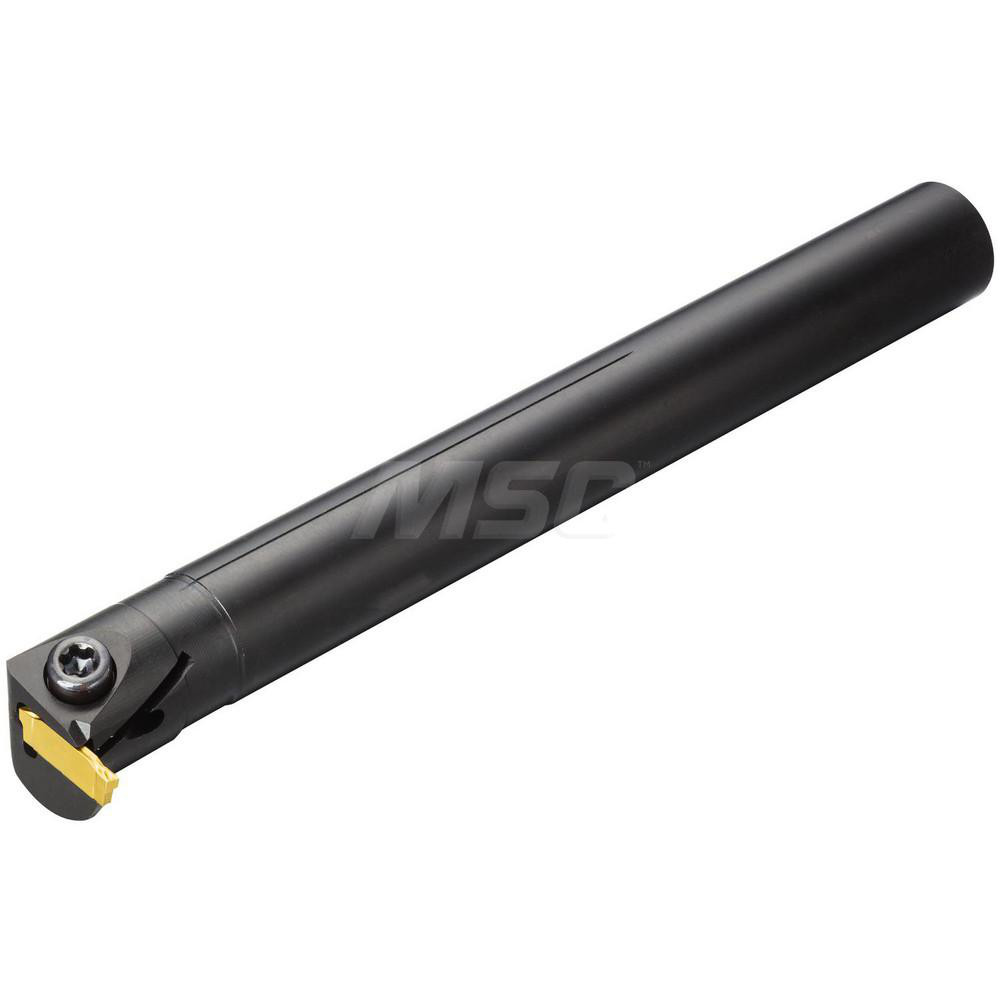

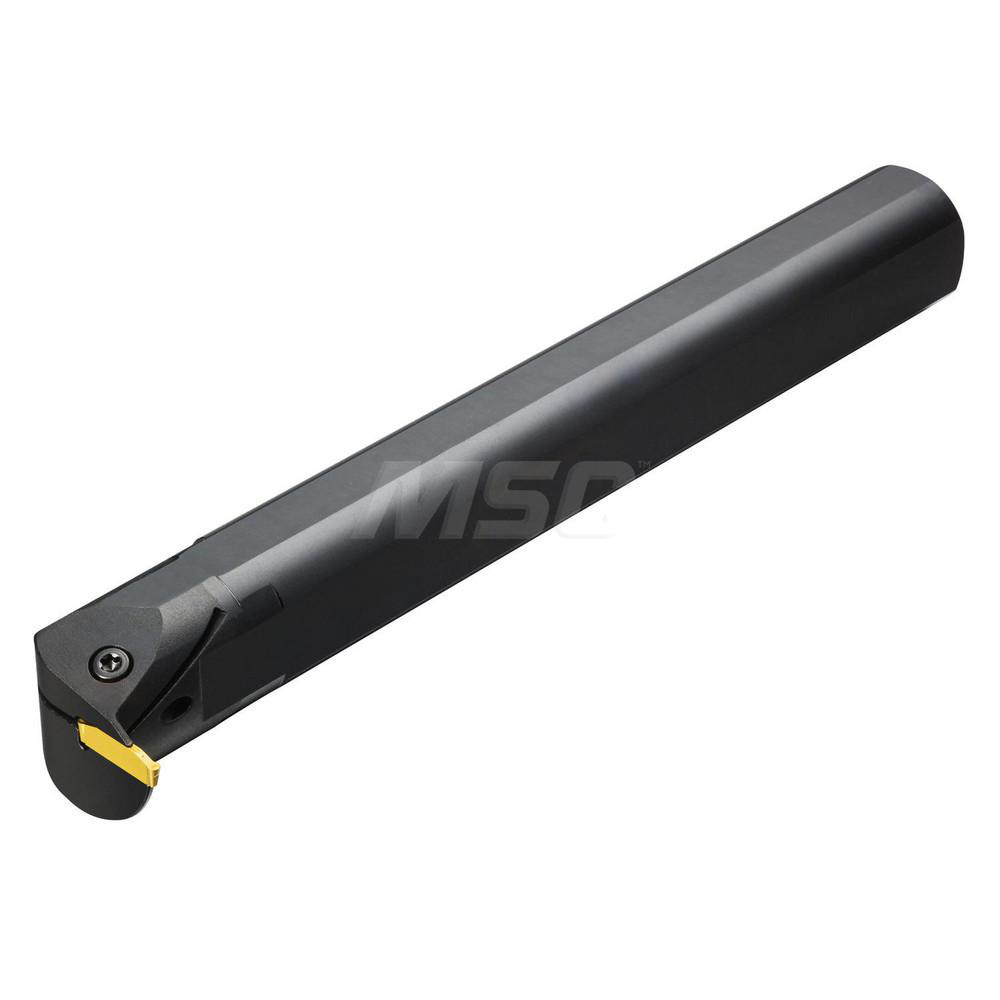

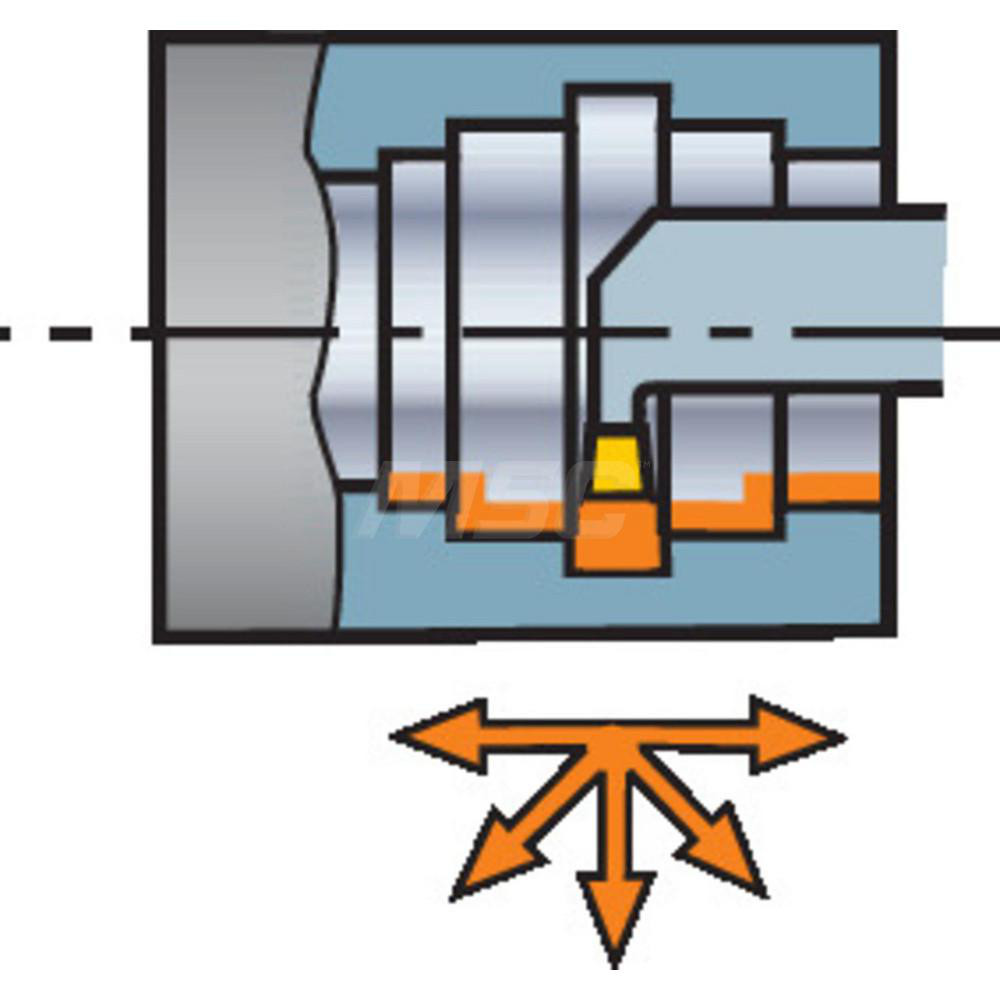

0.2362" Max Depth, Uses N123G2 Inserts, N/A" Shank Width, Through Coolant
| Toolholder Type | Internal Grooving |
|---|---|
| Insert Seat Size | G |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Groove Width (mm) | 3.00 |
| Toolholder Style | AG123 |
| Maximum Groove Width (Decimal Inch) | 0.1181 |

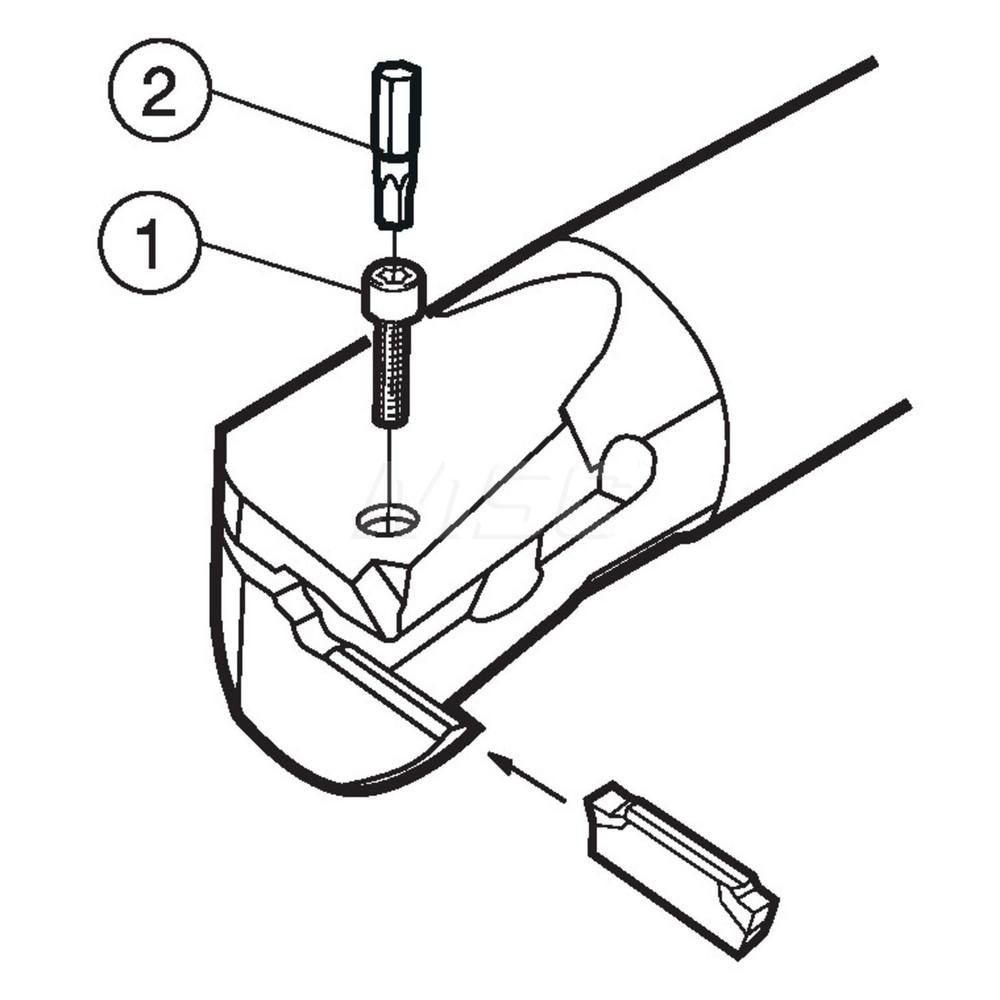

| Insert Holding Method | Clamp |
| Insert Compatibility | N123..GM; N123..CM |
| Compatible Insert Size Code | N123G2 |
| Series | Coro Cut 1-2 |
| Shank Length (Decimal Inch) | 5.9055 |

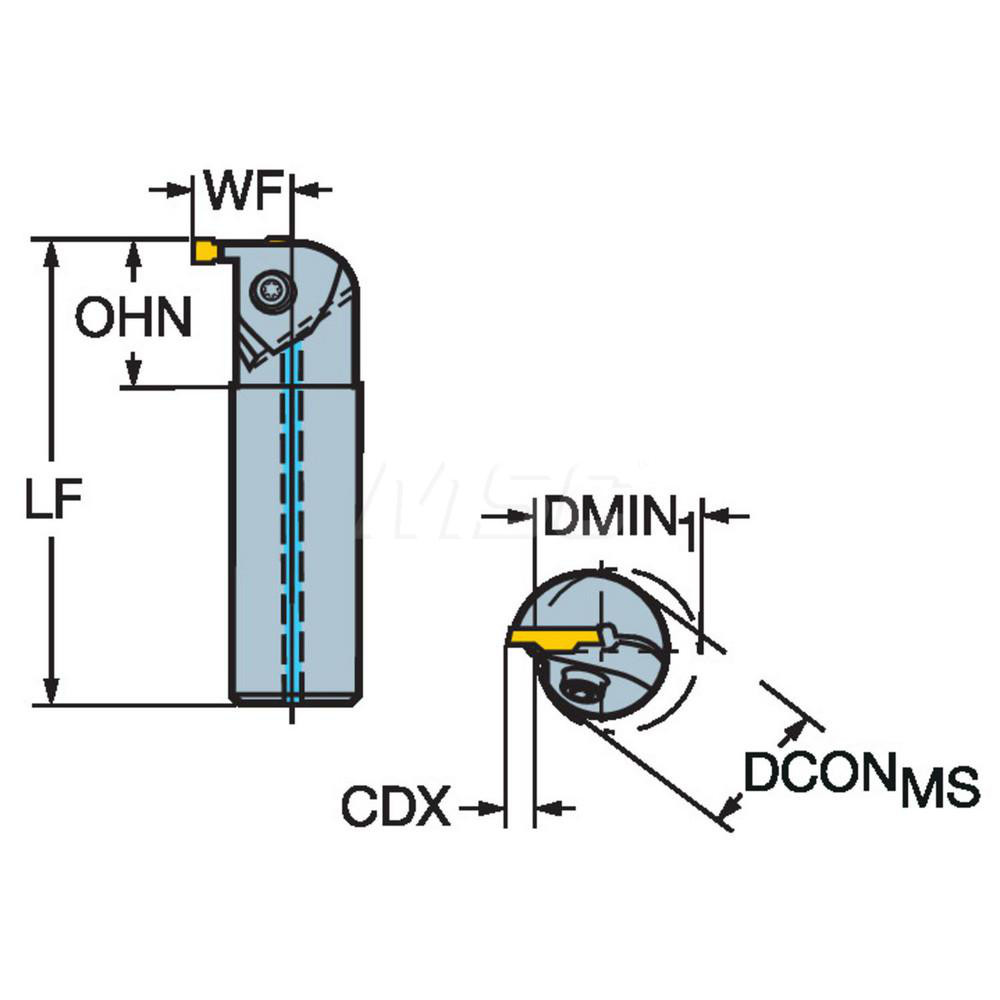

| Overall Length (Decimal Inch) | 7.0866 |
| Multi-use Tool | Yes |
| Center to Cutting Edge (Decimal Inch) | 0.6004 |
| Center to Cutting Edge (mm) | 15.25 |
| Minimum Hole Diameter (Decimal Inch) | 1.2598 |
| Head Length (Decimal Inch) | 1.1811 |
| UNSPSC Code | 27112809 |
| Coolant Hole Diameter (Decimal Inch) | 0.2360 |

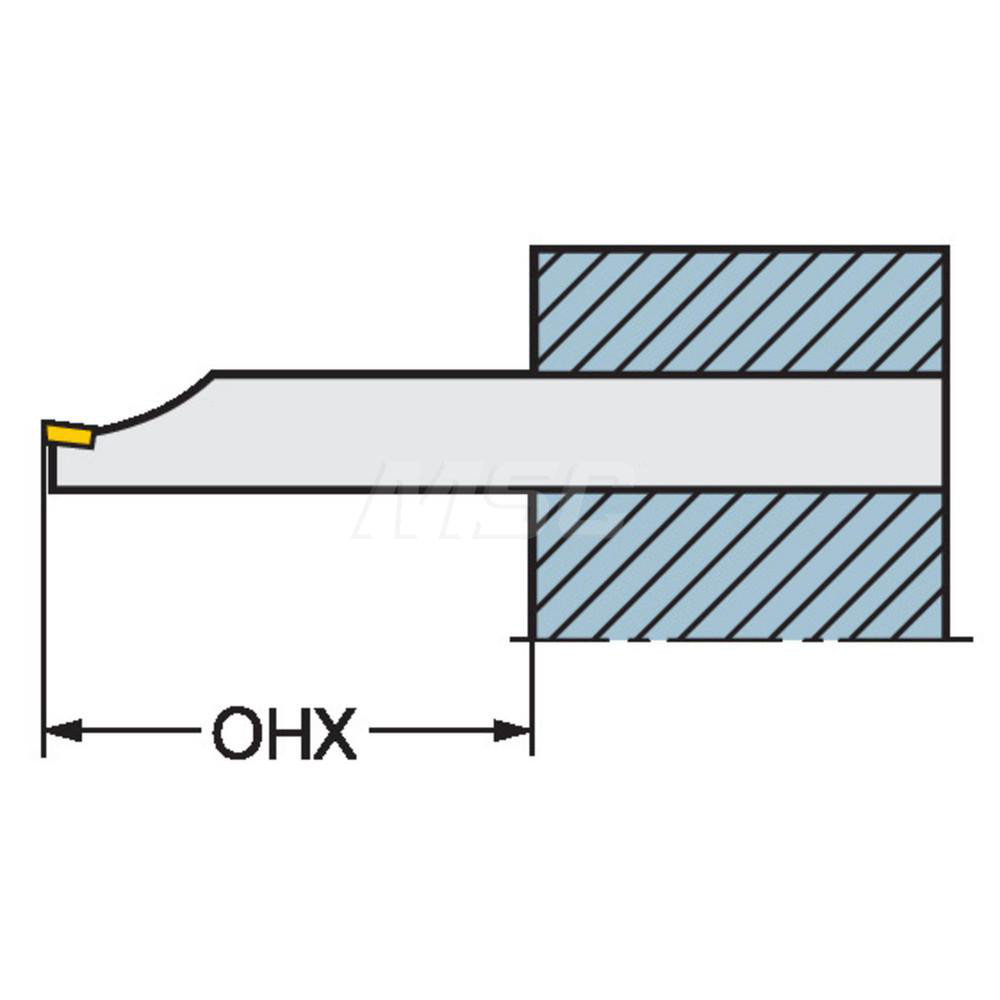

| Maximum Bore Depth (Decimal Inch) | 1.1810 |
| Manufacturers Catalog Number | LAG123G024-12B |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123G2-0300-0001-CF; N123G1-0300-0003-CR; L123G2-0300-0501-CF; N123G1-0300-0002-CM; L123G2-0300-0503-CR; L123G2-0300-0502-CM; L123G2-0300-1501-CS; N123G1-0300-0003-TF; N123G1-0318-0002-GE; L123G2-0300-1001-CS; N123G1-0300-0002-GE; N123G1-0400-RM; N123G1-030004S01025 |
| Coolant Through | Yes |
| Minimum Bore Diameter (mm) | 32.00 |
| Maximum Bore Depth (mm) | 30.00 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 54935176 |
