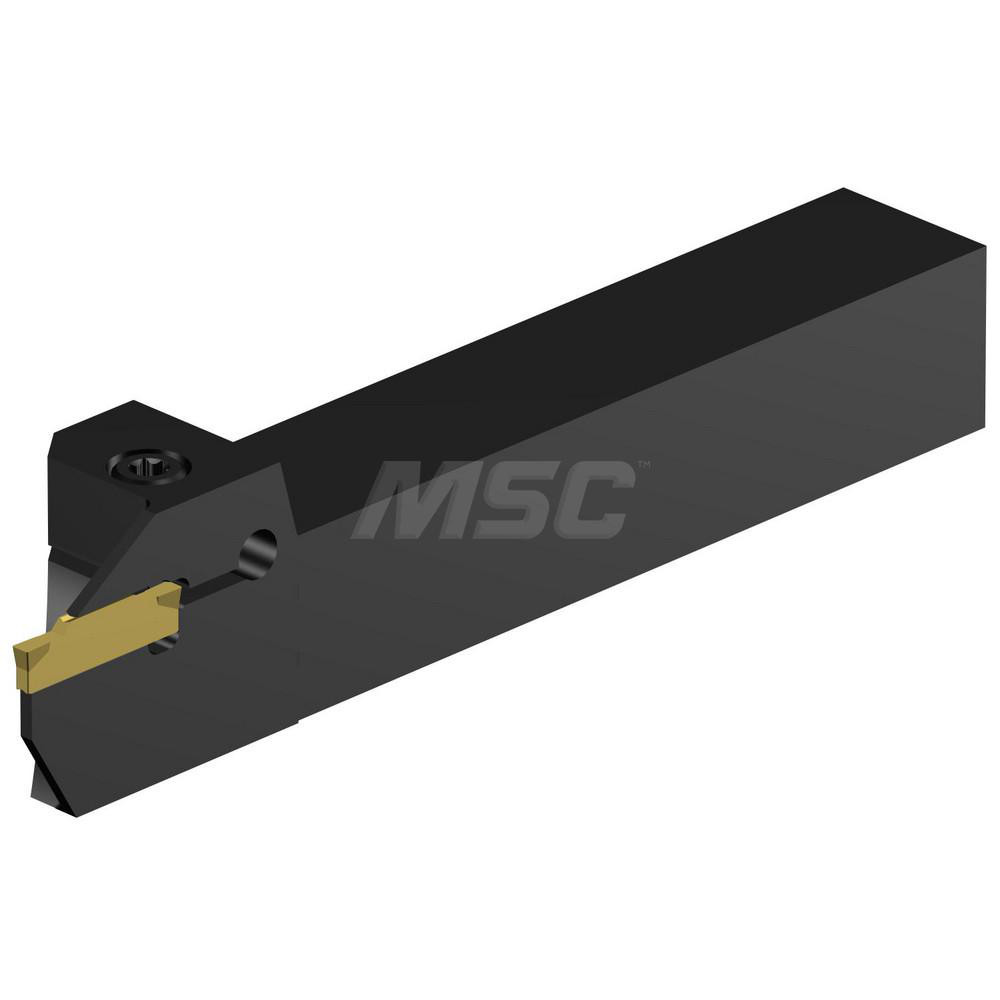

17 mm Max Depth of Cut, 3/4 x 3/4" Shank, Uses N123E2 Inserts
| Insert Seat Size | E |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6700 |
| Maximum Depth of Cut (mm) | 17.00 |
| Toolholder Style | F123 |
| Insert Holding Method | Clamp |
| Insert Compatibility | N123E2-0200-0002-CM |
| Compatible Insert Size Code | N123E2 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Height (mm) | 19.05 |
| Shank Height (Decimal Inch) | 0.7500 |
| Series | Coro Cut 1-2 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5 |
| Multi-use Tool | Yes |
| Maximum Workpiece Diameter (Decimal Inch) | 1.6614 |
| Maximum Overhang (Inch) | 1.3984 |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.0000 |
| UNSPSC Code | 27112809 |
| Manufacturers Catalog Number | 5856804 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123E2 0200-0002-CM |
| Coolant Through | No |
| Country of Origin | Sweden |
| MSC Number | MSC# 49342496 |
