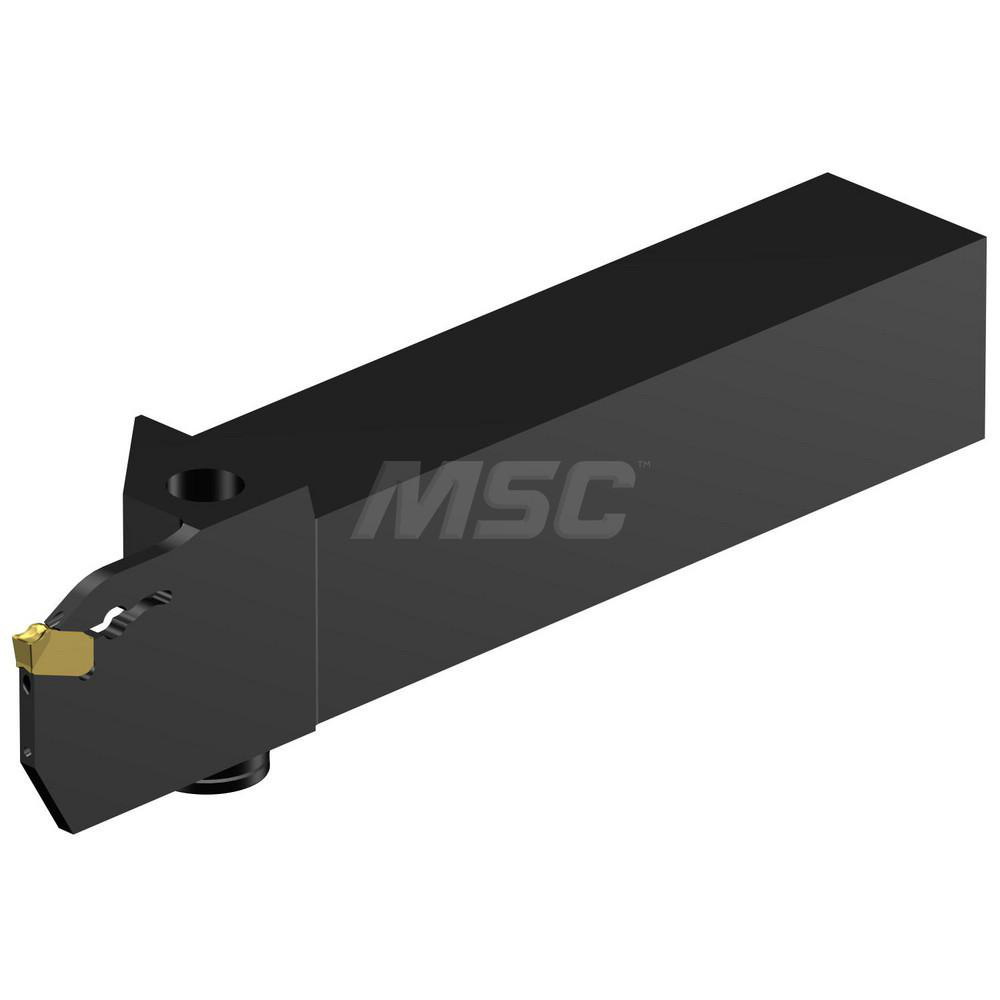

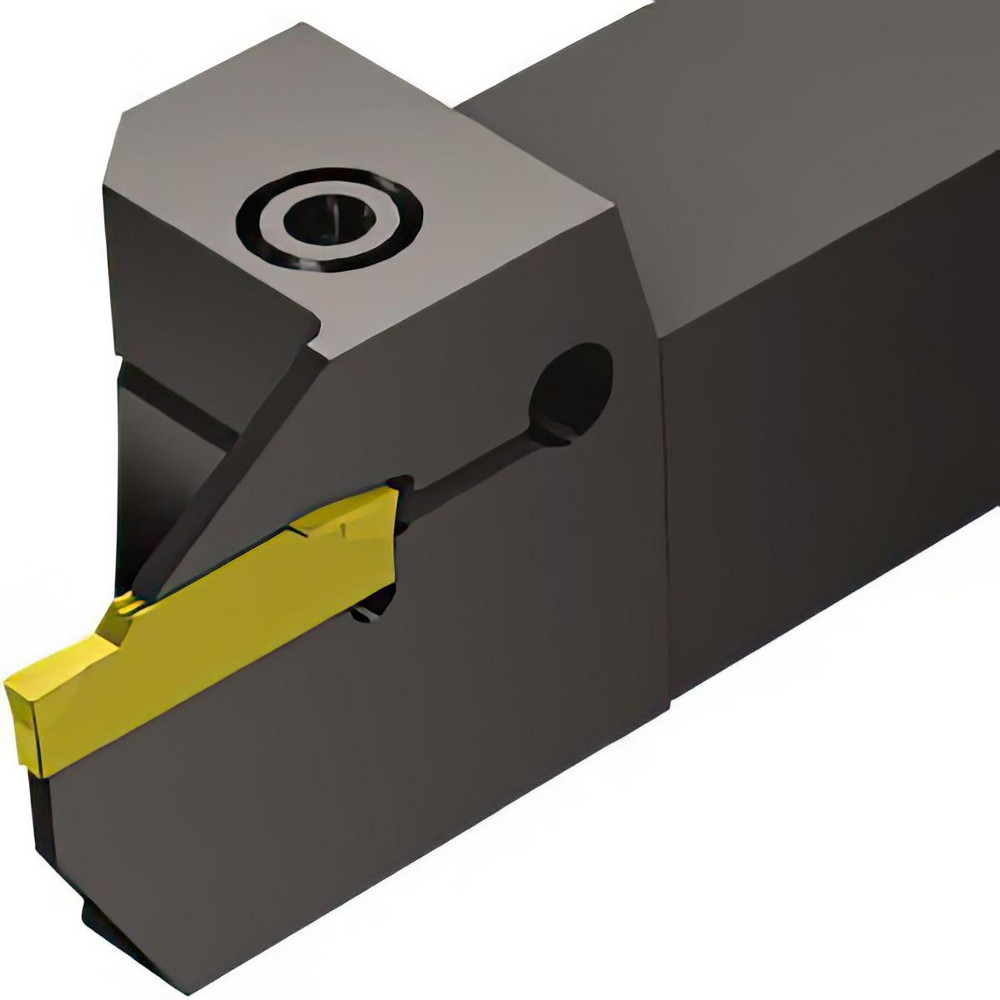

22 mm Max Depth of Cut, 20 x 20 mm Shank
| Insert Seat Size | G |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.8661 |
| Maximum Depth of Cut (mm) | 22.00 |
| Toolholder Style | R/LF123..D |

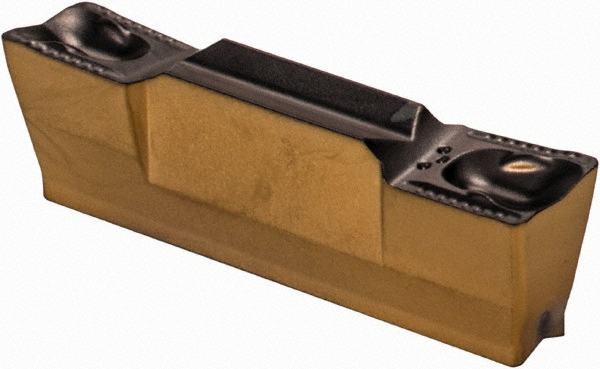

| Insert Compatibility | N123G2-0300-0003-TF |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Series | Coro Cut 1-2 |
| Overall Length (mm) | 125 |
| Overall Length (Decimal Inch) | 4.9213 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.7323 |
| Maximum Workpiece Diameter (mm) | 44.00 |
| Back of Bar to Cutting Edge (mm) | 125.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.9213 |
| Center to Cutting Edge (Decimal Inch) | 0.8110 |
| Center to Cutting Edge (mm) | 20.60 |
| Head Length (Decimal Inch) | 1.6929 |
| Head Length (mm) | 43.00 |
| UNSPSC Code | 23153308 |
| Maximum Bore Depth (Decimal Inch) | 1.6929 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123G2-0300-0003-TF |
| Coolant Through | No |
| Maximum Bore Depth (mm) | 43.00 |
| Country of Origin | Sweden |
| MSC Number | MSC# 49546336 |
