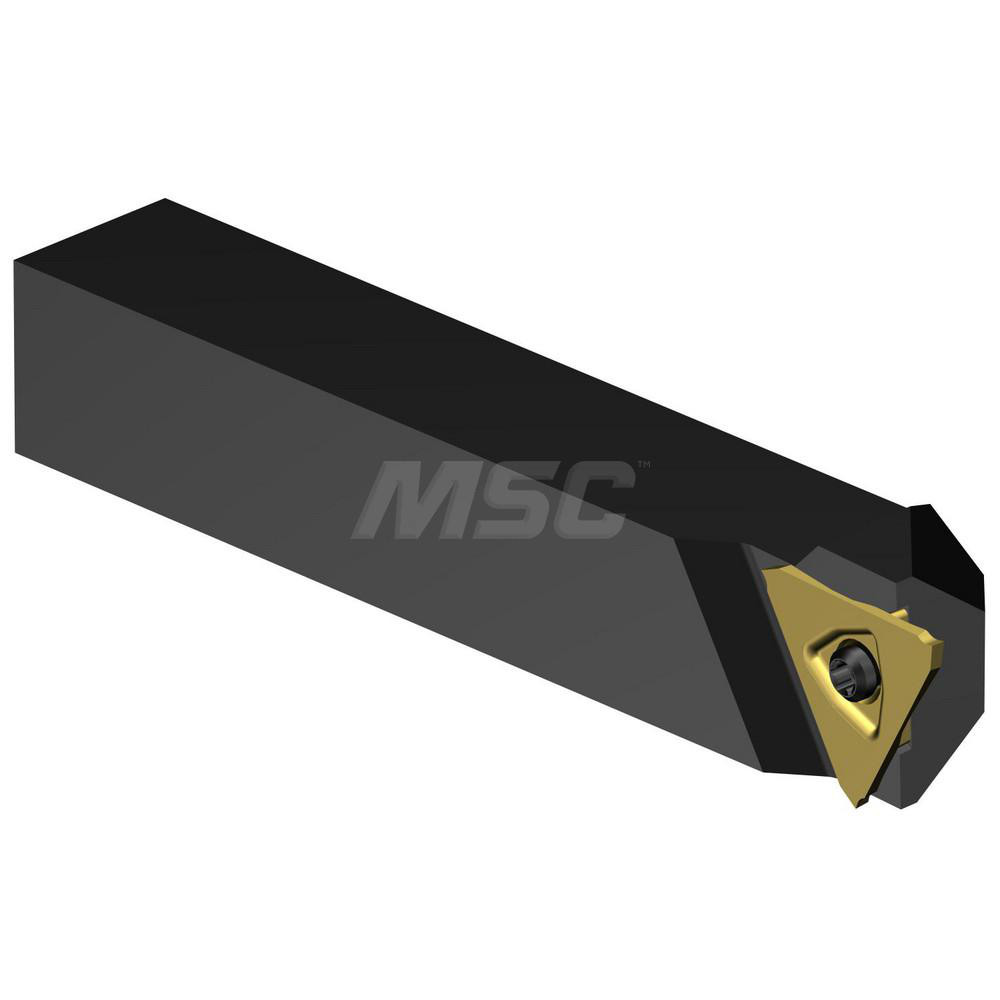

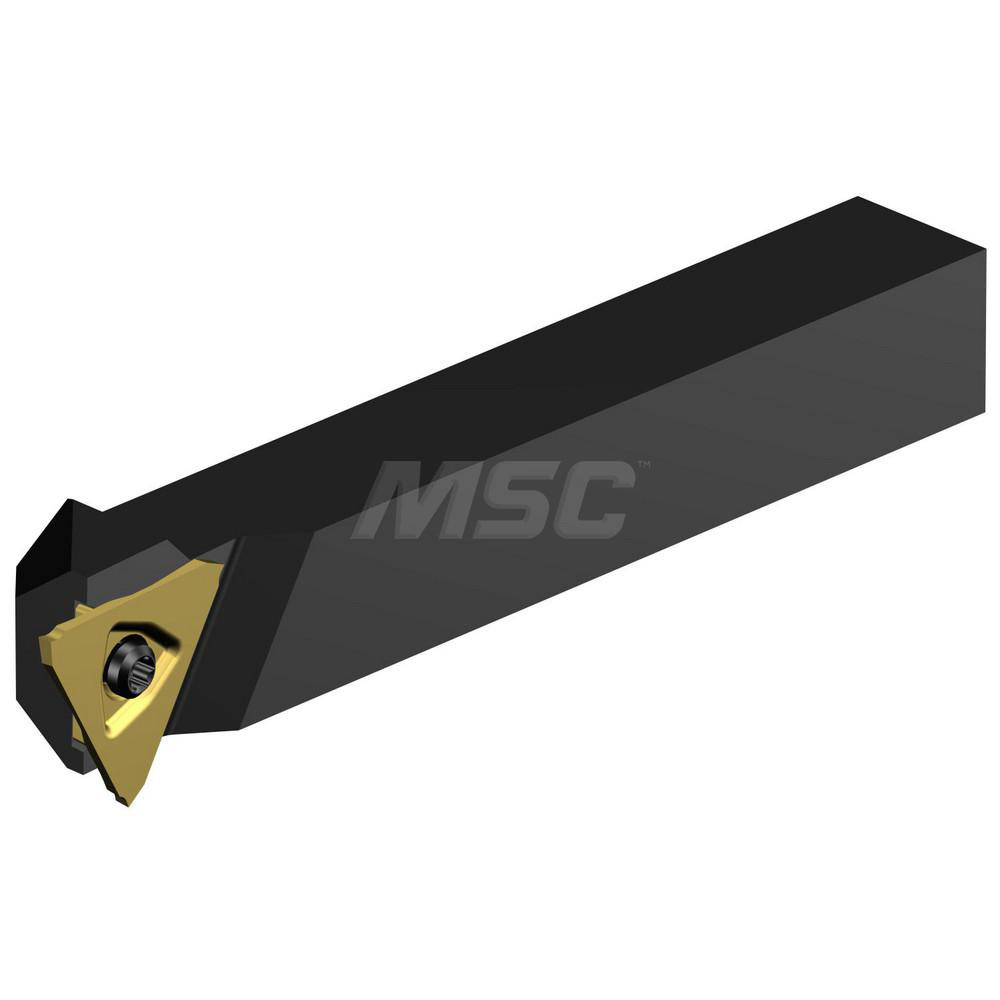

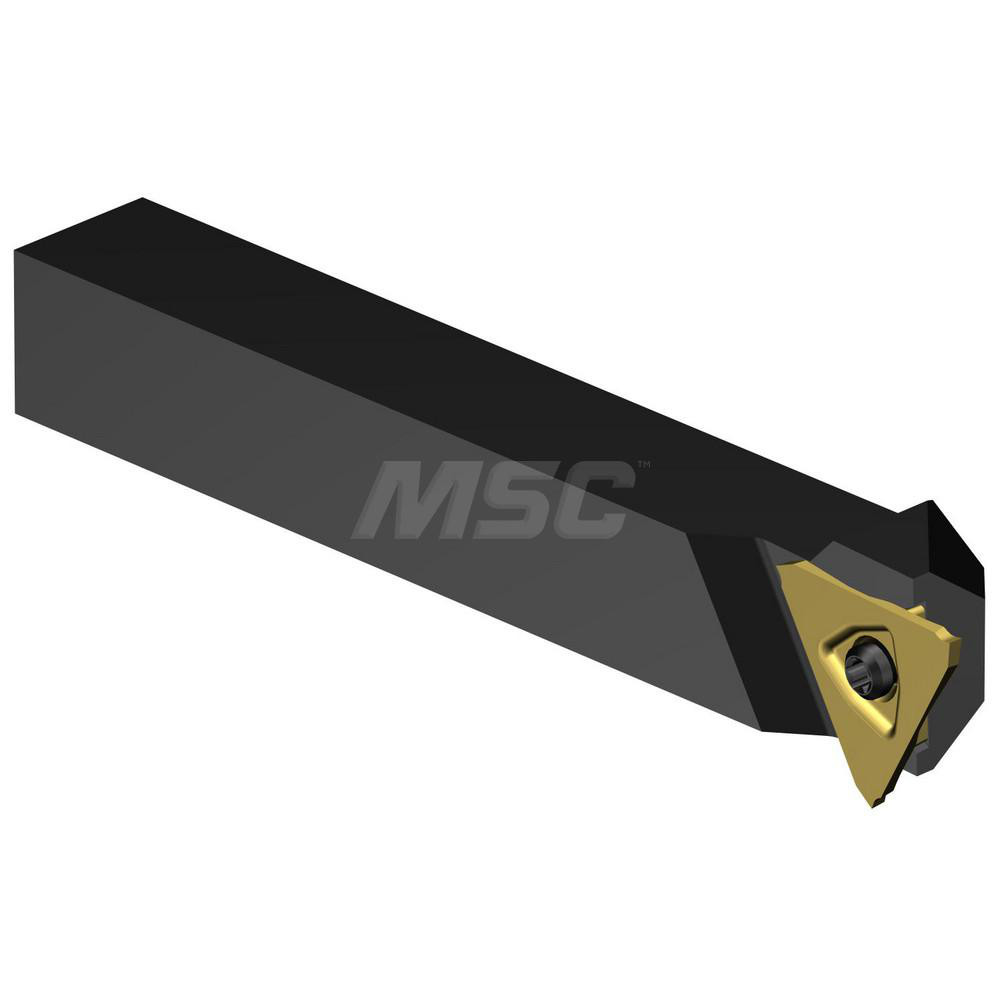

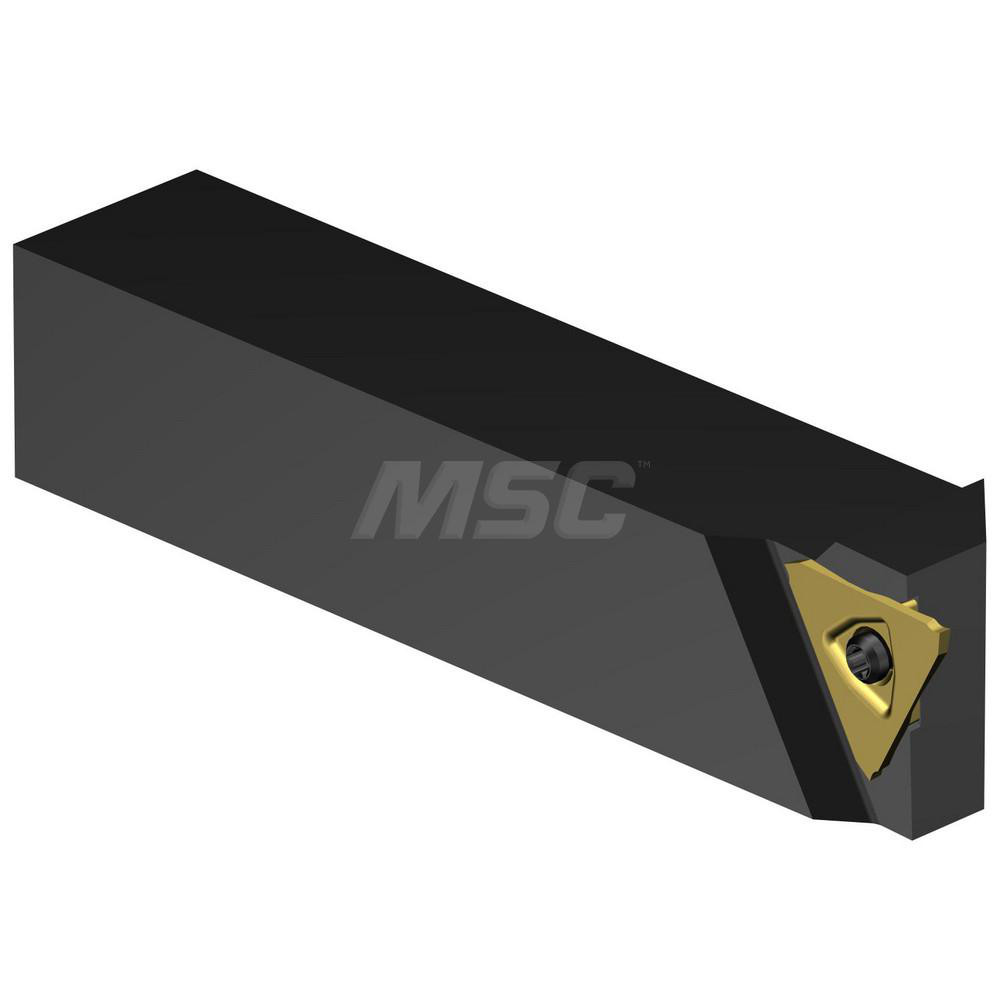

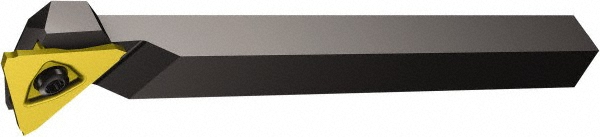

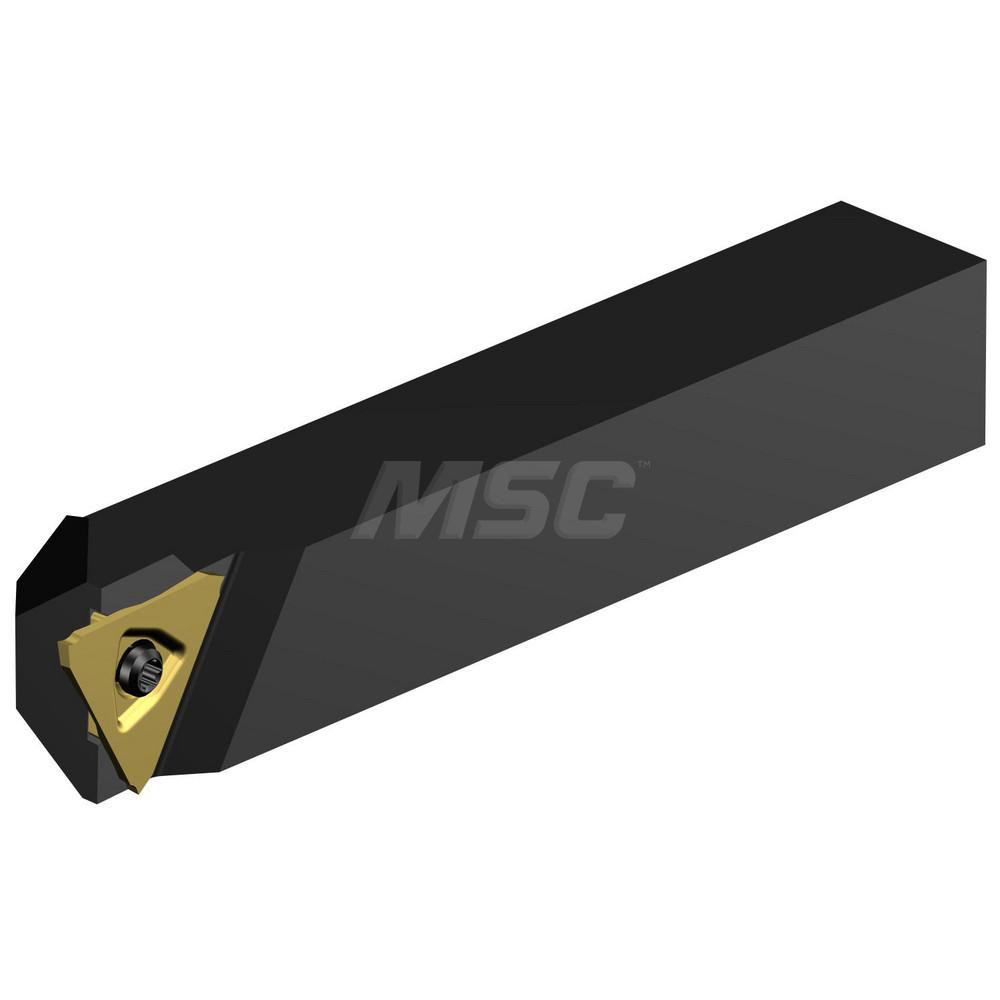

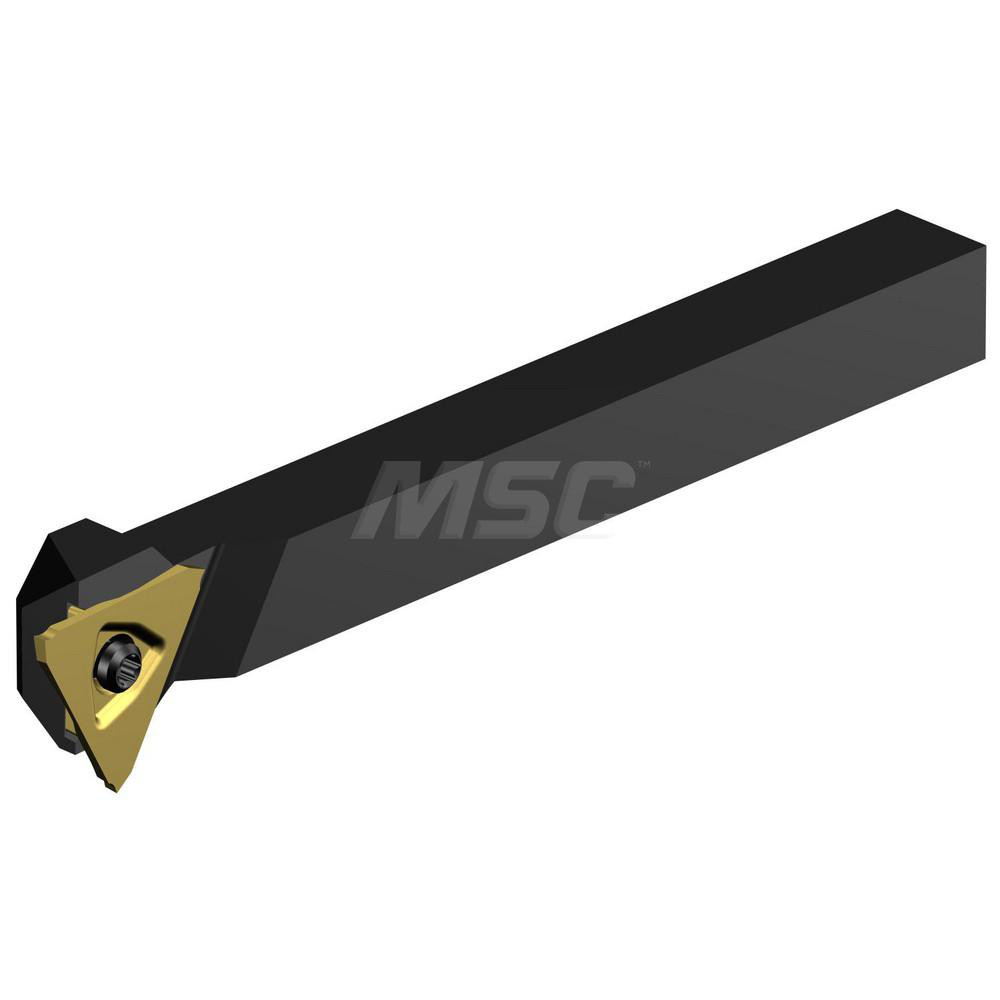

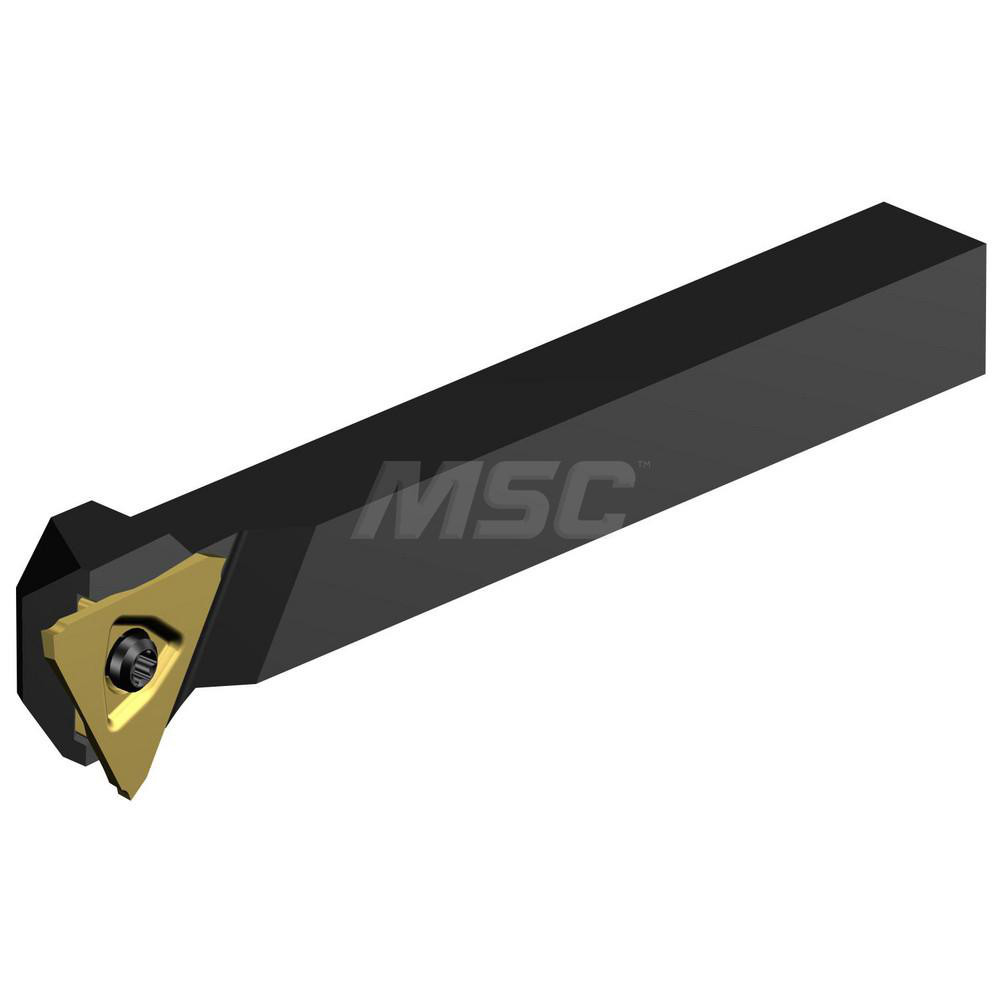

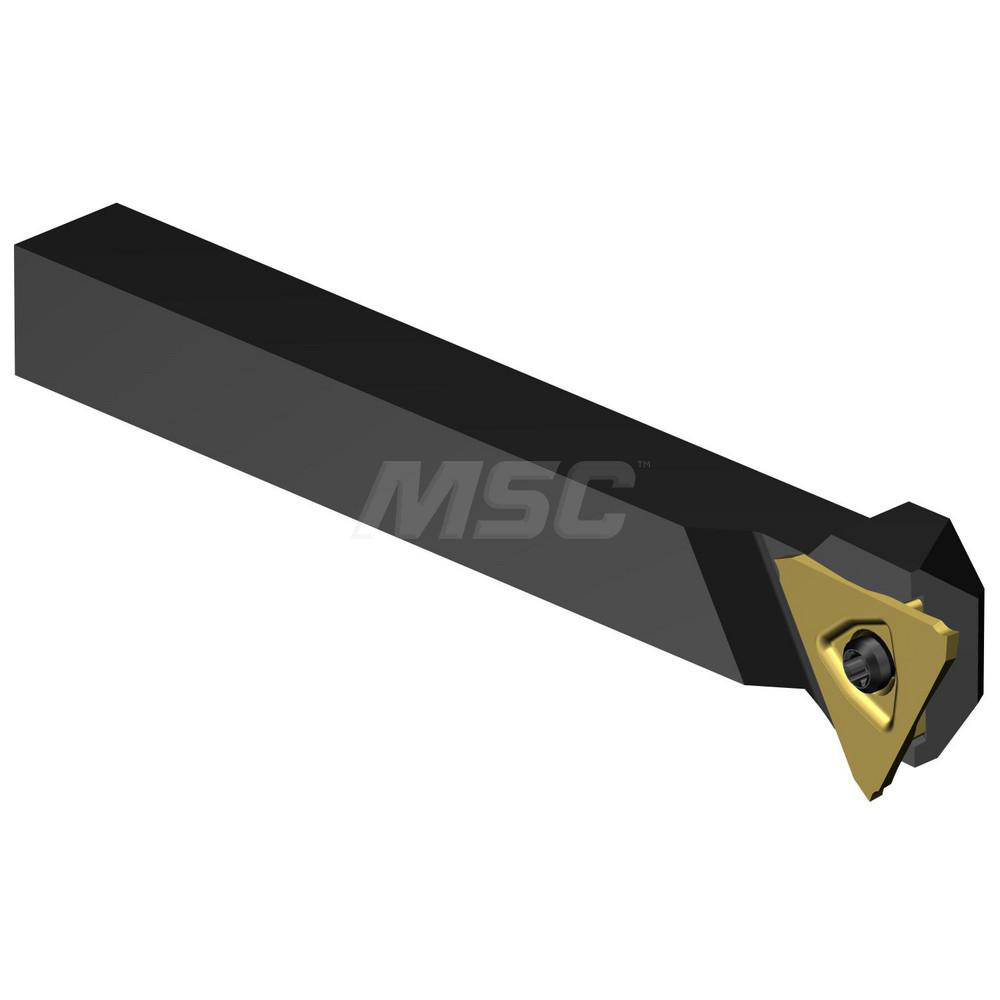

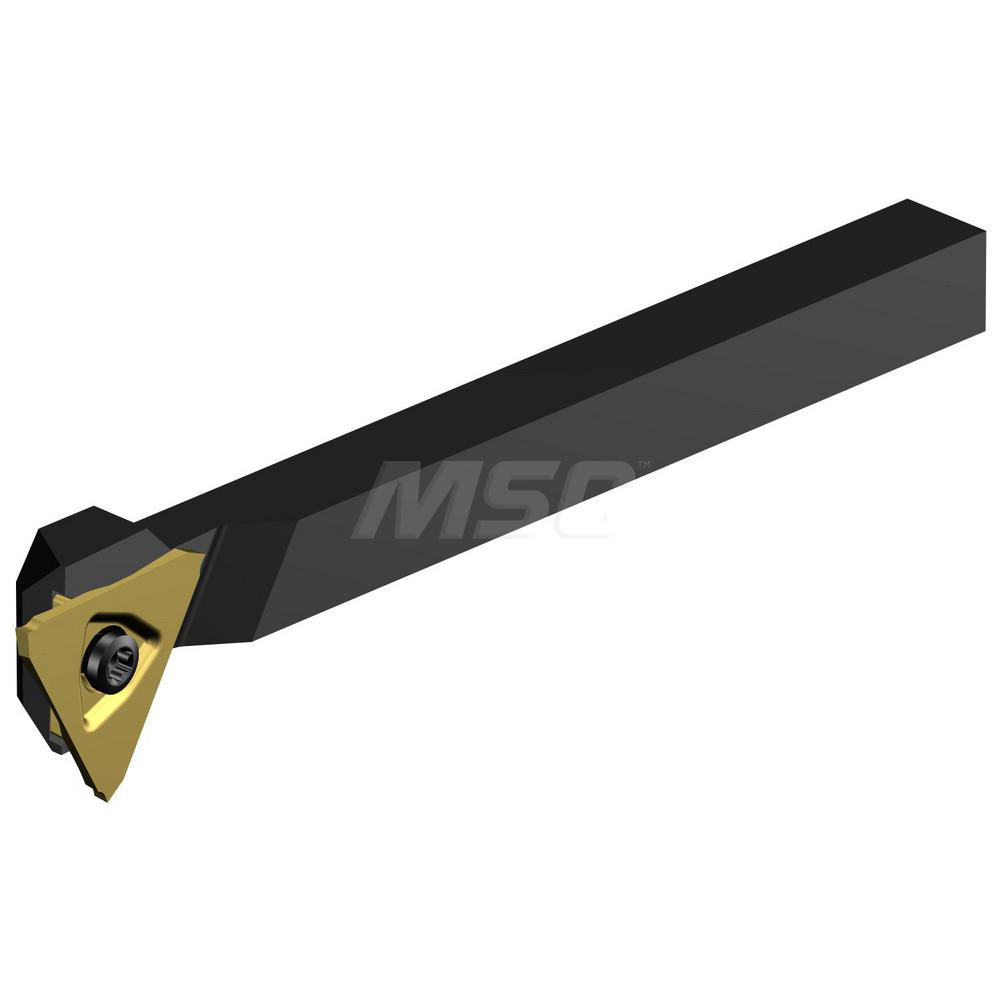

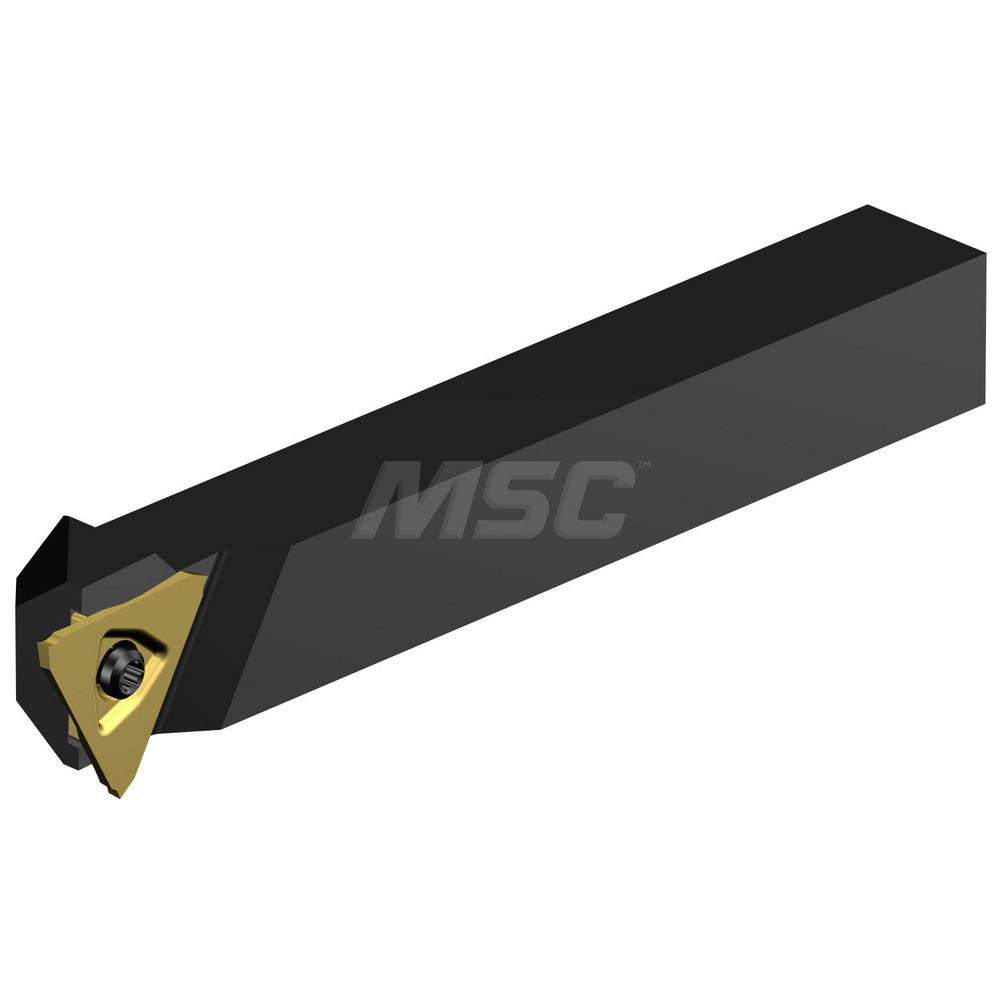

6.4 mm Max Depth of Cut, 5/8 x 5/8" Shank, Uses N123U3 Inserts

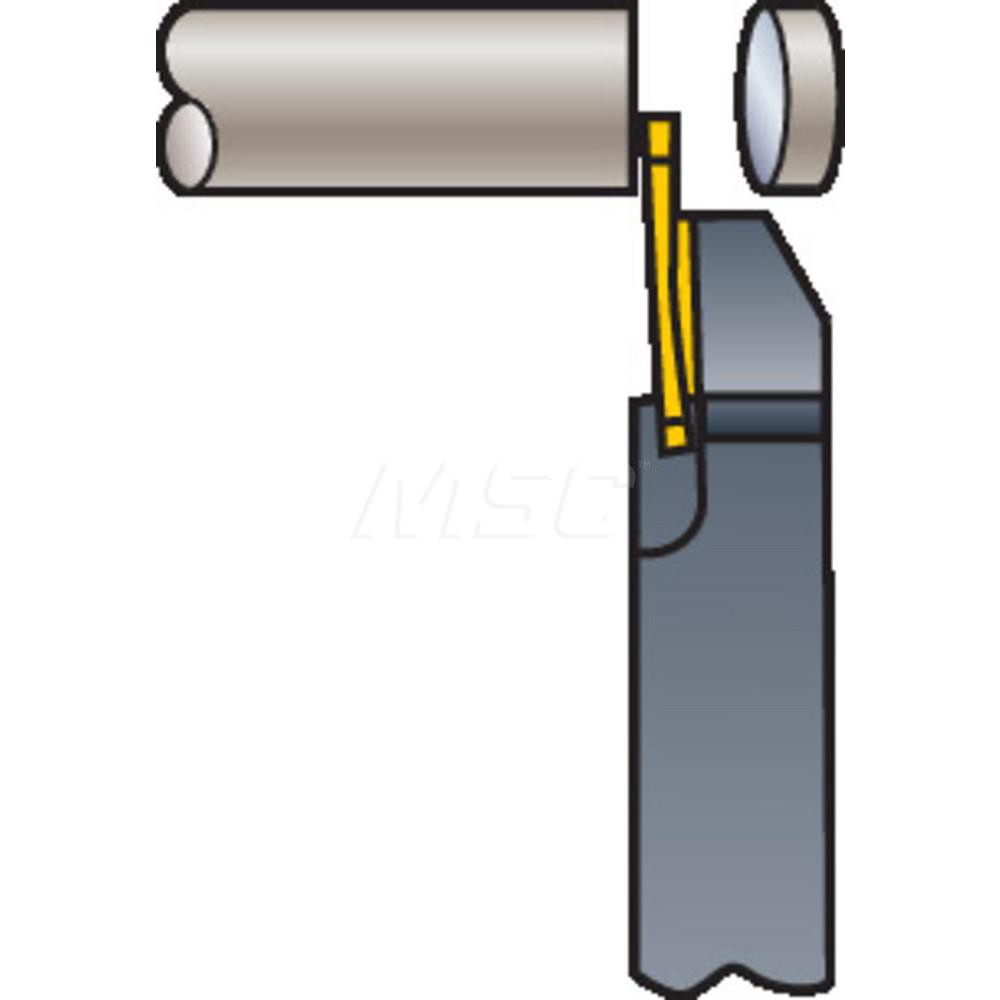

| Toolholder Type | External Grooving |
|---|---|
| Insert Seat Size | U |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2520 |
| Maximum Depth of Cut (mm) | 6.40 |
| Toolholder Style | F123 |

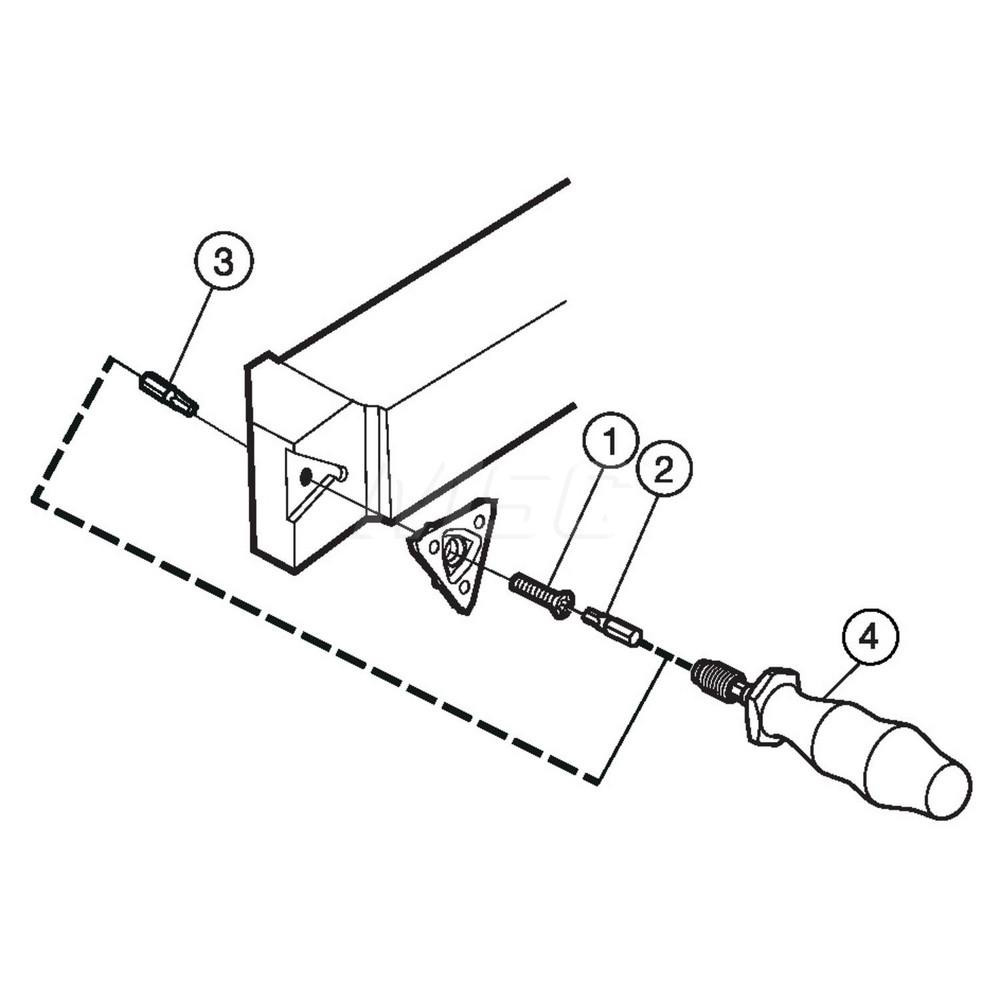

| Insert Holding Method | Screw; Clamp |
| Insert Compatibility | N123U3-0150-CM |
| Compatible Insert Size Code | N123U3 |

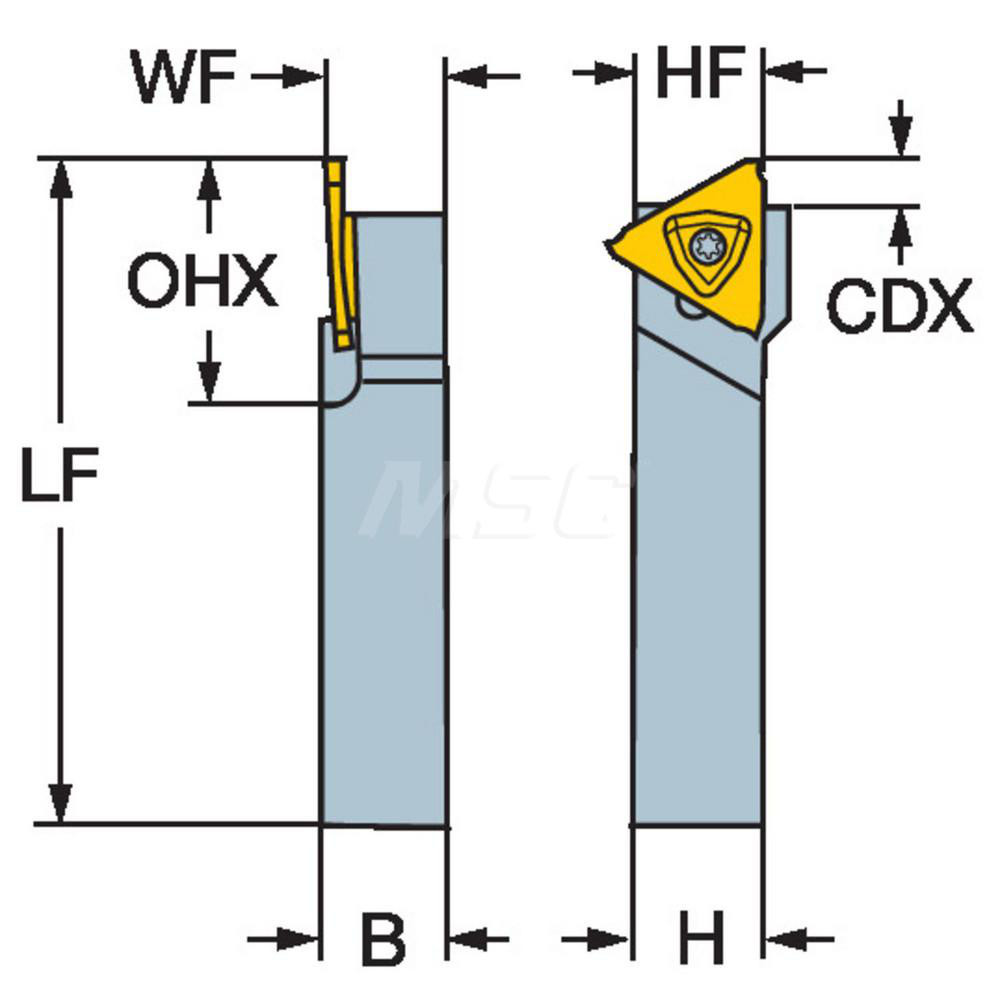

| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Height (mm) | 15.87 |
| Shank Height (Decimal Inch) | 0.6250 |
| Series | Coro Cut 3 |
| Overall Length (Inch) | 4-1/2 |
| Overall Length (Decimal Inch) | 4.5 |
| Multi-use Tool | Yes |
| Maximum Overhang (Inch) | 0.9059 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.5000 |
| UNSPSC Code | 27112809 |
| Manufacturers Catalog Number | 5733300 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123U3-0150- CM |
| Coolant Through | No |
| Country of Origin | India |
| MSC Number | MSC# 33210501 |
