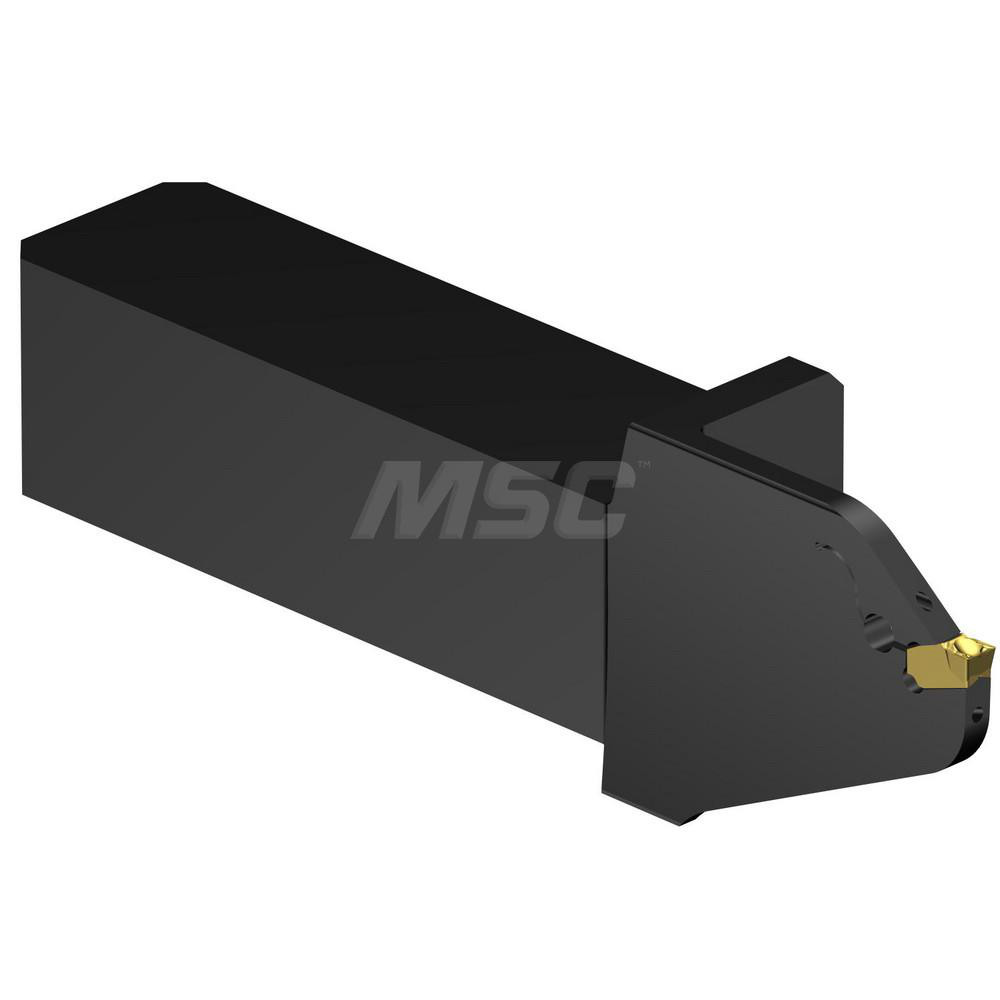

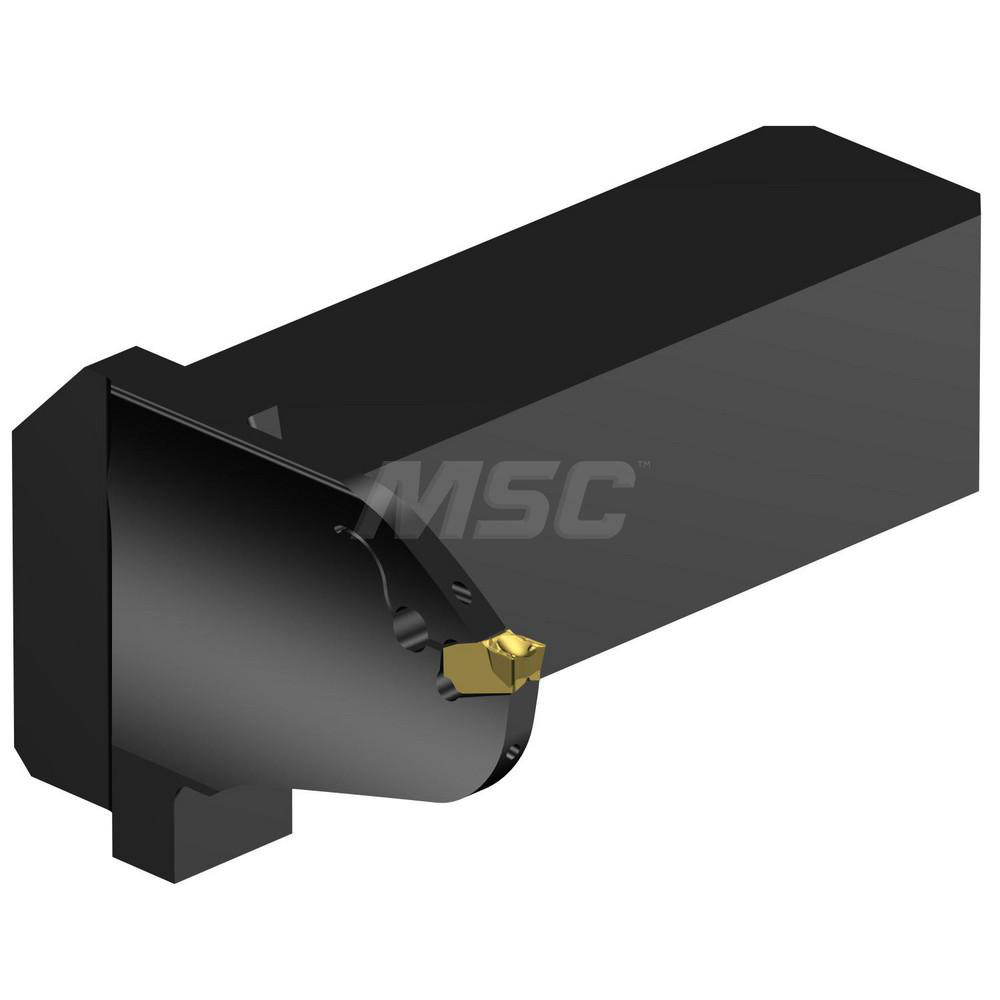

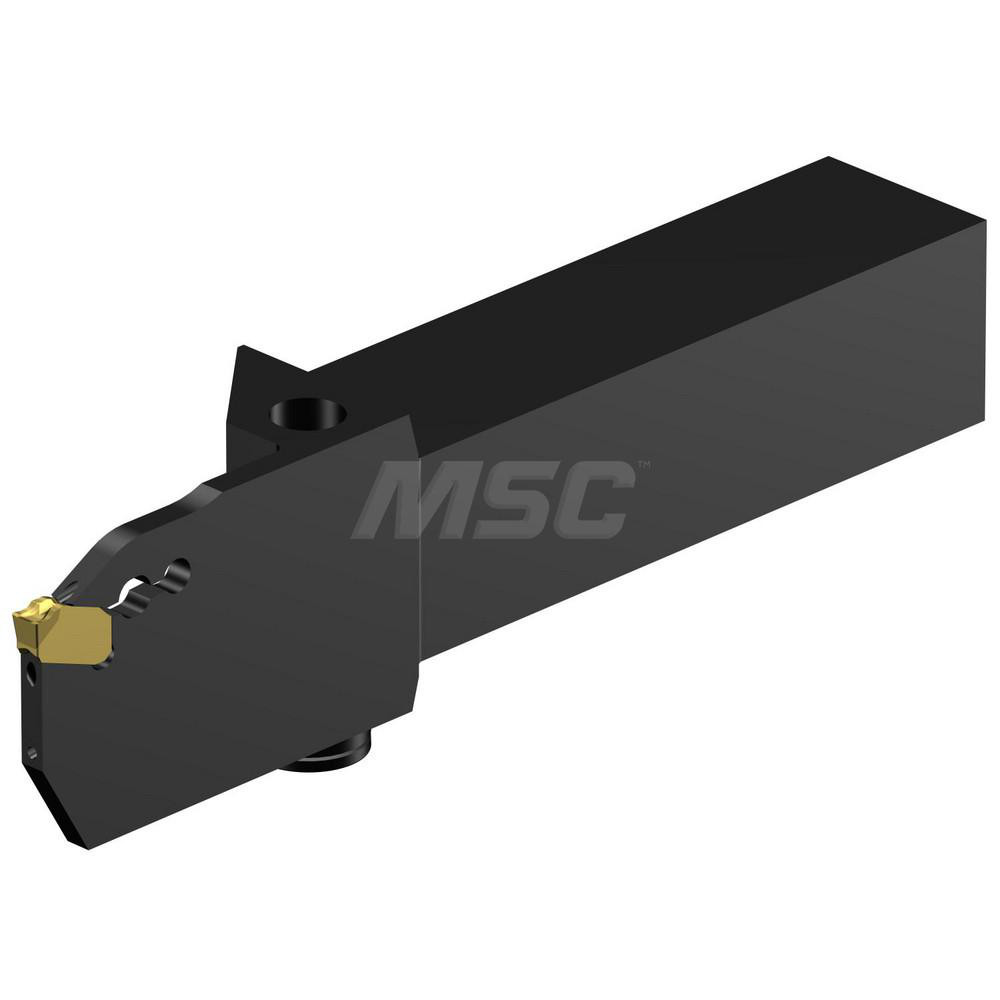

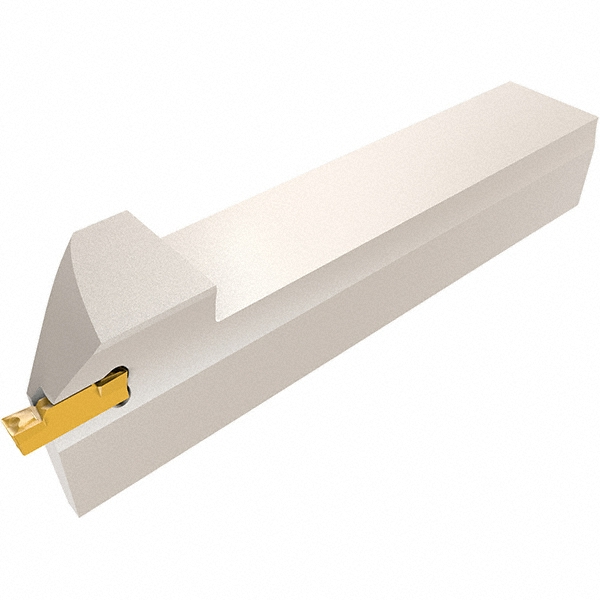

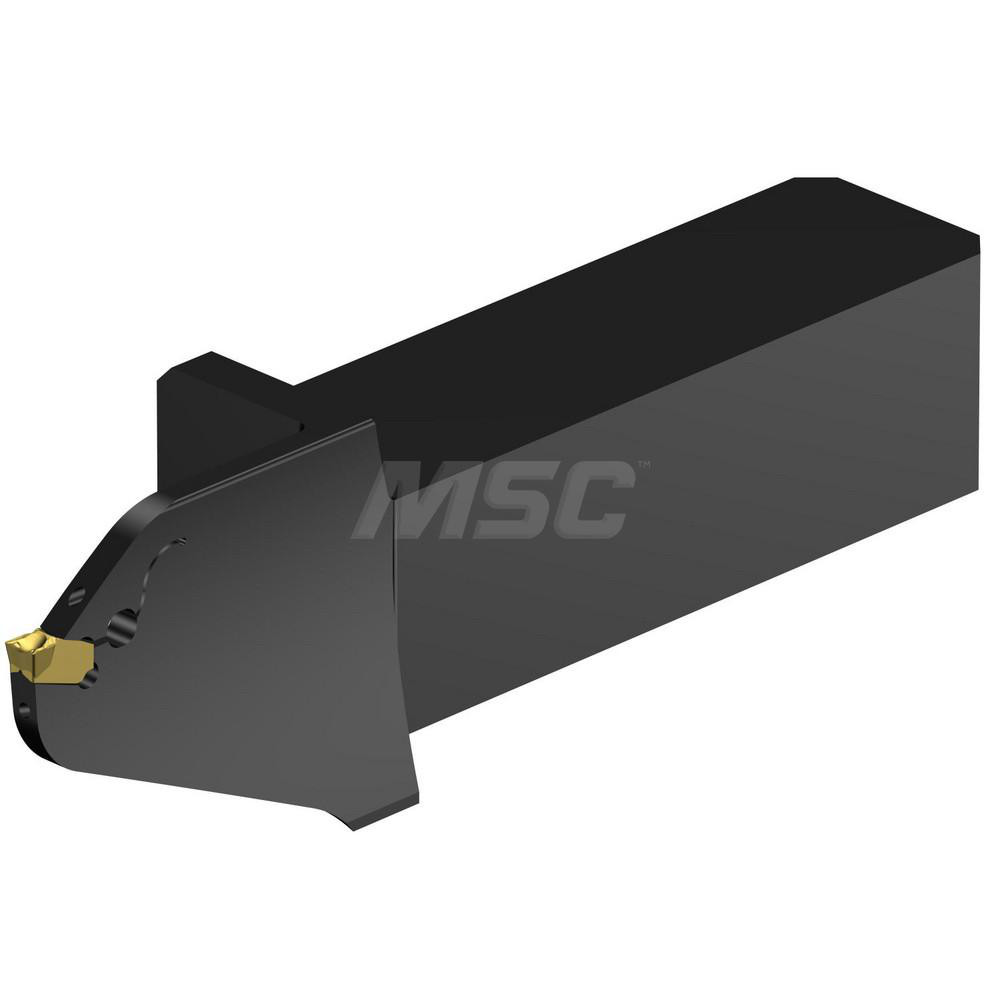

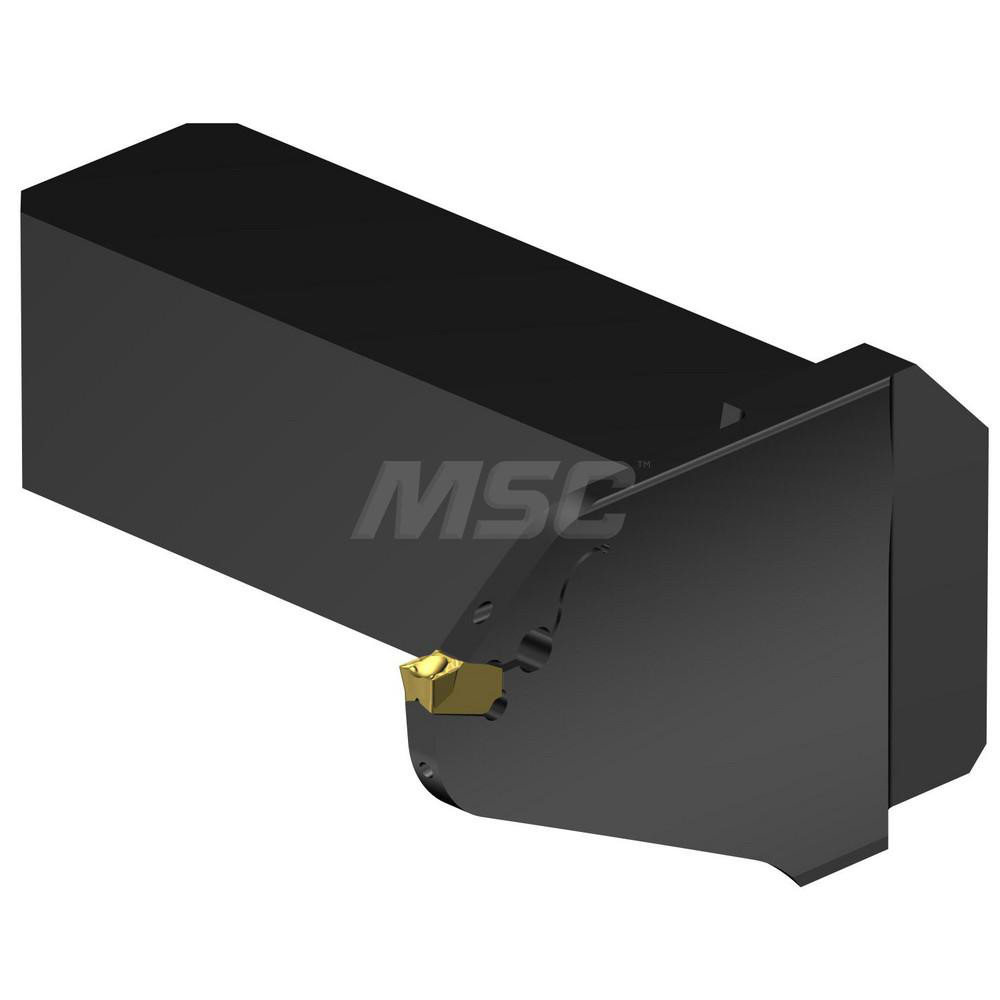

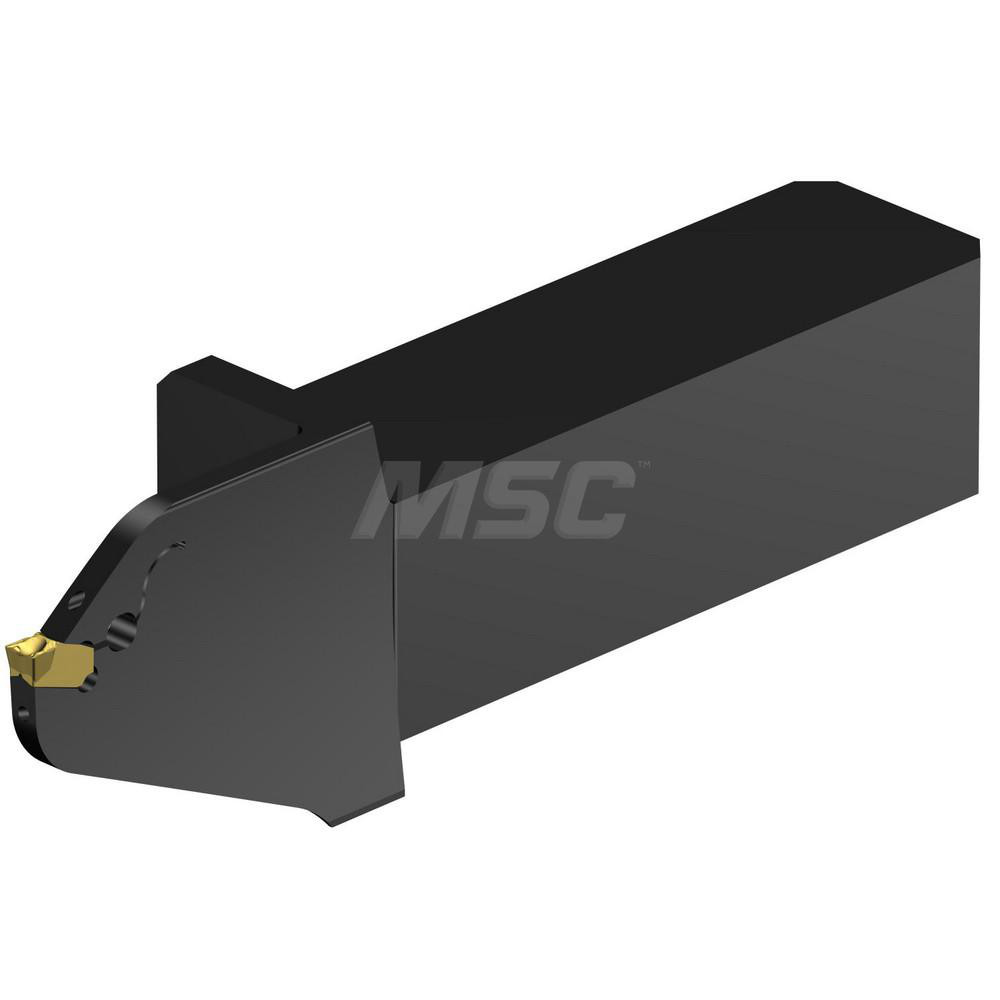

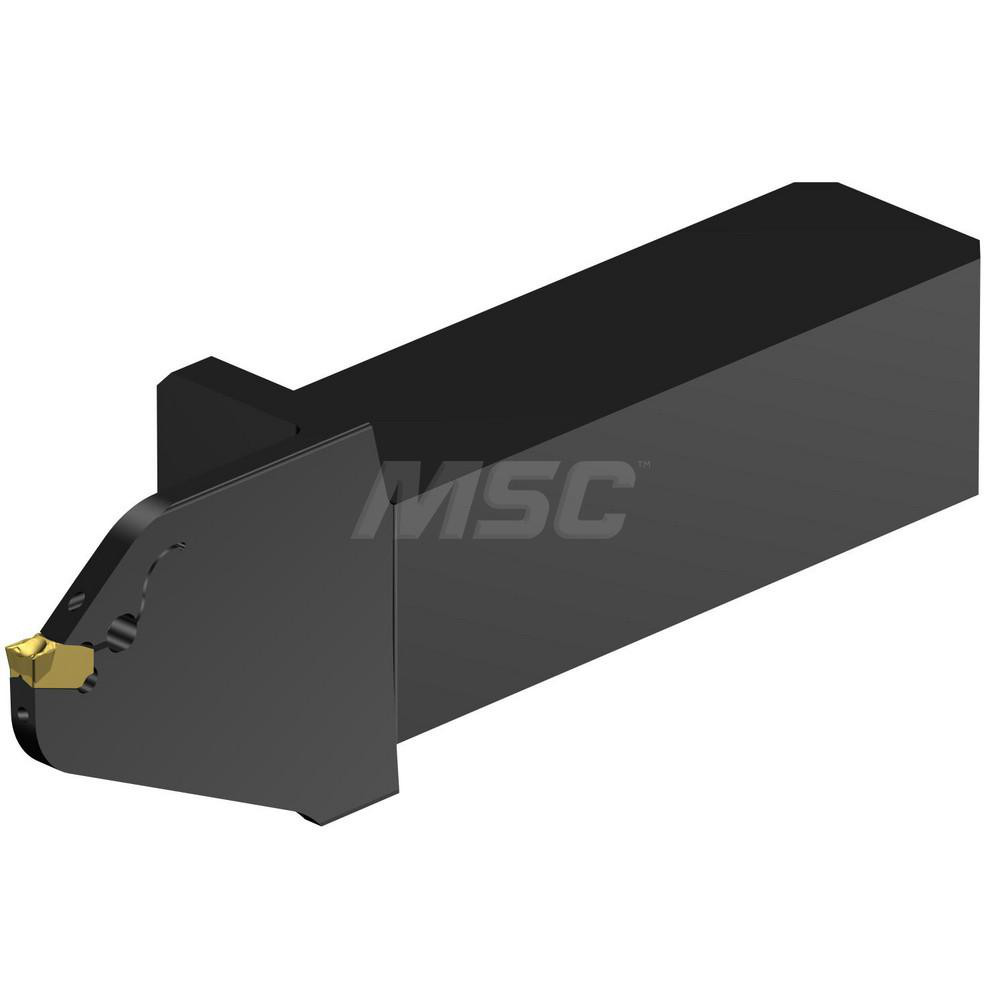

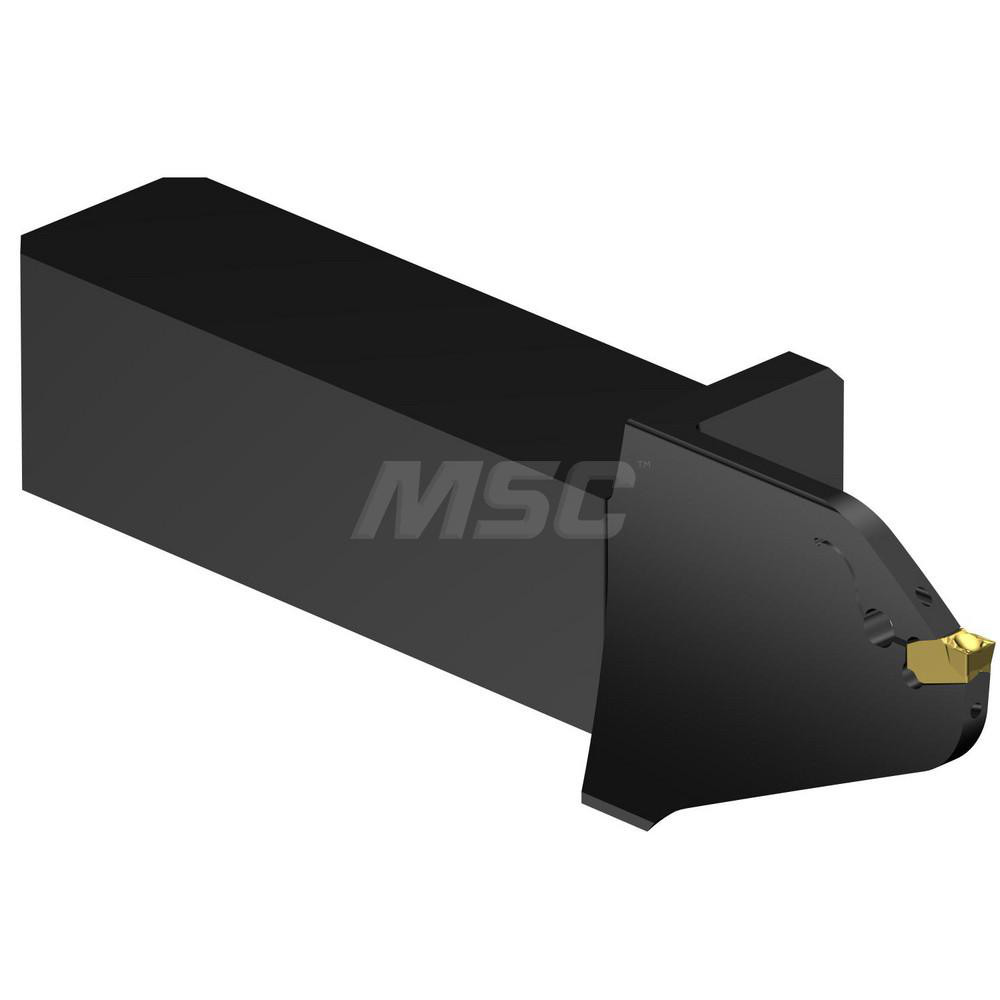

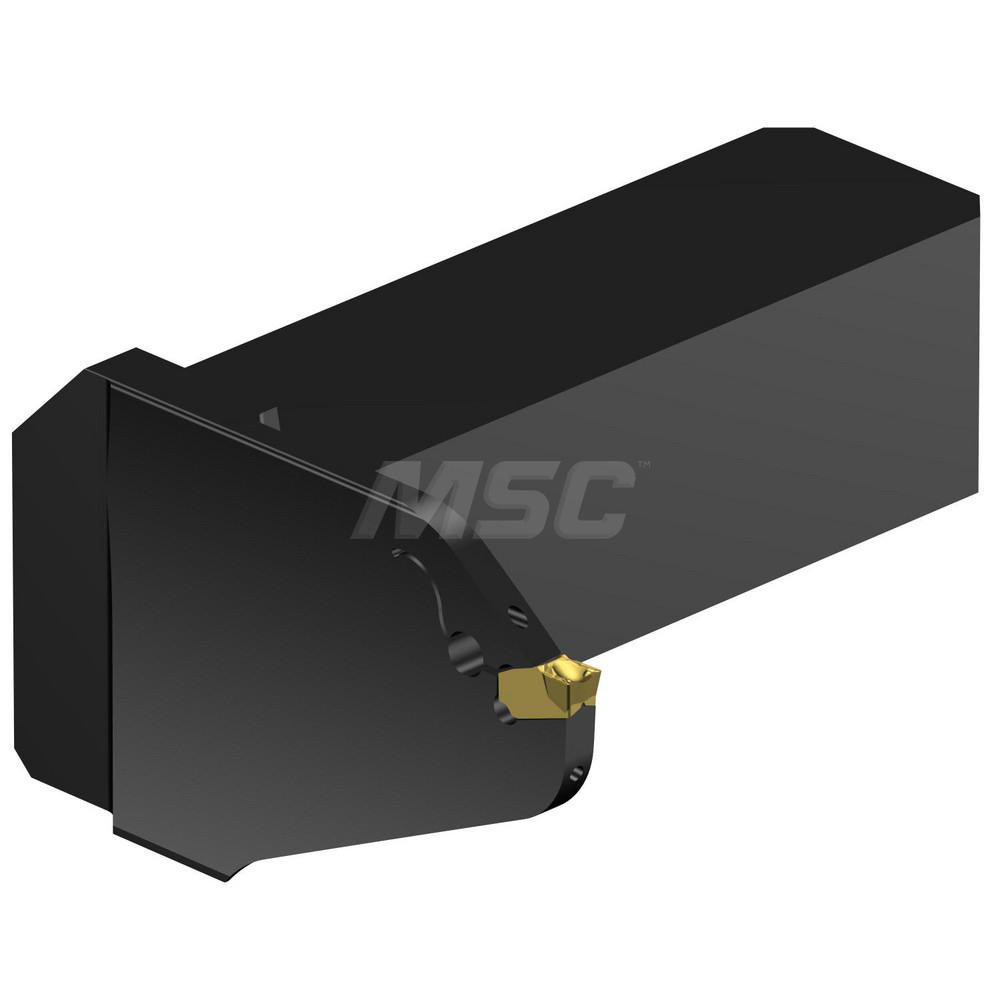

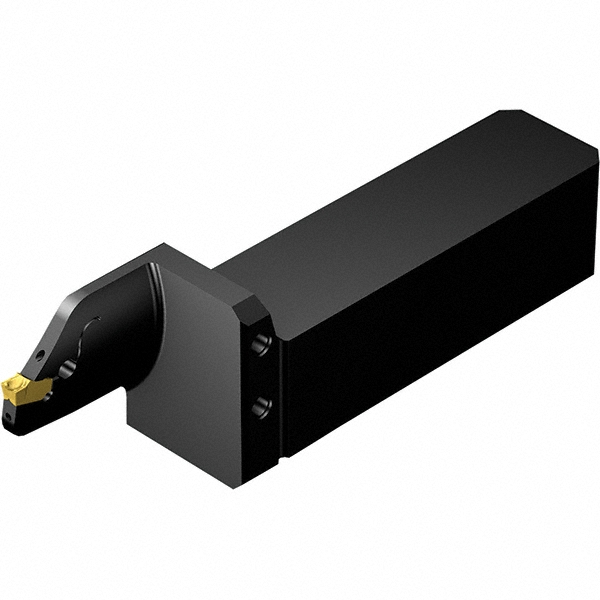

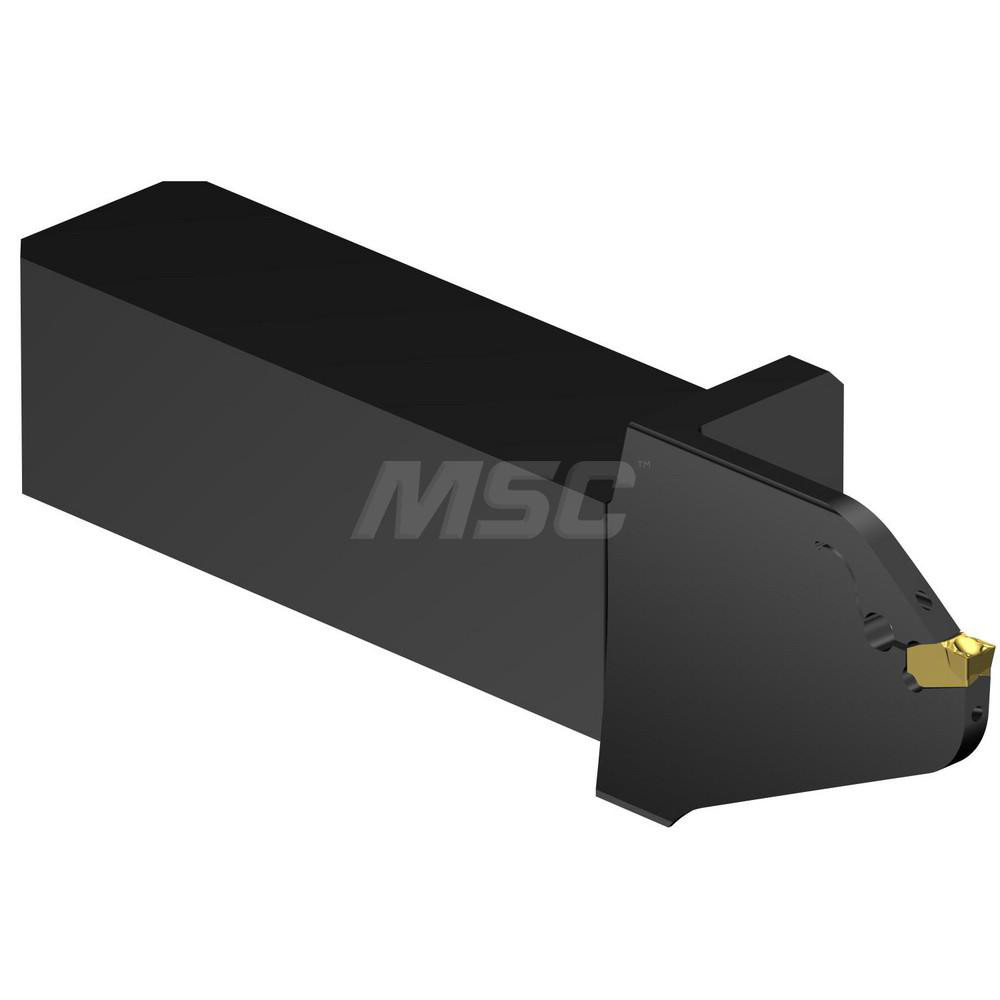

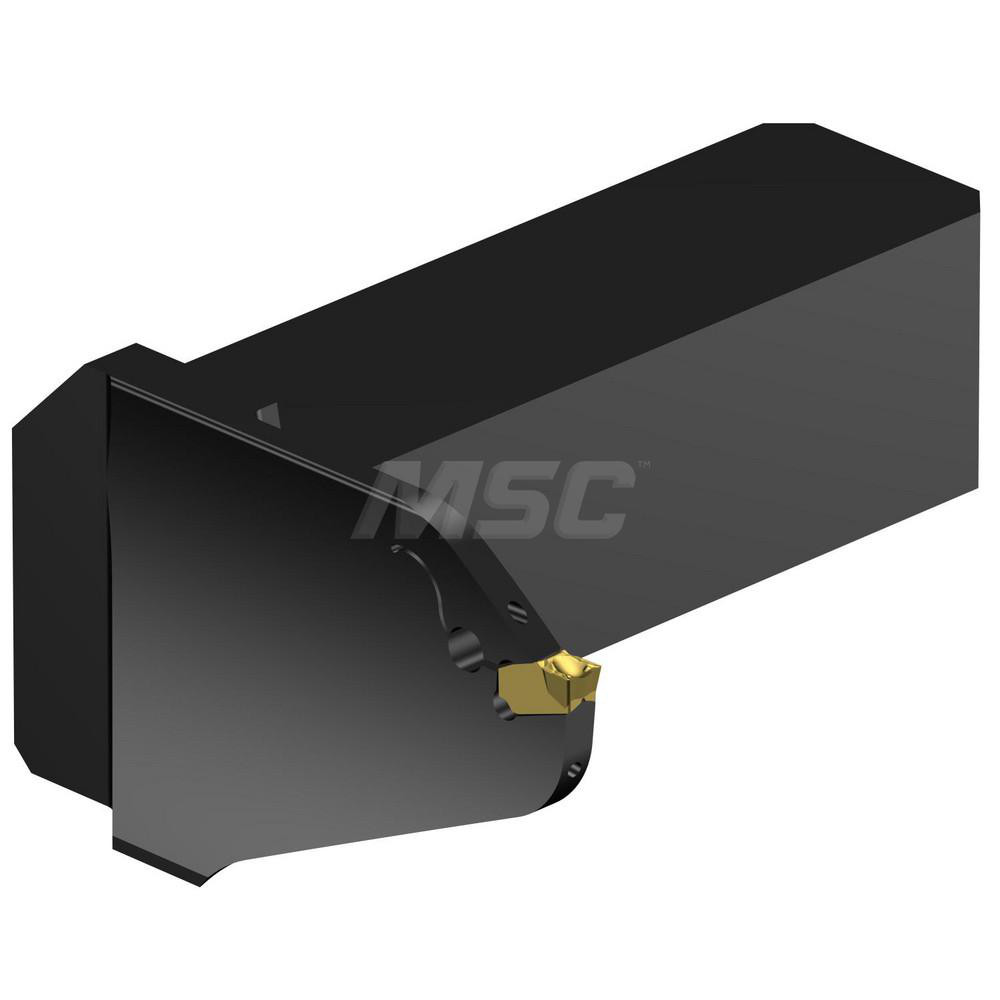

38.1 mm Max Depth of Cut, Through Coolant, Uses QFT-H-0400 Inserts

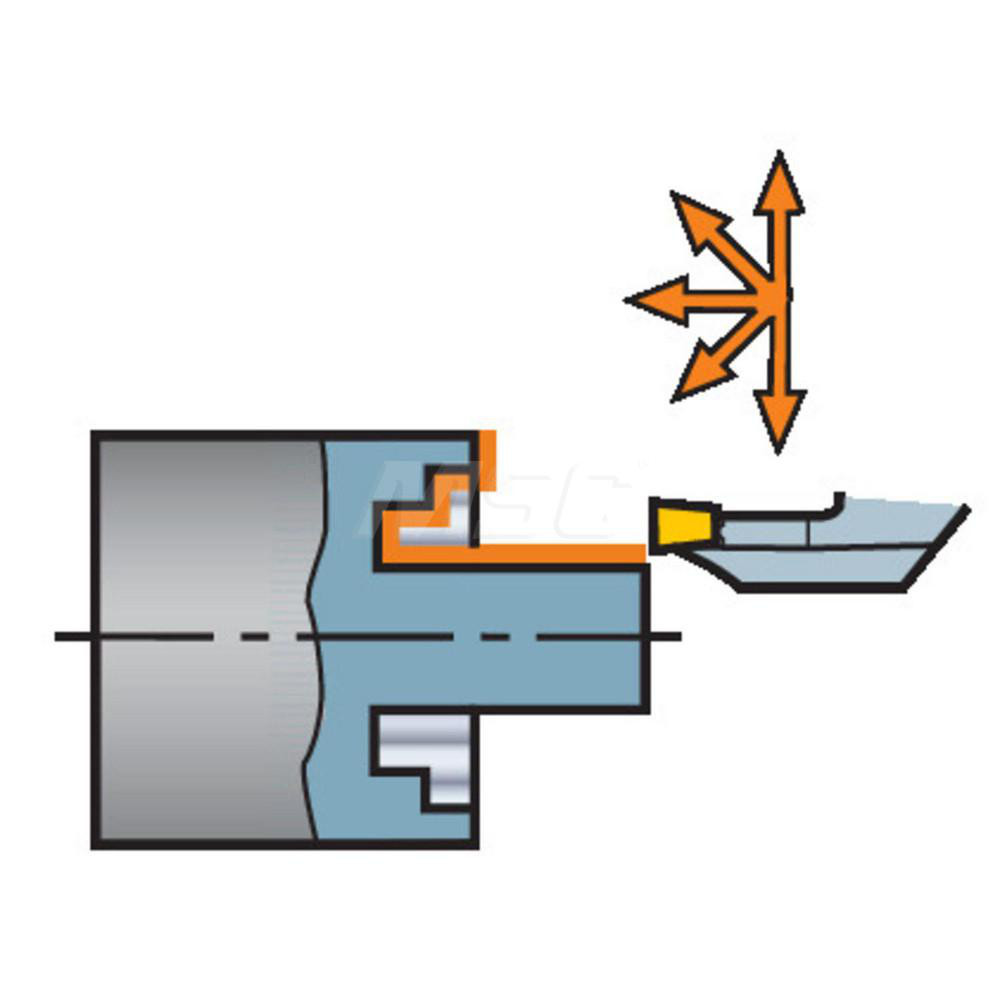

| Toolholder Type | Face Grooving |
|---|---|
| Insert Seat Size | H |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.5000 |
| Maximum Depth of Cut (mm) | 38.10 |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | QFT-H-0400 |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | Coro Cut QF |
| Multi-use Tool | No |
| Maximum Overhang (Inch) | 0.3149 |

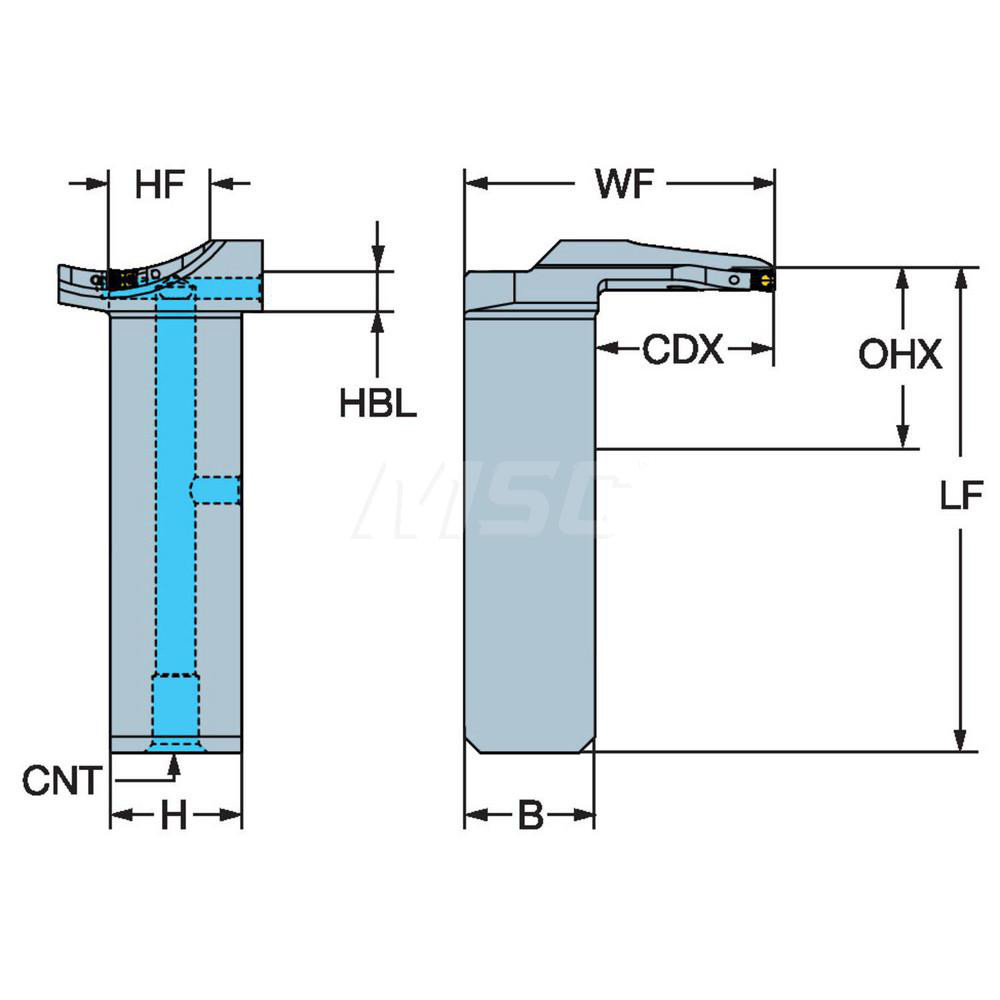

| Back of Bar to Cutting Edge (mm) | 92.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 3.6221 |
| Center to Cutting Edge (Decimal Inch) | 2.5827 |
| Center to Cutting Edge (mm) | 65.60 |
| Head Height (Decimal Inch) | 1.0000 |
| Head Height (Inch) | 1 |
| Head Height (mm) | 25.40 |
| Head Length (Decimal Inch) | 0.315 |
| Head Length (mm) | 8.00 |
| UNSPSC Code | 27112809 |
| Coolant Hole Diameter (Inch) | 1/8 |
| Maximum Bore Depth (Decimal Inch) | 0.3150 |
| Coolant Through | Yes |
| Country of Origin | Sweden |
| MSC Number | MSC# 30855274 |
