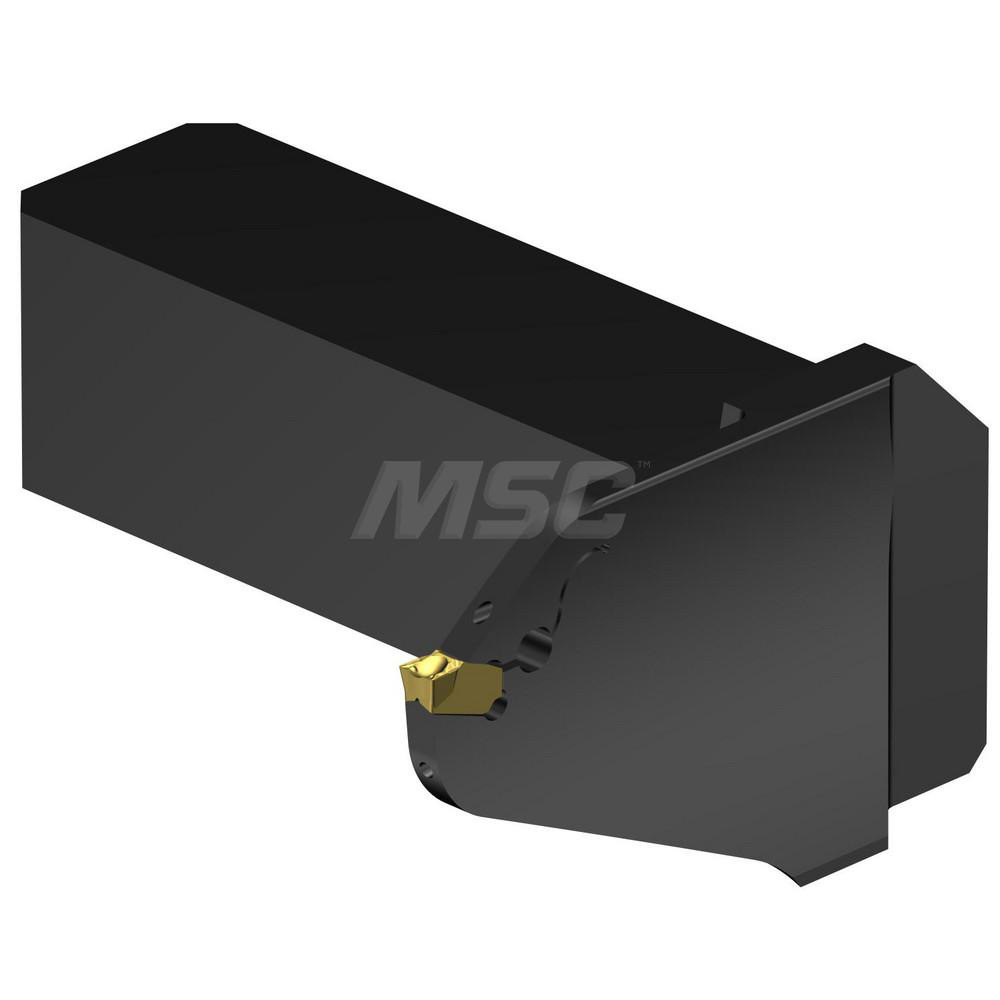

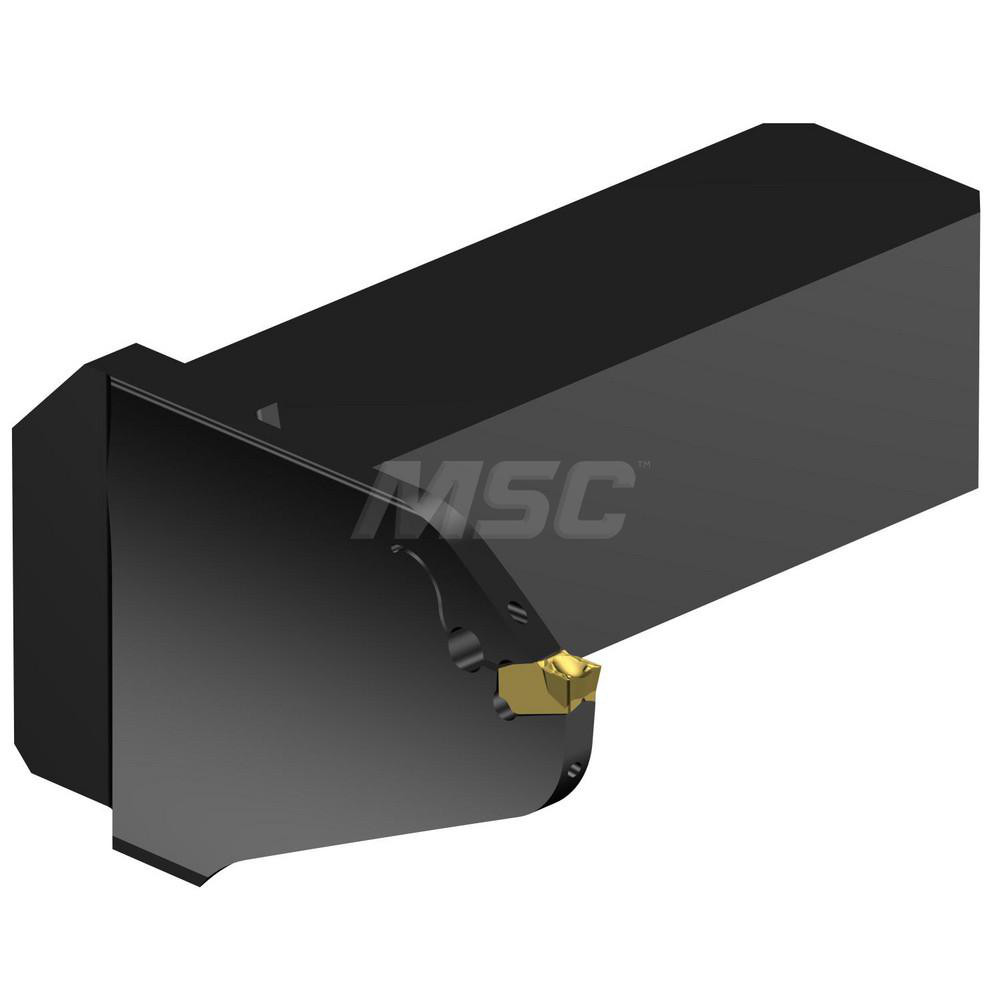

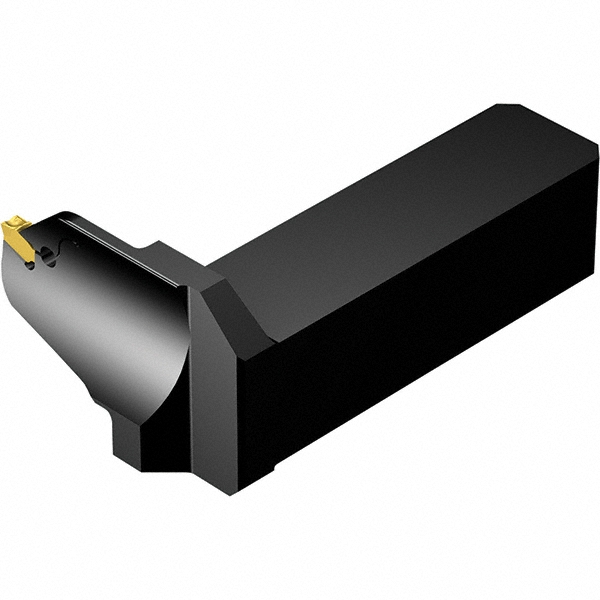

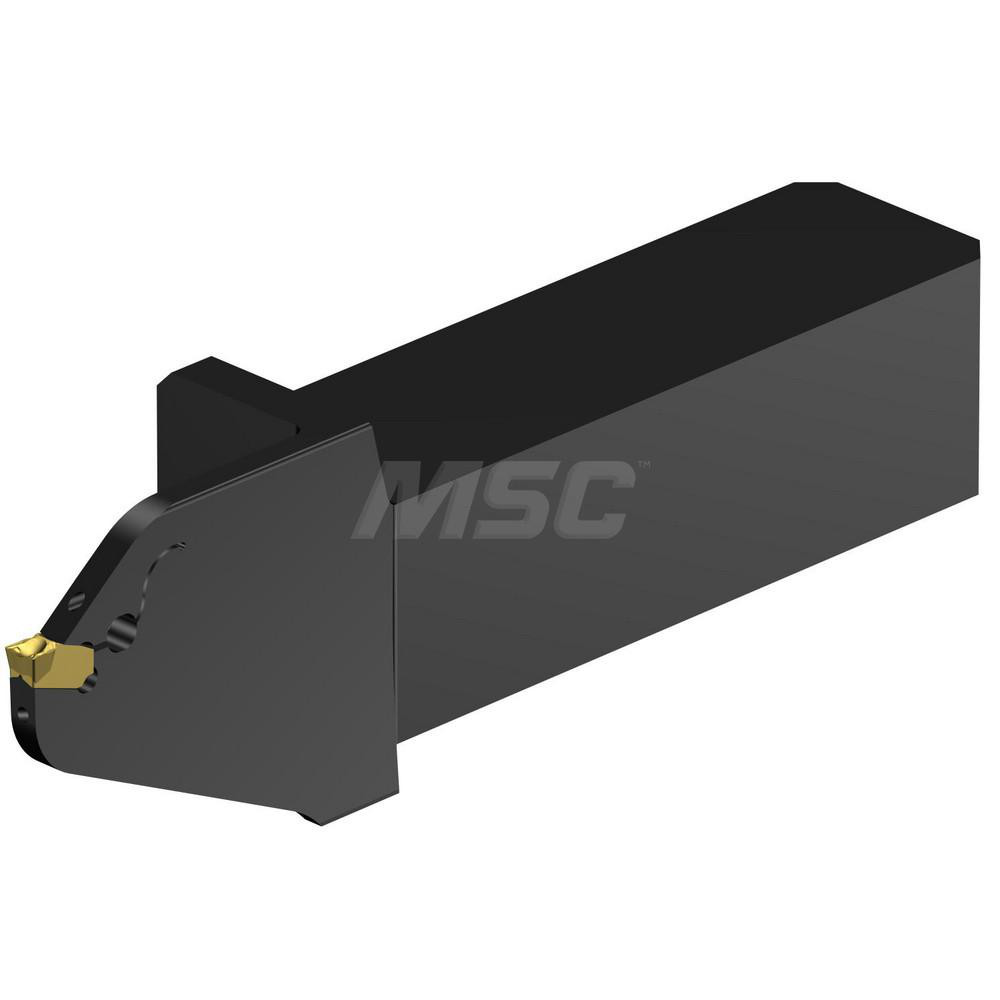

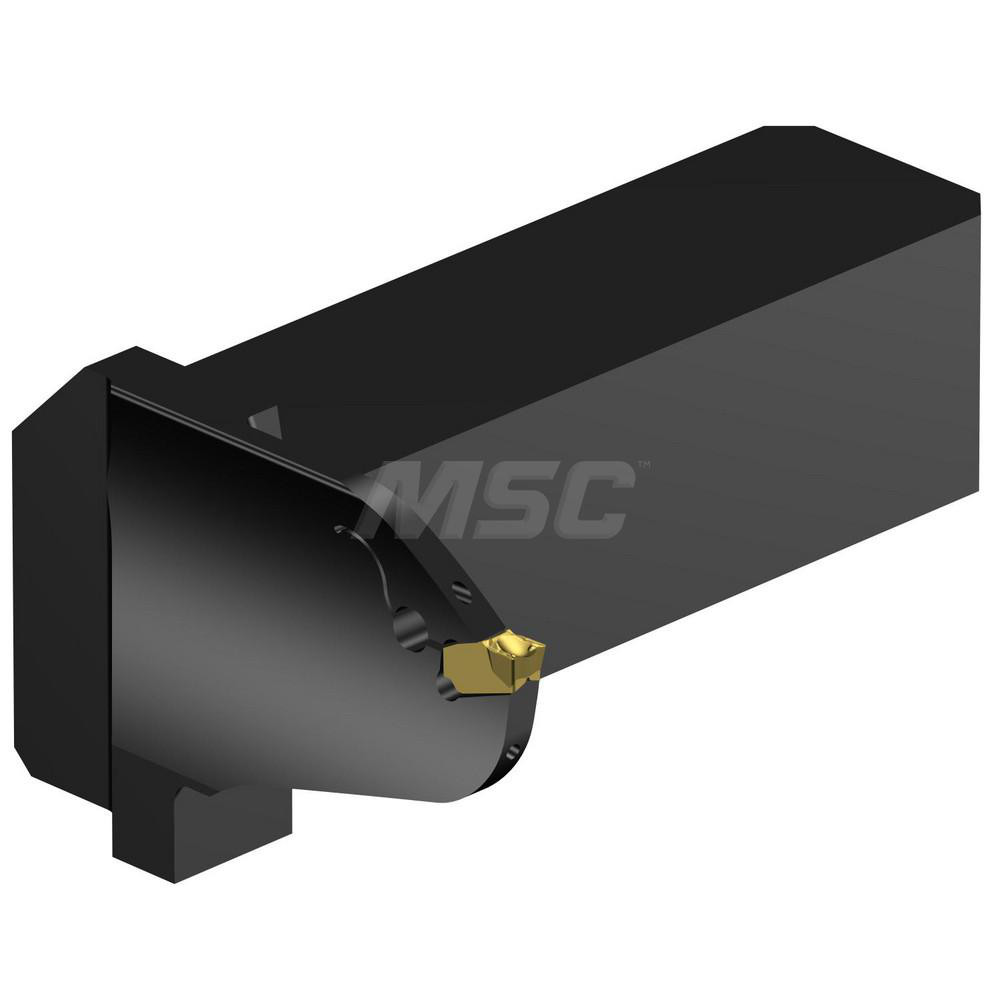

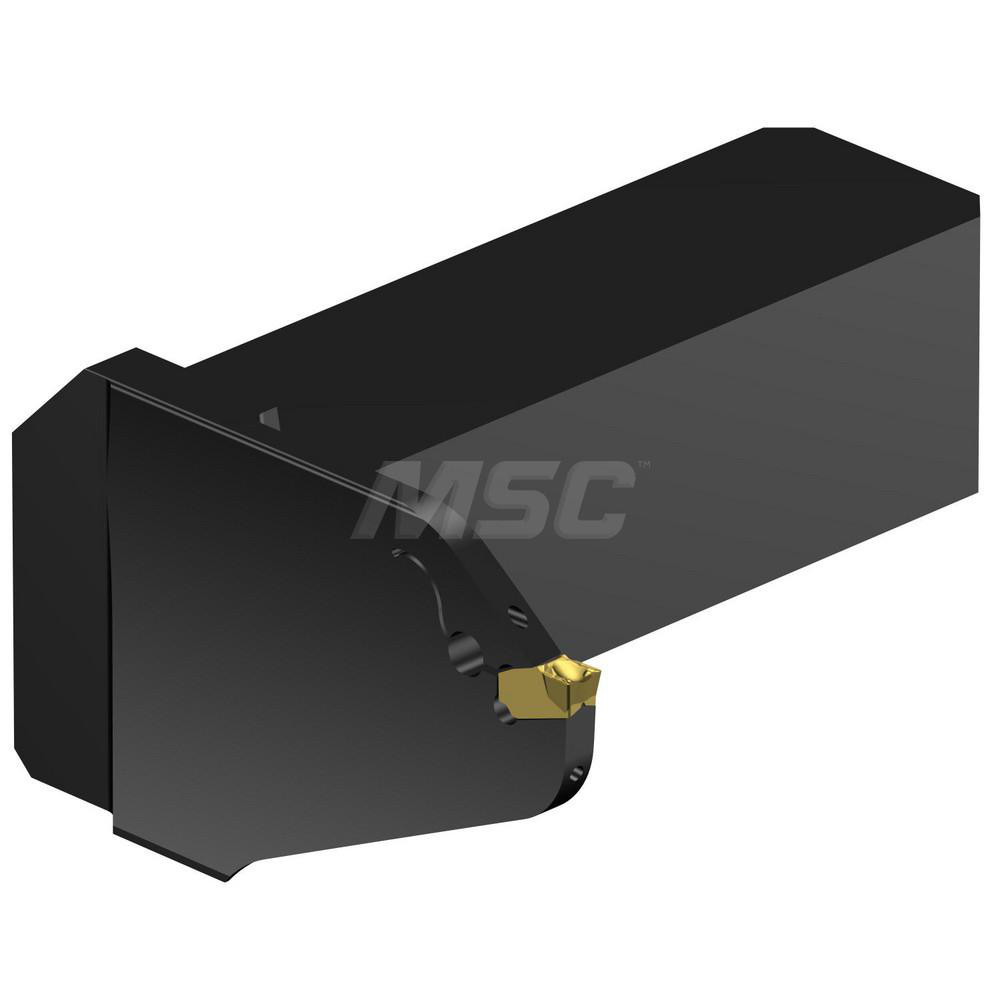

38.1 mm Max Depth of Cut, Through Coolant, Uses QFT-H-0400 Inserts

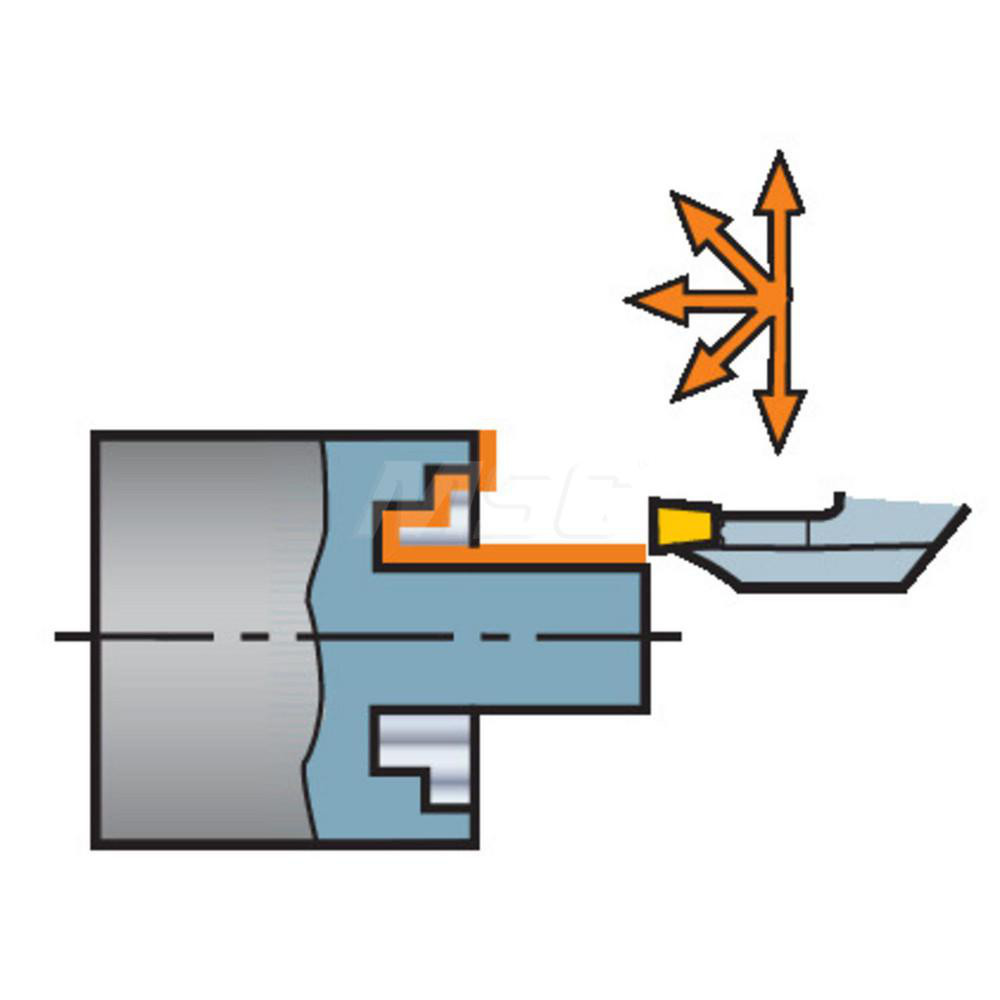

| Toolholder Type | Face Grooving |
|---|---|
| Insert Seat Size | H |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.5000 |
| Maximum Depth of Cut (mm) | 38.10 |
| Insert Holding Method | Clamp |

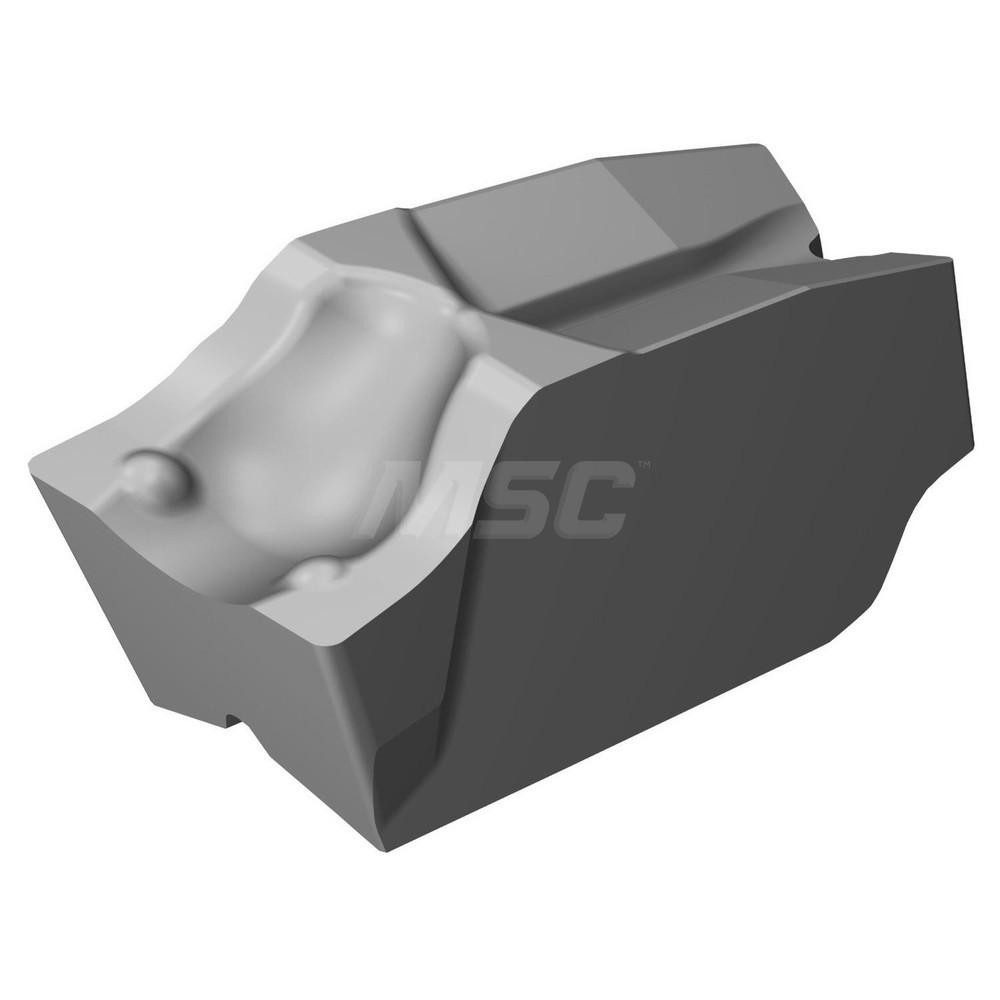

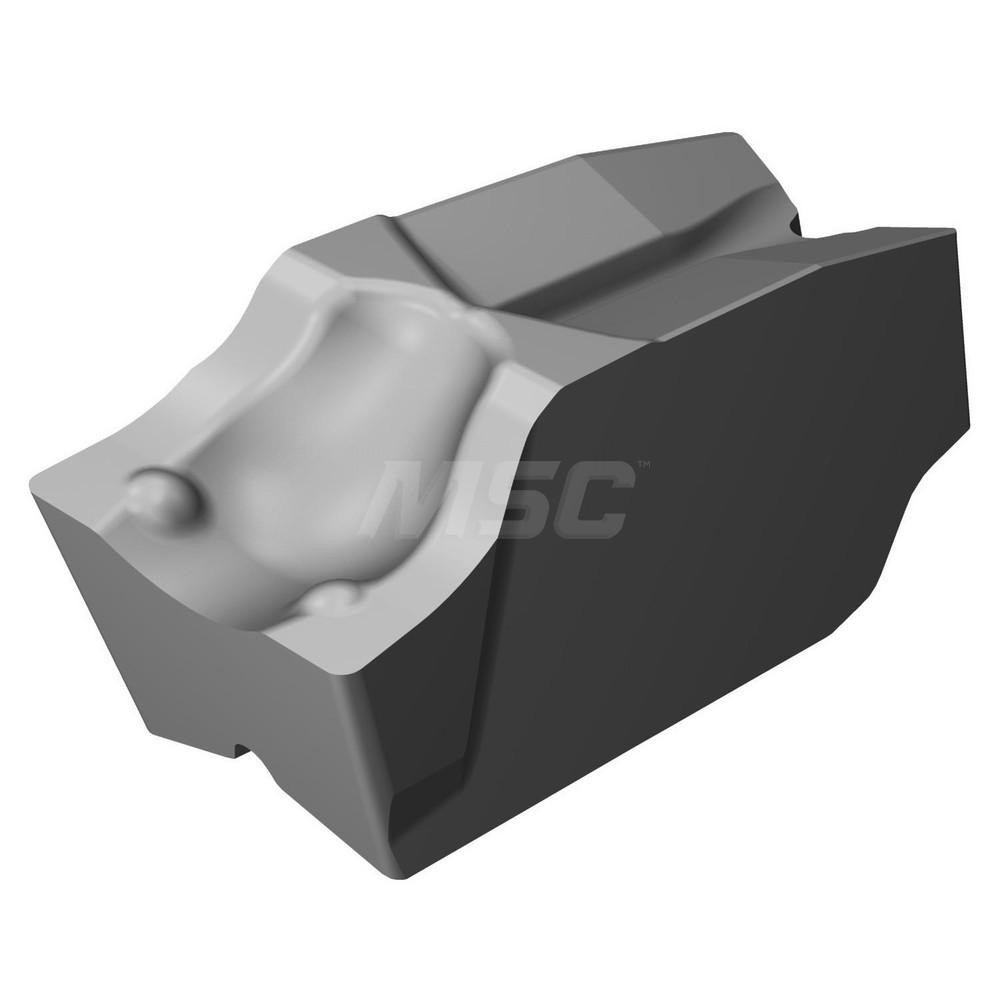

| Compatible Insert Size Code | QFT-H-0400 |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | Coro Cut QF |
| Multi-use Tool | No |

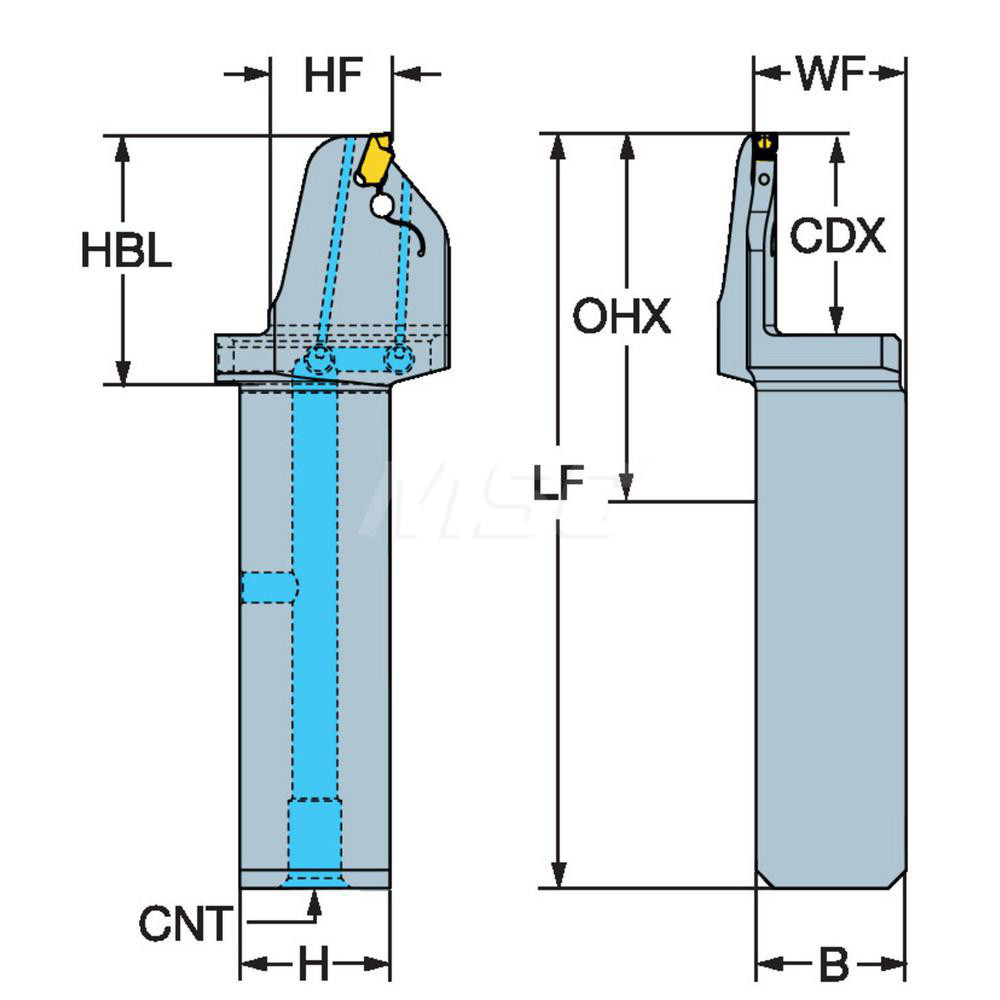

| Maximum Overhang (Inch) | 1.8779 |
| Back of Bar to Cutting Edge (mm) | 132.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.1969 |
| Center to Cutting Edge (Decimal Inch) | 1.0236 |
| Center to Cutting Edge (mm) | 26.00 |
| Head Height (Decimal Inch) | 1.0000 |
| Head Height (Inch) | 1 |
| Head Height (mm) | 25.40 |
| Head Length (Decimal Inch) | 1.878 |
| Head Length (mm) | 47.70 |
| UNSPSC Code | 27112809 |
| Coolant Hole Diameter (Inch) | 1/8 |
| Maximum Bore Depth (Decimal Inch) | 1.8780 |
| Coolant Through | Yes |
| Country of Origin | Sweden |
| MSC Number | MSC# 30855407 |
