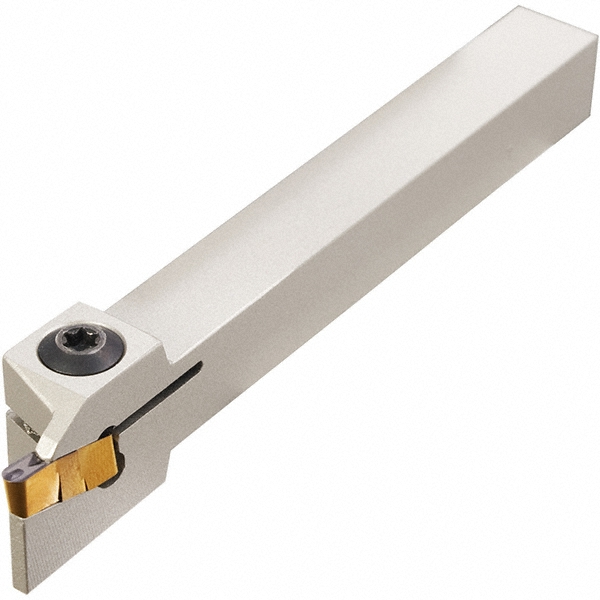

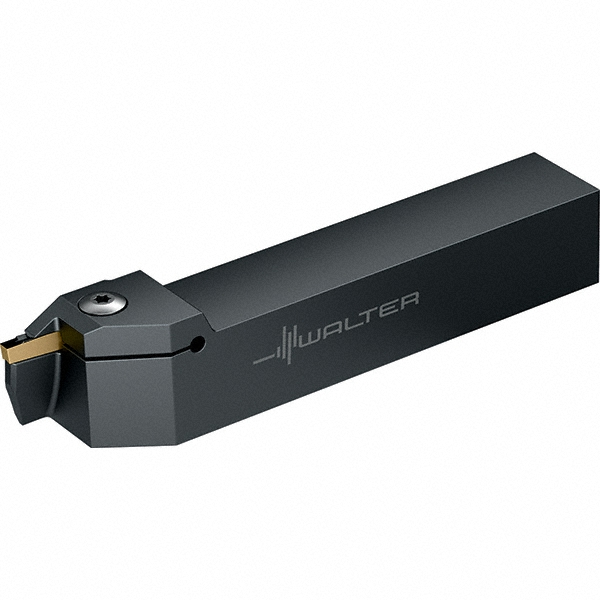

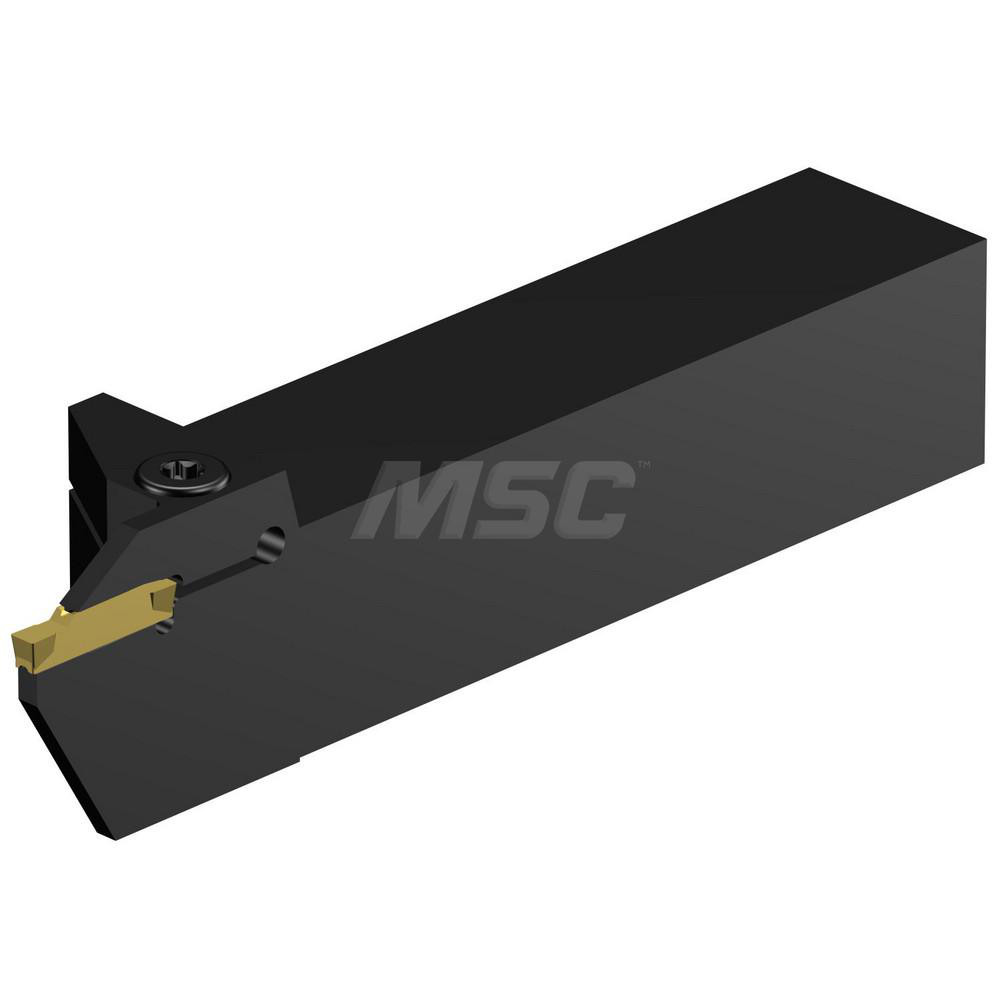

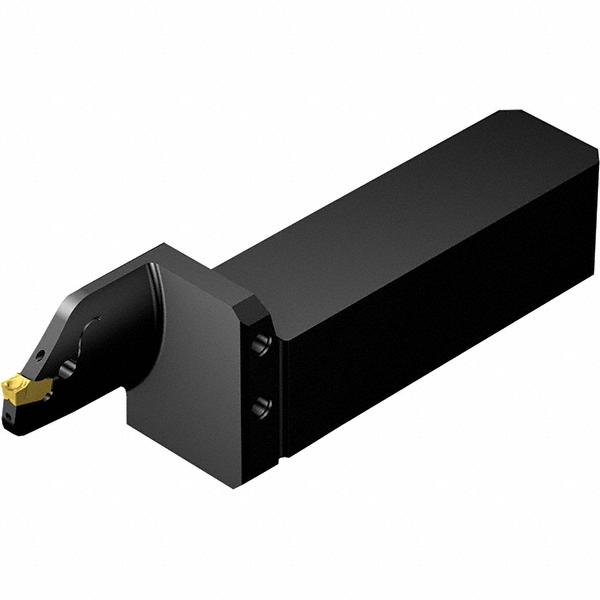

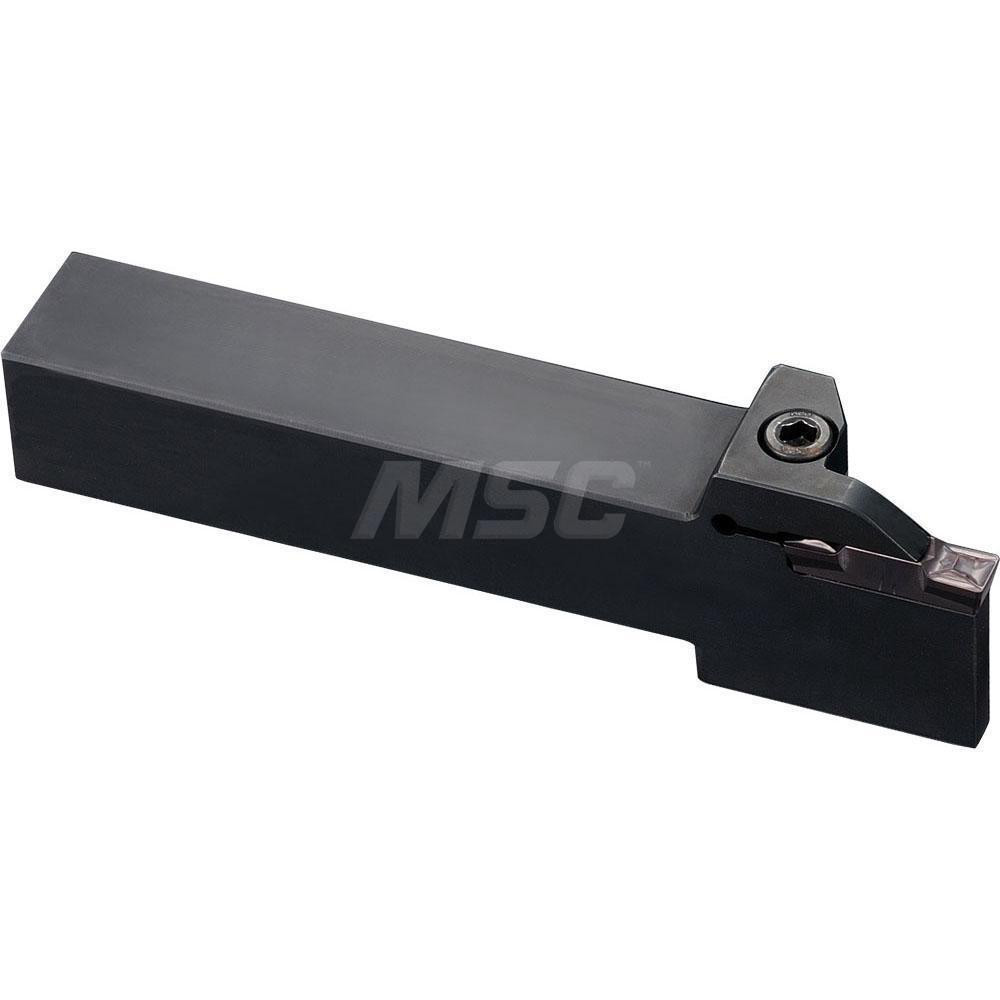

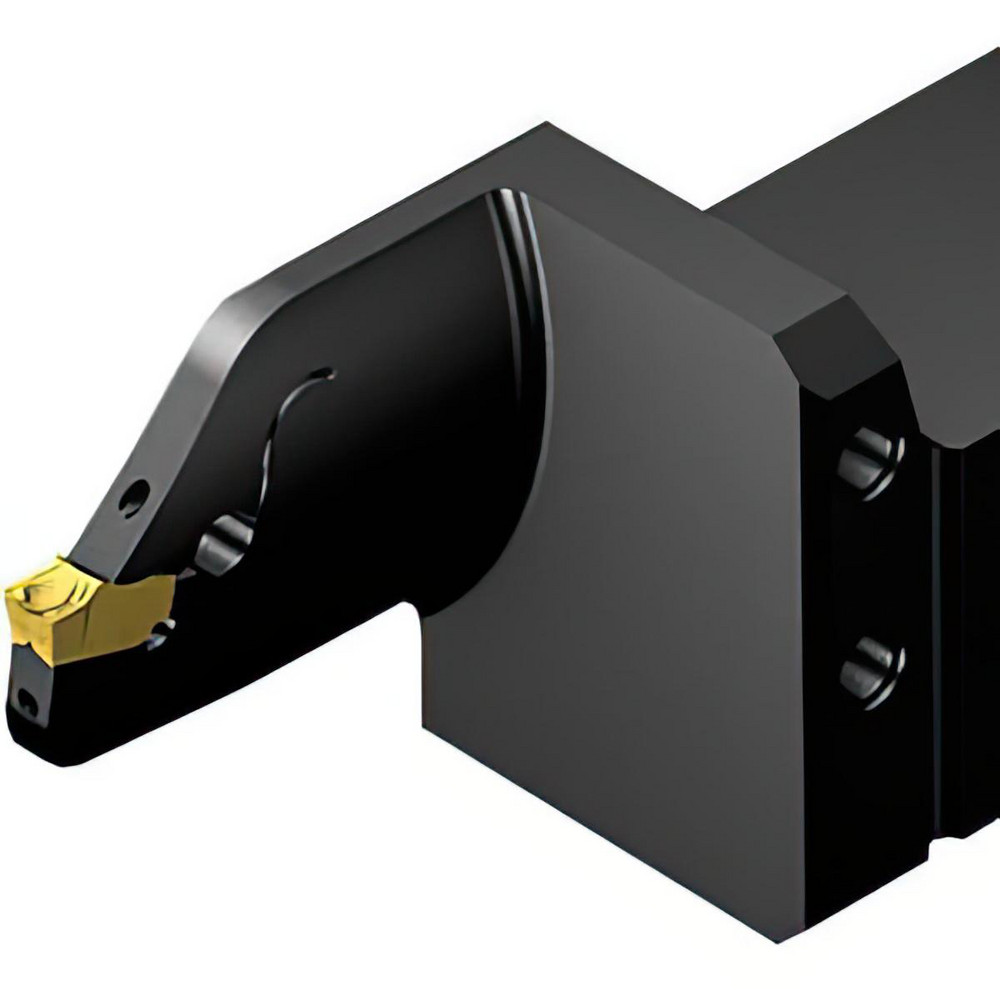

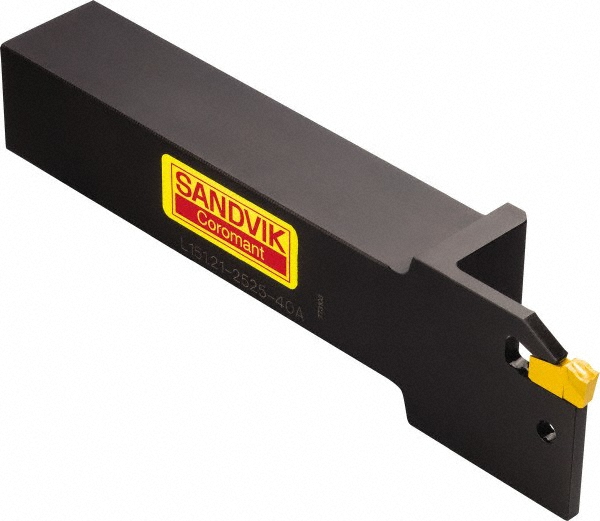

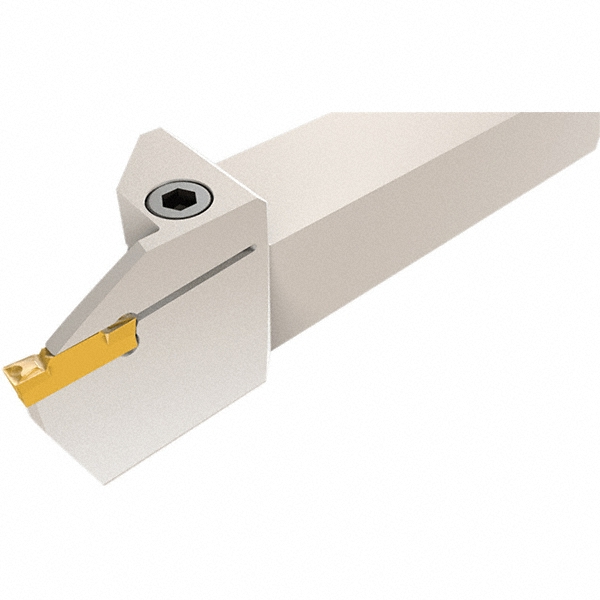

25 mm Max Depth of Cut, Through Coolant
| Hand of Holder | Left Hand |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.9843 |
| Maximum Depth of Cut (mm) | 25.00 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Back of Bar to Cutting Edge (mm) | 118.60 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.6693 |
| Center to Cutting Edge (Decimal Inch) | 1.0039 |
| Center to Cutting Edge (mm) | 25.50 |
| Head Height (Decimal Inch) | 0.9843 |
| Head Height (mm) | 25.00 |
| Head Length (Decimal Inch) | 1.3622 |
| Head Length (mm) | 34.60 |
| UNSPSC Code | 23153308 |
| Coolant Hole Diameter (Inch) | 1/8 |
| Maximum Bore Depth (Decimal Inch) | 1.3622 |
| Coolant Through | Yes |
| Country of Origin | Sweden |
| MSC Number | MSC# 30854962 |
