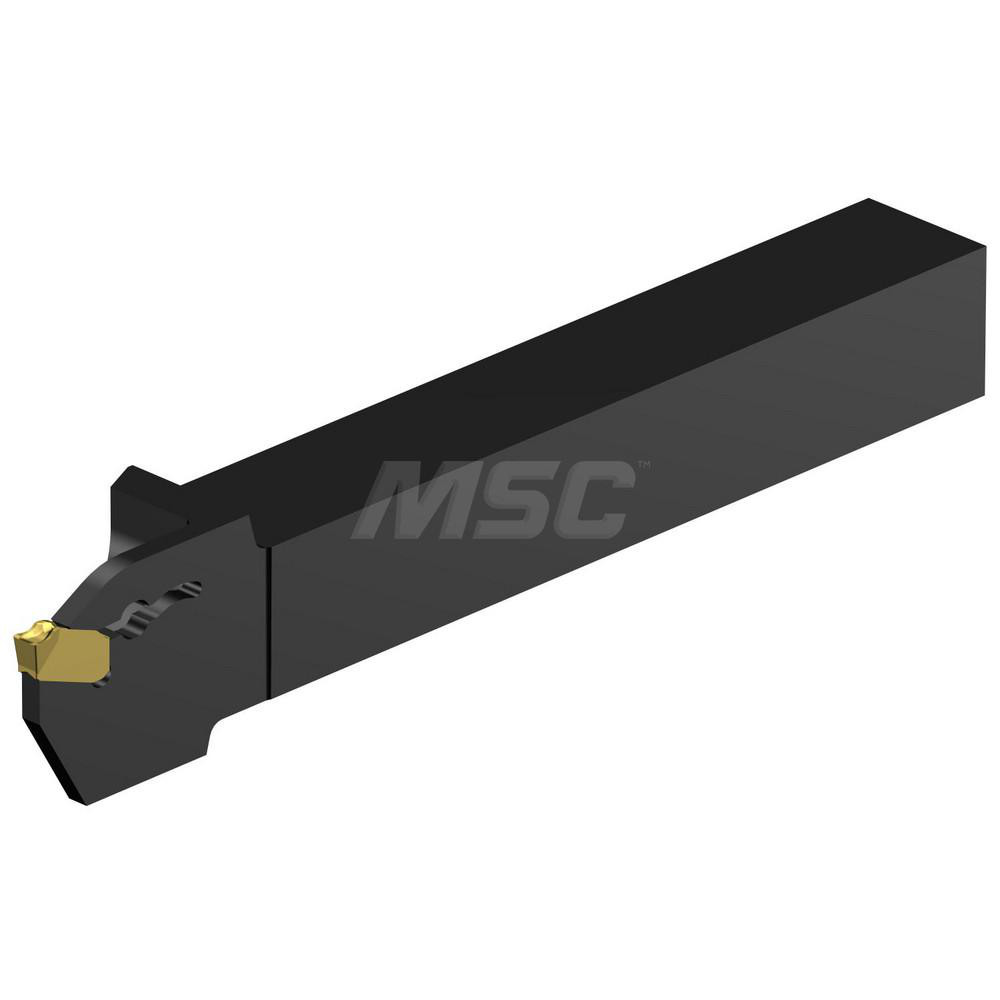

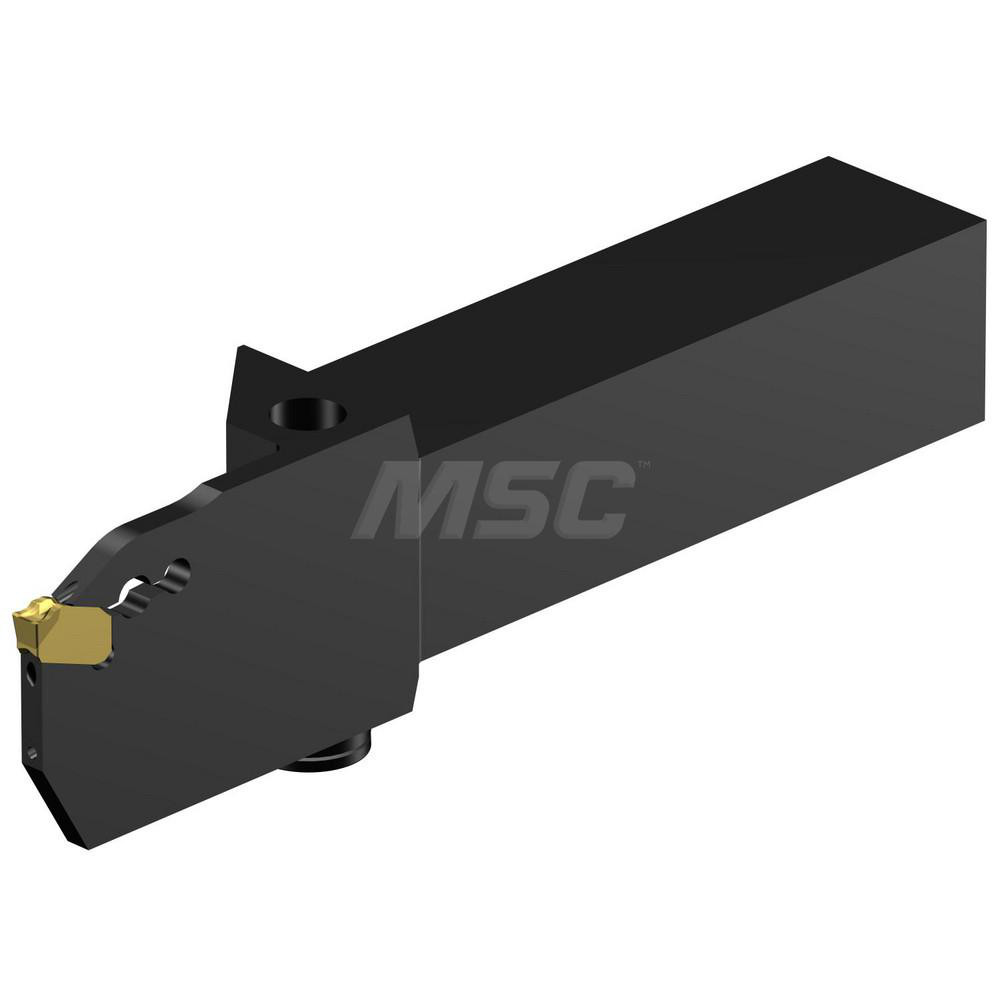

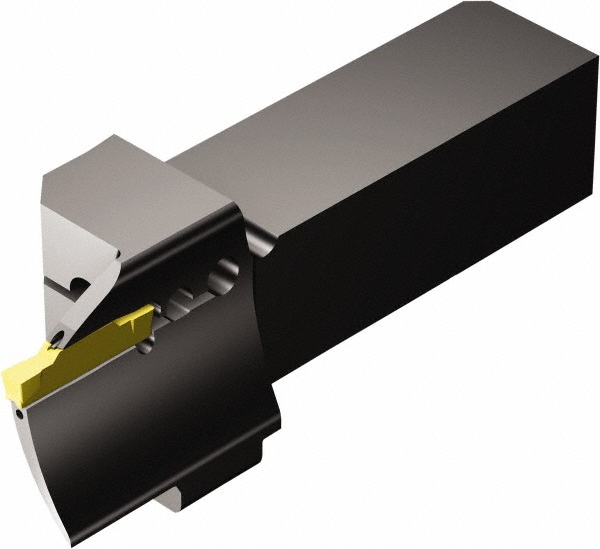

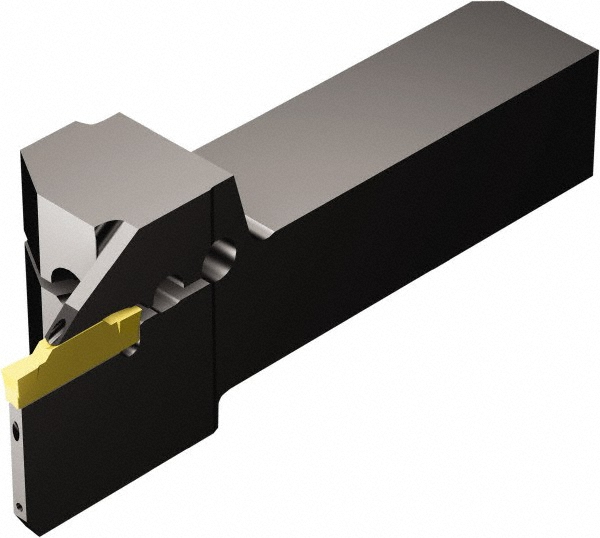

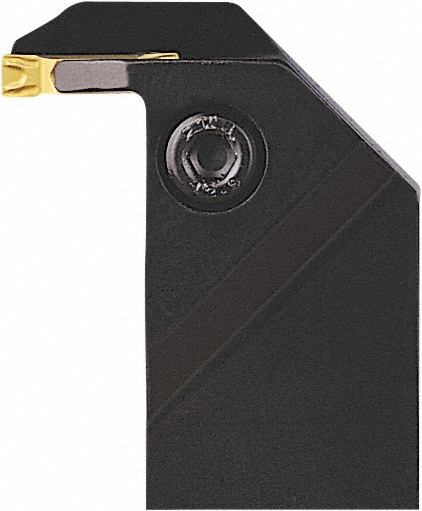

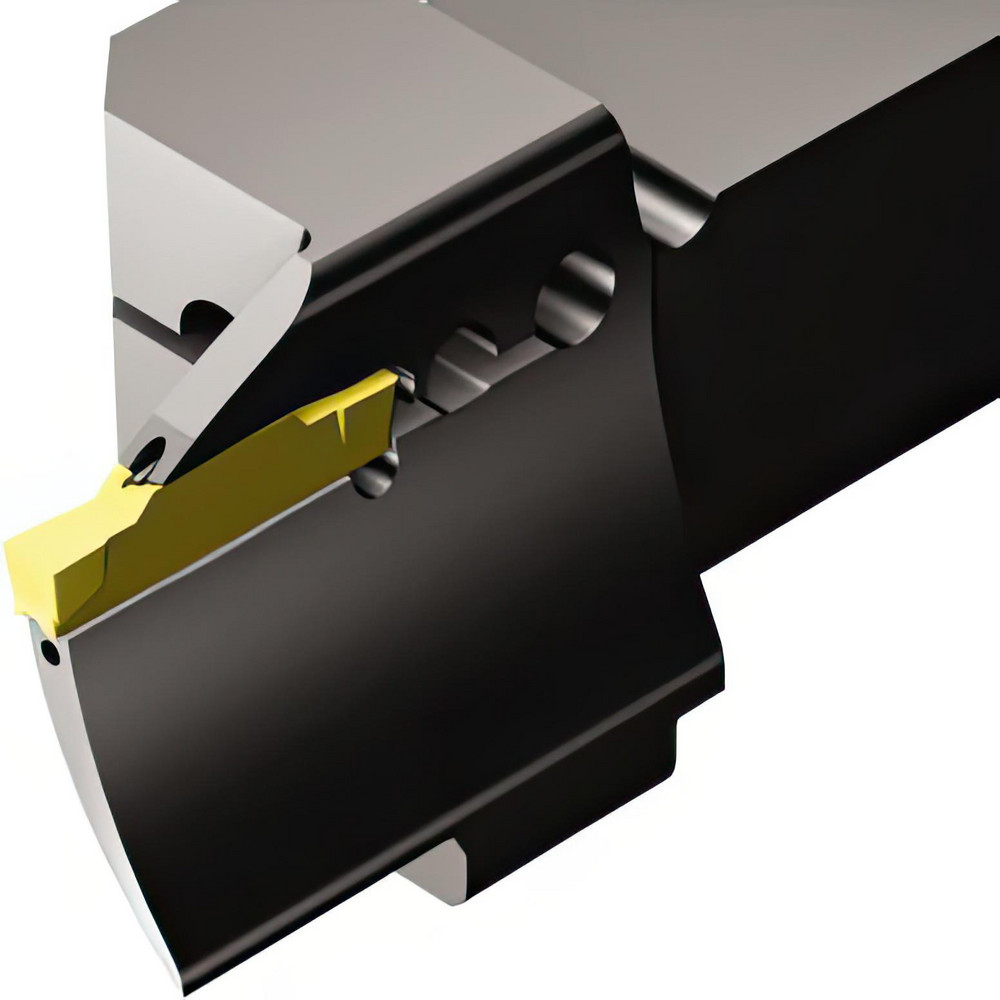

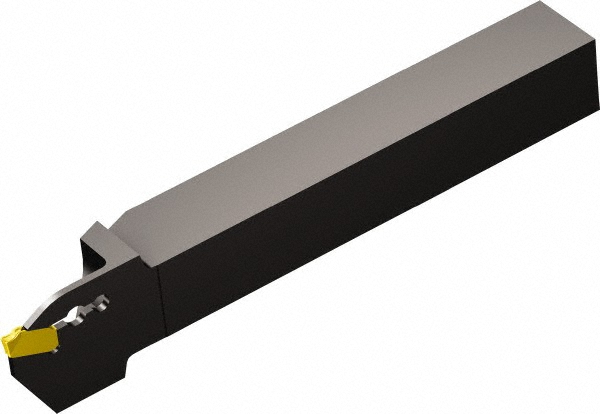

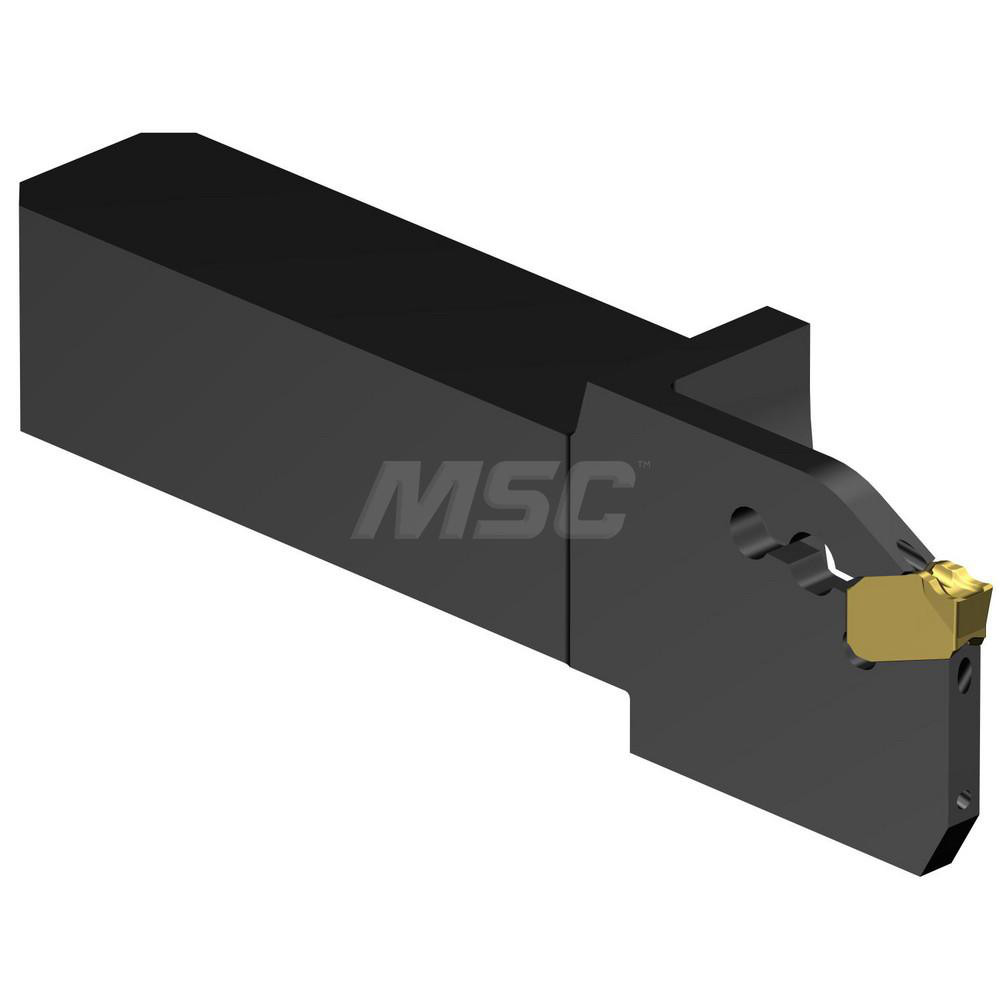

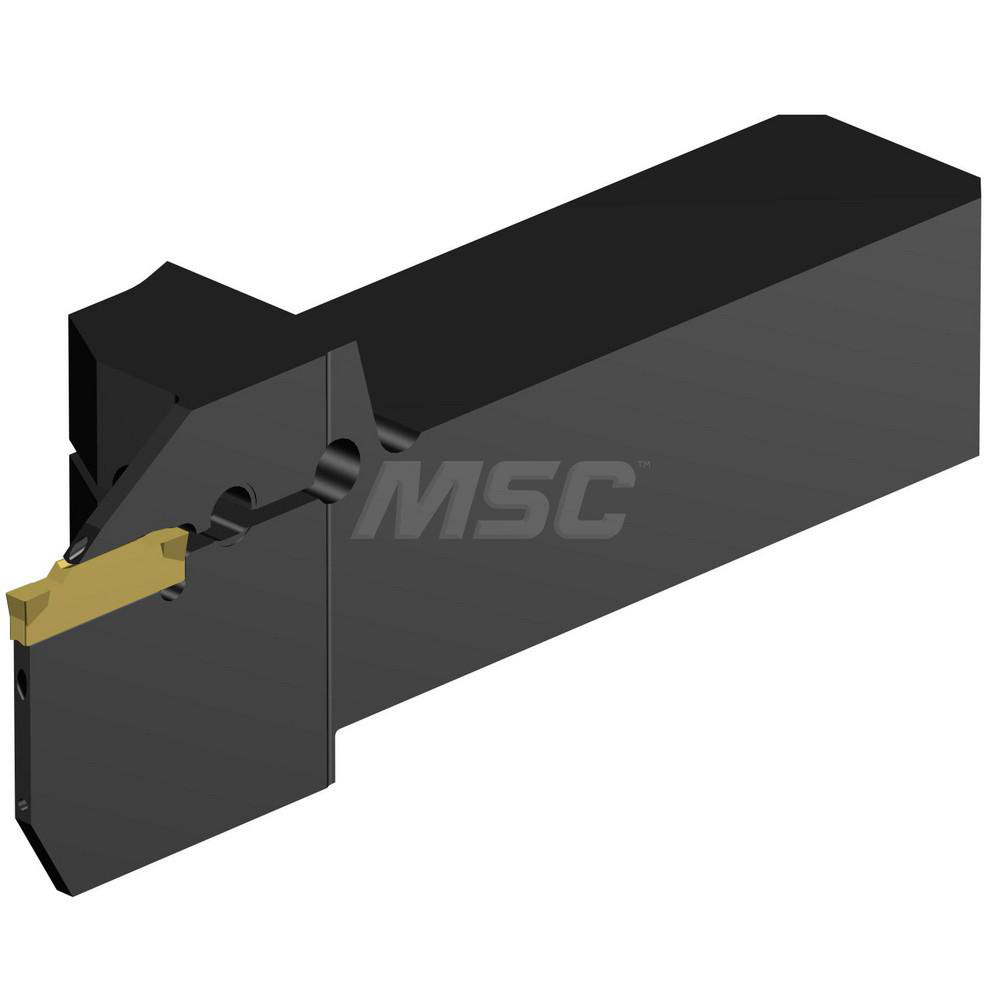

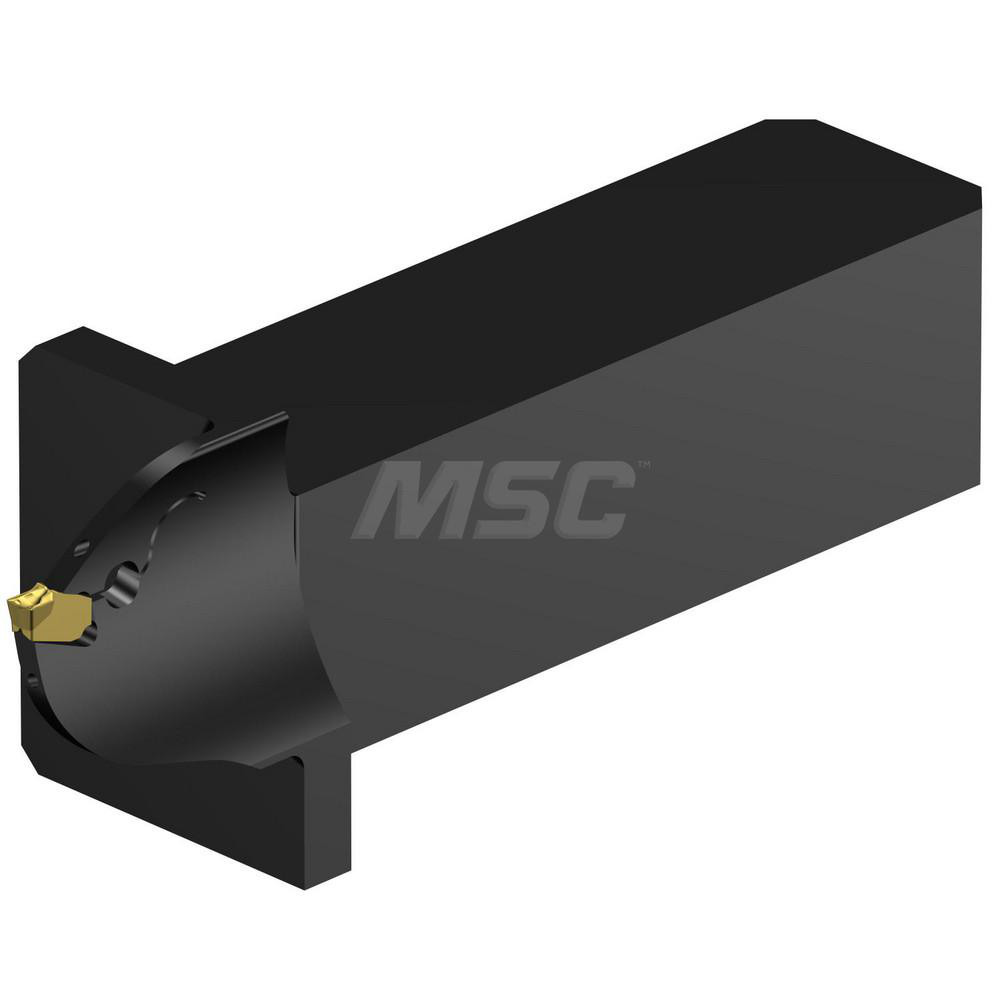

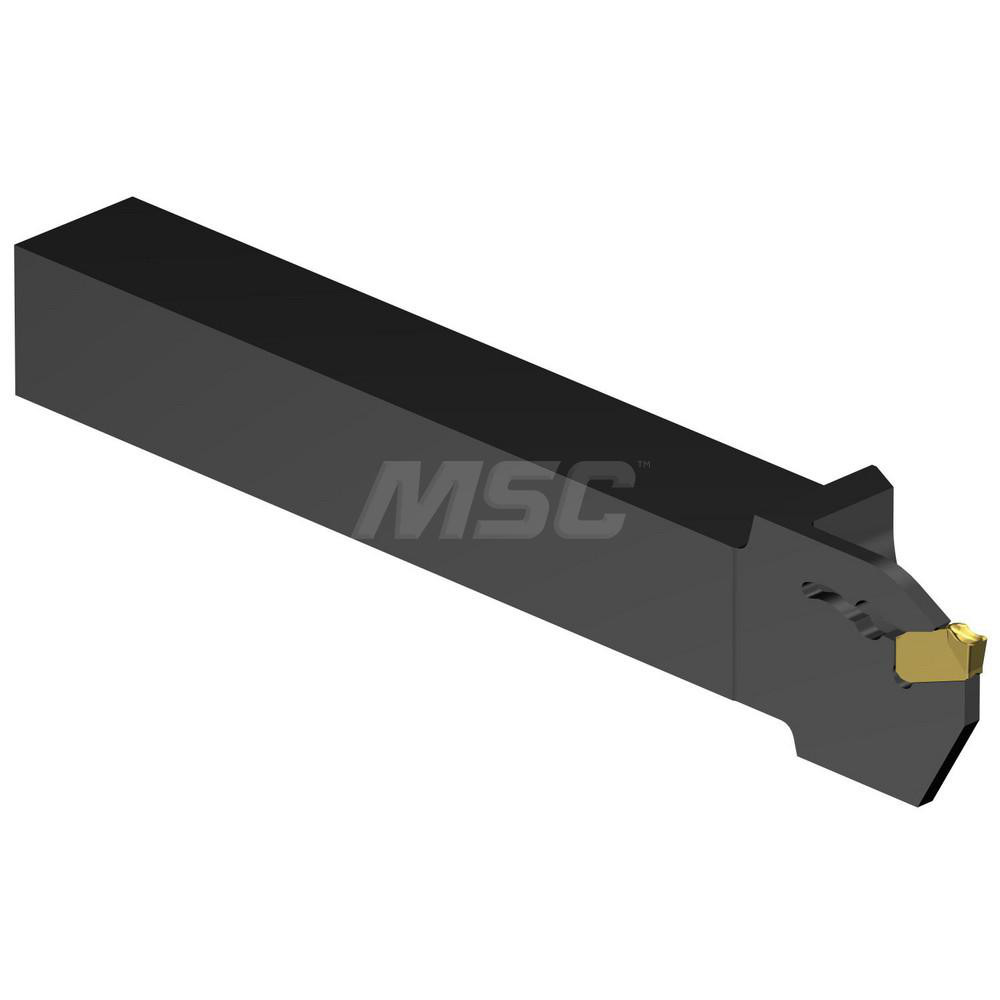

20.32 mm Max Depth of Cut, 19.05 x 19.05 mm Shank, Through Coolant
| Toolholder Type | External Grooving |
|---|---|
| Insert Seat Size | H |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.8000 |
| Maximum Depth of Cut (mm) | 20.32 |
| Toolholder Style | QS-R/LF123..C..E..B |
| Insert Compatibility | N123H2-0400-0004-TF |
| Shank Height (mm) | 19.05 |
| Shank Height (Decimal Inch) | 0.7500 |
| Series | Coro Cut 1-2 |
| Overall Length (mm) | 110.26 |
| Overall Length (Decimal Inch) | 4.3409 |
| Back of Bar to Cutting Edge (mm) | 110.26 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.3409 |
| Center to Cutting Edge (Decimal Inch) | 0.7697 |
| Center to Cutting Edge (mm) | 19.55 |
| Head Height (Decimal Inch) | 0.7500 |
| Head Height (Inch) | 3/4 |
| Head Height (mm) | 19.05 |
| Head Length (Decimal Inch) | 2.3756 |
| Head Length (mm) | 60.34 |
| UNSPSC Code | 23153308 |
| Maximum Bore Depth (Decimal Inch) | 2.3756 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123H2-0400-0004-TF |
| Coolant Through | Yes |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 49549017 |
