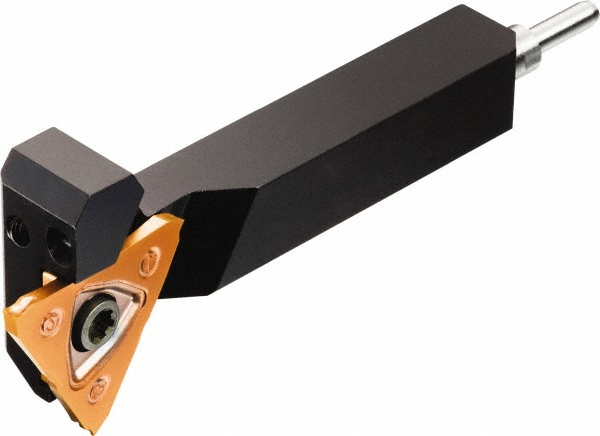

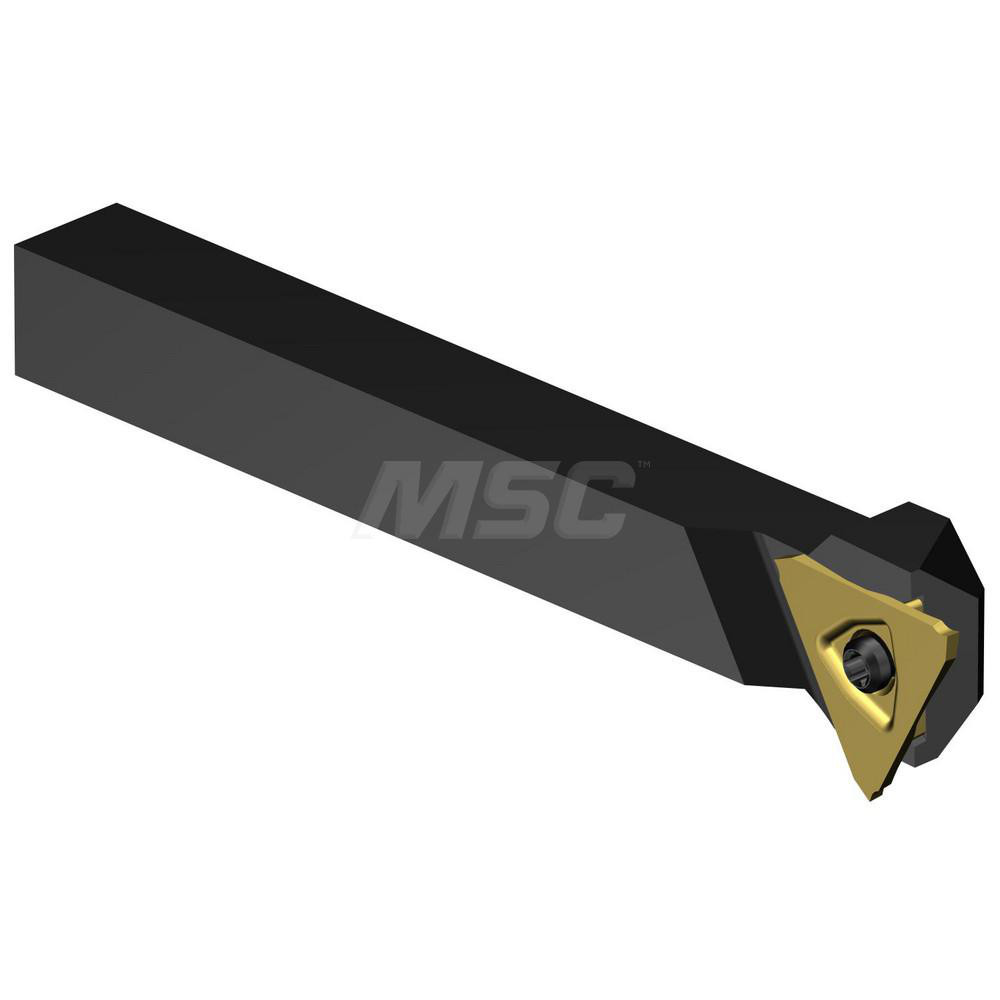

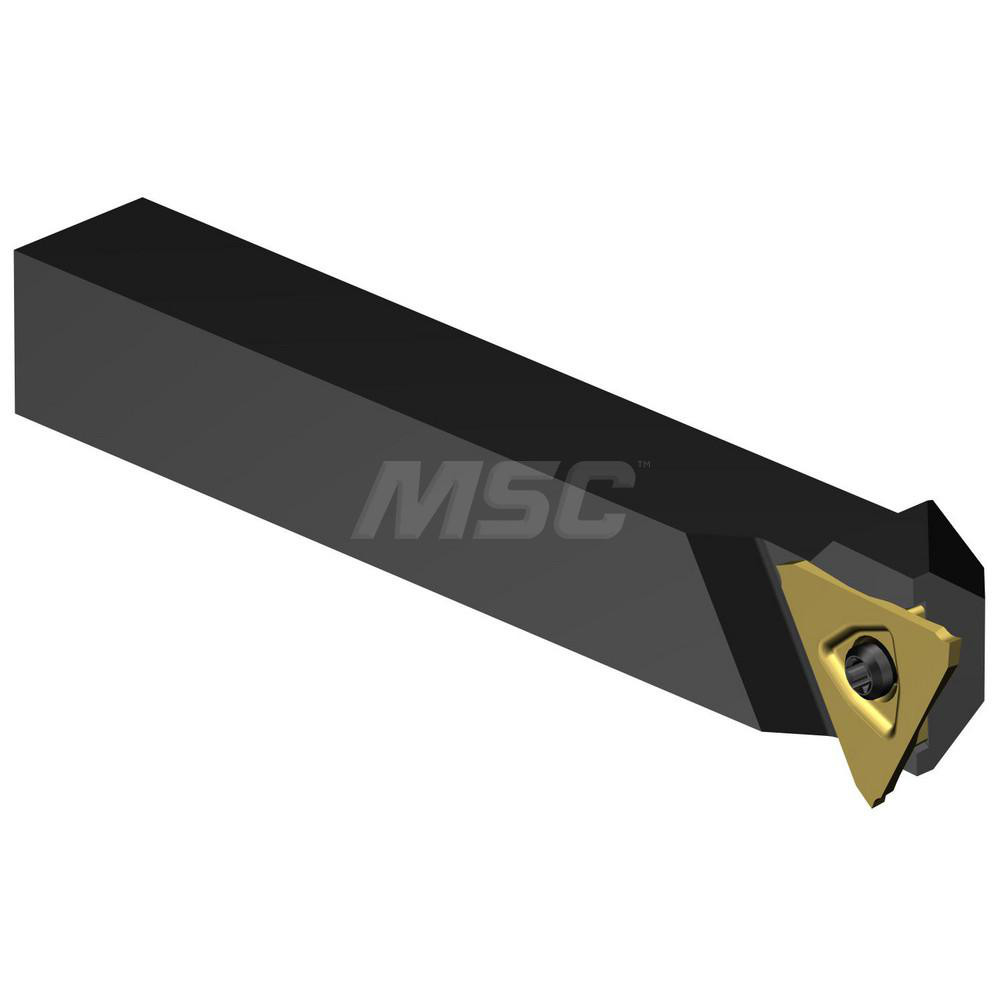

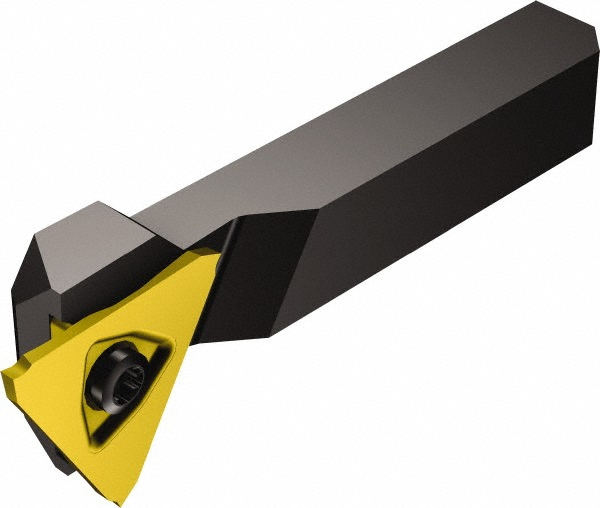

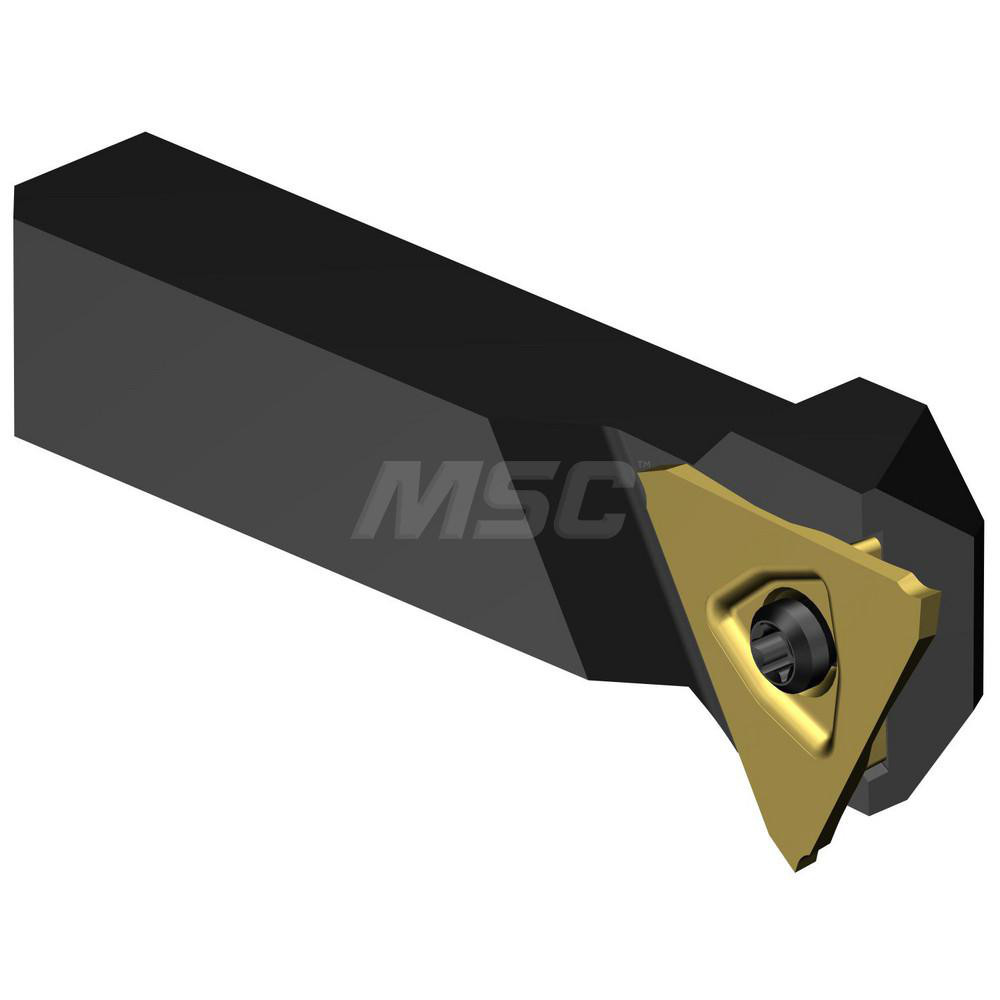

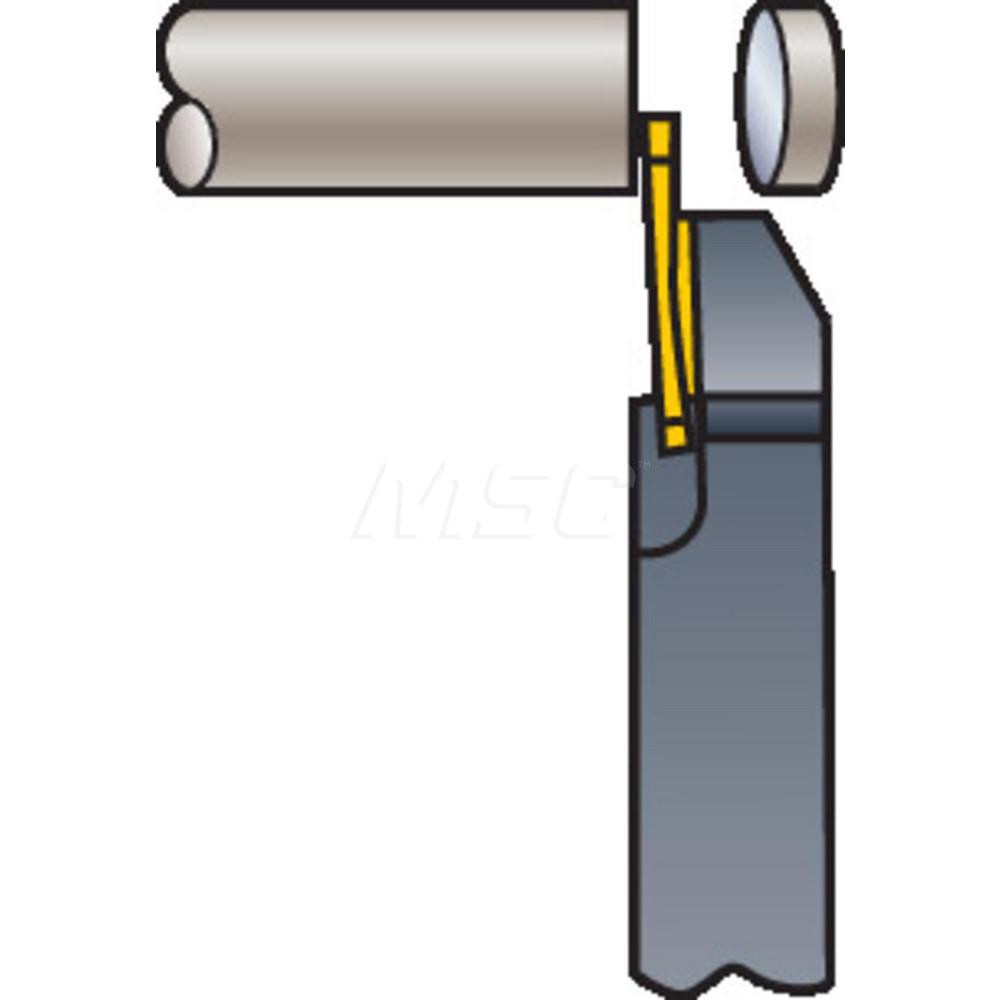

6.35 mm Max Depth of Cut, 1/2 x 1/2" Shank, Uses N123U3 Inserts
| Toolholder Type | External Grooving |
|---|---|
| Insert Seat Size | U |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Maximum Depth of Cut (mm) | 6.35 |
| Toolholder Style | QS-R/LF123T/U..B |

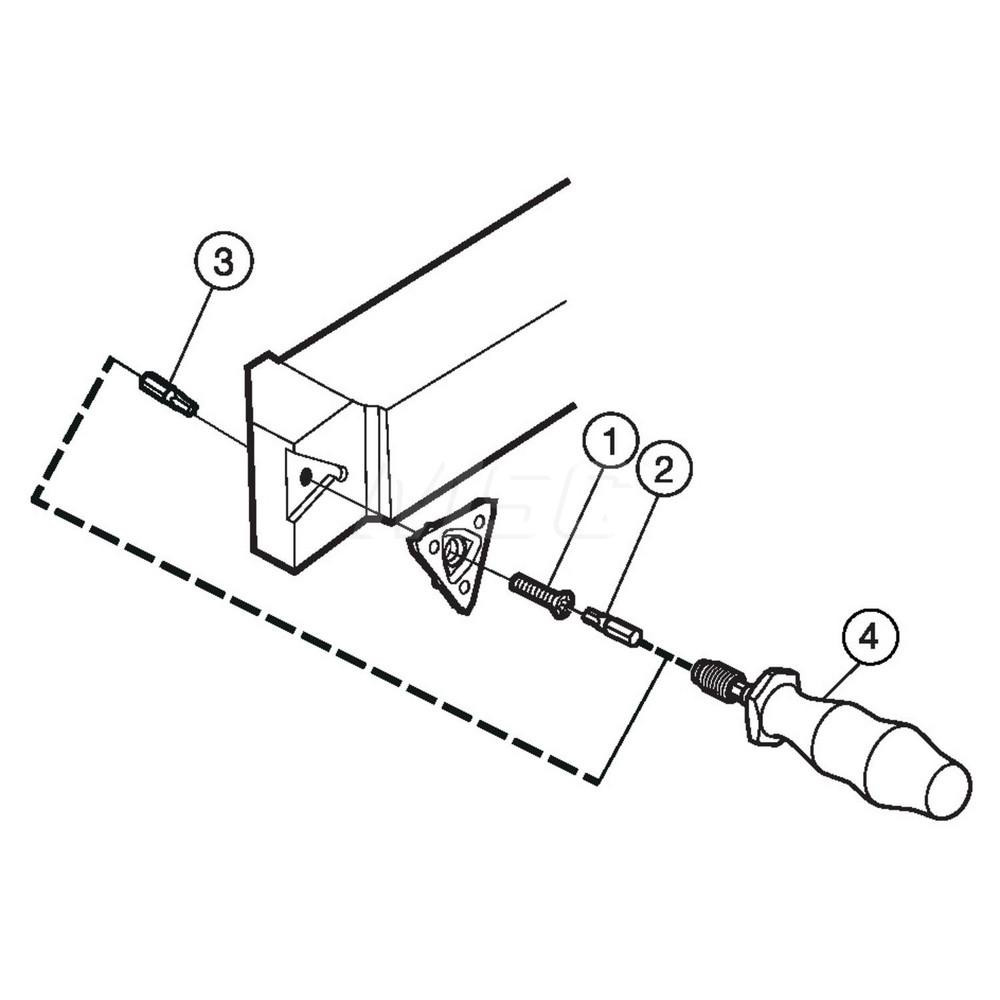

| Insert Holding Method | Screw; Clamp |
| Insert Compatibility | N123U3-0150- CM |
| Compatible Insert Size Code | N123U3 |

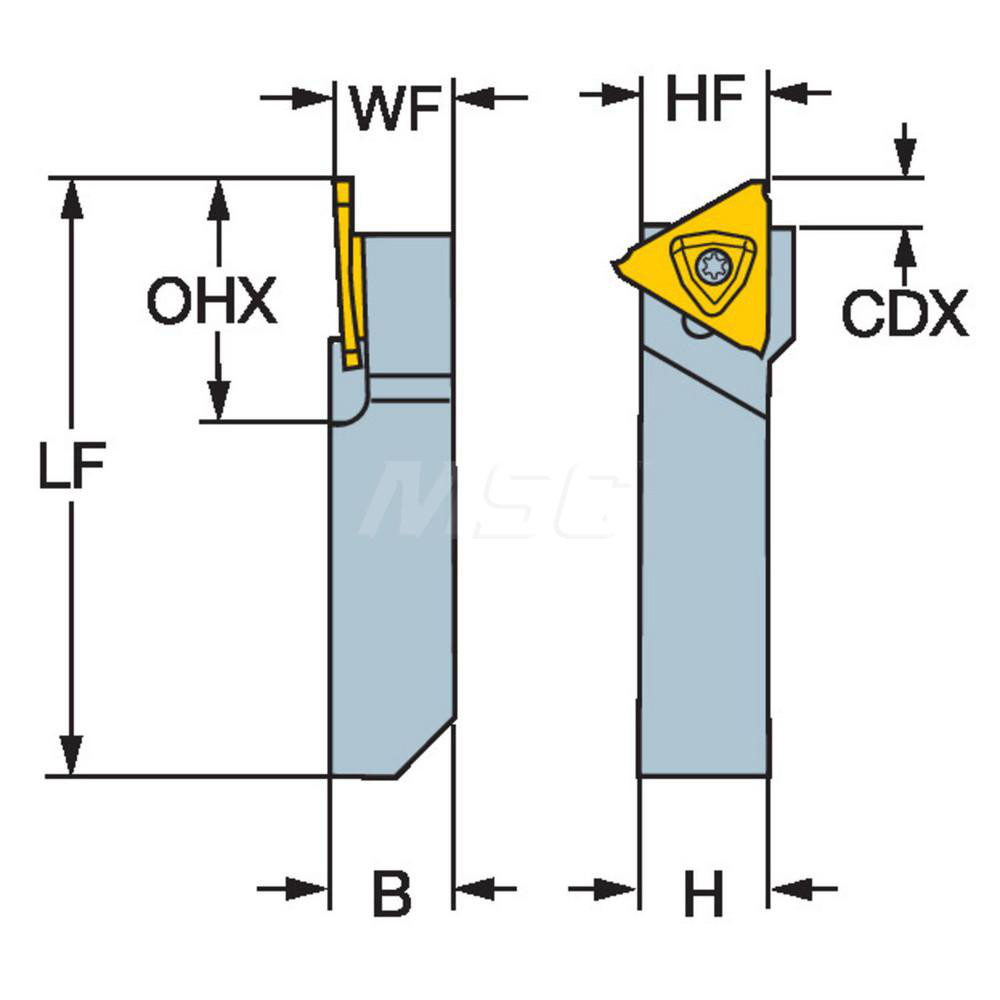

| Shank Height (mm) | 12.70 |
| Shank Height (Decimal Inch) | 0.5000 |
| Series | Coro Cut 3 |
| Overall Length (mm) | 69.85 |
| Overall Length (Decimal Inch) | 2.75 |
| Multi-use Tool | Yes |
| Maximum Workpiece Diameter (Decimal Inch) | 0.8661 |
| Maximum Workpiece Diameter (mm) | 22.00 |
| Maximum Overhang (Inch) | 1.2480 |
| Back of Bar to Cutting Edge (mm) | 69.85 |
| Back of Bar to Cutting Edge (Decimal Inch) | 2.7500 |
| Center to Cutting Edge (Decimal Inch) | 0.5000 |
| Center to Cutting Edge (mm) | 12.70 |
| Head Length (Decimal Inch) | 1.248 |
| Head Length (mm) | 31.70 |
| UNSPSC Code | 27112809 |
| Maximum Bore Depth (Decimal Inch) | 1.2480 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123U3-0150- CM |
| Coolant Through | No |
| Maximum Bore Depth (mm) | 31.70 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 49506322 |
