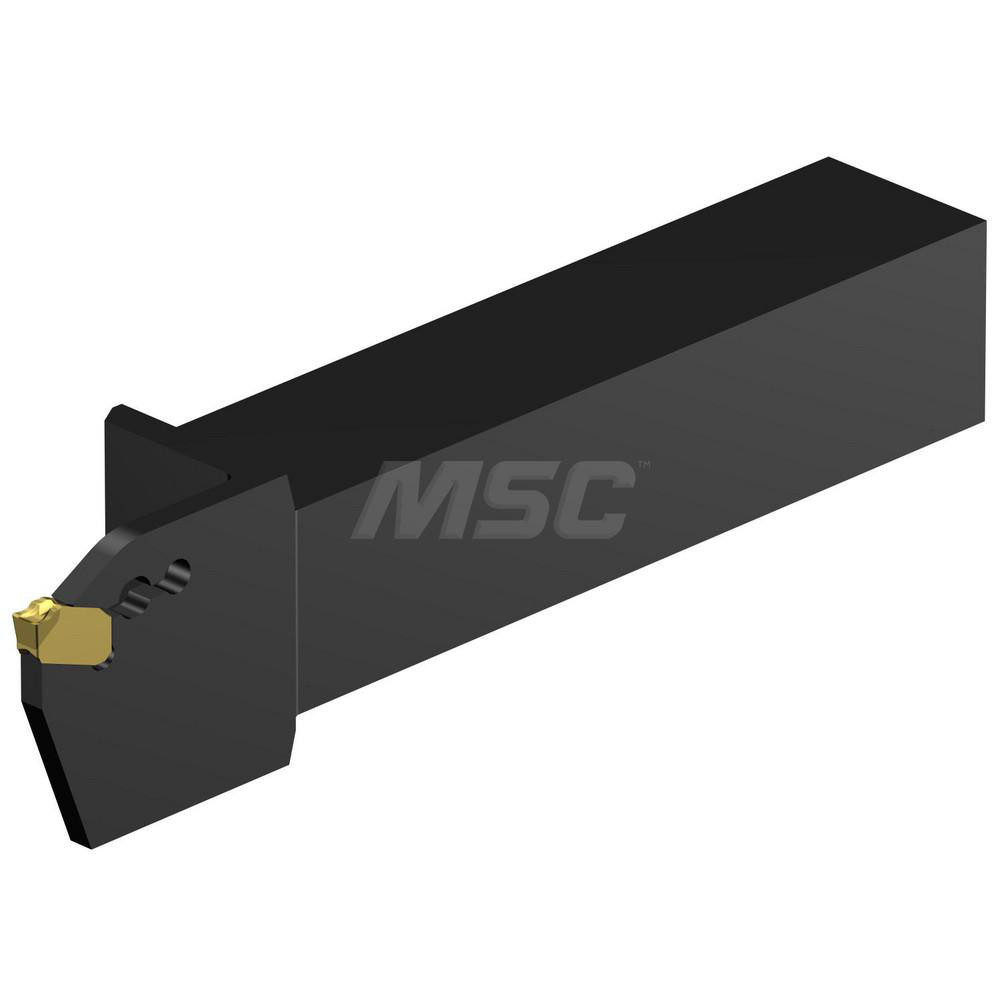

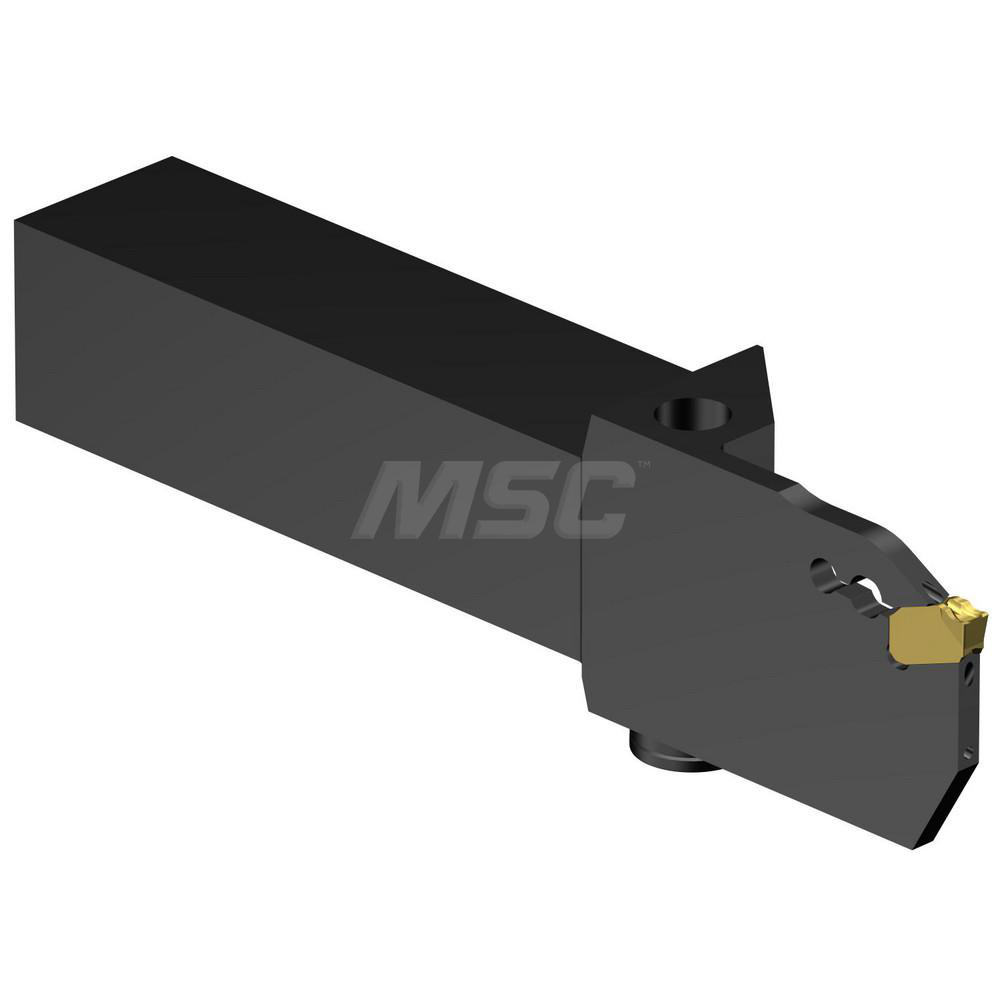

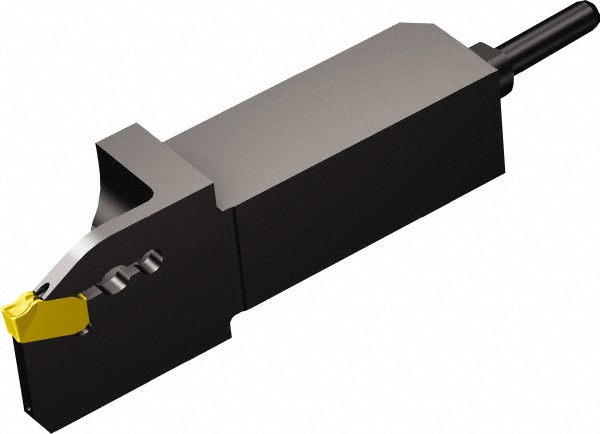

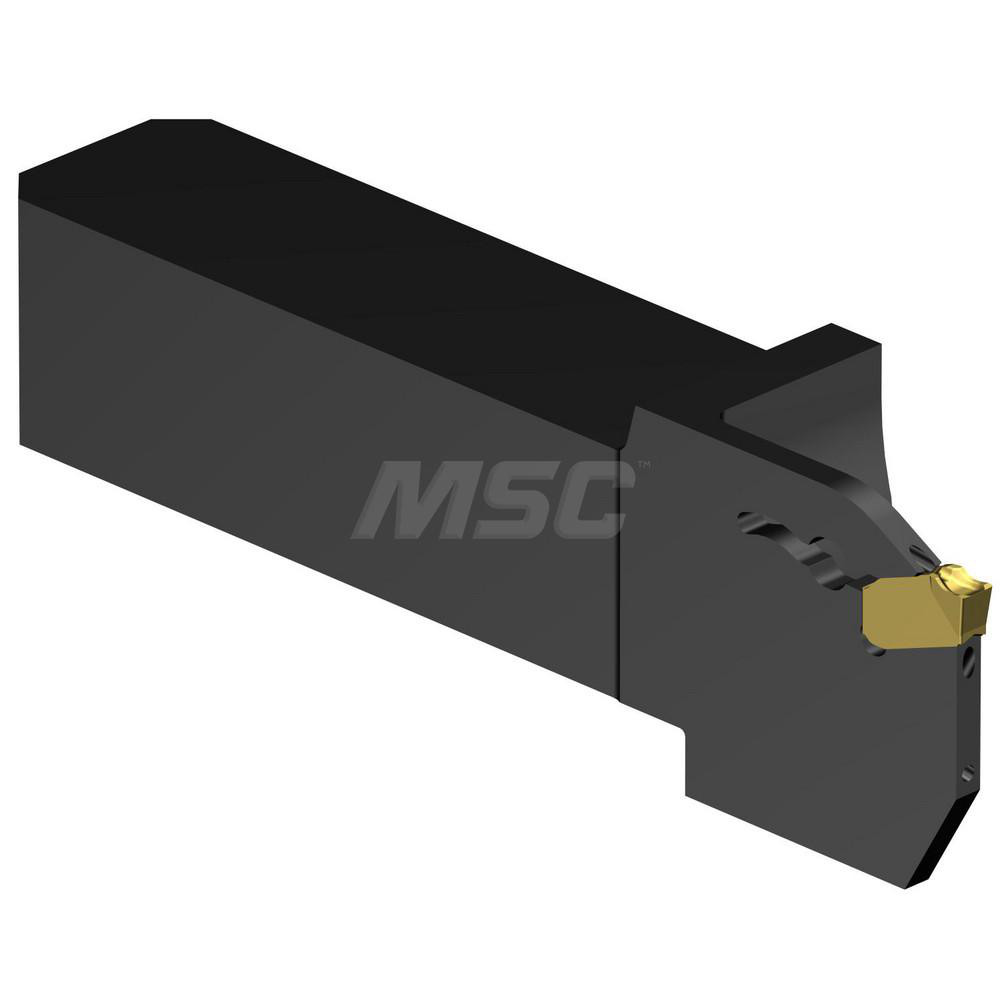

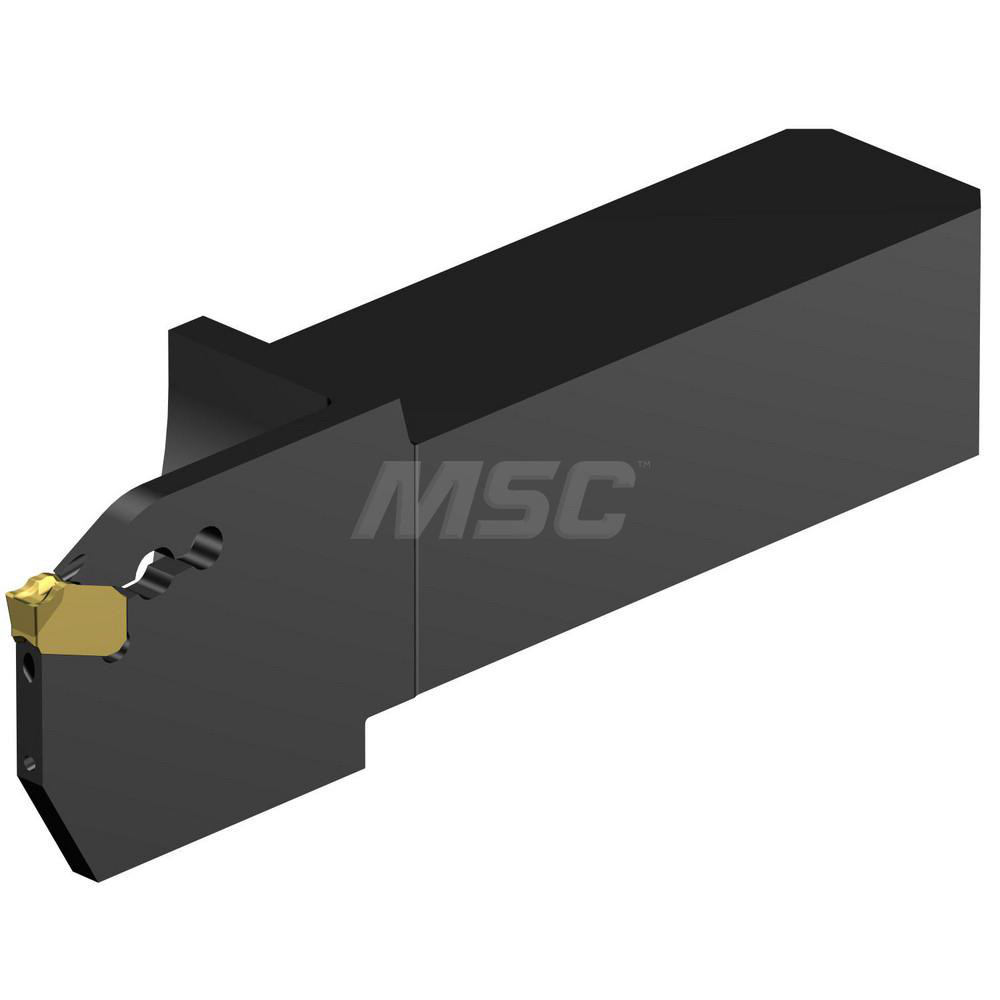

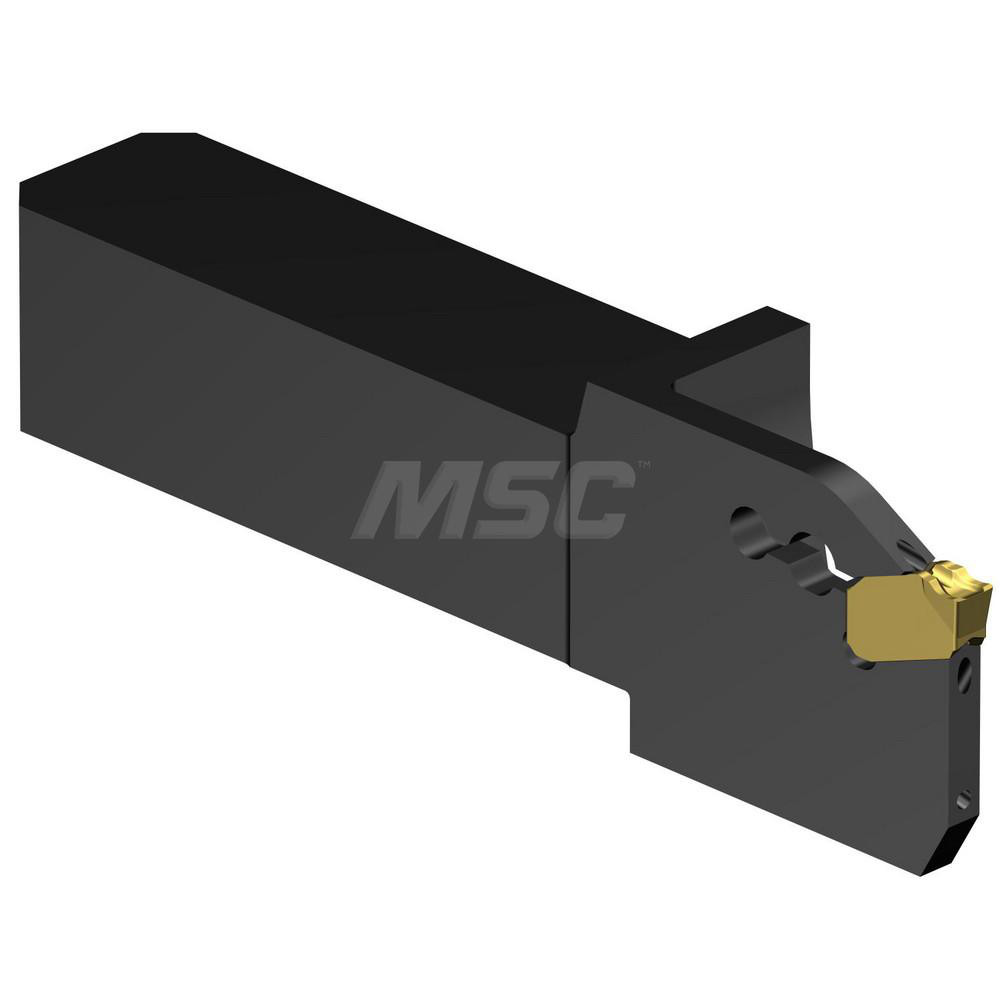

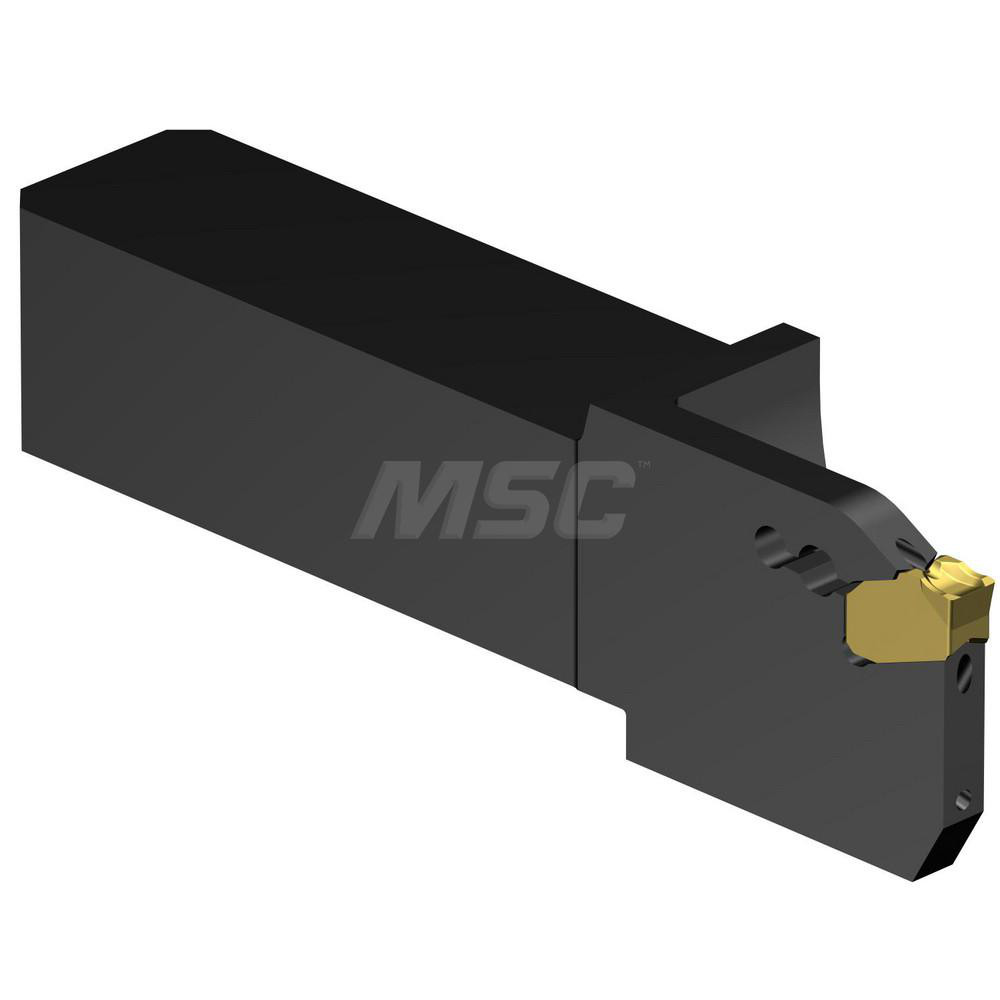

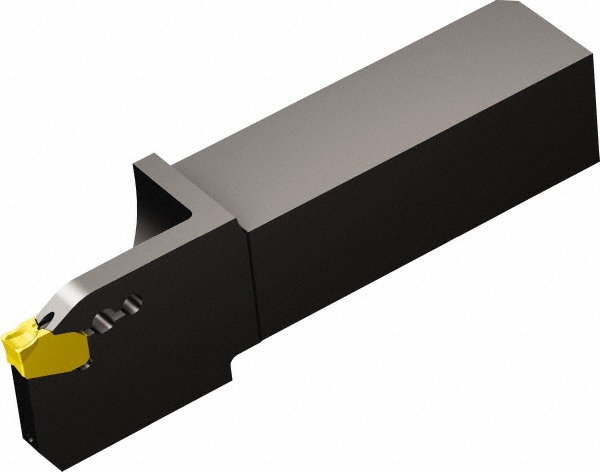

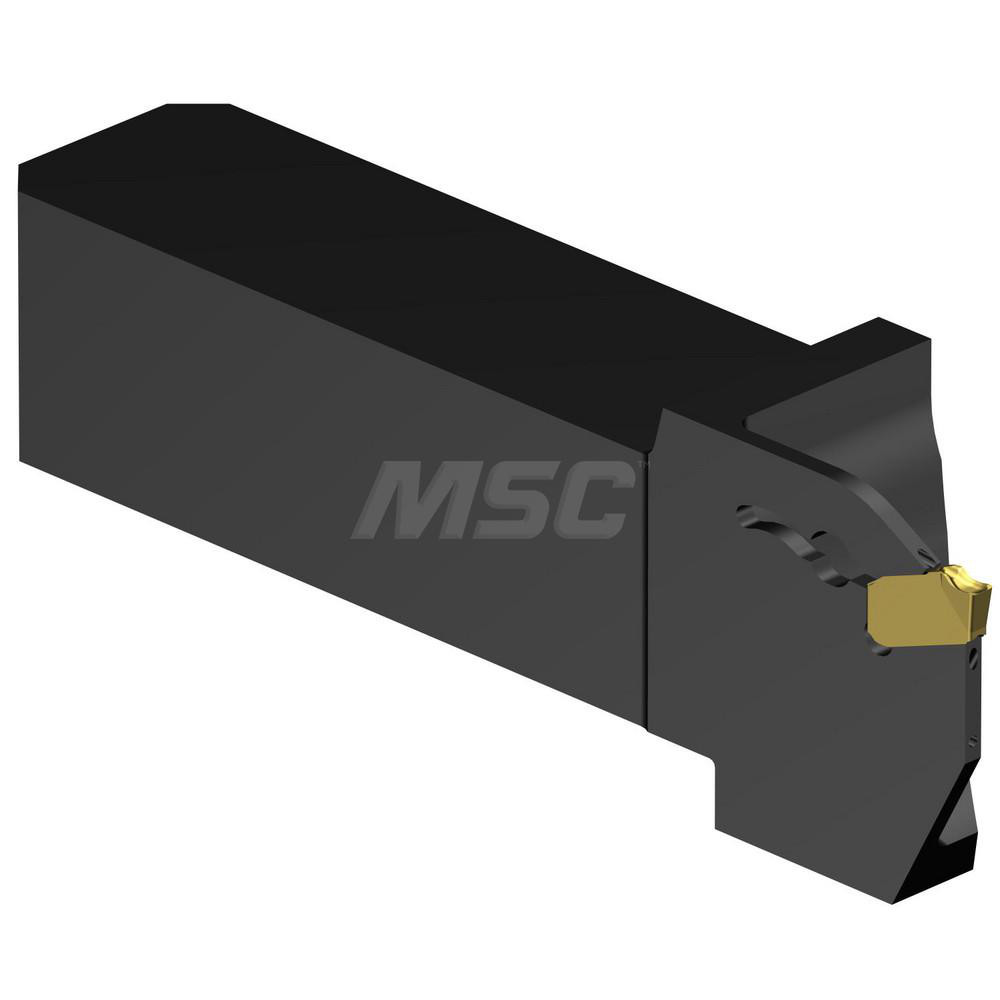

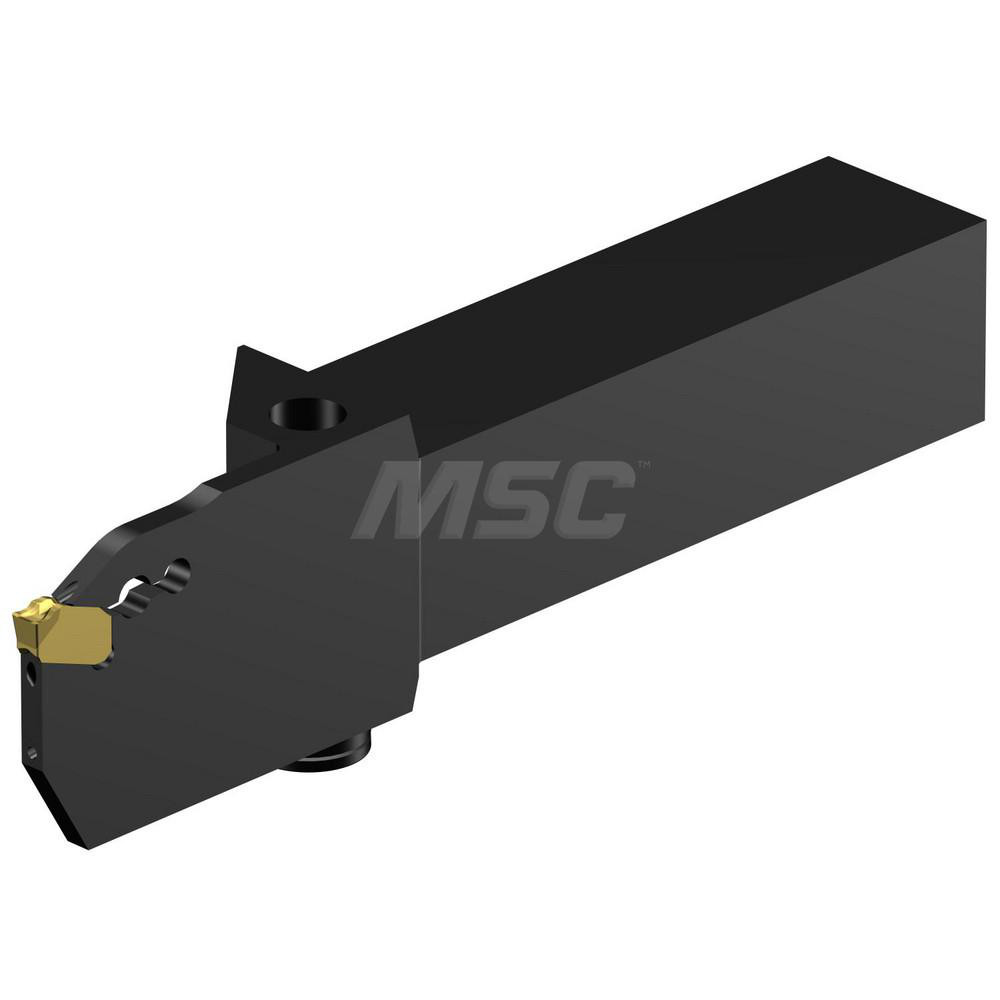

1.6" Max Depth of Cut, 1 x 1" Shank, Through Coolant, Uses N123F2 Inserts

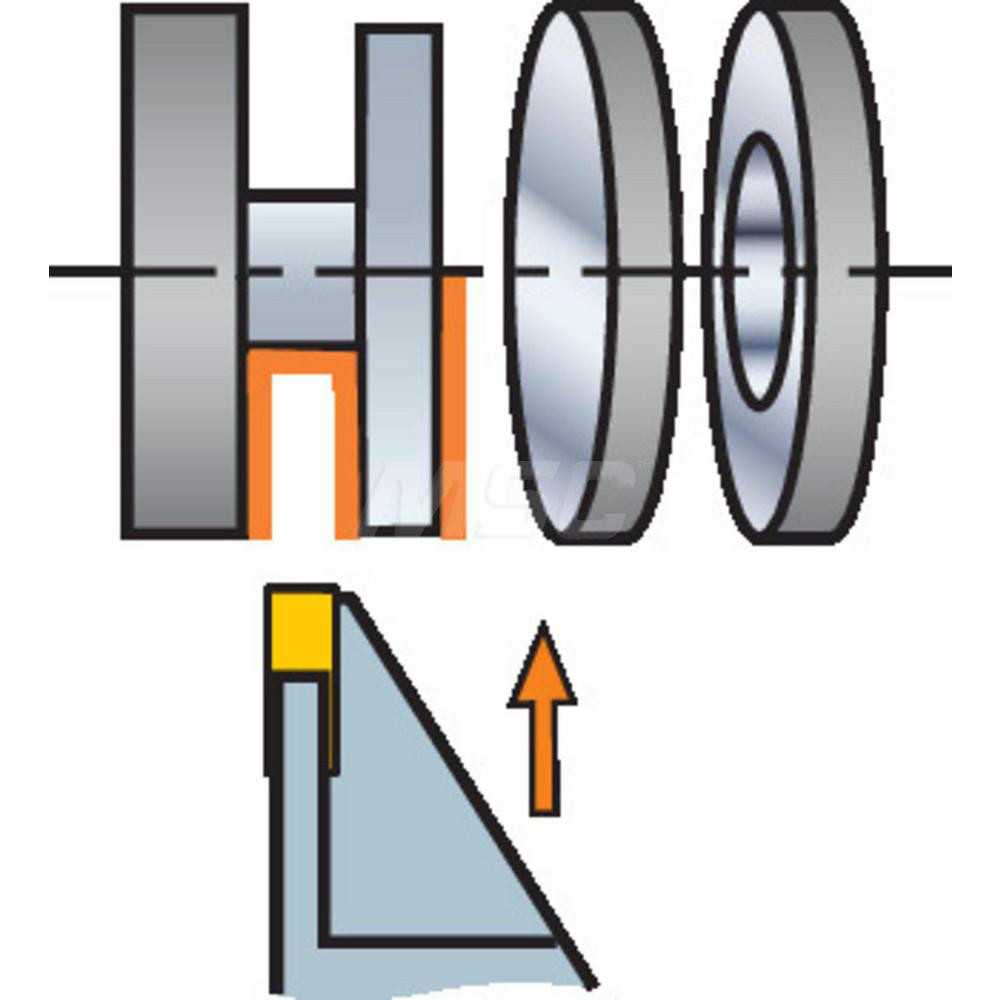

| Toolholder Type | External Grooving |
|---|---|
| Insert Seat Size | H |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.6000 |
| Toolholder Style | QSQD |
| Insert Holding Method | Clamp |

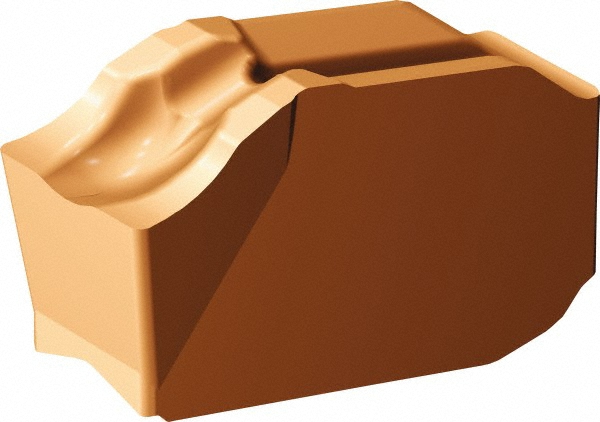

| Insert Compatibility | QD-NH-0400-0002-CM |
| Compatible Insert Size Code | N123F2 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | Coro Cut QD |
| Overall Length (Decimal Inch) | 4.9685 |
| Multi-use Tool | Yes |
| Maximum Workpiece Diameter (Decimal Inch) | 3.2000 |
| Maximum Overhang (Inch) | 2.6629 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.9685 |
| Head Length (Decimal Inch) | 1.663 |
| UNSPSC Code | 27112809 |
| Manufacturers Catalog Number | 6427661 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | QD-NH-0400-0002-CM |
| Coolant Through | Yes |
| Country of Origin | Sweden |
| MSC Number | MSC# 54937073 |
