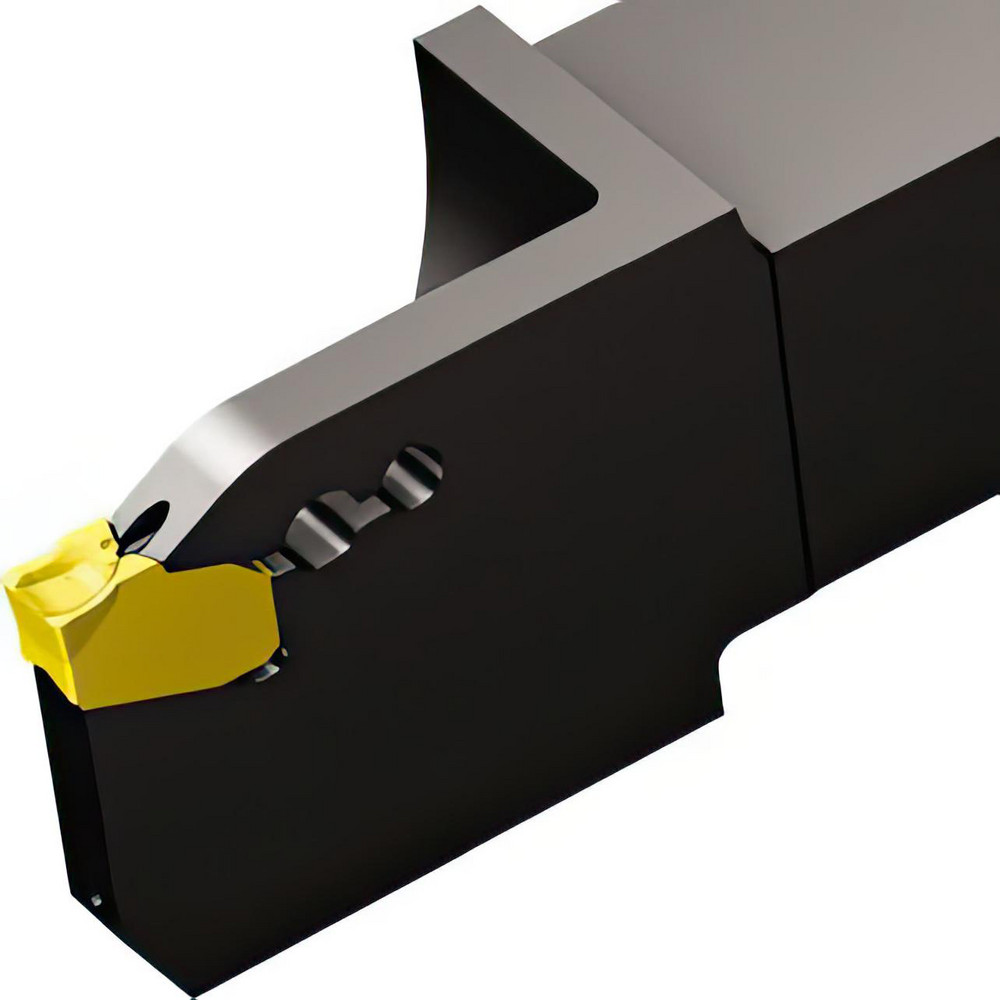

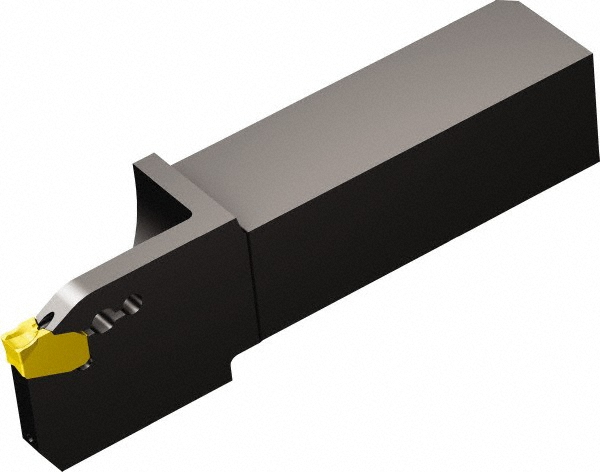

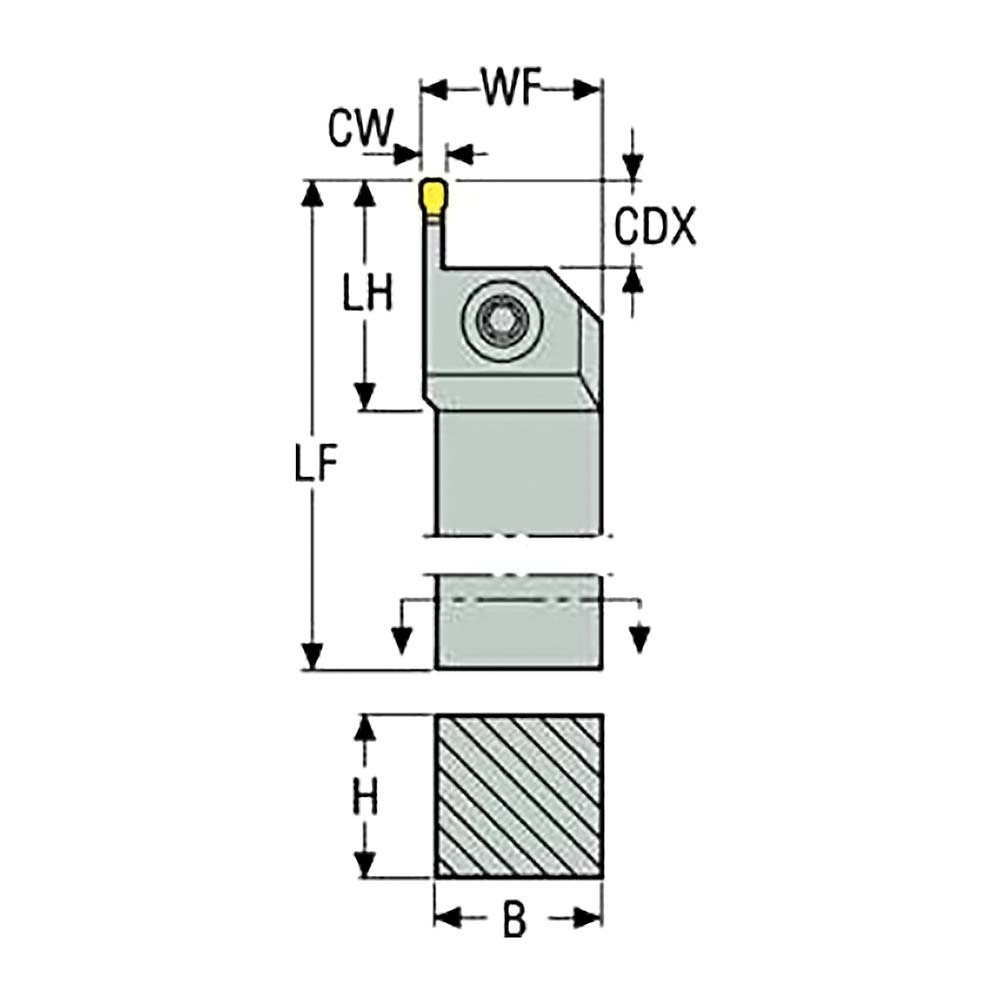

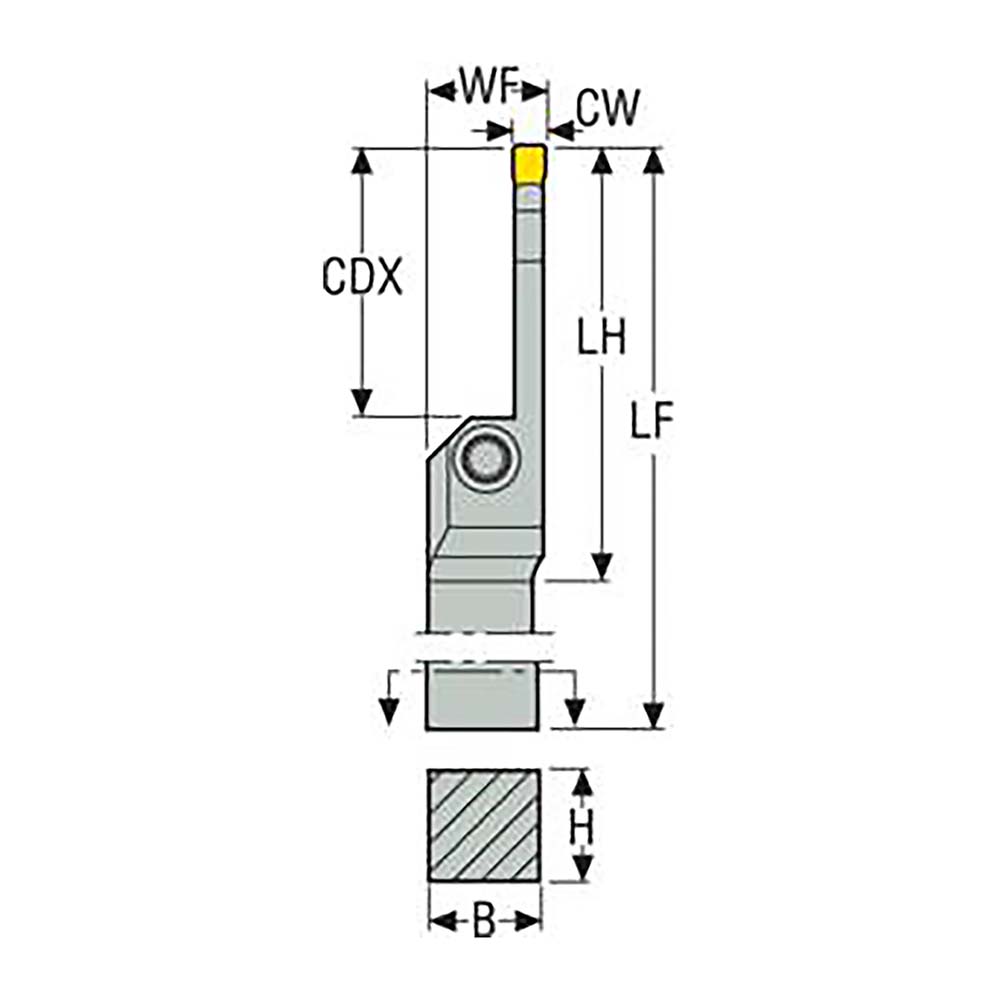

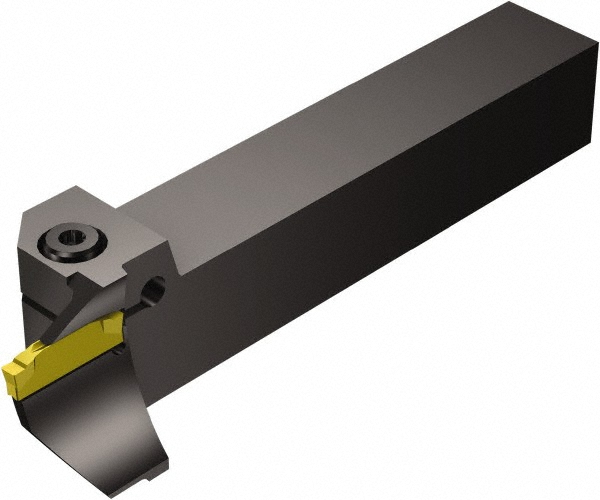

40 mm Max Depth of Cut, 25 x 25 mm Shank, Through Coolant
| Toolholder Type | External Grooving |
|---|---|
| Insert Seat Size | J |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.5748 |
| Maximum Depth of Cut (mm) | 40.00 |
| Toolholder Style | QS-QD-R/LF..C..D |
| Insert Compatibility | QD-NJ-0500-0002-CM |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Series | Coro Cut QD |
| Overall Length (mm) | 125.6 |
| Overall Length (Decimal Inch) | 4.9449 |
| Maximum Workpiece Diameter (Decimal Inch) | 3.1496 |
| Maximum Workpiece Diameter (mm) | 80.00 |
| Back of Bar to Cutting Edge (mm) | 125.60 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.9449 |
| Center to Cutting Edge (Decimal Inch) | 1.0039 |
| Center to Cutting Edge (mm) | 25.50 |
| Head Length (Decimal Inch) | 2.6221 |
| Head Length (mm) | 66.60 |
| UNSPSC Code | 23153308 |
| Maximum Bore Depth (Decimal Inch) | 2.6221 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | QD-NJ-0500-0002-CM |
| Coolant Through | Yes |
| Maximum Bore Depth (mm) | 66.60 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 49547011 |
