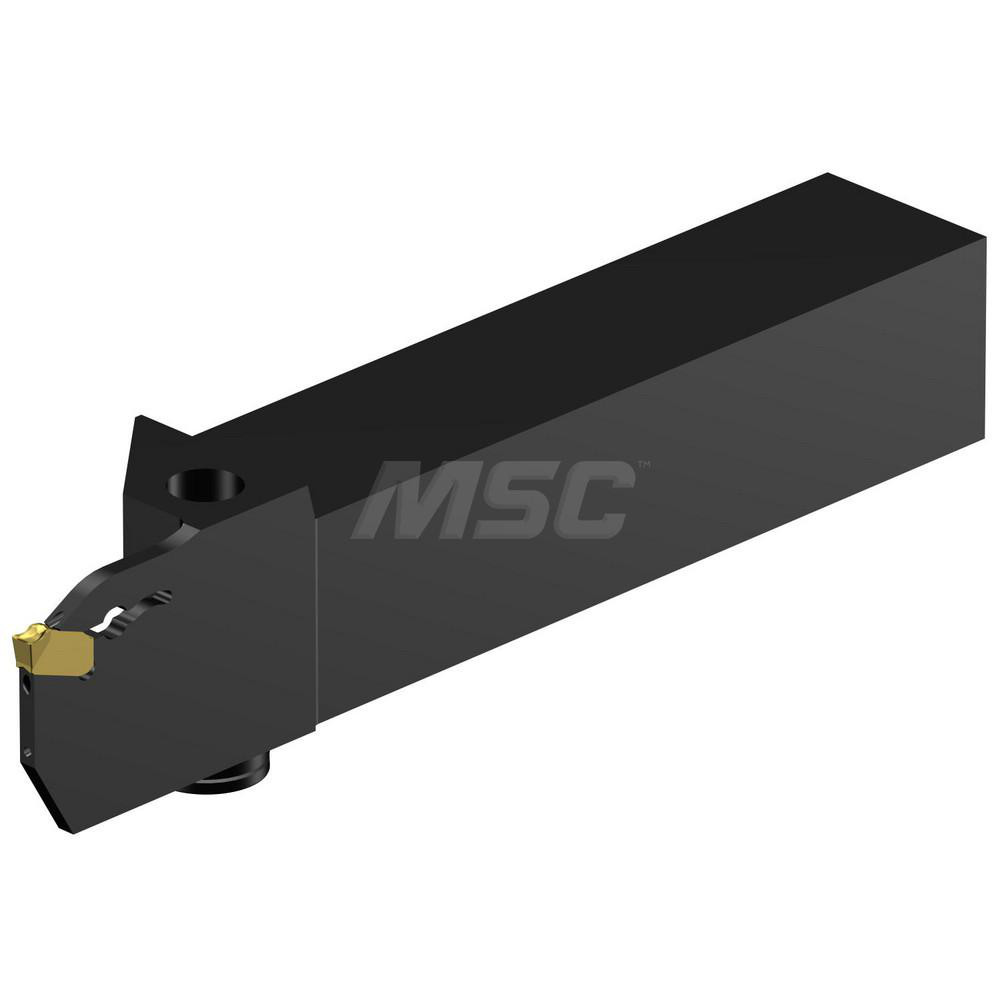

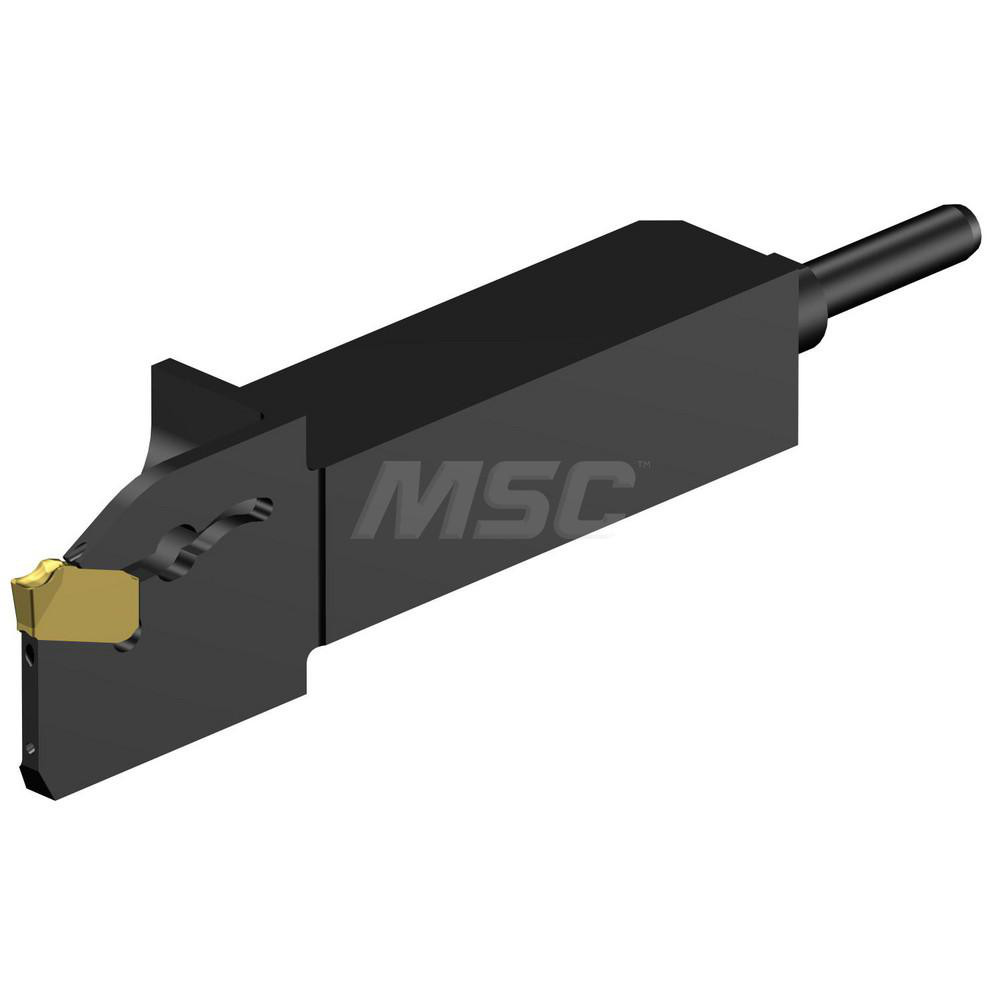

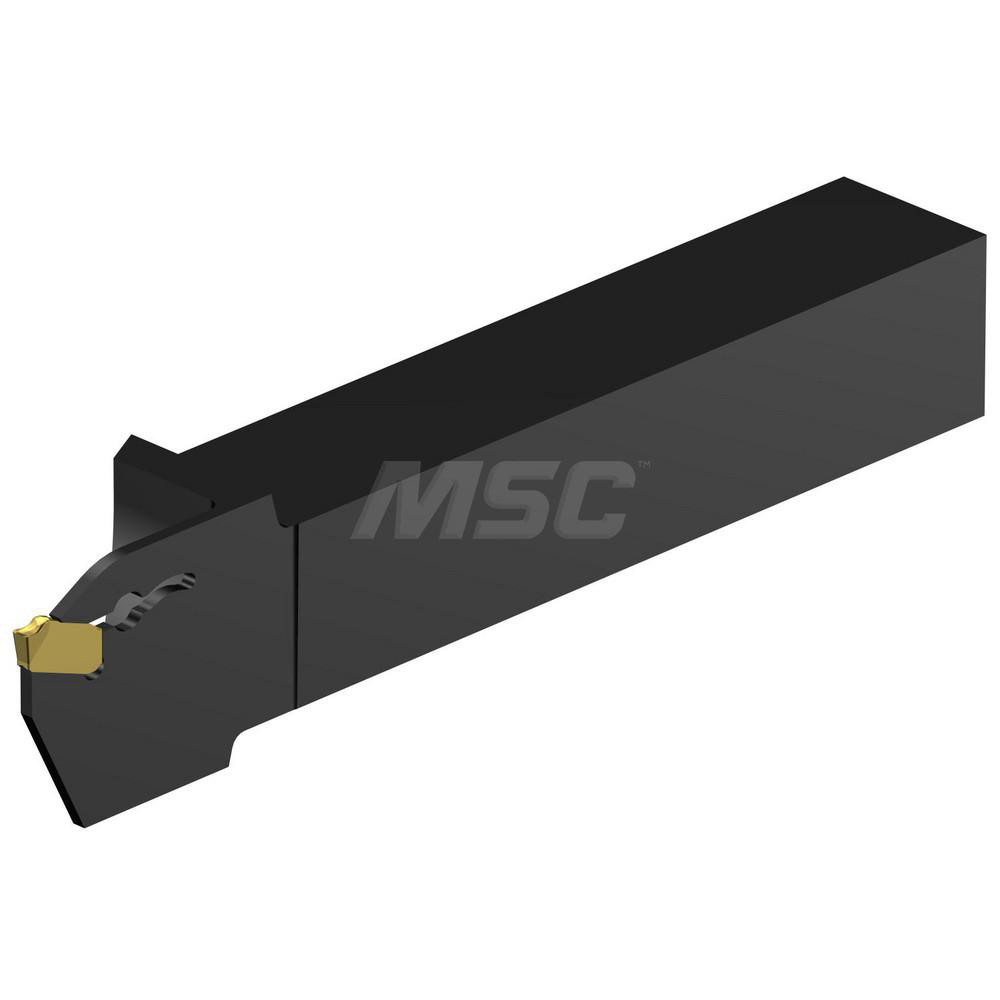

1" Max Depth of Cut, 1/2 x 1/2" Shank, Through Coolant, Uses N123T3 Inserts
| Toolholder Type | External Grooving |
|---|---|
| Insert Seat Size | E |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.0000 |
| Toolholder Style | QS-QD |
| Maximum Groove Width (Decimal Inch) | 1.0000 |
| Insert Holding Method | Clamp |
| Insert Compatibility | QD-NE |

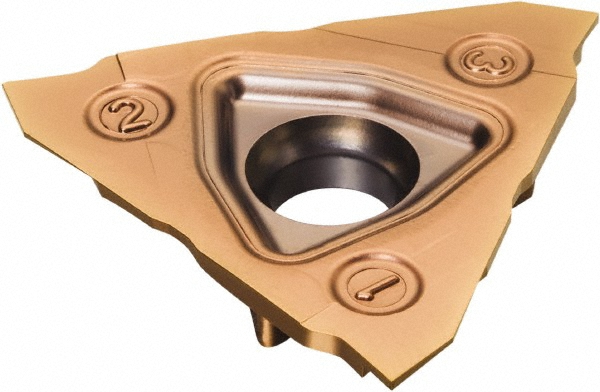

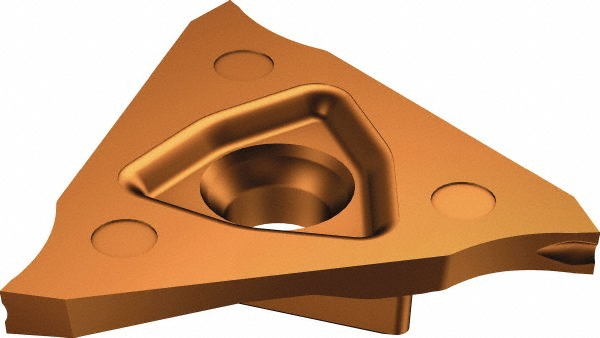

| Compatible Insert Size Code | N123T3 |
| Shank Height (mm) | 12.70 |
| Shank Height (Decimal Inch) | 0.5000 |
| Series | Coro Cut QD |
| Overall Length (Decimal Inch) | 1 |
| Multi-use Tool | Yes |
| Maximum Overhang (Inch) | 0.9842 |
| Back of Bar to Cutting Edge (mm) | 70.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 2.7559 |
| Head Height (Inch) | 1/2 |
| UNSPSC Code | 27112809 |
| Coolant Through | Yes |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 38840153 |
