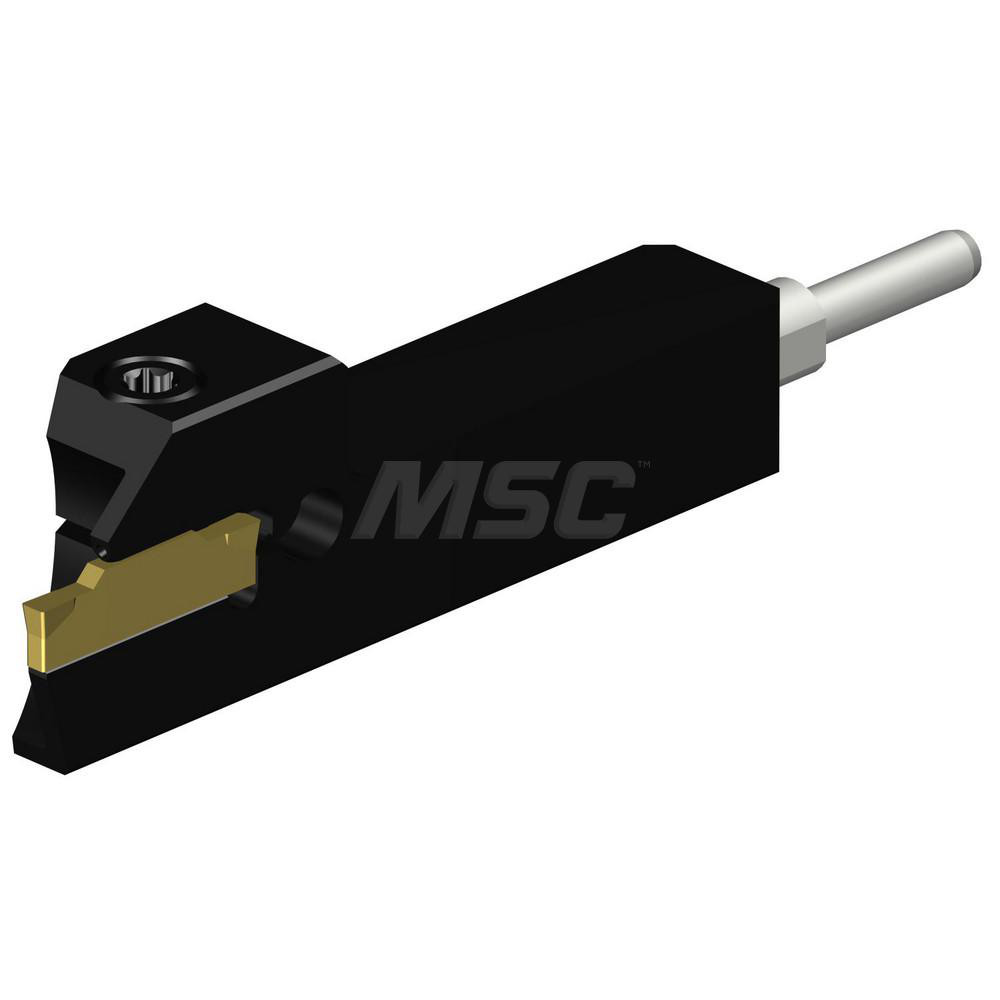

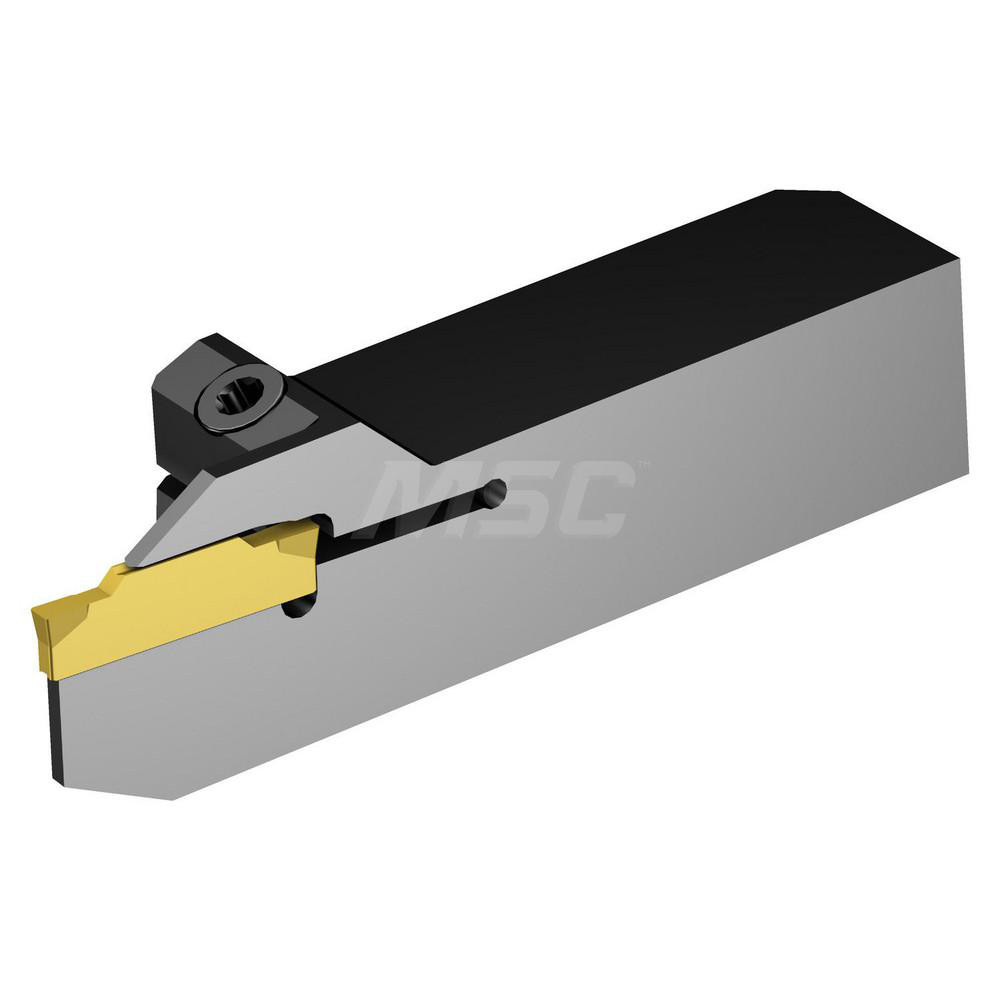

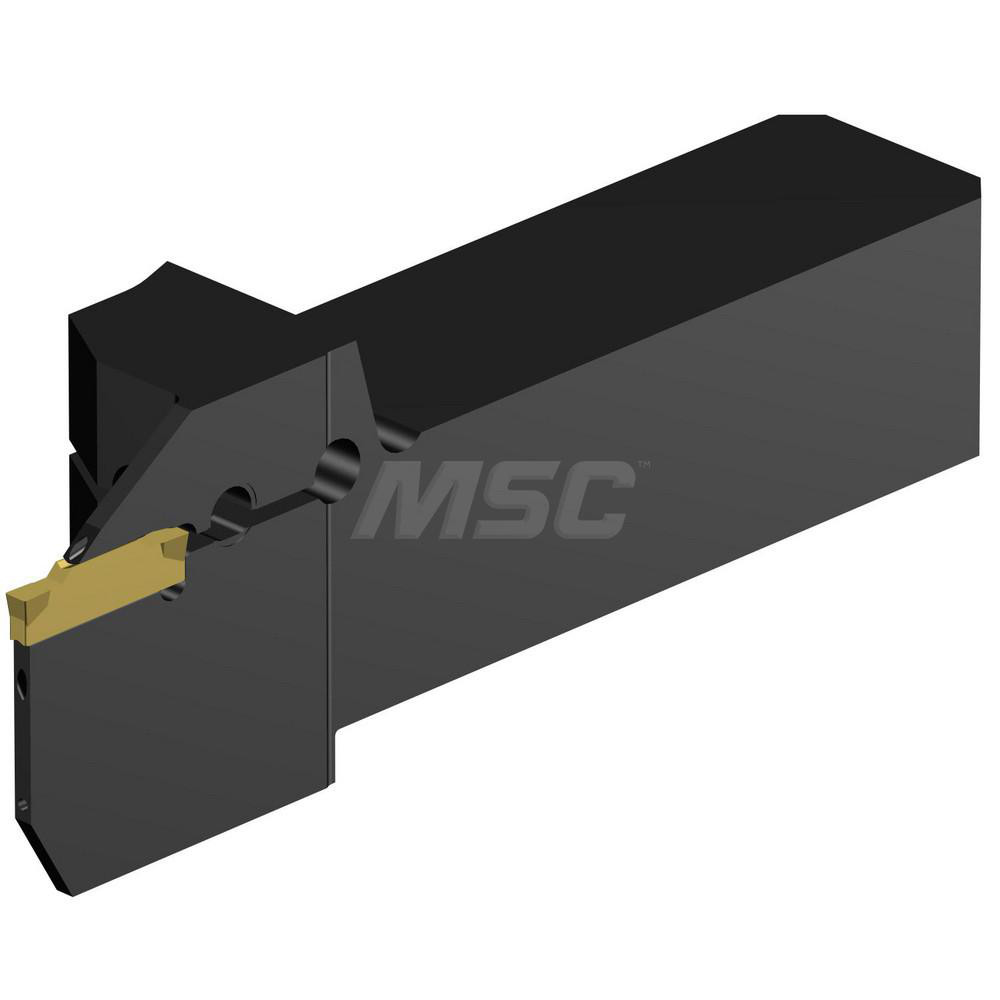

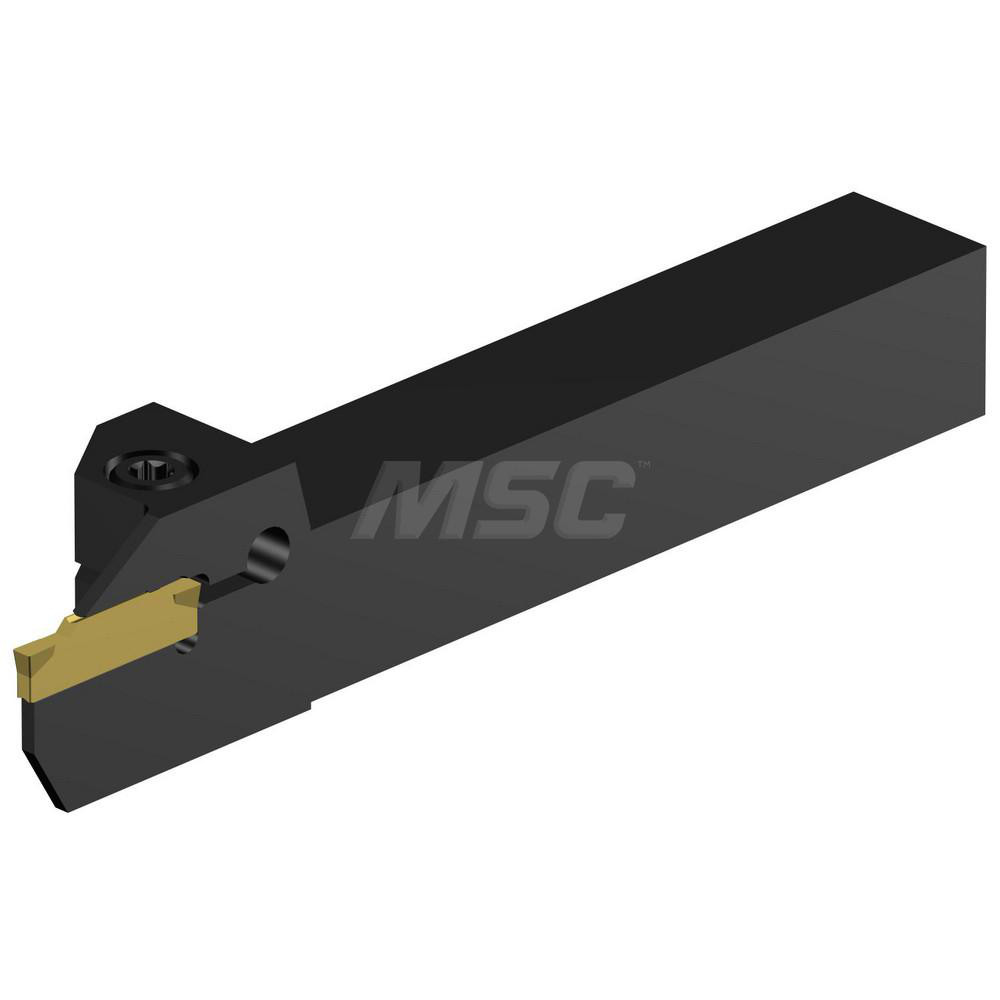

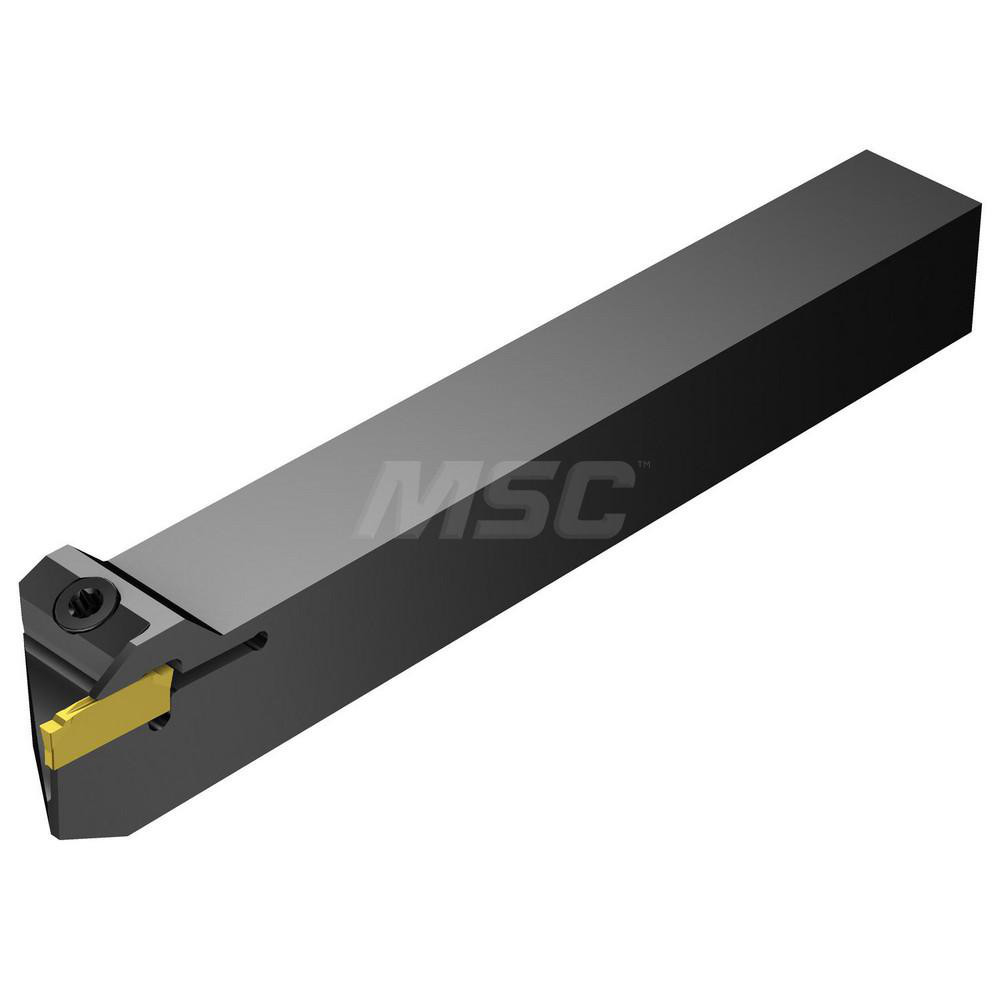

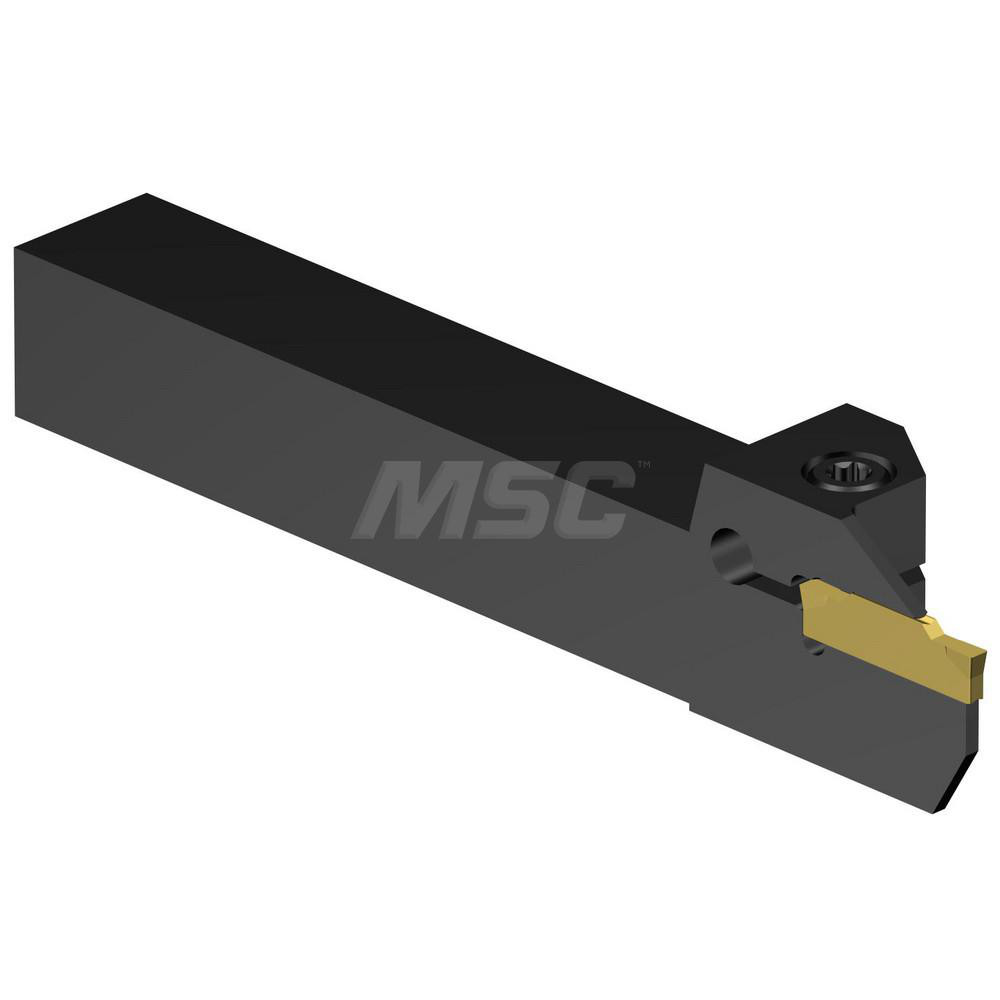

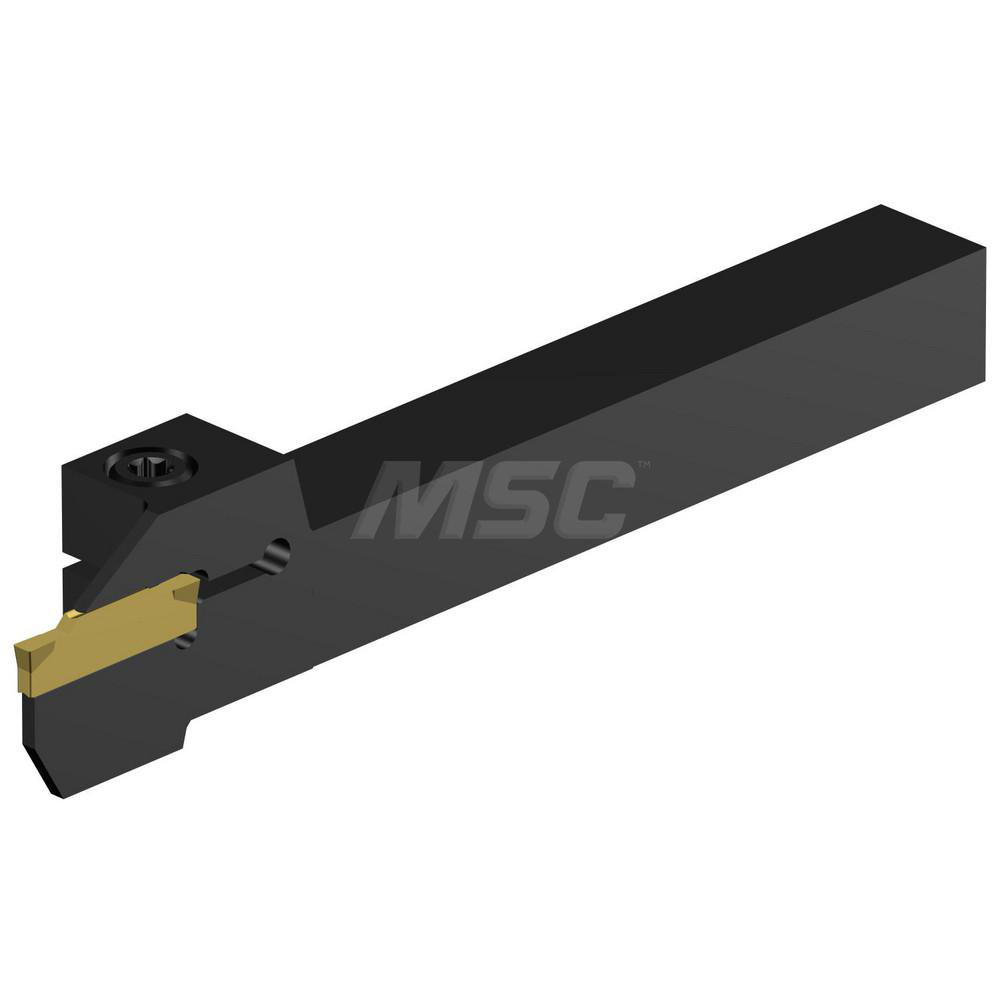

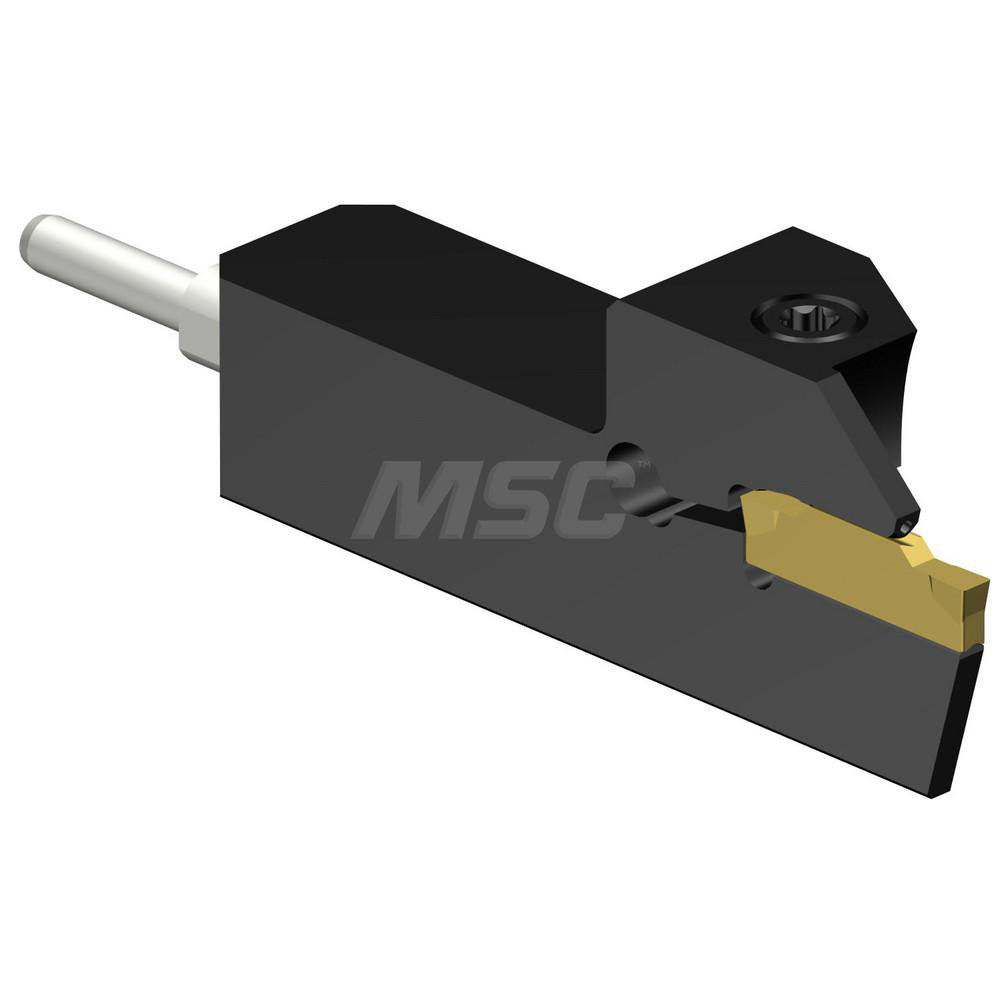

15 mm Max Depth of Cut, 1/2 x 1/2" Shank, Uses N123F2 Inserts
| Insert Seat Size | F |
|---|---|
| Hand of Holder | Right Hand |

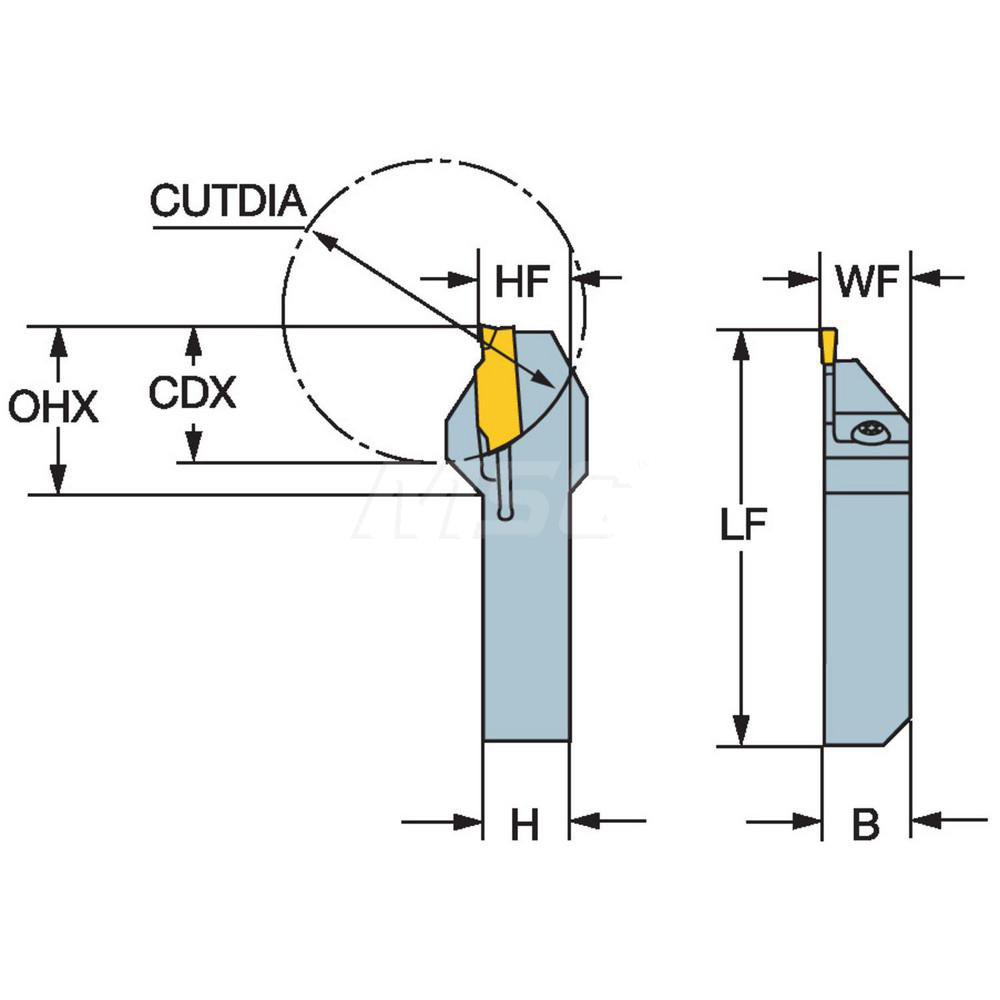

| Maximum Depth of Cut (Decimal Inch) | 0.5900 |
| Maximum Depth of Cut (mm) | 15.00 |
| Toolholder Style | QS |

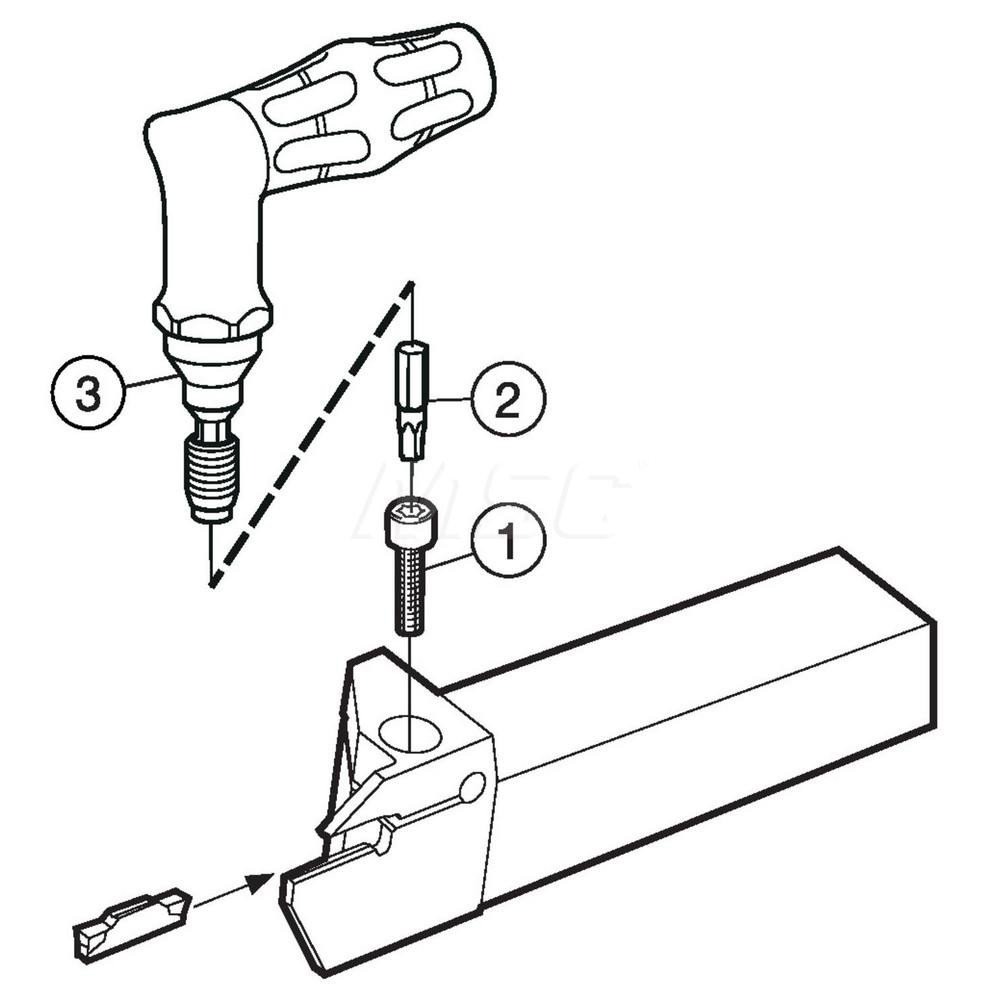

| Insert Holding Method | Clamp |
| Insert Compatibility | N123F2-0250-0002-CM |
| Compatible Insert Size Code | N123F2 |
| Shank Height (mm) | 12.70 |
| Shank Height (Decimal Inch) | 0.5000 |
| Series | Coro Cut 1-2 |
| Overall Length (Decimal Inch) | 2.7559 |
| Multi-use Tool | Yes |
| Maximum Workpiece Diameter (Decimal Inch) | 1.1800 |
| Maximum Overhang (Inch) | 1.0466 |
| Back of Bar to Cutting Edge (Decimal Inch) | 2.7559 |
| UNSPSC Code | 27112809 |
| Manufacturers Catalog Number | 5926278 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123F2 0250-0002-CM |
| Coolant Through | No |
| Country of Origin | Sweden |
| MSC Number | MSC# 54925441 |
