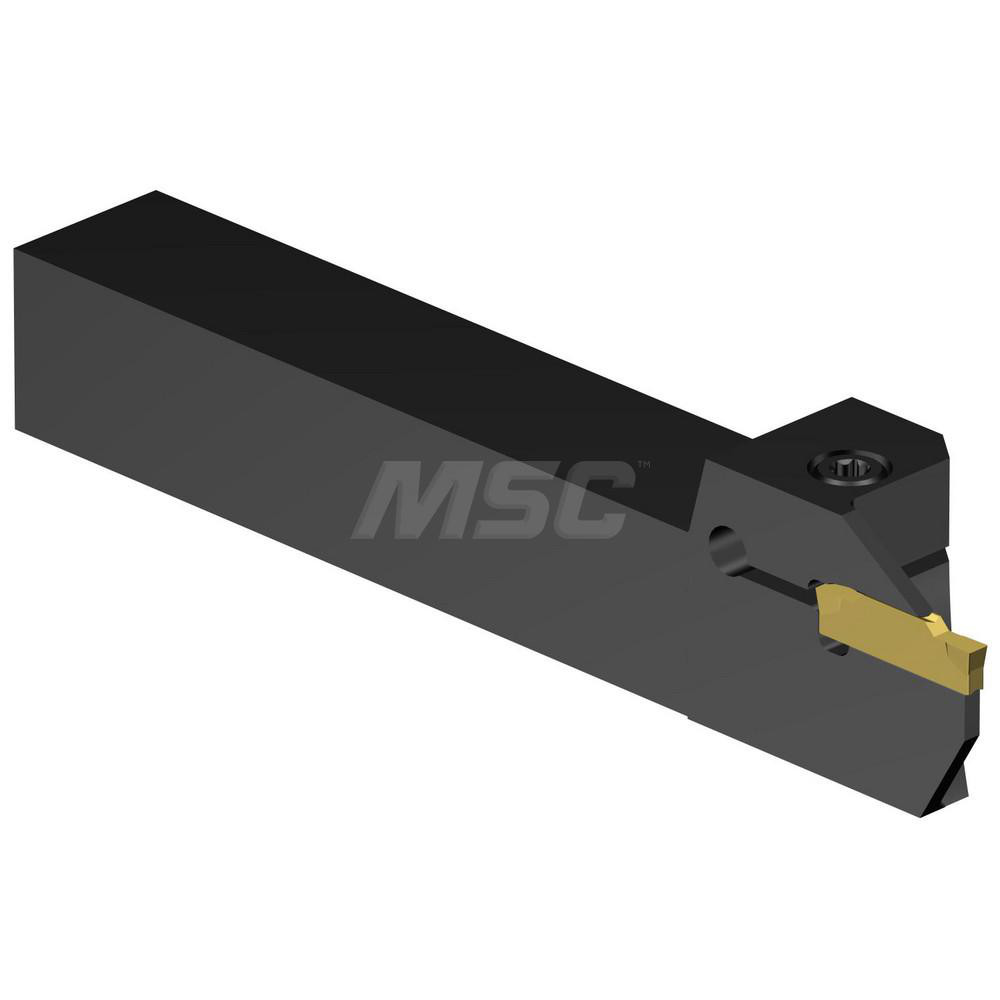

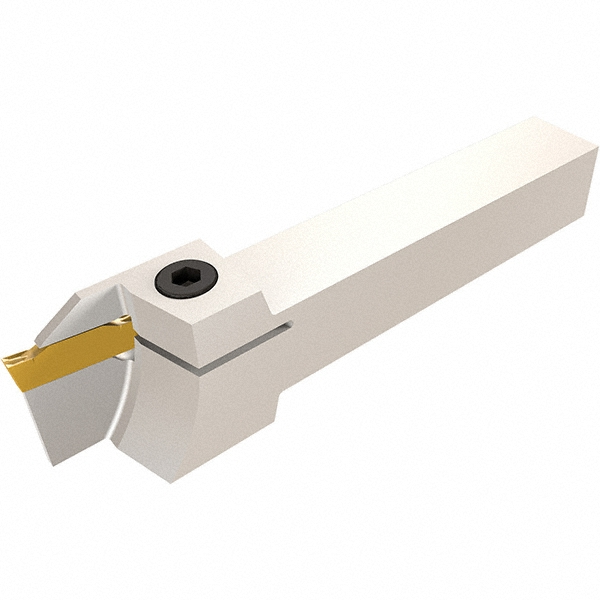

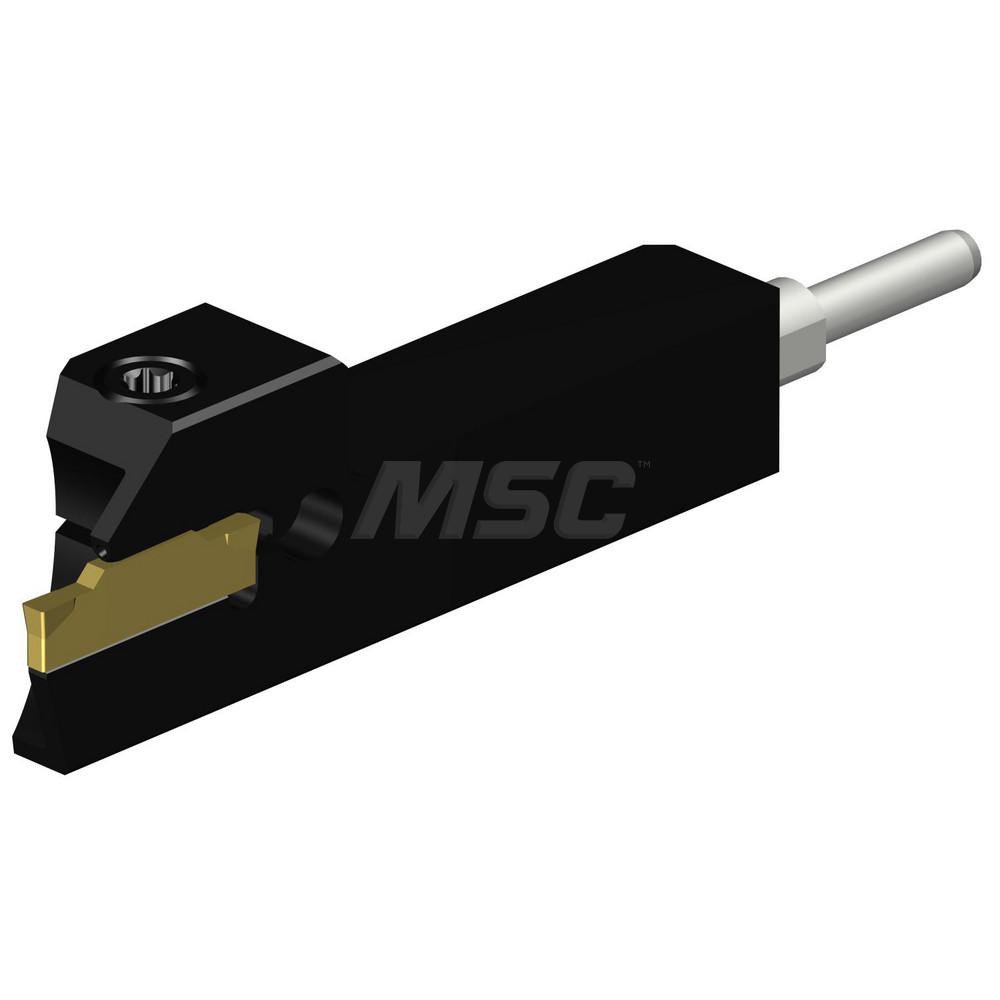

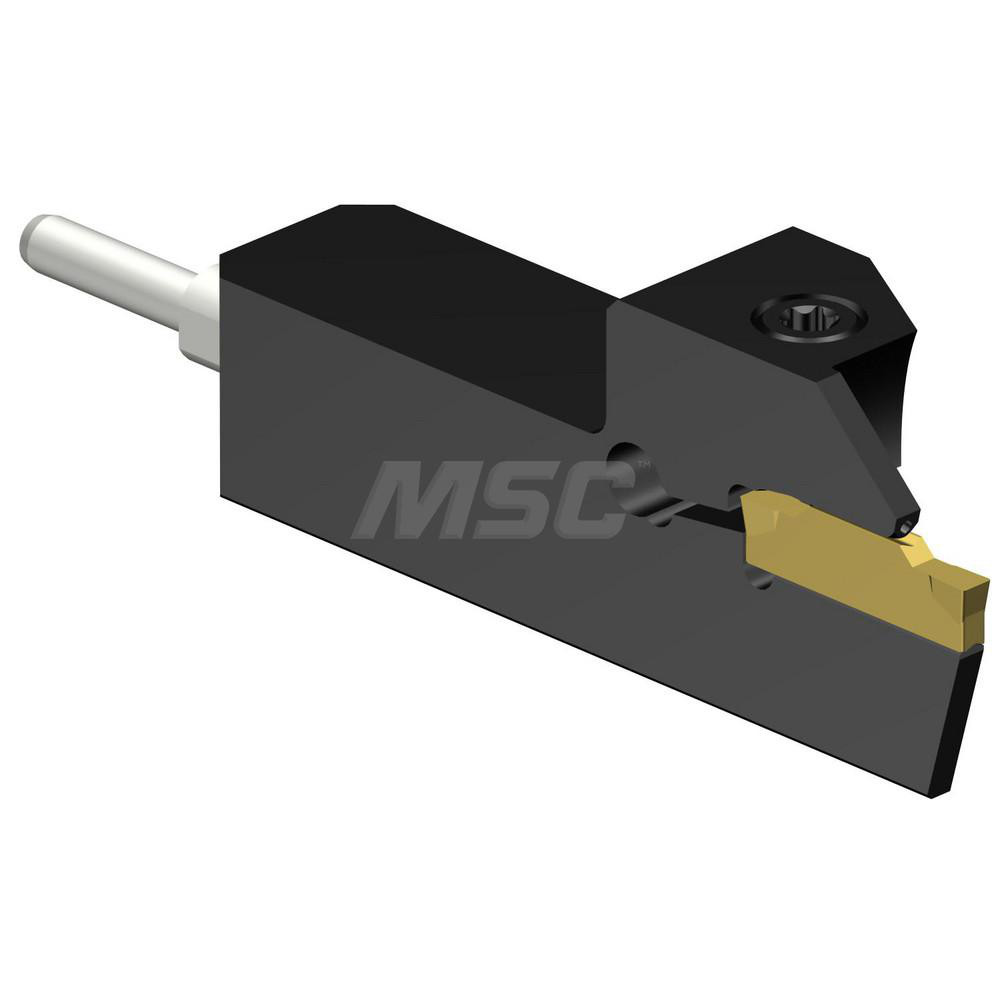

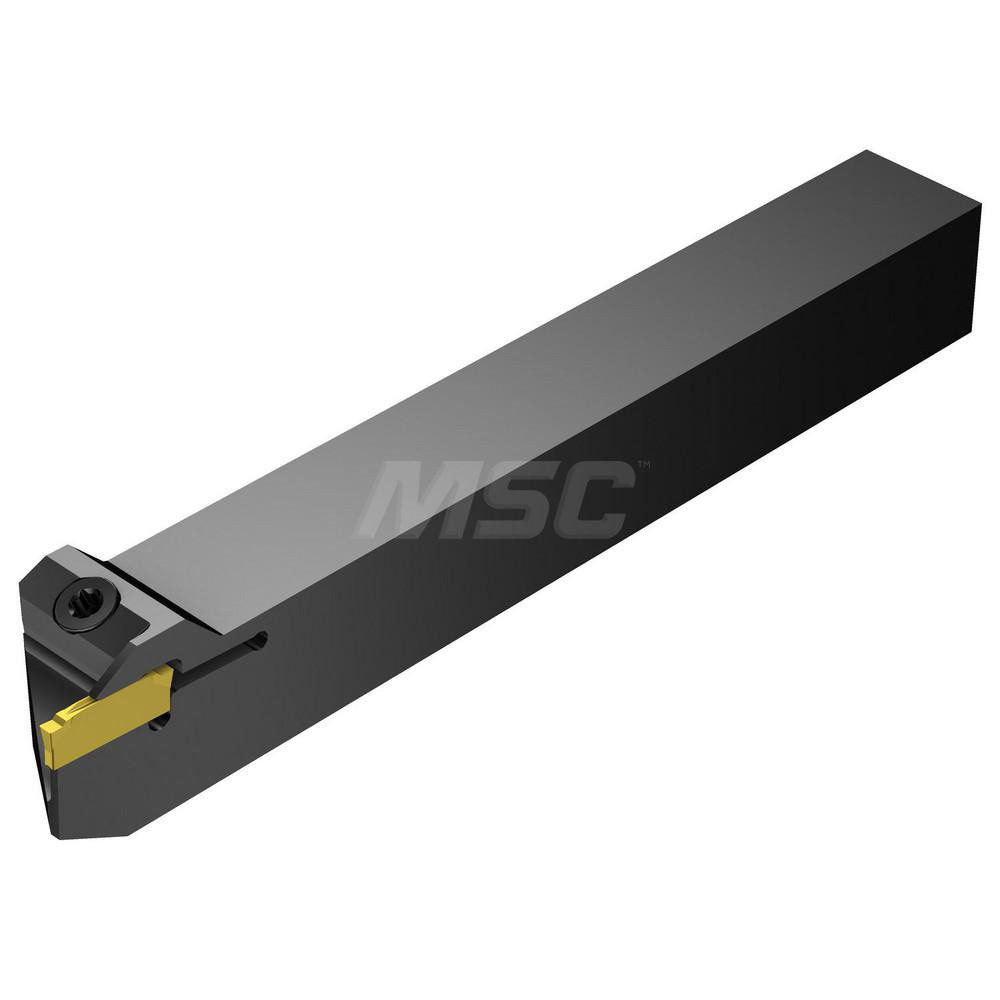

17 mm Max Depth of Cut, 5/8 x 5/8" Shank, Through Coolant, Uses N123F2 Inserts
| Insert Seat Size | F |
|---|---|
| Hand of Holder | Right Hand |

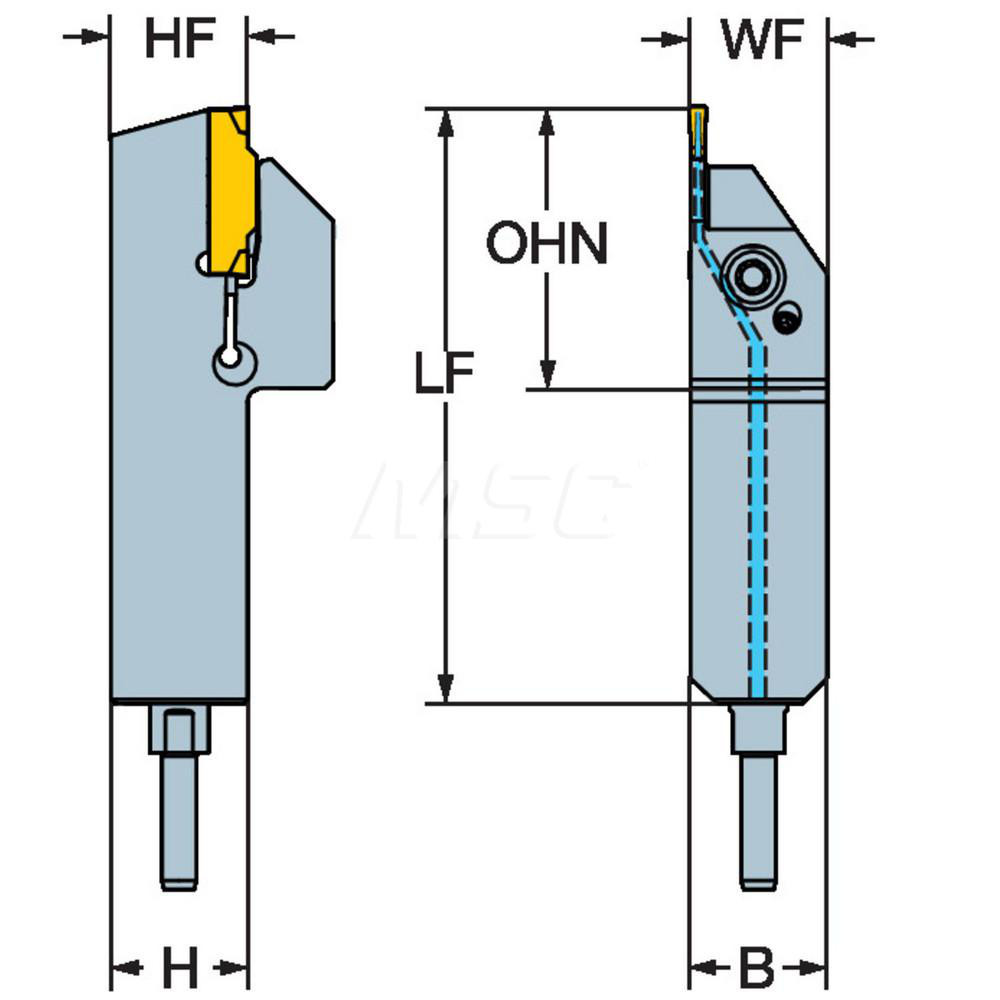

| Maximum Depth of Cut (Decimal Inch) | 0.6700 |
| Maximum Depth of Cut (mm) | 17.00 |
| Toolholder Style | QS |

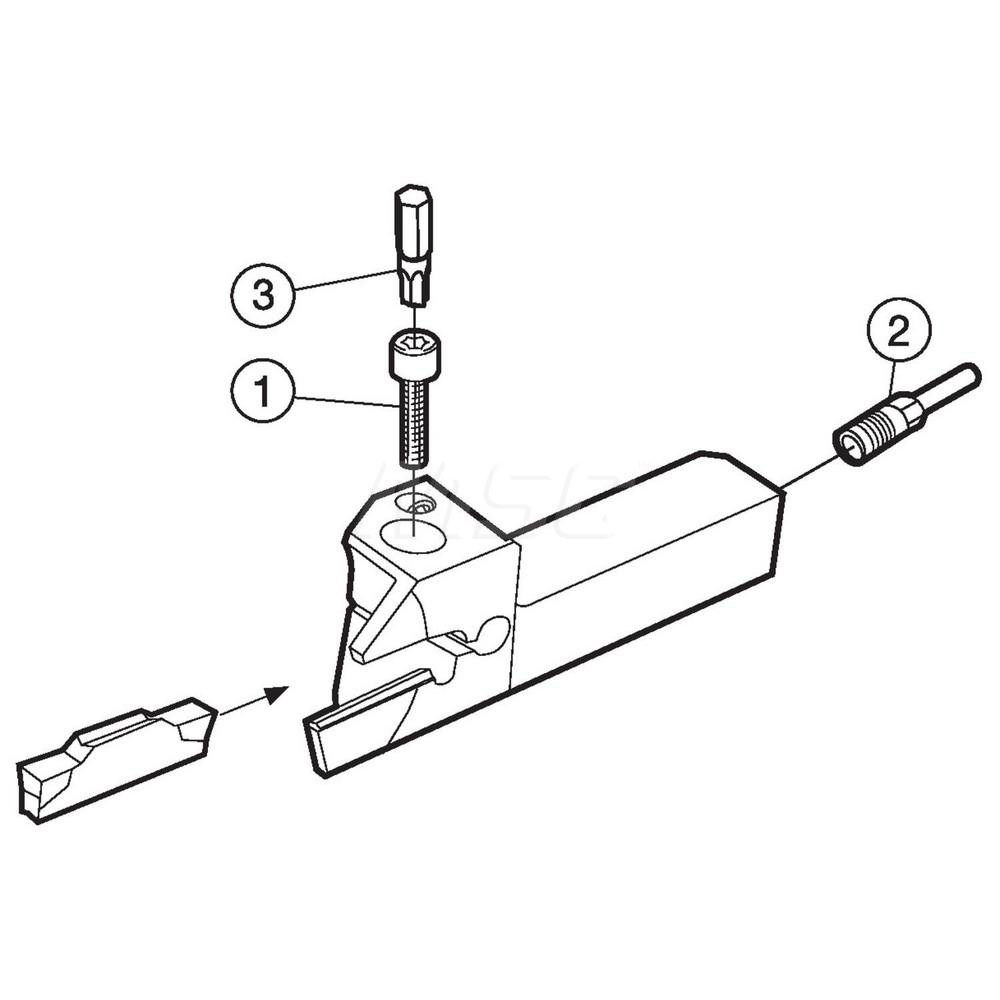

| Insert Holding Method | Clamp |
| Insert Compatibility | N123F2-0250-0002-CM |
| Compatible Insert Size Code | N123F2 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Height (mm) | 15.87 |
| Shank Height (Decimal Inch) | 0.6250 |
| Series | Coro Cut 1-2 |
| Overall Length (Decimal Inch) | 2.7559 |
| Multi-use Tool | Yes |
| Maximum Overhang (Inch) | 1.1259 |
| Back of Bar to Cutting Edge (Decimal Inch) | 2.7559 |
| UNSPSC Code | 27112809 |
| Manufacturers Catalog Number | 6224922 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123F2 0250-0002-CM |

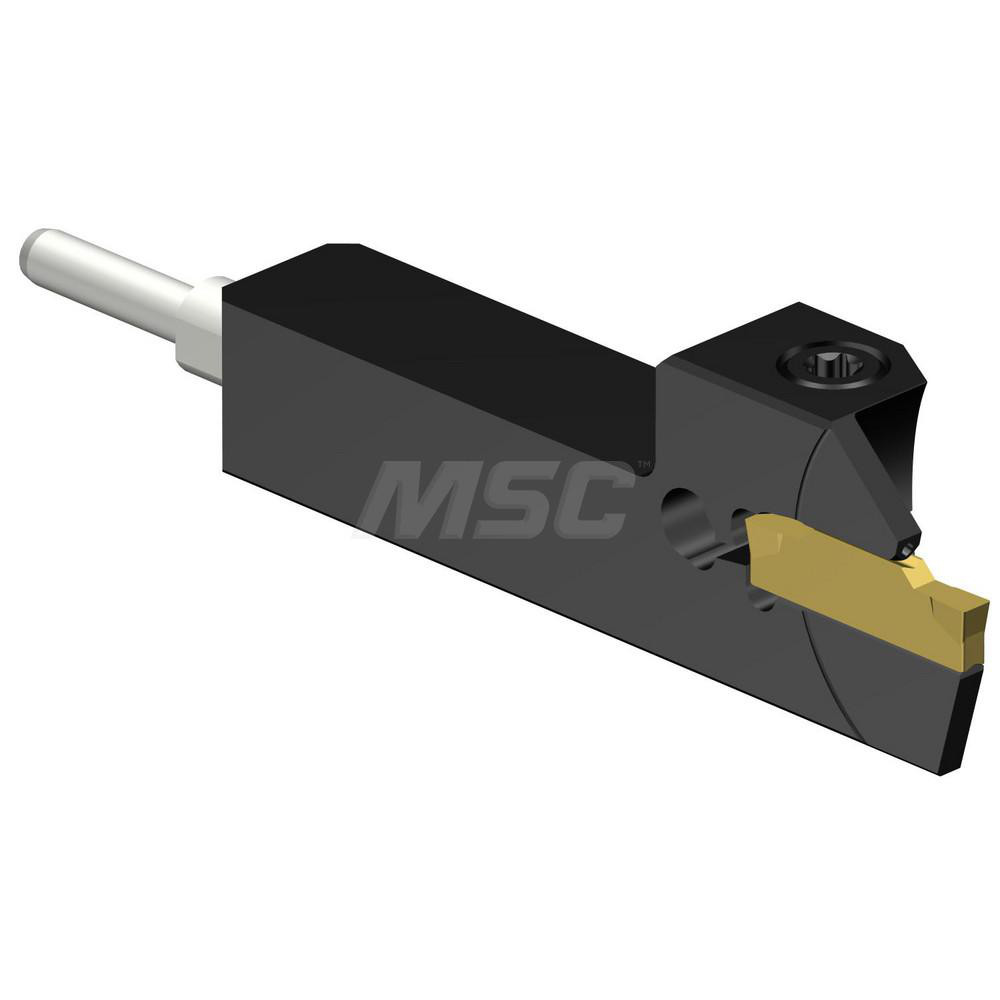

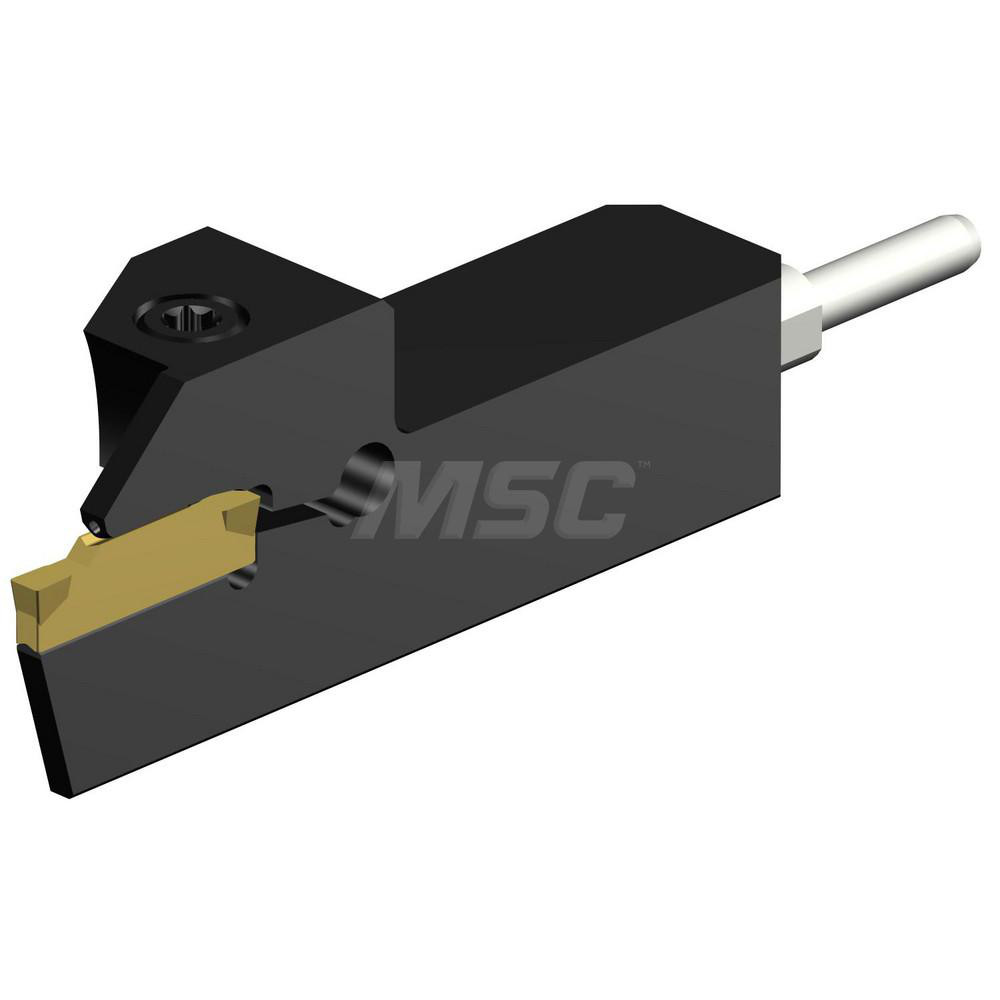

| Coolant Through | Yes |
| Country of Origin | Sweden |
| MSC Number | MSC# 49343437 |
