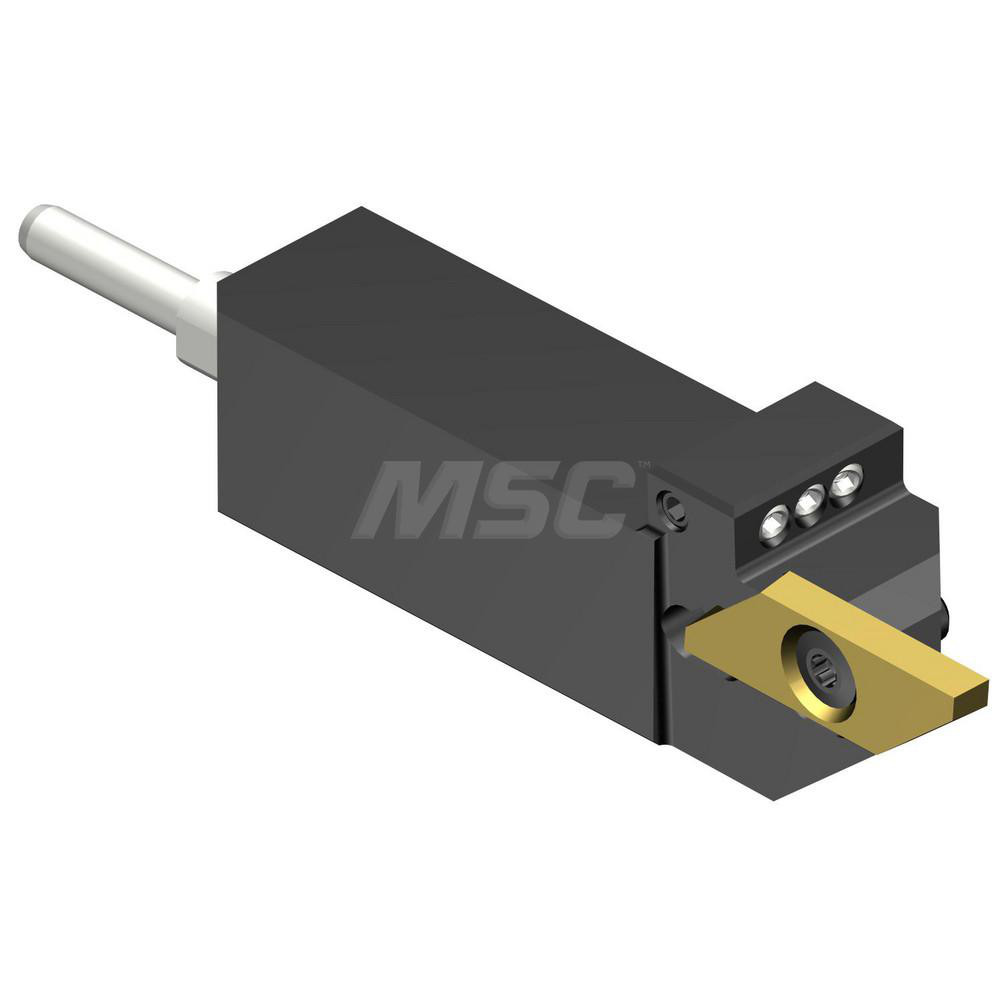

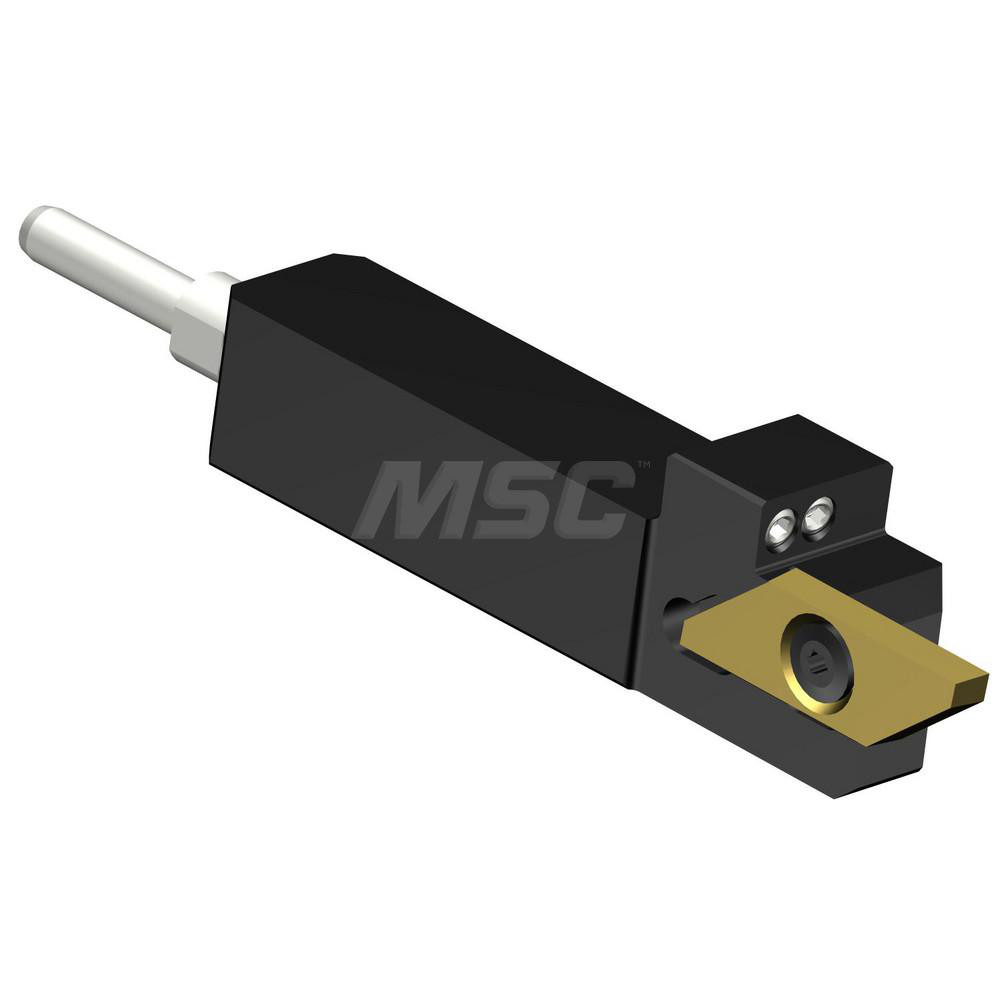

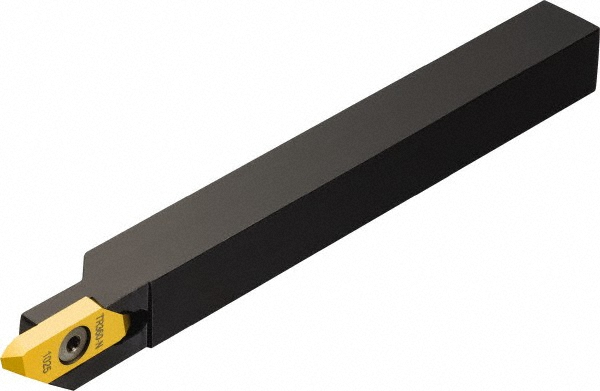

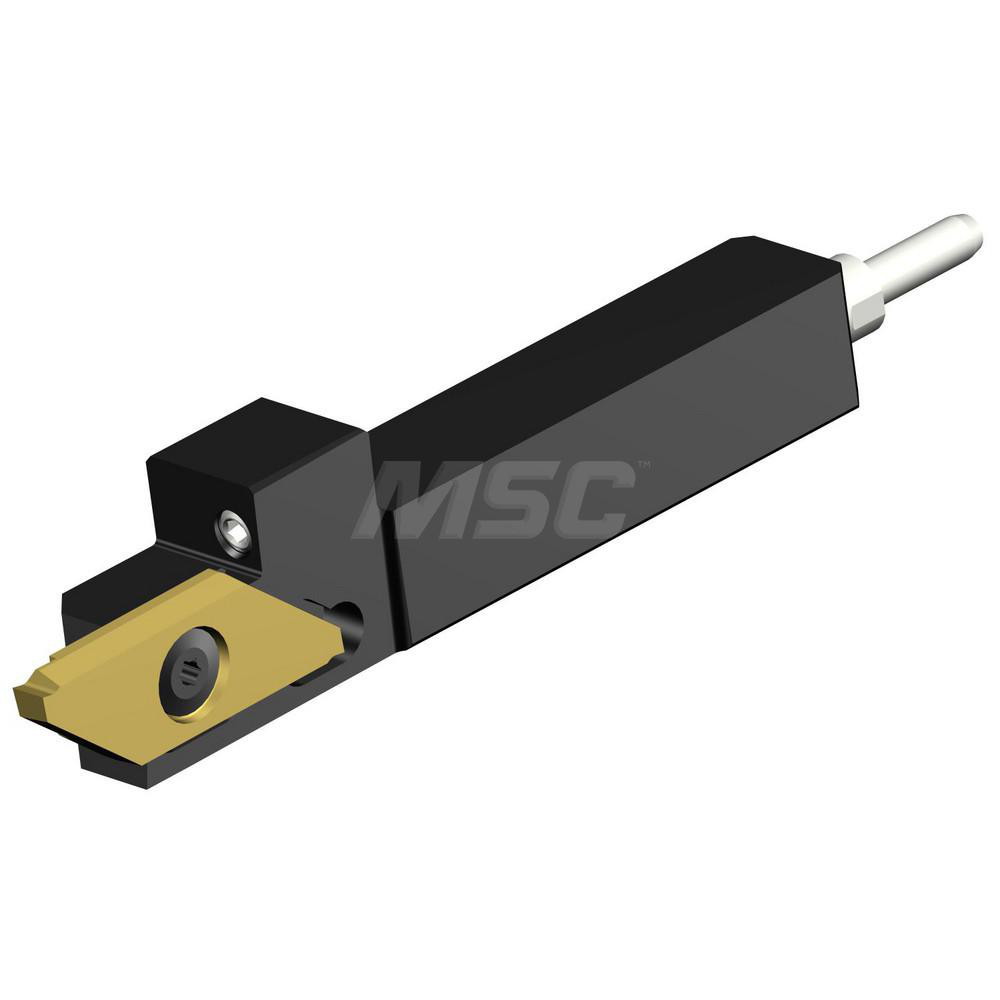

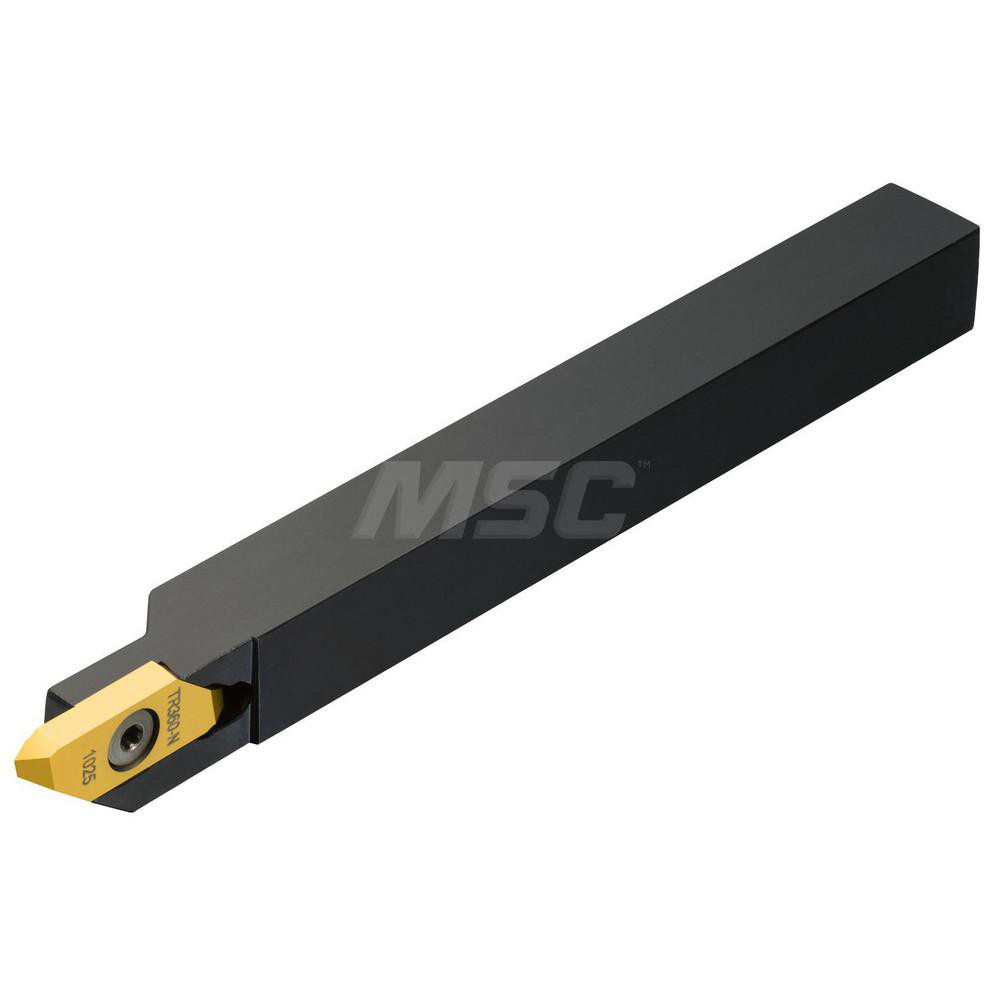

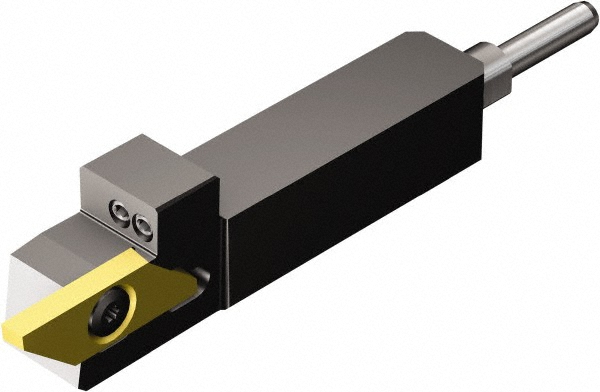

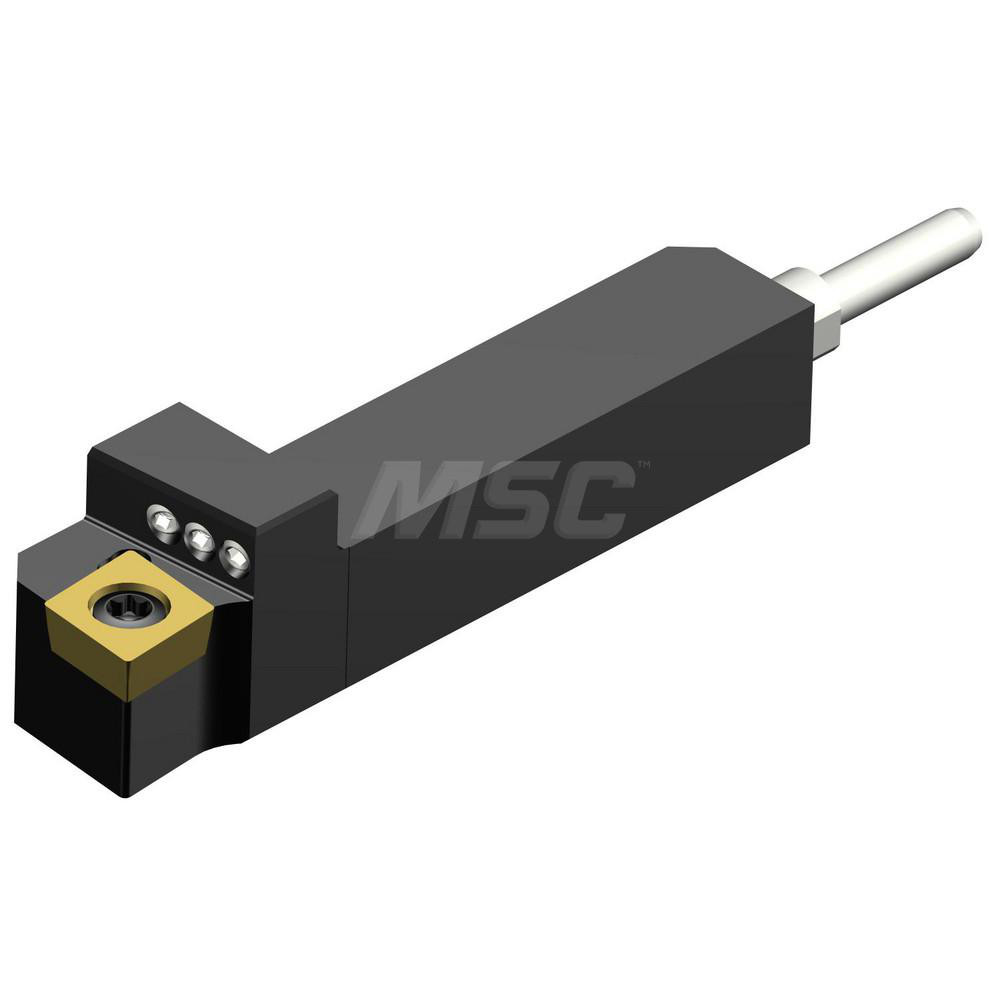

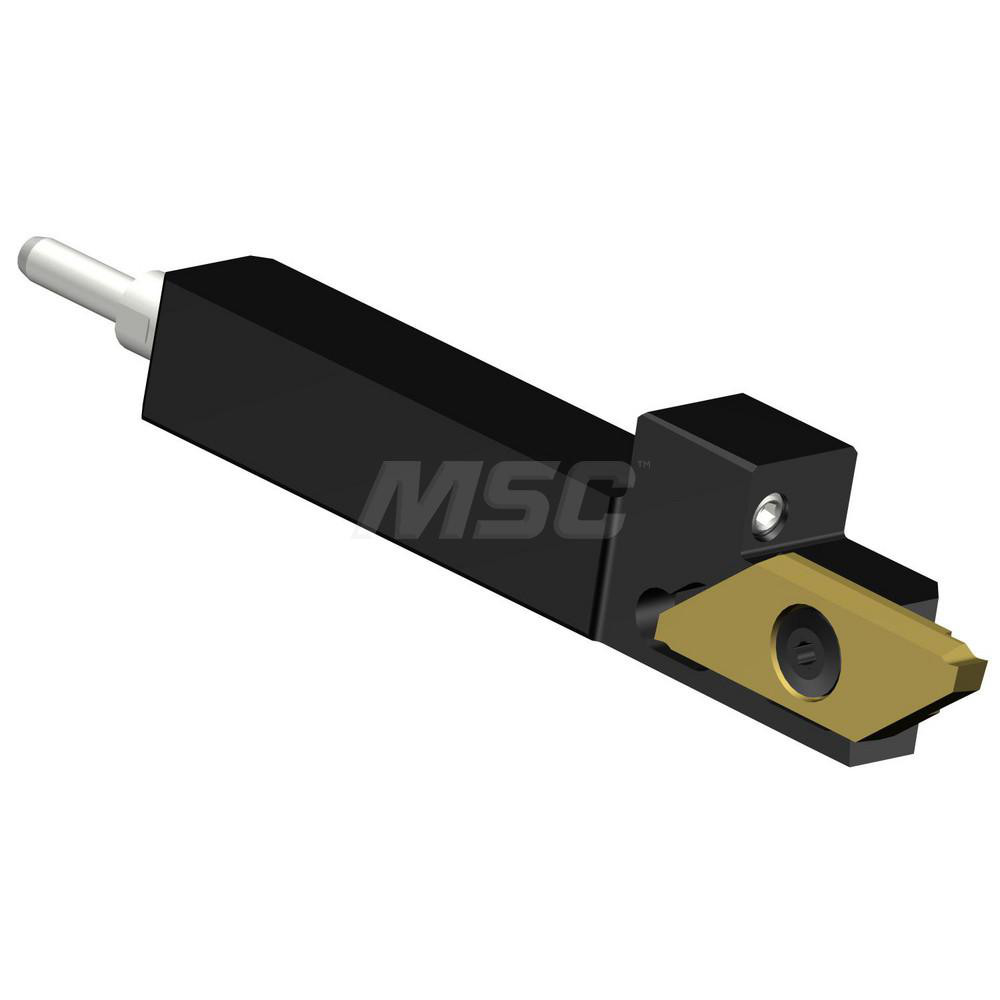

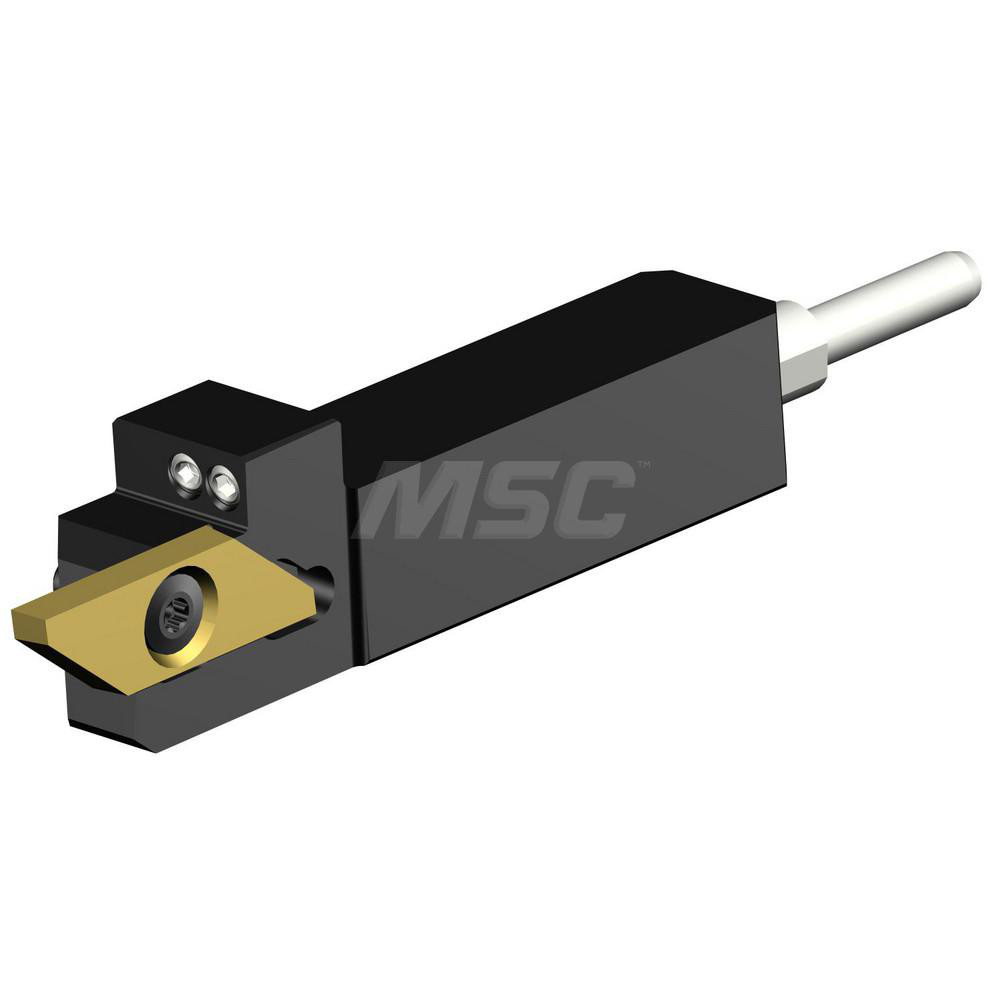

8.5 mm Max Depth of Cut, 1/2 x 1/2" Shank, Through Coolant, Uses MACL 3 200 Inserts
| Toolholder Type | External Grooving |
|---|---|
| Insert Seat Size | 3 |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3346 |
| Maximum Depth of Cut (mm) | 8.50 |
| Toolholder Style | QS-SMALR/L..HP |
| Insert Holding Method | Screw; Clamp |

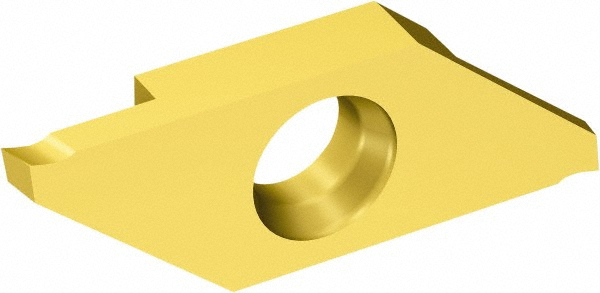

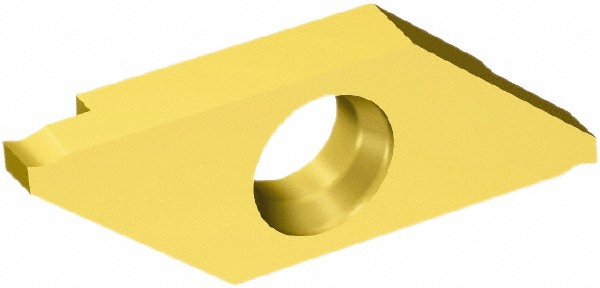

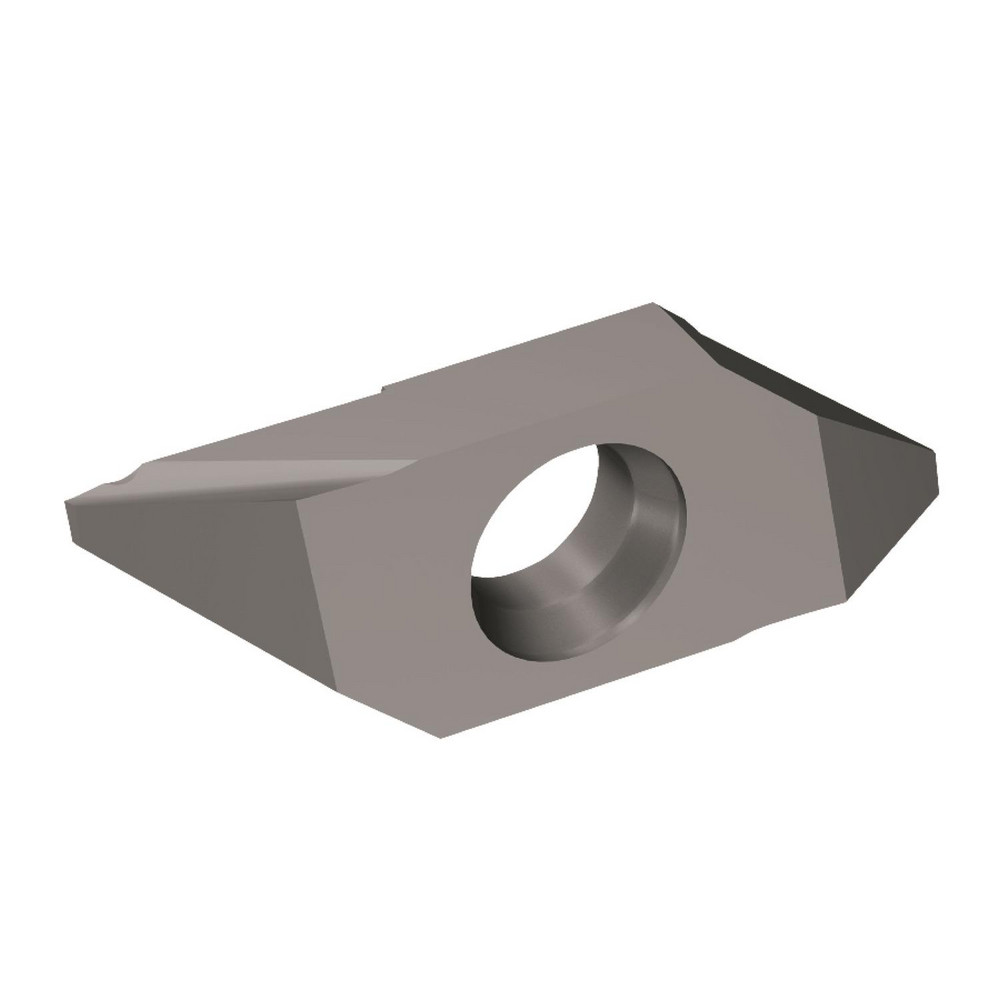

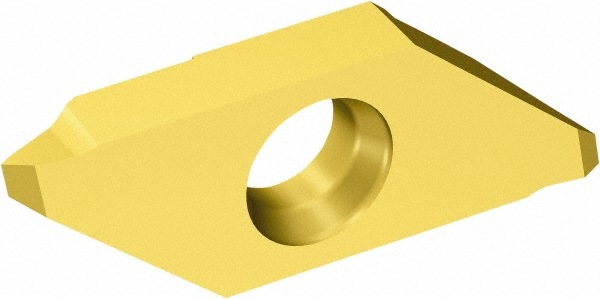

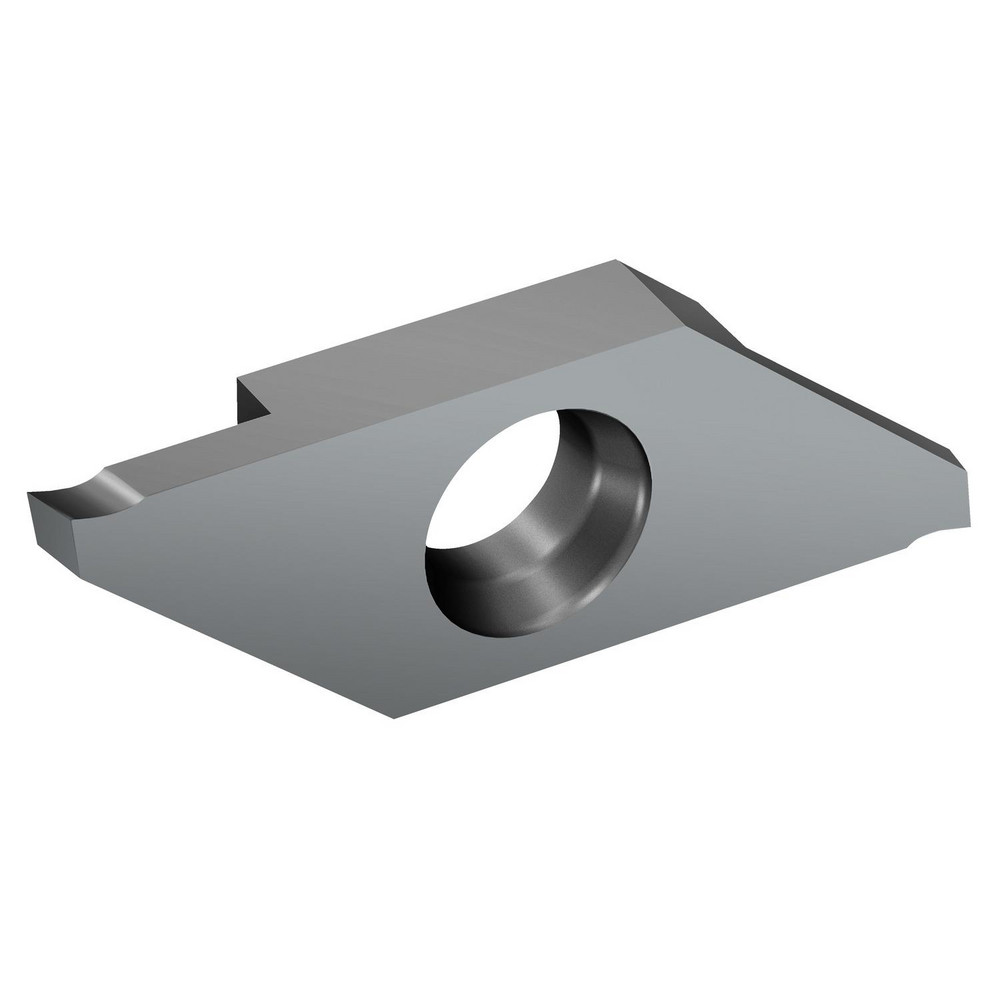

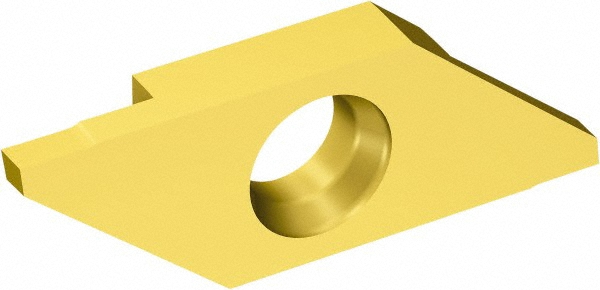

| Insert Compatibility | MACL 3 200-N |
| Compatible Insert Size Code | MACL 3 200 |
| Shank Height (mm) | 12.70 |
| Shank Height (Decimal Inch) | 0.5000 |
| Series | Coro Cut XS |

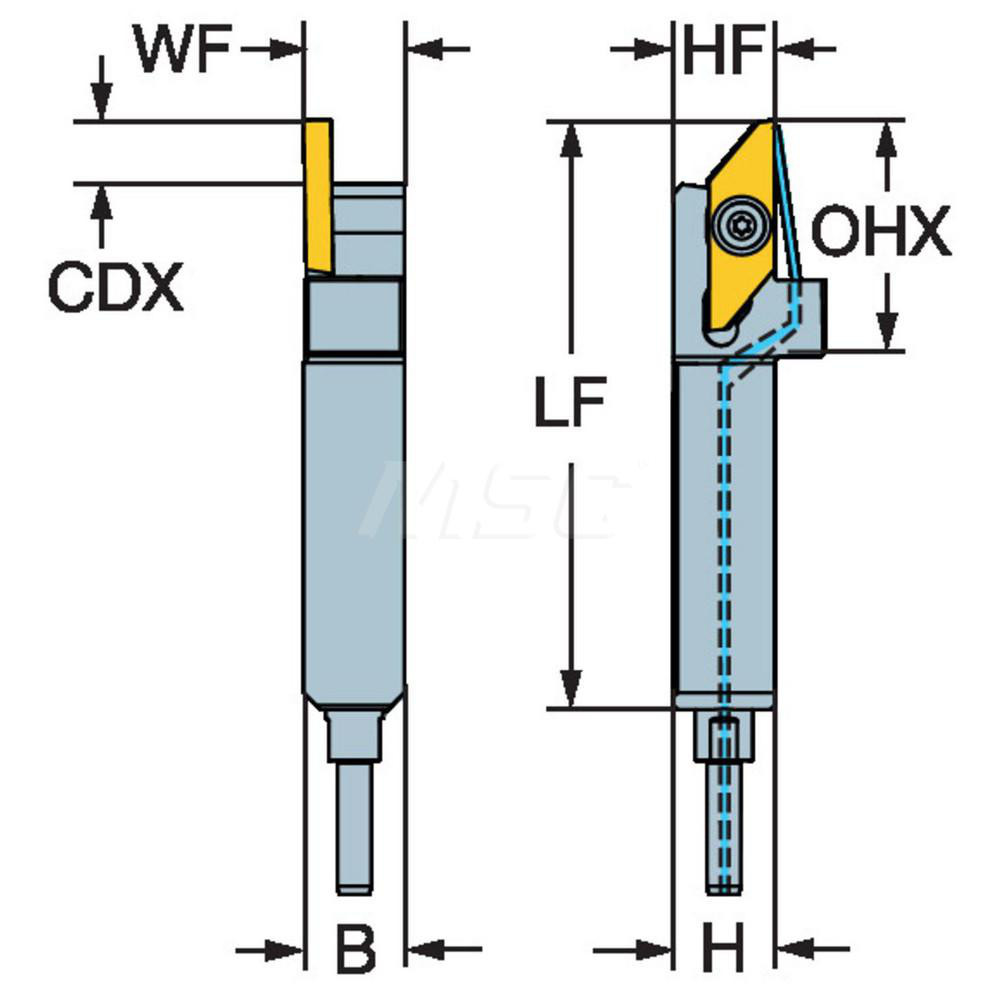

| Overall Length (mm) | 62.4 |
| Overall Length (Decimal Inch) | 2.4567 |
| Multi-use Tool | Yes |
| Maximum Overhang (Inch) | 1.1023 |
| Back of Bar to Cutting Edge (mm) | 70.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 2.7559 |
| Center to Cutting Edge (Decimal Inch) | 0.5000 |
| Center to Cutting Edge (mm) | 12.70 |
| Head Length (Decimal Inch) | 1.1024 |
| Head Length (mm) | 28.00 |
| UNSPSC Code | 27112809 |
| Maximum Bore Depth (Decimal Inch) | 1.1024 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | MACL 3 200-N |
| Coolant Through | Yes |
| Maximum Bore Depth (mm) | 28.00 |
| Country of Origin | Germany |
| undefined | undefined |
| MSC Number | MSC# 49663503 |
