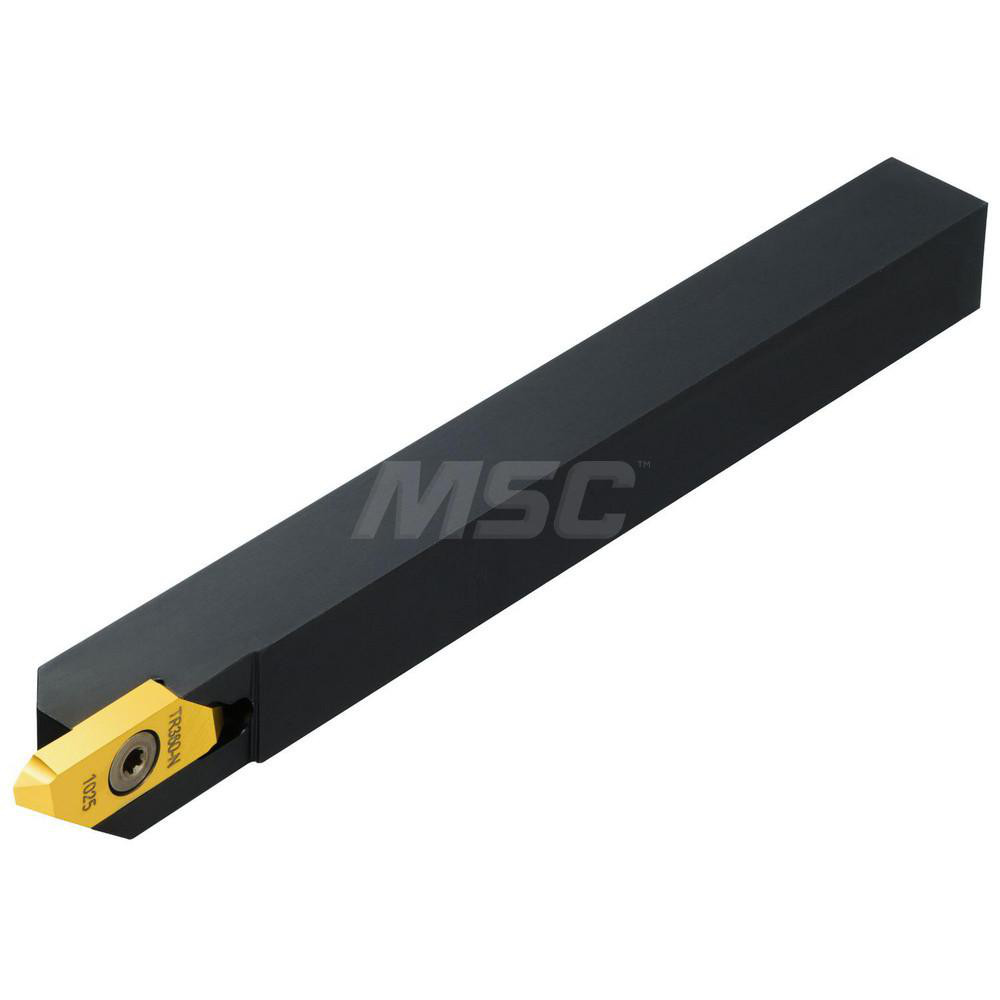

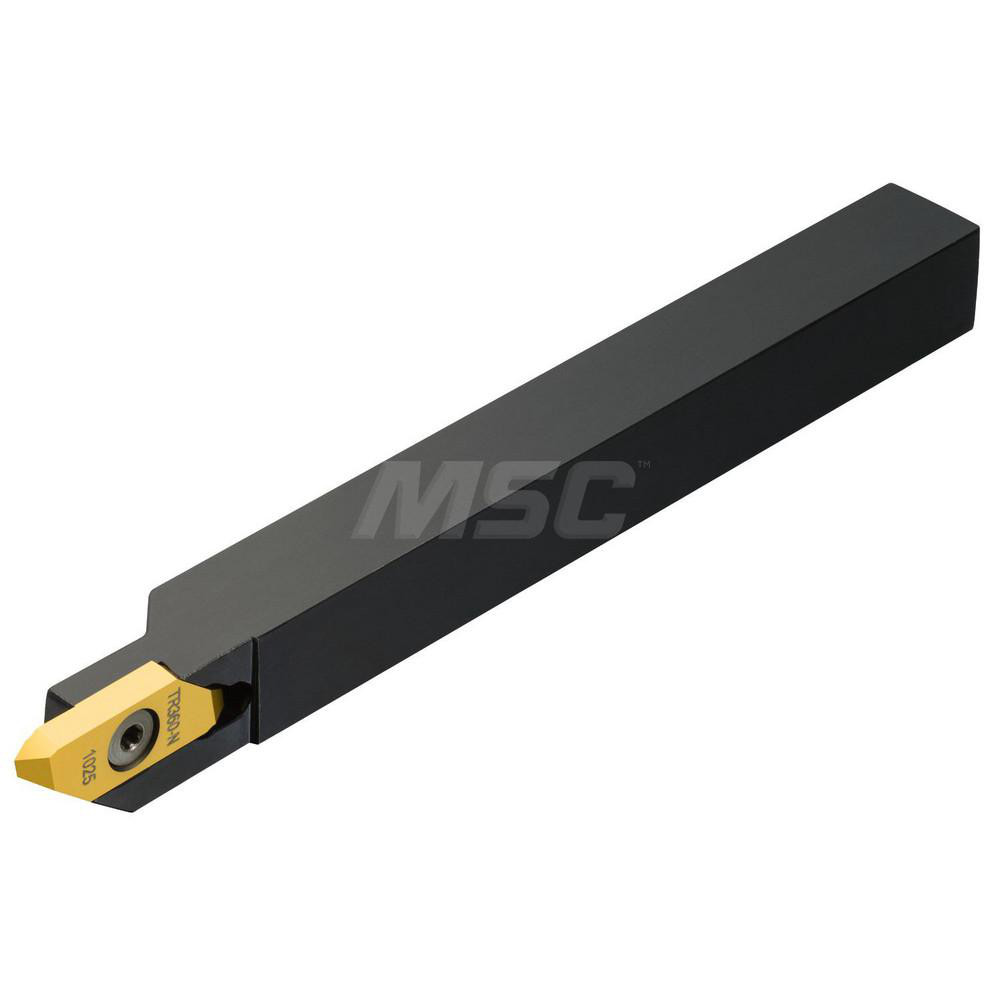

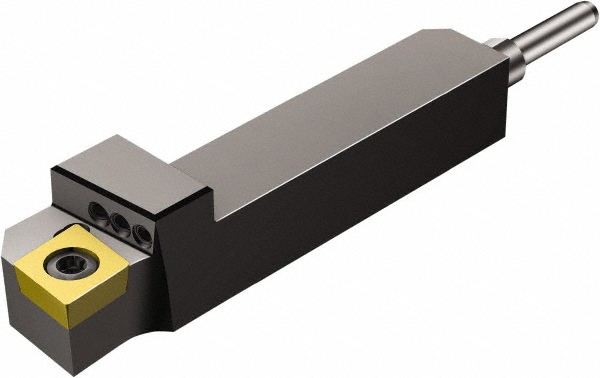

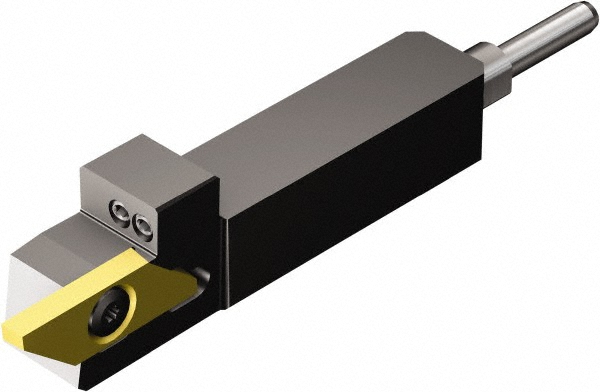

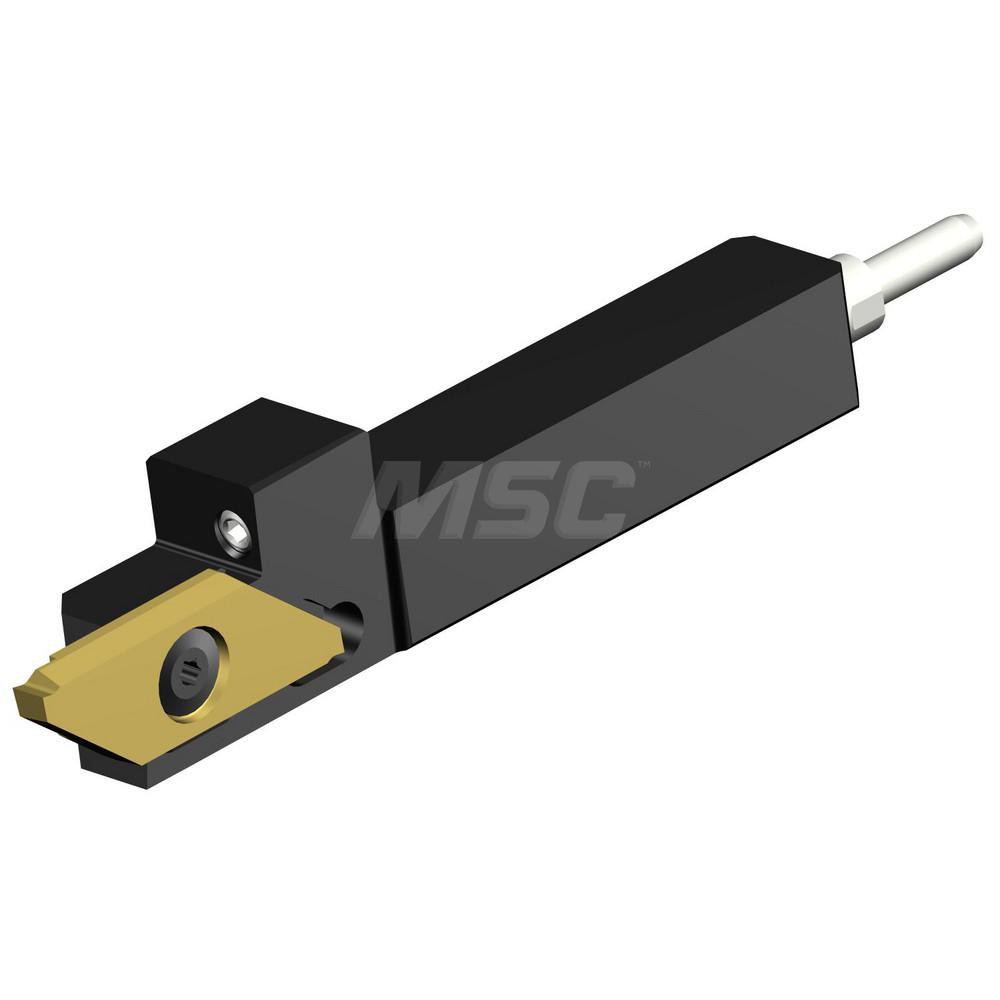

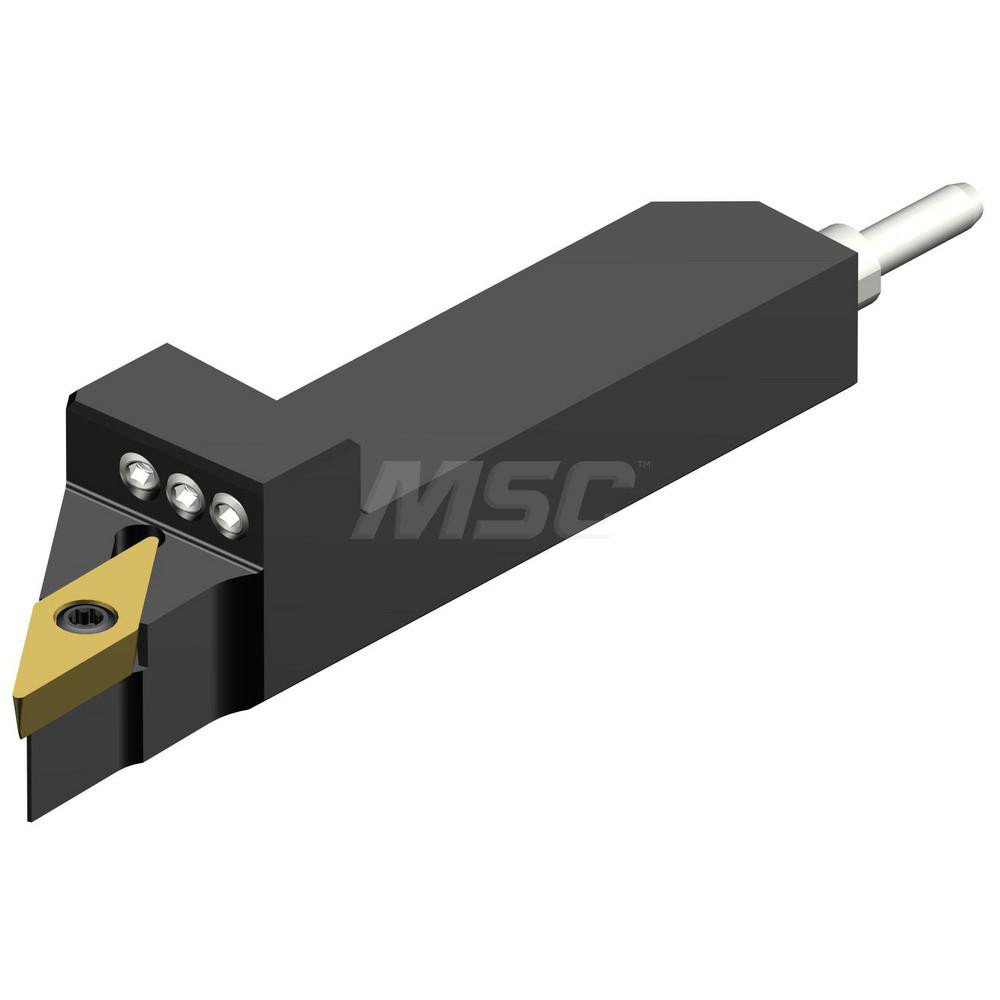

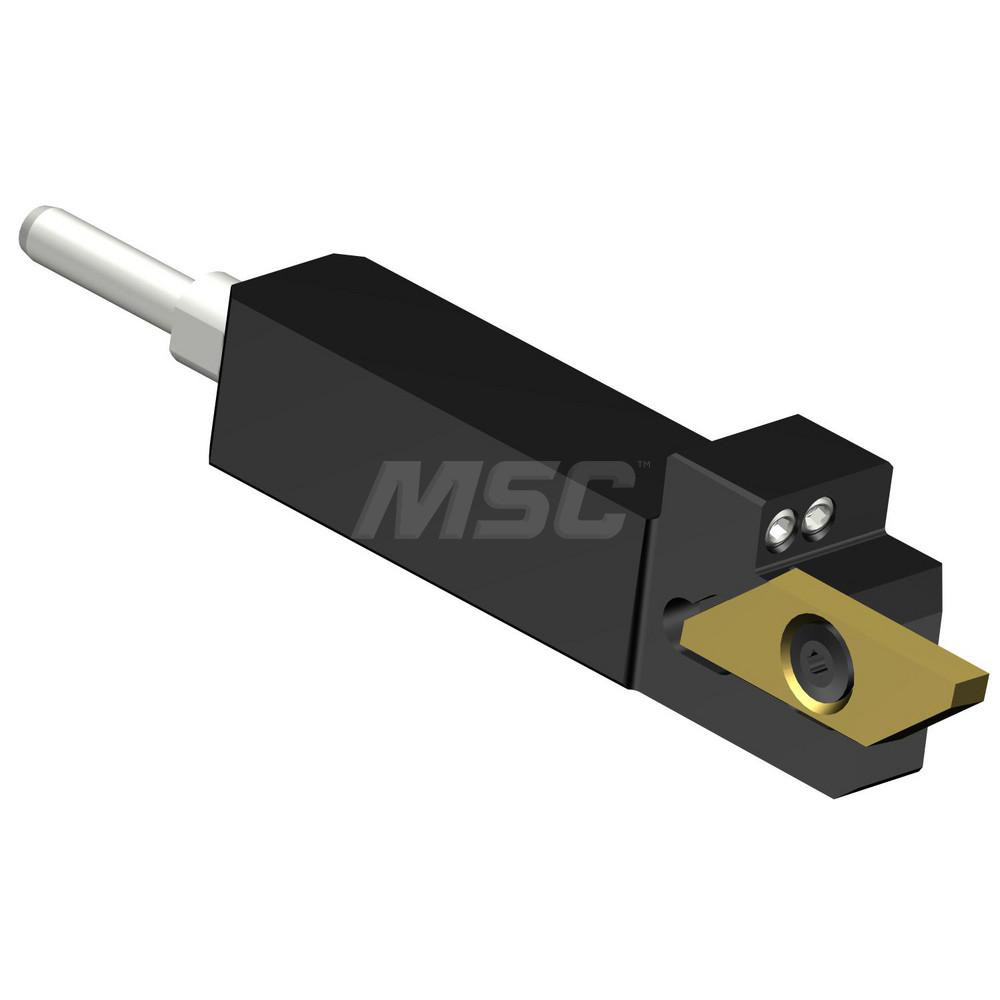

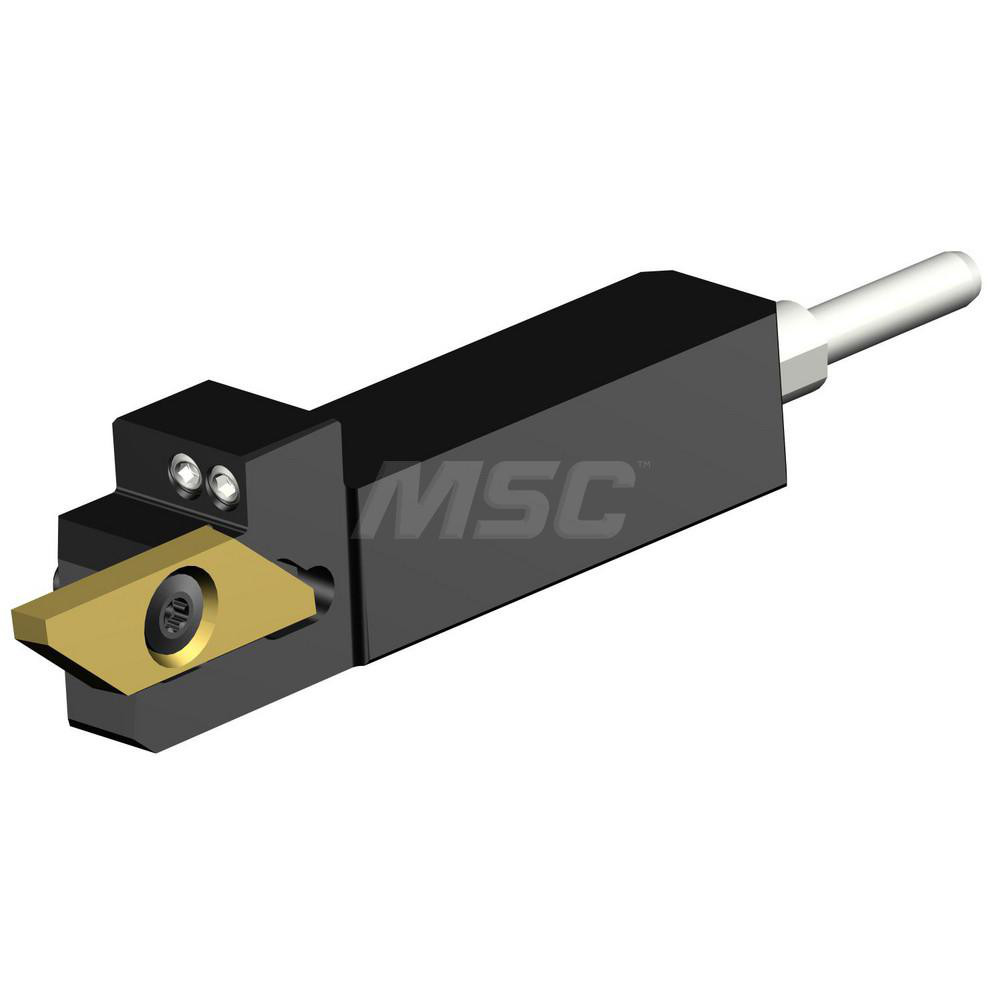

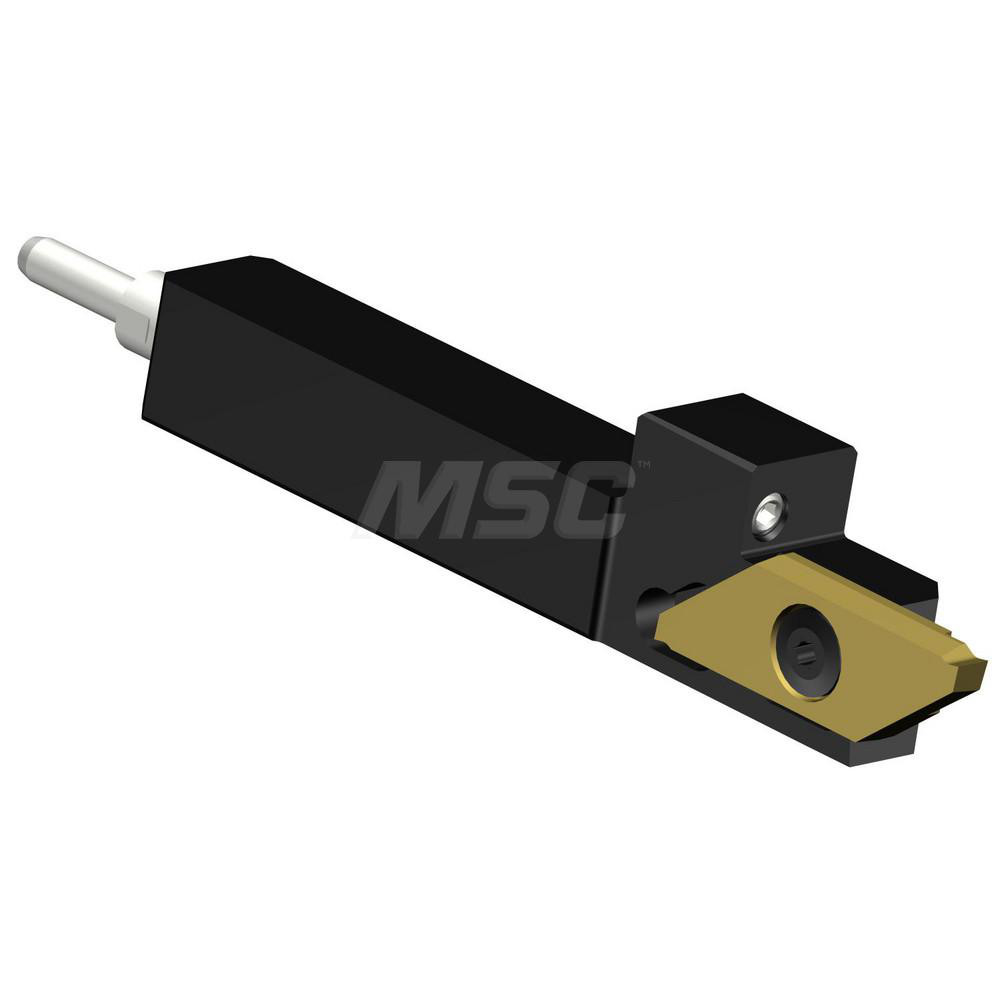

8.5 mm Max Depth of Cut, 3/8 x 3/8" Shank, Through Coolant, Uses MACR 3 200 Inserts
| Toolholder Type | External Grooving |
|---|---|
| Insert Seat Size | 3 |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3346 |
| Maximum Depth of Cut (mm) | 8.50 |
| Toolholder Style | QS-SMALR/L..HP |

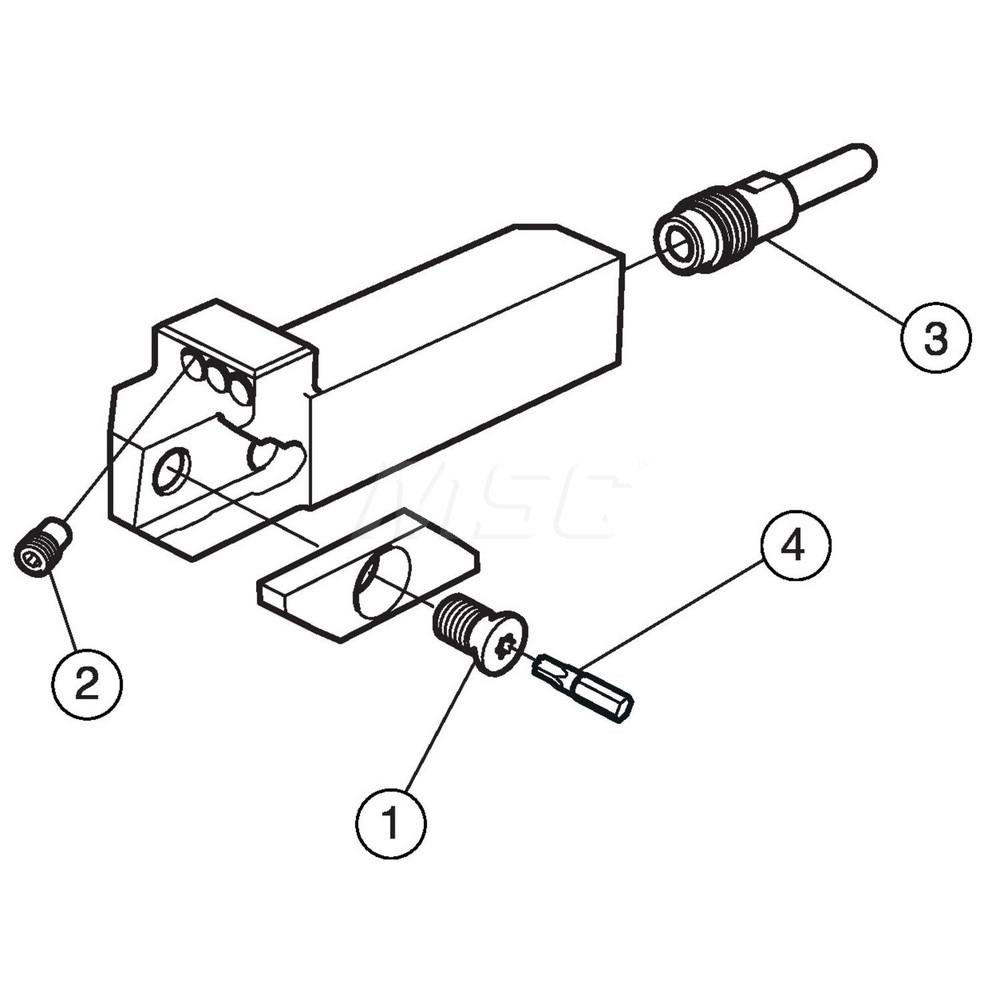

| Insert Holding Method | Screw; Clamp |
| Insert Compatibility | MACR 3 200-N |
| Compatible Insert Size Code | MACR 3 200 |

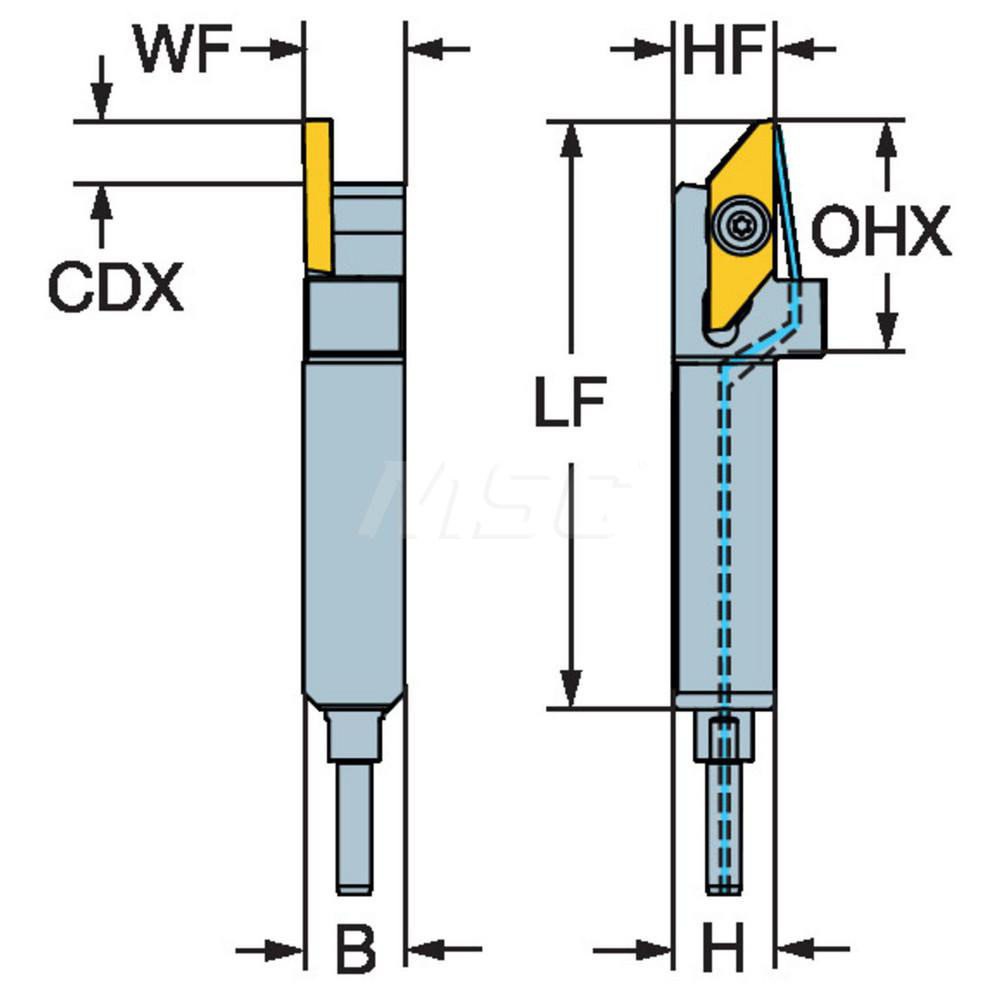

| Shank Height (mm) | 9.53 |
| Shank Height (Decimal Inch) | 0.3750 |
| Series | Coro Cut XS |
| Overall Length (mm) | 62.4 |
| Overall Length (Decimal Inch) | 2.4567 |
| Multi-use Tool | Yes |
| Maximum Overhang (Inch) | 1.1417 |
| Back of Bar to Cutting Edge (mm) | 70.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 2.7559 |
| Center to Cutting Edge (Decimal Inch) | 0.3750 |
| Center to Cutting Edge (mm) | 9.53 |
| Head Length (Decimal Inch) | 1.1417 |
| Head Length (mm) | 29.00 |
| UNSPSC Code | 27112809 |
| Maximum Bore Depth (Decimal Inch) | 1.1417 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | MACR 3 200-N |

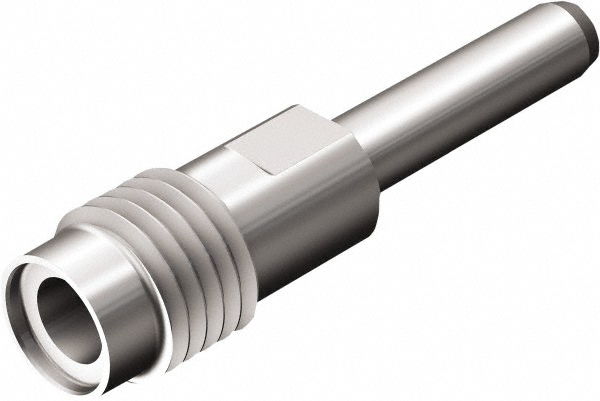

| Coolant Through | Yes |
| Maximum Bore Depth (mm) | 29.00 |
| Country of Origin | Germany |
| undefined | undefined |
| MSC Number | MSC# 49663511 |
