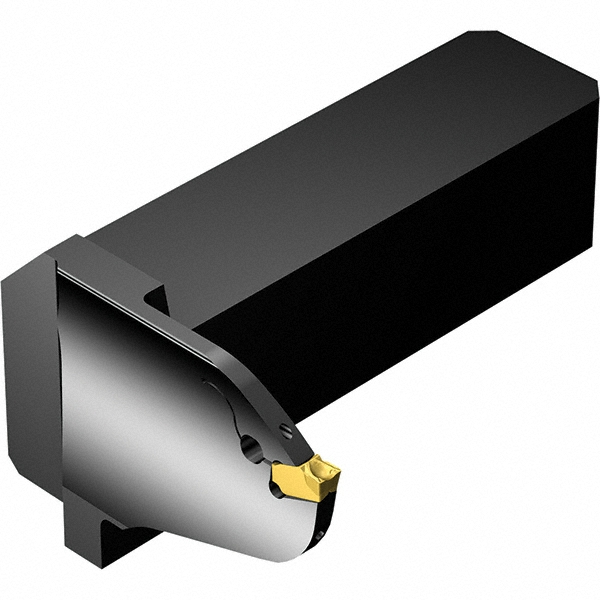

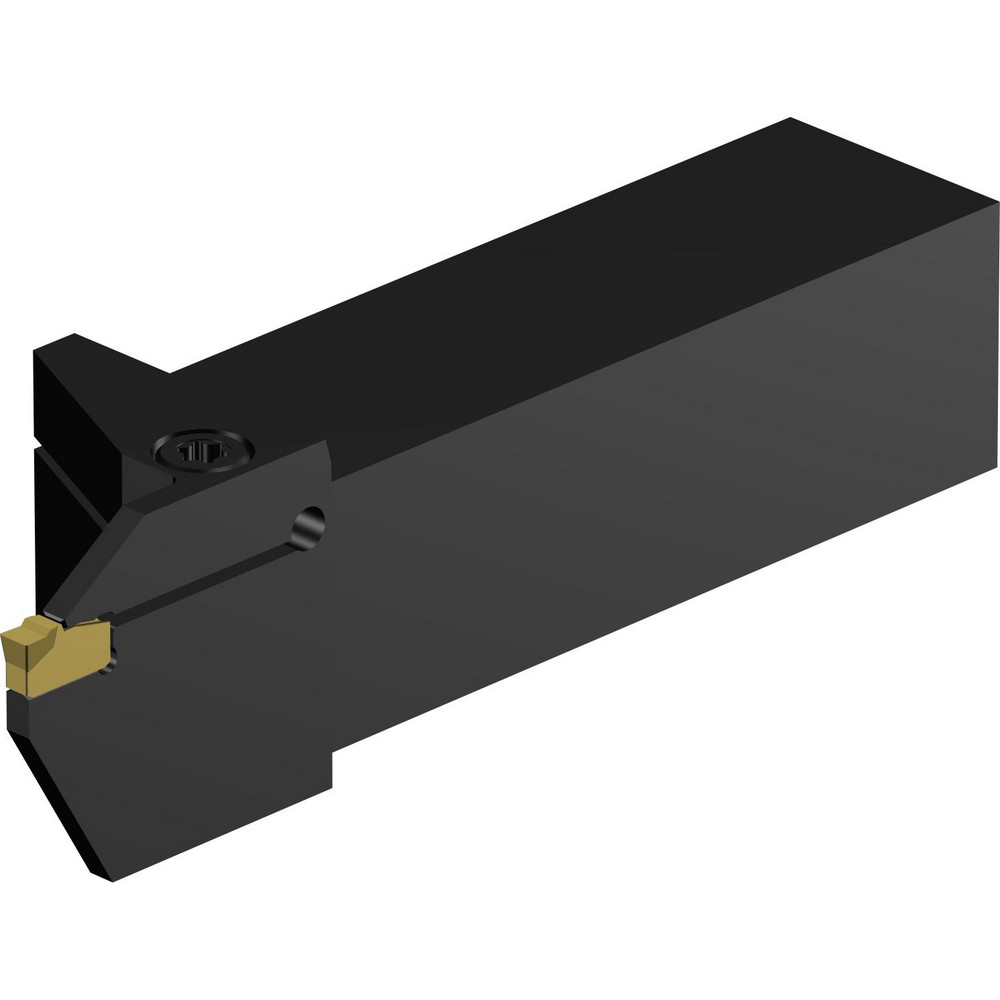

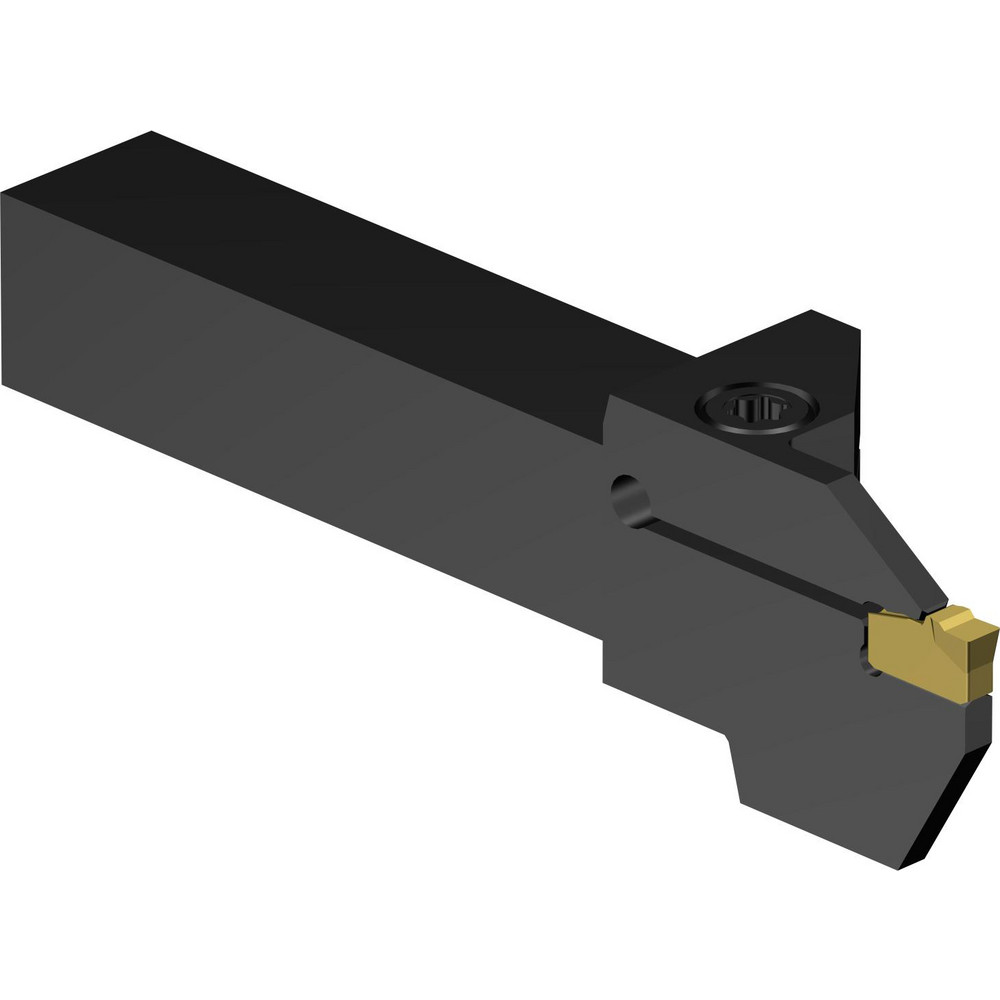

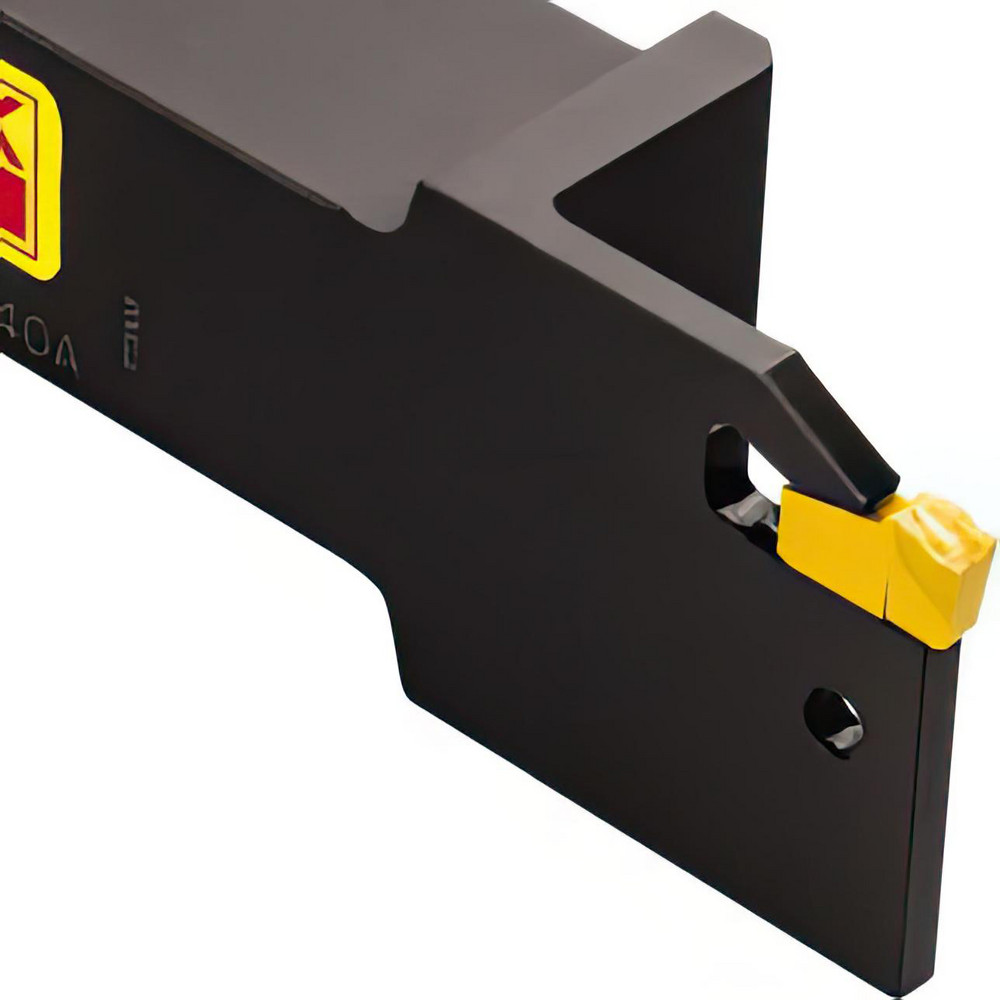

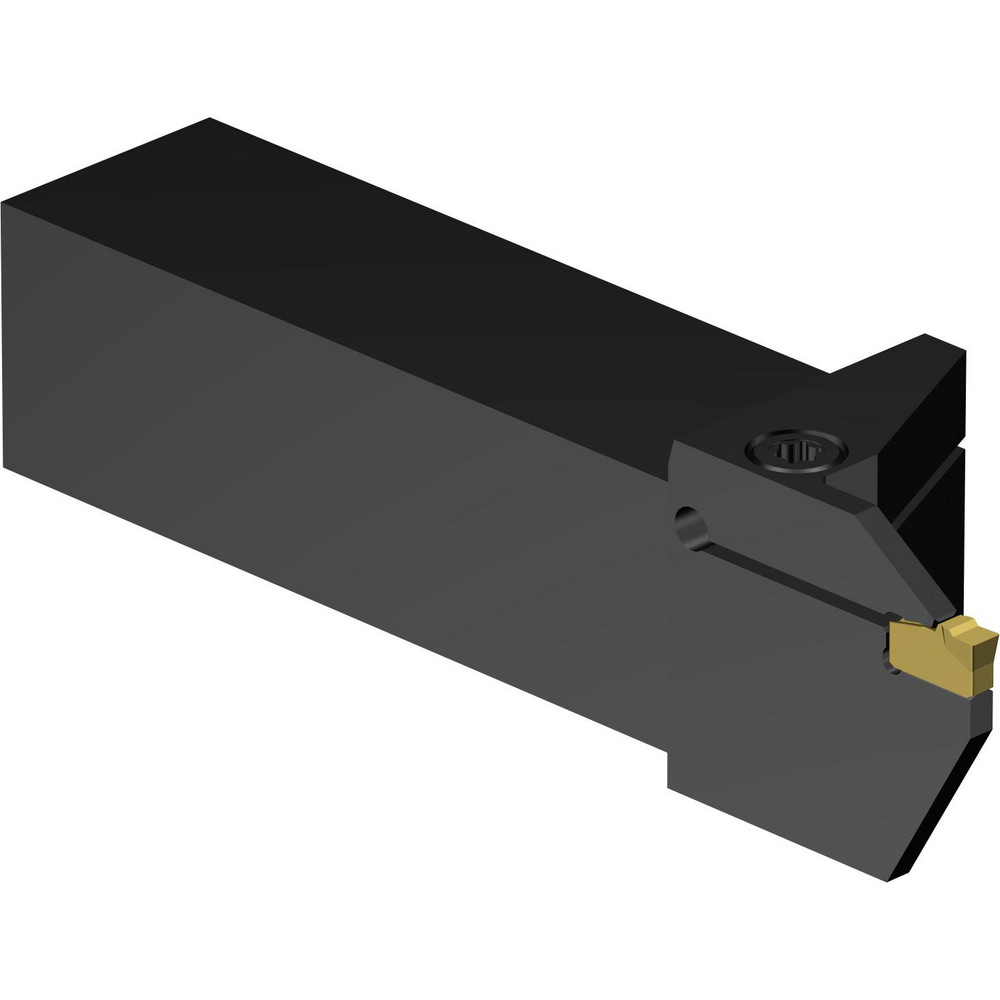

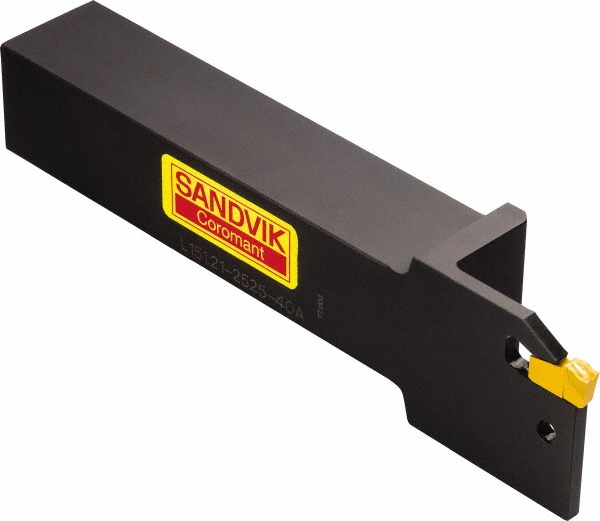

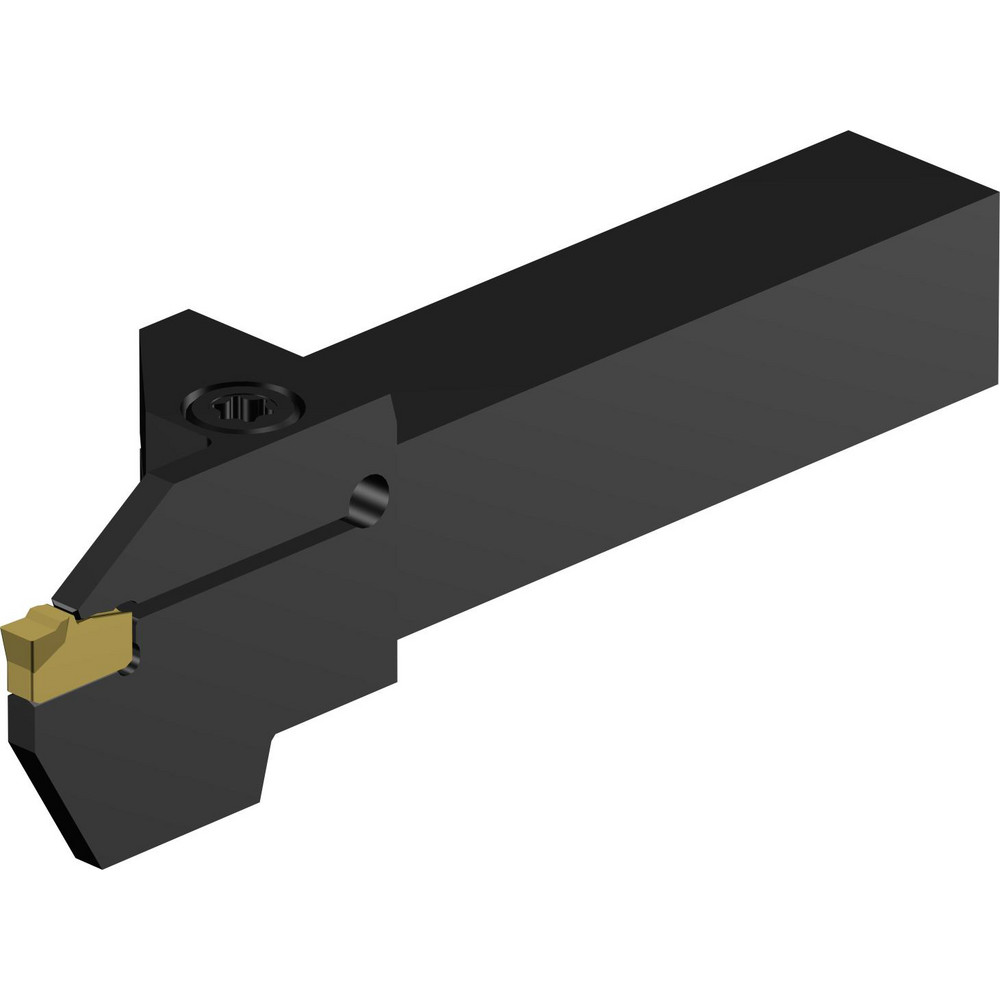

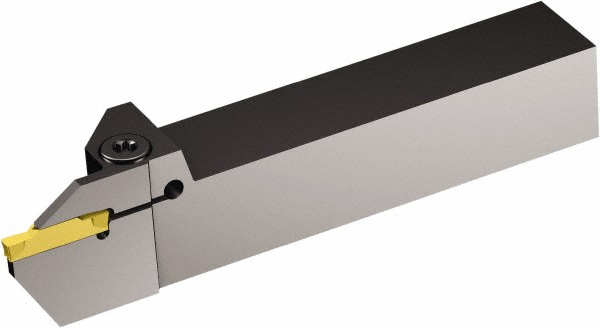

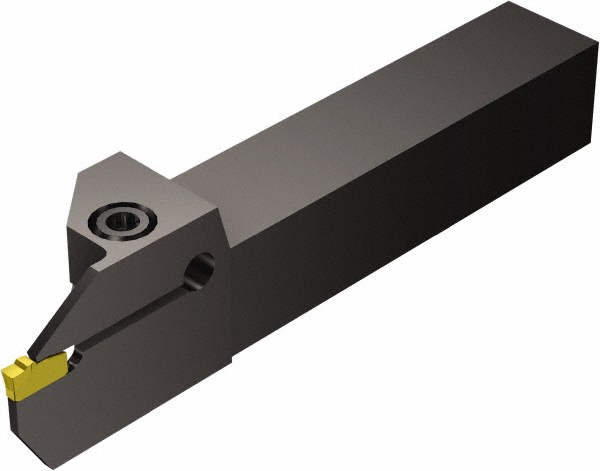

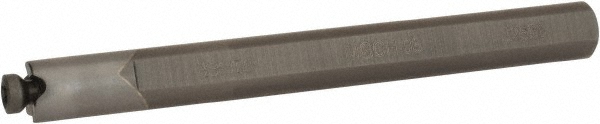

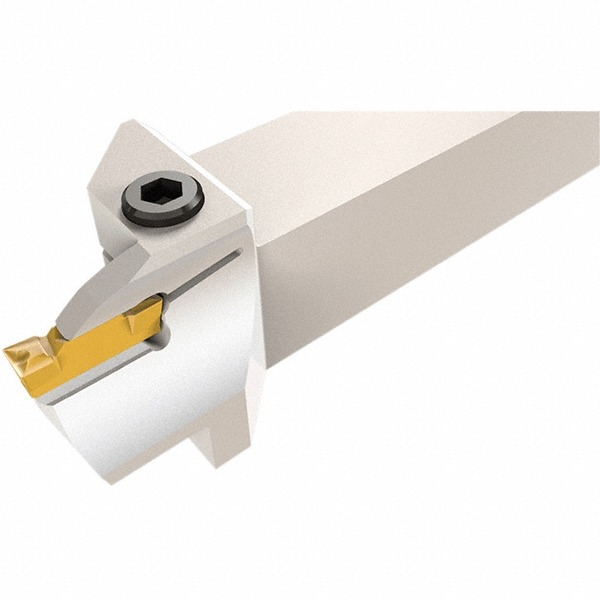

32 mm Max Depth of Cut, 25 mm Shank Dia
| Toolholder Type | Internal Grooving |
|---|---|
| Insert Seat Size | 40 |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.2598 |
| Maximum Depth of Cut (mm) | 32.00 |
| Toolholder Style | R/L151.21 |
| Insert Compatibility | N151.2-400- 5E |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Series | T-Max Q-Cut |
| Overall Length (mm) | 150 |
| Overall Length (Decimal Inch) | 5.9055 |
| Back of Bar to Cutting Edge (mm) | 150.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.9055 |
| Center to Cutting Edge (Decimal Inch) | 0.9961 |
| Center to Cutting Edge (mm) | 25.30 |
| Head Length (Decimal Inch) | 1.6378 |
| Head Length (mm) | 41.60 |
| UNSPSC Code | 23153308 |
| Maximum Bore Depth (Decimal Inch) | 1.6378 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N151.2-400- 5E |
| Coolant Through | No |
| Maximum Bore Depth (mm) | 41.60 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 49511009 |
