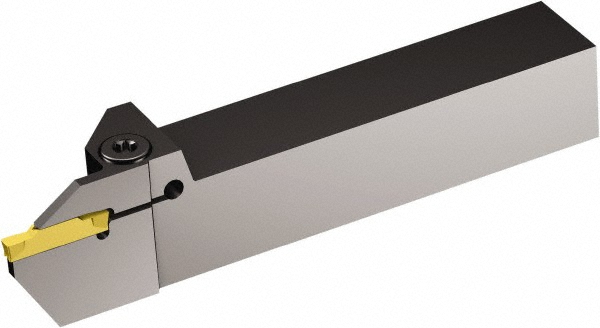

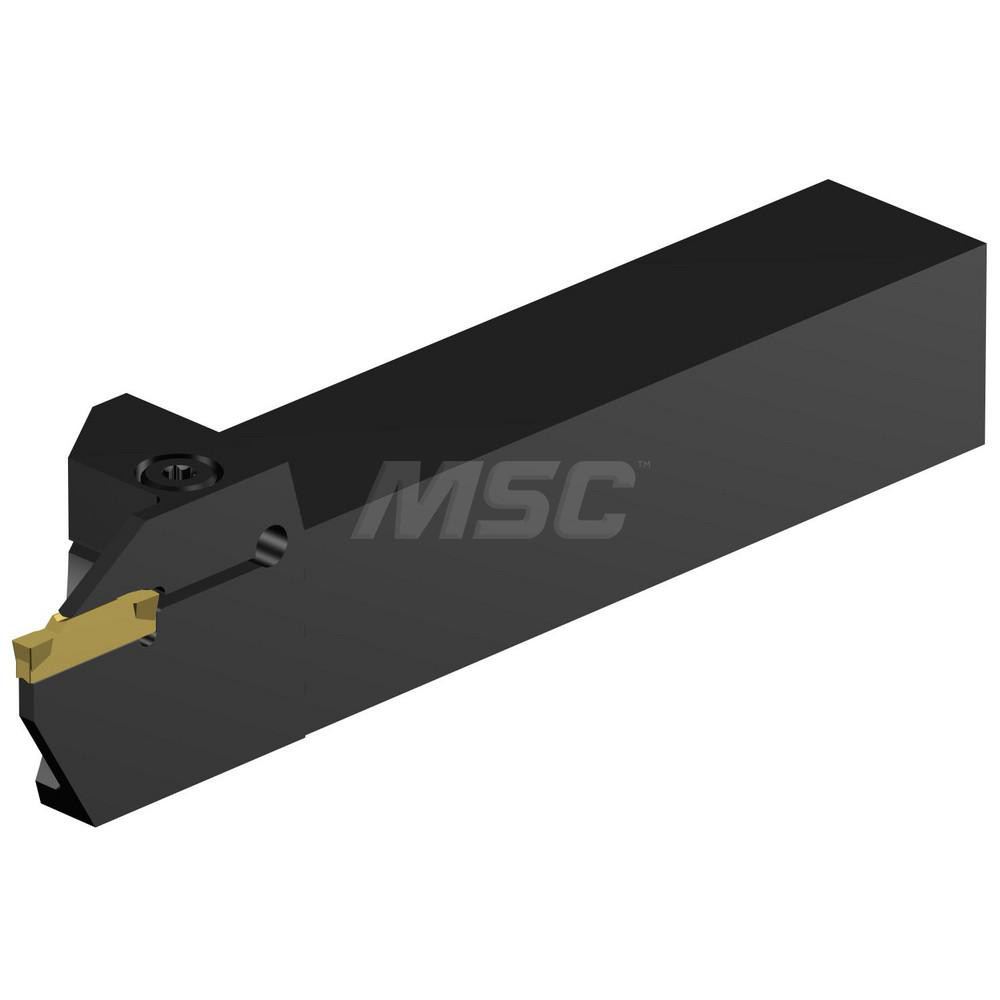

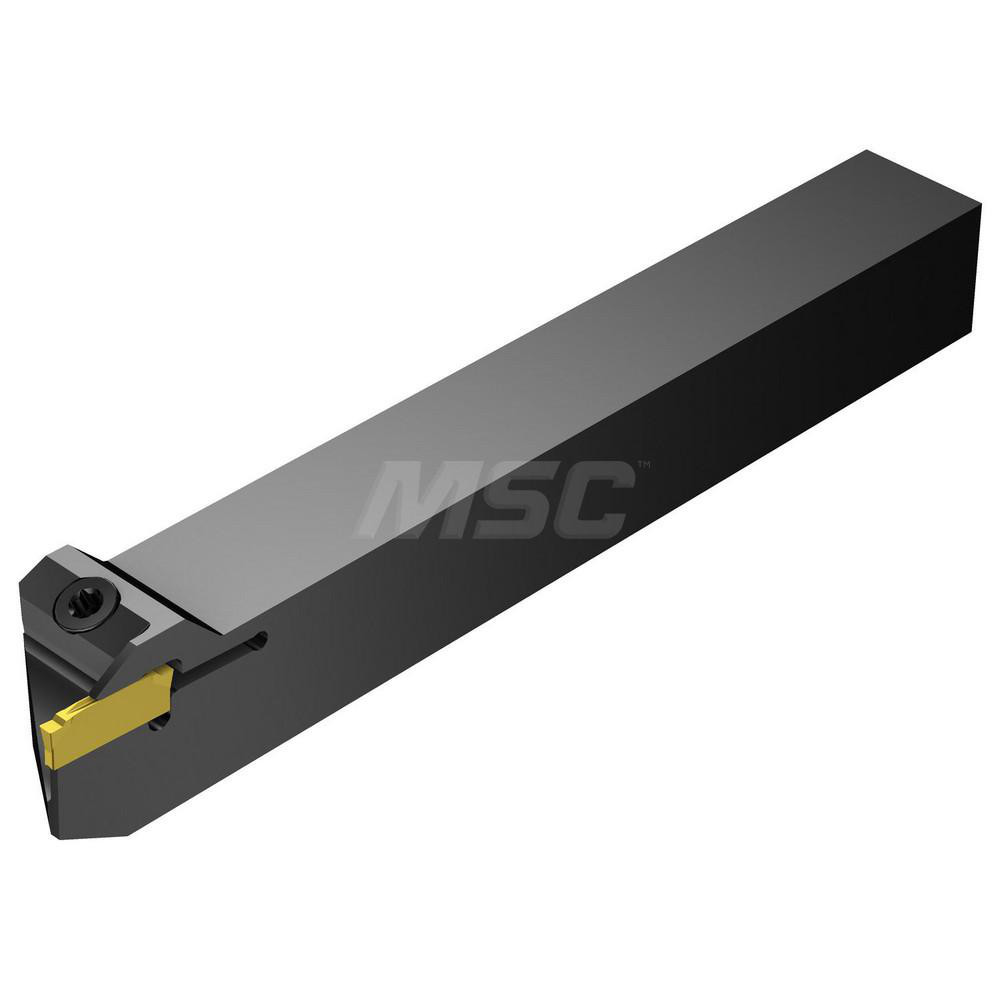

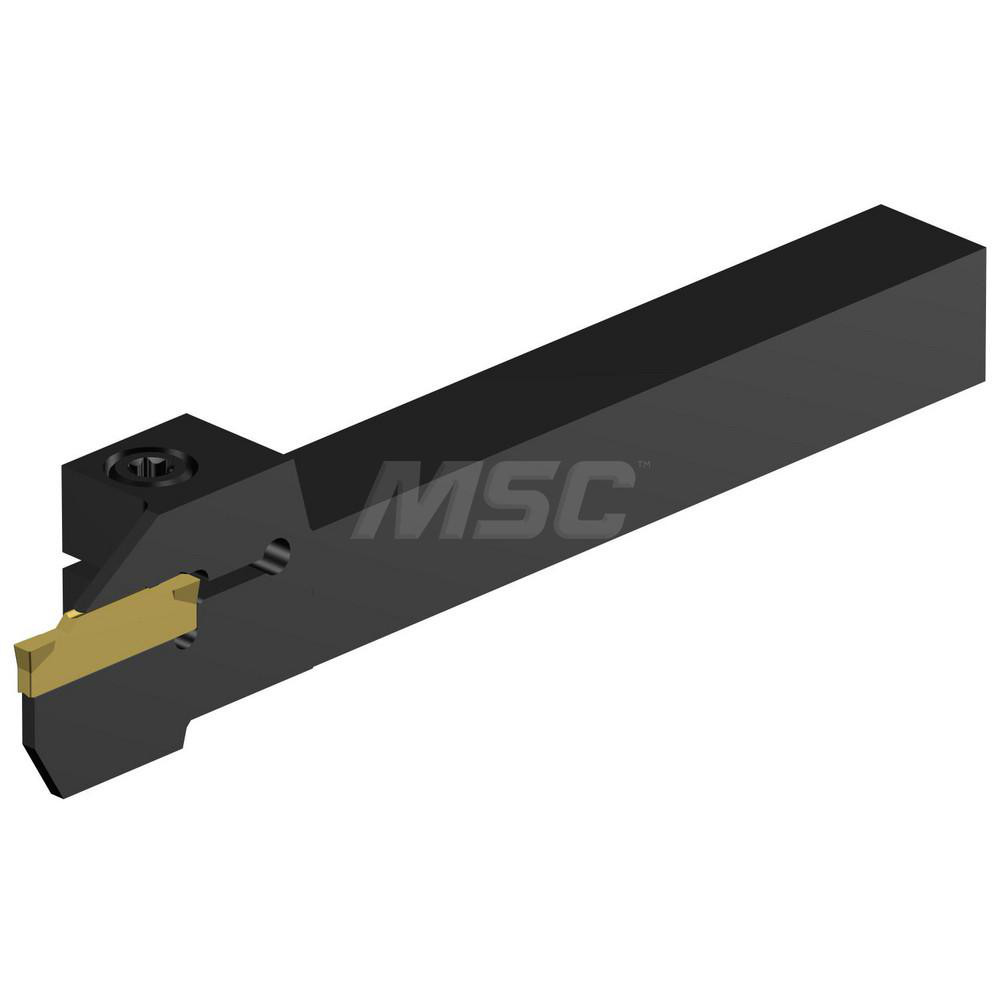

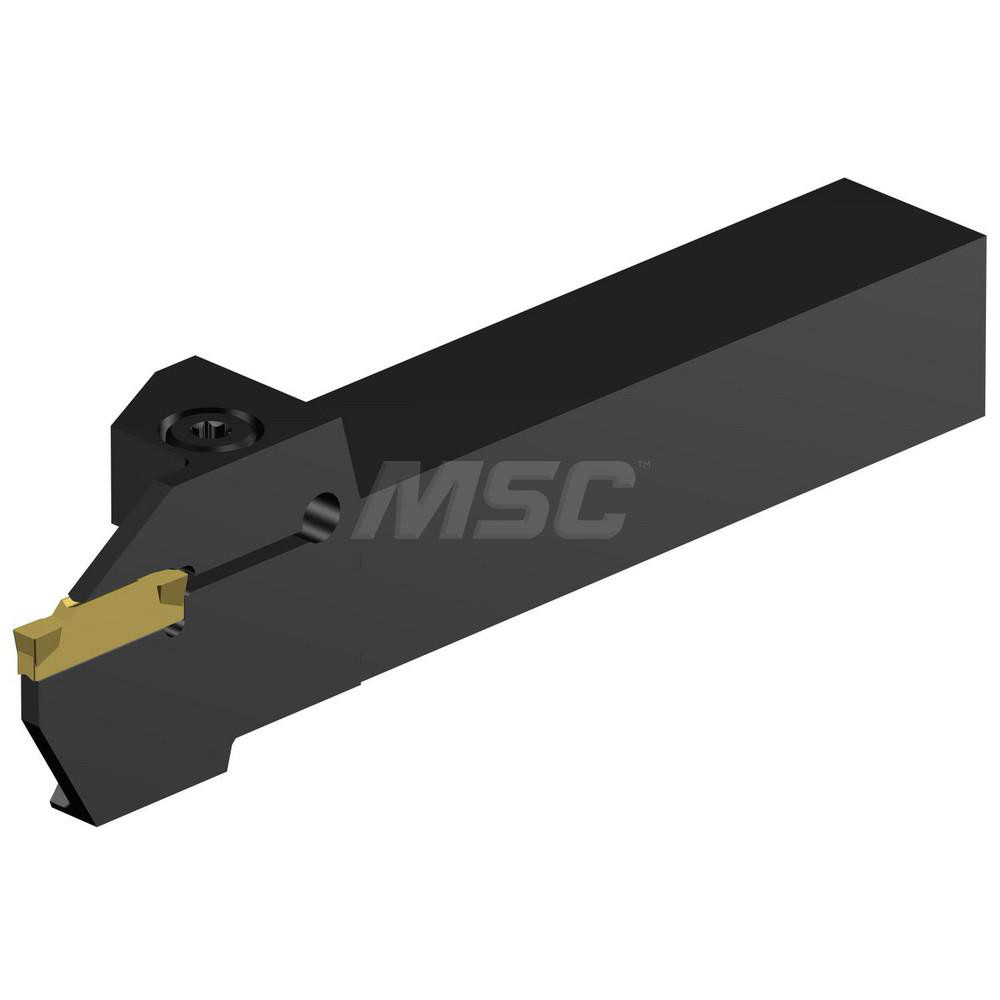

0.87" Max Depth of Cut, 1 x 1" Shank, Uses N123G2 Inserts
| Insert Seat Size | G |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.8700 |
| Toolholder Style | F123 |

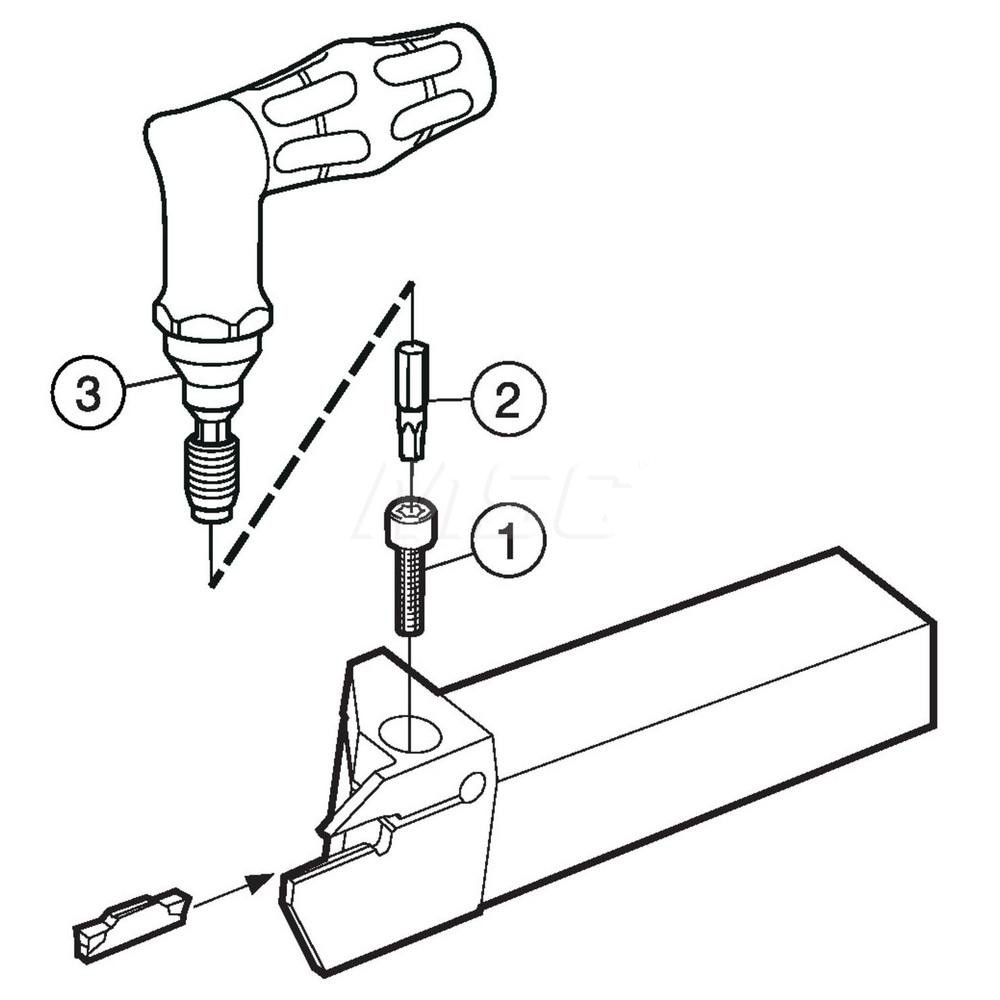

| Insert Holding Method | Clamp |
| Insert Compatibility | N123G2-0300-0003-TF |
| Compatible Insert Size Code | N123G2 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | Coro Cut 1-2 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5 |
| Multi-use Tool | Yes |
| Maximum Workpiece Diameter (Decimal Inch) | 1.7402 |
| Maximum Overhang (Inch) | 1.6968 |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.0000 |
| UNSPSC Code | 27112809 |
| Manufacturers Catalog Number | 5856801 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123G2 0300-0003-TF |
| Coolant Through | No |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 57525073 |
