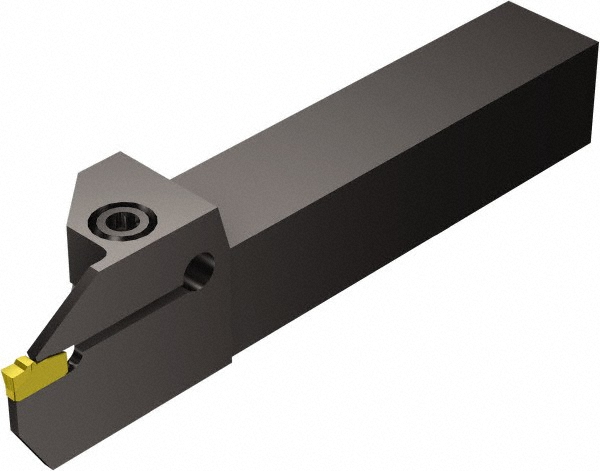

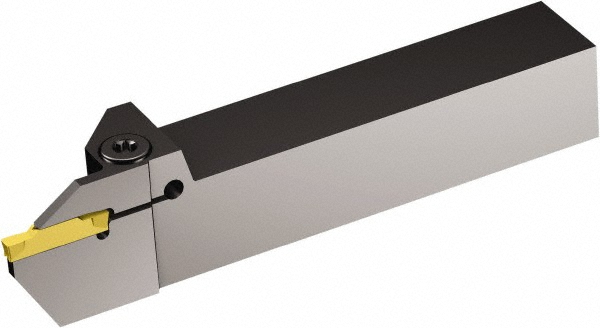

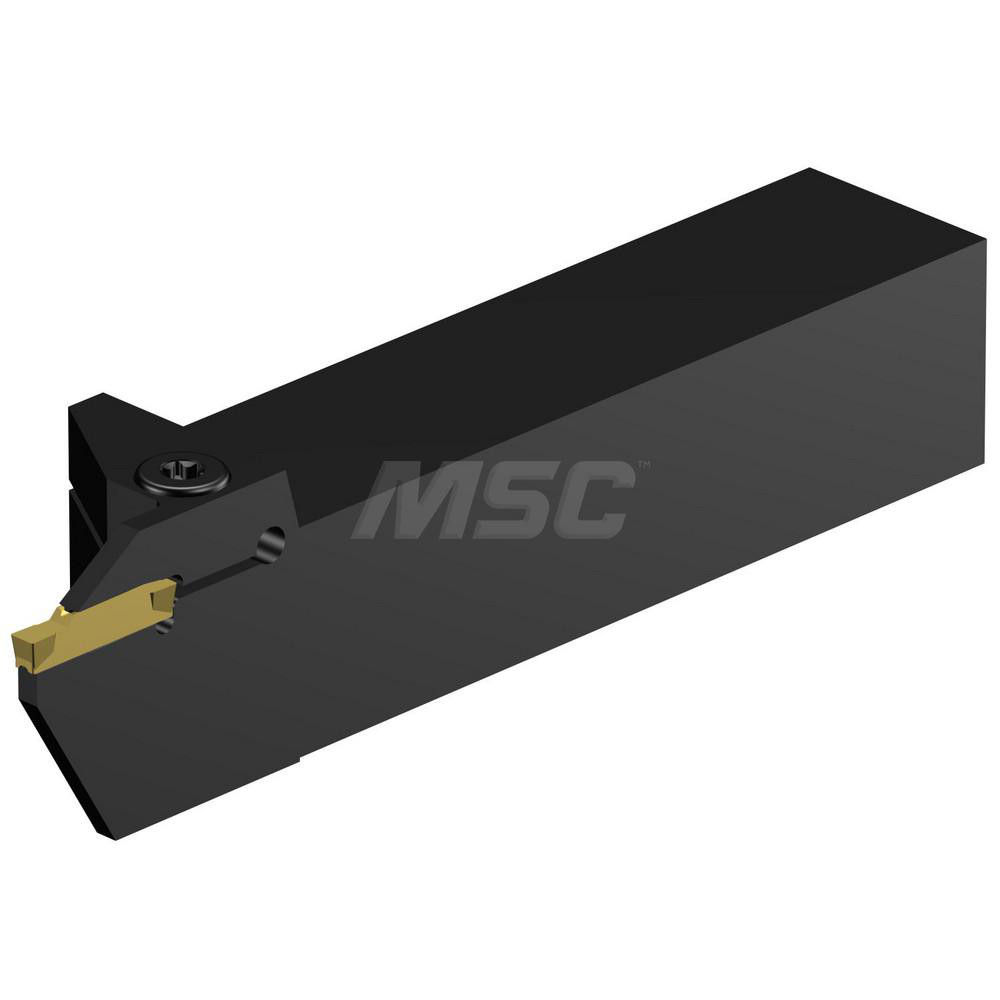

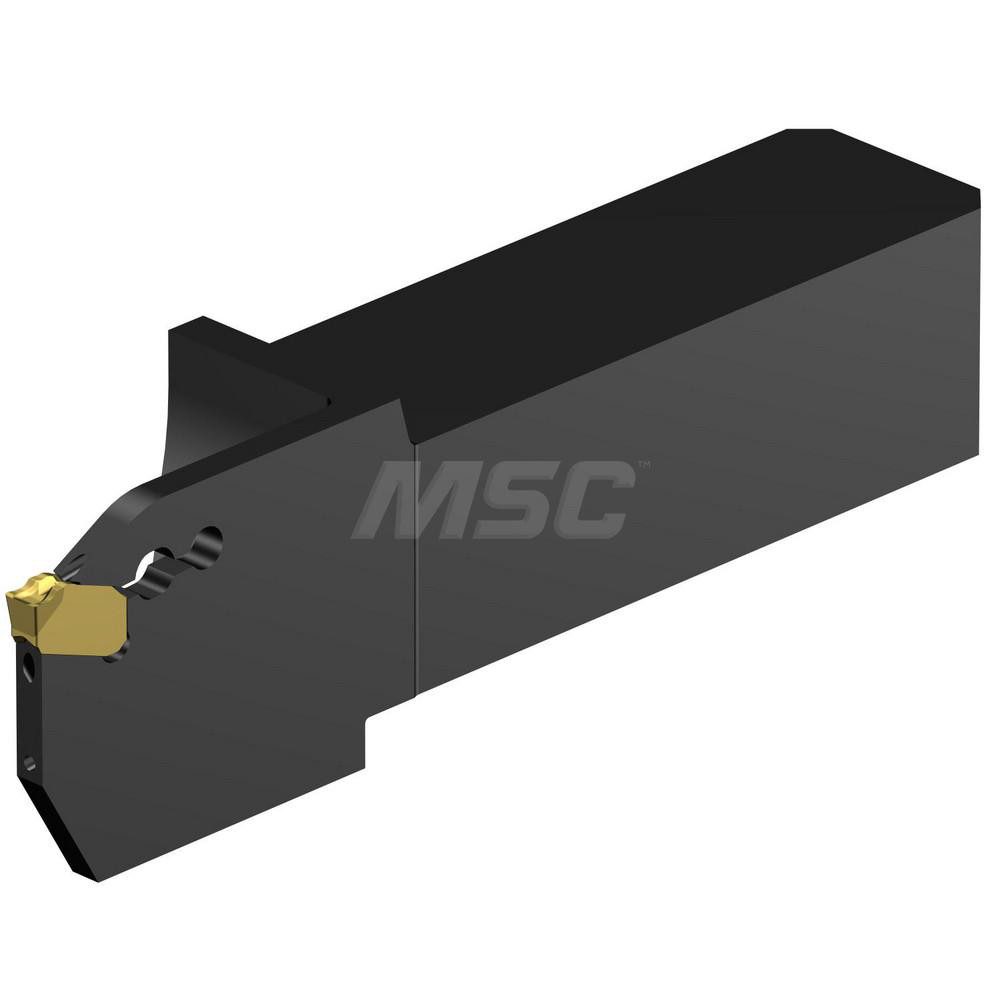

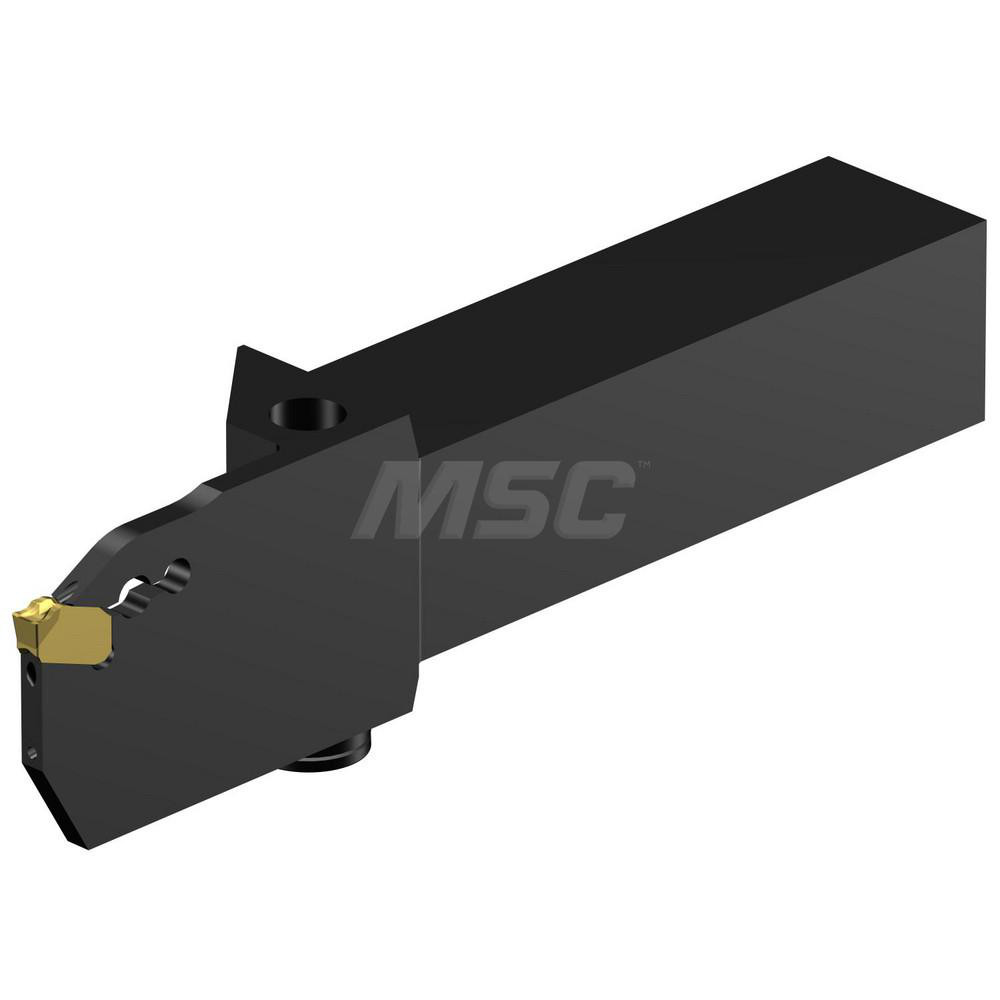

25 mm Max Depth of Cut, 32 x 32 mm Shank, Uses N123H2 Inserts

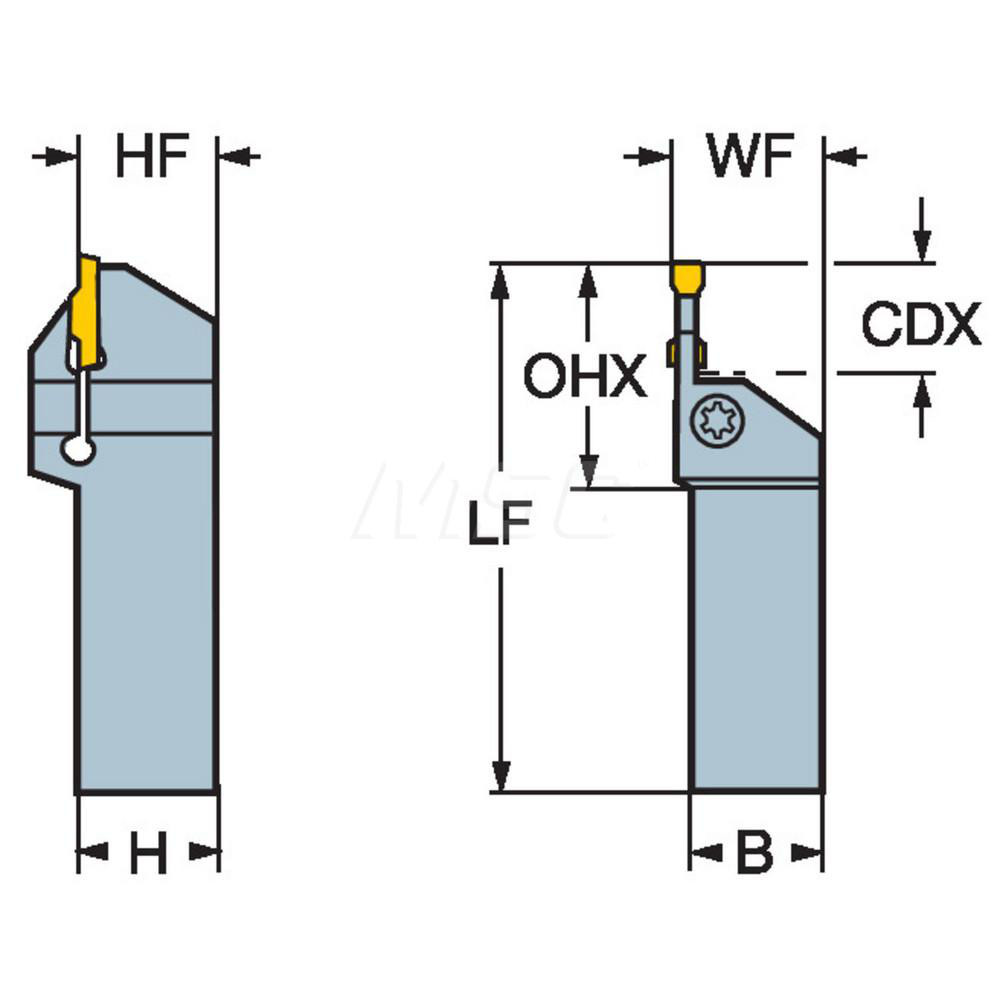

| Insert Seat Size | H |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.9843 |
| Maximum Depth of Cut (mm) | 25.00 |
| Toolholder Style | R/LF123..B |

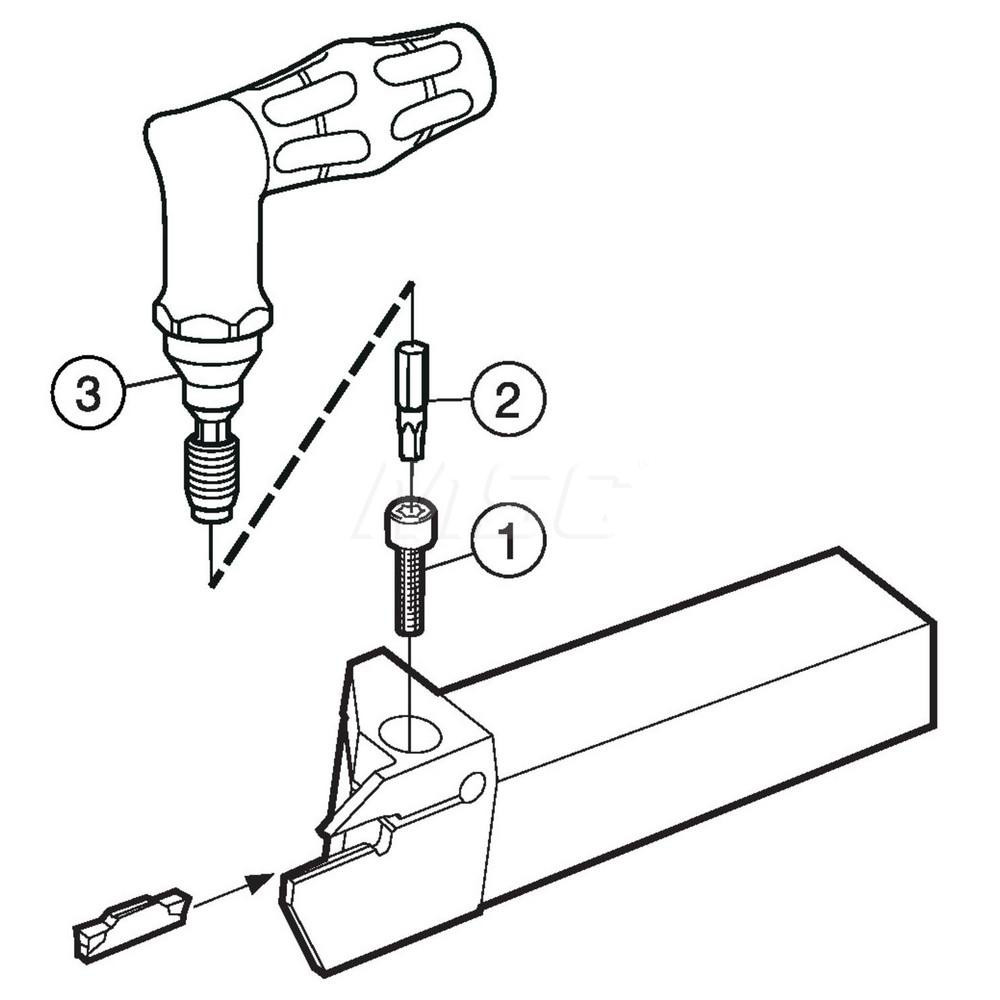

| Insert Holding Method | Clamp |
| Insert Compatibility | N123H2-0400-0004-TF |
| Compatible Insert Size Code | N123H2 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Series | Coro Cut 1-2 |
| Overall Length (mm) | 170 |
| Overall Length (Decimal Inch) | 6.6929 |
| Multi-use Tool | Yes |
| Maximum Overhang (Inch) | 1.8503 |
| Back of Bar to Cutting Edge (mm) | 170.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.6929 |
| Center to Cutting Edge (Decimal Inch) | 1.2992 |
| Center to Cutting Edge (mm) | 33.00 |
| Head Length (Decimal Inch) | 1.8504 |
| Head Length (mm) | 47.00 |
| UNSPSC Code | 27112809 |
| Maximum Bore Depth (Decimal Inch) | 1.8504 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123H2-0400-0004-TF |
| Coolant Through | No |
| Maximum Bore Depth (mm) | 47.00 |
| Country of Origin | Sweden |
| MSC Number | MSC# 49545205 |
